Tanaka ECS-356 Saw

Model: ECS-356

Save Part Not Listed?
product name

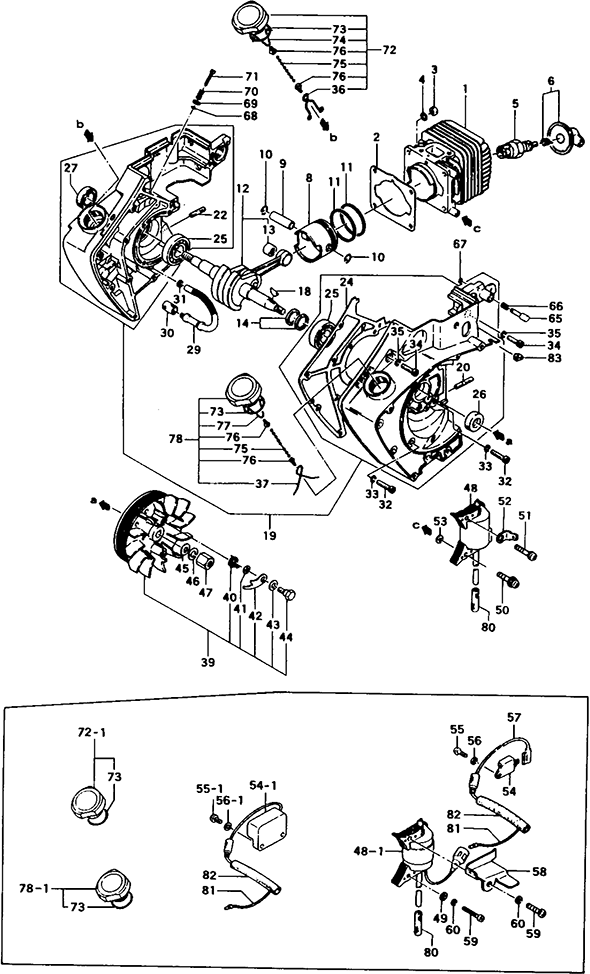

Tanaka ECS-356

...
...
1-001
Cylinder HIT-002-01800-211
...
1-001
Cylinder HIT-002-01800-220
...
1-002
Cylinder Gasket HIT-017-01800-200
...
1-003
Hex. Hut 5 HIT-991-01050-011
...
1-004
S.Washer 5 HIT-992-10050-012
...
1-005
Spark Plug Bm6A HIT-018-00502-200
...
1-005
Spark Plug Cj8 HIT-018-01805-200
...
1-006
Spark Plug Cap Ass'Y HIT-157-01800-900
...
1-006
Spark Plug Cap Ass'Y HIT-157-01800-901
...
1-008
Piston HIT-031-01800-200
...
1-009
Piston Pin HIT-037-01400-200
...
1-010
Piston Pin Circlip HIT-039-00000-201
...
1-011
Piston Ring HIT-041-04000-200
...
1-012
Crank Shaft Comp. HIT-046-01800-800
...
1-013
Needle Bearing F-910 HIT-999-62091-325
...
1-014
Crank Shaft Shim 0.05 HIT-071-02007-200
...
1-014
Crank Shaft Shim 0.10 HIT-071-02007-210
...
1-014
Crank Shaft Shim 0.15 HIT-071-02007-220
...
1-014
Crank Shaft Shim 0.20 HIT-071-02007-230
...
1-018
Wood-Ruff Key 3X13X4.5 HIT-068-10100-200
...
1-019
Crank Case Ass'Y Vermilion HIT-072-01800-900
...
1-019
Crank Case Ass'Y Vermilion HIT-072-01800-901
...
1-019
Crank Case Ass'Y Vermilion HIT-072-01800-902
...
1-019
Crank Case Ass'Y HIT-072-01850-901
...
1-020
Stud Bolt 5X26 HIT-100-00501-200
...
1-022
Stud Bolt 5X21 HIT-100-00100-201
...
1-024
Crank Case Gasket HIT-090-01800-203
...
1-025
Ball Bearing 6202, 35Mm/Od HIT-999-61620-200
...
1-026
Oil Seal 12227 HIT-999-66122-266
...
1-026
Oil Seal 12227 HIT-999-66122-200
...
1-027
Oil Seal 15257 HIT-999-66152-500
...
1-029
Oil Pipe B HIT-505-32350-202
...
1-029
Oil Pipe B HIT-505-32350-203
...
1-030
Filter Net HIT-510-32350-200
...
1-031
Clip HIT-680-00803-201
...
1-031
Clip HIT-680-00803-202
...
1-032
Hex. Hole Bolt 5X25 HIT-990-51050-253
...
1-033
S.Washer 5 HIT-992-10050-012
...
1-034
Hex. Hole Bolt 5X22 HIT-990-51050-223
...
1-035
S.Washer 5 HIT-992-10050-012
...
1-036
Oil Tank Cap Hook HIT-641-32350-201
...
1-036
Oil Tank Cap Hook HIT-641-32350-202
...
1-037
Fuel Tank Cap Hook HIT-596-35100-202
...
1-039
Magneto Rotor Ass'Y HIT-155-21704-900
...
1-039
Magneto Rotor Ass'Y HIT-155-21704-901
...
1-039
Magneto Rotor Ass'Y HIT-155-21704-910
...
1-039
Magneto Rotor Ass'Y HIT-155-21704-911
...
1-040
Starter Pawl Spring HIT-790-01800-200
...
1-041
Starter Pawl Washer HIT-786-00601-200
...
1-042
Starter Pawl HIT-788-00601-203
...
1-043
Starter Pawl Shim 0.6T HIT-822-00601-200
...
1-044
Step Bolt HIT-793-10200-201
...
1-045
Flywheel Washer HIT-065-00000-200
...
1-046
S.Washer 7 HIT-992-10070-012
...
1-047
Flywheel Nut HIT-066-01800-200
...
1-048,1
Ignition Coil Comp. HIT-167-20738-800
...
1-048,1
Ignition Coil Comp. HIT-167-20763-800
...
1-048
Ignition Coil Comp. HIT-167-21850-800
...
1-049
Small Washer 4 HIT-992-00040-011
...
1-050
Screw 4X22/Ws HIT-994-16040-226
...
1-051
Screw 4X22/S HIT-994-14040-226
...
1-052
Terminal Tab HIT-205-11600-201
...
1-053
Washer HIT-182-0186A-200
...
1-054,1
Ignitor Comp. Tti-1D HIT-159-21401-870
...
1-054,1
Ignitor Comp. Tti-1E HIT-159-21401-871
...
1-054
Ignitor Comp. Tti-1F HIT-159-21401-872
...
1-055,1
Screw 4X16 HIT-990-11040-161
...
1-055
Screw 4X8 HIT-990-11040-081
...
1-056,1
S.Washer 4 HIT-992-10040-012
...
1-056
S.Washer 4 HIT-992-10040-012
...
1-057
Ignitor Lead Wire Comp.,R85M HIT-173-0162R-800
...
1-058
Cord Clamp HIT-198-01800-210
...
1-058
Cord Clamp HIT-198-01800-220
...
1-058
Cord Clamp HIT-198-01800-221
...
1-058
Cord Clamp HIT-198-01800-230
...
1-059
Screw 4X18 HIT-990-11040-181
...
1-060
S.Washer 4 HIT-992-10040-012
...
1-065
Push Pin HIT-064-32300-200
...
1-065
Push Pin HIT-064-32300-201
...
1-066
Stopper Spring HIT-066-32300-201
...
1-067
Stop Ring 3 HIT-993-55030-002
...
1-068
O-Ring P-3 HIT-999-67003-000
...
1-069
Washer 4 HIT-992-01040-011
...
1-070
Adjuster Spring HIT-502-32302-200
...
1-071
Oil Pump Adjuster HIT-501-32350-201
...
1-072,1
Oil Tank Cap Assy HIT-624-32354-901
...
1-072
Oil Tank Cap Ass'Y HIT-624-32350-901
...
1-073
O-Ring P-22 HIT-999-67022-000
...
1-074
Oil Tank Cap Hook HIT-634-32350-200
...
1-075
Tank Cap Chain HIT-626-32350-201
...
1-076
Ball Chain End HIT-627-32350-201
...
1-077
Tank Cap Hook B HIT-596-32377-200
...
1-077
Fuel Tank Cap Hook HIT-596-32377-210
...
1-078,1
Fuel Tank Cap Ass'Y HIT-635-32050-910
...
1-078
Fuel Tank Cap Ass'Y HIT-635-32377-900
...
1-078
Fuel Tank Cap Ass'Y HIT-635-32377-901
...
1-080
Cord Insulator Tube HIT-755-32050-200
...
1-081
Stop Cord Comp. HIT-178-00601-801
...
1-081
Stop Cord Comp. HIT-178-00810-801
...
1-081
Stop Cord Comp. HIT-178-00610-801
...
1-082
Cord Grommet HIT-203-01800-200
...
1-083
Primary Cord Grommet HIT-203-06000-200

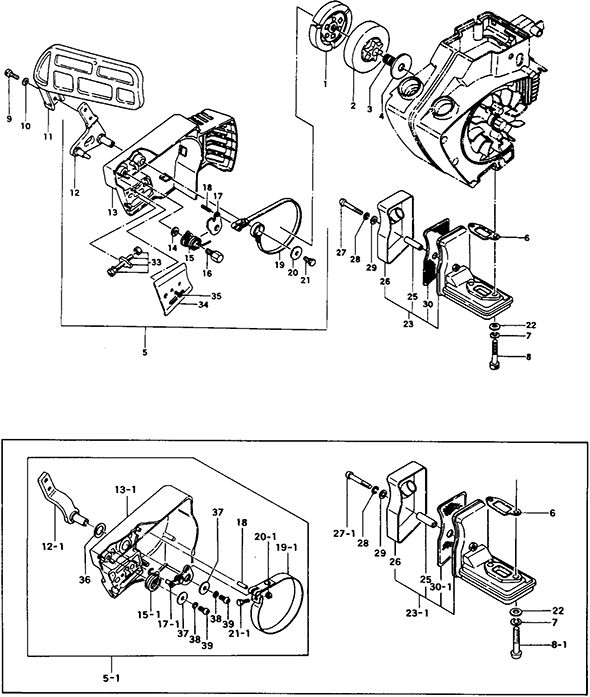

Tanaka ECS-356

...
...
2-001
Clutch Comp. HIT-287-01801-800
...
2-002
Clutch Housing Comp. P-3/8 HIT-310-01801-800
...
2-002
Clutch Housing Comp. P-3/8 HIT-310-01801-801
...
2-003
Needle Bearing 101310 HIT-999-62101-301
...
2-004
Clutch Washer HIT-358-01800-200
...
2-004
Clutch Washer HIT-358-01800-201
...
2-005,1
Side Case Ass'Y HIT-040-32377-900
...
2-005
Side Case Ass'Y HIT-040-32055-920
...
2-005
Side Case Ass'Y HIT-040-32055-921
...
2-006
Muffler Gasket HIT-737-01800-200
...
2-007
S.Washer 6 HIT-992-10060-012
...
2-008,1
Ft Screw 6X35 HIT-990-70060-351
...
2-008
Hex. Hole Bolt 6X35 HIT-990-51060-353
...
2-009
Hex. Hole Bolt 5X10 HIT-990-51050-103
...
2-010
S.Washer 5 HIT-992-10050-012
...
2-011
Brake Handle Comp. HIT-380-32600-803
...
2-012,1
Brake Lever Comp HIT-361-32377-801
...
2-012,1
Brake Lever Comp. HIT-361-32377-802
...
2-012
Brake Lever Comp. HIT-361-32367-810
...
2-013,1
Side Case HIT-040-32350-213
...
2-013
Side Case HIT-040-32055-220
...
2-013
Side Case Comp. HIT-040-32055-800
...
2-014
Special Washer B HIT-871-32367-200
...
2-015,1
Brake Spring HIT-374-32350-210
...
2-015
Brake Spring HIT-374-32367-210
...
2-016
Step Bolt A HIT-382-32367-210
...
2-017,1
Brake Link Comp. HIT-379-32350-800
...
2-017
Brake Arm HIT-373-32367-201
...
2-018
Spring Pin 4X12 HIT-993-24040-120
...
2-019,1
Brake Band Comp. HIT-378-32350-800
...
2-019
Brake Band Comp. HIT-378-32367-820
...
2-020,1
Nut 4 HIT-991-01040-013
...
2-020
Brake Shaft Washer HIT-368-32057-200
...
2-021,1
Bolt 4X8 HIT-990-21040-081
...
2-021
Step Bolt B HIT-383-32367-210
...
2-022
Washer 6 HIT-992-01060-011
...
2-023,1
Muffler Ass'Y HIT-705-01802-920
...
2-023
Muffler Ass'Y W/Spark Arrester HIT-705-01802-930
...
2-025
Muffler Collar HIT-740-01802-200
...
2-026
Muffler Body B Conp. HIT-717-01800-820
...
2-027,1
Screw 5X35 HIT-990-11050-351
...
2-027
Screw 5X35 HIT-994-31050-351
...
2-028
S.Vasher 5 HIT-992-10050-012
...
2-029
Washer 5 HIT-992-01050-011
...
2-030,1
Muffler Partition Plate HIT-722-01802-220
...
2-030
Spark Arrester HIT-732-01802-201
...
2-033
Tension Adjustment Bolt Ass'Y HIT-116-32382-900
...
2-034
Guide Plate B HIT-462-32350-210
...
2-035
Screw 4X6 HIT-990-11040-061
...
2-036
Crank Shaft Washer 12.2X18 HIT-070-00601-201
...
2-037
Brake Shaft Washer HIT-368-32350-200
...
2-038
S.Washer 5 HIT-992-10050-012
...
2-039
Screw 5X10 HIT-990-11050-101

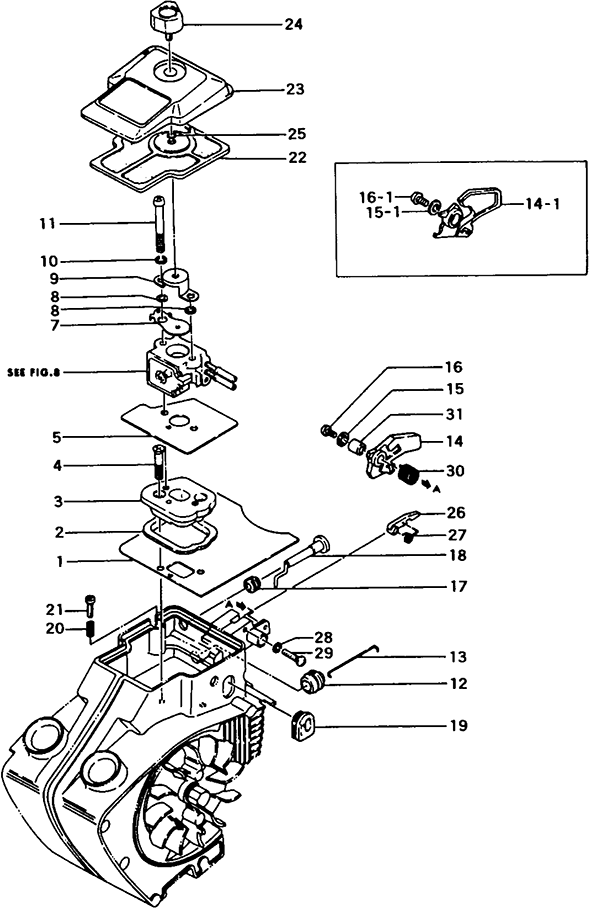

Tanaka ECS-356

...
...
3-001
Heat Shield HIT-133-01850-200
...
3-001
Heat Shield HIT-133-01850-201
...
3-002
Carburetor Insulator Rubber HIT-409-01800-210
...
3-003
Carburetor Insulator HIT-404-01800-203
...
3-004
F.H.Screw 5X25 HIT-990-12050-251
...
3-005
Carburetor Gasket HIT-402-01850-200
...
3-007
Choke Valve HIT-700-32350-211
...
3-008
Choke Valve Shim HIT-708-32350-200
...
3-009
Blow Over Check Board HIT-476-01800-200
...
3-010
S.Washer 5 HIT-992-10050-012
...
3-011
Screw 5X45 HIT-990-11050-451
...
3-012
Throttle Guide HIT-491-32350-201
...
3-013
Throttle Rod HIT-490-32350-210
...
3-013
Throttle Rod HIT-490-32050-201
...
3-014,1
Throttle Lever HIT-060-32350-211
...
3-014
Throttle Lever HIT-060-32050-214
...
3-015,1
Washer 3 HIT-992-01030-011
...
3-015
Washer HIT-513-32057-200
...
3-016,1
Screw 3X12 HIT-990-11030-121
...
3-016
Screw 3X14 HIT-990-11030-141
...
3-017
Secondary Cord Grommet HIT-202-01003-201
...
3-018
Choke Button Comp. HIT-704-32350-800
...
3-019
Adjuster Cap HIT-190-32314-200
...
3-020
Control Lever Spring/Rk11 HIT-845-11107-201
...
3-021
F.F.H. Screw 4X18 HIT-990-06040-181
...
3-022
Cleaner Element Comp. HIT-420-01800-801
...
3-023
Cleaner Cover HIT-051-32050-210
...
3-024
Cleaner Cap Knob Comp. HIT-158-32050-810
...
3-025
O-Ring P-3 HIT-999-67003-000
...
3-026
Throttle Lock Lever HIT-259-32350-202
...
3-027
Throttle Lock Spring HIT-261-32350-201
...
3-028
S.Washer 4 HIT-992-10040-012
...
3-029
Screw 4X20 HIT-990-11040-201
...
3-030
Throttle Lever Spring HIT-061-32350-203
...
3-031
Collar HIT-511-32050-200

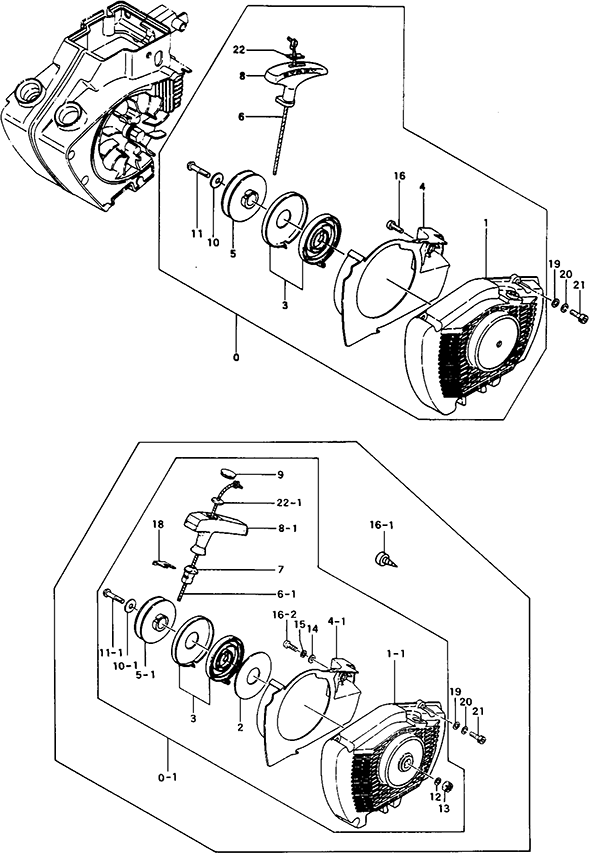

Tanaka ECS-356

...
...
4-000,1
Recoil Starter Ass'Y HIT-756-01801-900
...
4-000,1
Recoil Starter Ass'Y HIT-756-01856-901
...
4-000,1
Recoil Starter Ass'Y HIT-756-01856-902
...
4-000
Recoil Starter Ass'Y HIT-756-3236A-900
...
4-001,1
Fan Case Comp. HIT-112-01801-801
...
4-001,1
Fan Case Comp. HIT-112-01856-801
...
4-001
Fan Case Comp. HIT-112-0181A-800
...
4-002
Recoil Spring Case Cover HIT-778-00601-201
...
4-002
Recoil Spring Case Cover HIT-827-04060-210
...
4-003
Recoil Spring Case Ass'Y HIT-778-00601-900
...
4-004,1
Cover HIT-145-01850-201
...
4-004,1
Cover HIT-145-01850-202
...
4-004
Cover HIT-145-01850-203
...
4-005,1
Starter Rope Reel Comp. HIT-774-00601-806
...
4-005
Starter Rope Reelcomp. HIT-774-04063-800
...
4-006,1
Starter Rope 3.5X960 HIT-783-01800-200
...
4-006
Starter Rope HIT-783-04063-200
...
4-007
Rope Guide HIT-780-11600-201
...
4-008,1
Starter Handle HIT-785-11600-202
...
4-008
Starter Handle HIT-785-04063-200
...
4-009
Starter Handle Cap HIT-833-10207-200
...
4-010.1
Special Washer 5 HIT-992-08050-006
...
4-010
Starter Washer HIT-786-04063-200
...
4-011,1
Screw 5X27 HIT-990-11050-271
...
4-011.1
Screw 5X25 HIT-990-11050-251
...
4-011
Screw 5X12 HIT-990-15050-121
...
4-012
Inner Toothed Washer 5 HIT-992-20050-006
...
4-012
Inner Toothed Washer 5 HIT-992-20050-010
...
4-013
Hex. Slotted Nut HIT-991-20050-011
...
4-014
Small Washer 5 HIT-992-00050-011
...
4-015
S.Washer 5 HIT-992-10050-012
...
4-016,1
Tapping Screw 5X20 HIT-993-11052-013
...
4-016,2
Screw 5X20 HIT-990-11050-201
...
4-016
Screw 5X18 HIT-990-18050-181
...
4-018
Handle Guide Holder Metal HIT-781-11600-200
...
4-019
Small Washer 5 HIT-992-00050-011
...
4-020
S.Washer 5 HIT-992-10050-012
...
4-021
Hex. Hole Bolt 5X15 HIT-990-51050-153
...
4-022,1
Rope Stopper HIT-795-11600-200
...
4-022
Rope Stopper HIT-795-04063-200

Tanaka ECS-356

...
...

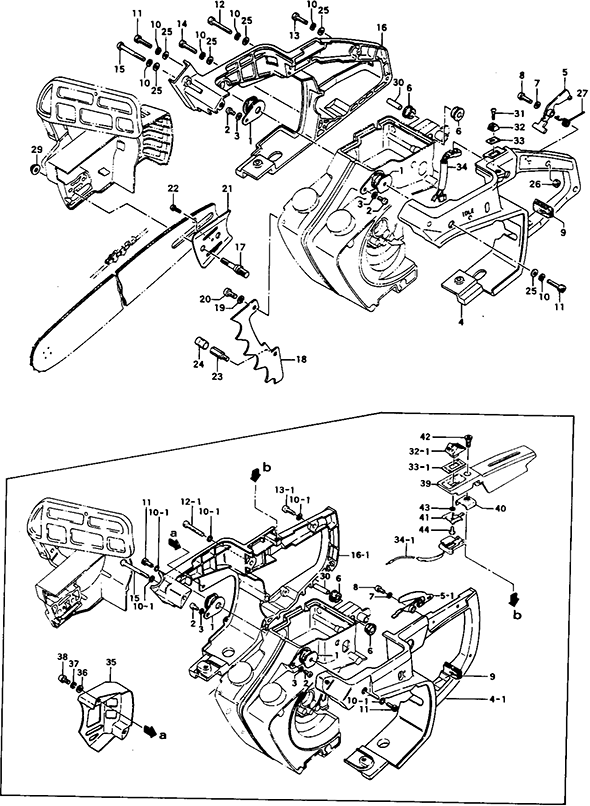

5-001
Side Damper Comp. HIT-222-32350-801
...
5-002
Screw 5X12 HIT-990-11050-121
...
5-003
S.Washer 5 HIT-992-10050-012
...
5-004,1
Handle/Rear A HIT-010-32353-201
...
5-004
Rear Handle A Comp. HIT-010-3236A-800
...
5-005,1
Safty Lever HIT-257-32350-212
...
5-005
Safety Lever HIT-257-32050-202
...
5-006
Safety Damper HIT-250-32350-201
...
5-007
Washer 3 HIT-992-01030-011
...
5-008
Screw 3X8 HIT-990-11030-081
...
5-008
Screw 3X10 HIT-990-11030-101
...
5-009
Secondary Cord Grommet HIT-202-01800-201
...
5-009
Secondary Cord Grommet HIT-202-01800-202
...
5-010,1
S.Washer 5 HIT-992-10050-012
...
5-010
S.Washer 5 HIT-992-10050-012
...
5-011
Hex. Hole Bolt 5X15 HIT-990-51050-153
...
5-012,1
Hex. Hole Bolt 5X35 HIT-990-51050-353
...
5-012
Hex. Hole Bolt 5X40 HIT-990-51050-403
...
5-013,1
Screw 5X16 HIT-990-11050-161
...
5-013
Hex. Hole Bolt 5X20 HIT-990-51050-203
...
5-014
Hex. Hole Bolt 5X30 HIT-990-51050-303
...
5-015
Screw 5X45 HIT-990-11050-451
...
5-016,1
Rear Handle B HIT-011-32353-202
...
5-016.1
Rear Handle B HIT-011-32371-202
...
5-016
Rear Handle B Comp. HIT-011-3236A-800
...
5-017
Chain Bar Clamp Bolt HIT-101-32350-200
...
5-018
Spike HIT-460-32350-210
...
5-019
S.Washer 5 HIT-992-10050-012
...
5-020
Screw 5X12 HIT-990-11050-121
...
5-021
Guide Plate A HIT-461-32350-210
...
5-022
Screw 4X6 HIT-990-11040-061
...
5-023
Chain Catcher HIT-125-32060-210
...
5-024
Vinyl Pipe HIT-700-01012-018
...
5-025
Small Washer 5 HIT-992-00050-011
...
5-026
Hex. Nut 5 HIT-991-01050-011
...
5-027
Safety Spring HIT-258-32050-200
...
5-029
Chain Bar Clamp Nut HIT-121-32350-200
...
5-030
Safety Damper Collar HIT-251-32350-200
...
5-031
Screw 3X10 HIT-994-31030-101
...
5-032,1
Stop Button HIT-258-04015-202
...
5-032
Button Stop HIT-258-11600-200
...
5-033,1
On-Off Mark HIT-925-32350-200
...
5-033
Stop Button Mark HIT-925-32600-200
...
5-034,1
Stop Cord Comp. HIT-178-01800-803
...
5-034,1
Stop Cord Comp. HIT-178-01800-804
...
5-034
Stop Button Comp. HIT-170-04064-800
...
5-035
Muffler Protector HIT-738-32371-200
...
5-036
Small Washer 5 HIT-992-00050-011
...
5-037
S.Washer 5 HIT-992-10050-012
...
5-038
Screw 5X10 HIT-990-11050-101
...
5-039
Handle Grip B HIT-226-32350-202
...
5-040
Ground Terminal HIT-272-04015-204
...
5-041
Stop Button Terminal HIT-261-01800-201
...
5-042
F.H. Screw 5X15 HIT-990-12050-151
...
5-042
F.H. Screw 5X12 HIT-990-12050-121
...
5-043
Small Washer 4 HIT-992-00040-011
...
5-044
Screw 4X6 HIT-990-11040-061

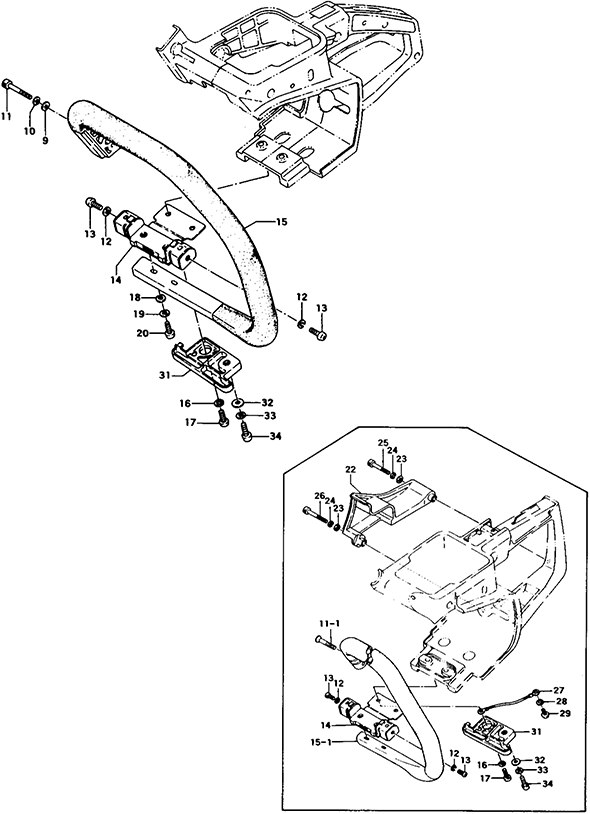

Tanaka ECS-356

...
...
6-009
Small Washer 5 HIT-992-00050-011
...
6-011,1
Screw 5X25 HIT-990-13050-251
...
6-013
Screw 5X12 HIT-990-11050-121
...
6-014
Damper Front Comp. HIT-219-32350-804
...
6-015,1
Front Handle Comp. HIT-209-32371-800
...
6-015
Front Handle Comp. HIT-209-3236A-800
...
6-016
S.Washer 5 HIT-992-10050-012
...
6-017
Screw 5X12 HIT-990-11050-121
...
6-018
Washer 5 HIT-992-01050-011
...
6-019
S.Washer 5 HIT-992-10050-012
...
6-020
Screw 5X16 HIT-990-11050-161
...
6-022
Rear Hand Guard HIT-800-32350-801
...
6-022
Rear Hand Guard HIT-800-32350-802
...
6-023
Small Washer 5 HIT-992-00050-011
...
6-024
S.Washer 5 HIT-992-10050-012
...
6-025
Hex. Hole Bolt 5X30 HIT-990-51050-303
...
6-026
Hex. Hole Bolt 5X40 HIT-990-51050-403
...
6-027
Ground Cord Comp. HIT-274-01800-800
...
6-028
S.Washer 5 HIT-992-10050-012
...
6-029
Screw 5X10 HIT-990-11050-101
...
6-031
Earth Cord Cover HIT-797-32050-800
...
6-032
Small Washer 5 HIT-992-00050-011
...
6-032
Washer 5 HIT-992-01050-011
...
6-033
S.Washer 5 HIT-992-10050-012
...
6-034
Screw 5X12 HIT-990-11050-121
...
6-034
Screw 5X16 HIT-990-11050-161
...
8-010
S.Washer 5 HIT-992-10050-012
...
8-011
Hex. Hole Bolt 5X25 HIT-990-51050-253
...
8-012
S.Washer 5 HIT-992-10050-012

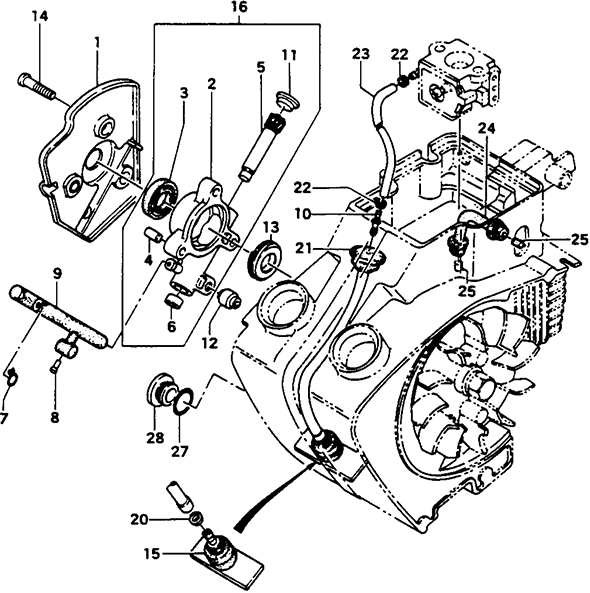

Tanaka ECS-356

...
...
7-001
Oil Pump Shroud Comp. HIT-097-32350-801
...
7-002
Oil Pump Case Comp. HIT-088-32350-800
...
7-003
Oil Seal Ac13246 HIT-999-66132-420
...
7-004
Knock Pin 4X8 HIT-999-05040-800
...
7-005
Pump Gear HIT-085-32350-200
...
7-005
Pump Gear HIT-085-32350-201
...
7-006
Grommet A HIT-086-32350-211
...
7-007
Clip 7.5 HIT-680-03113-200
...
7-008
Oil Jet HIT-516-32350-201
...
7-009
Oil Pipe A HIT-515-32350-201
...
7-010
Pipe Joint HIT-497-32350-200
...
7-011
Grommet B HIT-053-32500-201
...
7-012
Air Pipe HIT-622-00604-200
...
7-012
Air Pipe HIT-622-00604-201
...
7-012
Joint Rubber HIT-428-32350-200
...
7-013
Screw Gear HIT-084-32350-200
...
7-014
Screw 5X22 HIT-990-11050-221
...
7-015
Pump Filter Body Ass'Y HIT-675-01801-900
...
7-015
Pump Filter Body Ass'Y HIT-675-01801-901
...
7-016
Oil Pump Case Ass'Y HIT-088-32350-900
...
7-016
Oil Pump Case Ass'Y HIT-088-32350-901
...
7-020
Clip 7 HIT-680-04019-210
...
7-021
Rubber Pipe/Suction HIT-678-32350-200
...
7-022
Clip 5.5 HIT-680-00206-200
...
7-023
Fuel Pipe HIT-700-13005-060
...
7-023
Fuel Pipe HIT-700-13005-055
...
7-024
Air Vent Pipe HIT-565-01800-202
...
7-025
Air Vent Sponge HIT-567-01800-200
...
7-027
O-Ring P12.5 HIT-999-67012-500
...
7-028
Oil Level Cap HIT-525-32350-201

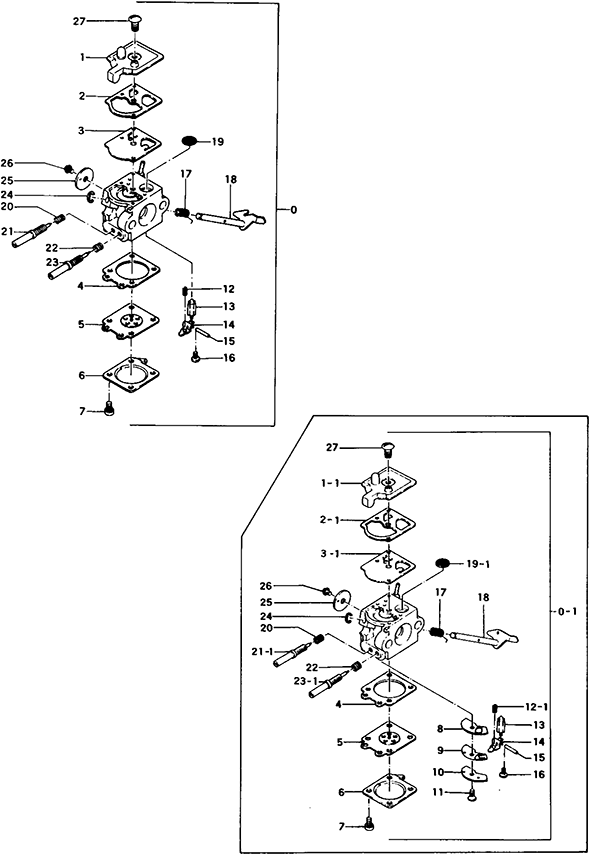

Tanaka ECS-356

...
...
8-000,1
Carburetor Ass'Y HIT-455-25005-901
...
8-000
Carburetor Ass'Y HIT-455-25024-900
...
8-001,1
Pump Body HIT-575-25005-200
...
8-001
Pump Body HIT-575-25024-200
...
8-002,1
Pump Gasket HIT-577-25001-200
...
8-002
Pump Gasket HIT-577-25007-200
...
8-003,1
Pump Diaphragm HIT-576-25001-200
...
8-003
Pump Diaphragm HIT-576-25006-200
...
8-004
Diaphragm Gasket HIT-475-25001-200
...
8-005
Metering Diaphragm Comp. HIT-474-25001-800
...
8-006
Diaphragm Case HIT-476-25003-200
...
8-007
Set Screw HIT-548-25012-200
...
8-008
Circuit Plate Gasket HIT-522-25001-200
...
8-009
Circuit Check Valve Diaphragm HIT-521-25001-200
...
8-010
Circuit Plate HIT-523-25001-200
...
8-011
Circuit Plate Screw HIT-524-25001-200
...
8-012,1
Valve Spring HIT-477-25003-200
...
8-012
Valve Spring HIT-477-25007-200
...
8-013
Needle Valve HIT-603-25001-200
...
8-014
Valve Hinge HIT-473-25001-200
...
8-015
Hinge Pin HIT-605-25001-200
...
8-016
Hinge Pin Set Screw HIT-546-25001-200
...
8-017
Throttle Spring HIT-486-25005-200
...
8-018
Throttle Shaft Comp. HIT-464-25003-801
...
8-019,
Inlet Screen HIT-578-25001-200
...
8-019
Inlet Screen HIT-578-25007-200
...
8-020
High/Low Adjust Spring HIT-623-25001-200
...
8-021,1
Low Adjust Screw HIT-461-25005-200
...
8-021
Low Adjust Screw HIT-461-25016-200
...
8-022
High Adjust Spring HIT-485-25003-200
...
8-023,1
Main Adjust Screw HIT-460-25003-200
...
8-023
High Adjust Screw HIT-460-25016-200
...
8-024
Stop Ring HIT-489-25004-200
...
8-025
Throttle Valve HIT-488-25001-200
...
8-026
Shutter Screw HIT-467-25003-200
...
8-027
Set Screw HIT-514-25001-200

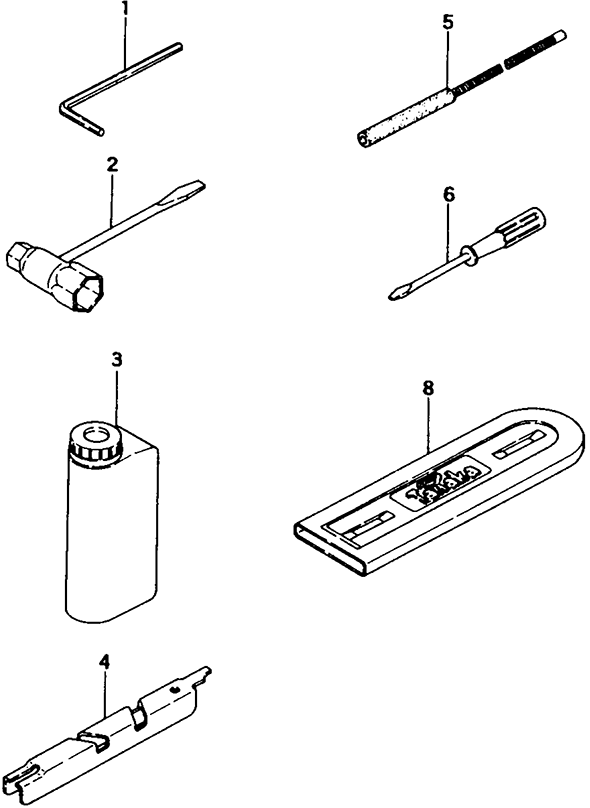

Tanaka ECS-356

...
...
9-001
Hex Viench 4 HIT-813-20000-200
...
9-002
Combi. Box Spanner 10X19 HIT-013-29323-500
...
9-002
Combi. Box Spanner 10X19 HIT-013-29323-501
...
9-003
Fuel Premix Canister HIT-872-20000-201
...
9-004
Depth Guage HIT-930-32057-200
...
9-005
File Ass'Y 5/32" HIT-936-20000-900
...
9-006
Minus Driver 2.8X40 HIT-864-20000-210
...
9-008
Chain Cover 16" HIT-947-32055-200
...
9-008
Chain Cover 16" HIT-947-32055-201

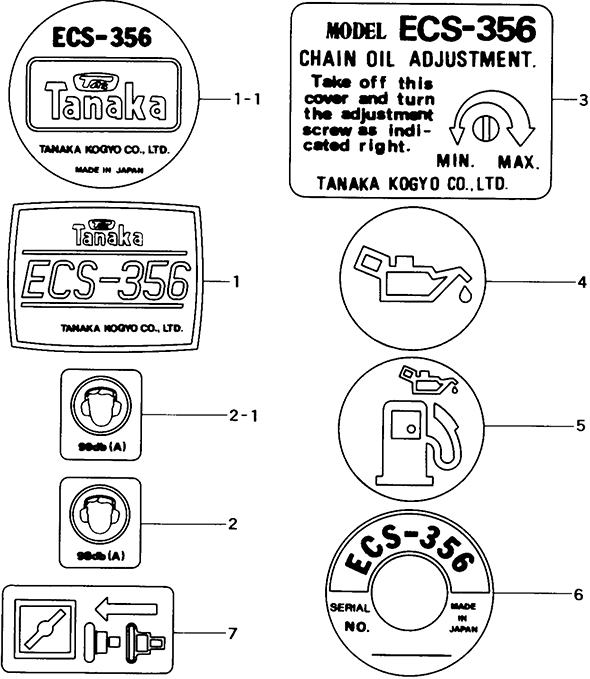

Tanaka ECS-356

...
...
10-001,1
Mame Plate HIT-906-32371-210
...
10-001
Hake Plate HIT-906-32399-200
...
10-002,1
Earmuff Care Mark HIT-931-32377-201
...
10-002
Earmuff Care Mark HIT-931-32378-200
...
10-003
Cleaner Cover Mark HIT-912-32371-210
...
10-004
Oil Mark HIT-921-32350-201
...
10-005
Fuel Mark HIT-920-32600-210
...
10-008
Starter Hark Bcs-356 HIT-915-32371-210
...
10-007
Choke Mark HIT-913-32377-200
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
