Tanaka ECS-330 Saw

Model: ECS-330

Save Part Not Listed?
product name

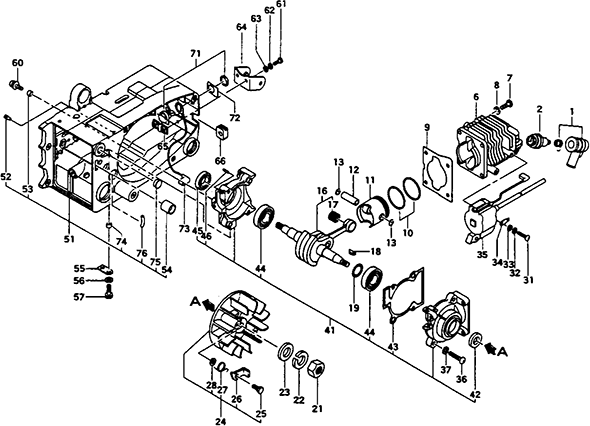

Tanaka ECS-330

...
...
1-001
Spark Plug Cap Ass'Y HIT-157-11666-900
...
1-002
Spark Plug Cj8 HIT-018-01805-200
...
1-006
Cylinder HIT-002-01730-200
...
1-007
Screw 5X16 HIT-990-11050-161
...
1-008
S.Washer 5 HIT-992-10050-012
...
1-009
Cylinder Gasket HIT-017-01730-200
...
1-010
Piston Ring HIT-041-01730-200
...
1-011
Piston HIT-031-01730-200
...
1-012
Piston Pin HIT-037-01400-200
...
1-013
Piston Pin Circlip HIT-039-00000-201
...
1-016
Crank Shaft Comp. HIT-046-01700-801
...
1-017
Needle Bearing F-910 HIT-999-62091-325
...
1-018
Wood-Ruff Key 3X13X4.5 HIT-068-10100-200
...
1-019
Crank Shaft Shim 0.05 HIT-071-02007-200
...
1-019
Crank Shaft Shim 0.10 HIT-071-02007-210
...
1-019
Crank Shaft Shim 0.15 HIT-071-02007-220
...
1-019
Crank Shaft Shim 0.20 HIT-071-02007-230
...
1-021
Flywheel Nut 12 HIT-066-00000-200
...
1-022
S.Washer 7 HIT-992-10070-012
...
1-023
Washer 7 HIT-992-01070-011
...
1-024
Magneto Rotor Ass'Y HIT-155-20507-900
...
1-025
Step Bolt HIT-793-10200-202
...
1-026
Starter Pawl HIT-788-01700-200
...
1-027
Starter Pawl Spring HIT-790-01700-200
...
1-028
Special Washer HIT-182-01700-200
...
1-031
Screw 4X18 HIT-990-11040-181
...
1-032
S.Washer 4 HIT-992-10040-012
...
1-033
Small Washer 4 HIT-992-00040-011
...
1-034
Tab HIT-205-01700-200
...
1-035
Ignition Coil Comp. HIT-167-20507-800
...
1-036
Screw 5X25 HIT-990-11050-251
...
1-037
S.Washer 5 HIT-992-10050-012
...
1-041
Crank Case Ass'Y HIT-072-01730-900
...
1-042
Oil Seal 12227 HIT-999-66122-200
...
1-043
Crank Case Gasket HIT-090-01730-200
...
1-044
Ball Bearing 6202 HIT-999-61620-200
...
1-045
Oil Seal 15257 HIT-999-66152-500
...
1-046
Needle Roller 2.5X9.8 HIT-999-05250-980
...
1-051
Engine Case Ass'Y HIT-560-32758-910
...
1-052
Air Vent Valve B HIT-562-04060-200
...
1-053
Collar HIT-031-32710-210
...
1-054
Tank Inner Cap Ass'Y HIT-629-11600-900
...
1-055
Holder Plate B HIT-874-32710-210
...
1-056
S.Washer 6 HIT-992-10060-012
...
1-057
Hex. Role Bolt 6X20 HIT-990-51060-203
...
1-060
Screw 5X18/Ps HIT-994-15050-165
...
1-081
Screw 4X12 HIT-990-11040-121
...
1-062
S.Washer 4 HIT-992-10040-012
...
1-083
Small Washer 4 HIT-992-00040-011
...
1-064
Damper Rear Stay HIT-243-32750-201
...
1-065
Holder Plate A Comp. HIT-873-32750-800
...
1-066
Primary Cord Grommet HIT-203-10000-200
...
1-071
Stop Switch Ass'Y HIT-162-01570-000
...
1-072
Switch Name Plate HIT-183-01300-200
...
1-073
Earth Cord Comp. HIT-274-01710-800
...
1-074
Collar HIT-031-32750-200
...
1-075
Grommet A HIT-052-32718-200
...
1-078
Grommet HIT-700-12004-026

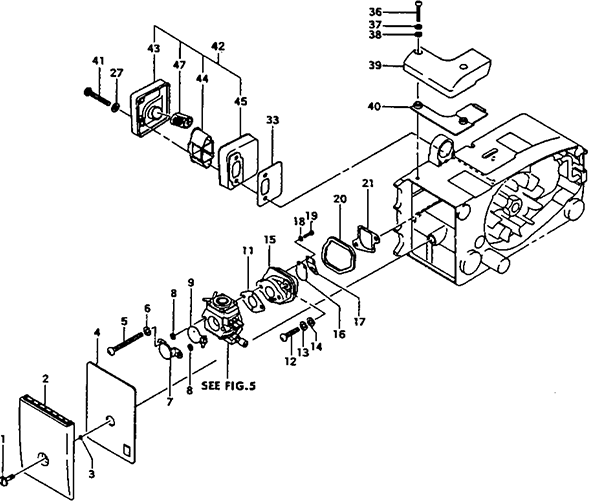

Tanaka ECS-330

...
...
2-001
Air Cleaner Bolt HIT-170-32710-200
...
2-002
Cleaner Cover A HIT-051-32710-200
...
2-003
O-Ring P-3 HIT-999-67003-000
...
2-003
O-Ring P-3 HIT-999-67003-003
...
2-004
Cleaner Element Comp. HIT-420-01700-800
...
2-005
Screw 5X40 HIT-990-11050-401
...
2-006
S.Washer 5 HIT-992-10050-012
...
2-007
Blow Over Check Board HIT-476-01700-200
...
2-008
Choke Valve Shim HIT-708-32350-200
...
2-009
Choke Valve HIT-700-32710-200
...
2-011
Carburetor Gasket HIT-402-11850-200
...
2-012
Screw 5X25, Stainless HIT-990-11050-257
...
2-013
S.Washer 5 HIT-992-10050-012
...
2-014
Small Washer 5 HIT-992-00050-011
...
2-015
Carburetor Insulator Comp. HIT-404-01730-800
...
2-016
Reed Valve HIT-394-01700-200
...
2-017
Reed Valve Holder HIT-395-01730-200
...
2-018
S.Washer 3 HIT-992-10030-012
...
2-019
Screw 3X12 HIT-990-11030-121
...
2-019
Screw 3X12 HIT-990-15030-121
...
2-020
Carburetor Insulator Rubber HIT-409-01700-200
...
2-021
Inlet Manifold Gasket HIT-403-01700-200
...
2-027
Washer 5 HIT-992-01050-011
...
2-033
Muffler Gasket HIT-737-01700-200
...
2-036
Hi-Lo Screw 4X25 HIT-993-41040-251
...
2-037
S.Washer 4 HIT-992-10040-012
...
2-038
Small Washer 4 HIT-992-00040-011
...
2-039
Cleaner Cover B HIT-152-32710-200
...
2-040
Cleaner Cover C HIT-153-32710-200
...
2-041
Screw 5X35 HIT-990-11050-351
...
2-042
Muffler Ass'Y HIT-705-01712-900
...
2-043
Muffler Body B Comp. HIT-717-01712-800
...
2-044
Muffler Fitting Metal HIT-724-01700-200
...
2-045
Muffler Body A Comp. HIT-716-01700-800
...
2-047
Spark Arrestor HIT-732-01710-200

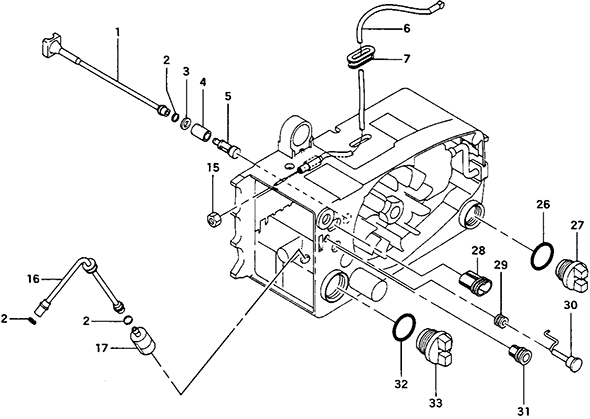

Tanaka ECS-330

...
...
3-001
Oil Pipe B HIT-505-32710-200
...
3-002
Clip 7 HIT-680-04019-210
...
3-003
Washer 5 HIT-992-01050-011
...
3-004
Oil Filter HIT-487-32712-201
...
3-005
Oil Filter Body HIT-486-32710-200
...
3-006
Throttle Wire Comp. HIT-885-01710-800
...
3-007
Wire Grommet HIT-964-01710-200
...
3-015
Nut 6 HIT-991-01060-013
...
3-016
Rubber Pipe HIT-678-01700-200
...
3-017
Pump Filter Body Ass'Y HIT-675-11600-900
...
3-026
O-Ring P-18 HIT-999-67018-000
...
3-027
Oil Tank Cap HIT-520-32710-201
...
3-028
Adjuster Cap HIT-190-32710-200
...
3-029
Grommet HIT-707-32710-200
...
3-030
Choke Button Comp. HIT-704-32710-800
...
3-031
Grommet HIT-191-32710-200
...
3-032
O-Ring P-20 HIT-999-67020-000
...
3-033
Fuel Tank Cap HIT-628-32710-201

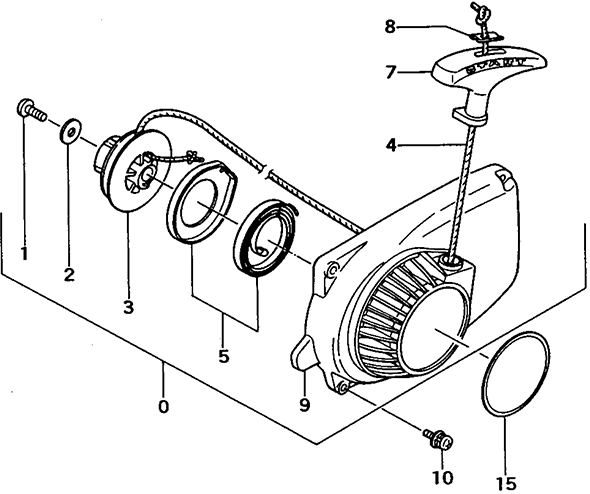

Tanaka ECS-330

...
...
4-000
Recoil Starter Ass'Y HIT-756-01700-901
...
4-001
Binding Head Screw 5X12 HIT-990-15050-121
...
4-002
Recoil Starter Washer HIT-786-01700-200
...
4-003
Starter Rope Reel HIT-774-01700-200
...
4-004
Starter Rope HIT-783-01700-201
...
4-005
Recoil Spring Case Ass'Y HIT-778-01700-901
...
4-007
Starter Handle HIT-785-04063-200
...
4-008
Rope Stopper HIT-795-04063-200
...
4-009
Fan Case Corp. HIT-112-01700-801
...
4-010
Screw 4X18/Ps HIT-994-15040-182
...
4-015
Proforce Mark A HIT-950-32710-200

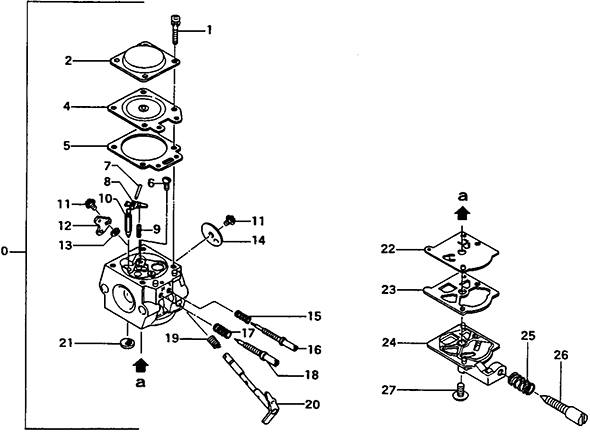

Tanaka ECS-330

...
...
5-000
Carburetor Ass'Y HIT-455-25045-900
...
5-001
Set Screw HIT-548-25012-200
...
5-002
Diaphragm Cover HIT-476-25004-200
...
5-004
Metering Diaphragm Comp. HIT-474-25001-800
...
5-005
Diaphragm Gasket HIT-475-25001-200
...
5-006
Hinge Pin Set Screw HIT-546-25001-200
...
5-007
Hinge Pin HIT-605-25001-200
...
5-008
Valve Hinge HIT-473-25001-200
...
5-009
Valve Spring HIT-477-25007-200
...
5-010
Needle Valve HIT-603-25001-200
...
5-011
Shutter Screw HIT-467-25003-200
...
5-012
Throttle Lever HIT-491-25027-200
...
5-013
Stop Ring HIT-489-25007-200
...
5-014
Throttle Valve HIT-488-25001-200
...
5-015
High/Low Adjust Spring HIT-623-25032-200
...
5-016
Low Adjust Screw HIT-461-25027-200
...
5-017
High Adjust Spring HIT-485-25040-200
...
5-018
High Adjust Screw HIT-460-25027-200
...
5-019
Throttle Spring HIT-486-25040-200
...
5-020
Throttle Shaft Comp. HIT-464-25016-800
...
5-021
Inlet Screen HIT-578-25007-200
...
5-022
Pump Diaphragm HIT-576-25006-200
...
5-023
Pump Gasket HIT-577-25007-200
...
5-024
Pump Body HIT-575-25028-200
...
5-025
Idle Adjust Spring HIT-463-25006-200
...
5-026
Idle Adjust Screw HIT-462-25016-200
...
5-027
Set Screw HIT-514-25001-200

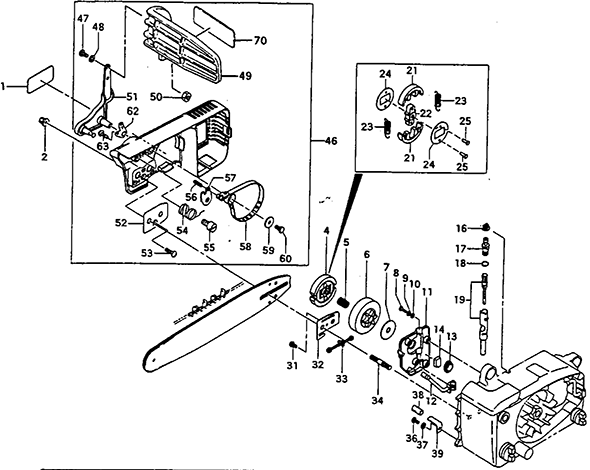

Tanaka ECS-330

...
...
6-001
Name Plate HIT-906-32777-200
...
6-002
Chain Bar Clamp Nut HIT-121-32530-200
...
6-004
Clutch Comp. HIT-287-01700-800
...
6-005
Needle Bearing 101310 HIT-999-62101-301
...
6-006
Clutch Housing 3/8" HIT-310-32710-200
...
6-007
Clutch Washer HIT-358-04050-201
...
6-008
Screw 4X12 HIT-990-11040-121
...
6-009
S.Washer 4 HIT-992-10040-012
...
6-010
Shall Washer 4 HIT-992-00040-011
...
6-011
Oil Pump Cover Comp. HIT-097-32710-800
...
6-012
Oil Pipe A HIT-515-32710-200
...
6-013
Screw Gear HIT-084-32710-201
...
6-014
Air Vent Sponge HIT-567-01700-200
...
6-016
Oil Adjust Grommet HIT-488-32710-210
...
6-017
Oil Pump Adjuster HIT-501-32710-210
...
6-018
O-Ring P-7 HIT-999-67007-000
...
6-018
O-Ring P-6 HIT-999-67006-000
...
6-019
Oil Punp Case Set HIT-088-3277A-91
...
6-021
Clutch Shoe HIT-345-01700-200
...
6-022
Clutch Boss HIT-346-01700-200
...
6-023
Clutch Spring HIT-342-01700-200
...
6-024
Clutch Plate A HIT-348-01700-200
...
6-025
Rivet 4X14 HIT-992-74004-143
...
6-031
Screw 4X10 HIT-993-41040-101
...
6-032
Plate HIT-488-32710-200
...
6-033
Tension Adjustment Bolt Ass'Y HIT-116-32710-900
...
6-034
Chain Bar Stud Bolt HIT-101-32530-200
...
6-036
Screw 5X12 HIT-990-11050-121
...
6-037
S.Washer 5 HIT-992-10050-012
...
6-038
Vinyl Pipe HIT-700-07105-020
...
6-039
Chain Catcher HIT-125-32710-200
...
6-046
Side Case Ass'Y HIT-040-32750-900
...
6-046
Side Case Ass'Y HIT-040-32750-91
...
6-047
Screw 5X18 HIT-990-11050-181
...
6-048
S.Washer 5 HIT-992-10050-012
...
6-049
Brake Handle HIT-380-32750-200
...
6-050
Hex. Hut 5 HIT-991-01050-011
...
6-051
Brake Lever Comp. HIT-361-32750-801
...
6-051
Brake Lever Comp. HIT-361-32750-810
...
6-052
Guide Plate B HIT-462-32750-200
...
6-053
Screw 4X10 HIT-993-41040-101
...
6-054
Brake Spring HIT-374-32367-210
...
6-055
Step Bolt A HIT-382-32750-200
...
6-056
Spring Pin 4X12 HIT-993-24040-120
...
6-057
Brake Arm HIT-373-32367-201
...
6-057
Brake Arm HIT-373-32771-200
...
6-058
Brake Belt Comp. HIT-378-32750-800
...
6-059
Brake Shaft Washer HIT-368-32057-200
...
6-060
Step Bolt B HIT-383-32367-210
...
6-061
Side Case Comp. HIT-040-32750-800
...
6-061
Side Case Comp. HIT-040-32750-810
...
6-062
Center Spring HIT-359-32771-200
...
6-063
Screw 4X10 HIT-993-41040-101
...
6-070
Caution Mark HIT-907-32777-200
...
6-070
Caution Mark HIT-907-32777-210

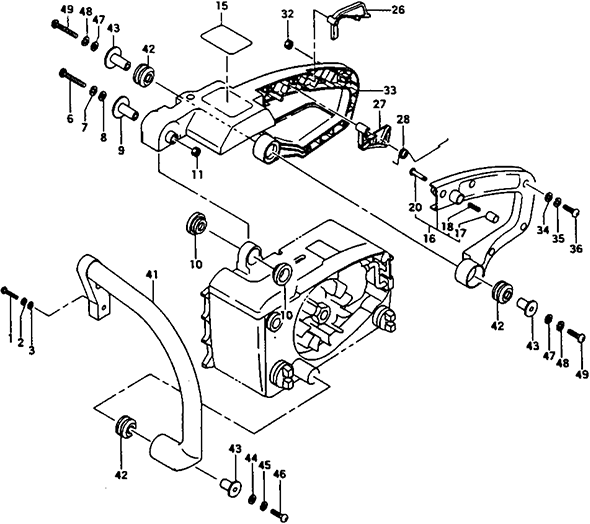

Tanaka ECS-330

...
...
7-001
Screw 5X25 HIT-990-11050-251
...
7-002
S.Washer 5 HIT-992-10050-012
...
7-003
Washer 5 HIT-992-01050-011
...
7-006
Screw 5X40 HIT-990-11050-401
...
7-007
S.Washer 5 HIT-992-10050-012
...
7-008
Small Washer 5 HIT-992-00050-011
...
7-009
Damper Collar A HIT-275-32710-201
...
7-010
Damper A HIT-219-32750-200
...
7-011
U-Nut 5 HIT-991-74050-010
...
7-015
Symbol Hark HIT-929-32777-200
...
7-016
Rear Handle B Comp. HIT-011-32750-801
...
7-017
Push Pin Cap HIT-725-32600-202
...
7-018
Stopper Spring HIT-066-32300-201
...
7-020
Push Pin HIT-064-33225-200
...
7-026
Safety Lever HIT-257-32750-201
...
7-027
Throttle Lever HIT-060-32750-202
...
7-028
Throttle Lever Spring HIT-061-32750-201
...
7-032
Hex. Nut 4 HIT-991-01040-011
...
7-033
Rear Handle A Comp. HIT-010-32750-802
...
7-034
Small Washer 4 HIT-992-00040-011
...
7-035
S.Washer 4 HIT-992-10040-012
...
7-036
Screw 4X22 HIT-990-11040-221
...
7-041
Front Handle Comp. HIT-209-32750-800
...
7-042
Damper B HIT-266-32750-200
...
7-043
Damper Collar B HIT-276-32710-201
...
7-044
Small Washer 5 HIT-992-00050-011
...
7-045
S.Washer 5 HIT-992-10050-012
...
7-046
Screw 5X30 HIT-990-11050-301
...
7-047
Small Washer 5 HIT-992-00050-011
...
7-048
S.Washer 5 HIT-992-10050-012
...
7-049
Screw 5X28 HIT-990-11050-281

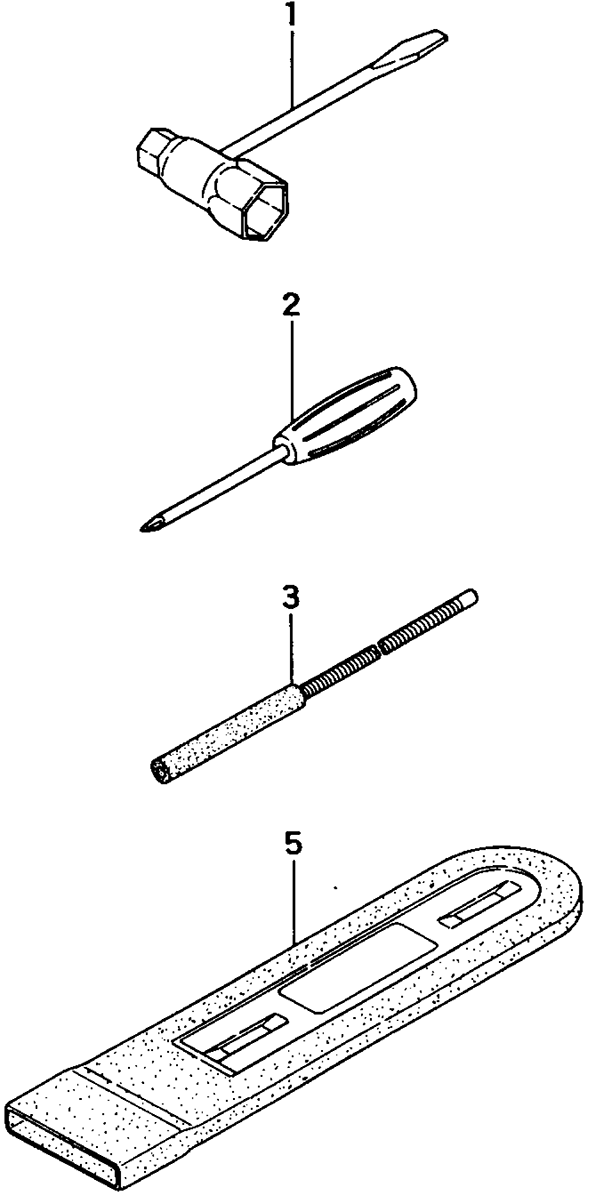

Tanaka ECS-330

...
...
8-001
Conbi. Box Spanner 10X19 HIT-013-29323-501
...
8-002
Plus Driver 4 HIT-862-20000-200
...
8-003
File Ass'Y 5/32" HIT-936-20000-900
...
8-005
Chain Cover 12" HIT-943-32710-201
