Tanaka DEG-600 Generator

Model: DEG-600

Save Part Not Listed?
product name

Tanaka DEG-600

...
...

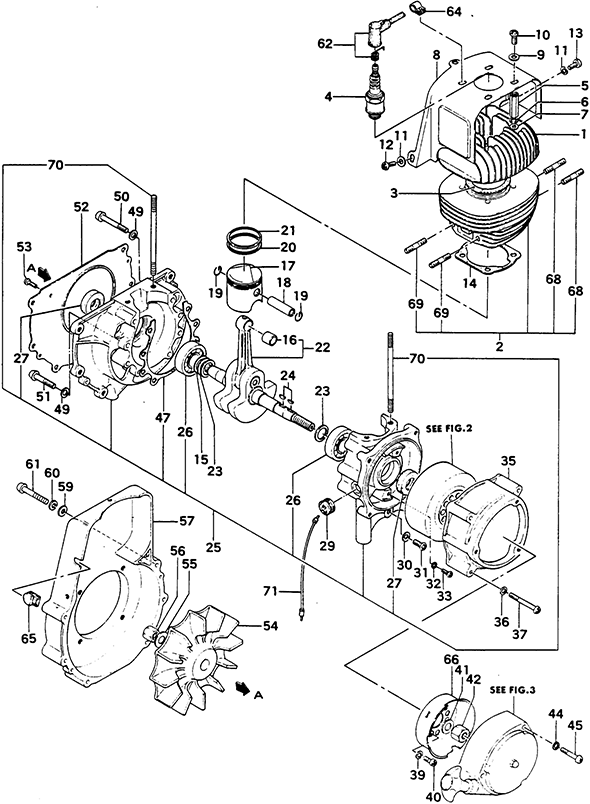

1-001
Cylinder Head HIT-014-10112-201
...
1-002
Cylinder Comp. HIT-002-10114-803
...
1-003
Cylinder Head Gasket HIT-015-10100-201
...
1-004
Spark Plug 8-7$ HIT-018-11401-200
...
1-005
Cylinder Head Nut 6X33 HIT-024-11100-200
...
1-006
S.Washer 6 HIT-992-10060-012
...
1-007
Washer 6 HIT-992-01060-011
...
1-008
Cylinder Shroud/D50 HIT-016-10109-201
...
1-009
Washer 6 HIT-992-01060-011
...
1-010
Screw 6X12 HIT-990-11060-121
...
1-011
Washer 5 HIT-992-01050-011
...
1-012
Screw 5X8 HIT-990-11050-081
...
1-013
Bolt 5X8 HIT-990-21050-081
...
1-014
Cylinder Gasket/Ul HIT-017-10100-202
...
1-015
Crank Shaft Shim 0.15 HIT-071-11109-220
...
1-015
Crank Shaft Shim 0.20 HIT-071-11109-230
...
1-015
Crank Shaft Shim 0.3 HIT-071-11109-240
...
1-016
Needle Bearing F10108 HIT-999-62101-004
...
1-017
Piston HIT-031-10100-210
...
1-018
Piston Pin 10X35 HIT-037-10100-200
...
1-019
Piston Pin Circlip HIT-039-02000-201
...
1-020
Piston Ring/Lower HIT-041-10100-201
...
1-021
Piston Ring/Top HIT-040-10100-200
...
1-022
Crank Shaft Comp. HIT-046- 10117-800
...
1-023
Crank Shaft Washer HIT-070-10100-200
...
1-024
Wood-Ruff Key 3X13X5 HIT-068-02000-200
...
1-025
Crank Case Ass'Y HIT-072-10114-900
...
1-026
Ball Bearing 6203 HIT-999-61620-300
...
1-027
Oil Seal L5307 HIT-999-66153-000
...
1-029
Secondary Cord Grommet HIT-202-10100-203
...
1-030
Drain Gasket 6 HIT-317-02000-200
...
1-031
Screw 6X10 HIT-990-11060-101
...
1-032
Washer 4 HIT-992-01040-011
...
1-033
Screw 4X12 HIT-990-11040-121
...
1-035
Starter Base HIT-806-04007-200
...
1-036
S.Washer 5 HIT-992-10050-012
...
1-037
Screw 5X45 HIT-990-11050-451
...
1-039
S.Washer 6 HIT-992-10060-012
...
1-040
Screw 6X12 HIT-990-11060-121
...
1-041
Fly Wheel Washer HIT-065-02501-200
...
1-042
Fly Wheel Nut HIT-066-02300-201
...
1-044
S.Washer 5 HIT-992-10050-012
...
1-045
Screw 5X45 HIT-990-11050-451
...
1-047
Crank Case Gasket HIT-090- 10107-201
...
1-049
S.Washer 6 HIT-992-10060-012
...
1-050
Screw 6X35 HIT-990-11060-351
...
1-051
Screw 6X40 HIT-990-11060-401
...
1-052
Partition Plate HIT-091-10107-201
...
1-053
Screw 4X8 HIT-990-11040-081
...
1-054
Fan Comp HIT-113-10114-805
...
1-055
Washer 10 HIT-992-01100-011
...
1-056
Nut 10/L.H.Thread HIT-991-01100-011
...
1-057
Fan Case HIT-112-10114-200
...
1-059
Washer 5 HIT-992-01050-011
...
1-060
S.Washer 5 HIT-992-10050-012
...
1-061
Screw 5X40 HIT-990-11050-401
...
1-062
Spark Plug Cap Ass'Y HIT-157-04000-900
...
1-064
Cord Clamp L HIT-198-11109-200
...
1-065
Cord Grommet HIT-204-10105-201
...
1-066
Starter Pulley HIT-798-10108-200
...
1-068
Stud Bolt 6X22 HIT-100-02100-200
...
1-069
Stud Bolt 5X40 HIT-100-10114-200
...
1-070
Stud Bolt 6X100 HIT-100-10100-200
...
1-071
Stop Cord Comp. HIT-268-10114-800

Tanaka DEG-600

...
...

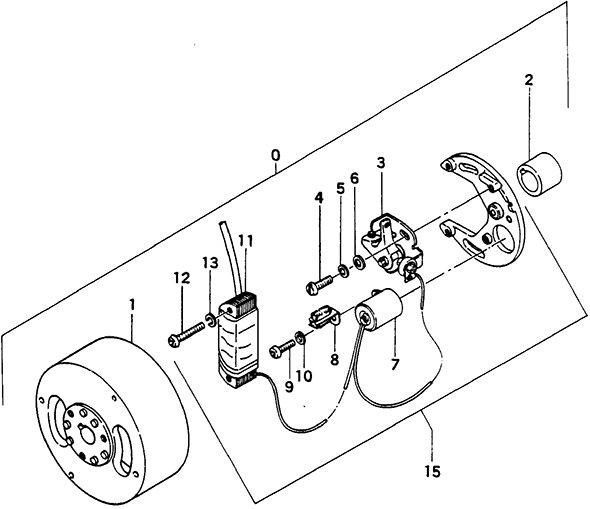

2-000
Magneto Ass'Y Ferrite HIT-150-20102-900
...
2-001
Magneto Rotor Comp. HIT-155-20102-800
...
2-002
Magneto Cam HIT-246-20102-200
...
2-003
Contact Breaker Ass'Y HIT-159-20001-900
...
2-004
Screw 4X10 HIT-990-01040-101
...
2-005
S.Washer HIT-992-10040-012
...
2-006
Washer 4 HIT-992-01040-011
...
2-007
Condenser Comp. HIT-177-20001-800
...
2-008
Lube Felt Comp. HIT-185-20001-800
...
2-009
Screw 4X10 HIT-990-11040-101
...
2-010
Washer 4 HIT-992-01040-011
...
2-011
Ignition Coil Comp. HIT-167-20102-800
...
2-012
Screw 4X28 HIT-990-11040-281
...
2-013
S.Washer 4 HIT-992-10040-012
...
2-015
Magneto Stator Ass'Y HIT-156-20102-900

Tanaka DEG-600

...
...

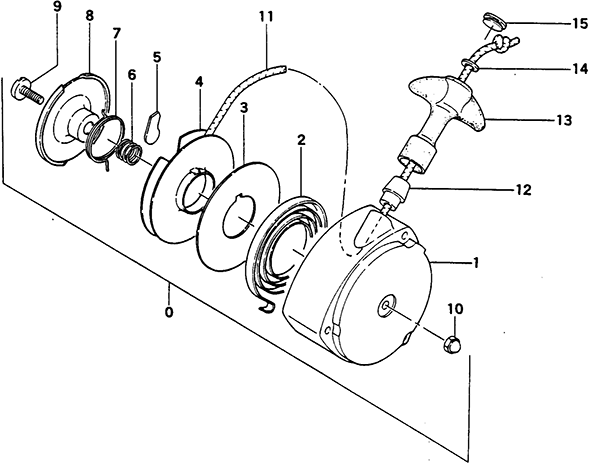

3-000
Recoil Starter Body Ass'Y HIT-762-10108-901
...
3-001
Recoil Starter Body HIT-772-10118-200
...
3-002
Recoil Spring HIT-779-02400-200
...
3-003
Recoil Spring Case HIT-827-02400-200
...
3-004
Starter Rope Reel HIT-769-02400-800
...
3-005
Starter Pawl HIT-788-02400-200
...
3-006
Friction Spring HIT-836-02400-200
...
3-007
Return Spring HIT-832-02400-200
...
3-008
Friction Plate HIT-837-02400-200
...
3-009
Set Bolt HIT-839-02400-200
...
3-010
Cap Nut 5 HIT-991-41050-022
...
3-011
Rope HIT-783-02400-200
...
3-012
Rope Guide HIT-780-10118-200
...
3-013
Starter Handle HIT-785-10118-200
...
3-014
Washer 4 HIT-992-01040-011
...
3-015
Starter Handle Cap HIT-835-10118-200

Tanaka DEG-600

...
...

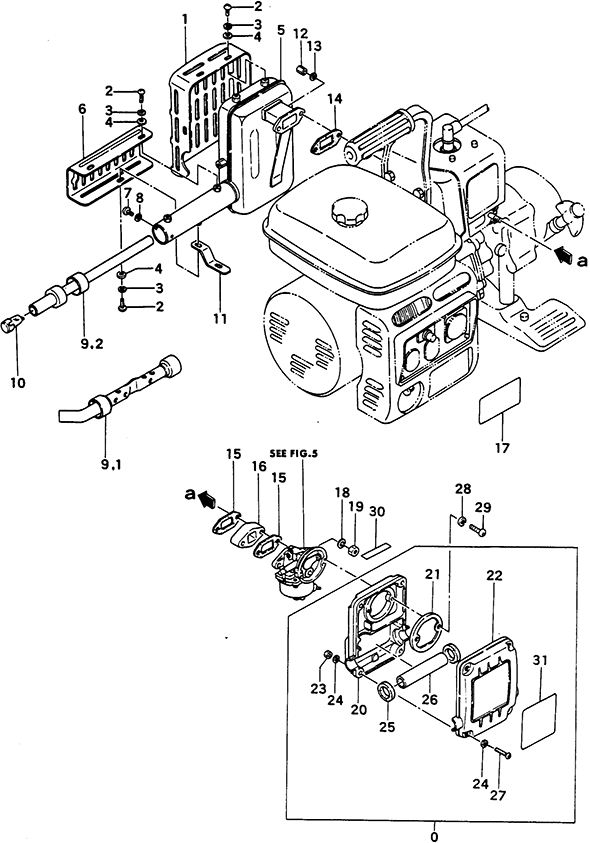

4-000
Air Cleaner Ass'Y HIT-410-10114-900
...
4-001
Muffler Protector HIT-738-10114-801
...
4-002
Screw 6X8 HIT-990-11060-081
...
4-003
S.Washer 6 HIT-992-10060-012
...
4-004
Small Washer 6 HIT-992-00060-011
...
4-005
Muffler Comp. HIT-706-10114-802
...
4-006
Heat Shield HIT-752-10114-202
...
4-007
Screw 6X8 HIT-990-11060-081
...
4-008
S.Washer 6 HIT-992-10060-012
...
4-009,1
Diffuser Pipe Comp. HIT-712-30600-802
...
4-009,2
Diffuser Pipe Comp. Usa HIT-712-30612-800
...
4-010
Spark Arrester Comp. HIT-732-00555-800
...
4-011
Muffler Stay HIT-733-10114-200
...
4-012
Nut 6 HIT-991-80060-121
...
4-013
S.Washer 6 HIT-992-10060-012
...
4-014
Muffler Gasket HIT-737-10100-200
...
4-015
Inlet Manifold Gasket HIT-403-10114-202
...
4-016
Carburetor Insulator HIT-404-10114-200
...
4-017
Name Plate Deg HIT-904-30605-211
...
4-017
Name Plate Aquabug HIT-904-30612-200
...
4-018
S.Washer 5 HIT-992-10050-012
...
4-019
Hex. Nut 5 HIT-991-01050-011
...
4-020
Air Cleaner Body HIT-423-10114-201
...
4-021
Cleaner Holder A HIT-425-03000-200
...
4-022
Air Cleaner Cover HIT-424-10114-201
...
4-023
Nut 5 HIT-991-01050-013
...
4-024
Small Washer 5 HIT-992-00050-011
...
4-025
Side Seal Sponge HIT-469-10114-200
...
4-026
Cleaner Element HIT-421-10114-200
...
4-027
Screw 5X12 HIT-990-11050-121
...
4-028
S.Washer 4 HIT-992-10040-012
...
4-029
Screw 4X16 HIT-990-11040-161
...
4-030
Choke Mark HIT-908-00803-200
...
4-031
Caution Mark HIT-894-30601-200

Tanaka DEG-600

...
...

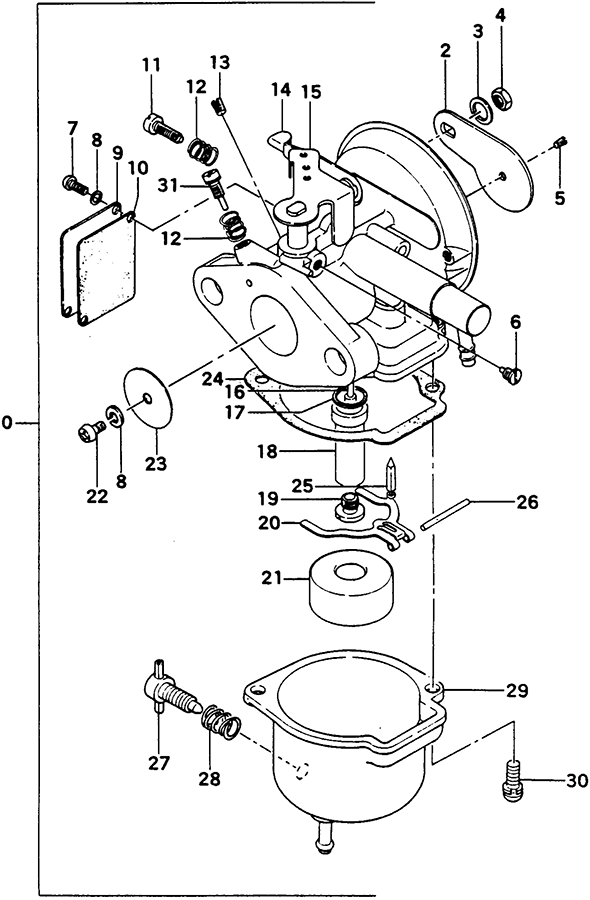

5-000
Carburetor Ass'Y HIT-455-21100-901
...
5-002
Shutter Plate Comp. HIT-436-21100-800
...
5-003
S.Washer 6 HIT-992-10060-012
...
5-004
Hex. Nut 6 HIT-991-01060-011
...
5-005
Slow Air Jet HIT-441-21100-200
...
5-006
Guide Screw HIT-546-21100-200
...
5-007
Screw 3X6 HIT-990-11030-061
...
5-008
Small Washer 3 HIT-992-00030-011
...
5-009
Stop Plate HIT-442-21100-200
...
5-010
Stop Plate Gasket HIT-443-21100-200
...
5-011
Slow Adjusting Screw HIT-440-21100-200
...
5-012
Adjust Spring HIT-623-21100-200
...
5-013
Pilot Jet HIT-600-21100-200
...
5-014
Choke Control Lever HIT-523-21100-200
...
5-015
Throttle Lever Ass'Y HIT-254-21100-200
...
5-016
Main Nozzle HIT-498-21100-200
...
5-017
Pipe Gasket HIT-569-21100-200
...
5-018
Slow Pipe HIT-444-21100-200
...
5-019
Main Jet HIT-471-21100-200
...
5-020
Float Apm HIT-628-21100-200
...
5-021
Float HIT-604-21100-200
...
5-022
Pan Head Screw HIT-445-21100-200
...
5-023
Throttle Valve HIT-446-21100-200
...
5-024
Float Chamber Gasket HIT-607-21100-200
...
5-025
Needle Valve HIT-603-21100-200
...
5-026
Float Pin HIT-605-21100-200
...
5-027
Drain Plug HIT-627-21100-200
...
5-028
Drain Spring HIT-529-21100-200
...
5-029
Float Chamber Ass'Y HIT-606-21100-900
...
5-030
Screw 4X12/S HIT-994-34040-121
...
5-031
Screw/Carburetor HIT-622-21100-200

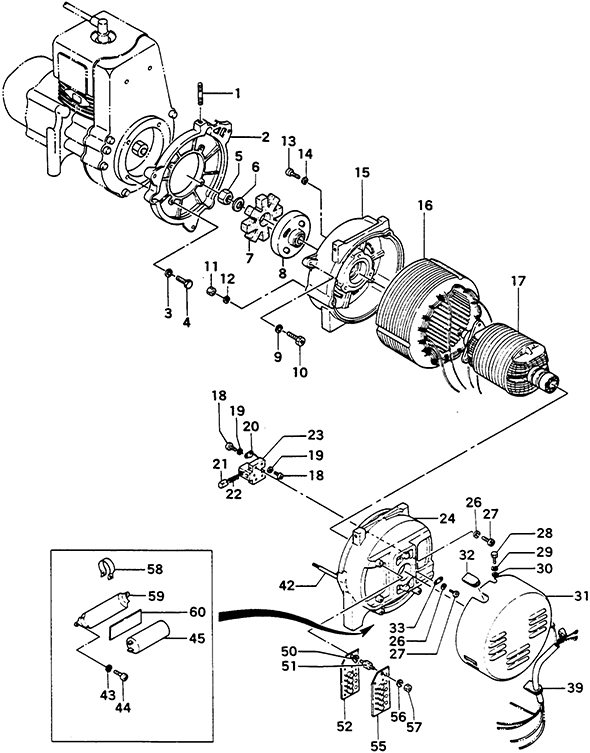

Tanaka DEG-600

...
...
6-001
Stud Bolt 6X24 HIT-100-11109-200
...
6-002
Housing HIT-113-30600-202
...
6-003
S.Washer 6 HIT-992-10060-012
...
6-004
Bolt 6X20 HIT-990-21060-201
...
6-005
Nut 10/L.H.Thread HIT-991-01100-011
...
6-006
Washer 10 HIT-992-01100-011
...
6-007
Coupling Rubber HIT-030-30200-200
...
6-008
Coupling Comp. HIT-028-30600-800
...
6-009
S.Washer 8 HIT-992-10080-012
...
6-010
Plus Bolt 8X20 HIT-990-23080-201
...
6-011
Hex. Nut 6 HIT-991-01060-011
...
6-012
S.Washer 6 HIT-992-10060-012
...
6-013
Screw 6X25 HIT-990-11060-251
...
6-014
S.Washer 6 HIT-992-10060-012
...
6-015
Rear Case Comp. HIT-105-30600-801
...
6-016
Stator Ass'Y 115-60 HIT-066-30605-900
...
6-017
Rotor Ass'Y HIT-006-30600-900
...
6-018
Screw 4X6 HIT-990-11040-061
...
6-019
S.Washer 4 HIT-992-10040-012
...
6-020
Rag Plate 4 HIT-126-30200-200
...
6-021
Brush HIT-119-30400-200
...
6-022
Brush Spring HIT-120-30400-200
...
6-023
Brush Holder Comp./Reg HIT-117-30400-800
...
6-024
Front Case Comp. HIT-110-30600-805
...
6-026
S.Washer 4 HIT-992-10040-012
...
6-027
Screw 4X16 HIT-990-11040-161
...
6-028
Bolt 5X8 HIT-990-21050-081
...
6-029
S.Washer 5 HIT-992-10050-012
...
6-030
Small Washer 5 HIT-992-00050-011
...
6-031
Front Case Cover HIT-184-30700-201
...
6-032
Switch Board Grommet B HIT-301-30600-202
...
6-033
Rag Plate 4 HIT-126-30200-200
...
6-039
Switch Board Grommet HIT-300-30700-203
...
6-042
Stud Bolt HIT-100-11501-200
...
6-043
S.Washer 5 HIT-992-10050-012
...
6-044
Screw 5X10 HIT-990-11050-101
...
6-045
Condenser 160.22 HIT-128-30202-200
...
6-050
Small Washer 5 HIT-992-00050-011
...
6-051
Step Bolt HIT-134-30600-200
...
6-052
R Diooe, B HIT-132-30600-820
...
6-055
R Diooe, A HIT-121-30600-820
...
6-056
Small Washer 5 HIT-992-00050-011
...
6-057
Hex. Nut 5 HIT-991-01050-011
...
6-058
Condenser Holder A HIT-114-30700-200
...
6-059
Condenser Holder HIT-115-30700-200
...
6-060
Condenser Gasket B HIT-112-30700-200

Tanaka DEG-600

...
...

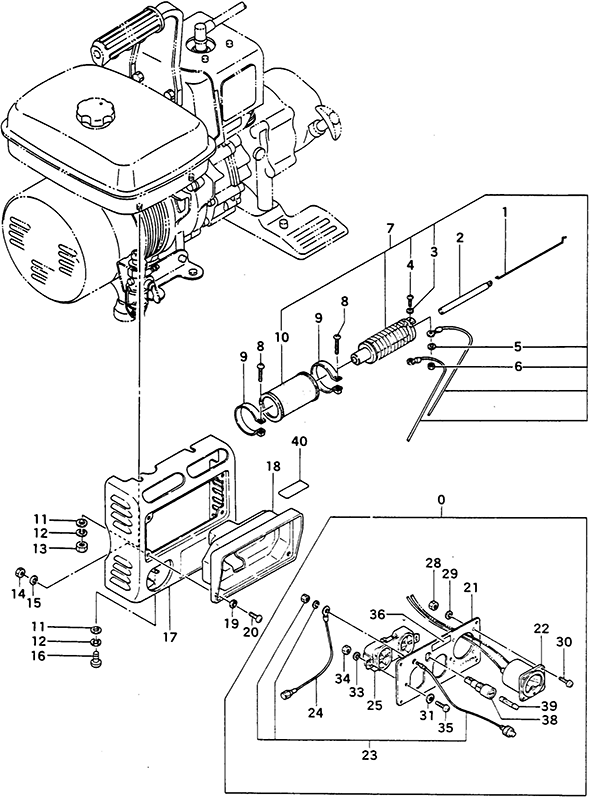

XX
7-01 3. Hex. Nut 6 HIT-991-01060-011
...
7-000
Switch Board Ass'Y HIT-185-30604-920
...
7-001
Governor Rod HIT-395-30600-202
...
7-002
Governor Plunger HIT-266-30700-201
...
7-003
Small Washer 3 HIT-992-00030-011
...
7-004
Screw 3X8 HIT-990-11030-081
...
7-005
S.Washer 3 HIT-992-10030-012
...
7-006
Hex. Nut 3 HIT-991-01030-011
...
7-007
Governor Ass"Y HIT-405-30800-900
...
7-008
Screw 4X30 HIT-990-11040-301
...
7-009
Governor Band Comp. HIT-268-30600-800
...
7-010
Governor Cover Rubber HIT-368-30600-202
...
7-011
Washer 6 HIT-992-01060-011
...
7-012
S.Washer 6 HIT-992-10060-012
...
7-014
Hex. Nut 5 HIT-991-01050-011
...
7-015
S.Washer 5 HIT-992-10050-012
...
7-016
Screw 6X10 HIT-990-11060-101
...
7-017
Switch Board Cover Comp. HIT-184-30600-806
...
7-018
Switch Board Cover HIT-169-30600-203
...
7-019
Small Washer 5 HIT-992-00052-011
...
7-020
Screw 5X8 HIT-990-11050-081
...
7-021
Switch Board HIT-183-30602-203
...
7-022
Voltmeter Ass'Y 115-50.60 HIT-189-30402-920
...
7-023
Stop Button Comp. HIT-170-10114-800
...
7-024
Ground Terminal Comp. HIT-207-30600-800
...
7-025
Ac Receptacle Ass'Y HIT-178-30700-901
...
7-028
Hex. Nut 3 HIT-991-01030-012
...
7-029
S.Washer 3 HIT-992-10030-012
...
7-030
Screw 3X10 HIT-990-11030-101
...
7-031
Small Washer 4 HIT-992-00040-011
...
7-033
S.Washer 4 HIT-992-10040-012
...
7-034
Hex. Nut 4 HIT-991-01040-011
...
7-035
Screw 4X8 HIT-990-11040-081
...
7-036
Mark/Fuse/5A HIT-899-30604-200
...
7-038
Fuse Holder HIT-188-30410-900
...
7-039
Fuse/5A HIT-190-30604-200
...
7-040
Lever Mark HIT-910-30600-200

Tanaka DEG-600

...
...

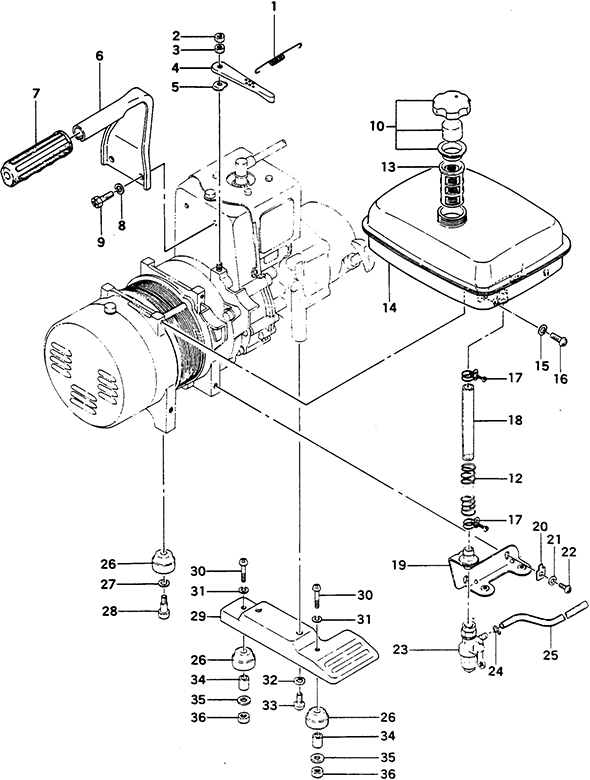

8-001
Governor Spring A HIT-397-30600-201
...
8-002
Nut 6 HIT-991-01060-013
...
8-003
Hex. Nut 6 HIT-991-01060-011
...
8-004
Control Lever HIT-384-30600-202
...
8-005
Wave Washer HIT-852-10107-200
...
8-006
Handle HIT-258-30600-207
...
8-007
Handle Grip HIT-266-30600-201
...
8-008
S.Washer 8 HIT-992-10080-012
...
8-009
Plus Bolt 8X16 HIT-990-23080-161
...
8-010
Tank Cap Ass'Y HIT-595-11109-900
...
8-012
Protection Coil HIT-702-30600-200
...
8-013
Tank Filter Comp. HIT-604-11109-801
...
8-014
Tank Comp. HIT-591-10114-804
...
8-015
S.Washer 6 HIT-992-10060-012
...
8-016
Screw 6X12 HIT-990-11060-121
...
8-017
Clip 13 HIT-680-10114-203
...
8-018
Fuel Pipe A HIT-699-10114-201
...
8-019
Pet-Cock Stay Comp. HIT-711-10114-802
...
8-020
Tab HIT-208-30600-200
...
8-021
S.Washer 6 HIT-992-10060-012
...
8-022
Screw 6X10 HIT-990-11060-101
...
8-023
Pet-Cock Ass"Y HIT-592-03112-900
...
8-024
Clip B HIT-680-01004-200
...
8-025
Fuel Pipe 5 X 8 X 300 HIT-700-05008-300
...
8-026
Rubber Base HIT-312-30200-200
...
8-027
Washer 10 HIT-992-01100-011
...
8-028
Step Bolt 8 HIT-316-30600-200
...
8-029
Base HIT-317-30600-202
...
8-030
Screw 6X25 HIT-990-11060-251
...
8-031
S.Washer 6 HIT-992-10060-012
...
8-032
S.Washer 8 HIT-992-10080-012
...
8-033
Screw 8X12 HIT-990-11080-121
...
8-034
Collar HIT-321-30410-200
...
8-035
Clutch Washer 8 HIT-359-02103-200
...
8-036
Hex. Nut 6 HIT-991-01060-011

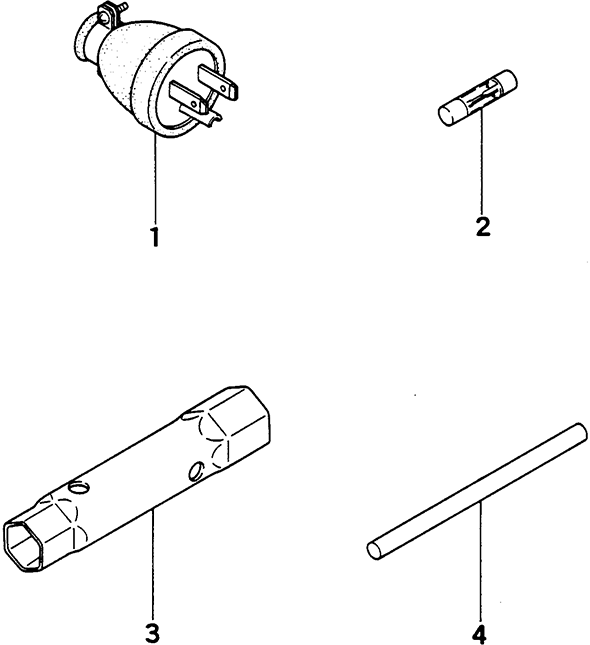

Tanaka DEG-600

...
...
9-001
Plug Comp. HIT-925-30204-800
...
9-002
Fuse/5A HIT-190-30604-200
...
9-003
Box Spanner 17X21 HIT-823-20000-201
...
9-004
Handle 8X120 HIT-951-20000-200
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
