Statesman 212-031-016 (5033-21) (1992) Tiller

Model: 212-031-016 (5033-21) (1992)

Save
 Part Not Listed?Part Not Listed?
product name

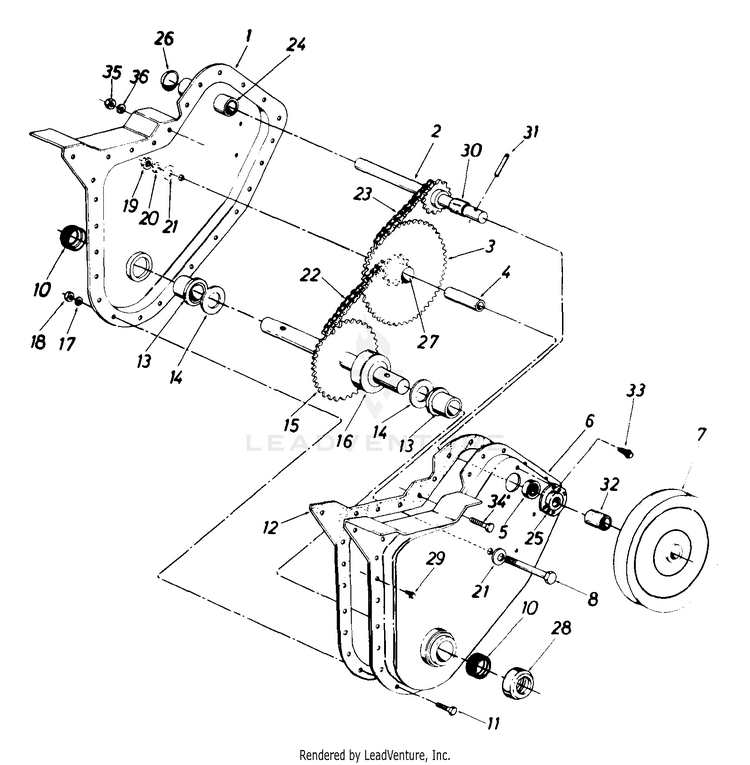

Differential

...
...
1
Chain Case Ass'y.- R.H. Code 638 MTD-04926
...
2
SHAFT ASSEMBLY-INPUT MTD-04756
...
3
SPROCKET & HUB ASSEMBLY MTD-04757
...
4
SLEEVE .623 OD x .380 ID x 1.5 LG MTD-750-0351
...
5
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
6
CASE ASSEMBLY Code 638 MTD-15863
...
7
PULLEY Not part of chain case assembly. MTD-756-0287
...
8
Hex Bolt 3/8-24 x 2.5" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0369
...
10
SEAL Not part of chain case assembly. MTD-721-0157
...
11
Hex Bolt 1/4-28 x 50" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-910-0195
...
12
GASKET MTD-921-0156A
...
13
Flange Brg. .879" I.D. MTD-741-0227
...
14
FLAT WASHER .88 x 1.50 x .030 MTD-736-0265
...
15
SHAFT ASSEMBLY-TINE MTD-04920
...
16
SPACER MTD-750-0354A
...
17
L-Wash. 1/4" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
18
Hex Nut 1/4-28 Thd. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0138
...
19
Hex Ins. L-Nut 3/8-24 Thd. MTD-712-0116
...
20
L-Wash. 3/8" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
21
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
22
#420 CHAIN 1/2 PITCH x 37 LINKS MTD-913-0269
...
xx
#420 MASTER LINK 1/2 PITCH TYPE II MTD-913-0154
...
23
#35 Chain MTD-713-0145
...
xx
#35 MASTER LINK 3/8 PITCH TYPE II MTD-913-0139
...
24
BEARING MTD-748-0154
...
25
BEARING HOUSING MTD-05034A
...
26
EXPANSION PLUG MTD-726-0164
...
27
BEARING MTD-741-0228
...
28
DUST CAP Not part of chain case assembly. MTD-731-0486
...
29
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
30
SPACER MTD-750-0471
...
31
Spring Pin Spiral 1/4" Dia. x 1 1/2" Lg. Not part of chain case assembly. MTD-715-0114
...
32
SPACER Not part of chain case assembly. MTD-750-0550
...
33
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .38" Lg. MTD-710-0653
...
34
Hex Bolt 5/16-18 x .75" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0118
...
35
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
36
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119

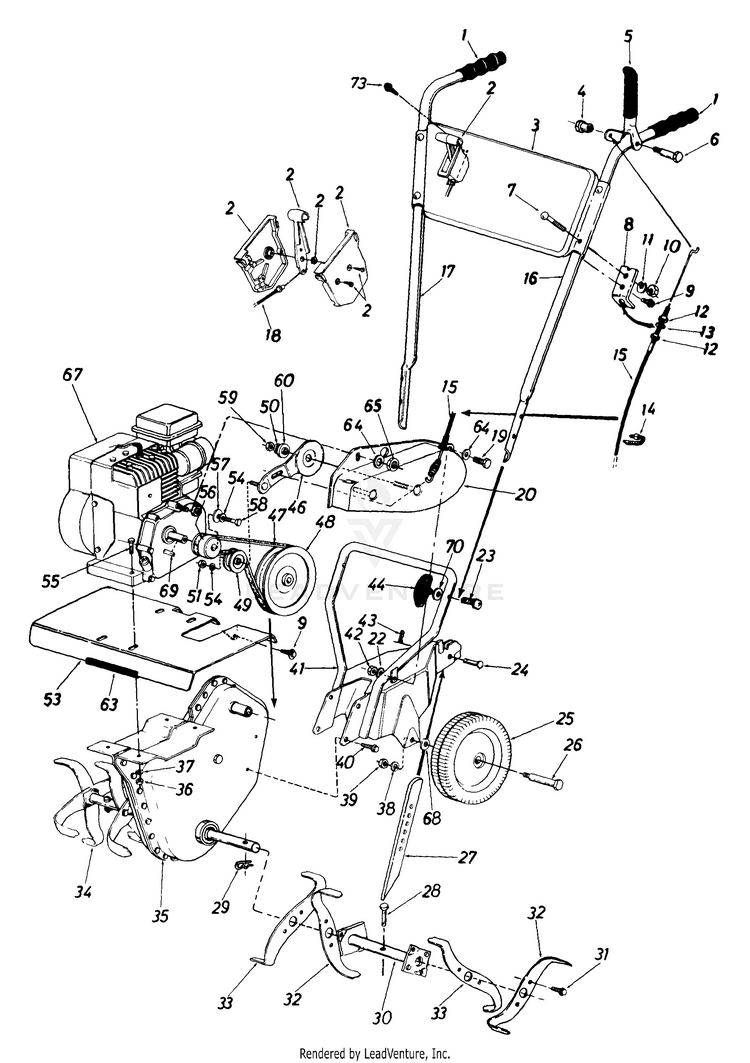

Tiller Assembly

...
...
1
Grip MTD-720-0204
...
2
Throttle Control Box Ass'y. MTD-831-0796A
...
3
HANDLE PANEL MTD-784-0036A
...
4
SHOULDER NUT MTD-938-0561
...
5
GRIP ASSEMBLY-CLUTCH (RH) MTD-784-0007A
...
6
SHOULDER SCREW MTD-738-0572
...
7
Carriage Bolt 5/16-18 x 1.5" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0262
...
8
BRACKET-CL MTD-15093C
...
9
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .50" Lg. MTD-710-0599
...
10
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
11
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
12
HEX JAM NUT 5/16-24 MTD-712-0256
...
13
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
14
Cable Tie MTD-725-0157
...
15
Clutch Control Cable MTD-946-0926
...
16
HANDLE (LH) MTD-749-0631
...
17
HANDLE (RH) MTD-749-0630
...
18
Throttle Wire MTD-946-0634
...
19
Hex Bolt 1/4-20 x .75" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-3015
...
20
Belt Cover Ass'y. MTD-784-0018
...
22
L-Wash. 1/4" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0329
...
23
Carriage Bolt 5/16-18 x 2 MTD-710-1174
...
24
Clevis Pin MTD-711-0653
...
25
7" WHEEL ASS'Y. COMP. MTD-734-1161A
...
xx
FRONT WHEEL-WAFFLE TREAD (7 x 1.50) MTD-734-0893
...
xx
Wheel Bearings (Used w/Steel Wheel) MTD-741-0262
...
26
Front Axle Bolt MTD-738-0213
...
27
483DEPTH BAR Code 638 MTD-04764
...
28
CLEVIS PIN .312 x 1.50 MTD-711-0702
...
29
Hairpin Cotter MTD-714-0149B
...
30
ADAPTER ASSEMBLY-TINE MTD-04918-0637
...
31
Hex Wash. Hd. Self-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
32
TINE (LH) MTD-04923-0637
...
33
TINE (RH) MTD-04922
...
34
TINE ASS'Y. COMP. MTD-04921
...
35
Chain Case Ass'y. Comp. Code 638 MTD-04924A
...
36
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
37
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
38
L-Wash. 3/8" I.D. (Heavy Duty) MTD-736-0217
...
39
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
40
SCREW 5/16-24 x .500 MTD-710-0600
...
41
483SUPPORT BRKT. ASS'Y. Code 638 MTD-04762
...
42
HEX NUT 1/4-20 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-912-0287
...
43
Internal Cotter Pin MTD-714-0104
...
44
Star Knob MTD-720-04072A
...
46
IDLER ARM MTD-784-0016
...
47
V-Belt MTD-954-0216
...
48
PULLEY MTD-756-0287
...
49
Fl-Idler 2" MTD-756-0199
...
50
Lock Wash. 5/16" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-936-0119
...
51
Hex Nut 3/8-24 Thd. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-0116
...
53
Tine Shield Code 638 MTD-04765
...
54
L-Wash. 3/8" I.D. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-736-0169
...
55
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
56
PULLEY MTD-756-0286
...
57
Fl-Wash. .385" I.D. x 1" O.D. MTD-736-0258
...
58
Hex Bolt 3/8-24 x 1" Lg. For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-1039
...
59
HEX NUT 5/16-18 For faster service obtain nuts, bolts, and washers locally. If these items cannot be obtained locally, order by part number and size as shown on parts list. MTD-712-3010
...
60
Bushing, Shoulder, .320 ID x .135 MTD-936-0289
...
63
Trim Strip - 4 1/2" MTD-731-0511
...
64
Fl-Wash. .281" I.D. x .5" O.D. MTD-736-0142
...
65
Hex L-Nut 1/4-20 Thd MTD-912-0107
...
67
Engine MTD-NA
...
68
Bell-Wash. .400" I.D. x 1.13" O.D. MTD-936-0219
...
69
Square Key 3/16" x 3/4" Lg. MTD-714-0122
...
70
Bell-Wash. MTD-736-0242
...
73
Self-Tap Screw #10 x .5" Lg. MTD-710-0779A
...
...
...
...
...
