Statesman 14AI849H016 (2000) Garden Tractor

Model: 14AI849H016 (2000)

Back To Assemblies

Save Part Not Listed?
product name

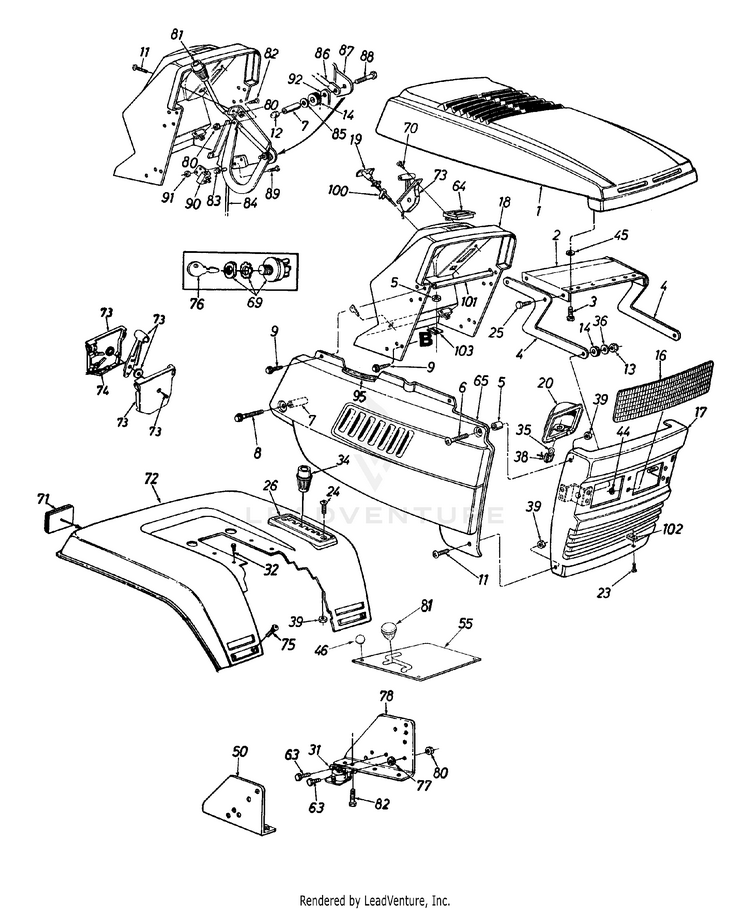

Hood Style 9 & Fender

...
...
1
HOOD 9-STYLE (RED) (Red) MTD-931-1491A
...
xx
HOOD (Charcoal Gray) MTD-731-1531A
...
xx
HOOD (Oyster Gray) MTD-731-1497A
...
xx
HOOD 9-STYLE (GLOSS BLACK) (Black) MTD-931-1893A
...
2
HOOD PLATE MTD-16903A
...
3
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
4
HOOD HINGE MTD-783-0190
...
5
SPACER MTD-950-0218
...
6
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
7
SPACER-.260 ID x 1.32 LG x 16 MTD-750-0768
...
8
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg MTD-710-1026
...
9
Hex T-Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
11
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
12
Hex Ins. L-Nut 1/4-20 Thd. MTD-712-0324
...
13
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
14
RUBBER WASHER MTD-735-0126A
...
16
HEADLIGHT LENS MTD-931-1044
...
17
GRILLE ASS'Y. MTD-17410A
...
18
DASH PANEL MTD-731-1680
...
xx
DASH PANEL MTD-731-1892
...
19
Choke Control MTD-746-0614A
...
20
HEADLIGHT HOUSING MTD-931-0705
...
23
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
24
Truss Mach. Scr. 1/4-20 x .75" Lg MTD-710-0924
...
25
Hex Wash. Hd. Scr. 1/4" x .5" Lg. MTD-710-0599
...
26
INDEX BRACKET 7-SPEED (Model 829) MTD-931-1774
...
xx
INDEX BRACKET 7-SPEED (Model 849) MTD-931-1774
...
31
Solenoid MTD-925-1426A
...
32
Hex Hd. Rolling Scr. 5/16-24 x .75" Lg. MTD-710-0726
...
34
Shift Knob MTD-720-0218
...
35
Miniature Lamp 12V Socket Type MTD-925-0963
...
36
Bell-Wash. .34" I.D. x .87" MTD-736-0242
...
38
SHORT LAMP SOCKET MTD-925-1650
...
39
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
?40
L-Wash. 1/4" I.D. MTD-936-0329
...
44
Speed Nut 5/16" I.D. MTD-726-0201
...
45
Fl-Wash. .406" I.D. MTD-736-3010
...
46
THROTTLE KNOB MTD-720-0166
...
50
BRACKET-DASH MTD-17293B
...
55
SHIFT COVER 2-SPD MTD-783-0348
...
63
Hex Bolt 1/4-20 x .5" Lg. MTD-710-3013
...
64
Ammeter MTD-925-0925
...
65
SIDE PANEL (RH) MTD-16725
...
xx
PANEL-SIDE (LH) MTD-17309B
...
69
Switch, Ignition MTD-925-1717
...
70
Truss Mach. AB-Tap Scr. #10 x .5" Lg. MTD-710-0779A
...
71
Reflector (Optional) MTD-930-3000
...
72
FENDER-SENTAR 800 MTD-783-0351
...
73
Throttle Control Box Assembly MTD-831-0823A
...
74
Throttle Wire MTD-946-0634
...
xx
Throttle Control Wire 39" Lg. MTD-946-0630A
...
75
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
76
Key MTD-925-0201
...
77
Ext. L-Wash. 1/4" I.D. MTD-736-0222
...
78
BRACKET-DASH SUP-L MTD-17294B-0637
...
80
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
81
Knob MTD-920-0232
...
82
SCREW 1/4-20 x .620 GR5 MTD-710-0751
...
83
PUSH NUT MTD-726-0106
...
84
ROD-PTO MTD-16985
...
85
Fl-Wash. .281" I.D. x .73" MTD-736-0173
...
86
LEVER-PTO MTD-16984
...
87
BRACKET, CO MTD-783-0460
...
88
Hex Screw, 1/4-20 x 2.50 MTD-710-1122
...
89
Truss Mach. Scr. #10-24 x .5" Lg. MTD-710-0473
...
90
Safety Switch MTD-925-1657A
...
91
Hex Nut #10-24 Thd. MTD-712-0121
...
92
BRACKET-PTO MTD-16983
...
95
Trim Strip 12" Lg. MTD-731-0511-12
...
100
CLIP-CHOKE RETAINER MTD-17782
...
101
TUBE-GRILLE SUPPORT MTD-749-0814
...
102
U-Nut 5/16-18 Thd. MTD-726-0211
...
103
DASH TAB MTD-783-0013
...
?104
LABEL-CHROME MTD-777-8568A
