product name

Skil PM4910-00 Lawn Mower

Model: PM4910-00

Save Part Not Listed?
product name

Skil PM4910-00

...
...
1
Grass Catcher CHV-3800158001
...
2
Bag Frame CHV-3707036001
...
3
Mulch Plug CHV-3130423001
...
7
Bearing Support BSH-3422293901
...
8
Rear Axle Set BSH-2825958001
...
9
Circlips For Shaft BSH-5660152002
...
10

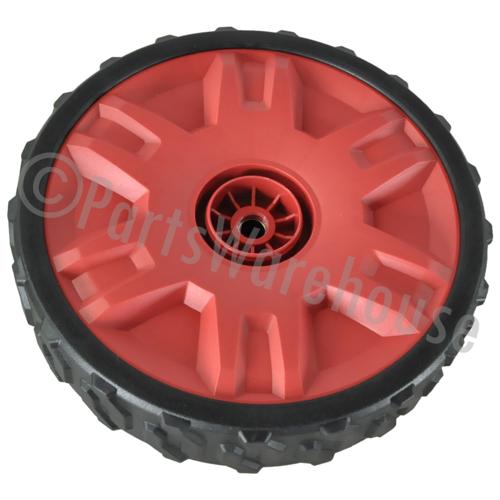

Wheel Assembly CHV-2826985002
...
11
Shaft BSH-5670345001
...
12
Cover BSH-3130419001
...
13
Auxiliary Handle CHV-3130413001
...
14
Guide Rail Assembly CHV-2827251001
...
15
Battery Cover Assembly CHV-2827255001
...
16
Parallel Pin CHV-5670538001
...
17
Switch Assembly CHV-4870735001
...
18
Bushing CHV-3580002001
...
19
Square Nut CHV-5630353001
...
20
Dc Motor BSH-2730307001
...
21
Bolt And Washer Set BSH-5640217002
...
22
Front Axle Set BSH-2825956001
...
23
Mounting Plate BSH-3705216001
...
24

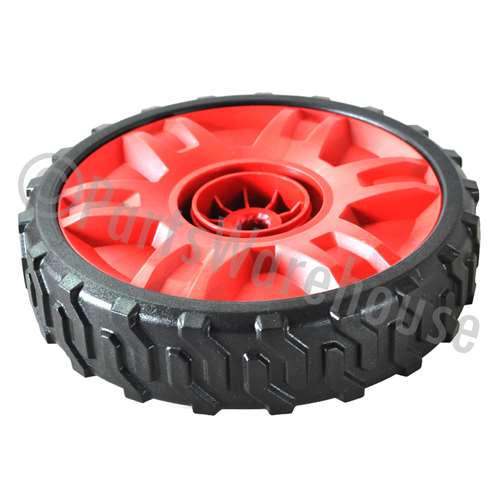

Wheel Assembly CHV-2826986002
...
25
Hexagon Flange Bolt BSH-5640010003
...
26
Hubcap CHV-3129711002
...
27
Flange Bolt BSH-5640226001
...
28
Washer BSH-5650510001
...
30
Motor Bushing BSH-3520852002
...
31
Fan BSH-3127847001
...
32
Tension Spring BSH-3660609001
...
33
Prevailing Torque Hexagon Nut BSH-5630013003
...
34
Connecting Rod Assembly CHV-2826751001
...
35
Clamp BSH-3705397001
...
36
Rear Cover CHV-3130426001
...
37
Torsion Spring BSH-3660559001
...
38
Bevel Support BSH-3129770001
...
39
Screw BSH-5620480002
...
40
Trail Shield CHV-3130421001
...
41
Height Adjusting Lever CHV-3130412001
...
202
Decorative Cover Assembly CHV-2827248001
...
203
Height Adjusting Bar Assembly BSH-2827249001

Skil PM4910-00

...
...
201
Handle Assembly CHV-2826864002
...
401

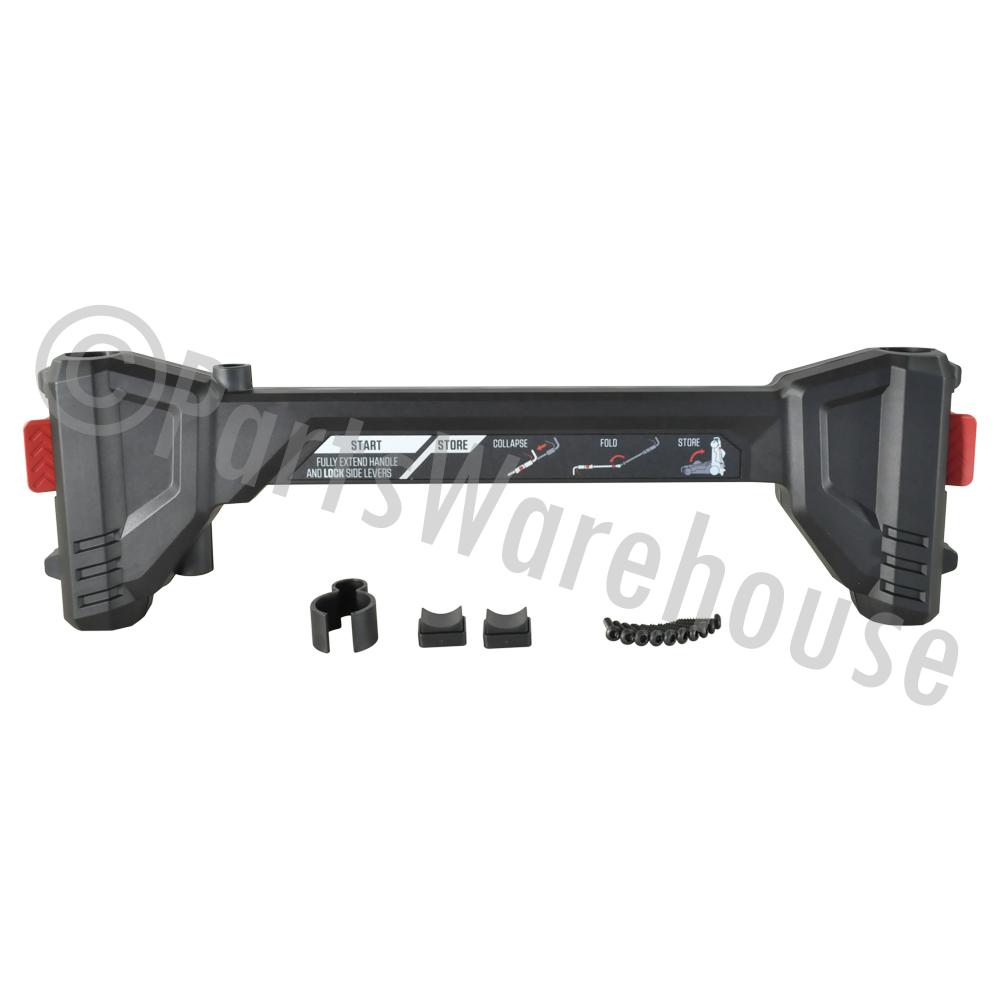

Beam Assembly CHV-2827252001
...
402
Adjusting Lever Assembly CHV-2827253001
