Simpson PS60918-61128 Pressure Washer

Model: PS60918-61128

Save Part Not Listed?
product name

Simpson PS60918-61128

...
...

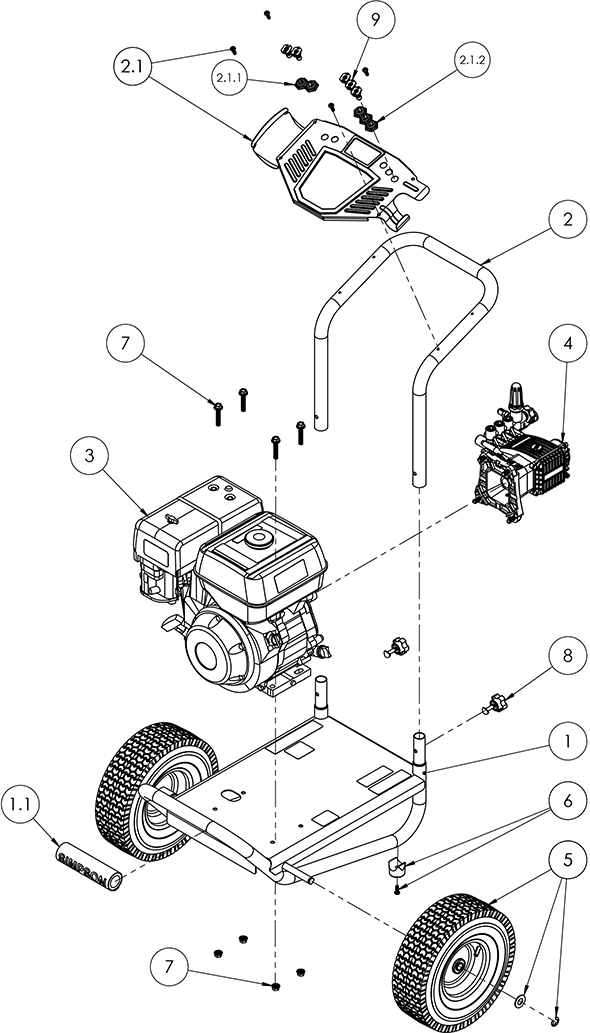

1
Frame, Base Assy, 13.25 Silver W/Labels FNA-7109234
...
1.1
Handle Grip, Simpson Black W/ White Lettering FNA-7106671
...
2
Handle Service Assembly 60918 FNA-7110646
...
2.1
Dashboard Service Assembly 60918 FNA-7110645
...
2.1.1
Holder, Nozzle 2Pc Rubber Strip FNA-7107067
...
2.1.2
Holder, Nozzle 3Pc Rubber Strip FNA-7107068
...
3
Engine, Svc Assy Gx270 Red Honda FNA-7107276
...
5
Kit, 13" Wheel Service FNA-7105376
...
6
Foot Service Kit FNA-7109385
...
7
Hardware Kit, Engine Mounting FNA-7103277
...
8
Hardware Kit, Handle Mounting FNA-7107941
...
9
Nozzle Set 3.5 5Pc 1/4 Qc-M FNA-7100634

Simpson PS60918-61128

...
...

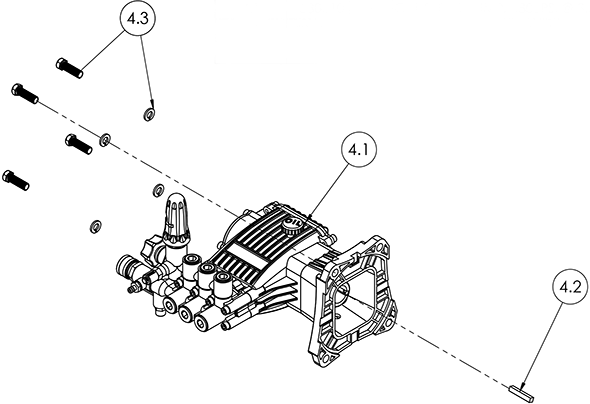

4
Pump Service Assembly, 530010 FNA-7109049
...
4.1
C41 Series Pump, 3800Psi @ 3.5Gpm Horiz FNA-530010
...
4.2
Key, Shaft 1/4" X 1/4" X 1-1/2" FNA-7105453
...
4.3
Kit, Pump Mounting Hardware FNA-7103279

Simpson PS60918-61128

...
...

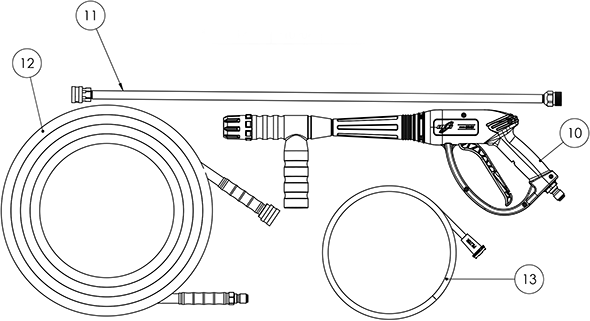

10
Gun, 4500Psi, 6.6Gpm, 3/8 Qc(M) W/Side H FNA-7108127
...
11
Lance, 31" 1/4"Qc-F X M22(M) FNA-7103261
...
12
Hose, 3/8" X 50' X 4500Psi Wire Braid FNA-7103642
...
13
Kit, Svc Assy Soap Hose W/Plastic Filter FNA-7102207

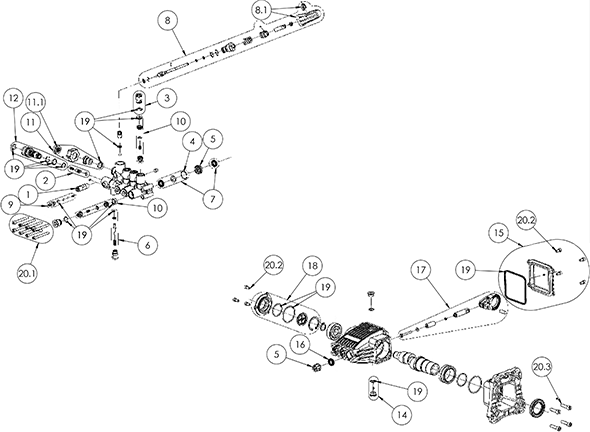

Simpson PS60918-61128

...
...
1
Thermal Relief Valve, Torque To 159 In-Lb 18N-M FNA-7110131
...
2
Check Valve Kit FNA-7110139
...
3
Valve Cap Kit, 1 Kit Req'D For This Model Torque To 177 In-Lb 20N-M FNA-7110140
...
4
Seal Retainer Kit FNA-7110142
...
5
Seal Spacer Kit FNA-7110144
...
6
Kit, Boost Valve, Torque To 159 In-Lb 18N-M FNA-7110117
...
7
Water Seal Kit FNA-7110149
...
8
Unloader Kit FNA-7110152
...
8.1
Unloader Cap Kit FNA-7109325
...
9
Soap Injector Kit, Torque To 110 In-Lb 13N-M FNA-7110111
...
10
Valve Kit FNA-7110153
...
11
Water Inlet Kit FNA-7110330
...
11.1
Water Inlet Screen FNA-7110138
...
12
Water Outlet Kit FNA-7110331
...
14
Oil Plug Kit, Torque To 159In-Lb 18N-M FNA-7110127
...
15
Rear Crank Cover Kit FNA-7110141
...
16
Oil Seal Kit FNA-7110143
...
17
Connecting Rod/Piston Kit FNA-7110150
...
18
Sight Glass Kit FNA-7110151
...
19
Oring Kit, Complete FNA-7110146
...
20
Pump Hardware Kit FNA-7110145
