Simpson MSV3100-60464 Pressure Washer

Model: MSV3100-60464

Save Part Not Listed?
product name

Popular Parts

Popular Parts

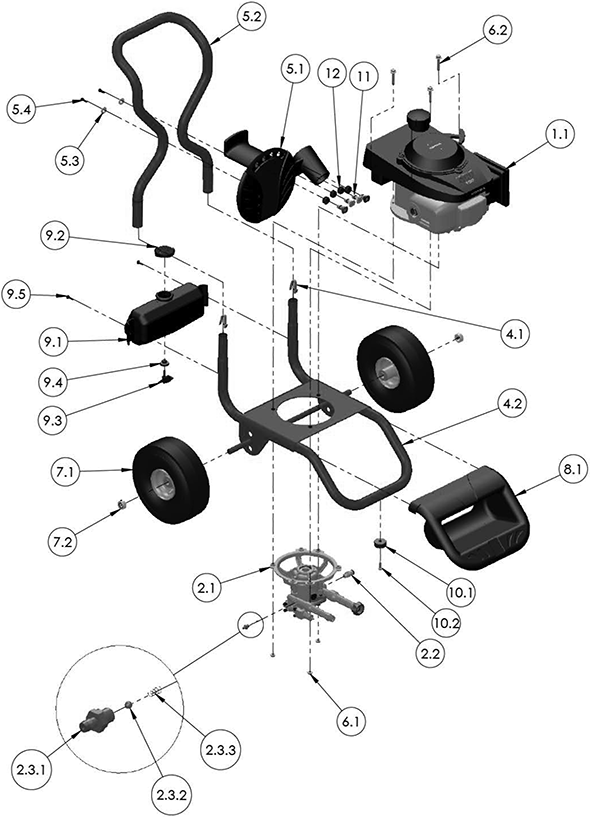

Simpson MSV3100-60464

...
...
1
Engine Assy, W/Labels (Sv3100) FNA-7103657
...
1.1
Honda Gcv190 Idle-Down FNA-100299
...
2
Pump Assy, Axial, 2800Psi (V), Faip FNA-7103284
...
2.1
Pump FNA-7200284
...
2.2
Thermal Relief Valve-1/4" Npt FNA-7101359
...
2.3
Chemical Injection Kit FNA-7001058
...
3
Pump, Axial, 2800Psi (V) Refurb, Mtpv93603Pbg FNA-7200284R
...
4
Frame Assy (Sv3100) FNA-7103660
...
4.1
Snap Button FNA-7102122
...
4.2
Frame Subassy, Vertical 13.5 Red FNA-7103666
...
5
Handle Assy. FNA-7103656
...
5.1
Face Plate, Bonnet FNA-7103281
...
5.5
Handle Grip FNA-7103727
...
6
Engine Mount Hardware Kit FNA-7103681
...
7
Wheel Kit, Offset 4.10/3.50-4 White FNA-7103684
...
8
Front Scoop Assy FNA-7103742
...
9
Chemical Tank Assy FNA-7103685
...
9.2
Cap, Chemical Tank FNA-7103675
...
10
Foot Kit FNA-7103292
...
11
Nozzle Set 3.25 4Pc. FNA-7103767
...
12
Grommet, 7/16 X 1/4 Rubber FNA-7103728
...
13
Gun 3500 Psi, 5Gpm, M22-M Inlet X M22 FNA-7103569
...
14
Lance, 16In FNA-7103550
...
15
Chemical Hose And Filter Kit FNA-7102207
...
16
Hose, 3400Psi 25Ft Platinum M22-F X M22-F FNA-7103726
...
17
Manual, Operator'S FNA-7103725
...
18
Box, Display FNA-7103722

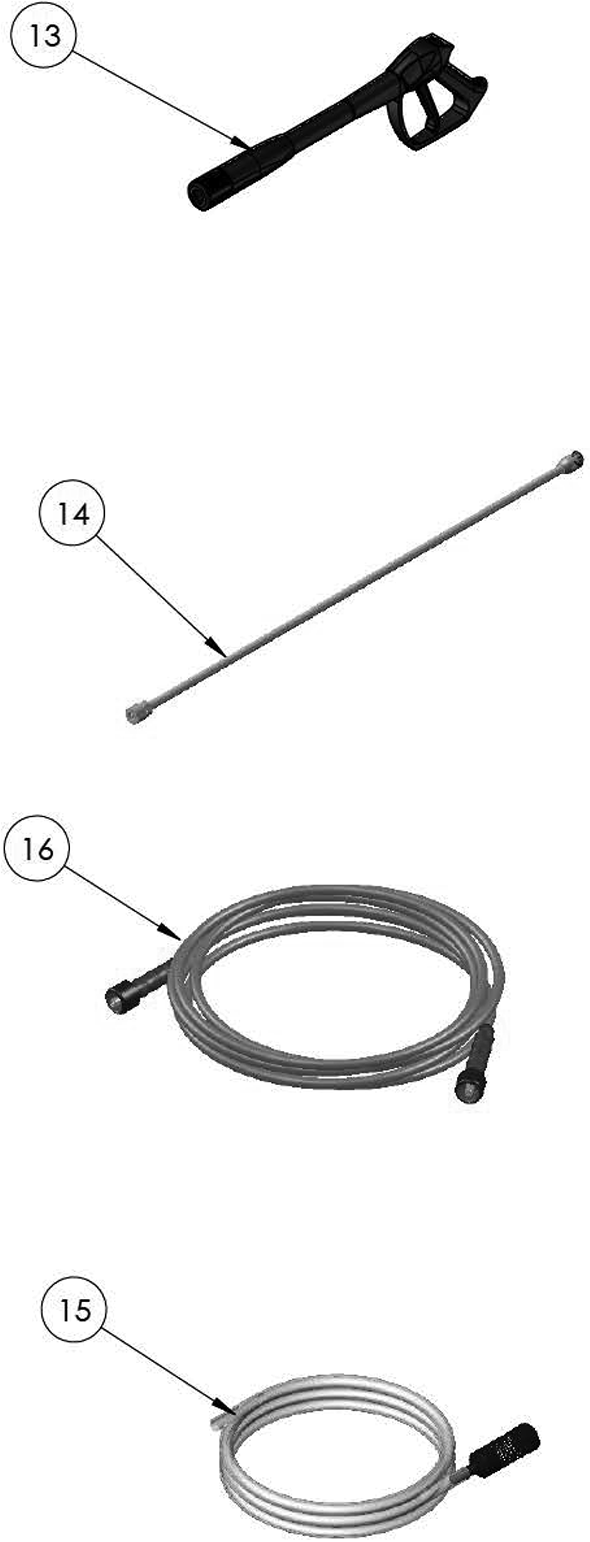

Simpson MSV3100-60464

...
...
13
Gun 3500 Psi, 5Gpm, M22-M Inlet X M22 FNA-7103569
...
14
Lance, 161N FNA-7103550
...
15
Chemical Hose And Filter Kit FNA-7102207
...
16
Hose, 3400Psi 25Ft Platinum M22-F X M22-F FNA-7103726
