Simpson MSH3224-60693 & 60738 Pressure Washer

Model: MSH3224

Save Part Not Listed?
product name

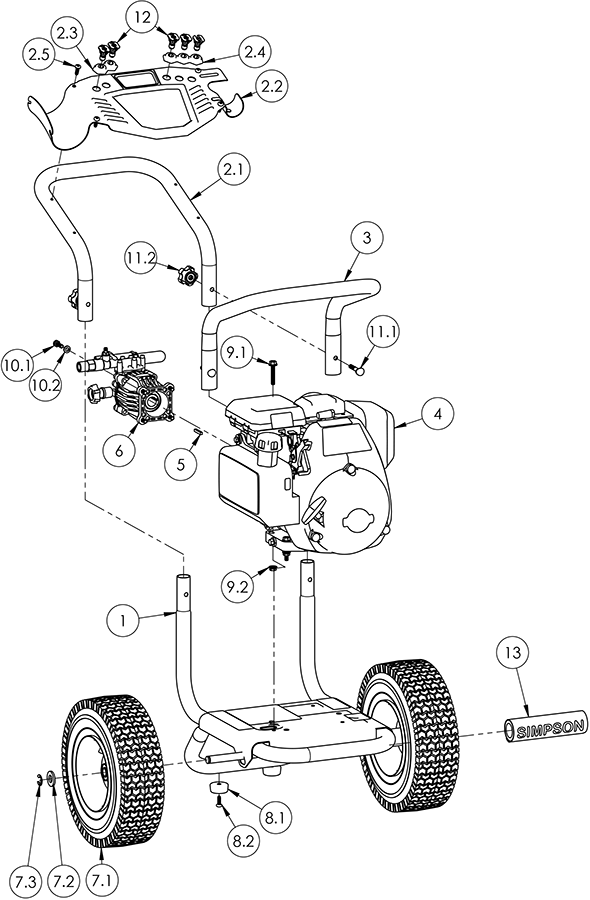

Simpson MSH3224

...
...
1
Frame Base, Msh3224 W/Labels FNA-7107844
...
2
Handle Rear, Service Assembly With Label FNA-7107261
...
3
Handle, Quick Start W/Label FNA-7107845
...
4
Engine, Service Assembly Honda Gc190 FNA-7106183
...
5
Key, Shaft 3/16" X 3/16" X 1 1/4" FNA-7104174
...
6
Pump, Service Assmbly FNA-7106900
...
6.1
Pump, [email protected] Horiz-Axial P/Boost Brass FNA-520002
...
7
Kit, 10" Wheel Service FNA-7105376
...
8
Kit, 5/8" Tall Foot FNA-7103292
...
9
Mounting Kit, Engine FNA-7103750
...
10
Hardware Kit, Pump Mounting FNA-7105474
...
11
Hardware Kit, Handle Mounting FNA-7104570
...
12
Nozzle Kit, 2.8 5Pc FNA-7104818
...
13
Handle Grip, Silver FNA-7105186
...
14
Trigger Spray Gun 4500Psi @ 6.6Gpm M22(M) X M22(F) FNA-7106275
...
15
Lance, 16" W/ 1/4" Qc-F X M22(M) FNA-7103550
...
16
Hose, 1/4" X 25' X 4000Psi Wire Braid FNA-7107081
...
17
M22 Adaptor 14/15Mm FNA-104049
...
18
Soap Hose And Filter Kit FNA-7102207

Simpson MSH3224

...
...

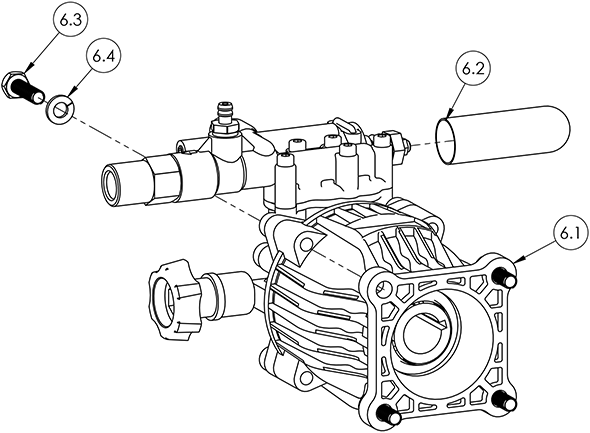

6.1
Pump, [email protected] Horiz-Axial P/Boost Brass FNA-520002

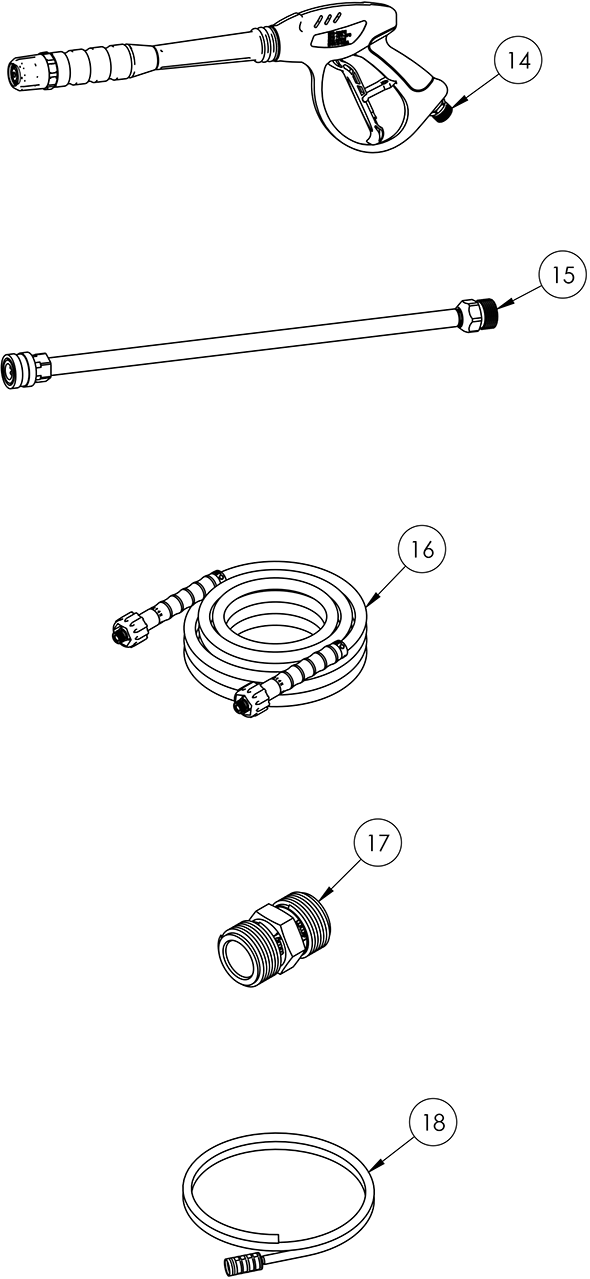

Simpson MSH3224

...
...
14
Trigger Spray Gun 4500Psi @ 6.6Gpm M22(M) X M22(F) FNA-7106275
...
15
Lance, 16" W/ 1/4"Qc(F) X M22(M) FNA-7103550
...
16
Hose, 1/4" X 25' X 4000Psi Wire Braid FNA-7107081
...
17
M22 Adaptor 14/15Mm FNA-104049
...
18
Kit, Soap Hose & Filter FNA-7102207

Simpson MSH3224

...
...
1
Case FNA-7106683
...
2
Oil Seal FNA-7106632
...
3
Thrusting Bening 2 FNA-7106633
...
4
Back Ring. Wobble Plate FNA-7106673
...
5
O-Ring FNA-7106674
...
6
Wobble Plate FNA-7106675
...
7
Thrusting Bearing 1 FNA-7106635
...
8
Clip FNA-7106636
...
9
Spring Base FNA-7106637
...
10
Plunger FNA-7106638
...
11
Spring, Plunger FNA-7106639
...
12
O-Ring FNA-7106676
...
13
Base, Plunger FNA-7106677
...
14
Oil Seal FNA-7105741
...
15
Back Ring FNA-7106642
...
16
High Pressure Water Seal FNA-7106627
...
16
Back Ring FNA-7106627
...
16
O-Ring FNA-7106627
...
16
Low Pressure Water Seal FNA-7106627
...
17
Back Ring FNA-7106643
...
18
O-Ring FNA-7106644
...
19
Valve Case FNA-7104223
...
19
Spring FNA-7104223
...
19
Valve Plate FNA-7104223
...
19
Valve Seat FNA-7104223
...
19
O-Ring FNA-7104223
...
20
Filter Gasket FNA-7000123
...
21
Nut FNA-7105705
...
22
Inlet Connector FNA-7106678
...
23
O-Ring FNA-7106651
...
24
Pump Head FNA-7106679
...
25
Screw FNA-7106648
...
26
Screw FNA-7106649
...
27
Thermal Protector FNA-7101359
...
28
O-Ring FNA-7106680
...
29
O-Ring FNA-7106681
...
30
Nut Plug FNA-7005061
...
31
Boost Valve Case FNA-7106654
...
31
Boost Valve Spring FNA-7106654
...
31
Boost Valve Pole FNA-7106654
...
31
Boost Valve Plate FNA-7106654
...
31
O-Ring FNA-7106654
...
32
Nut FNA-7104226
...
32
Adjusting Nut FNA-7104226
...
32
Spring FNA-7104226
...
32
Seating Ring FNA-7104226
...
32
Valve Sheath FNA-7104226
...
32
O-Ring FNA-7104226
...
32
Checking Ring FNA-7104226
...
32
Valve Pole FNA-7104226
...
32
Pin FNA-7104226
...
32
Upper Seat FNA-7104226
...
32
Steel Ball FNA-7104226
...
32
Back Seat FNA-7104226
...
33
Screw FNA-7106682
...
34
U-Pin FNA-7106655
...
35
Nozzle FNA-7104228
...
35
O-Ring FNA-7104228
...
35
Spring FNA-7104228
...
35
Steel Ball FNA-7104228
...
36
Manifold FNA-7106687
...
37
O-Ring FNA-7106630
...
37
Checking Valve Core FNA-7106630
...
37
Checking Valve Spring FNA-7106630
...
37
Nozzle FNA-7106630
...
37
Venturi Tube FNA-7106630
...
38
O-Ring FNA-7106651
...
39
Outlet Connector FNA-7106686
...
40
O-Ring FNA-7106652

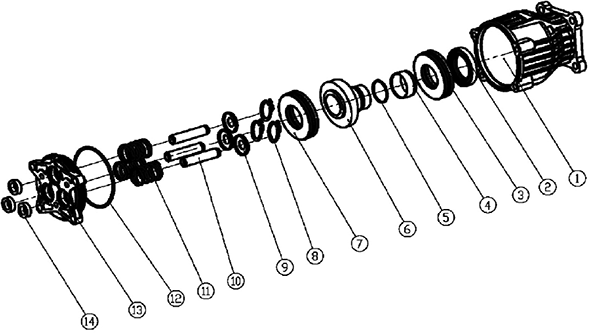

Simpson MSH3224

...
...
1
Case FNA-7106683
...
2
Oil Seal FNA-7106632
...
3
Thrusting Bearing 2 FNA-7106633
...
4
Back Ring, Wobble Plate FNA-7106673
...
5
O-Ring FNA-7106674
...
6
Wobble Plate FNA-7106675
...
7
Thrusting Bearing 1 FNA-7106635
...
8
Clip FNA-7106636
...
9
Spring Base FNA-7106637
...
10
Plunger FNA-7106638
...
11
Spring, Plunger FNA-7106639
...
12
O-Ring FNA-7106676
...
13
Base, Plunger FNA-7106677
...
14
Oil Seal FNA-7105741

Simpson MSH3224

...
...
15
Back Ring FNA-7106642
...
16
High Pressure Water Seal FNA-7106627
...
16
Back Ring FNA-7106627
...
16
O-Ring FNA-7106627
...
16
Low Pressure Water Seal FNA-7106627
...
17
Back Ring FNA-7106643
...
18
O-Ring FNA-7106644
...
19
Valve Case FNA-7104223
...
19
Spring FNA-7104223
...
19
Valve Plate FNA-7104223
...
19
Valve Seat FNA-7104223
...
19
O-Ring FNA-7104223
...
20
Filter Gasket FNA-7000123
...
21
Nut FNA-7105705
...
22
Inlet Connector FNA-7106678
...
23
O-Ring FNA-7106651
...
24
Pump Head FNA-7106679
...
25
Screw FNA-7106648
...
26
Screw FNA-7106649
...
27
Thermal Protector FNA-7101359
...
28
O-Ring FNA-7106680
...
29
O-Ring FNA-7106681
...
30
Nut Plug FNA-7005061
...
31
Boost Valve Case FNA-7106654
...
31
Boost Valve Spring FNA-7106654
...
31
Boost Valve Pole FNA-7106654
...
31
Boost Valve Plate FNA-7106654
...
31
O-Ring FNA-7106654
...
32
Nut FNA-7104226
...
32
Adjusting Nut FNA-7104226
...
32
Spring FNA-7104226
...
32
Seating Ring FNA-7104226
...
32
Valve Sheath FNA-7104226
...
32
O-Ring FNA-7104226
...
32
Checking Ring FNA-7104226
...
32
Valve Pole FNA-7104226
...
32
Pin FNA-7104226
...
32
Upper Seat FNA-7104226
...
32
Steel Ball FNA-7104226
...
32
Back Seat FNA-7104226
...
33
Screw FNA-7106682
...
34
U-Pin FNA-7106655
...
35
Nozzle FNA-7104228
...
35
O-Ring FNA-7104228
...
35
Spring FNA-7104228
...
35
Steel Ball FNA-7104228
...
36
Manifold FNA-7106687
...
37
O-Ring FNA-7106630
...
37
Checking Valve Core FNA-7106630
...
37
Checking Valve Spring FNA-7106630
...
37
Nozzle FNA-7106630
...
37
Venturi Tube FNA-7106630
...
38
O-Ring FNA-7106651
...
39
Outlet Connector FNA-7106686
...
40
O-Ring FNA-7106652
