Simpson MS60920 Pressure Washer

Model: MS60920

Save Part Not Listed?

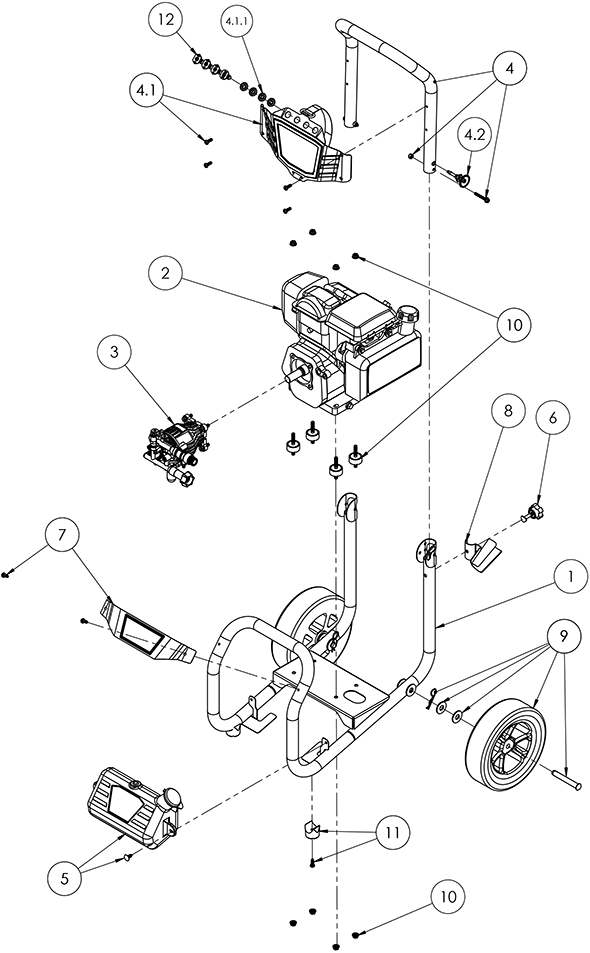

product name

Simpson MS60920

...
...
1
Frame Assy, Black, 12" C-C, Ms60920 FNA-7110387
...
2
Engine Svc Assy, Honda Gc190 W/ Labels FNA-7107312
...
3
Pump, Svc Assy FNA-7109581
...
4
Handle Service Assy, 60920 FNA-7110769
...
4.1
Dashboard Service Assy, Upper, 60920 FNA-7110768
...
4.1.1
Holder, Nozzle Single FNA-7106833
...
4.2
Spring-Assisted Plunger FNA-7110341
...
5
Soap Tank Svc Assy, 60920 FNA-7110767
...
6
Knob-Bolt Assembly FNA-7107941
...
7
Dashboard Service Assy, Lower, 60920 FNA-7110770
...
8
Steel Gun Holder, Painted Silver, 1.25" Od Tube FNA-7110492
...
9
Wheel Svc Assy, 60920 FNA-7110764
...
10
Hardware Kit, Engine Mount Vibration Damping FNA-7108382
...
11
Foot, Svc Kit Fitted Rubber And Screw FNA-7105468
...
12
Nozzle, 4 Pc 1Pcss 1/4Qc 0,15,40 & Psoap FNA-7108546

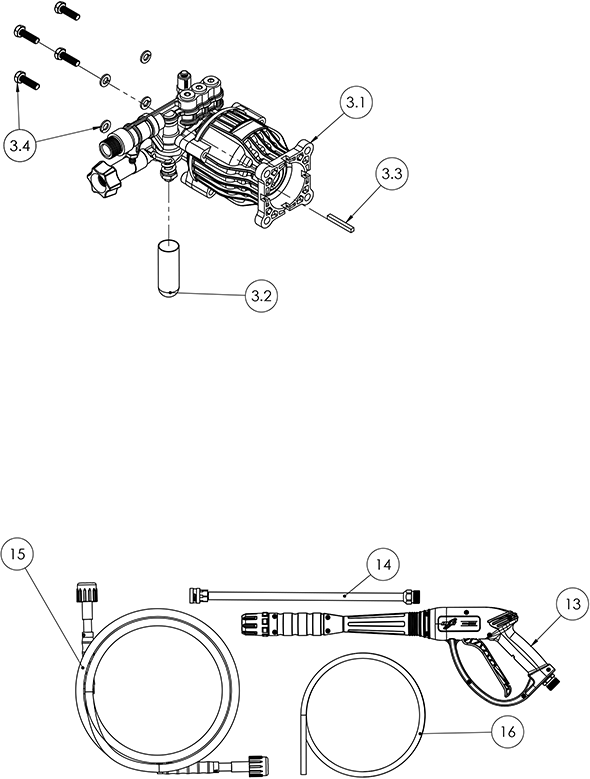

Simpson MS60920

...
...
3
Pump, Svc Assy FNA-7109581
...
3.1
Pump, Horz, 12Mmx12Deg, P/B, Al Unihead FNA-520004
...
3.3
Key, Shaft 3/16 X 3/16 X 1-1/2 FNA-7101506
...
3.4
Hardware Kit, Pump Mounting FNA-7105474
...
13
Gun, 3600Psi 8Gpm M22(M) X M22(F) Oem FNA-7109565
...
14
Lance, 16" W/ 1/4 Qc And M22(M) FNA-7103550
...
15
Hose, Morflex 1/4" X 50' X 3100Psi M22 X M22 FNA-7108545
...
16
Hose, Soap Clear 5.7Mm X 8.9Mm Od FNA-7107745

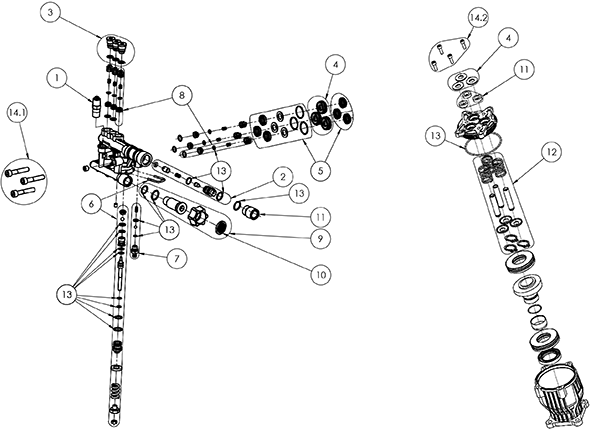

Simpson MS60920

...
...
1
Thermal Relief Valve FNA-7101359
...
2
Venturi Kit FNA-7110154
...
3
Valve Cap Kit FNA-7110155
...
4
Seal Spacer Kit FNA-7110156
...
5
Water Seal Kit FNA-7110165
...
6
Unloader Kit FNA-7110167
...
7
Soap Injector Kit FNA-7104228
...
8
Valve Kit FNA-7110110
...
9
Water Inlet Kit FNA-7110166
...
10
Water Inlet Screen FNA-7000123
...
11
Water Outlet Fitting FNA-7110264
...
11
Oil Seal Kit FNA-7110124
...
12
Piston Kit FNA-7110182
...
13
Oring Kit FNA-7110158
...
14
Pump Hardware Kit FNA-7110157

Simpson MS60920

...
...
1
Thermal Relief Valve FNA-7101359
...
2
Venturi Kit FNA-7110154
...
3
Valve Cap Kit FNA-7110155
...
4
Seal Spacer Kit FNA-7110156
...
5
Water Seal Kit FNA-7110165
...
6
Unloader Kit FNA-7110167
...
7
Soap Injector Kit FNA-7104228
...
8
Valve Kit FNA-7110110
...
9
Water Inlet Kit FNA-7110166
...
10
Water Inlet Screen FNA-7000123
...
11
Water Outlet Fitting FNA-7110264
...
11
Oil Seal Kit FNA-7110124
...
12
Piston Kit FNA-7110182
...
13
Oring Kit FNA-7110158
...
14
Pump Hardware Kit FNA-7110157
