Simpson MS60852-60853 Pressure Washer

Model: MS60852

Save Part Not Listed?
product name

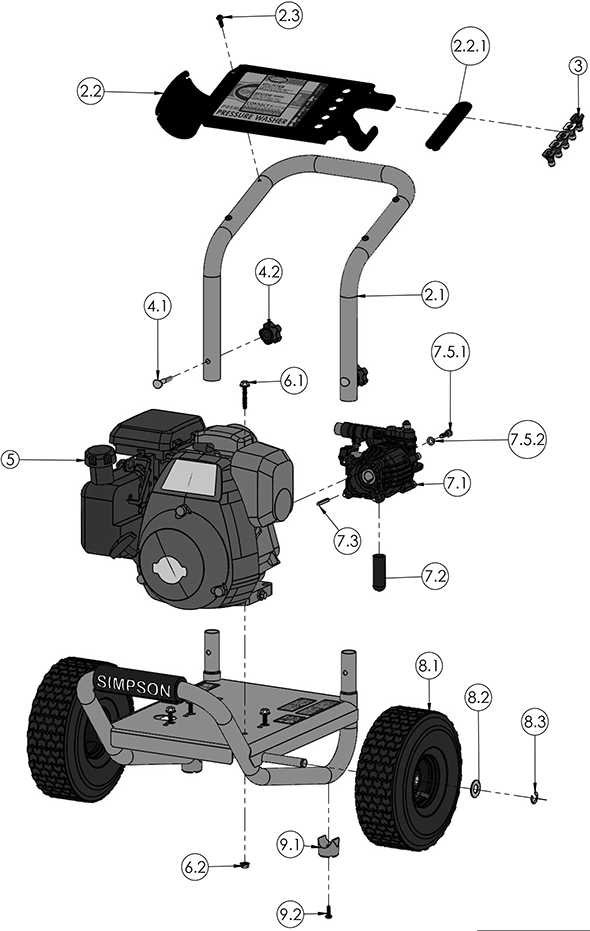

Simpson MS60852

...
...
1
Frame, Base Assy, 11.75 Silver W/Labels FNA-7109230
...
2
Handle Assembly Kit, Ms60852 FNA-7109277
...
2.2
Dashboard-Nozzle Holder Assembly, 11.75" Black FNA-7109326
...
2.2.1
Nozzle Holder, 5Pc Rubber FNA-7103161
...
3
Nozzle, 2.80 5Pcset 0, 15, 25, 40 & Soap FNA-7104818
...
4
Hardware Kit, Handle Mounting FNA-7107941
...
5
Engine Service Assembly Honda Gc190 FNA-7107312
...
6
Mounting Kit, Engine FNA-7103750
...
7
Pump, Svc Assy FNA-7109581
...
7.1
Pump, Horz, 12Mmx12Deg, P/B, Al Unihead FNA-520004
...
7.3
Key, Shaft 3/16 X 3/16 X 1-1/2 FNA-7101506
...
7.4
Kit, Svc Assy Soap Hose W/Plastic Filter FNA-7102207
...
7.5
Hardware Kit, Pump Mounting FNA-7105474
...
8
Wheel, Service Kit FNA-7105013
...
9
Foot Service Kit FNA-7109385

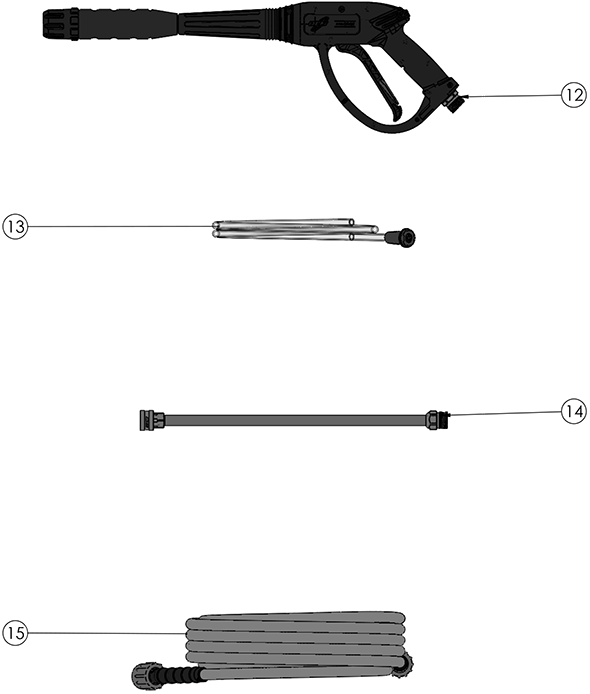

Simpson MS60852

...
...
12
Gun 4500Psi, 6.6 Gpm M22(M) X M22(F) Oem FNA-7108124
...
13
Kit, Svc Assy Soap Hose W/Plastic Filter FNA-7102207
...
14
Lance, 16" W/ 1/4 Qc And M22(M) FNA-7103550
...
15
Hose, Morflex 1/4" X 25' X 3100Psi M22(M) X M22(F) FNA-7106419

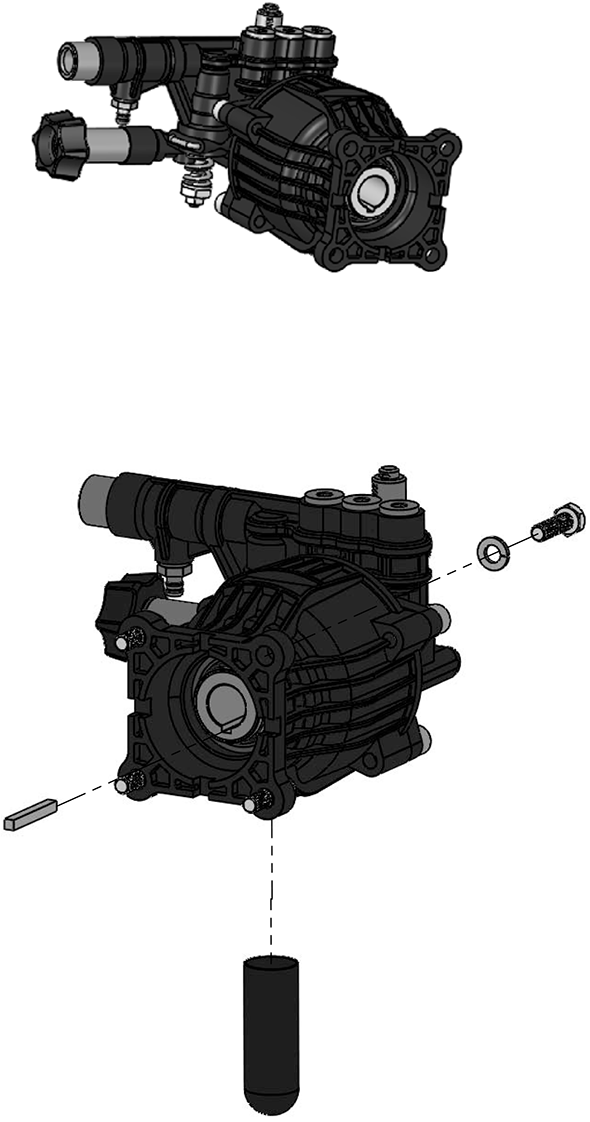

Simpson MS60852

...
...
6
Pump, Svc Assy FNA-7109581
...
6.1
Pump, Horz, 12Mmx12Deg, P/B, Al Unihead FNA-520004
...
6.3
Key, Shaft 3/16 X 3/16 X 1-1/2 FNA-7101506
...
6.4
Kit, Svc Assy Soap Hose W/Plastic Filter FNA-7102207
...
6.5
Hardware Kit, Pump Mounting FNA-7105474

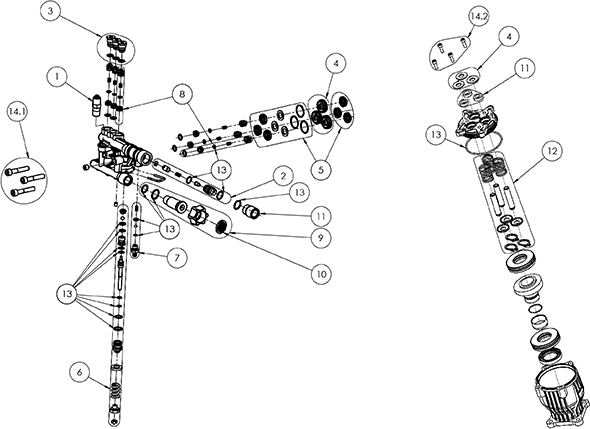

Simpson MS60852

...
...
1
Thermal Relief Valve FNA-7110131
...
2
Venturi Kit FNA-7110154
...
3
Valve Cap Kit FNA-7110155
...
4
Seal Spacer Kit FNA-7110156
...
5
Water Seal Kit FNA-7110165
...
6
Unloader Kit FNA-7110167
...
7
Soap Injector Kit FNA-7110111
...
8
Valve Kit FNA-7110110
...
9
Water Inlet Kit FNA-7110166
...
10
Water Inlet Screen FNA-7110138
...
11
Water Outlet Fitting FNA-7110264
...
11
Oil Seal Kit FNA-7110124
...
12
Piston Kit FNA-7110182
...
13
Oring Kit FNA-7110158
...
14
Pump Hardware Kit FNA-7110157

Simpson MS60852

...
...
1
Thermal Relief Valve FNA-7110131
...
2
Venturi Kit FNA-7110154
...
3
Valve Cap Kit FNA-7110155
...
4
Seal Spacer Kit FNA-7110156
...
5
Water Seal Kit FNA-7110165
...
6
Unloader Kit FNA-7110167
...
7
Soap Injector Kit FNA-7110111
...
8
Valve Kit FNA-7110110
...
9
Water Inlet Kit FNA-7110166
...
10
Water Inlet Screen FNA-7110138
...
11
Water Outlet Fitting FNA-7110264
...
11
Oil Seal Kit FNA-7110124
...
12
Piston Kit FNA-7110182
...
13
Oring Kit FNA-7110158
...
14
Pump Hardware Kit FNA-7110157
