product name

Simpson MS60601-60601-S Pressure Washer

Model: MS60601

Save Part Not Listed?
product name

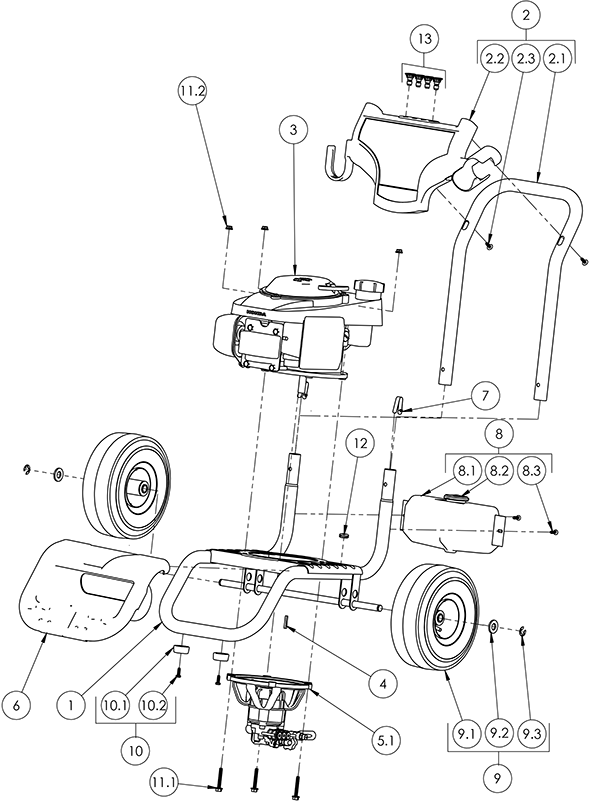

Simpson MS60601

...
...
1
Frame Base Weldment Assembly FNA-7105501
...
2
Handle, Bonnet Service Assembly With Label, Red FNA-7106897
...
2.2
Bonnet Svc Assembly, With Label FNA-7106597
...
3
Engine, Service Assembly With Labels FNA-7106898
...
4
Key, Shaft 3/16 Sq X 1-1/4 FNA-7104174
...
5
Oem Pump Service Assembly, 3000Psi @2.4Gpm FNA-7105466
...
6
Scoop, Trimmed And Slotted FNA-7105505
...
7
Button Snap FNA-7102122
...
8
Discontinued FNA-7104682
...
9
Wheel, Service Kit FNA-7105013
...
10
Foot Kit, Rubber Foot & Screw FNA-7103292
...
11
Hardware Kit, Engine/Pump Mount FNA-7106904
...
12
Grommet, 7/16" Rubber FNA-7100389
...
13
Nozzle, Set 4 Pc 2.5 FNA-7105649

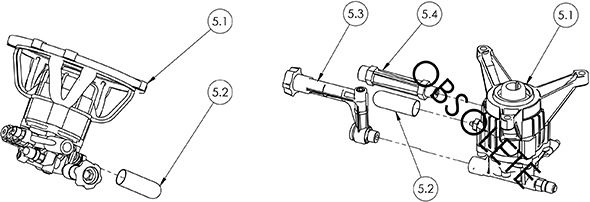

Simpson MS60601

...
...
5.1
Oem Pump, 3000Psi @2.4Gpm FNA-510014
...
5.1
Pump, Vertical 2400Psi @ 2.0Gpm FNA-7105646

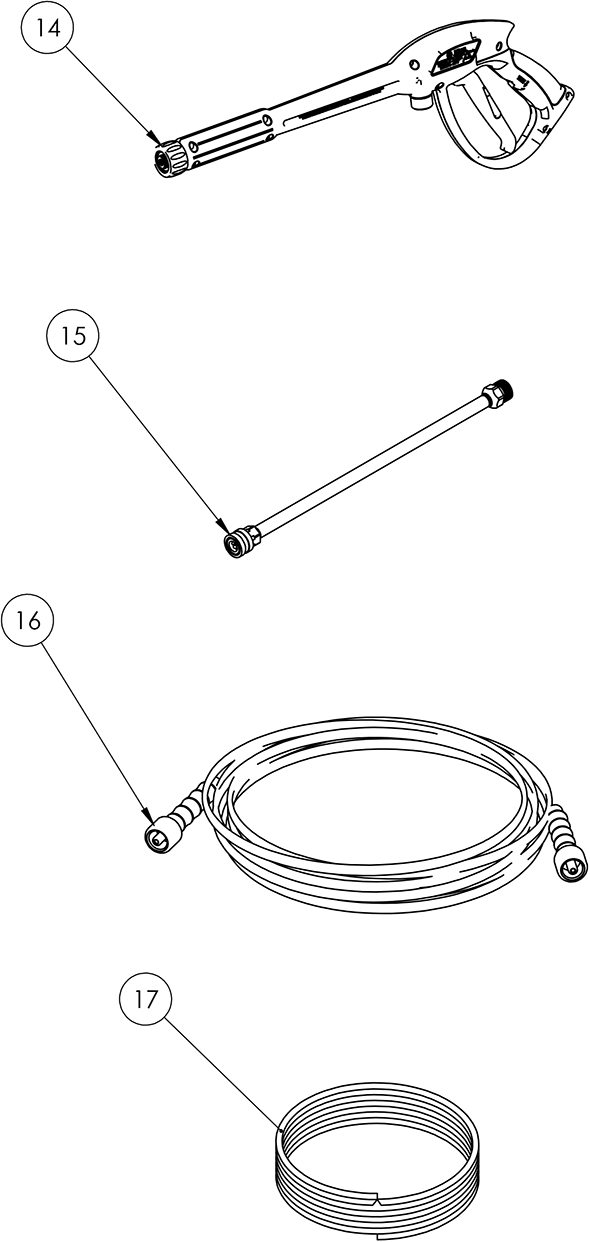

Simpson MS60601

...
...
14
Gun, 3000Psi M22(M) M22(F) FNA-7104847
...
15
Lance, 16In Qc, M22(M) FNA-7103550
...
16
Hose, 3100Psi 1/4 X 25' Black FNA-7105238
...
17
Soap Hose, 1/4 X 51" FNA-7101682

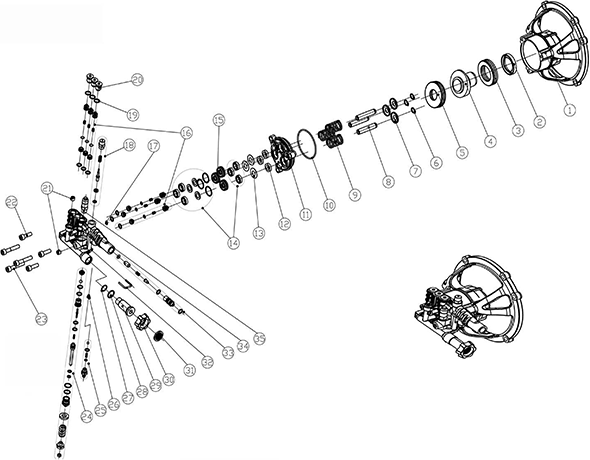

Simpson MS60601

...
...
1
Wobble Plate FNA-7106634
...
1
Case FNA-7106631
...
2
Oil Seal FNA-7106632
...
3
Thrusting Bearing 2 FNA-7106633
...
5
Thrusting Bearing 1 FNA-7106635
...
6
Clip FNA-7106636
...
7
Spring Base FNA-7106637
...
8
Plunger FNA-7106638
...
9
Spring FNA-7106639
...
10
O-Ring FNA-7106640
...
11

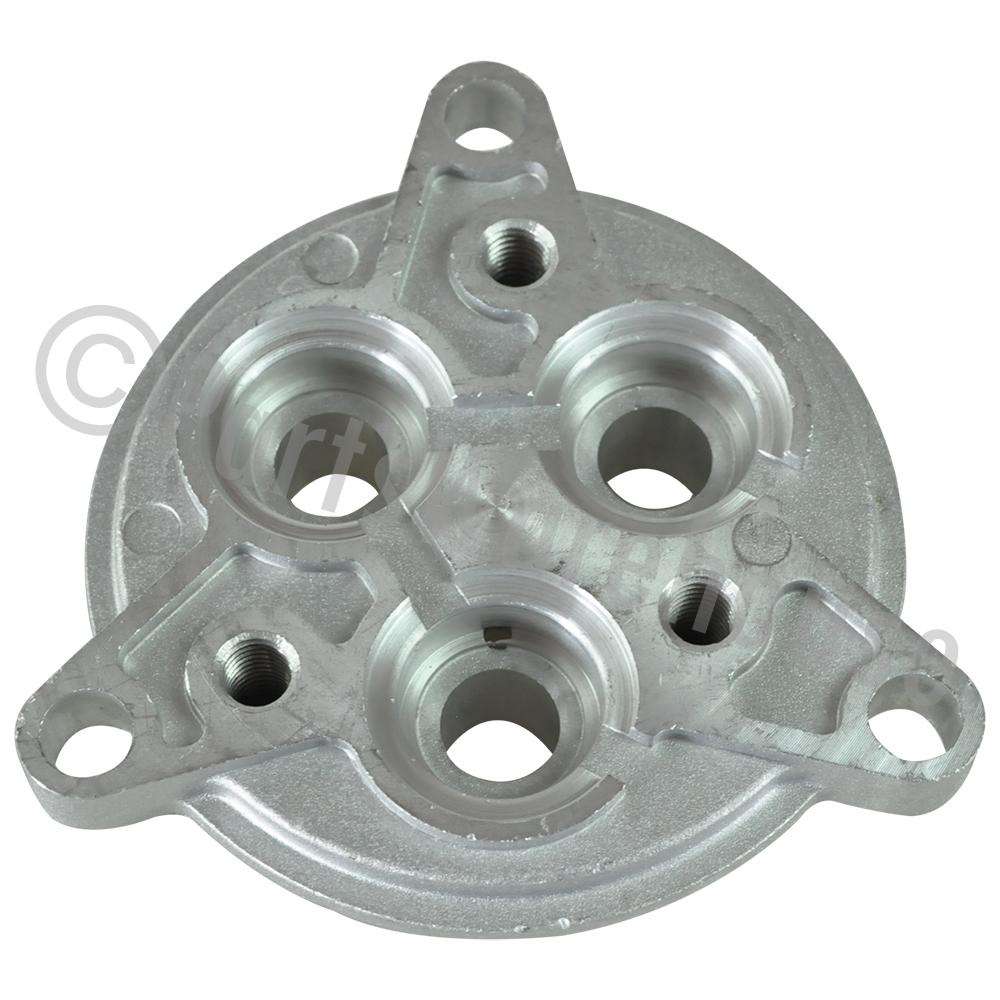

Pluunger Base FNA-7106641
...
12
Oil Seal FNA-7105741
...
13
Back Ring FNA-7106642
...
14
High Pressure Water Seal FNA-7106627
...
14
Beck Ring FNA-7106627
...
14
O-Ring FNA-7106627
...
14
Low Pressure Water Seal FNA-7106627
...
15
Back Ring FNA-7106643
...
16
O-Ring FNA-7104223
...
16
Valve Seat FNA-7104223
...
16
Valve Plate FNA-7104223
...
16
Valve Case FNA-7104223
...
16
Spring FNA-7104223
...
17
O-Ring FNA-7105514
...
18
Boost Vale Case FNA-7106628
...
18
Boost Vale Spring FNA-7106628
...
18
Boost Valve Pole FNA-7106628
...
18
Boost Valve Plate FNA-7106628
...
18
O-Ring FNA-7106628
...
19
O-Ring FNA-7106645
...
20
Plug FNA-7106646
...
21
Plug FNA-7106647
...
22
Screw FNA-7106648
...
23
Screw FNA-7106649
...
24
Back Seat FNA-7104226
...
24
Steel Ball FNA-7104226
...
24
Upper Seat FNA-7104226
...
24
Pin FNA-7104226
...
24
Valve Pole FNA-7104226
...
24
Checking Ring FNA-7104226
...
24
Valve Sheath FNA-7104226
...
24
Seating Ring FNA-7104226
...
24
Spring FNA-7104226
...
24
Adjusting Nut FNA-7104226
...
24
Nut FNA-7104226
...
24
O-Ring FNA-7104226
...
25
Nozzle FNA-7104228
...
25
O-Ring FNA-7104228
...
25
Steel Ball FNA-7104228
...
25
Spring FNA-7104228
...
26
Ventun Tube Back Ring FNA-7106650
...
27
O-Ring FNA-7106651
...
28
O-Ring FNA-7106652
...
29
Inlet Connector FNA-7106653
...
30
Nut FNA-7106664
...
31
Filter Gasket FNA-7000123
...
32
U-Pin FNA-7106655
...
33
O-Ring FNA-7106630
...
33
Checking Valve Core FNA-7106630
...
33
Checking Valve Spring FNA-7106630
...
33
Nozzle FNA-7106630
...
33
Venturi Tube FNA-7106630
...
34
Pump Head FNA-7106656
...
35
Thermal Relief Vatve FNA-7101359
