Simpson MB1518-60363 Pressure Washer

Model: MB1518

Save Part Not Listed?
product name

Simpson MB1518

...
...
1
Tank Head, Mini-Brute FNA-7105313
...
2
Tank Wrapper With Screws FNA-7114610
...
3
Coupler, 3/8" X 1/2" Nptm FNA-7102246
...
5
Relief Valve, 3/8" Nptm X 1/4" Hb 2000Psi FNA-7101336
...
6
Flow Switch (St-6) FNA-7101225
...
9
Hose 3/8" X 20" Swvl FNA-7103245
...
10
Coil, Mini-Brute FNA-7200274
...
11
Insulation Blanket And Discs FNA-7114611
...
12
Coil Tank Mounting Hardware FNA-7114609
...
13
Fuel Filter, Model 160 FNA-7100337
...
14
Gasket, Burner, Wayne FNA-7101781
...
15
Mini Brute Burner Assy FNA-7114608
...
16
Foot Kit, Mini-Brute FNA-7106477
...
17
Hose, 3/8" X 50' X 45000Psi Rubber FNA-7107495
...
18
Lance, 36" Insulated FNA-7100550
...
19
Gun,5075Psi 12Gpm 3/8 Fnpt In 1/4 Fnpt FNA-7108134
...
20
Nozzle, 4Pc Set 15, 25, 40 & Soap FNA-7105176
...
21
Tool, Nozzle Cleaning, Universal FNA-7102045
...
22
Kit, Svc Assy Soap Hose W/Plastic Filter FNA-7102207
...
23
Wheel Kit, 13.0 X 5.0-6 (Black) FNA-7103521
...
24
Axle, 5/8" X 21 1/2" FNA-7101121
...
25
Frame, Mini-Brute FNA-7200265
...
28
1/4" Hose Barb X 1/4" Nptm FNA-7100423
...
32
Diesel Tank, Mini-Brute FNA-7200271
...
33
Fuel Cap, Non-Vented W/ Chain FNA-7105659
...
34
Grip Tube, 1" X 1" X 4 1/2" FNA-7101301
...
35
1/2" P-Clamp Kit FNA-7112838
...
36
Mini Brute Engine Mounting Kit FNA-7114576
...
37
Elec Motor/Pump, [email protected] Black, W/ Feet FNA-7111963
...
38
Water Outlet Kit FNA-7110265
...
39
Water Inlet Kit FNA-7110329
...
40
Thermal Relief Valve, 1/4" Npt FNA-7101359
...
41
Mini Brute Front Panel, Black FNA-7112671
...
42
Grommet, 7/16" Id FNA-7100389
...
43
Toggle Switch, 20 Amp FNA-7101244

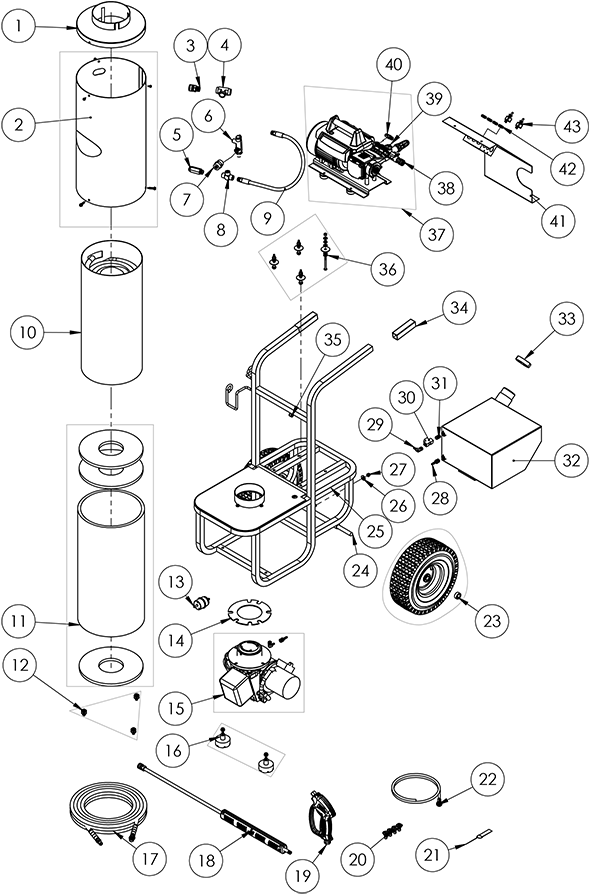

Schematic Image Zoomed
