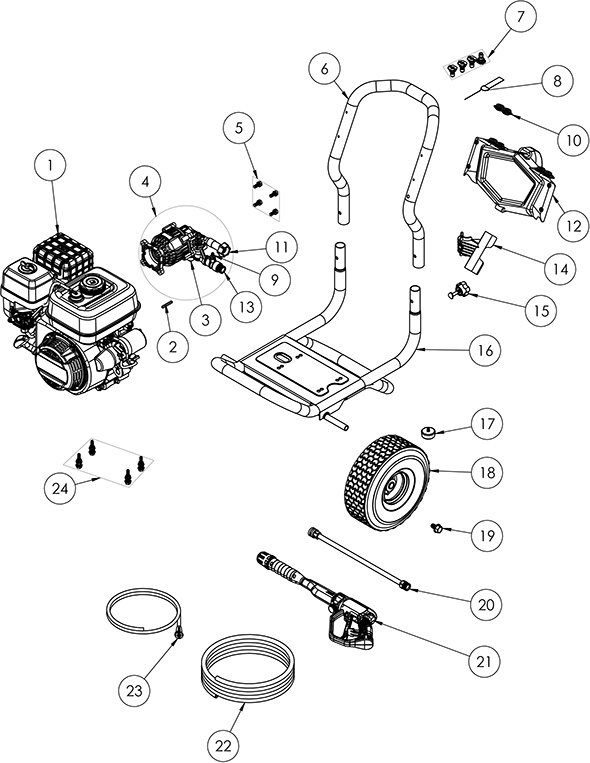

Simpson CM61135 Pressure Washer

Model: CM61135

Save Part Not Listed?
product name

Simpson CM61135

...
...
1
Engine, 163Cc, 50 St, 3200 Watt FNA-109966
...
2
Key, Shaft 3/16 X 3/16 X 1-1/2 FNA-7101506
...
3
Thermal Relief Valve FNA-7101359
...
4
Pump FNA-520006
...
5
Hardware Kit, Pump Mount FNA-7103745
...
6
Handle Tube, Verzontal, Black FNA-7112745BK1
...
7
Nozzle, Kit, 0, 15, 40, Soap FNA-7115328
...
8
Tool, Nozzle Cleaning, Universal FNA-7102045
...
9
Soap Injector Kit (O-Ring, Ball, Injector, Valve) FNA-7104228
...
10
Holder, Nozzle 2Pc Rubber Strip FNA-7107067
...
11
Water Inlet Kit (O-Rings, Screen, Nut, Connector) FNA-7110166
...
12
Dashboard Svc Assy FNA-7115476
...
13
Water Outlet Fitting & O-Ring FNA-7110264
...
14
Holder, Universal Gun FNA-7114691
...
15
Knob-Bolt Assembly FNA-7107941
...
16
Frame, Base FNA-7112431BK1
...
17
Kit, Foot Svc Asy FNA-7103292
...
18
Power Washer Wheel, 4" X 10" Blk W/ 5/8" Brg FNA-7103619
...
19
Wheel Mounting Hardware FNA-7114502
...
20
Lance, 16" W/ 1/4 Qc And M22(M) FNA-7103550
...
21
Gun, Front Entry, 3450Psi, M22 FNA-7112774SIM
...
22
Hose 1/4 X 25Ft X 3200Psi Hyflex Blk FNA-7112862
...
23
Kit, Svc Assy Soap Hose W/Plastic Filter FNA-7102207
...
24
Engine Mounting Hardware FNA-7113822
