Simpson ALH4033 Pressure Washer

Model: ALH4033

Save Part Not Listed?
product name

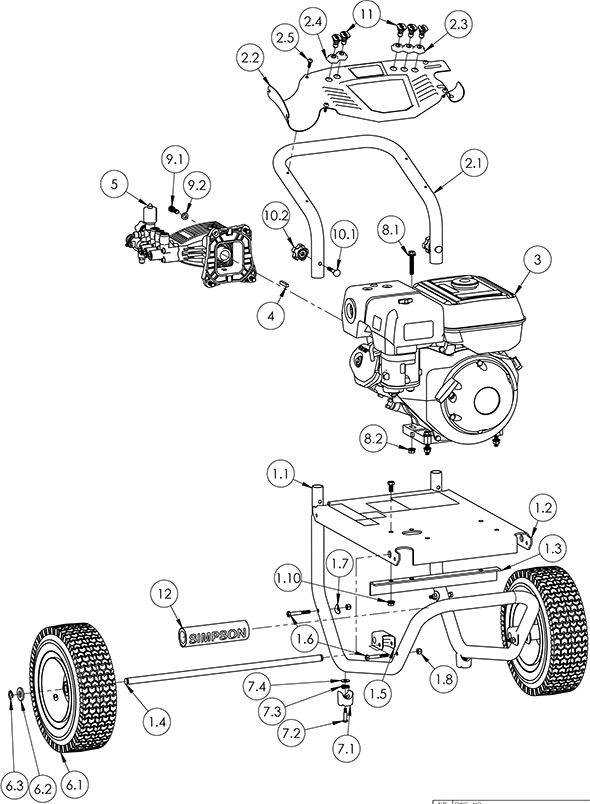

Simpson ALH4033

...
...
1
Frame, Al Svc Assy W/Labels FNA-7107275
...
2
Handle, Svc Assy W/Labels FNA-7107277
...
3
Engine, Svc Assy Gx270 Red Honda FNA-7107276
...
4
Key, Shaft 1/4" X 1/4" X 1-1/2" FNA-7105453
...
5
Pump, Svc Assy FNA-7106901
...
5.1
Pump,4000Psi @ 3.3Gpm Horizontal Triplex FNA-530004
...
6
Kit, 10" Wheel Service FNA-7105376
...
7
Foot Kit, Service Kit FNA-7107262
...
8
Hardware Kit, Engine Mounting FNA-7103277
...
9
Kit, Pump Mounting Hardware FNA-7103279
...
10
Hardware Kit, Handle Mounting FNA-7104570
...
11
Nozzle Set, 3.2 Qc-M 5Pc FNA-7106201
...
12
Handle Grip, Simpson Black W/ White Lettering FNA-7106671

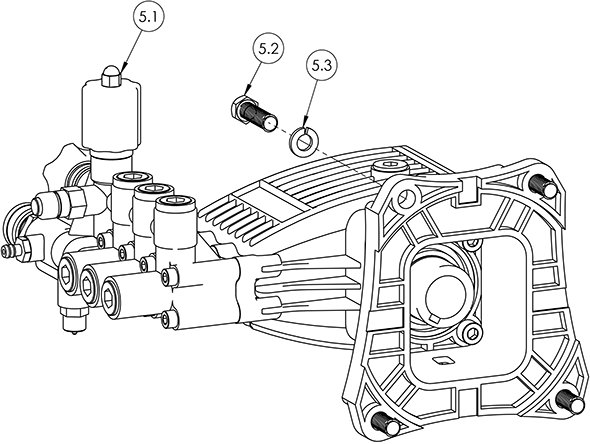

Simpson ALH4033

...
...
5.1
Pump, 4000Psi @ 3.3Gpm Horizontal Triplex FNA-530004

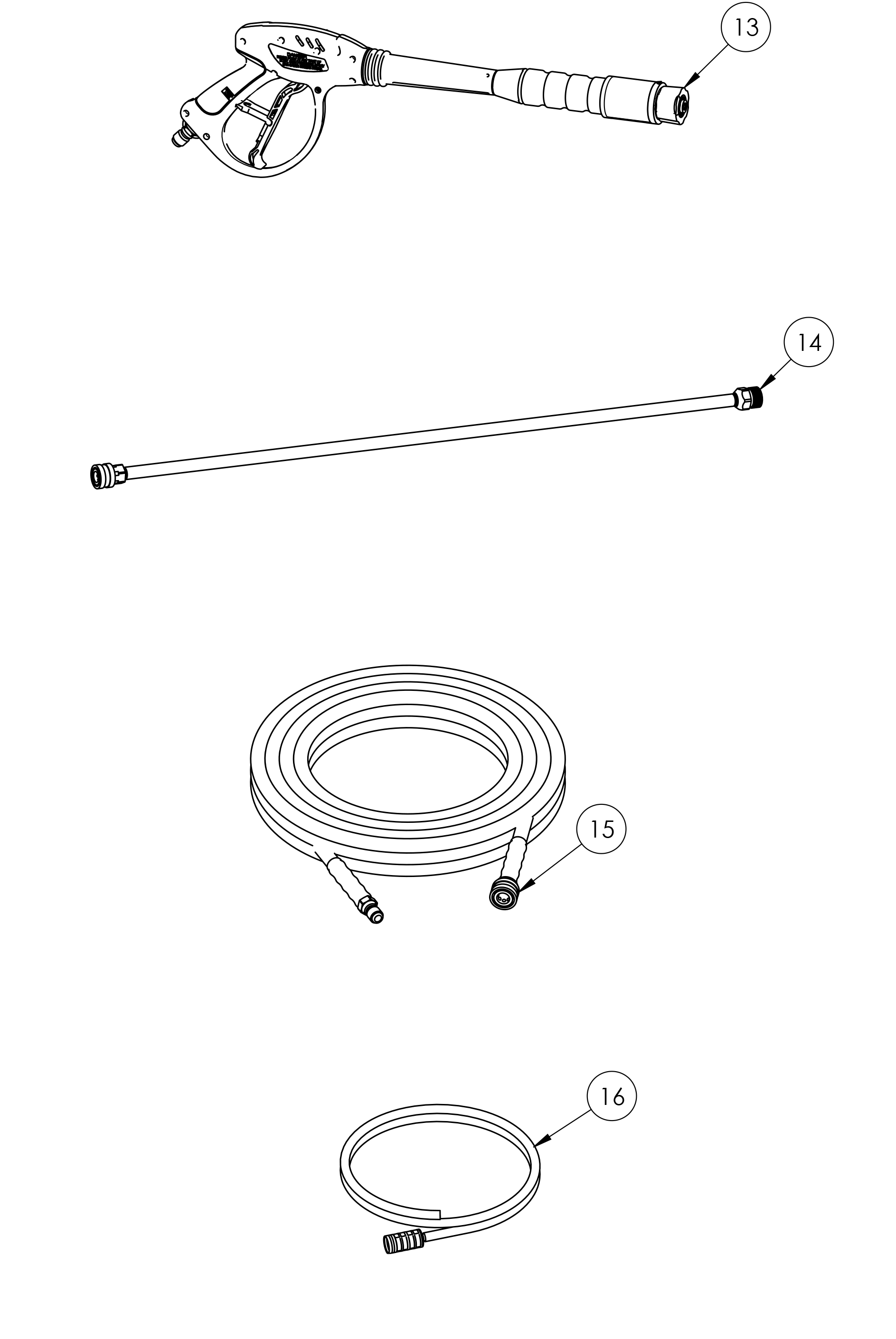

Simpson ALH4033

...
...
13
Gun, 4500Psi @ 6.6Gpm 3/8" Qc-M W/Dial-N-Wash FNA-7107183
...
14
Lance, 31" 1/4" Qc-F X M22(M) FNA-7103261
...
15
Hose, 3/8" X 50' X 4500Psi Rubber FNA-7103642
...
16
Kit, Soap Hose & Filter FNA-7102207

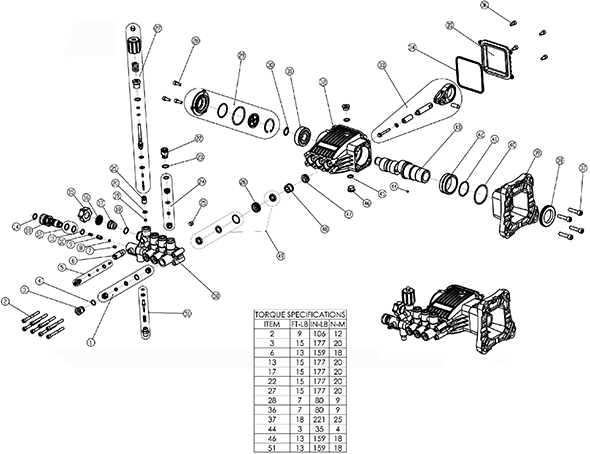

Simpson ALH4033

...
...
1
Cage, Valve FNA-7106691
...
1
Spring, Valve FNA-7106691
...
1
Disk, Valve FNA-7106691
...
1
O-Ring FNA-7106691
...
1
Seat, Valve FNA-7106691
...
2
Screw FNA-7106692
...
3
Plug FNA-7106693
...
4
O-Ring FNA-7106694
...
5
Fitting, Soap Injection FNA-7104228
...
5
O-Ring FNA-7104228
...
5
Ball, Soap Valve FNA-7104228
...
5
Spring, Soap Valve FNA-7104228
...
6
Valve, Thermal Relief FNA-7101359
...
7
Screw FNA-7106695
...
8
O-Ring, Check Valve FNA-7106696
...
9
Core, Check Valve FNA-7106697
...
10
Spring, Check Valve FNA-7106698
...
11
O-Ring FNA-7106699
...
12
O-Ring FNA-7106700
...
13
Quick Connect Connector, Outlet FNA-7106701
...
14
O-Ring FNA-7106702
...
15
Nut, Hand Tight FNA-7105705
...
16
Screen, Water Inlet FNA-700123
...
17
Inlet Connector FNA-7106703
...
18
O-Ring FNA-7106704
...
19
Ball FNA-7105724
...
20
O-Ring FNA-7106705
...
21
Unloader Valve Base FNA-7106706
...
22
Plug FNA-7106647
...
23
O-Ring FNA-7106700
...
24
O-Ring FNA-7106708
...
24
Seat Valve FNA-7106708
...
24
Disk, Valve FNA-7106708
...
24
Spring, Valve FNA-7106708
...
24
Cage, Valve FNA-7106708
...
25
Plug FNA-7106647
...
26
Retainer FNA-7106710
...
27
Nut, Unloader Jam FNA-7106711
...
27
Nut, Unlader Adjustment FNA-7106711
...
27
Spring, Unloader FNA-7106711
...
27
Core, Unloader Valve FNA-7106711
...
27
O-Ring FNA-7106711
...
27
Back-Up Ring, Split FNA-7106711
...
27
Pole, Unlader Valve FNA-7106711
...
27
Spring, Pin FNA-7106711
...
27
Pin FNA-7106711
...
28
Screw FNA-7106721
...
29
Cover, Side FNA-7106709
...
29
O-Ring FNA-7106709
...
29
Sight Glass FNA-7106709
...
29
Ring E40, Retaining FNA-7106709
...
30
Ring 20, Retaining FNA-7106714
...
31
Bearing FNA-7106715
...
32
Crankcase FNA-7106716
...
33
Bolt FNA-7106718
...
33
Gasket FNA-7106718
...
33
Plunger, Ceramic FNA-7106718
...
33
Plunger, Pole Base FNA-7106718
...
33
Connecting Road FNA-7106718
...
33
Pin, Connecting Rod FNA-7106718
...
34
O-Ring FNA-7106719
...
35
End Cover FNA-7106720
...
36
Screw FNA-7106721
...
37
Screw FNA-7106722
...
38
Oil Seal FNA-7106723
...
39
Flange FNA-7106724
...
40
O-Ring FNA-7106725
...
41
Ring 040, Retaining FNA-7106726
...
42
Needle Bearing FNA-7106727
...
43
Crankshaft, 9.4 FNA-7106728
...
44
Screw FNA-7106729
...
45
O-Ring FNA-7106730
...
46
Plug FNA-7105721
...
47
Oil Seal FNA-7106731
...
48
Retainer, Seal FNA-7106732
...
49
Seal, Low Pressure FNA-7106733
...
49
O-Ring FNA-7106733
...
49
Ring, Anti-Ext FNA-7106733
...
49
Seal High Pressure FNA-7106733
...
50
Pump Head FNA-7106734
...
51
Valve Cap, Pressure Boost FNA-7106628
...
51
Spring, Boost Valve FNA-7106628
...
51
Valve, Pressure Boost FNA-7106628
...
51
Back Ring FNA-7106628
...
51
O-Ring FNA-7106628

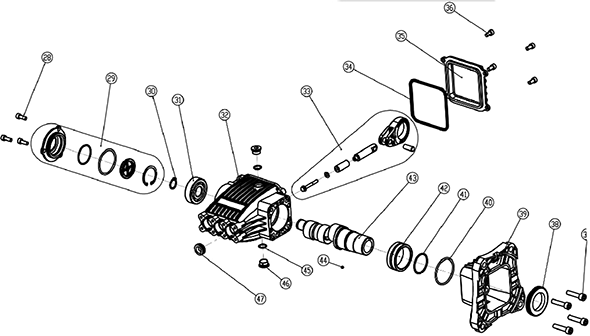

Simpson ALH4033

...
...
28
Screw FNA-7106721
...
29
Cover, Side FNA-7106709
...
29
O-Ring FNA-7106709
...
29
Sight Glass FNA-7106709
...
29
Ring 040, Retailing FNA-7106709
...
30
Ring E20, Retairing FNA-7106714
...
31
Bearing FNA-7106715
...
32
Crankcase FNA-7106716
...
33
Bolt FNA-7106718
...
33
Gasket FNA-7106718
...
33
Plunger, Ceramic FNA-7106718
...
33
Plunger, Pole Base FNA-7106718
...
33
Connecting Road FNA-7106718
...
33
Pin, Connecting Rod FNA-7106718
...
34
O-Ring FNA-7106719
...
35
End Cover FNA-7106720
...
36
Screw FNA-7106721
...
37
Screw FNA-7106722
...
38
Oil Seal FNA-7106723
...
39
Flange FNA-7106724
...
40
O-Ring FNA-7108725
...
41
Ring 040. Retaining FNA-7106726
...
42
Needle Bearing FNA-7106727
...
43
Crankshaft, 9.4 FNA-7106728
...
44
Screw FNA-7106729
...
45
O-Ring FNA-7106730
...
47
Oil Seal FNA-7108731
...
48
Plug FNA-7105721

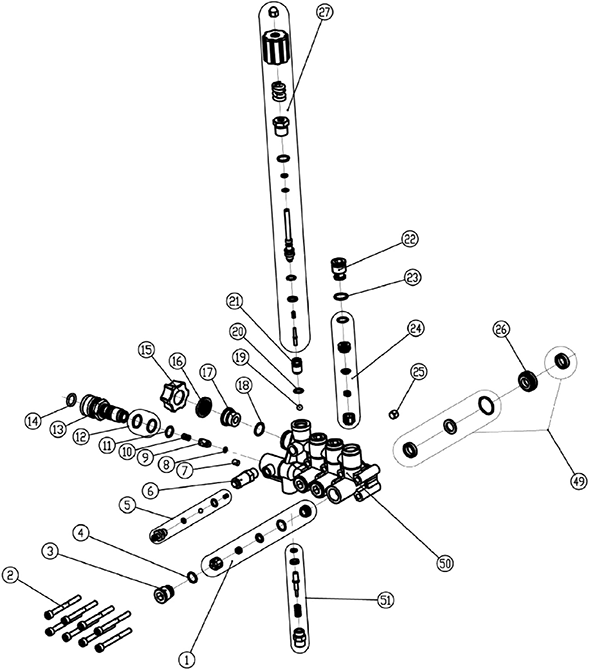

Simpson ALH4033

...
...
1
Cage, Valve FNA-7106691
...
1
Spring, Valve FNA-7106691
...
1
Disk Valve FNA-7106691
...
1
O-Ring FNA-7106691
...
1
Seat, Sake FNA-7106691
...
2
Screw FNA-7106692
...
3
Plug FNA-7108693
...
4
O-Ring FNA-7106894
...
5
Firing Soap Injection FNA-7104228
...
5
O-Ring FNA-7104228
...
5
Ball, Soap Valve FNA-7104228
...
5
Spring, Soap Value FNA-7104228
...
6
Vane, Thennal Relief FNA-7101359
...
7
Screw FNA-7106695
...
8
O-Ring, Check Value FNA-7106696
...
9
Care, Check Valve FNA-7106697
...
10
Spring, Check Valve FNA-7106698
...
11
O-Ring FNA-7108699
...
12
O-Ring FNA-7106700
...
13
Quick Connect Connector, Outlet FNA-7108701
...
14
O-Ring FNA-7106702
...
15
Nut Hand Tight FNA-7105705
...
16
Screen, Water Inlet FNA-700123
...
17
Inlet Connector FNA-7106703
...
18
O-Ring FNA-7106704
...
19
Ball FNA-7105724
...
20
O-Ring FNA-7106705
...
21
Unioader Valve Base FNA-7106706
...
22
Plug FNA-7108647
...
23
O-Ring FNA-7106700
...
24
O-Ring FNA-7106708
...
24
Seat, Valve FNA-7106708
...
24
Disk, Valve FNA-7106708
...
24
Spring, Valve FNA-7106708
...
24
Cage, Valve FNA-7106708
...
25
Plug FNA-7106647
...
26
Retainer FNA-7108710
...
27
Nut, Unloader Jam FNA-7106711
...
27
Nut, Unlader Adjustment FNA-7106711
...
27
Spring, Unloader FNA-7106711
...
27
Core, Unloader Valve FNA-7106711
...
27
O-Ring FNA-7106711
...
27
Back-Up Ring, Split FNA-7106711
...
27
Pole, Unlader Valve FNA-7106711
...
27
Spring Pin FNA-7106711
...
27
Pin FNA-7106711
...
48
Retainer, Seal FNA-7106732
...
49
Seal, Low Pressure FNA-7106733
...
49
O-Ring FNA-7106733
...
49
Ping, Anti-Ext FNA-7106733
...
49
Seal High Pressure FNA-7106733
...
50
Pump Head FNA-7106734
...
51
Valve Cap, Pressure Boost FNA-7106628
...
51
Spring, Boost Value FNA-7106628
...
51
Valve, Pressure Boost FNA-7106628
...
51
Back Rnig FNA-7106628
...
51
O-Ring FNA-7106628
