Simpson ALH3425

Model: ALH3425

Save Part Not Listed?

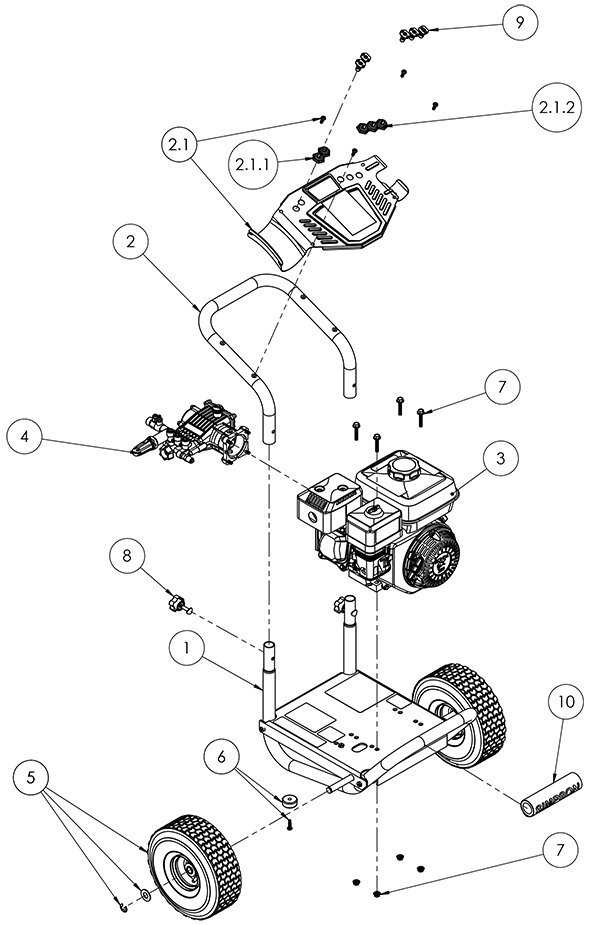

product name

Simpson ALH3425

...
...
1
Base Frame, Svc Assy W/ Labels Aluminum FNA-7107250
...
2
Handle, Rear Service Assembly With Labels FNA-7108736
...
2.1
Alh3225 Dashboard Kit FNA-7110285
...
2.1.1
Holder, Nozzle 2Pc Rubber Strip FNA-7107067
...
2.1.2
Holder, Nozzle 3Pc Rubber Strip FNA-7107068
...
3
Engine, Honda Gx200 Red/White FNA-7107269
...
4
Pump Svc Assy, 530008 53Brd23 FNA-7109046
...
5
Wheel, Service Kit FNA-7105013
...
6
Foot Kit, Service Kit FNA-7107262
...
7
Mounting Kit, Engine FNA-7103750
...
8
Knob-Bolt Assembly FNA-7107941
...
9
Nozzle, 2.80 5Pcset 0, 15, 25, 40 & Soap FNA-7104818
...
10
Handle Grip, Simpson Black W/ White Lettering FNA-7106671

Simpson ALH3425

...
...

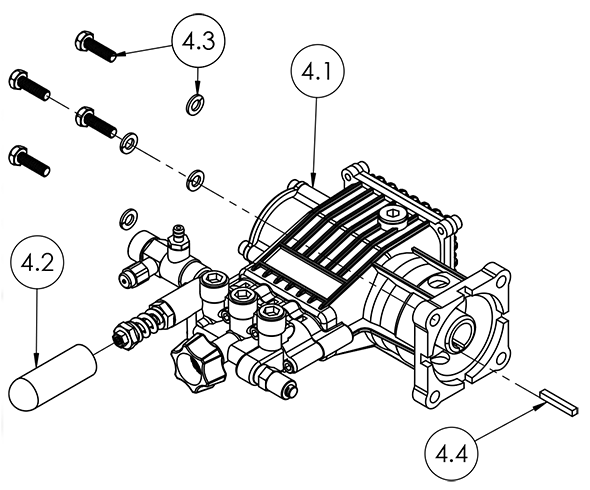

4
Pump, Service Assembly FNA-90037
...
4.1
Pump, 3400Psi 2.3Gpm Horizontal-Triplex FNA-530011
...
4.2
Cap, Unloader Cover 1 1/2" X 5/8" Black, Not Sold Separately FNA-7104122
...
4.3
Hardware Kit, Pump Mounting FNA-7105474
...
4.4
Key, Shaft 3/16" X 3/16" X 1 1/4" FNA-7104174

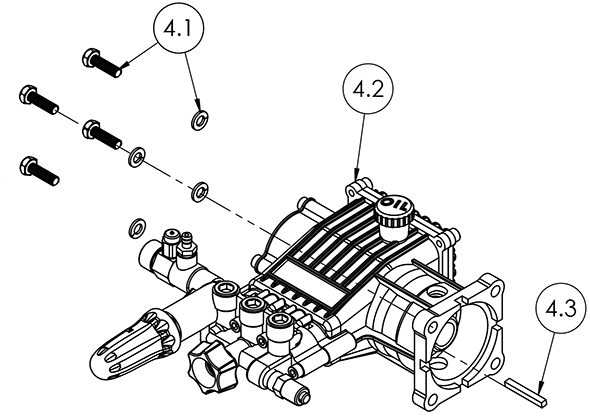

Simpson ALH3425

...
...
4
Pump Svc Assy, 530008 53Brd23 FNA-7109046
...
4.1
Hardware Kit, Pump Mounting FNA-7105474
...
4.2
C31 Series Pump, 3400Psi 2.3 Gpm Horiz FNA-530008
...
4.3
Key, Shaft 3/16 X 3/16 X 1-1/2 FNA-7101506

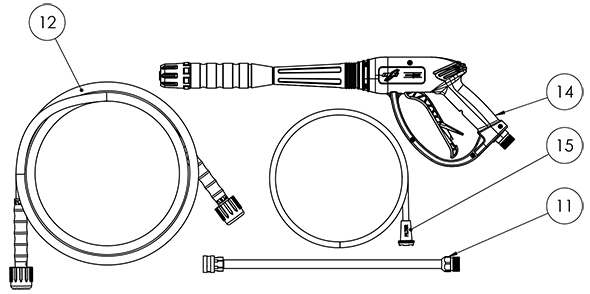

Simpson ALH3425

...
...
11
Lance, 16" W/ 1/4 Qc And M22(M) FNA-7103550
...
12
Hose 5/16" X 35' X 3700Psi Morflex M22 FNA-7107184
...
14
Gun 4500Psi, 6.6 Gpm M22(M) X M22(F) Oem FNA-7108124
...
15
Kit, Svc Assy Soap Hose W/Plastic Filter FNA-7102207
