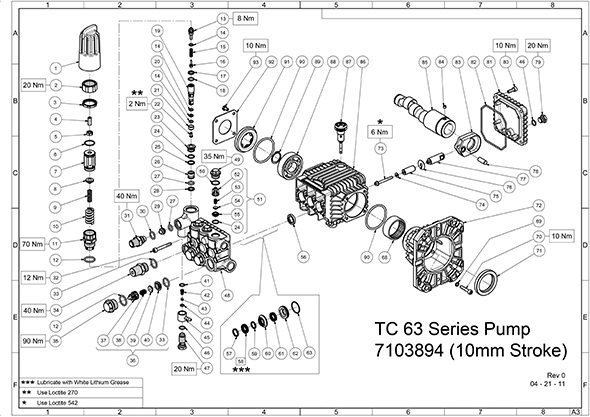

Simpson 7103894 TC 63 Series Pump (10mm Stroke)

Model: 7103894

Save
 Part Not Listed?Part Not Listed?
product name

Simpson 7103894

...
...
K258
Piston Bushing Kit (62, 63) FNA-7104672
...
K257
Intermediate Ring Kit (60) FNA-7104671
...
K256
Valve Kit (24, 33, 36, 51) FNA-7104670
...
K255
Packing Kit (Long) (57-63) FNA-7104669
...
K254
Packing Kit (Short) (57-59, 61) FNA-7104668
...
K195
Unloader Kit (11, 12, 14-28) FNA-7104667
...
K83
Radial Ring (Oil Seal) Kit (56) FNA-7100920
...
1
Knob, Black FNA-7104647
...
4
Screw, M8 X 20 FNA-7104648
...
5
Nut, M8 X 1.25 X 5 X 13 FNA-7104649
...
27
O-Ring, 9.92? X 2.62 FNA-7103467
...
29
Nozzle, 2.2? FNA-7103468
...
30
O-Ring, 13.95? X 2.62 FNA-7103464
...
31
Nipple, 3/8" Npt FNA-7103465
...
32
Screw, M6 X 45 FNA-7104650
...
33
O-Ring, 17.13? X 2.62 FNA-7103487
...
34
Nipple, 1/2" Npt FNA-7103466
...
35
Valve Plug, M24 X 1.5 X 13.2 FNA-7104651
...
41
O-Ring, 9.25? X 1.78 FNA-7103469
...
42
Conical Spring FNA-7103470
...
43
Ball, 7/32" ? FNA-7103471
...
44
O-Ring, 5.28 X 1.78 FNA-7103472
...
45
Hose Barb, Black FNA-7103473
...
47
Chemical Valve Seat FNA-7103474
...
48
Manifold FNA-7104652
...
49
Valve Plug, M18 X 1.5 X 10 FNA-7104653
...
50
O-Ring, 15.6? X 1.78 FNA-7104654
...
68
Needle Bearing FNA-7103459
...
69
Washer, 6.4? X 10 X 0.7 FNA-7103462
...
70
Screw, M6 X 30 FNA-7103463
...
71
Ring, Radial 45? X 62 X 8 FNA-7103461
...
72
Gas Flange FNA-7103460
...
73
Screw, M5 X 45 FNA-7104655
...
74
Washer, 5? X 11.5 X 0.5 FNA-7104656
...
75
Plunger, 13? X 30.5 FNA-7104657
...
76
Washer, 7.5? X 23 X 0.5 FNA-7104658
...
77
Plunger Guide FNA-7104659
...
78
Pin, 9? X 24.5 FNA-7104660
...
79
Plug, G 1/4" X 9 FNA-7103447
...
80
Screw, M6 X 18 FNA-7103445
...
81
Back Cover FNA-7104661
...
82
O-Ring, 94.92? X 2.62 FNA-7104662
...
83
Connecting Rod FNA-7104663
...
84
Screw, M6 X 6 FNA-7103881
...
85
Crankshaft, 10Mm Stroke (1310) FNA-7104664
...
86
Pump Body FNA-7104665
...
87
Oil Dip Stick, G 3/8" FNA-7103443
...
88
Bearing, Spherical FNA-7103441
...
89
Seeger Ring, 25? FNA-7103455
...
90
O-Ring, 55.56? X 3.53 FNA-7103440
...
91
Oil Level Indicator FNA-7103439
...
92
Side Bearing Cover FNA-7103438
...
93
Screw, M6 X 10 FNA-7103437
...
...
...
