Simplicity by MTD 317-262-094 (1997) Snow Thrower

Model: 317-262-094 (1997)

Save Part Not Listed?
product name

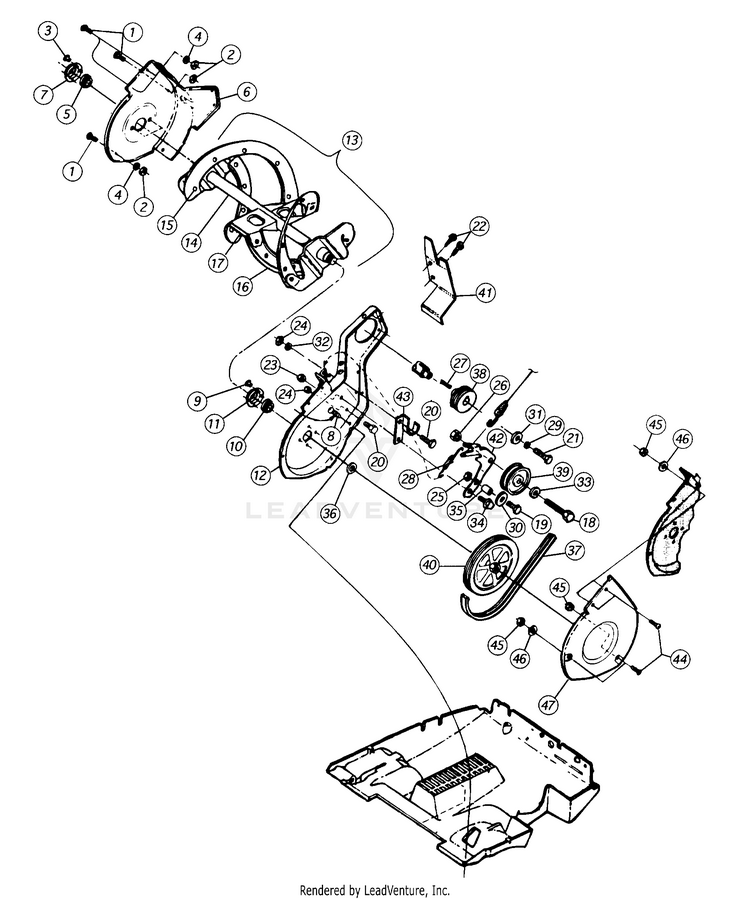

Auger And Drive Group

...
...
1
Truss Machine Screw MTD-710-0473
...
2
Hex Nut MTD-712-0121
...
3
RIVET MTD-928-0145
...
4
Flat Washer MTD-736-0400
...
5
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
6
FRAME (RH) MTD-784-0355
...
7
RETAINER:BRG. MTD-784-0357
...
8
Hex Screw: 1/4 - 20 x .625 Gr 2 MTD-710-0258
...
9
RIVET MTD-928-0145
...
10
Bearing .62" I.D. x 1.38" O.D. x .437" Thk. MTD-941-0155
...
11
RETAINER:BRG. MTD-784-0357
...
12
FRAME (LH) MTD-784-0359
...
13
AUGER ASSEMBLY, COMPLETE MTD-684-0087
...
14
AUGER ASSEMBLY MTD-684-0085
...
15
RIVOT MTD-928-0197
...
16
RUBBER SPIRALS MTD-731-1717
...
17
Auger Paddle MTD-731-1716
...
18
Hex Screw: 3/8 - 16 x 1.50 Gr 5 MTD-710-0520
...
19
SCREW 1/4-20 X1.00 GR5 MTD-710-0597
...
20
Hex Screw: 1/4 - 20 x .75 Gr 5 MTD-710-3015
...
21
SCREW 5/16-24X.875 GR5 MTD-710-1245
...
22
SCREW #10-24X.500 HWHTAP MTD-710-1335
...
23
SEMS NUT 5/16-18 MTD-712-0265
...
24
Sems Nut: 1/4 - 20 MTD-712-0271
...
25
Lock Nut: 1/4 - 20 MTD-712-0291
...
26
Flange Lock Nut 3/8-16 MTD-912-0431
...
27
KEY, SPINDLE MTD-914-0105
...
28
EXTENSION SPRING MTD-732-0691
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
30
WASHER-FL NLAUD MTD-936-0123
...
31
Flat Washer: .385 ID x .87 OD x .092 MTD-736-0262
...
32
Flat Washer: .25 ID x .62 OD MTD-736-0463
...
33
Flat Washer: .406 ID x .81 OD x .051 MTD-736-3050
...
34
BOLT IDLER ARM PIVOT MTD-738-0961
...
35
ROLLER BELT STOP MTD-750-1045
...
36
SPACER PULLEY 1.0" MTD-750-1046
...
37
Belt, Auger Drive MTD-954-0452
...
38
PULLEY DRIVE 1.95 OD MTD-756-0652
...
39
PULLEY IDLER EXT H MTD-756-0653
...
40
PULLEY .625-11X6.00X.750 MTD-756-0654
...
41
SHIELD, BELT MTD-784-0356
...
42
ARM IDLER MTD-784-0358
...
43
BRACKET, BELT GUIDE MTD-784-0362
...
44
Machine Screw #10 - 24 x .62 MTD-710-0425
...
45
Hex Nut MTD-712-0121
...
46
Flat Washer: .218 ID x .62 OD x .063 MTD-736-0400
...
47
BELT GUARD MTD-784-0360-0637

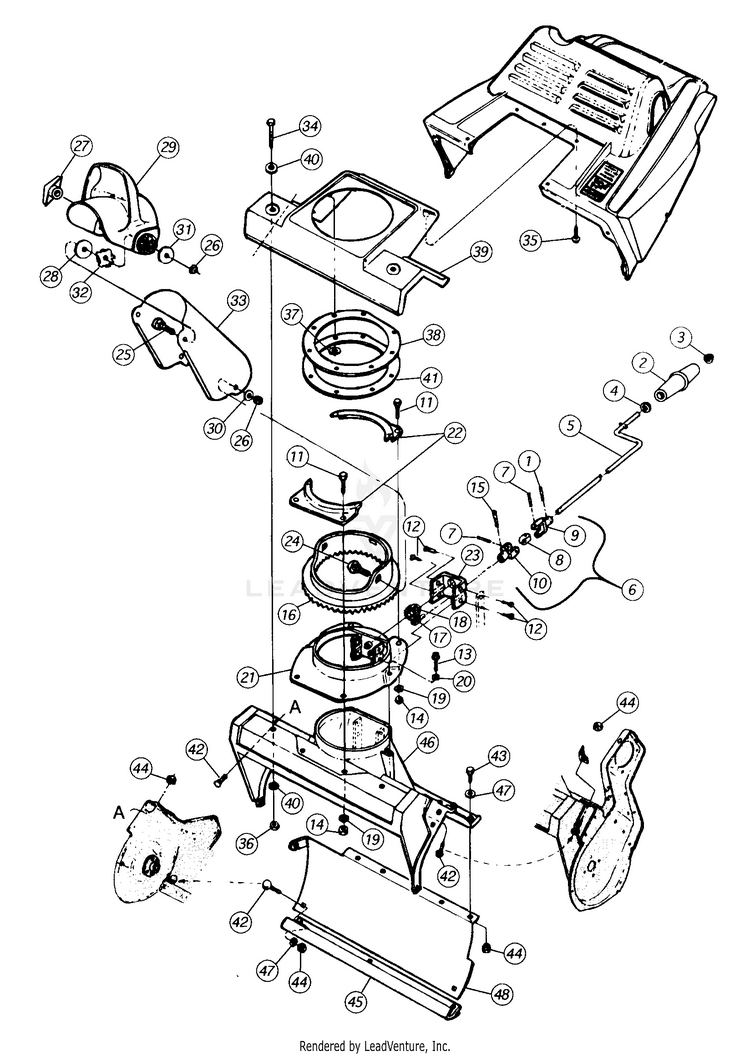

Auger Housing And Chute Group

...
...
1
Rolled Pin, 1/8 x .63 MTD-915-0138
...
2
Chute Rotating Knob MTD-720-0201A
...
3
Push Cap MTD-726-0100
...
4
Fl-Wash. MTD-936-0117
...
5
Rod, Chute Crank MTD-747-0624-0637
...
6
U-JOINT MTD-631-0045
...
7
Pin, Roll: 5/32 x .88 MTD-715-0164
...
8
CONNECTOR PLASTIC MTD-731-1729
...
9
CLEVIS PLASTIC U-JOINT SP MTD-731-1730
...
10
U-JOINT CLEVIS MTD-731-1731
...
11
Hex Screw: 1/4-20 x .75 Gr 5 MTD-710-3015
...
12
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
13
SCREW #12-14X1 PLASTITE MTD-710-1328
...
14
Sems Nut: 1/4-20 MTD-712-0271
...
15
Cotter Pin: 1/8 dia x 1.25 MTD-714-0470
...
16
CHUTE BASE MTD-731-1724
...
17
GEAR:DRIVE MTD-731-1725
...
18
GEAR IDLER MTD-731-1726
...
19
Flat Washer MTD-736-0173
...
20
Flat Washer MTD-736-0400
...
21
CHUTE BASE 667861 PBLK MTD-784-0353
...
22
RETAIN CHUTE 586996 PBLK MTD-784-0366
...
23
BRACKET GEAR 667860 PBLK MTD-784-0367
...
24
Carriage Bolt 5/16-18 x.62 MTD-710-0260A
...
25
Carriage Screw: 5/16-18 X 1.0 MTD-710-0276
...
26
Hex Lock Nut: 5/16-18 MTD-712-0429
...
27
Knob Assembly MTD-720-0284
...
28
RUBBER WASHER MTD-731-1733
...
29
DEFLECTOR MTD-731-1720
...
xx
CHUTE DEFLECTOR (GREEN) MTD-731-1756
...
30
FLAT WASHER MTD-736-0275
...
31
Flat Washer MTD-736-0430
...
32
WASHER-OCTAGON MTD-784-0363
...
33
LOWER CHUTE MTD-784-0364
...
34
Hex Screw: 1/4-20 X .75 Gr 5 MTD-710-3015
...
35
Special Screw, #10-16 x .625 MTD-710-04669
...
36
Sems Nut: 1/4-20 MTD-712-0271
...
37
NUT PUSH ON MTD-726-0343
...
38
GASKET CHUTE MTD-731-1723
...
39
CVR CHUTE BASE GREY MTD-731-1759
...
xx
COWLING TRANSITION MTD-731-1721
...
40
Flat Washer MTD-736-0173
...
41
RETAINR GASKT 587010 PBLK MTD-784-0365
...
42
Carriage Bolt: 1/4-20 X .75 MTD-710-0703
...
43
Hex Screw: 1/4-20 x .75 Gr 5 MTD-710-3015
...
44
Sems Nut: 1/4-20 MTD-712-0271
...
45
SCRAPER BAR MTD-731-1728
...
46
HSG:AUGER GREY MTD-731-1762
...
xx
AUGER HOUSING (BLACK) MTD-731-1727
...
xx
HSG:AUGER YM GREEN MTD-731-1764
...
47
Flat Washer MTD-736-0463
...
48
HOUSING MTD-784-0354

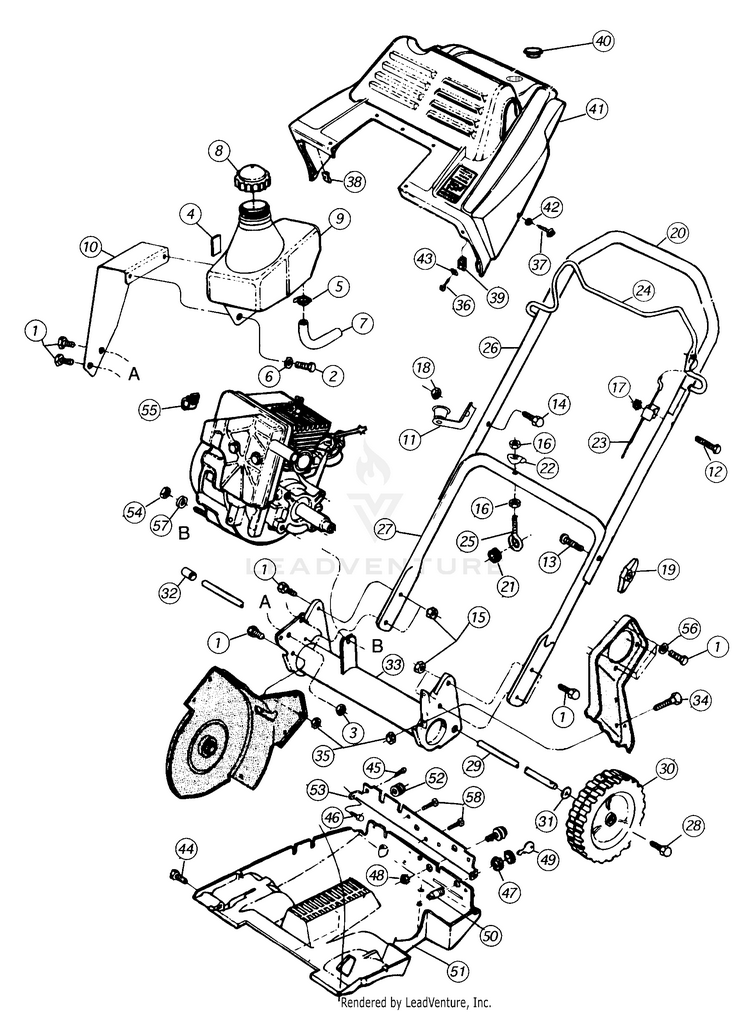

Frame And Handle Group

...
...
1
Hex Screw: 5/16 - 18 x .75 Gr 2 MTD-710-0118
...
2
Hex Screw: 1/4 - 14 x .625 MTD-710-0896
...
3
SEMS NUT 5/16-18 MTD-712-0265
...
4
FOAM STRIP MTD-722-0157
...
5
Hose Clamp 1/2" OD MTD-726-0205
...
6
Flat Washer MTD-736-0173
...
7
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
8
TANK CAP MTD-751-0603B
...
9
TANK FUEL MTD-751-0635
...
10
FUEL TANK BRACKET MTD-784-0368
...
11
BRACKET MTD-684-0089
...
12
Hex Screw: 1/4 - 20 x 2.0 Gr 5 MTD-710-0501
...
13
Carriage Bolt: 5/16 - 18 x 2.0 Lg. Carved MTD-710-1174
...
14
SCREW 1/4-20 x 1.310 MTD-710-1270
...
15
SEMS NUT 5/16-18 MTD-712-0265
...
16
HEX NUT 5/16-18 MTD-712-3010
...
17
Sems Nut 1/4 - 20 MTD-712-0271
...
18
Top Lock Nut 1/4 - 20 MTD-712-0324
...
19
Knob Assembly MTD-720-0284
...
20
GRIP FOAM 16"LG. MTD-720-0296
...
21
Grommet: .44 ID x .94 OD x .50 MTD-735-0234
...
22
Side Lock Washer MTD-736-0451
...
23
CABLE AUGER ENGAGE 520 MTD-746-0934
...
24
AUGER BAIL DRIVE MTD-747-0942
...
25
EYE BOLT 5/16 - 18 MTD-747-0943
...
26
HANDLE, UPPER MTD-749-0994
...
27
LOWER HANDLE MTD-749-0995
...
28
Tap Screw: 3/8 - 16 x .5 MTD-710-0773
...
29
AXLE WHEEL 18.06LG MTD-711-1123
...
30
WHEEL-GRAY 7IN MTD-734-1797
...
xx
WHEEL-7X1.50 MTD-734-04062A
...
31
Flat washer: .510 ID x .75 OD x .03 MTD-736-0108
...
32
SPACER MTD-950-1069
...
33
TUBE FRAME MTD-684-0086
...
34
HEX SCREW .312-18X1.00HE MTD-710-1088
...
35
SEMS NUT 5/16-18 MTD-712-0265
...
36
SCREW #10-16X1.5 MTD-710-1329
...
37
SCREW M6 x 1 x 16 MTD-710-1339
...
38
CLIP U TYPE SPEED MTD-726-0342
...
39
TINNERMAN CLIP "U" MTD-726-0344
...
40
PLUG MTD-731-0732
...
41
UPPER ENGINE COVER MTD-731-1748
...
xx
COWLING UPPER ORANGE MTD-731-1754
...
xx
COWLING ENG.UPR.YE MTD-731-1750
...
42
Flat Washer MTD-736-0173
...
43
Flat Washer MTD-736-0400
...
44
Hex Screw: 1/4 - 20 x .625 MTD-710-0258
...
45
SCREW #10-24X.750 HWHTAP MTD-710-1334
...
46
SCREW #10-24X.500 HWHTAP MTD-710-1335
...
47
Jam Nut: 5/8 - 32 x .12 MTD-712-0252
...
48
Sems Nut 1/4 - 20 MTD-712-0271
...
49
Key MTD-925-0201
...
50
KEY SWITCH MTD-725-3232
...
51
LOWER ENGINE COVER MTD-731-1747
...
xx
COWLING:LWR.ELEC.START ORANGE MTD-731-1753
...
xx
COWLING:LWR ELEC. START YELLO MTD-731-1749
...
52
Grommet: .280 x .750 x .40 MTD-750-1049
...
53
BRACKET PANEL 667863 PBLK MTD-784-0361
...
54
SEMS NUT 5/16-18 MTD-712-0265
...
55
CLAMP-MTG MTD-726-0152
...
56
Lock Wash. 5/16" I.D. MTD-936-0119
...
57
FLAT WASHER MTD-736-0275
...
58
Special Screw, #10-16 x .625 (Electric Start Models Only) MTD-710-04669
...
?59
2 PRONG EXTENSION CORD (Electric Start Models Only MTD-629-0236
