Sharp HOMEUSE MICROWAVE OVEN 1.8 CFT R530BW

Model: R530BW

Save Part Not Listed?
product name

...
...
1
3-1 MODIFIED CONTROL PWB SHA-CPWBFB012MRU0
...
2
AH SENSOR ASS'Y CHECK W/QA FOR1-18 SHA-FDTCTA194WRK0
...
3
AH SENSOR DUCT CUSHION2-16 SHA-PCUSGB028MRP0
...
4
ALARM I\O RALM-A014DRE0SP1 SHA-RALM-A010DRE0
...
5
BASE PLATE2-4 SHA-GDAI-B051MRP0
...
6
CABINET I/O GCABUB068MRP02-12 SHA-GCABUB161MRP0
...
7
CAVITY TEMPERATURE FUSE (152 D1-10 SHA-QFS-TB005MRE0
...
8
CHASSIS SUPPORT2-2 SHA-LANGTB035MRP0
...
9
CHOKE COVER4-4 SHA-GCOVHB028MRF0
...
10
CONTROL PANEL ASSY SHA-FPNLCB210MRK0
...
11
COVER, WAVEGUIDE SHA-PCOVPB079MRP0
...
12
DHHS CAUTION LABEL5-2 SHA-TCAUAB027MRR0
...
13
DIODE (1SS270A)D5 SHA-VHD1SS270A/-1
...
14
DOOR ASSY I/O CDORFB183MRK04-0 SHA-CDORFB183/KIT
...
15
DOOR ASSY I/O CDORFB193MRK04-0 SHA-CDORFB193/KIT
...
16
DOOR PANEL4-2 SHA-FDORFB049MRT0
...
17
DOOR SCREEN ASSEMBLY(R-53OBW)4-1 SHA-FCOV-B114MRK0
...
18
DOOR SCREEN(R-53OBK)4-7 SHA-HPNL-B080MRE0
...
19
FAN BLADE2-8 SHA-NFANPB001MRE0
...
20
FAN DUCT2-9 SHA-PDUC-B088MRF0
...
21
FAN MOTOR1-5 SHA-RMOTEA433WRZZ
...
22
FOOT SHA-GLEGPB004MRF0A
...
23
FUSE BLOCK1-6 SHA-QFSHDB003MRE0
...
24
H.V. CAPACITOR BAND2-1 SHA-LBNDKB007MRP0
...
25
H.V. WIRE A (TRANSFORMER-CAPAC1-15 SHA-QW-QZB016MRE0
...
26
HV CAPACITOR SHA-RC-QZA336WRZZ
...
27
HV DIODE SHA-FH-DZB027MRY0
...
28
IB-R430/530B SHA-TINSEB180MRR0
...
29
KEY UNIT(R-53OBK)3-4 SHA-FUNTKB157MRE0
...
30

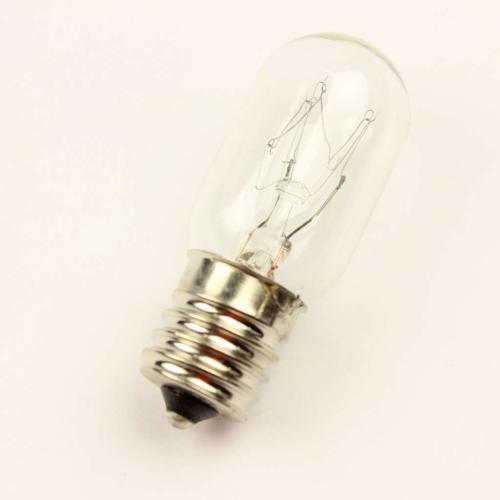

LAMP SHA-RLMPTA086WRZZ
...
31
LAMP I\O RLMPTA068WRE01-4 SHA-RLMPT0001YBE0
...
32
LATCH HEAD4-5 SHA-LSTPPB023MRF0
...
33
LATCH HOOK2-3 SHA-PHOK-A182WRFZ
...
34

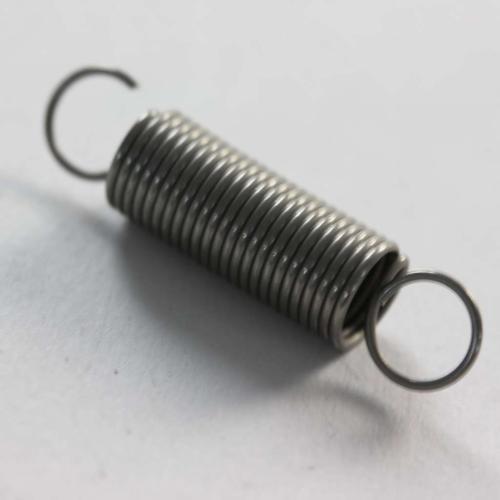

LATCH SPRING4-6 SHA-MSPRTA046WRE0
...
35
LCD HOLDER3-2 SHA-LHLD-B006MRF0
...
36
LEAD WIRE HARNESS (WH-1)3-1C SHA-FW-VZB146MRE0
...
37
LEVER, DOOR OPEN SHA-MLEVPB016MRF0
...
38
MAGNETRON DUCT2-7 SHA-PDUC-B073MRP0
...
39
MAGNETRON TEMPERATURE FUSE (121-9 SHA-QFS-TB001MRE0
...
40
MAGNETRON1-11 SHA-RV-MZA363WRZZ
...
41
MAIN WIRE HARNESS1-16 SHA-FW-VZB150MRE0
...
42
MONITOR SWITCH AND FUSE ASSY SHA-FFS-BA016-KIT
...
43
OPEN BUTTON(R-53OBK)3-5 SHA-JBTN-B064MRF0
...
44
OUTER CASE CABINET (R-53OBK)2-12 SHA-GCABUB083MRP0
...
45
OVEN LAMP SOCKET1-3 SHA-QSOCLB006MRE0
...
46
PLATE, GLASS SHA-NTNT-B001MRE0
...
47
RELAY (DU24DL-LP(M))RY1 SHA-RRLY-B002MRE0
...
48
RESISTOR 27 OHM 1/4WR4 SHA-VRD-B12EF270J
...
49
SCREW; BASE PLATE MTG.6-1 SHA-XBTS740P08RV0
...
50
SCREW; CONTROL UNIT MTG.3-8 SHA-XEPS730P10XS0
...
51
SCREW; FAN MOTOR MTG.6-10 SHA-LX-TZA093CBMZ
...
52
SCREW; LATCH HOOK & AH SENSOR6-2 SHA-LX-CZ0052WRE0
...
53
SCREW; O.C. CABINET(R-53OBW)6-11 SHA-XOTS740P12000
...
54
SCREW; TEMPERATURE FUSE MTG.6-7 SHA-XCBSD30P08000
...
55
SCREW; UL O.C. CABINET6-12 SHA-LX-CZB011MRE0
...
56
SEALER FILM4-3 SHA-PSHEPB016MRE0
...
57
SEC. INTERLOCK & DOOR SENSING1-8 SHA-QSW-MA085WRE0
...
58
STOP SWITCH HARNESS1-17 SHA-FW-VZB125MRE0
...
59
SUPPOR, T/T, ROLLER SHA-FROLPA117WRKZ
...
60
T.T. MOTOR PACKING2-15 SHA-PPACGB014MRF0
...
61
TRANSFORMERT1 SHA-RTRNPB009MRE0
...
62
TRANSISTOR (2SB1238)Q1 SHA-VS2SB1238//-3
...
63
TRANSISTOR (KRC243M)Q3 SHA-VSKRC243M//-3
...
64
TT MOTOR SHA-RMOTDA264-KIT
...
65
TURNTABLE TRAY SHA-NTNT-A099WRE0
...
66
ZENER DIODE (HZ16-1)ZDL SHA-VHEHZ161///-1
