ServiStar 144P849H105 (1994) Garden Tractor

Model: 144P849H105 (1994)

Back To Assemblies

Save Part Not Listed?
product name

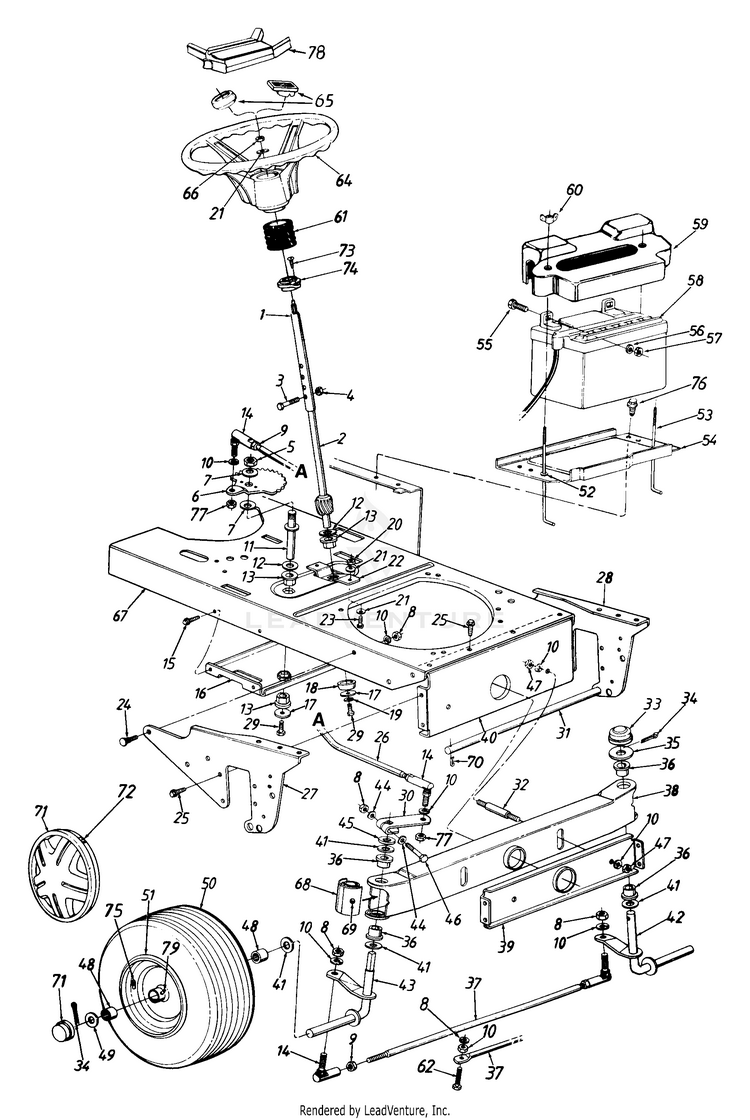

Steering Assembly/Wheels, Front/Axle, Front/Battery

...
...
1
STEERING COLUMN ASS Y. MTD-16512
...
2
Lower Steering Shaft MTD-938-0763
...
3
Hex Bolt 1/4-20 x 1.25" Lg. MTD-710-0106
...
4
Hex L-Nut 1/4-20 Thd. MTD-712-0324
...
5
HEX JAM NUT 5/8-18 MTD-712-0318
...
6
Steering Gear Segment MTD-717-0943C
...
7
Bell-Wash. 5/8" I.D. x 1.25" O.D. MTD-736-0317
...
8
Hex Nut 3/8-24 Thd. MTD-712-0241
...
9
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
10
L-Wash. 3/8" I.D. MTD-736-0169
...
11
STEERING SEGMENT MTD-738-0768
...
12
Fl-Wash. .64" I.D. x 1.24" O.D. MTD-736-0187
...
13
Hex Flange Bearing Bronze .625" I.D. MTD-948-0227A
...
14
Ball Joint, 3/8-24 MTD-923-3018
...
15
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
16
IDLER BRACKET New Part MTD-16888A-0637
...
17
Fl-Wash. .33" I.D. x 1.25" O.D. MTD-736-0343
...
18
SPACER MTD-950-0532
...
19
Lock Wash. 5/16" I.D. MTD-936-0119
...
20
Hex Nut 5/16-24 Thd. MTD-912-3057
...
21
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
22
BRACKET-BE MTD-16894
...
23
Hex Bolt 5/16-24 x .75" Lg. MTD-710-0157
...
24
SCREW 3/8-24 x .80 MTD-710-0793
...
25
Screw, 5/16-18 x .625 MTD-710-0604A
...
26
DRAG LINK KIT (Used w/Non-Adjustable Tie Rod) MTD-753-0674
...
xx
DRAG LINK KIT (Used w/Adjustable Tie Rod) MTD-753-0674
...
27
PLATE-PIVOT New Part MTD-16896A
...
28
PLATE-PIVOT New Part MTD-16897A
...
29
Hex Bolt 5/16-18 x .62" Lg. MTD-710-0538
...
30
STEERING ARM ASSEMBLY BLACK New Part MTD-983-0061A-0637
...
31
ROD-DECK CONNECTING MTD-738-0777A
...
32
Pivot Bar Shld. Bolt 3/8-16 x 5/8" Lg. MTD-738-0775
...
33
Hub Cap MTD-931-0484A
...
34
COTTER PIN-5/32 DIA x 1.00 MTD-914-0121
...
35
Flat Washer MTD-736-0316
...
36
Flange Brg..757" I.D. MTD-741-0523
...
37
TIE ROD MTD-747-0721
...
xx
TIE ROD (NON ADJUSTABLE) MTD-747-0862
...
38
BAR ASSY-PIVOT (POWDER BLACK) MTD-96843-0637
...
39
PIVOT SUPPORT BRACKET BLACK MTD-16889A-0637
...
40
Pivot Bar Support Brkt.-Rear MTD-16890A-0637
...
41
Fl-Wash..76" I.D. x 1.49" O.D. MTD-736-0188
...
42
FRONT AXLE ASS'Y. (LH) MTD-16915
...
43
AXLE ASSEMBLY (RH) MTD-938-0008A
...
44
Bowed Washer MTD-936-0286
...
45
Spacer .755" I.D. x 1.25" O.D. MTD-948-0160
...
46
Hex Bolt 3/8-24 x 2.25" Lg. MTD-710-0331
...
47
Hex Nut 3/8-16 Thd. MTD-712-0798
...
48
FLANGE BEARING For 16" x 6.5" Round Shoulder MTD-741-0516B
...
xx
FLANGE BEARING For 16" x 6.5" Square Shoulder MTD-741-0516B
...
49
Fl-Wash. .71" I.D. x 1.5" O.D. MTD-736-0316
...
50
WHEEL ASSEMBLY W/TIRE 16 x 6.50 For 16" x 6.5" Round Shoulder MTD-734-1500A
...
xx
WHEEL ASSEMBLY (16 x 6.5 x 8) For 16" x 6.5" Square Shoulder MTD-634-0084
...
xx
TUBELESS TIRE-16 x 6.5 x 8.0 For 16" x 6.5" Round Shoulder MTD-734-0275
...
xx
Tire Only For 16" x 6.5" Square Shoulder MTD-734-1727
...
51
RIM For 16" x 6.5" Round Shoulder MTD-934-0067
...
xx
RIM For 16" x 6.5" Square Shoulder MTD-934-0067
...
52
PUSH CAP MTD-926-0271
...
53
HOLD DOWN BATTERY ROD MTD-911-0222A
...
54
BRACKET-MT MTD-17635
...
xx
BATTERY PLATE For models (820, 825, 840 & 845 Only) MTD-17634
...
55
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
56
L-Wash. 1/4" I.D. MTD-936-0329
...
57
HEX NUT 1/4-20 MTD-912-0287
...
58
BATTERY 275CCA MTD-725-1635
...
59
BATTERY COVER MTD-731-1132
...
60
Wing Nut 1/4-20 Thd. MTD-912-0113
...
61
STEERING BELLOW 9" (Style 0, 4, 5, 6, 9) MTD-931-0954
...
xx
STEERING BELLOW (Style 8) MTD-731-0559B
...
62
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
64
STEERING WHEEL New Part Uses Round Steering Wheel Cap MTD-731-0805
...
xx
STEERING WHEEL Uses Round Steering Wheel Cap MTD-731-0806A
...
xx
STEERING WHEEL New Part Uses Square Steering Wheel Cap MTD-731-1406
...
65
Steering Wheel Cap New Part MTD-931-0220
...
xx
Steering Wheel Cap MTD-731-1459A
...
xx
STEERING WHEEL CAP MTD-731-1460
...
66
Hex L-Nut 5/16-24 Thd. MTD-712-0237
...
67
LOWER FRAME MTD-17359B
...
68
PIVOT BAR END CAP (Optional) MTD-731-1049
...
69
GREASE FITTING (SLOTTED) (Optional) MTD-737-0280
...
70
Internal Cotter Pin MTD-714-0149B
...
71
Hub Cap MTD-931-0484A
...
xx
Hub Cap (Opt.) MTD-734-1615A
...
xx
HUB CAP W/ (Opt.) MTD-734-1614
...
xx
HUB CAP-YELLOW (Opt.) MTD-934-1788A
...
72
SPRING CLIP (Optional) MTD-727-0425A
...
73
Oval Hd. Cr.- Sunk Scr. #10 x 5/8" Lg. (Used on Style 8) MTD-710-0837
...
74
FLANGE BEARING (Used on Style 8) MTD-741-0356A
...
75
TUBELESS VALVE For 16" x 6.5" Round Shoulder MTD-934-0255
...
xx
TUBELESS VALVE For 16" x 6.5" Square Shoulder MTD-934-0255
...
76
Hex Screw, 1/4-14 x 0.625" MTD-710-0896
...
77
Hex Jam Nut 3/8-24 Thd. MTD-912-0446
...
78
STEERING WHEEL INSERT (Optional) MTD-931-0955
...
79
GREASE FITTING (SLOTTED) For 16" x 6.5" Round Shoulder MTD-737-0280
...
xx
GREASE FITTING (SLOTTED) For 16" x 6.5" Square Shoulder MTD-737-0280
