ServiStar 134M699G105 (1994) Lawn Tractor

Model: 134M699G105 (1994)

Save Part Not Listed?

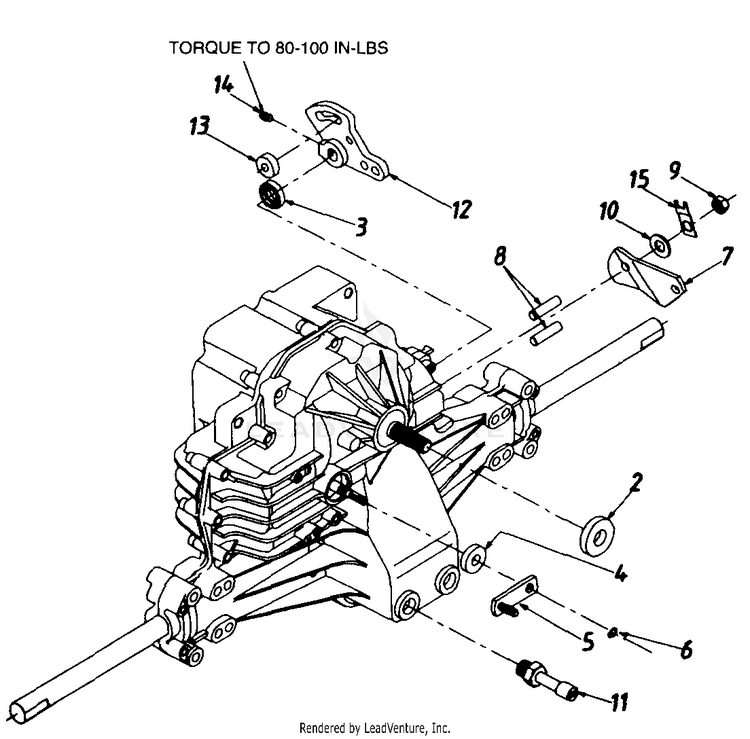

Transmission Complete

TRANSMISSI Transmission Comp. MTD-718-0255

1 Seal - Lip MTD-HG-9008000-0128

1 Seal - Lip MTD-HG-9008000-0126

LIP SEAL Seal - Lip 10 X 25 X 7 MTD-HG-45074

ARM-BYPASS Arm - Bypass MTD-HG-50126

RETAINING RING Ring - Retaining MTD-HG-44870

1 Arm - Actuating MTD-HG-44094

ACTUATING PIN Pin - Actuating MTD-HG-44891

NUT Nut - Hex Lock 5/16-24 UNJC MTD-912-0273

Fl-Wash. .344" I.D. x .875" O.D. Washer 7/16" x 7/8" x .060" MTD-736-0371

BREATHER ASSEMBLY Breather Ass'y. MTD-HG-50042

CONTROL ARM Arm - Control MTD-HG-45007

PUCK-DAMPENER Puck - Dampener MTD-HG-50034

SCREW-SET Set Screw MTD-HG-50018

1 Strap, Locking MTD-HG-50129

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
