ServiStar 134M699G105 (1994) Lawn Tractor

Model: 134M699G105 (1994)

Back To Assemblies

Save Part Not Listed?
product name

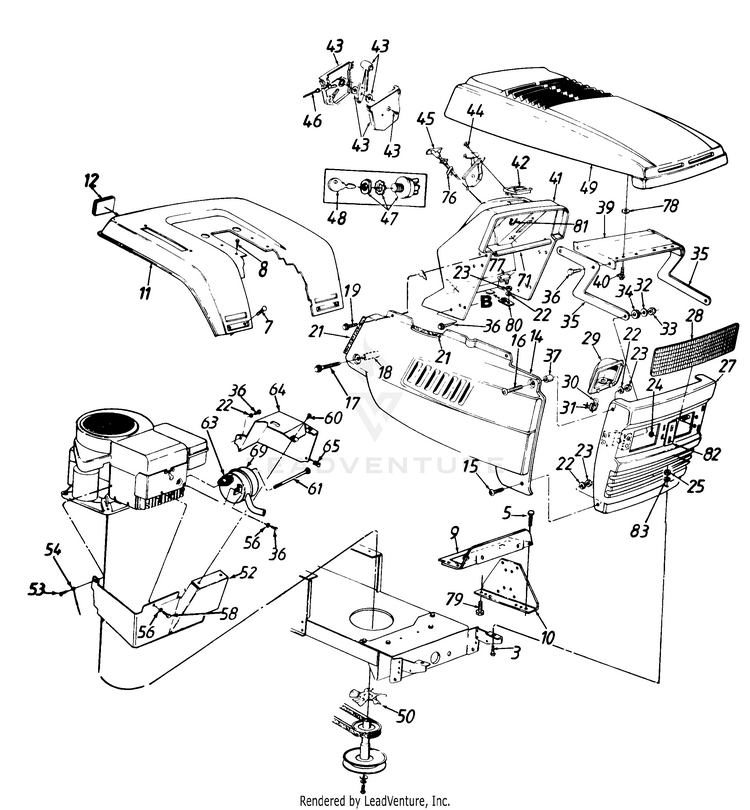

Hood Style 9

...
...
3
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
5
Hex Wash. Hd. Scr. 5/16" x .5" Lg. MTD-710-0603
...
7
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
8
Hex Wash. Hd. Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
9
FUEL TANK SUPPORT MTD-17633A
...
10
DASH SUPPORT BRACKET MTD-17300D
...
11
FENDER-RR MTD-17324B
...
12
Reflector (Optional) MTD-930-3000
...
14
SIDE PANEL (RH) Used w/Single Cylinder Engine Only. MTD-16725
...
xx
PANEL-SIDE (LH) Used w/Single Cylinder Engine Only. (Not Shown) MTD-17309B
...
xx
COVER-SIDE (RH) MTD-16723
...
xx
SIDE PANEL (RH) Used w/Twin Cylinder Engine Only. MTD-16725
...
xx
PANEL-SIDE (LH) Used w/Twin Cylinder Engine Only. (Not Shown) MTD-17309B
...
15
Truss Mach. Scr. 1/4-20 x .5" Lg. MTD-710-0286
...
16
Truss Mach. Scr. 1/4-20 x 1.0" Lg. MTD-710-0166A
...
17
Hex Wash. TT-Tap Scr. 1/4-20 x 1.75" Lg. MTD-710-1026
...
18
SPACER-.260 ID x 1.32 LG x 16 MTD-750-0768
...
19
Hex Rolling Tap Scr. 1/4-20 x .75" Lg. MTD-710-0642
...
21
Trim Strip - 18" Lg. MTD-731-0511-18
...
22
L-Wash. 1/4" I.D. MTD-936-0329
...
23
HEX NUT 1/4-20 MTD-912-0287
...
24
Speed Nut 5/16" Thd. MTD-726-0201
...
25
HEX NUT 5/16-18 MTD-712-3010
...
?26
Fl-Wash. .344" I.D. x 1" O.D. MTD-736-3078
...
27
GRILLE ASS'Y. MTD-17410
...
28
HEADLIGHT LENS MTD-931-1044
...
29
HEADLIGHT HOUSING MTD-931-0705
...
30
Miniature Lamp 12V Socket Type MTD-925-0963
...
31
SHORT LAMP SOCKET MTD-925-1650
...
32
Bell-Wash. .345" I.D. x .88" MTD-736-0242
...
33
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
34
RUBBER WASHER MTD-735-0126A
...
35
HOOD HINGE New Part MTD-783-0190
...
36
Hex Wash. Hd. B-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
37
SPACER MTD-950-0218
...
39
HOOD PLATE MTD-16903A
...
40
Hex Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
41
DASH PANEL 9 STYLE New Part MTD-931-1048B
...
42
Ammeter MTD-925-0925
...
43
Throttle Control Box Ass'y. MTD-831-0823A
...
44
Mach. Scr. #10 x .44" Lg. MTD-710-0919
...
45
Choke Control 23" Used w/Single Cylinder Engine Only. MTD-946-0616A
...
xx
Choke Control 38" Lg. Used w/Twin Cylinder Engine Only. MTD-746-0614A
...
46
Throttle Control Wire 18.5" Lg. Used w/Single Cylinder Engine Only. MTD-746-0501
...
xx
Throttle Wire Used w/Twin Cylinder Engine Only. MTD-946-0634
...
xx
Throttle Control Wire 18.5" MTD-946-0638
...
47
Ignition Switch MTD-925-0267B
...
48
Key MTD-925-0201
...
49
HOOD 9-STYLE (RED) New Part MTD-931-1491A
...
xx
HOOD - MIDNIGHT BLUE New Part MTD-731-1492
...
xx
HOOD New Part MTD-731-1497
...
xx
HOOD New Part MTD-731-1531
...
xx
Hood - Orange New Part MTD-731-1532
...
xx
Hood - Green New Part MTD-731-1533
...
50
COOLING FAN MTD-17199-0637
...
52
SHIELD-MUF Used w/Single Cylinder Engine Only. MTD-16936
...
53
Truss Mach. Scr. 5/16-18 x .75" Lg. Used w/Single Cylinder Engine Only. MTD-710-0323
...
54
WIRE Used w/Single Cylinder Engine Only. MTD-725-0980
...
56
Spring Wash. .265 I.D. x .562 O.D. Used w/Single Cylinder Engine Only. MTD-936-0175
...
58
HEX CAP SCREW 1/4-20 x .375 GR5 Used w/Single Cylinder Engine Only. For faster service obtain standard nuts, bolts and washers locally. If items cannot be obtained locally, order by part number and size as shown on parts list. MTD-710-0294
...
60
Hex B-Tap Scr. #10 x .38" Used w/Single Cylinder Engine Only. MTD-910-0429
...
61
SHOULDER SCREW Used w/Single Cylinder Engine Only. MTD-938-0636
...
63
Gasket-Exhaust Used w/Single Cylinder Engine Only. MTD-BS-692236
...
64
HEAT SHEID ASSEMBLY Used w/Single Cylinder Engine Only. MTD-683-0042A
...
65
Speed Nut #10-24 Thd. Used w/Single Cylinder Engine Only. MTD-712-0147
...
69
MUFFLER Used w/Single Cylinder Engine Only. MTD-951-0465A
...
71
TUBE-GRILLE SUPPORT MTD-749-0814
...
?73
External L-Wash. 5/16" I.D. MTD-736-0607
...
76
CLIP-CHOKE RETAINER MTD-17782
...
77
Light Switch MTD-925-0634
...
78
Fl-Wash. .406" I.D x .812" O.D. MTD-736-3010
...
79
Hex Bolt 1/4-20 x .62" Lg. MTD-710-0258
...
80
DASH TAB MTD-783-0013
...
81
Cable Tie MTD-725-0157
...
82
LABEL-CHROME MTD-777-8568A
...
83
UNKNOWN MTD-NA
