Sentar Sentar Mdl 139-784-135/5Z028-1A Lawn Tractor

Model: Sentar Mdl 139-784-135/5Z028-1A

Back To Assemblies

Save Part Not Listed?
product name

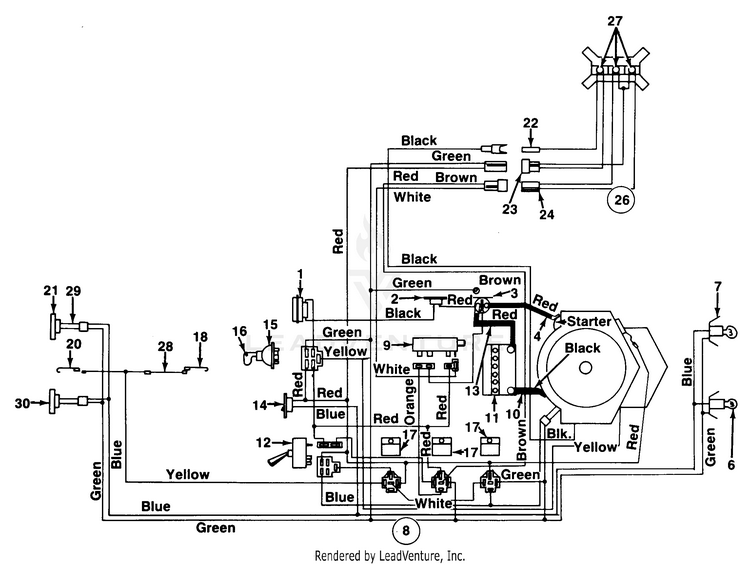

Electrical

...
...
1
Ammeter MTD-925-0925
...
2
CIRCUIT BREAKER 20 AMP MTD-725-1382
...
3
Solenoid MTD-925-0771
...
4
WIRE ASSEMBLY (RED W/BOOT) (#6 X14) MTD-629-0705
...
6
Miniature Lamp 12V Socket Type MTD-925-0963
...
7
HEADLAMP SOCKET MTD-925-1058A
...
8
WIRE HARNESS MTD-725-1391
...
9
SAFETY SWITCH (Clutch) MTD-925-0819A
...
10
6 GA. BLACK WIRE MTD-725-0996
...
11
BATTERY MTD-725-0453A
...
12
Safety Switch (PTO) (PTO) MTD-925-0893
...
13
Wire MTD-725-0563
...
14
Light Switch MTD-925-0634
...
15
Ignition Switch MTD-925-0267B
...
16
Key MTD-925-0201
...
17
RELAY MTD-925-1375
...
18
SAFETY SWITCH KIT MTD-725-0759
...
20
Outer Seat Spring Switch (Seat) MTD-925-1303
...
21
Taillight MTD-725-3018
...
22
CONNECTOR MTD-729-0139
...
23
CONNECTOR MTD-729-0166
...
24
CONN AMP:1- 4803180 MTD-729-0132
...
26
WIRE HARNESS MTD-725-1364
...
27
Monitor Bulb MTD-925-1365
...
28
WIRE MTD-725-1399
...
29
TAIL LIGHT HARNESS MTD-725-1380
...
30
BULB MTD-725-3020
