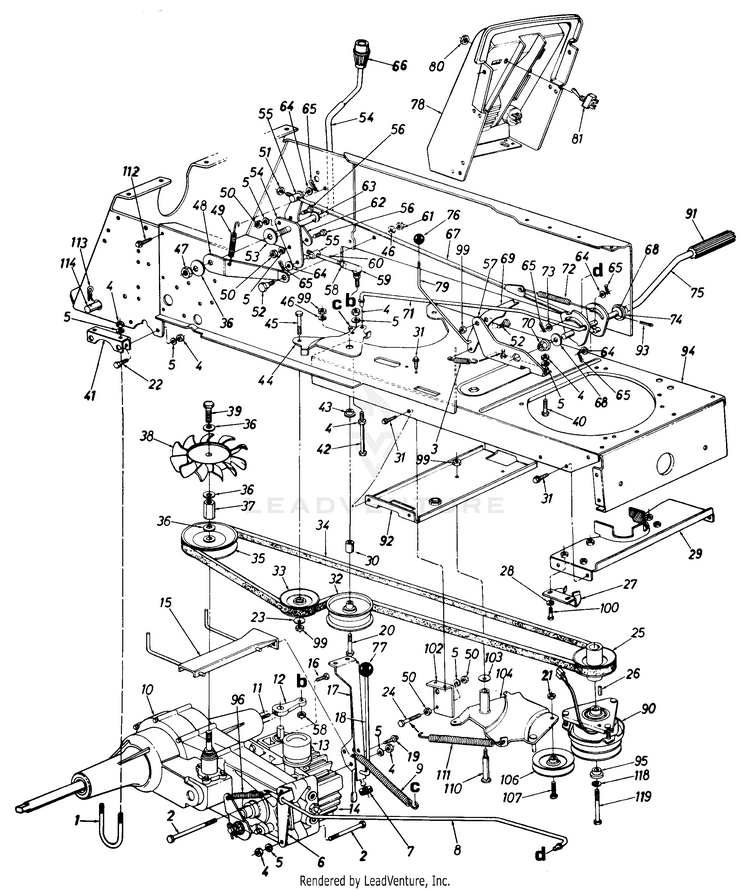

Sentar Sentar Mdl 139-784-135/5Z028-1A Lawn Tractor

Model: Sentar Mdl 139-784-135/5Z028-1A

Back To Assemblies

Save Part Not Listed?
product name

Parts

...
...
1
U-BOLT 5/16-18X3.25LG MTD-711-0827
...
2
SCREW-PATCH 5/16 -18 x 4.50 GR5 MTD-710-3196
...
3
EXTENSION SPRING MTD-732-0445
...
4
HEX NUT 5/16-18 MTD-712-3010
...
5
Lock Wash. 5/16" I.D. MTD-936-0119
...
6
BRACKET-BR MTD-17355
...
7
RUBBER WASHER MTD-735-0126A
...
8
BRAKE ROD MTD-747-0731
...
9
EXTENSION SPRING MTD-932-0384
...
10
TRANSAXLE MTD-717-0950
...
11
Set Screw 5/16-24 x .38" Lg. MTD-710-0985
...
12
LEVER-PINT MTD-748-0328
...
13
RESERVOIR MTD-917-3049
...
14
HROSTATIC PUMP MTD-717-0940
...
15
GUARD ASSEMBLY MTD-16929
...
16
Hex Bolt 5/16-18 x 4.5" Lg. (Grade 5) MTD-710-3195
...
17
Transaxle Torque Bracket MTD-16807
...
18
ROD-TRANS CONT MTD-747-0570
...
19
Hex Wash. Hd. B-Tap Scr. 5/1 6-1 8 MTD-710-0603
...
20
Hex Bolt 3/8-16 x 2.75" Lg. MTD-710-3066
...
21
Hex Cent. Lock Nut 3/8-16 Thd. MTD-712-0214
...
22
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
23
Fl-Wash. .385" I.D. x .87" O.D. MTD-736-0300
...
24
Hex Bolt 5/16-24 x 1.75" Lg. MTD-710-0409
...
25
ENGINE PULLEY MTD-756-0575
...
26
Sq. Key 1/4 x 1.5" Lg. MTD-714-0118
...
27
TORQUE BRACKET MTD-17418
...
28
Bell-Wash. .345" I.D. x .88" O.D. MTD-736-0242
...
29
BRACKET-BELT GUARD MTD-17358D-0637
...
30
Spacer .375" I.D. x .75" Lg. MTD-711-0396
...
31
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
32
IDLER PULLEY MTD-756-0515
...
33
Idler Pulley MTD-756-04209
...
34
V-Belt MTD-954-0365
...
35
PULLEY MTD-756-0539
...
36
Bell-Wash. .56" I.D. x 1.5" MTD-736-0112
...
37
NUT-FAN ADAPTER MTD-712-0356
...
38
HYDRO FAN MTD-731-0974
...
39
HEX BOLT 9/16-18 x .5" LG. MTD-710-1043
...
40
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
41
BRACKET-TR MTD-16925
...
42
Hex Bolt 5/16-18 x 2.75" Lg. MTD-710-0176
...
43
Shld. Spacer .625" I.D. MTD-938-0347
...
44
Clutch Idler Bracket MTD-16926
...
45
Hex Bolt 3/8-16 x 1.5" Lg. MTD-710-0344
...
46
L-Wash. 3/8" I.D. MTD-736-0169
...
47
NUT MTD-712-3029
...
48
BRACKET-SP MTD-16931
...
49
Ext. Spring 2.5" Lg. MTD-732-0609
...
50
Hex Nut 5/16-24 Thd. MTD-912-3057
...
51
Hex Jam Nut 3/8-24 Thd. MTD-712-0711
...
52
SHOULDER SCREW .500 DIA x .170 MTD-738-0147
...
53
WASHER-FIBER MTD-736-0428
...
54
HANDLE-SPE MTD-16930
...
55
Ferrule MTD-911-0198
...
56
Hex Bolt 5/16-24 x .62" Lg. MTD-710-0237
...
57
Foot Pedal Mtg. Brkt. MTD-17348
...
58
HEX NUT 3/8 MTD-712-0312A
...
59
JOINT ASSEMBLY-BALL (LH) THREAD MTD-923-0351
...
60
Control Rod 3/8-24 x 3.75" Lg. MTD-747-0508
...
61
Hex Nut 3/8-16 Thd.* MTD-712-0798
...
62
BRACKET-HA MTD-16940
...
63
Fl-Wash. 1/2" I.D. x .93" O.D. MTD-736-0179
...
64
Fl-Wash. .385" I.D. x .62" O.D. MTD-736-0140
...
65
Internal Cotter Pin MTD-714-0104
...
66
Shift Knob MTD-720-0218
...
67
Neutral Return Rod MTD-17416
...
68
Fl-Wash. .64" I.D. x 1.24" O.D. MTD-736-0187
...
69
Parking Brake Lock Brkt. MTD-17351
...
70
FLANGE BEARING MTD-941-0225
...
71
Clutch Idler Rod MTD-747-0728
...
72
EXTENSION SPRING MTD-732-0608
...
73
Fl-Wash. .344" I.D. x .62" O.D. MTD-736-0264
...
74
FLANGE BEARING MTD-948-0209
...
75
Foot Pedal Ass'y. MTD-17350
...
76
THROTTLE KNOB MTD-720-0166
...
77
Ball Knob 1/4-20 Thd. MTD-720-0187
...
78
DASH PANEL MTD-731-0958
...
79
PARKING BRAKE LINK MTD-747-0722
...
80
HEX NUT 1/2-27 x .100 THK MTD-712-3014
...
81
Safety Switch (PTO) MTD-925-0893
...
90
Electric PTO MTD-917-1434
...
91
FOOT PAD MTD-735-0239A
...
92
IDLER BRACKET MTD-16888A-0637
...
93
Cotter Pin 118" Dia. MTD-714-0115
...
94
FRAME-LOWE MTD-17359
...
95
Shld. Spacer .445" I.D. MTD-938-0785
...
96
EXTENSION SPRING MTD-732-0607
...
99
Hex Cent. L-Nut 3/8-16 Thd. MTD-712-0375
...
100
SCREW 5/16-18 x .75 GR5 MTD-710-3008
...
102
PARKING BRAKE CAM MTG. BRKT. MTD-13833
...
103
Bell-Wash. .380n I.D. x .88" O.D. MTD-736-0105
...
104
IDLER BRACKET ASSEMBLY MTD-94076A-0637
...
106
Idler Pulley MTD-756-0487
...
107
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
110
Shld. Bolt .498" Dia. x 2.05" MTD-738-0129
...
111
EXTENSION SPRING MTD-932-0180
...
112
Hex Wash. AB-Tap Scr. 5/16 x .75" Lg. MTD-710-0726
...
113
Hitch Pin Clip MTD-714-0147
...
114
HITCH ROD MTD-738-0482
...
118
L-Wash. 7/16" I.D.* MTD-736-0171
...
119
Hex Bolt 7/16-20 x 3.75" Lg. MTD-710-1049
