Senco SCN250 (310002) Air Nailer

Model: 310002

Save Part Not Listed?
product name

Senco 310002

...
...
xx
Core SEN-3678690
...
xx
Seal SEN-3099530
...
xx
Seal SEN-3099911
...
xx
Bumper SEN-3099920
...
xx
Seal SEN-3099971
...
xx
Sleeve SEN-3667140
...
xx
Cap SEN-3678011
...
xx
Cylinder SEN-3678172
...
xx
Piston SEN-3678181
...
xx
Seat SEN-3678190
...
xx
Driver SEN-3678201
...
xx
Bumper SEN-3678210
...
xx
Screw SEN-3001435
...
xx
Valve SEN-3678930
...
xx
Sleeve SEN-3688031
...
xx
Deflector SEN-3688040
...
xx
Ring SEN-3688470
...
xx
Core SEN-3776124
...
xx
Bushing SEN-3776131
...
xx
Housing SEN-3776680
...
xx
Spring SEN-KB4537
...
xx
Seal SEN-LB3507
...
xx
Seal SEN-3093715
...
xx
Screw SEN-3006522
...
xx
Nut SEN-3019610
...
xx
Washer SEN-3024416
...
xx
Muffler SEN-3045540
...
xx
Spring SEN-3050230
...
xx
Spring SEN-3050661
...
xx
Washer SEN-3054710
...
xx
Seal SEN-3090505
...
xx
Seal SEN-3090525
...
xx
Seal SEN-3090535
...
xx
Seal SEN-3090782
...
xx
Seal SEN-3090568
...
xx
Seal SEN-3098190
...
xx
Seal SEN-3091553
...
xx
Seal SEN-3091544
...
xx
Seal SEN-3091514
...
xx
Seal SEN-3091370
...
xx
Seal SEN-3091080
...
xx
Seal SEN-3091062
...
xx
Seal SEN-3091009
...
xx
Seal SEN-3090818

Senco 310002

...
...
xx
Shield SEN-3099602
...
xx
Retainer SEN-3099950
...
xx
Latch SEN-3620380
...
xx
Cap SEN-3620400
...
xx
Bushing SEN-3620482
...
xx
Valve SEN-3620490
...
xx
Pin SEN-3670450
...
xx
Cover SEN-3670600
...
xx
Pin SEN-3678391
...
xx
Guide Body SEN-3678542
...
xx
Safety SEN-3678813
...
xx
Cap SEN-3688440
...
xx
Trigger SEN-3776151
...
xx
Lever SEN-3776162
...
xx
Pin SEN-3776410
...
xx
Retainer SEN-3033052
...
xx
Guide SEN-3776860
...
xx
Body SEN-AA0068
...
xx
Tube SEN-FC0216
...
xx
Label SEN-HC0131
...
xx
Spring SEN-KB4170
...
xx
Seal SEN-3092509
...
xx
Screw SEN-3002316
...
xx
Nut SEN-3010308
...
xx
Nut SEN-3011525
...
xx
Retainer SEN-3032017
...
xx
Pin SEN-3034108
...
xx
Pin SEN-3035208
...
xx
Pin SEN-3035324
...
xx
Pin SEN-3035430
...
xx
Spring SEN-3050430
...
xx
Spring SEN-3050310
...
xx
Seal SEN-3098080
...
xx
Seal SEN-3091405
...
xx
Seal SEN-3091071
...
xx
Seal SEN-3090535
...
xx
Seal SEN-3090318
...
xx
Washer SEN-3089110
...
xx
Spring SEN-3050700
...
xx
Spring SEN-3050630

Senco 310002

...
...
xx
Label SEN-HC0132
...
xx
Piston SEN-3678370
...
xx
Pusher SEN-3670340
...
xx
Pin SEN-3670320
...
xx
Magazine Assembly SEN-3648900
...
xx
Retainer SEN-3099800
...
xx
Seal SEN-3099710
...
xx
Seal SEN-3091010
...
xx
Seal SEN-3090518
...
xx
Spring SEN-3052140
...
xx
Washer SEN-3026208
...
xx
Washer SEN-3024516
...
xx
Screw SEN-3001535

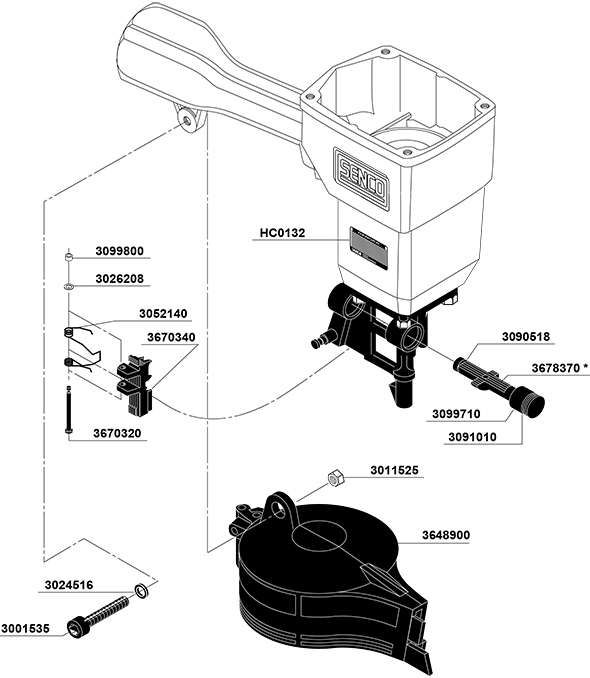

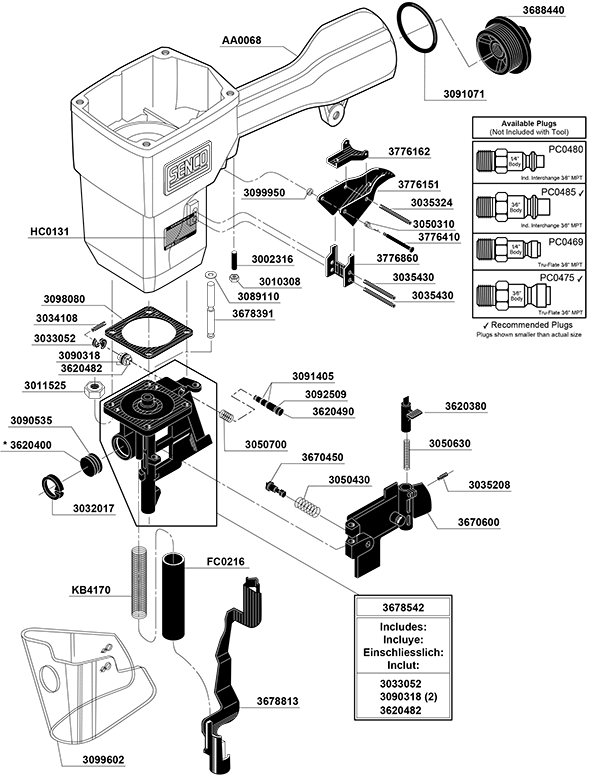

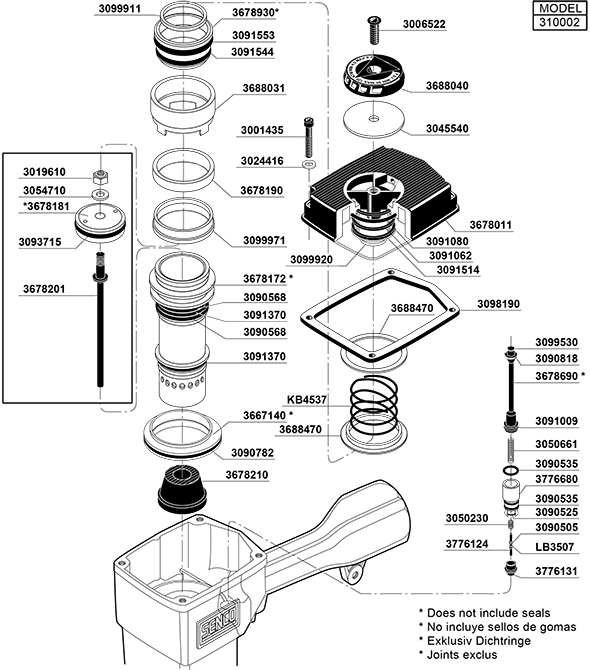

Schematic Image Zoomed
