Senco GT90CH Cordless Nailer

Model: GT90CH

Save Part Not Listed?
product name

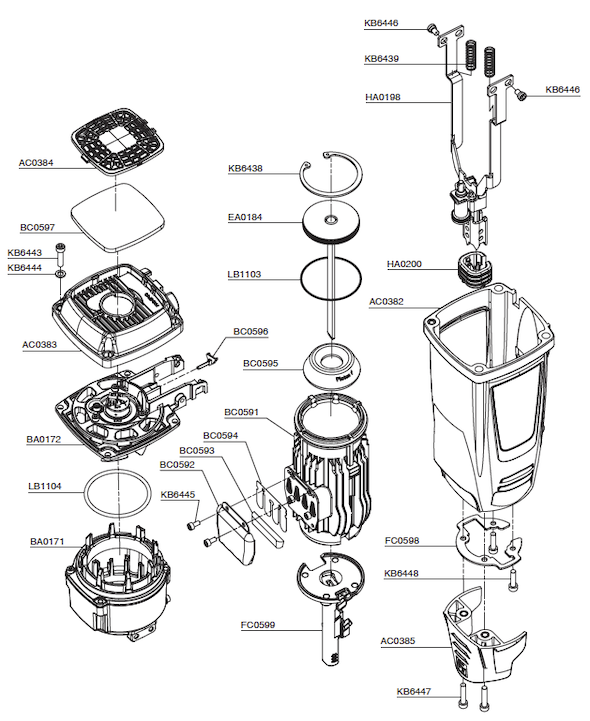

Senco GT90CH

...
...
xx
Mainbody SEN-AC0382
...
xx
Seal SEN-LB1104
...
xx
Seal SEN-LB1103
...
xx
Guidebody Screw (Short) SEN-KB6448
...
xx
Guidebody Screw (Long) SEN-KB6447
...
xx
Safety Screw SEN-KB6446
...
xx
Exhaust Filter Screw SEN-KB6445
...
xx
Top Flange Washer SEN-KB6444
...
xx
Top Flange Screw SEN-KB6443
...
xx
Safety Spring SEN-KB6439
...
xx
Snap Ring SEN-KB6438
...
xx
No-Mar Cushion SEN-HA0200
...
xx
Safety Assembly SEN-HA0198
...
xx
Guidebody SEN-FC0599
...
xx
Piston/Driver SEN-EA0184
...
xx
Bottom Mount Plate SEN-FC0598
...
xx
Top Cover SEN-AC0383
...
xx
Filter Cover SEN-AC0384
...
xx
Front Shroud SEN-AC0385
...
xx
Combustion Chamber SEN-BA0171
...
xx
Top Flange Assembly SEN-BA0172
...
xx
Cylinder SEN-BC0591
...
xx
Exhaust Baffle SEN-BC0592
...
xx
Exhaust Filter SEN-BC0593
...
xx
Reed Valve SEN-BC0594
...
xx
Piston Stop SEN-BC0595
...
xx
Fuel Stem SEN-BC0596
...
xx
Air Filter Element SEN-BC0597

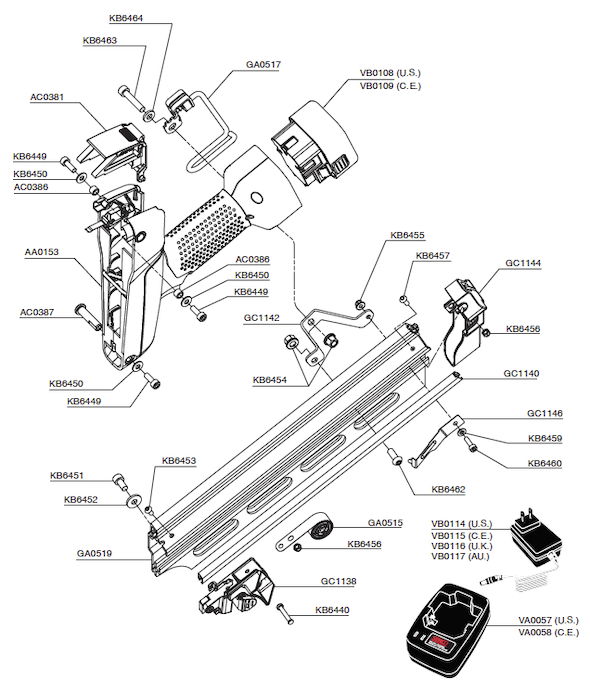

Senco GT90CH

...
...
xx
Feed Spring Screw (Button) SEN-KB6453
...
xx
Bracket Lock Nut SEN-KB6454
...
xx
Nut SEN-KB6455
...
xx
Nut SEN-KB6456
...
xx
Magz Cover Screw (Button) SEN-KB6457
...
xx
Nail Detainer Washer SEN-KB6459
...
xx
Nail Detainer Screw SEN-KB6460
...
xx
Magazine Screw (Button) SEN-KB6462
...
xx
Rafter Hook Bolt SEN-KB6463
...
xx
Rafter Hook Washer SEN-KB6464
...
xx
Charger (Us) SEN-VA0057
...
xx
Charger (Ce) SEN-VA0058
...
xx
Battery (U.S.) SEN-VB0108
...
xx
Battery (Ce) SEN-VB0109
...
xx
Adapter (Us) SEN-VB0114
...
xx
Adapter (Ce) SEN-VB0115
...
xx
Adapter (Uk) SEN-VB0116
...
xx
Adapter (Au) SEN-VB0117
...
xx
Feedershoe SEN-GC1138
...
xx
Handle Assembly SEN-AA0153
...
xx
Fuel Door SEN-AC0381
...
xx
Handle Screw Bushing SEN-AC0386
...
xx
Anti-Rotation Screw SEN-AC0387
...
xx
Feed Spring And Roller SEN-GA0515
...
xx
Rafter Hook Assembly SEN-GA0517
...
xx
Magazine Assembly SEN-GA0519
...
xx
Magazine Washer SEN-KB6452
...
xx
C-Tube SEN-GC1140
...
xx
Magazine Bracket SEN-GC1142
...
xx
Magazine Cover SEN-GC1144
...
xx
Nail Detainer SEN-GC1146
...
xx
Feed Spring Pin SEN-KB6440
...
xx
Handle Screw SEN-KB6449
...
xx
Handle Washer SEN-KB6450
...
xx
Magazine Screw SEN-KB6451
