Senco FramePro700E-XL (782006N) Air Nailer

Model: FramePro700E-XL_782006N

Save Part Not Listed?
product name

Senco FramePro700E-XL_782006N

...
...
xx
Label (Safety Precautions) SEN-HG0068
...
xx
Housing SEN-HB0270
...
xx
Safety Element SEN-HB0271
...
xx
Insert SEN-HB0275
...
xx
Stop SEN-HC0141
...
xx
Insert SEN-HC0144
...
xx
Safety Element SEN-HC0247
...
xx
Retainer SEN-HC0253
...
xx
Safety Element SEN-HC0265
...
xx
Cover SEN-HC0274
...
xx
No-Mar Pad SEN-HF0046
...
xx
Main Body SEN-AB0097
...
xx
Screw SEN-KB3367
...
xx
Nut SEN-KB3368
...
xx
Spring SEN-KB4267
...
xx
Spring SEN-KB4272
...
xx
Spring SEN-KB4273
...
xx
Screw SEN-KB9754
...
xx
Screw SEN-KB9776
...
xx
Washer SEN-KB9777
...
xx
Seal SEN-LB0042
...
xx
Grip SEN-PC0902
...
xx
Washer SEN-HA0101
...
xx
Cover SEN-HB0269
...
xx
Cap (700E-Xl) SEN-AB0098
...
xx
Cap (750E-Xl) SEN-AB0100
...
xx
Cylinder (700E-Xl) SEN-BC0340
...
xx
Cylinder (750E-Xl) SEN-BC0341
...
xx
Valve SEN-CB0033
...
xx
Piston Assembly (700E-Xl) SEN-EB0278
...
xx
Piston Assembly (750E-Xl) SEN-EB0280
...
xx
Guide Body SEN-FC0360
...
xx
Feeder Shoe SEN-GA0371
...
xx
Magazine SEN-GB0426
...
xx
End Cap SEN-GA0385
...
xx
No-Mar Pad SEN-HA0080
...
xx
Bumper SEN-GF0025
...
xx
Knob SEN-GC0704
...
xx
Insert SEN-GC0685
...
xx
Bracket SEN-GC0640
...
xx
Rail SEN-GC0636
...
xx
Spring SEN-GC0592
...
xx
Roller SEN-GC0563

Senco FramePro700E-XL_782006N

...
...
xx
Spring SEN-KB4130
...
xx
Spring SEN-KB4265
...
xx
Spring SEN-KB4268
...
xx
Washer SEN-KB9752
...
xx
Screw SEN-KB9773
...
xx
Pin SEN-KC0027
...
xx
Retainer SEN-KC0062
...
xx
Seal SEN-LB0018
...
xx
Seal SEN-LB0038
...
xx
Seal SEN-LB0057
...
xx
Seal SEN-LB0086
...
xx
Seal SEN-LB0768
...
xx
Seal SEN-LB0844
...
xx
Seal SEN-LB0847
...
xx
Seal SEN-LB0850
...
xx
Seal SEN-LB0885
...
xx
Seal SEN-LB3505
...
xx
Retainer SEN-VA0007
...
xx
Retainer SEN-BF0204
...
xx
Seal SEN-AC0141
...
xx
Stop SEN-BB0148
...
xx
Valve SEN-BB0186
...
xx
Retainer SEN-BC0309
...
xx
Washer SEN-BC0312
...
xx
Seal SEN-BC0342
...
xx
Deflector SEN-BF0168
...
xx
Seal SEN-BF0203
...
xx
Screw SEN-KB3255
...
xx
Core SEN-CC0192
...
xx
Cage SEN-CF0003
...
xx
Valve SEN-CF0015
...
xx
Trigger SEN-HA0108
...
xx
Trigger Assembly SEN-HA0123
...
xx
Bumper SEN-HF0058
...
xx
Trigger SEN-HF0062
...
xx
Pin SEN-KB1555

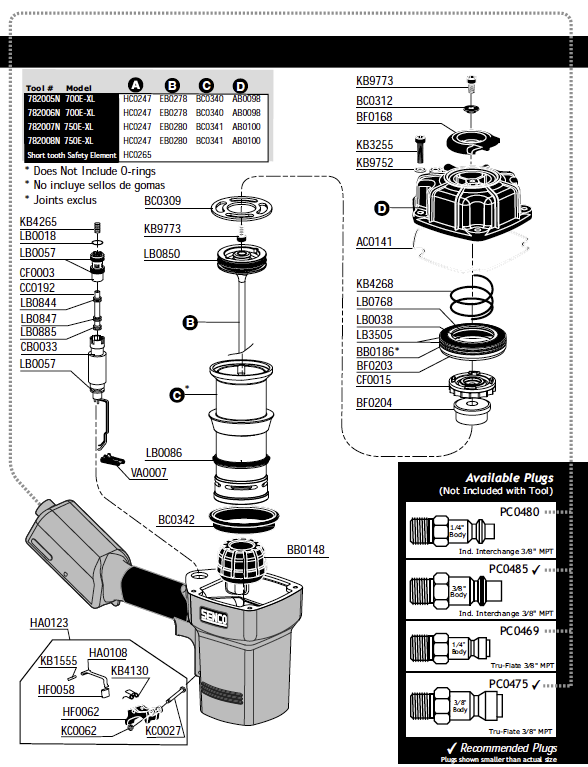

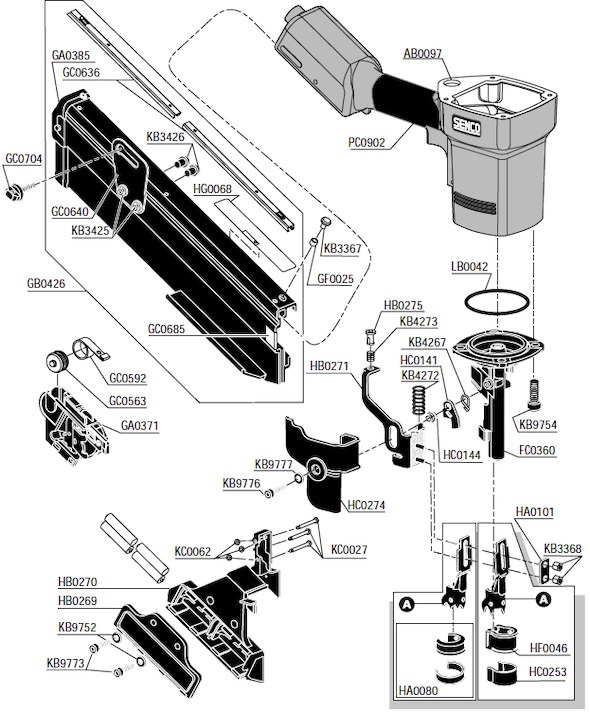

Schematic Image Zoomed
