Senco F-35XP (10G0001N) Cordless Nailer

Model: 10G0001N

Save Part Not Listed?
product name

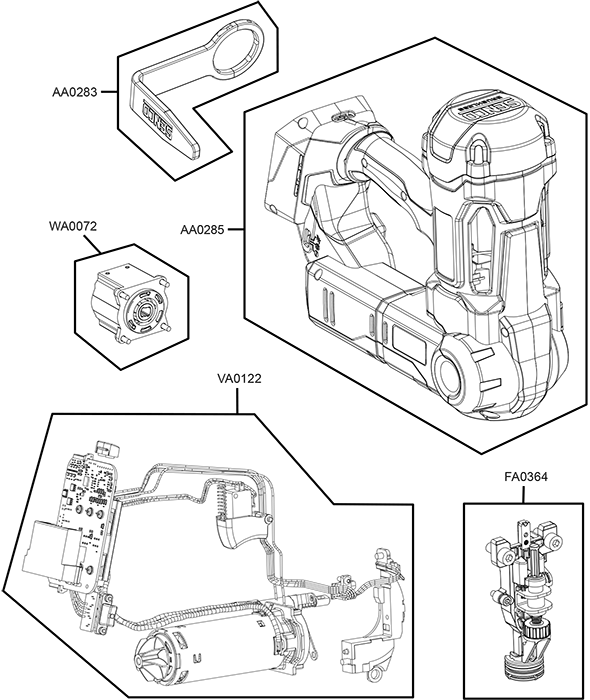

Senco 10G0001N

...
...
xx
Rafter Hanger Assembly SEN-AA0283
...
xx
Body Assembly SEN-AA0285
...
xx
Front Plate Assembly SEN-FA0364
...
xx
Electrical Assembly SEN-VA0122
...
xx
Gearbox Assembly SEN-WA0072

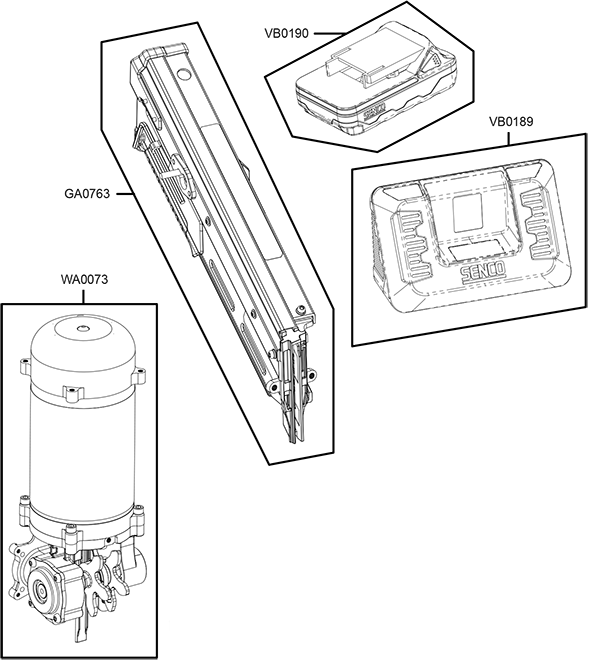

Senco 10G0001N

...
...
xx
Feed System SEN-GA0763
...
xx
Charger SEN-VB0189
...
xx
Battery SEN-VB0190
...
xx
Mechanical Assembly SEN-WA0073

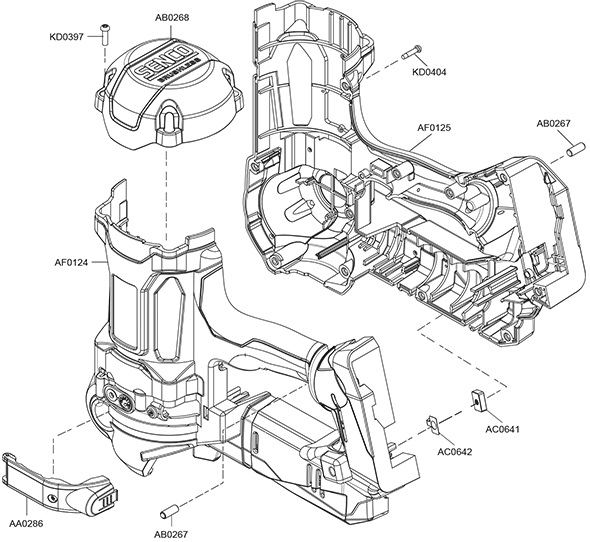

Senco 10G0001N

...
...
xx
Door Assembly SEN-AA0286
...
xx
Cap SEN-AB0268
...
xx
Detent, Rafter Hanger SEN-AB0267
...
xx
Adapter, Nut SEN-AC0641
...
xx
Retainer, Nut SEN-AC0642
...
xx
Left Body Assembly SEN-AF0124
...
xx
Right Body Assembly SEN-AF0125
...
xx
Screw SEN-KD0397
...
xx
Screw SEN-KD0404

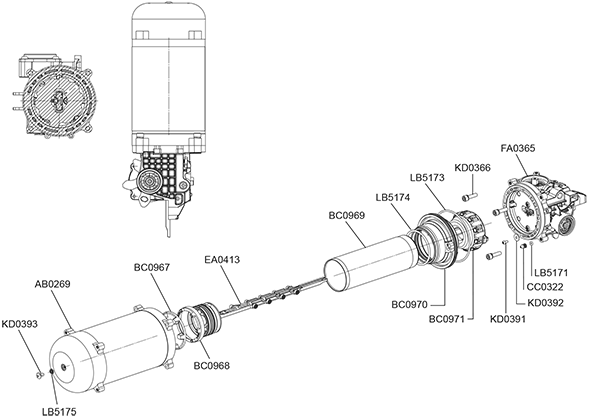

Senco 10G0001N

...
...
xx
Pressure Vessel SEN-AB0269
...
xx
Retainer, Upper SEN-BC0967
...
xx
Retainer, Lower SEN-BC0968
...
xx
Sleeve SEN-BC0969
...
xx
Sleeve Retainer SEN-BC0970
...
xx
Piston Stop SEN-BC0971
...
xx
Plug SEN-CC0322
...
xx
Driver Assembly SEN-EA0413
...
xx
Chassis-Assembly SEN-FA0365
...
xx
Screw SEN-KD0366
...
xx
Screw SEN-KD0391
...
xx
Washer SEN-KD0392
...
xx
Screw SEN-KD0393
...
xx
Seal SEN-LB5171
...
xx
O-Ring SEN-LB5173
...
xx
O-Ring SEN-LB5174
...
xx
Seal SEN-LB5175

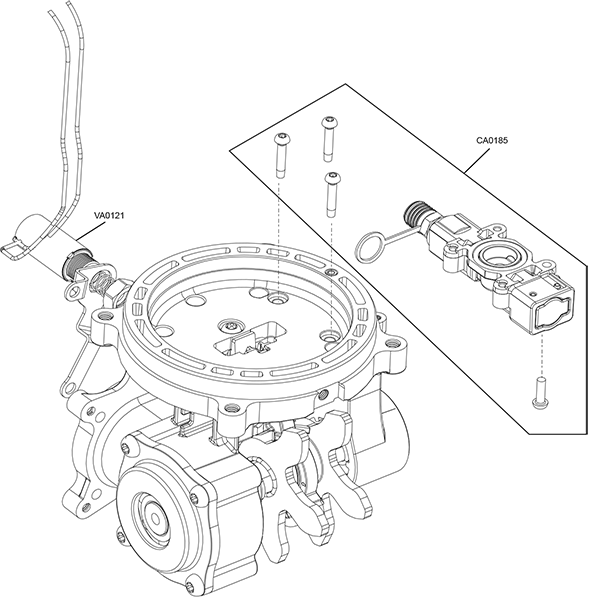

Senco 10G0001N

...
...
xx
Fill Assembly SEN-CA0185
...
xx
Solenoid SEN-VA0121

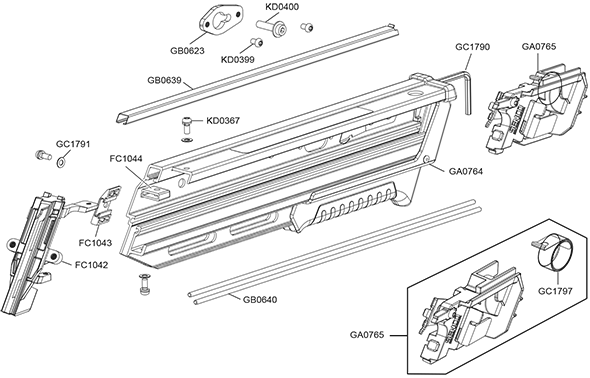

Senco 10G0001N

...
...
xx
Backplate SEN-FC1042
...
xx
Magazine Insert SEN-FC1043
...
xx
Bumper SEN-FC1044
...
xx
Magazine Sub-Assembly SEN-GA0764
...
xx
Carriage Assembly SEN-GA0765
...
xx
Bracket SEN-GB0623
...
xx
C-Tube SEN-GB0639
...
xx
Wear Insert SEN-GB0640
...
xx
Hex Wrench SEN-GC1790
...
xx
Washer SEN-GC1791
...
xx
Screw SEN-KD0367
...
xx
Screw SEN-KD0399
...
xx
Screw SEN-KD0400
...
xx
Feed Spring SEN-GC1797

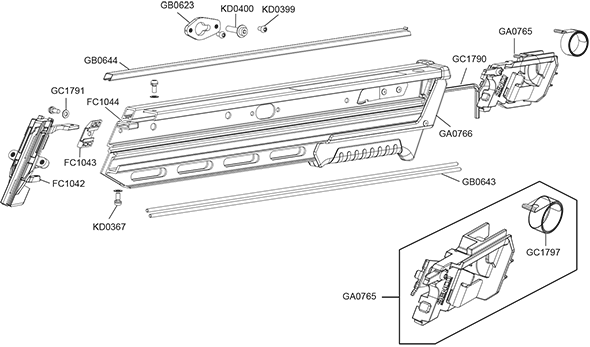

Senco 10G0001N

...
...
xx
Backplate SEN-FC1042
...
xx
Magazine Insert SEN-FC1043
...
xx
Bumper SEN-FC1044
...
xx
Carriage Assembly SEN-GA0765
...
xx
Magazine Sub-Assembly SEN-GA0766
...
xx
Bracket SEN-GB0623
...
xx
Wear Insert SEN-GB0643
...
xx
C-Tube SEN-GB0644
...
xx
Hex Wrench SEN-GC1790
...
xx
Washer SEN-GC1791
...
xx
Screw SEN-KD0367
...
xx
Screw SEN-KD0399
...
xx
Screw SEN-KD0400
...
xx
Feed Spring SEN-GC1797

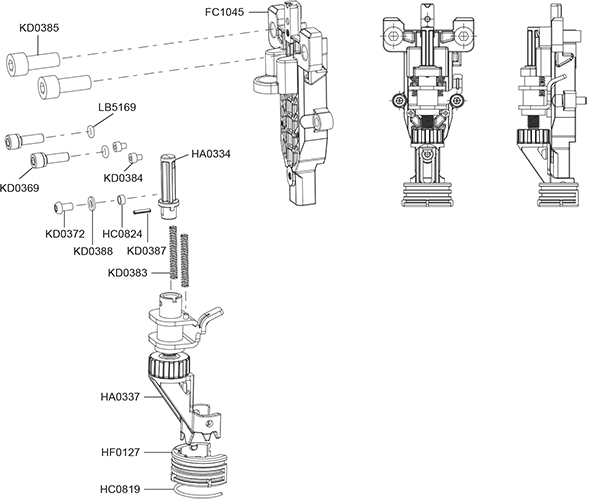

Senco 10G0001N

...
...
xx
Front Plate SEN-FC1045
...
xx
Extension Assembly SEN-HA0334
...
xx
Adjustable Safety SEN-HA0337
...
xx
Clip SEN-HC0819
...
xx
Standoff Tube SEN-HC0824
...
xx
Boot SEN-HF0127
...
xx
Screw, And Lockwasher SEN-KD0369
...
xx
Screw SEN-KD0372
...
xx
Spring SEN-KD0383
...
xx
Screw SEN-KD0384
...
xx
Screw SEN-KD0385
...
xx
Spring Pin SEN-KD0387
...
xx
Washer SEN-KD0388
...
xx
O-Ring SEN-LB5169

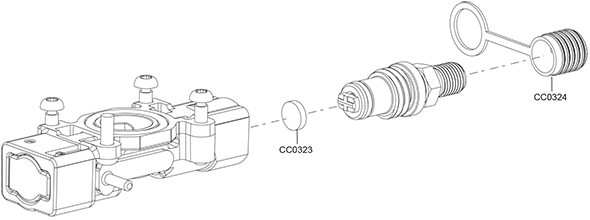

Senco 10G0001N

...
...
xx
Air Filter SEN-CC0323
...
xx
Fill Cover SEN-CC0324

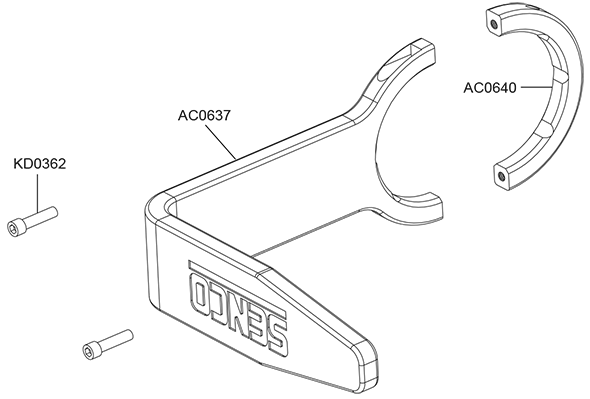

Senco 10G0001N

...
...
xx
Hanger Hook SEN-AC0637
...
xx
Hook Ring SEN-AC0640
...
xx
Screw SEN-KD0362

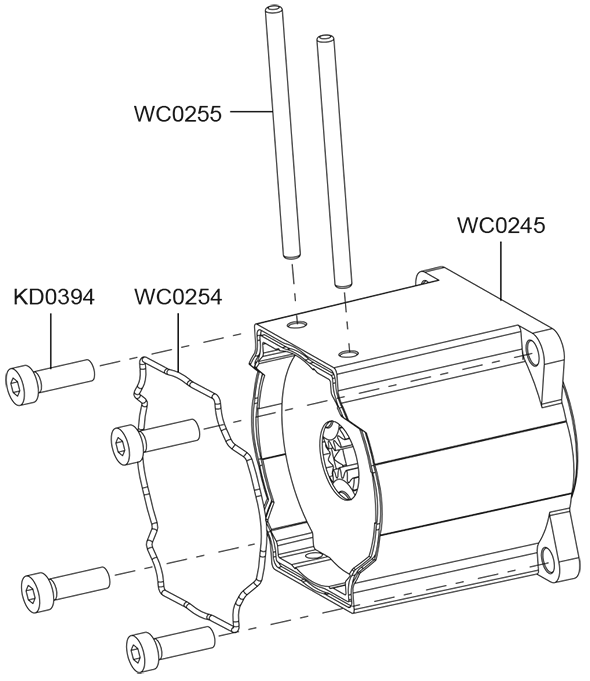

Senco 10G0001N

...
...
xx
Screw SEN-KD0394
...
xx
Housing SEN-WC0245
...
xx
Seal SEN-WC0254
...
xx
Pin SEN-WC0255

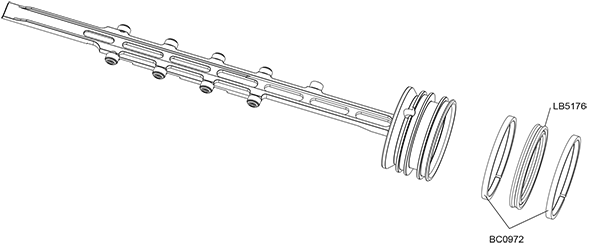

Senco 10G0001N

...
...
xx
Bearing SEN-BC0972
...
xx
Seal SEN-LB5176

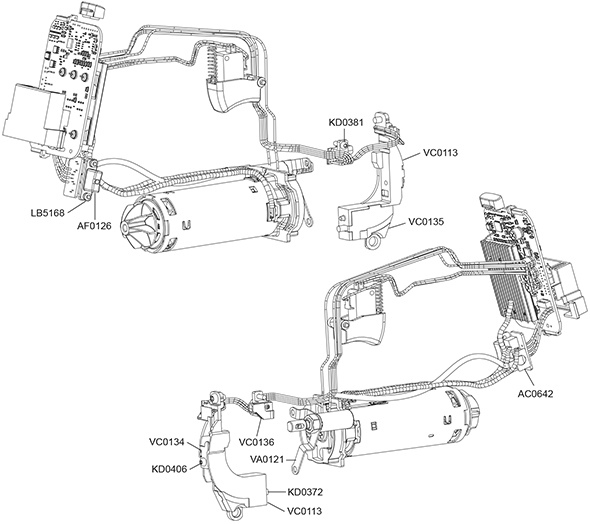

Senco 10G0001N

...
...
xx
Retainer, Nut SEN-AC0642
...
xx
On-Off Toggle SEN-AF0126
...
xx
Screw SEN-KD0372
...
xx
Screw SEN-KD0381
...
xx
Screw SEN-KD0406
...
xx
O-Ring SEN-LB5168
...
xx
Solenoid Assembly SEN-VA0121
...
xx
Bracket SEN-VC0113
...
xx
Panel SEN-VC0134
...
xx
Bracket SEN-VC0135
...
xx
Bracket SEN-VC0136

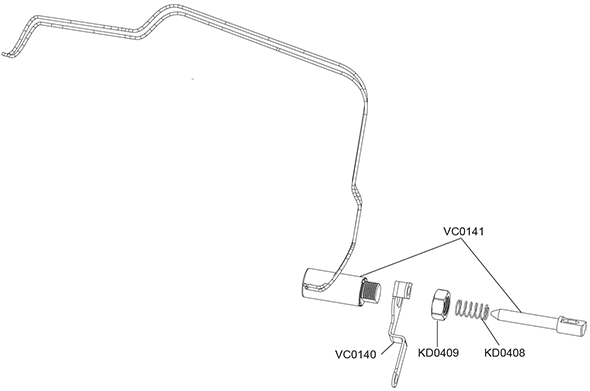

Senco 10G0001N

...
...
xx
Spring SEN-KD0408
...
xx
Nut SEN-KD0409
...
xx
Bracket SEN-VC0140
...
xx
Solenoid And Plunger SEN-VC0141

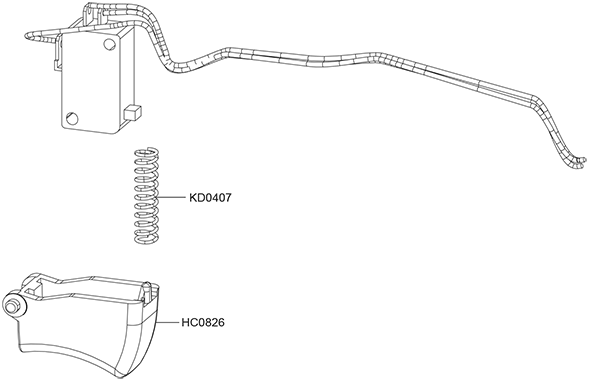

Senco 10G0001N

...
...
xx
Spring SEN-KD0407
...
xx
Trigger SEN-HC0826
