Senco F-18XP (10M0001N) Cordless Nailer

Model: 10M0001N

Save Part Not Listed?
product name

Senco 10M0001N

...
...
xx

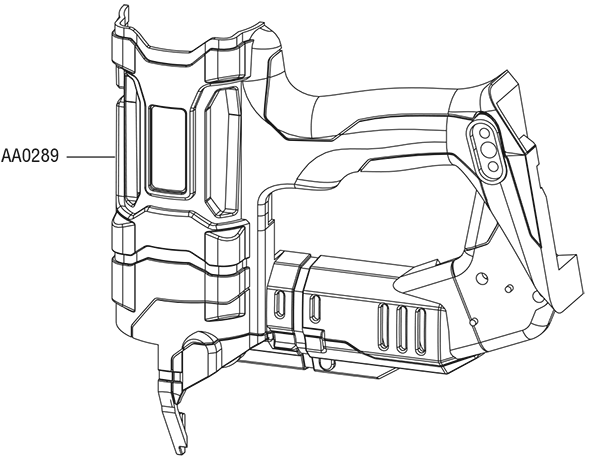

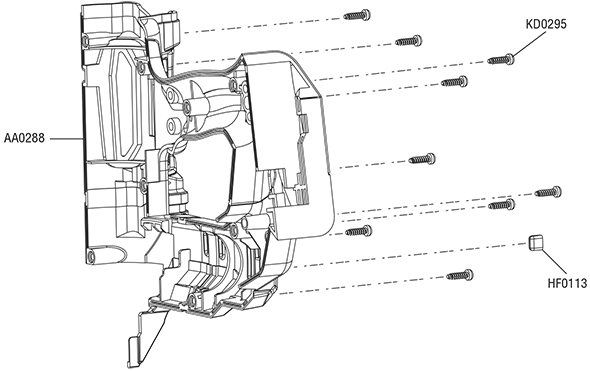

Left Body Asembly SEN-AA0289

Senco 10M0001N

...
...
xx
Right Body Asembly SEN-AA0288
...
xx
No-Mar Tip SEN-HF0113
...
xx
Screw SEN-KD0295

Senco 10M0001N

...
...
xx

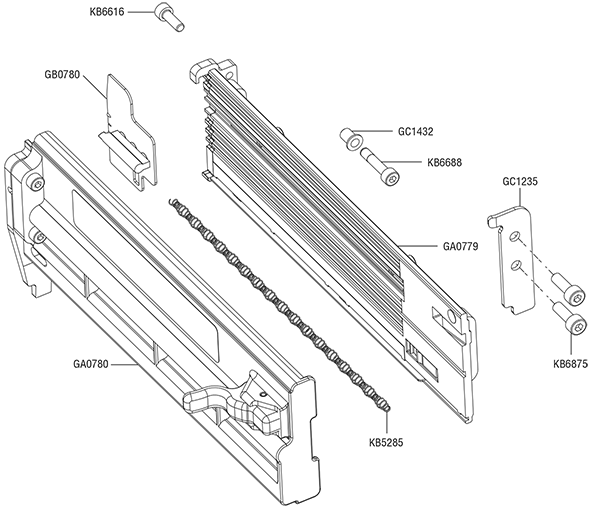

Screw SEN-KB6616
...
xx
Screw SEN-KB6688
...
xx
Screw SEN-KB6875
...
xx
Spring SEN-KB5285
...
xx
Rail Insert SEN-GC1432
...
xx
Feeder Shoe SEN-GB0780
...
xx
Moveable Rail Assembly SEN-GA0780
...
xx
Latch Plate SEN-GC1235
...
xx
Fixed Rail Assembly SEN-GA0779
...
xx
Magazine Assembly SEN-GA0798

Senco 10M0001N

...
...
xx

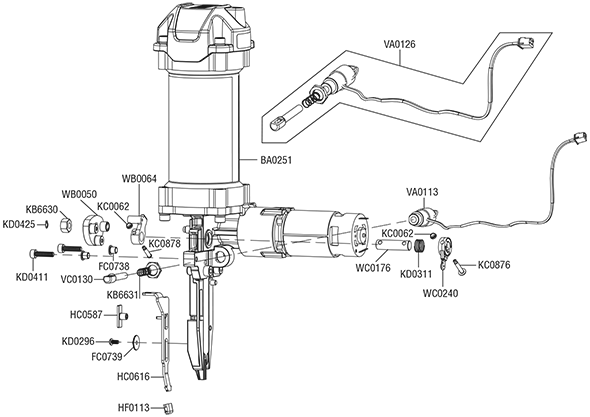

Screw SEN-KD0296
...
xx
Spring SEN-KD0311
...
xx
Screw SEN-KD0411
...
xx
Retaining Ring SEN-KD0425
...
xx
Solenoid SEN-VA0113
...
xx
Solenoid Assembly SEN-VA0126
...
xx
Solenoid Plunger SEN-VC0130
...
xx
Lifter SEN-WB0050
...
xx
Latch Assembly SEN-WB0064
...
xx
Latch Shaft SEN-WC0176
...
xx
Latch Arm SEN-WC0240
...
xx
No Mar Pad SEN-HF0113
...
xx
Pin SEN-KC0876
...
xx
Pressure Vessel Assembly SEN-BA0251
...
xx
Standoff SEN-FC0738
...
xx
Standoff SEN-FC0739
...
xx
Indicator SEN-HC0587
...
xx
Safety Element SEN-HC0616
...
xx
Nut SEN-KB6630
...
xx
Spring SEN-KB6631
...
xx
Retainer SEN-KC0062
...
xx
Pin SEN-KC0878

Senco 10M0001N

...
...
xx

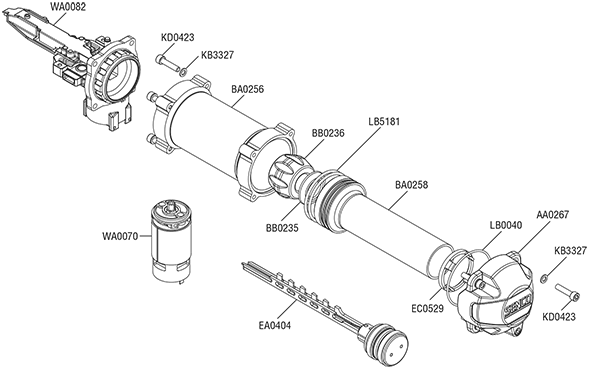

Piston Stop SEN-BB0236
...
xx
Frontplate Assembly SEN-WA0082
...
xx
Motor Assembly SEN-WA0070
...
xx
O-Ring SEN-LB5181
...
xx
O-Ring SEN-LB0040
...
xx
Screw SEN-KD0423
...
xx
Washer SEN-KB3327
...
xx
Piston-Driver Assembly SEN-EA0404
...
xx
Piston Stop Shield SEN-BB0235
...
xx
Sleeve SEN-BA0258
...
xx
Pressure Vessel SEN-BA0256
...
xx
Cap Assembly SEN-AA0267
...
xx
Retainer SEN-EC0529

Senco 10M0001N

...
...
xx

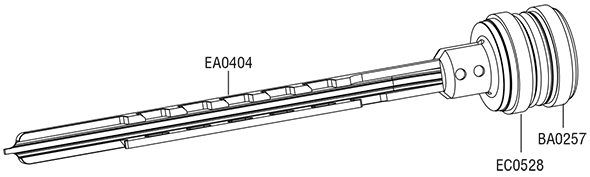

Piston-Driver Assembly SEN-EA0404
...
xx
Foam Pad SEN-BA0257
...
xx
Foam Pad SEN-EC0528

Senco 10M0001N

...
...
xx

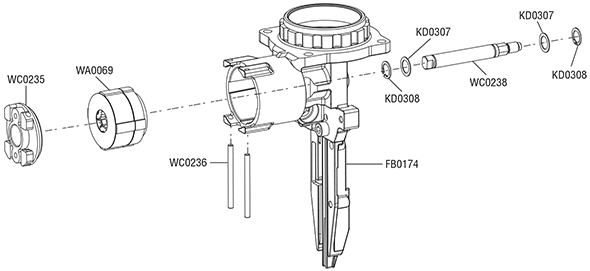

Gearbox Shaft SEN-WC0238
...
xx
Pin SEN-WC0236
...
xx
Connector SEN-WC0235
...
xx
Gears SEN-WA0069
...
xx
Retaining Ring SEN-KD0308
...
xx
Washer SEN-KD0307
...
xx
Guide Body Assembly SEN-FB0174
...
xx
Front Plate Assembly SEN-WA0082

Senco 10M0001N

...
...
xx

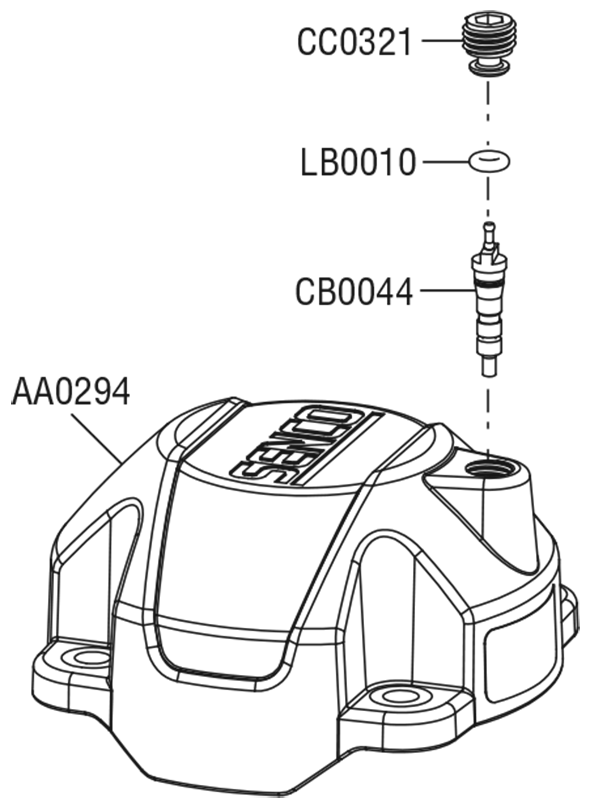

O-Ring SEN-LB0010
...
xx
Cap SEN-AA0294
...
xx
Seal SEN-CC0321
...
xx
Valve SEN-CB0044

Senco 10M0001N

...
...
xx

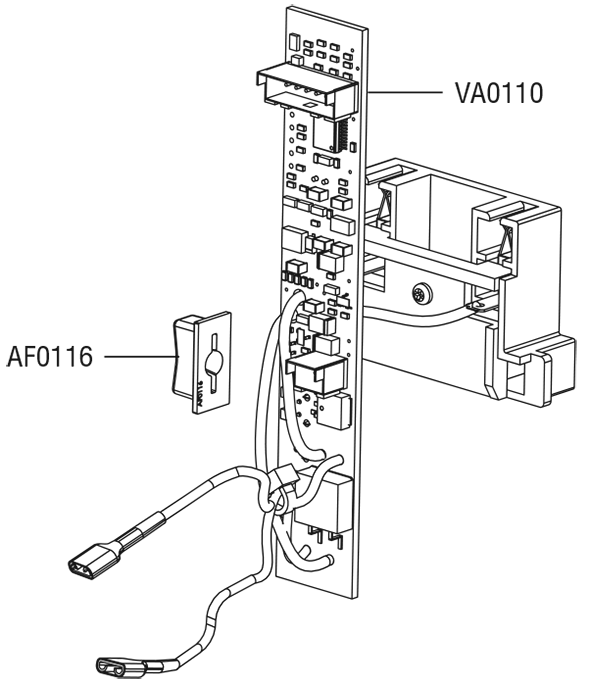

Switch SEN-AF0116
...
xx
Pcb Assembly SEN-VA0110

Senco 10M0001N

...
...
xx

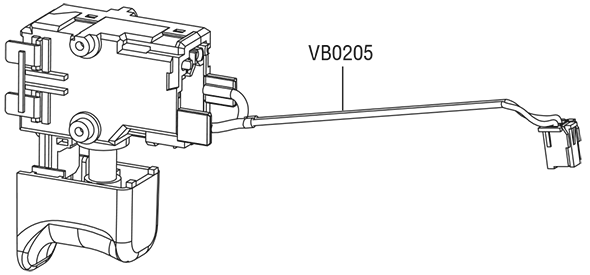

Trigger Assembly SEN-VB0205

Senco 10M0001N

...
...
xx

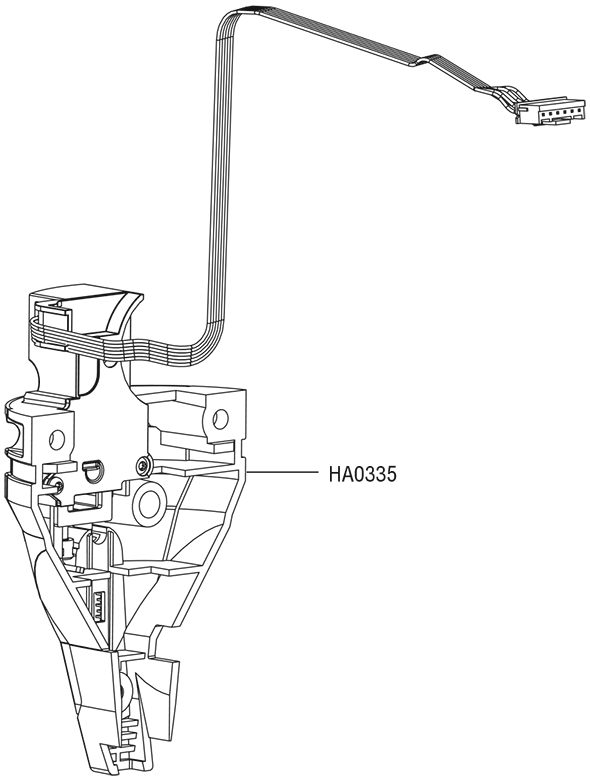

Safety Cover Assembly SEN-HA0335

Senco 10M0001N

...
...
xx

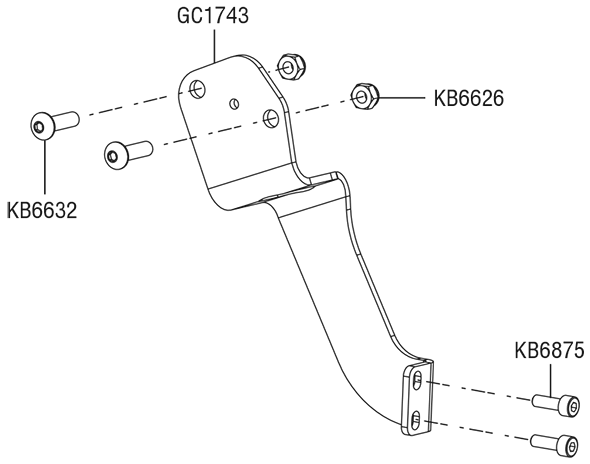

Bracket SEN-GC1743
...
xx
Screw SEN-KB6875
...
xx
Screw SEN-KB6632
...
xx
Locknut SEN-KB6626

Senco 10M0001N

...
...
xx

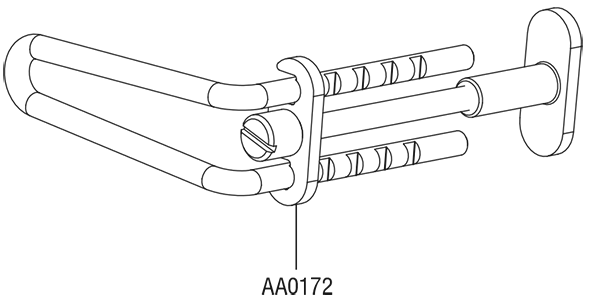

Belt Hook Assembly SEN-AA0172

Senco 10M0001N

...
...
xx

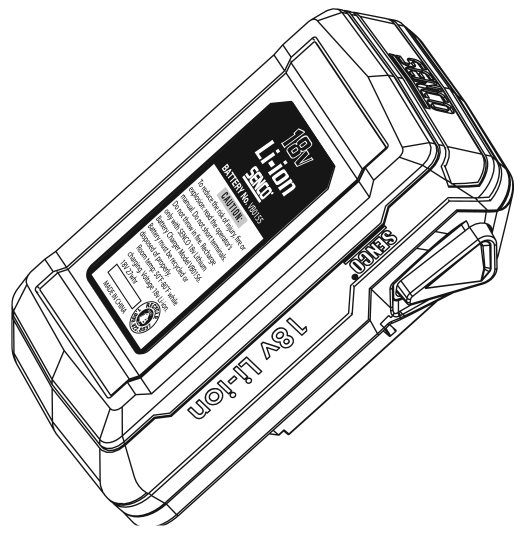

Battery SEN-VB0212

Senco 10M0001N

...
...
xx

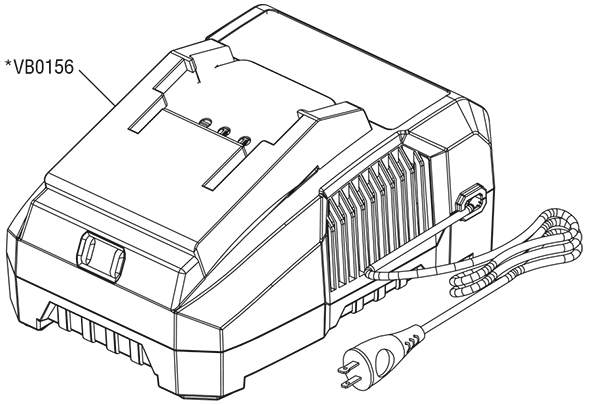

Battery Charger SEN-VB0189
