Select Series 317E762F013 (1997) Snow Thrower

Model: 317E762F013 (1997)

Save Part Not Listed?
product name

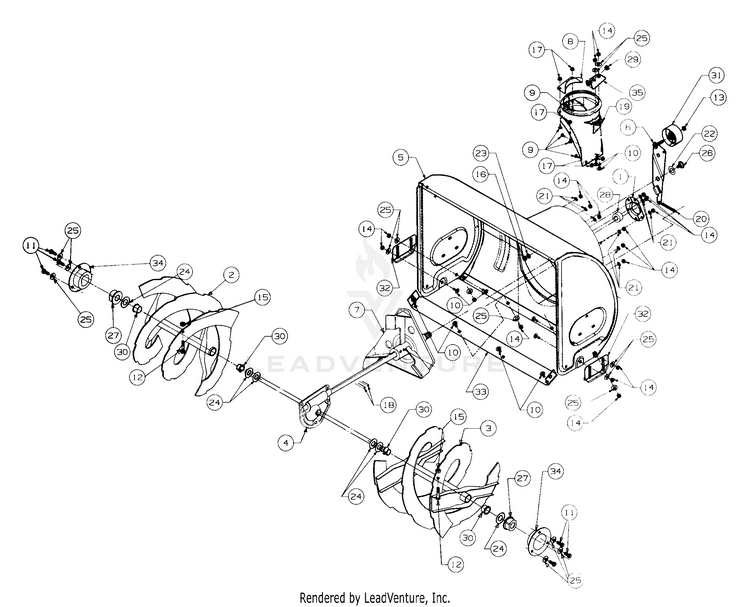

Blower Housing

...
...
1
Housing-Bearing MTD-05931A
...
2
24" SPIRAL ASSEMBLY (RH) (POWDER BLACK) Right Hand from Operators position MTD-684-04180-0637
...
2
Spiral Assembly - R.H. 26" Right Hand from Operators position MTD-684-04182-0637
...
3
Spiral Assembly - L.H. 24" Left Hand from Operators position MTD-684-04181-0637
...
3
26" SPIRAL ASSEMBLY (LH) (POWDER BLACK) Left Hand from Operators position MTD-684-04183-0637
...
4
GEARBOX ASSEMBLY 24" W FITTING MTD-918-0414B
...
4
Gear Assembly 26" MTD-918-0415B
...
5
24" HOUSING ASSEMBLY(OYSTER GRAY) MTD-684-0039D-0662
...
5
26" HOUSING ASSEMBLY *CHOOSE COLOR WHEN ORDERING* MTD-684-0040D
...
6
Arm-Idler Assembly MTD-984-0064-0637
...
7
12" IMPELLER (3 BLADE) (POWDER BLACK) MTD-684-06276-0637
...
8
Reinforcement-Chute MTD-705-5226-0637
...
9
CARRIAGE BOLT 1/4-20X.50" MTD-710-05177
...
10
Screw-Carriage MTD-710-0451
...
11
Screw-Hex MTD-710-0604A
...
12
Shear Bolt MTD-710-0890A
...
13
Hex L-Nut 3/8-24 Thd. MTD-712-0116
...
14
HEX NUT 5/16-18 MTD-712-3010
...
15
Hex L-Nut 5/16-18 Thd. MTD-712-0429
...
16
Nut-Hex MTD-712-0798
...
17
Nut-Hex Lock MTD-912-3027
...
18
Spring Pin 1.5" Lg. MTD-715-0114
...
19
Adapter-Chute MTD-731-1379D
...
20
Spring MTD-932-0611
...
21
Washer-Lock MTD-936-0119
...
22
Washer-Flat MTD-936-0167
...
23
L-Wash. 3/8" I.D. MTD-736-0169
...
24
Washer-Flat MTD-736-0188
...
25
Washer-Bell MTD-736-0242
...
26
Shld. Bolt .625 Dia. x .170 Lg. MTD-738-0281
...
27
Bearing Flange MTD-941-0245
...
28
Bearing Ball MTD-941-0309
...
29
Bushing-Plastic MTD-941-0475
...
30
FLANGE BUSHING MTD-741-0493C
...
31
Idler-Flat MTD-756-0178
...
32
Shoe-Slide MTD-784-5580-0637
...
33
Shave Plate 24" MTD-790-00120-0637
...
33
Shave Plate 26" MTD-790-00121-0637
...
34
Housing-Bearing MTD-784-5618A-0637
...
35
Bracket-Chute Crank MTD-784-5647-0637

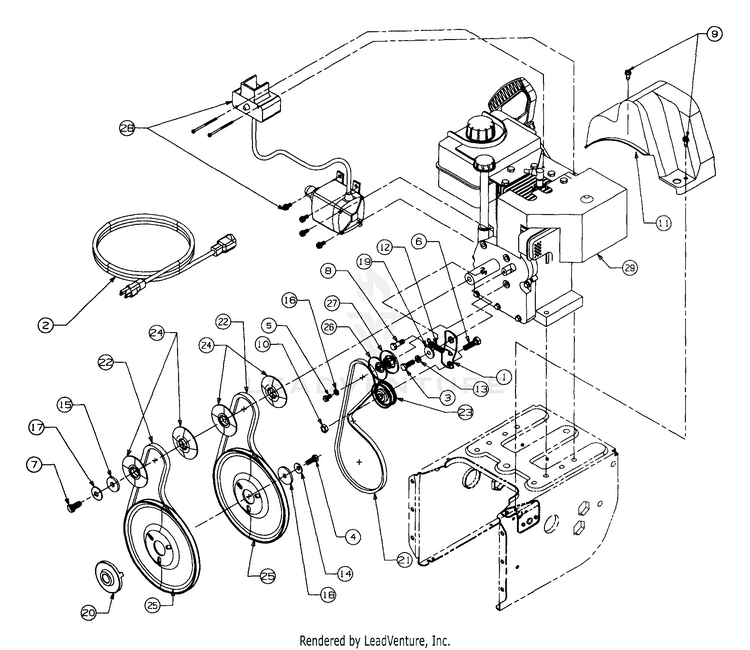

Engine And V-Belts

...
...
1
BRACKET-IDLR- MTD-05896A
...
2
3-Prong Extension Cord MTD-929-0071B
...
3
Hex Bolt 5/16-24 x 1" Lg. MTD-710-0888
...
4
Screw-Hex MTD-710-0157
...
5
HEX SCREW 1/4-28 x .50 GR5 MTD-710-0230
...
6
Hex Bolt 3/8-16 x 1.25" Lg. MTD-710-3005
...
7
Screw-Hex MTD-710-0696
...
8
Screw-Hex MTD-710-0888
...
9
Screw-Hex MTD-710-0896
...
10
Nut-Hex MTD-712-0181
...
11
Cover-Belt MTD-731-1324
...
12
Extension Spring MTD-932-0710
...
13
Lock Wash. 5/16" I.D. MTD-936-0119
...
14
Washer-Bell MTD-736-0242
...
15
Washer-Flat MTD-736-0247
...
16
L-Wash. 1/4" I.D. MTD-936-0329
...
17
Washer-Bell MTD-736-0331
...
18
Washer-Flat MTD-736-0505
...
19
Spacer MTD-748-0234
...
20
Adapter Pulley MTD-948-0360
...
21
V - Belt MTD-954-0346
...
22
BELT: 3V X 35.00 LG MTD-954-0430C
...
23
Idler-Flat MTD-756-0313
...
24
Pulley Half MTD-756-0569
...
25
Pulley-Auger MTD-756-0967
...
26
HALF PULLEY MTD-756-0986
...
27
HALF PULLEY MTD-956-0987
...
28
Electric Start Kit MTD-390-987
...
29
UNKNOWN MTD-NA

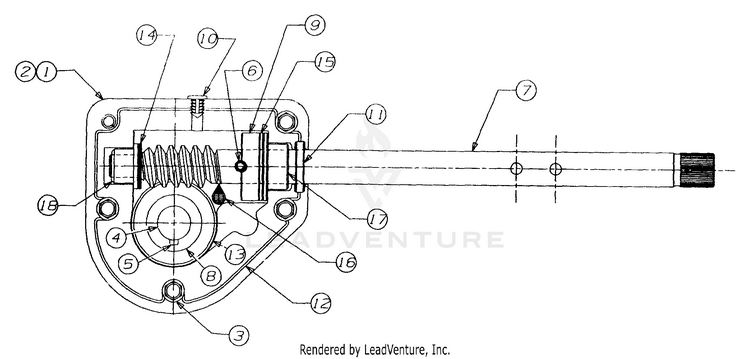

Gear Assembly

...
...
1
RH Housing MTD-918-0123A
...
2
LH Housing MTD-918-0124A
...
3
Screw MTD-710-0642
...
4
26"AUGER SHAFT MTD-711-0909A
...
xx
24"AUGER SHAFT MTD-711-0908A
...
5
KEY 3/16 x 5/8 H MTD-914-0161
...
6
Pin, Spiral MTD-715-0143
...
7
IMPELLER SHAFT MTD-717P0526
...
8
WORM GEAR 20T MTD-917-04861
...
9
Collar, Thrust MTD-718-0186
...
10
Plug MTD-721-0325
...
11
Seal, Oil MTD-721-0327
...
12
Loctite 5699, Ultra MTD-721-0328
...
13
Washer MTD-736-0351
...
14
Washer MTD-736-0369
...
15
Washer MTD-736-0445
...
16
Grease MTD-737-0168A
...
17
Bearing Flange MTD-741-0662
...
18
Bearing Flange MTD-741-0663

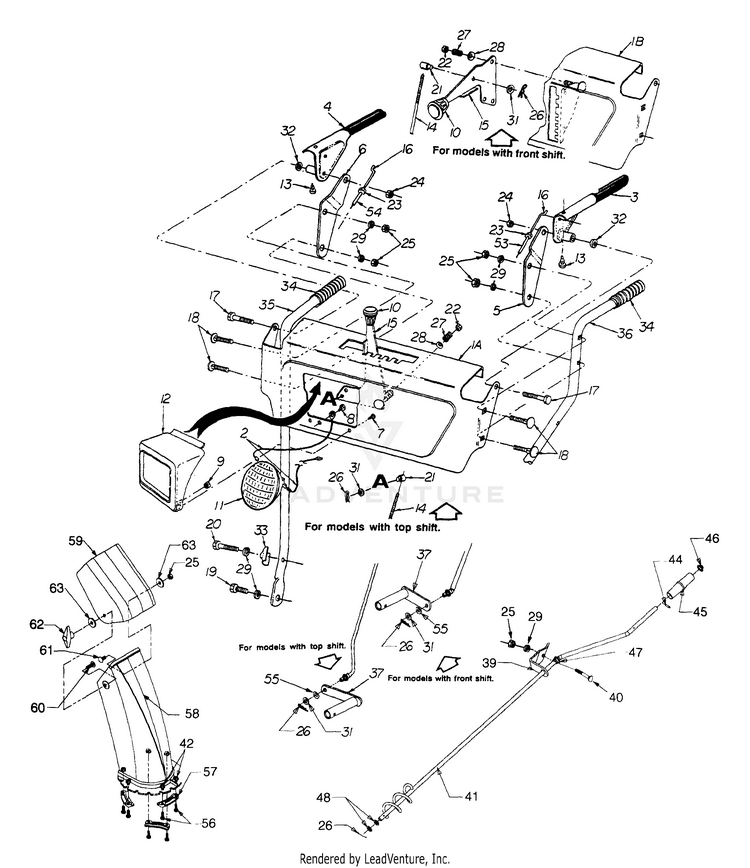

Handle Assembly

...
...
1A
PANEL HANDLE ASSEMBLY:2 Top Shift MTD-605-5002
...
1B
PANEL HNDL ASSEMBLY COLOR Front Shift MTD-605-5000
...
2
LIGHT HARNESS ASSEMBLY Top Shift MTD-929-0058B
...
3
CLUTCH LEVER (LH) MTD-705-5233A
...
4
CLUTCH LEVER (RH) MTD-705-5234A
...
5
PANEL SUPPORT BRACKET (LH) MTD-705-5275
...
6
PANEL SUPPORT BRACKET (RH) MTD-705-5274
...
7
Truss Mach.-Tap Scr. #10 x .50 Top Shift MTD-710-0779A
...
8
Hex B-Tap Scr. 1/4-28 x .25" Lg. Top Shift MTD-710-0898
...
9
SELF TAPP NUT Top Shift MTD-712-0415
...
10
Knob MTD-920-0232
...
11
HEADLIGHT Top Shift MTD-925-1300
...
12
HEAD LIGHT BEZEL Top Shift MTD-731-1317
...
13
Rubber Bumper MTD-735-0199A
...
14
SHIFT ASSEMBLY ROD MTD-747-0921
...
15
KIT-SHIFT HANDLE:S MTD-753-05395
...
16
Cable "Z" Fitting MTD-946-0778
...
17
Hex Bolt 5/16-18 x 2.00" Lg. MTD-710-3103
...
18
Carriage Bolt 5/16-18 x 1.50 MTD-710-0262
...
19
Hex Bolt 5/16-18 x .75" Lg. MTD-710-0118
...
20
Hex Screw 5/16-18 x 1.75" Lg. MTD-710-3180
...
21
Engagement Ferru MTD-911-0677
...
22
Hex Nut 3/8-24 MTD-712-0116
...
23
Hex Nut 10-24 MTD-712-0121
...
24
Hex L-Nut 5/16-18 MTD-712-0429
...
25
HEX NUT 5/16-18 MTD-712-3010
...
26
Int. Cotter Pin 5/16 Dia. MTD-714-0104
...
27
Compression Spring .38 ID x .88 Lg. MTD-732-0193
...
28
Bell-Wash. .400 ID x .88 OD x .06 MTD-736-0105
...
29
Lock Wash. 5/16" I.D. MTD-936-0119
...
31
Flat Washer .34 ID x .63 OD MTD-736-0264
...
32
SPACER MTD-750-1032
...
33
Handle Tab MTD-984-5599
...
34
Grip MTD-720-0274
...
35
HANDLE (RH) MTD-749-0910C-0637
...
36
HANDLE (LH) MTD-749-0911A
...
37
SHIFT ARM ASSEMBLY (POWDER BLACK) MTD-684-0008A-0637
...
39
BRACKET MTD-784-5678
...
40
SCREW 5/16-18 x 1.5 LG MTD-710-0805A
...
41
Chute Crank Ass'y MTD-984-0022
...
42
LOCK NUT 1/4 MTD-912-3027
...
44
Rolled Pin, 1/8 x .63 MTD-915-0138
...
45
Knob - Chute Crank MTD-720-0201A
...
46
Cap Speed Nut 3/8" Rod MTD-726-0100
...
47
BUSHING .380 ID MTD-941-0475
...
48
Flat Washer .385 ID x .62 OD x .06 MTD-736-0140
...
53
Cable-Auger Clutch MTD-946-0897
...
54
Cable-Drive Clutch MTD-946-0898
...
55
SPRING WASHER .317 X .625 X .020 MTD-936-0271
...
56
Hex Bolt 1/4-20 x .75" Lg. (Gr. 5) MTD-710-3015
...
57
Chute Keeper MTD-731-0851A
...
58
Lower Chute MTD-731-1300E
...
59
UPPER CHUTE (W/LBL MANUAL TILT) MTD-731-04426C
...
60
Carriage Bolt 5/16-18 x 1" Lg. MTD-710-0276
...
61
Carriage Bolt 5/16-18 x .75" Lg. MTD-710-0451
...
62
Knob MTD-720-0284
...
63
Fl-Wash. .34" I.D. x 1.125" O.D. MTD-736-0231

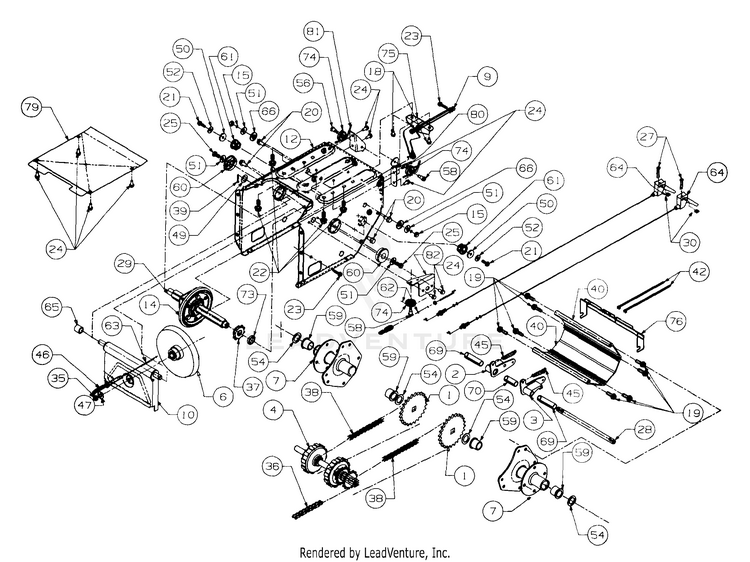

Track And Frame (Part 1)

...
...
1
Axle Assembly MTD-611-0053
...
2
DOG ASSEMBLY (RH) MTD-618-0043
...
3
Dog Assembly - L.H. MTD-618-0044
...
4
Shaft Assembly MTD-918-0169B
...
6
Friction Wheel Disc Ass'y. MTD-956-0012A
...
7
Hub Assembly MTD-683-0024-0637
...
9
SHAFT ASSEMBLY (POWDER BLACK) MTD-684-0014B-0637
...
10
BRACKET ASSEMBLY MTD-984-0021-0637
...
12
FRAME ASSEMBLY MTD-984-0031
...
14
Wheel Assembly Friction MTD-984-0042C
...
xx
Rubber Only MTD-935-0243B
...
15
Screw MTD-710-0118
...
18
Screw MTD-710-0599
...
19
Screw MTD-710-0602
...
20
Screw, 5/16-18 x .625 MTD-710-0604A
...
21
Screw MTD-710-0642
...
22
Screw MTD-710-0654A
...
23
Screw MTD-710-0788
...
24
Screw MTD-710-0896
...
25
Hex Bolt 5/16-18 x .88" Lg. - 650C MTD-710-3038
...
27
Screw MTD-710-1233
...
28
ACTUATOR SHAFT MTD-711-0911
...
29
DRIVE SHAFT MTD-711-1042
...
30
FLAT WELD NUT MTD-712-0127
...
35
Nut Jam MTD-712-0711
...
36
Chain MTD-713-0233
...
37
Sprocket MTD-713-0413
...
38
Chain MTD-713-0437
...
39
Pin Cotter MTD-714-0474
...
40
TRACK HOUSING MTD-719-0295A
...
42
Cable Tie MTD-725-0157
...
45
Spring MTD-932-0209
...
46
Ext. Spring .38n O.D. x 2.5" MTD-932-0264
...
47
Washer-Bell MTD-736-0105
...
49
Washer-Flat MTD-736-0160
...
50
Washer-Flat MTD-736-0176
...
51
Washer-Bell MTD-736-0242
...
52
SPRING WASHER BELL MTD-736-0270
...
54
Washer-Flat MTD-736-0287
...
56
Lubricant MTD-737-0170
...
58
Shlder Screw, .375 ID x 1/4-14 MTD-738-0924A
...
59
Flange Bearing 3/4" I.D. x 15/16" Lg. MTD-941-0339
...
60
BALL BEARING MTD-941-0563
...
61
HEX FLANGE BEARING MTD-941-0597
...
62
Cable-Auger Clutch MTD-946-0897
...
63
Cable-Drive Clutch MTD-946-0898
...
64
Cable with Trigger Lever MTD-753-0707
...
65
Spacer MTD-748-0190
...
66
Spacer-Shoulder MTD-748-0234
...
69
SPLIT SPACER MTD-750-0903B
...
70
SPLIT SPACER MTD-750-0904
...
73
Spacer MTD-950-0997
...
74
Roller-Cable MTD-756-0625
...
75
Bracket MTD-784-5590
...
76
STEERING BRACKET MTD-784-5609
...
79
TRACK FRAME COVER (POWDER BLACK) MTD-784-5648A-0637
...
80
AUGER GUIDE BRACKET MTD-784-5687
...
81
DRIVE GUIDE BRACKET MTD-784-5688
...
82
GUIDE BRACKET MTD-784-5689A-0637

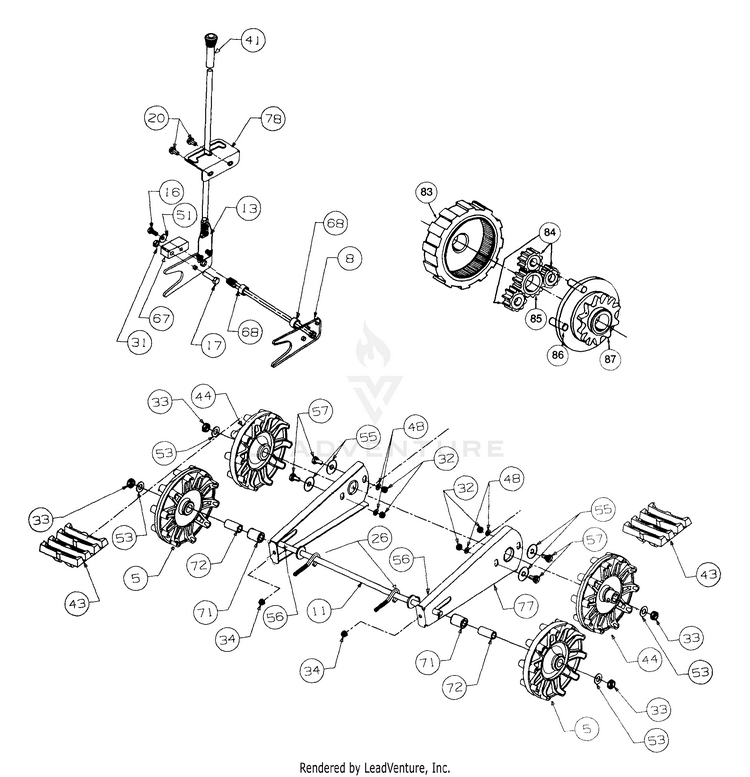

Track And Frame (Part 2)

...
...
5
Wheel Assembly Idler MTD-631-0032A
...
8
PIVOT ROD ASSEMBLY MTD-684-0009A
...
11
KIT-REPLACEMENT MTD-753-05977
...
13
HANDLE ASSEMBLY MTD-684-0038
...
xx
Rubber Only MTD-935-0243B
...
16
Screw MTD-710-0157
...
17
Hex Cap Screw 3/8-24 x 1.5 MTD-710-0459A
...
20
Screw, 5/16-18 x .625 MTD-710-0604A
...
26
EYEBOLT5/16-18 x 3.0 MTD-710-1231
...
31
Nut Lock MTD-712-0214
...
32
HEX NUT 5/16-18 MTD-712-3010
...
33
Nut Jam MTD-712-0346
...
34
Nut Hex MTD-712-0429
...
41
Grip MTD-720-0223
...
43
SNOW TRACK MTD-731-1292
...
44
Wheel-Track Drive MTD-731-1538A
...
48
Lock Wash. 5/16" I.D. MTD-936-0119
...
51
Washer-Bell MTD-736-0242
...
53
FLAT WASHER .510 x .995 MTD-736-0272
...
55
Fl-Wash. 7/16" I.D. x 1-3/8" O.D. MTD-936-0406
...
56
Lubricant MTD-737-0170
...
57
Screw-Shoulder MTD-738-0140
...
67
LIFT SHAFT DRIVE MTD-748-0353A
...
68
Spacer MTD-750-0547
...
71
SPACER-.51IDX1.34LG MTD-750-0909
...
72
SPACER MTD-750-0995
...
77
TRACK SIDE PLATE MTD-784-5639
...
78
TRACK LOCKOUT PLATE MTD-784-5642
...
83
RING GEAR MTD-717-1211B
...
84
GEAR-12T MTD-717-1209A
...
85
Gear 18-Tooth MTD-717-1210A
...
86
Pin Dowel MTD-741-0542
...
87
Carrier MTD-918-0576A
