Select Series 13A6693G013 (1998) Lawn Tractor

Model: 13A6693G013 (1998)

Back To Assemblies

Save Part Not Listed?
product name

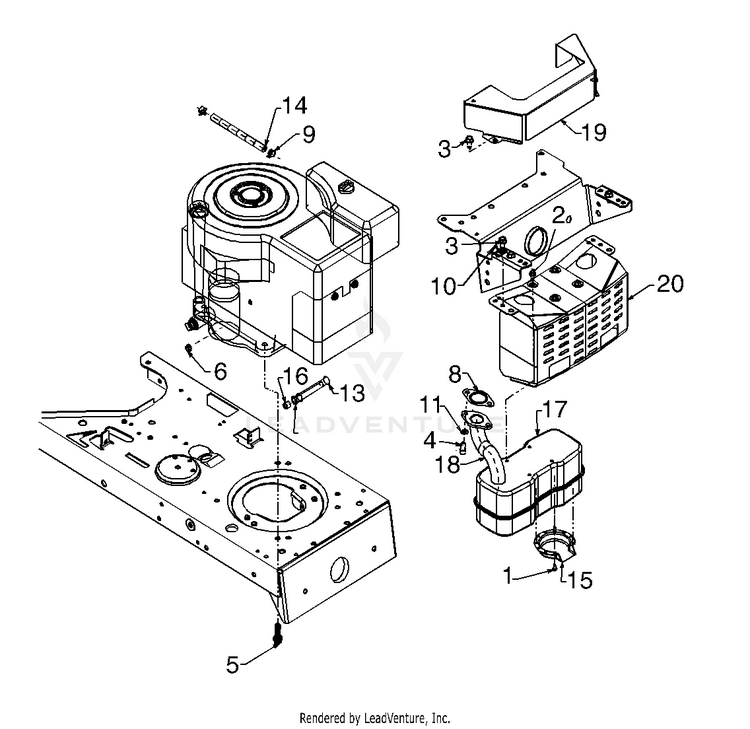

Muffler (Tecumseh)

...
...
1
Hex Bolt #8-32 x .38" Lg. MTD-710-0148
...
2
Hex Wash. Hd. TT-Scr. 1/4-20 x .5" Lg. MTD-710-0599
...
3
Screw, 5/16-18 x .625 MTD-710-0604A
...
4
Socket Screw, 5/16-18 x .750 MTD-710-1314A
...
5
Hex Wash. Hd. TT-Scr. 3/8-16 x 1.25" Lg. MTD-710-1315
...
6
Hex Sems Nut 1/4-20 Thd. MTD-712-0271
...
8
EXHAUST GASKET MTD-TC-36365
...
9
Hose Clamp MTD-726-0205
...
10
Clamp MTD-726-0272
...
11
Lock Wash. 5/16" I.D. MTD-936-0119
...
13
OIL DRAIN PIPE MTD-737-0286
...
xx
PIPE NIPPLE MTD-937-0199
...
14
FUEL HOSE LOW PERMEATION MTD-751-10349-13
...
15
Muffler Deflector MTD-751-0564B
...
16
HEX PIPE PLUG MTD-751-0572
...
xx
CAP - OIL DRAIN MTD-737-0143
...
17
Single Inlet Muffler MTD-951-0617C
...
18
Exhaust Pipe MTD-751-0620A
...
xx
Exhaust Pipe MTD-751-0622A
...
19
HEAT SHIELD Code N MTD-783-0378A
...
20
Muffler Heat Shield Code N MTD-783-0615E-0637
