product name

Samsung WV60M9900AV/A5_0001

Model: WV60M9900AV/A5_0001

Save Part Not Listed?

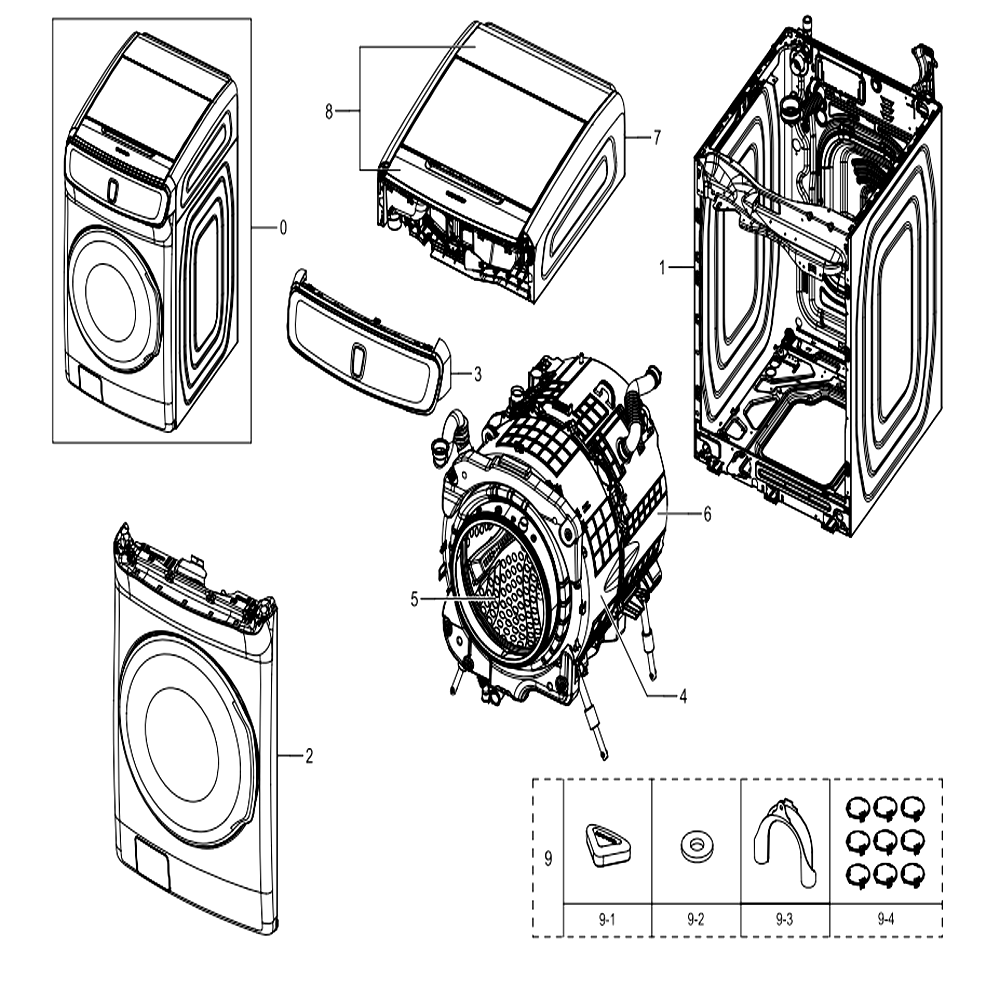

product name

Main

...
...
1
Assy Frame Parts; Wv9900m,wv60m9900av/a5 SAM-DC90-24447A
...
2
Assy Front Parts; Wv9900m,wv60m9900av/a5 SAM-DC90-24453A
...
3
Assy Panel Control Parts; Wv9900m,wv60m99 SAM-DC90-24445A
...
4
Assy Tub Front Parts; Wv9900m,wv60m9900av SAM-DC90-24450A
...
5
Assy Drum Parts; Wv9900m,wv60m9900av/a5 SAM-DC90-21713B
...
6
Assy Tub Back Parts; Wv9900m,wv60m9900av/ SAM-DC90-24444A
...
7
Assy Dual Module; Dual Washer,wv60m9970av SAM-DC97-20148A
...
8
Assy Dual Parts; Dual Washer,wv60m9970av SAM-DC90-24239A
...
9-1
Case Detergent; Wv7500m,si,t3.0,black Cav SAM-DC61-04468A
...
9-2
Leg Rubber-Low; Wv9500m,iir,black,cup Typ SAM-DC61-04469A
...
9-3
Hose Hanger SAM-dc62-10278a
...
9-4
Cap-Fixer SAM-dc67-00307a
...
9
Assy Accessory Parts; Dual Washer, Americ SAM-DC90-00015T

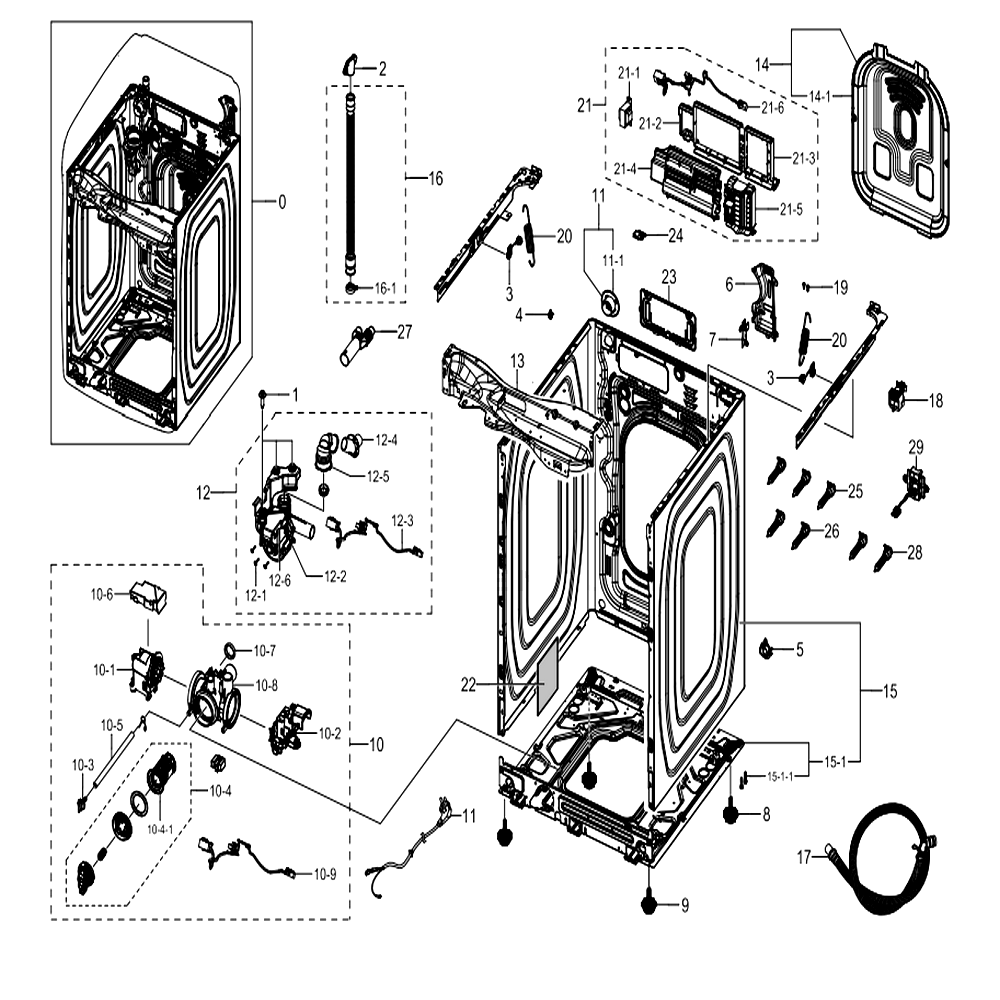

Assy Frame Parts

...
...
0
Assy Frame Parts; Wv9900m,wv60m9900av/a5 SAM-DC90-24447A
...
1
Bolt-Hex SAM-6011-001565
...
2
Guide Hose SAM-dc61-02084c
...
3
Guide Spring SAM-dc61-02432a
...
4
Guide Cover Top SAM-DC61-03400A
...
5
Guide Hose; Pp,t2.5,bj750,natural SAM-DC61-04462A
...
6
Guide Wire; Pp,t2.5,bj750,natural SAM-DC61-04463A
...
7
Cover Wire; Dual Washer,gi-Sgcc,t0.35 SAM-DC63-02004A
...
8
Assy Leg SAM-dc97-00920S
...
9
Assy Leg SAM-dc97-14293d
...
10-1
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
10-2
Motor Ac Pump SAM-dc31-00181c
...
10-3
Cap Drain SAM-dc61-10673a
...
10-4-1
Filter Pump SAM-dc63-00909a
...
10-4
Assy Filter SAM-dc97-16991B
...
10-5
Hose Drain SAM-dc67-00244K
...
10-6
Cover Pump; Dual Washer,pp,t2.5,v0,natura SAM-DC63-01375B
...
10-7
Valve Check SAM-dc62-00299a
...
10-8
Case Pump SAM-dc61-02017K
...
10-9
Assy Wire Harness-Pump; Twin,wv9900m,dual SAM-DC93-00693A
...
10
Assy Pump Drain; Wv9900m,wv60m9900av,bubb SAM-DC97-17999P
...
11-1
Cap O.f SAM-dc67-00316a
...
11
Assy Cap O.f; Wv9900m,wv60m9900av/a5 SAM-DC97-18301C
...
12-1
Screw-Tapping SAM-6002-000524
...
12-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
12-3
Assy Wire Harness-Pump; Twin,wv9900m,dual SAM-DC93-00688A
...
12-4
Hose Connector; Pp,natural SAM-DC67-00866A
...
12-5
Hose Drain; Dualwash,epdm,id6,t2.0,black, SAM-DC67-00244P
...
12-6
Cover Pump; Dual Washer,pp,t2.5,v0,natura SAM-DC63-01375B
...
12
Assy Pump Drain; Wv9900m,wv60m9900av,120v SAM-DC97-20020A
...
13
Assy Frame Plate-Up; Wv9900m,wv60m9900av SAM-DC97-20021A
...
14-1
Cover Back; Wv7500m,gi-Sgcc,t0.35,dual Wa SAM-DC63-02026A
...
14
Assy Cover Back; Wv9900m,wv60m9900av/a5 SAM-DC97-20022A
...
15-1-1
Bolt-Hex SAM-6011-001565
...
15-1
Assy Plate Bottom; Wv9900m,wv60m9900av,2 SAM-DC97-20457A
...
15
Assy Frame; Wv9900m,wv60m9900av,black Cav SAM-DC97-20023J
...
16-1
Clamper Hose SAM-dc61-01679a
...
16
Assy Hose Drain(i) SAM-dc97-12534K
...
17
Assy Hose Drain(o); Wv9900m,wv60m9900av/a SAM-DC97-20151A
...
18
Sensor Pressure SAM-dc96-01703G
...
19
Screw-Tapping SAM-6002-001431
...
20
Spring Etc-Hanger; Wv9900m,swpb,cd4.5,od3 SAM-DC61-01257Q
...
21-1
Coil Harmonic SAM-dc26-00009T
...
21-2
Assy Pcb Main; Fwm, Washer,dual Wash,194* SAM-DC92-01989A
...
21-3
Assy Wire Harness-Main; Twin,wv9900m,2pum SAM-DC93-00689A
...
21-4
Assy Cover Pcb; Wv9900m,wv60m9900av/a5,-, SAM-DC92-02007A
...
21-5
Cover Pba-Inverter; Wv9900m,pp,t2.5,natur SAM-DC63-01571B
...
21-6
Assy Kit SAM-dc92-01531c
...
21
Assy Cover Pcb W/harness; Wv9900m SAM-DC92-02075A
...
22
Absorber Sponge; Pu Foam,t10,blk SAM-DC63-10002D
...
23
Plate Back; Wv7500m,gi-Sgcc,t0.35,z12 SAM-DC61-04344A
...
24
Assy Sensor SAM-dc93-00278a
...
25
Assy Fixer Tub; Kenmore SAM-DC97-14489G
...
26
Assy Fixer Tub; Wv9900m,wv60m9900av/a5,fi SAM-DC97-14489N
...
27
Pipe Connector; Flexwash,pp,dark Holder G SAM-DC62-00498A
...
28
Assy Fixer Tub; Wv9900m,wv60m9900av/a5,fi SAM-DC97-14489P
...
29
Wire Harness-Leakage; 4,ul1569,22,wv9900m SAM-DC39-00057A

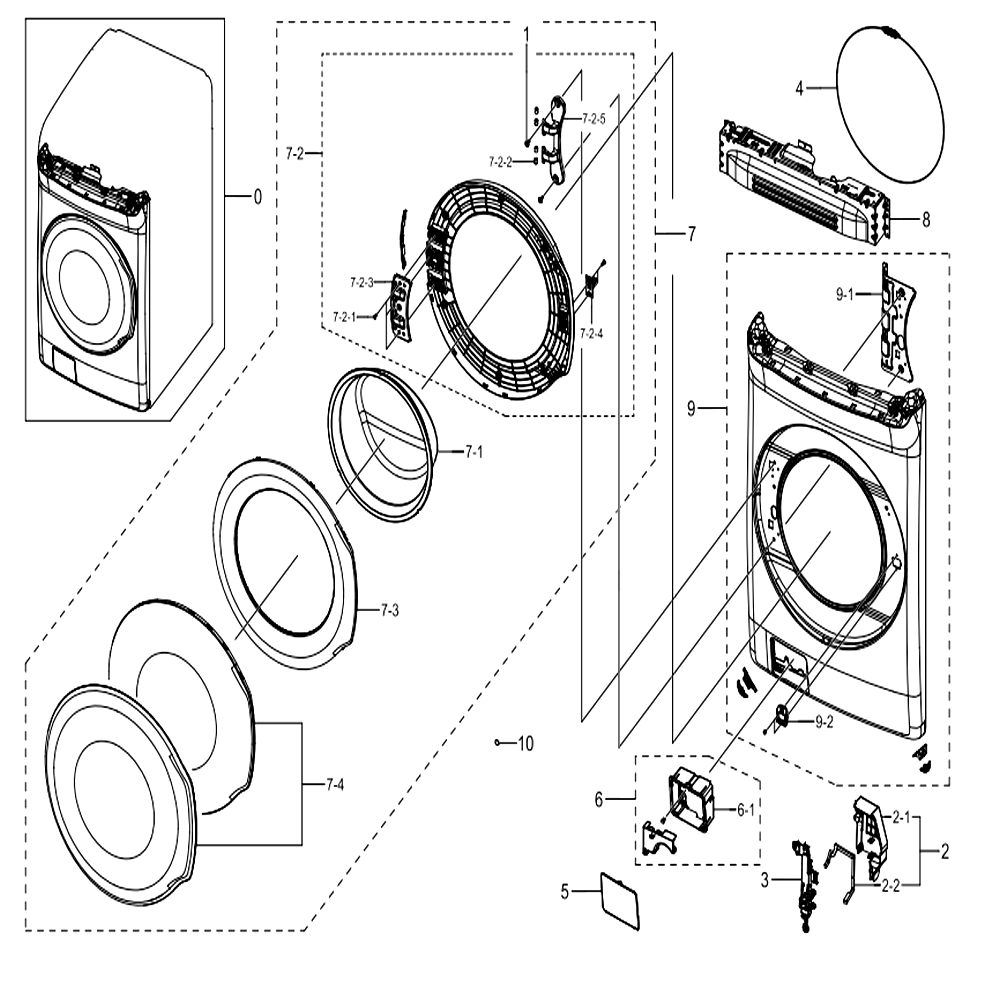

Assy Front Parts

...
...
0
Assy Front Parts; Wv9900m,wv60m9900av/a5 SAM-DC90-24453A
...
1
Screw-Hex SAM-6009-001522
...
2-1
Cover Door Switch SAM-dc63-01156a
...
2-2
Seal Rubber; Wv9500m,nbr,black,cover Door SAM-DC62-00525A
...
2
Assy Cover Door Switch; Dual Wash,wv9500m SAM-DC97-20154A
...
3
Switch Door Lock; Ac120v,16,solenoid, Doo SAM-DC64-00519E
...
4
Assy Wire Diaphragm SAM-dc97-04973B
...
5
Assy Cover Filter; Wv9500m,wv60m9900av,bl SAM-DC97-16018Z
...
6-1
Guide Cover Filter; Wf520anp,pp,t2.5,fc23 SAM-DC61-02621B
...
6
Assy Case Filter; Wf6000,latch Type SAM-DC97-19494A
...
7-1
Door Glass; All Model,glass,arc/sodalime SAM-DC64-00504C
...
7-2-1
Screw-Machine SAM-6001-001668
...
7-2-2
Guide-Hinge SAM-DC61-00891A
...
7-2-3
Support Hinge; Gi-Sgcc,t1.4,l175.0,sbhg1- SAM-DC61-02635A
...
7-2-4
Lever Door; 10kg Drum,zndc,t2.5,ni Coatin SAM-DC66-00375C
...
7-2-5
Hinge Door; Wv7500m,aldc,t2.5,aldc12,dual SAM-DC61-04342B
...
7-2
Assy Holder Glass; Wf5500m,wf45m5500ap SAM-DC97-19997A
...
7-3
Cover-Glass; Wv7500m,abs,t3.0,hb,black Ca SAM-DC63-02022A
...
7-4
Assy Cover Door; Wf5500m,wf45m5500ap SAM-DC97-19996A
...
7
Assy Door; Wf5500m SAM-DC97-19957A
...
8
Assy Frame Plate-Up; Dual Wash,wv9500m,gi SAM-DC97-19992A
...
9-1
Bracket Hinge; Wv60m9900av/a5,gi-Sgcc,t1. SAM-DC61-02615B
...
9-2
Cover-Switch(o) SAM-dc63-00960a
...
9
Assy Frame Front; Wv9900m,wv60m9900av/a5, SAM-DC97-20025E
...
10
Inlay-Door SAM-dc64-03303a

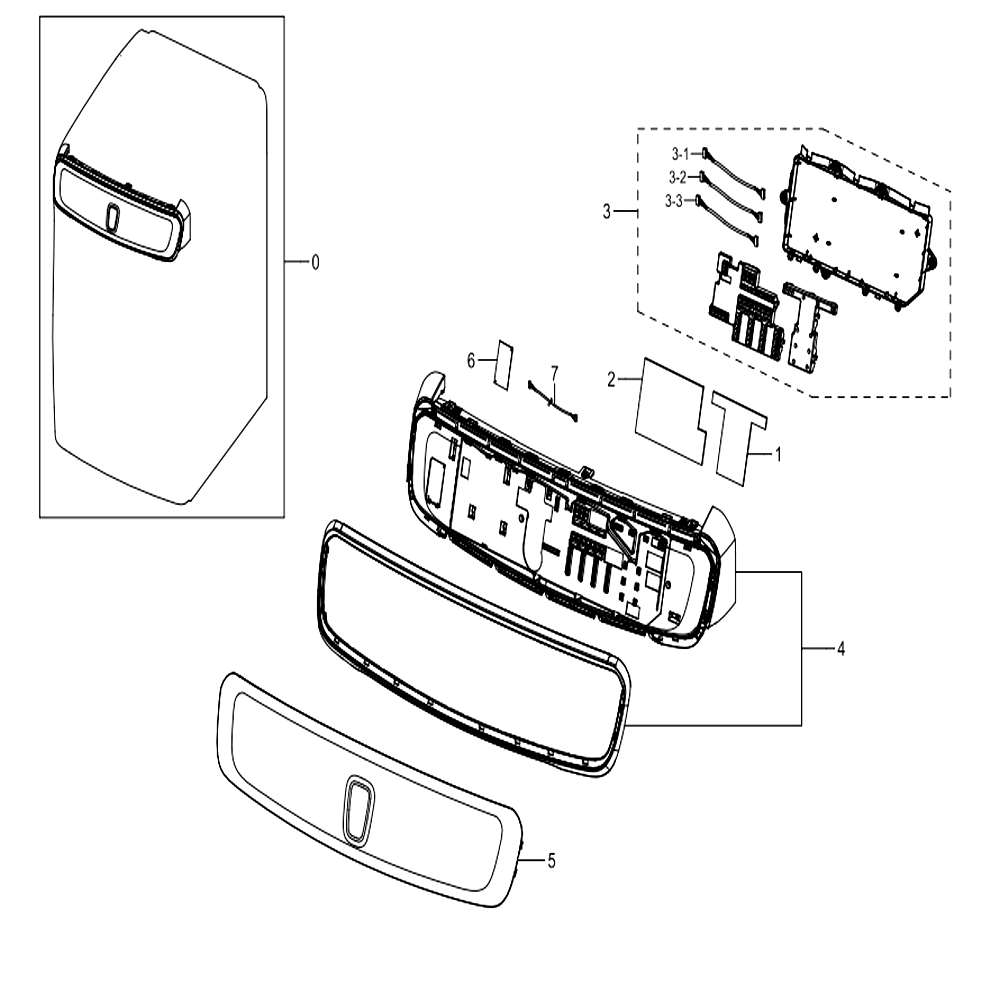

Assy Panel Control Parts

...
...
0
Assy Panel Control Parts; Wv9900m,wv60m99 SAM-DC90-24445A
...
1
Assy Kit; Fwm_Inv,wv9900m,touch Pba (r_Ma SAM-DC92-01984B
...
2
Assy Kit; Fwm_Inv,wv9900m,touch Pba (l_Wa SAM-DC92-01985B
...
3-1
Assy Wire Harness-Pba SAM-DC93-00398C
...
3-2
Assy Wire Harness-Pba SAM-DC93-00628B
...
3-3
Assy Wire Harness-Pba SAM-DC93-00678A
...
3
Assy Pcb Display; Dual Wash_5.0cu.ft,dual SAM-DC92-01988A
...
4
Assy S.panel Control; Wv9900m,wv60m9900av SAM-DC97-20059A
...
5
Window Panel; Wf9900m,abs,hb,tx-0510,silk SAM-DC64-03492A
...
6
Assy Kit SAM-DC92-02046A
...
7
Assy Wire Harness-Pba SAM-DC93-00679A

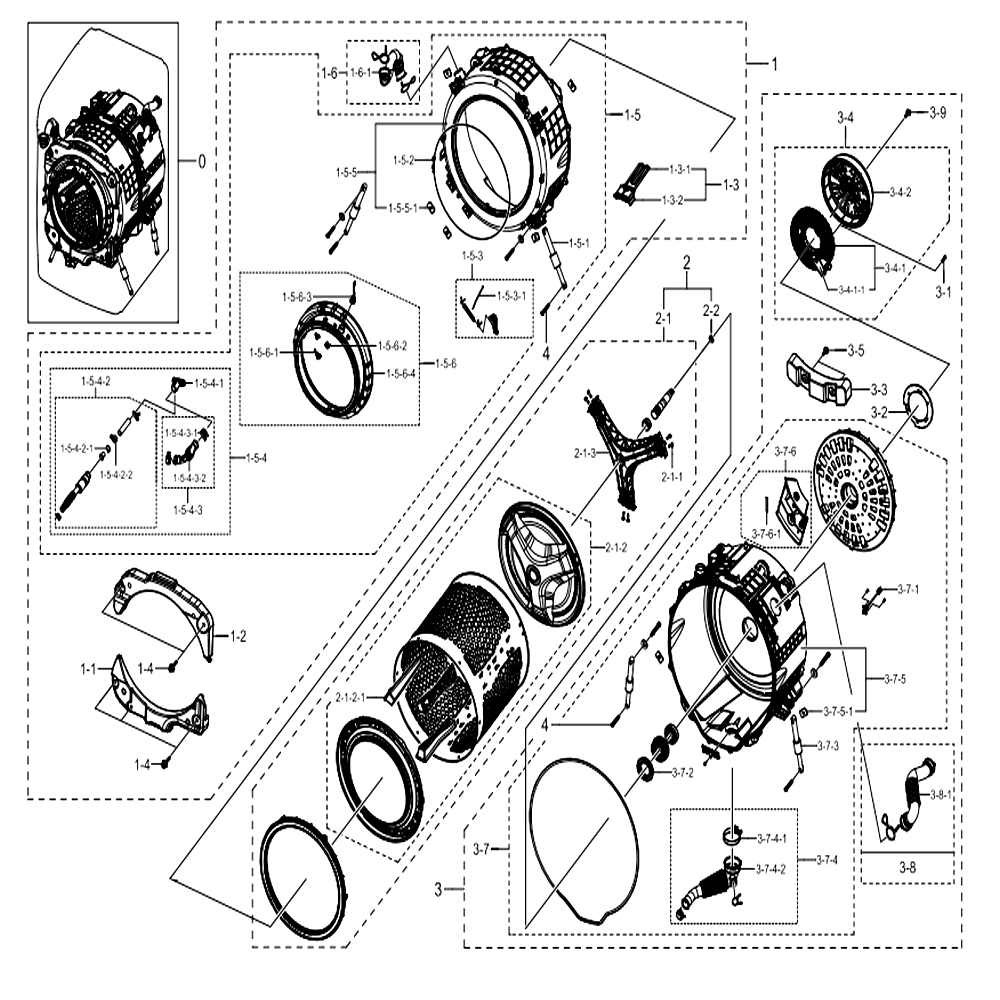

Assy Tub&drum Parts

...
...
1-1
Weight Balancer; Concrete,black SAM-DC67-00839B
...
1-2
Weight Balancer-Up; Dual Washer,concrete, SAM-DC67-00870A
...
1-3-1
Heater Wash; Ac120v,usa,900w,incoloy800,5 SAM-DC47-00006Z
...
1-3-2
Cover Heater SAM-dc63-00820a
...
1-3
Assy Heater; 125/250v SAM-DC96-01417K
...
1-4
Assy Bolt SAM-dc97-02412a
...
1-5-1
Damper Shock; Frontier Ii,steel+pp+rubber SAM-DC66-00470E
...
1-5-2
Assy Clamp Diaphragm SAM-dc97-04981F
...
1-5-3-1
Cable Tie Push Mount; L150,black,pa66 SAM-6051-000017
...
1-5-3
Assy Hose Pressure; 600mmh20,no Pba,no Ho SAM-DC97-14545P
...
1-5-4-1
Hose Connector SAM-dc67-00760a
...
1-5-4-2-1
Spring Clip SAM-dc61-03693a
...
1-5-4-2-2
Clamp-Cable SAM-dc61-00118a
...
1-5-4-2
Assy Hose; Ww9900m,wv60m9900 SAM-DC97-16810H
...
1-5-4-3-1
Clamper Hose SAM-dc61-00219H
...
1-5-4-3-2
Hose Air Tub; Wf520,epdm,id24.5,od29,t2.0 SAM-DC67-00645A
...
1-5-4-3
Assy Hose SAM-dc97-17389a
...
1-5-4
Assy Hose Connector; Wv9900m,wv60m9900 SAM-DC97-16668M
...
1-5-5-1
Bracket Nut SAM-dc61-00201a
...
1-5-5
Assy Semi Tub Front; Wv9900m,wv60m9900 SAM-DC97-19640B
...
1-5-6-1
Nozzle Diaphragm SAM-dc62-00330a
...
1-5-6-2
Nozzle Diaphragm SAM-dc62-00349a
...
1-5-6-3
Assy Lamp Led; 2,fr-1,14*12,white,amp 179 SAM-DC47-00027G
...
1-5-6-4
Door Diaphragm; Wf7500,tpe,t2.5,rh40 SAM-DC64-02792C
...
1-5-6
Assy Diaphragm; Wv9900m,wv60m9900av SAM-DC97-19755F
...
1-5
Assy Tub Front; Wv9900m,wv60m9900av/a5 SAM-DC97-19644D
...
1-6-1
Hose Drawer-Detergent; Wv7500m,epdm,id11, SAM-DC67-00878A
...
1-6
Assy Hose Drawer; Wv9600,wv60m9900 SAM-DC97-20042A
...
1
Assy Tub Front Parts; Wv9900m,wv60m9900av SAM-DC90-24450A
...
2-1-1
Bolt Hex SAM-dc60-40137a
...
2-1-2-1
Drum Lifter; Wv60m9900av/a5,pp,od580,t4.0 SAM-DC66-00888B
...
2-1-2
Assy Drum Wrapper; Wv9900m SAM-DC97-19267B
...
2-1-3
Assy Flange Shaft; Wv60m9900av/a5 SAM-DC97-19266C
...
2-1
Assy Drum; Wv60m9900av/a5 SAM-DC97-19268C
...
2-2
Washer-Spring; Sk5,id35.7,od45.0,t1.0 SAM-6031-002749
...
2
Assy Drum Parts; Wv9900m,wv60m9900av/a5 SAM-DC90-21713B
...
3-1
Bolt-Etc SAM-6011-004782
...
3-2
Bracket Motor; Wv60m9900av/a5,gi-Sgcc,t1. SAM-DC61-03905B
...
3-3
Weight Balancer-Right SAM-dc67-00649a
...
3-4-1-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
3-4-1
Assy Stator; Cdd380 (udd3) SAM-DC97-19994B
...
3-4-2
Assy Rotor; Com2009d(udd20pd),gi-Sgcd,rem SAM-DC97-20194A
...
3-4
Assy Dd Bldc Motor; Wv9900m,wv60m9900av/a SAM-DC93-00703B
...
3-5
Assy Bolt SAM-dc97-02412a
...
3-7-1
Thermistor SAM-dc32-00010c
...
3-7-2
Seal Oil SAM-dc62-00156a
...
3-7-3
Damper Shock; Ace,steel+pp+rubber,80n,-,- SAM-DC66-00470F
...
3-7-4-1
Clamper Hose-Joint; Wf6000h,hswr SAM-DC65-00014E
...
3-7-4-2
Hose Filter Tub SAM-dc67-00465a
...
3-7-4
Assy Hose Drain; Wv9900m,wv60m9900av/a5 SAM-DC97-16105C
...
3-7-5-1
Bracket Nut SAM-dc61-00201a
...
3-7-5
Assy Semi Tub Back; Wv9900m,wv60m9900av/a SAM-DC97-19682D
...
3-7-6-1
Seal Washer; Flex Wash,pu Foam,white SAM-DC62-00526A
...
3-7-6
Assy Bracket Tub; Flex Wash,wv60m9900 SAM-DC97-19460B
...
3-7
Assy Tub Back; Wv9900m,wv60m9900av/a5 SAM-DC97-19647D
...
3-8-1
Hose O.f; Dual Washer,epdm,t2,hs50,black SAM-DC67-00879A
...
3-8
Assy Hose O.f; Wv9900m,wv60m9900av,blk SAM-DC97-16104B
...
3-9
Assy Bolt SAM-dc97-06080c
...
3
Assy Tub Back Parts; Wv9900m,wv60m9900av/ SAM-DC90-24444A
...
4
Bolt-Hex; M10,l35,zpc2,sm10c,damper SAM-6011-001644

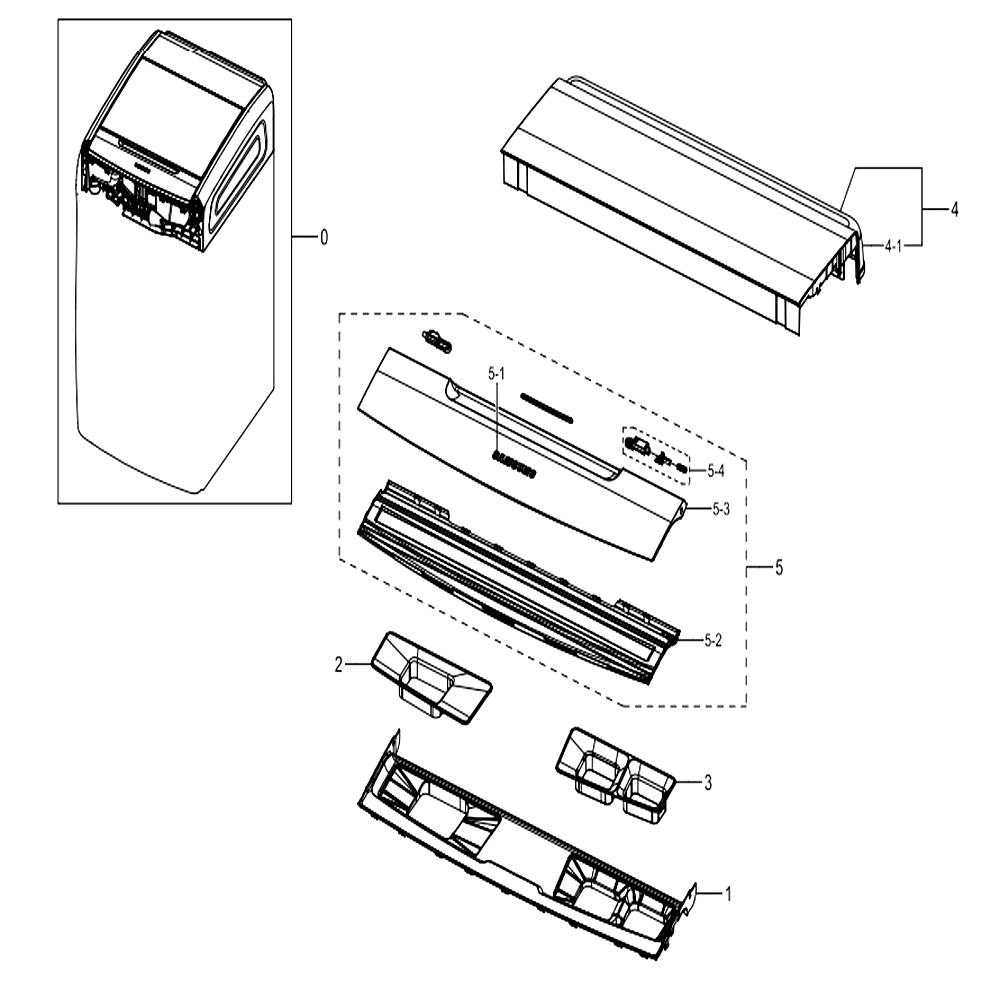

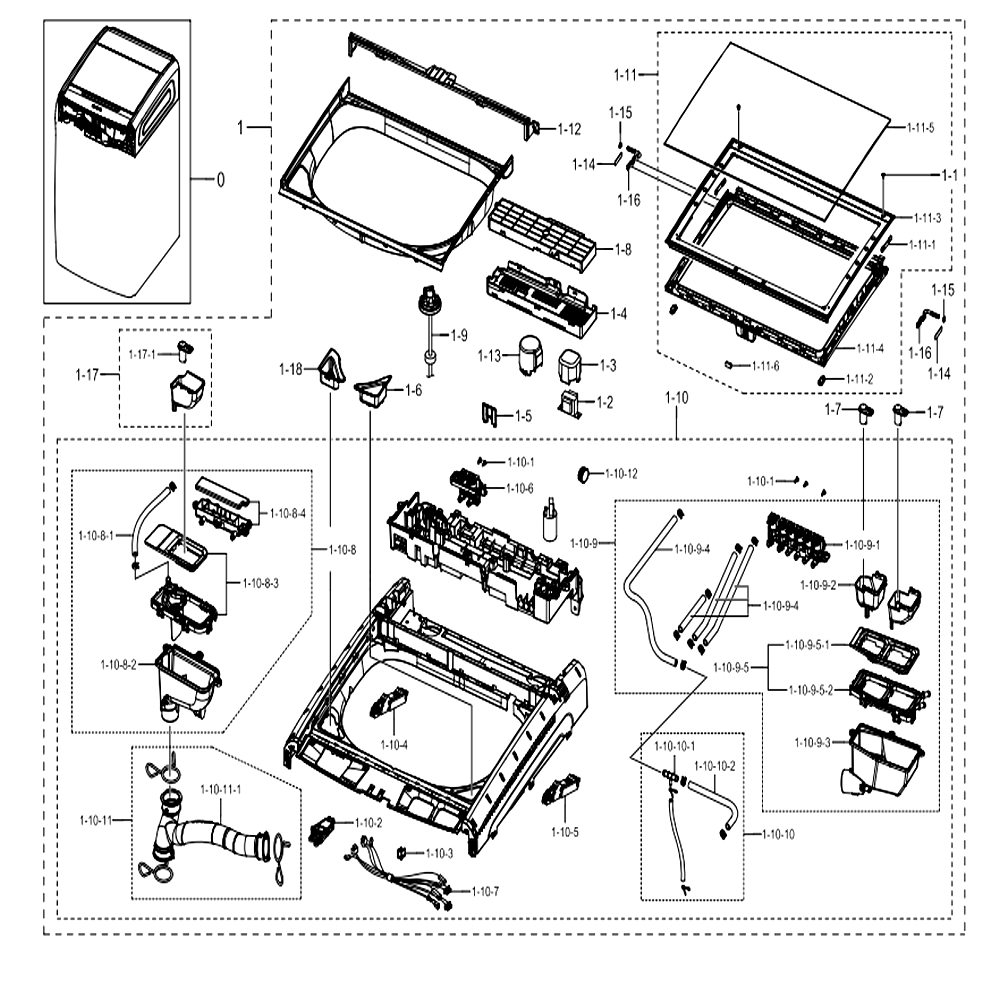

Assy Dual Module Assy Cover Top Parts

...
...
0
Assy Dual Module; Dual Washer,wv60m9970av SAM-DC97-20148A
...
1-1
Screw-Machine; Fh,+,m4,l12,pass,sts304,ks SAM-6001-002750
...
1-2
Coil Harmonic SAM-dc26-00009T
...
1-3
Bracket Reactor; Wa456drhdwd,hips,t1.5,na SAM-DC61-03276A
...
1-4
Assy Pcb Main; Owm_Inv,flex Wash,328x80,y SAM-DC92-02004D
...
1-5
Cover Guide Wire; W3050,pp,t2.0,inner Gra SAM-DC63-01579A
...
1-6
Cover Rinse; Wv7500m,abs,t1.8,hb,ebony Bl SAM-DC63-02010A
...
1-7
Cap Liquid; Dual Wash,pp,t1.8,hb,fc2305,d SAM-DC67-00876A
...
1-8
Assy Cover Pcb; Dual Washer,wf9900m SAM-DC97-20001A
...
1-9
Sensor Pressure SAM-dc96-01703G
...
1-10-1
Screw-Tapping SAM-6002-000215
...
1-10-2
Switch Door Lock SAM-DC34-00025E
...
1-10-3
Holder Hose; Q1636,pa,t1.5,ntr,ts-2 Pjt SAM-DC61-01081A
...
1-10-4
Hinge Left SAM-DC61-04459A
...
1-10-5
Hinge Right SAM-DC61-04460A
...
1-10-6
Valve Water; Ac110-127v,terminal Angle : SAM-DC62-00311Q
...
1-10-7
Assy Wire Harness-Sub; Twin,wv9900m,dual- SAM-DC93-00687A
...
1-10-8-1
Hose Drawer SAM-dc67-00051F
...
1-10-8-2
Body Drawer; Wv7500m,pp,dark Holder Gray, SAM-DC61-04334A
...
1-10-8-3
Assy S.housing Drawer; Wv9900m,wv60m9900( SAM-DC97-20043A
...
1-10-8-4
Assy Hose Connector; Dual Washer,wv60m990 SAM-DC97-20108A
...
1-10-8
Assy Housing Drawer; Wv9900m,wv60m9900(de SAM-DC97-20040A
...
1-10-9-1
Valve Water; Ac110-127v,6way,inch,#250,1, SAM-DC33-01002A
...
1-10-9-2
Case Rinse; Dual Washer,pp,t1.8,dark Hold SAM-DC61-04322A
...
1-10-9-3
Housing Rinse-Low; Wv7500m,pp,t2.0,dark H SAM-DC61-04330A
...
1-10-9-4
Hose Drawer SAM-dc67-00051F
...
1-10-9-5-1
Housing Rinse-Up; Wv7500m,pp,t2.0,dark Ho SAM-DC61-04329A
...
1-10-9-5-2
Housing Rinse; Wv7500m,pp,t2.0,dark Holde SAM-DC61-04331A
...
1-10-9-5
Assy S.housing Drawer; Wv9900m,wv60m9900( SAM-DC97-20044A
...
1-10-9
Assy Housing Drawer; Wv9900,wv60m9900(rin SAM-DC97-20041A
...
1-10-10-1
Pipe Connector SAM-dc62-00176a
...
1-10-10-2
Hose Drawer SAM-dc67-00051F
...
1-10-10
Assy Hose Drawer; Wv9900m,wv60m9900 SAM-DC97-20045A
...
1-10-11-1
Hose Rinse; Wv7500m,epdm,id50,t2,black,du SAM-DC67-00880A
...
1-10-11
Assy Hose; Wv9900m,wv60m9900 SAM-DC97-20050A
...
1-10-12
Assy Cap V.w; Wv9900m,wv9900m,us,,black SAM-DC97-18313B
...
1-10
Assy Semi Cover Top; Wv9900m,wv60m9900av, SAM-DC97-20019A
...
1-11-1
Bracket Hinge; Wa400,gi-Sgcc,t2.0,w10,l58 SAM-DC61-03394A
...
1-11-2
Cushion Lid SAM-DC63-01554B
...
1-11-3
Door Lid T.c; Abs+pmma,t3.0,hb,sf-0950,eb SAM-DC64-03485A
...
1-11-4
Door Lid Cover; Abs,t3.0,hb,hg-0760gp,ebo SAM-DC64-03486A
...
1-11-5
Door Glass; Glass,t3.2,tempered,black SAM-DC64-03488A
...
1-11-6
Magnet R.s SAM-DC61-03184A
...
1-11
Assy Lid T.c; Dual Washer-Pjt,wf60m9900av SAM-DC97-20004A
...
1-12
Bracket Cover Top-Up; Dual Washer,gi-Sgcc SAM-DC61-04352A
...
1-13
Cover Filter; Dual Washer,abs,t2.5,natura SAM-DC63-01432B
...
1-14
Inlay; Pet,ebony Black,(bk0018), Door Sid SAM-DC64-02822W
...
1-15
Cap Hinge; Pom,t3.0,hb,k300,dark Holder G SAM-DC67-00872A
...
1-16
Guide Pin SAM-DC61-04335A
...
1-17-1
Cap Liquid; Dual Wash,pp,t1.8,hb,fc2305,d SAM-DC67-00876A
...
1-17
Assy Detergent; Wv9900m,wv60m9900(america SAM-DC97-20054A
...
1-18
Assy Drawer Bleach; Dual Washer,wv60m9900 SAM-DC97-20143A
...
1
Assy Cover Top Parts; Wv9900m,wv60m9900av SAM-DC90-00004W

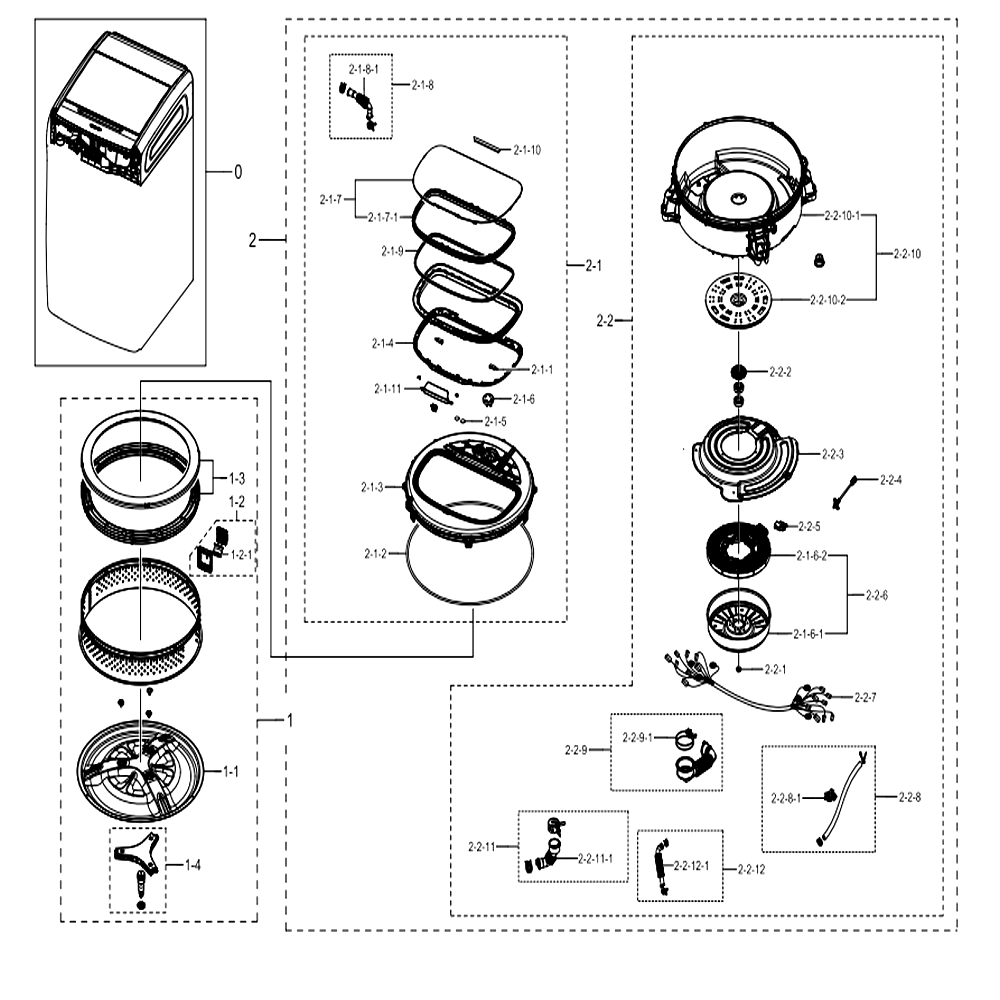

Assy Dual Module Assy Basket Spin&tub Parts

...
...
0
Assy Dual Module; Dual Washer,wv60m9970av SAM-DC97-20148A
...
1-1
Basket Bowl; Sts430j1l,t0.5 SAM-DC61-04288A
...
1-2-1
Valve Check; Wv7500m,epdm,white,dual Wase SAM-DC62-00500A
...
1-2
Assy Filter; Flex Wash,combo SAM-DC97-20255A
...
1-3
Assy Balancer; Wv9900m,wv60m9900 SAM-DC97-20049A
...
1-4
Assy Flange Shaft; Wv9900m,wv60m9900av SAM-DC97-20053B
...
1
Assy Basket Spin Parts; Wv9900m,wv55m9600 SAM-DC90-00041U
...
2-1-1
Holder Pin Door; Wa-F100k,pom,t6.0,natura SAM-DC61-03726A
...
2-1-2
Seal Tub; Wv7500m,epdm,natural,dual Waseh SAM-DC62-00471B
...
2-1-3
Cover Tub; Pp,t2.5,dark Holder Gray,gy016 SAM-DC63-01994A
...
2-1-4
Cover Holder; Wv7500m,pp,t2.0,hb,dark Hol SAM-DC63-02008A
...
2-1-5
Inlay-Door; Wv7500m,pet,t0.3,dark Holder SAM-DC64-03303D
...
2-1-6-1
Assy Rotor; Cdd380 (udd3),gi-Sgcd SAM-DC97-19993A
...
2-1-6-2
Assy Stator; Cdd380 (udd3) SAM-DC97-19994A
...
2-1-6
Cap Barrier; Wv9900m,pp,fc2305,dark Holde SAM-DC67-00909A
...
2-1-7-1
Seal Rubber; Wv60m9900,epdm,dark Holder G SAM-DC62-00520A
...
2-1-7
Assy Door Inner; Dual Washer Pjt,wv60m990 SAM-DC97-20029A
...
2-1-8-1
Hose Water; Dual Washer,epdm,id8,1.6,hs50 SAM-DC67-00877A
...
2-1-8
Assy Hose; Wv9900m,water Supply SAM-DC97-20118A
...
2-1-9
Seal Door; Dual Washer,si,dark Holder Gra SAM-DC62-00496A
...
2-1-10
Cover Wire; Wv7500m,pp,t2.0,hb,dark Holde SAM-DC63-02092A
...
2-1-11
Handle Door; Dual Washer,abs,t2.5,mp-0160 SAM-DC64-03483A
...
2-1
Assy Cover Tub; Wv9900m,wv60m9900av SAM-DC97-20036A
...
2-2-1
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-2-2
Seal Oil; Nbr,black SAM-DC62-00494A
...
2-2-3
Cover Motor; Gi-Sgcc,t0.35 SAM-DC63-01995A
...
2-2-4
Assembly Thermistor SAM-DC90-10128N
...
2-2-5
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
2-2-6
Assy Dd Bldc Motor; Dual Wash,cdd380 (udd SAM-DC93-00663A
...
2-2-7
Assy Wire Harness-Main; Twin,wv9900m,1pum SAM-DC93-00690A
...
2-2-8-1
Cover Wire; Pp,t1.5,natural SAM-DC63-02083A
...
2-2-8
Assy Hose Pressure; 600mmh20,no Pba,no Ho SAM-DC97-14545Q
...
2-2-9-1
Clamper Hose-Joint; Dual Washer,hswr SAM-DC65-00014F
...
2-2-9
Assy Hose Drain; Dual Washer Pjt,wv60m990 SAM-DC97-20038A
...
2-2-10-1
Tub Outer; Wv7500m,frpp,t3.5,natural SAM-DC61-04276A
...
2-2-10-2
Housing Bearing; Wv60m9900av,aldc,t5.0,na SAM-DC61-04277B
...
2-2-10
Assy Semi Tub Outer; Wv9900m,wv60m9900av_ SAM-DC97-20060A
...
2-2-11-1
Hose Rinse; Wv7500m,epdm,id73,t1.5,hs50,b SAM-DC67-00874A
...
2-2-11
Assy Hose; Wv9900m,rinse SAM-DC97-20116A
...
2-2-12-1
Hose Rinse; Wv7500m,epdm,id9.0,t2.0,black SAM-DC67-00893A
...
2-2-12
Assy Hose; Wv9900m,bleach SAM-DC97-20117A
...
2-2
Assy Tub Outer; Dual Washer Pjt,wv60m9900 SAM-DC97-20152A
...
2
Assy Tub Outer Parts; Wv9900m,wv60m9900av SAM-DC90-00007B

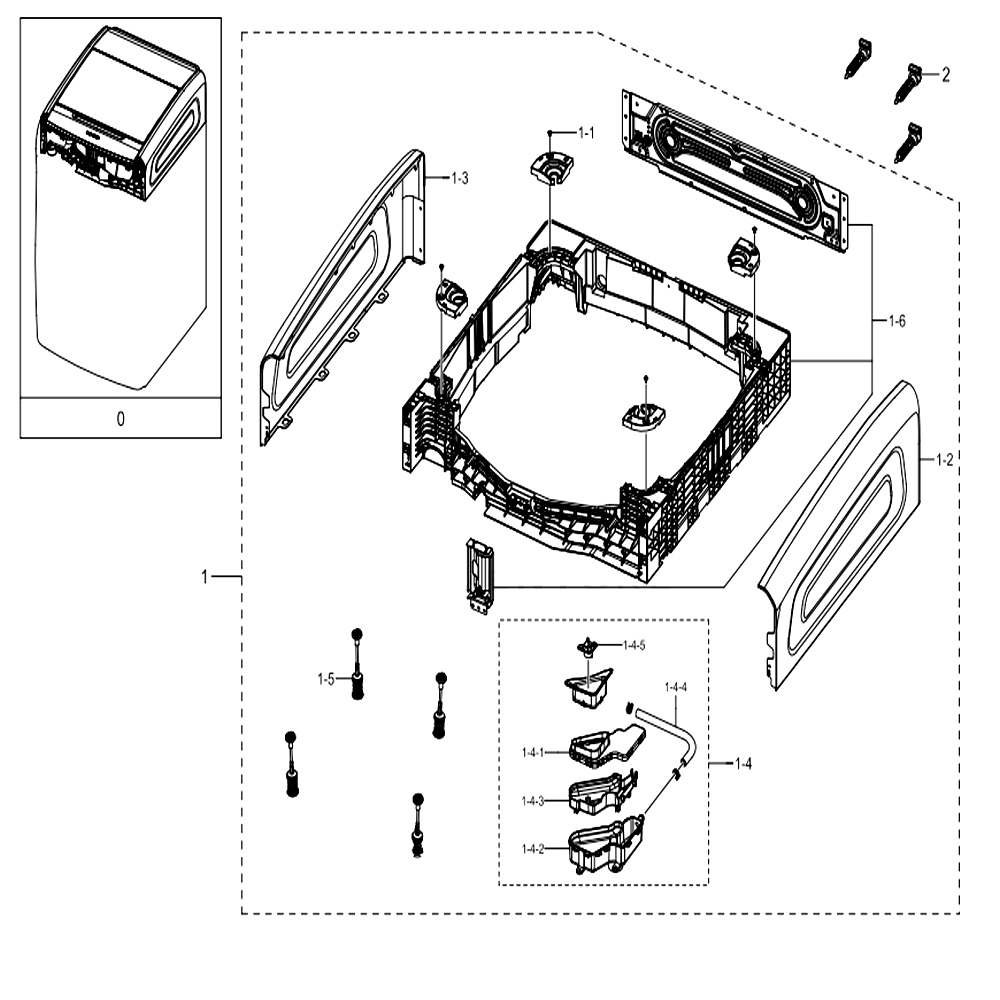

Assy Dual Module Assy Frame Parts

...
...
0
Assy Dual Module; Dual Washer,wv60m9970av SAM-DC97-20148A
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2
Frame-Right; Wf9900m,gi-Sgcd,black Caviar SAM-DC61-04308A
...
1-3
Frame-Left; Wf9900m,gi-Sgcd,black Caviar, SAM-DC61-04309A
...
1-4-1
Case Rinse; Wv7500m,pp,t1.6,natural,dual SAM-DC61-04319A
...
1-4-2
Housing Rinse-Low; Wv7500m,pp,t1.6,natura SAM-DC61-04340A
...
1-4-3
Housing Rinse-Up; Wv7500m,pp,t1.6,dark Ho SAM-DC61-04341A
...
1-4-4
Hose Drawer SAM-dc67-00051F
...
1-4-5
Cap Liquid; Wv7500m,abs,t1.8,hb,sr-0300,c SAM-DC67-00875A
...
1-4
Assy Rinse; Dual Wasehr-Pjt,wv60m9900av SAM-DC97-20128A
...
1-5
Assy Damper; Dualwash,owm,0.9kgf,k4.42,l1 SAM-DC97-18610E
...
1-6
Assy Frame-Semi; Dual Washer-Pjt,wv7500m, SAM-DC97-20127A
...
1
Assy Frame Parts; Dual Washer,black Cavia SAM-DC90-00015V
...
2
Assy Fixer Tub; Kenmore SAM-DC97-14489G

Assy Dual Parts

...
...
0
Assy Dual Parts; Dual Washer,wv60m9970av SAM-DC90-24239A
...
1
Cover Top; Wv9900m,abs,t2.5,hb,inox Gray, SAM-DC63-01997A
...
2
Cover Detergent; Wv9900m,abs,hb,black Cav SAM-DC63-02006A
...
3
Cover Rinse; Dual Washer,abs,t1.8,hb,blac SAM-DC63-02013A
...
4-1
Cover T.c; Wv7500m,abs,t2.5,hb,inox Gray, SAM-DC63-02005A
...
4
Assy Cover T.c; Wv9900m,wv60m9900av,black SAM-DC97-20002A
...
5-1
Mascot; Mascot,pet,80 SAM-DC64-03434A
...
5-2
Door Lid T.c-Lower; Wv7500m,abs,t2.5,hb,h SAM-DC64-03494A
...
5-3
Door Lid Cover-Low; Wv7500m,abs,t2.5,hb,h SAM-DC64-03495A
...
5-4
Assy Hinge-Right; Dual Washer,pom,blk SAM-DC97-20129B
...
5
Assy Lid T.c; Wv9900m,wv60m9900av SAM-DC97-20047A

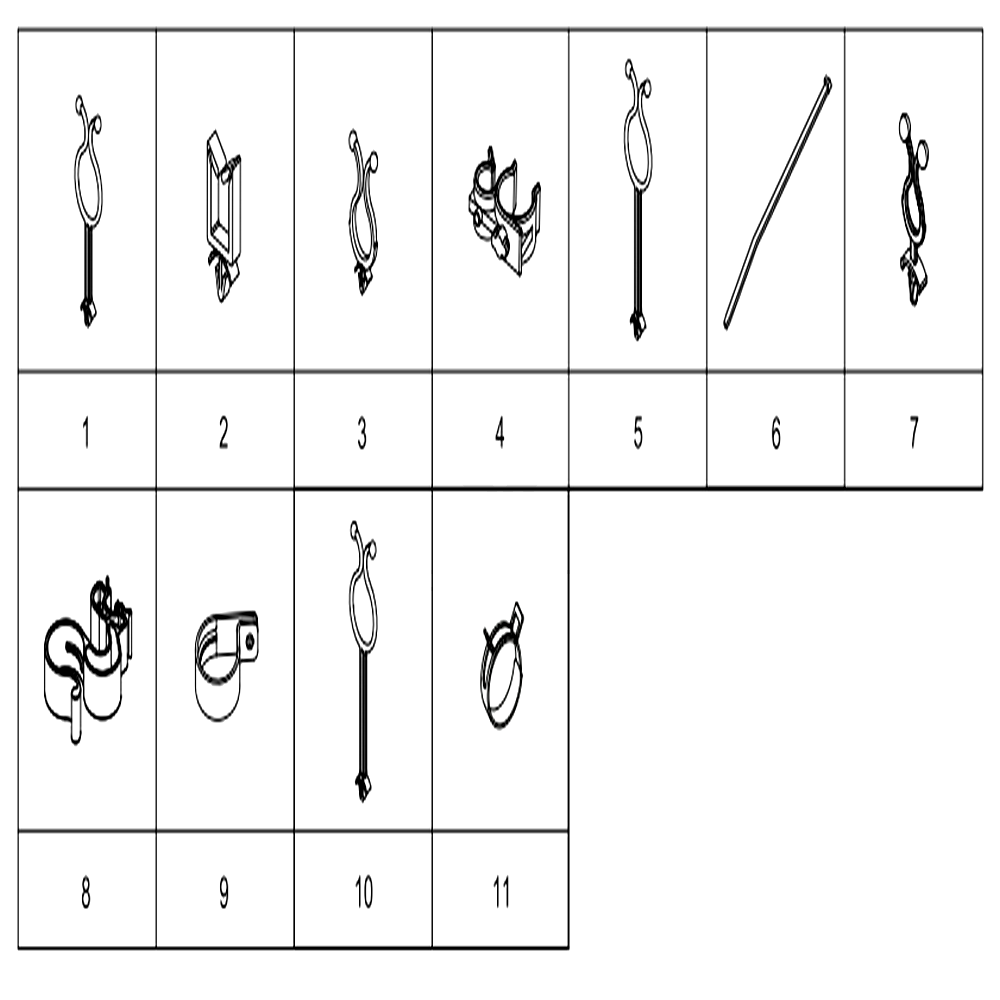

Small Parts

...
...
1
Holder Wire SAM-DC61-01736B
...
2
Cable Clamp SAM-DC61-00553B
...
3
Holder-Wire SAM-DC61-40081A
...
4
Clamper Hose-Fix SAM-DC61-00133A
...
5
Holder Wire SAM-DC61-00995A
...
6
Cable Tie Push Mount; L150,black,pa66 SAM-6051-000017
...
7
Holder-Wire SAM-DC61-40086A
...
8
Holder Hose SAM-dc61-02706a
...
9
Clamp-Cable SAM-dc61-00118a
...
10
Holder Wire SAM-DC61-00995A
...
11
Clamper Hose; Sew-Har149aua,sk5,aphrodite SAM-DC61-00219F
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
