product name

Samsung WV55M9600AW/A5_0002

Model: WV55M9600AW/A5_0002

Save Part Not Listed?
product name

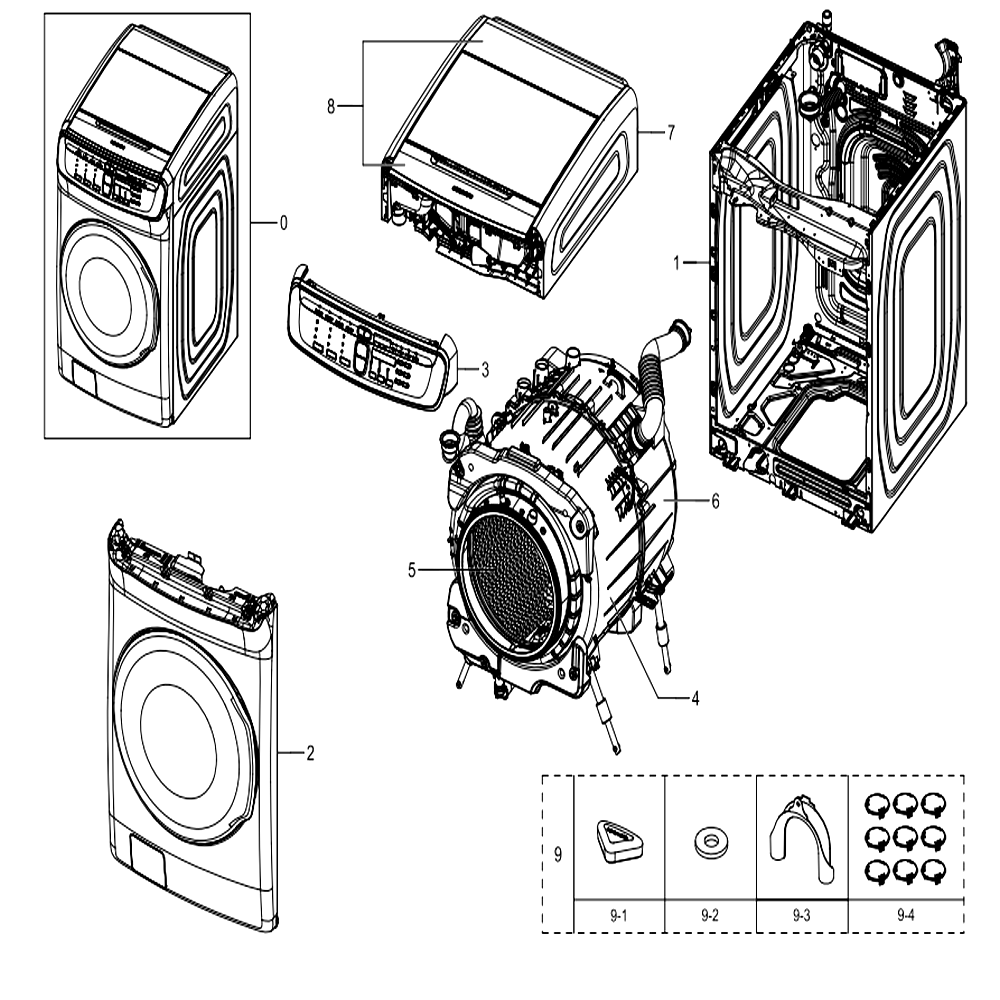

Main

...
...
1
Assy Frame Parts; Dual Washer,4.5cuft,nea SAM-DC90-00015N
...
2
Assy Front Parts; Wv9900m,wv55m9600aw/a5 SAM-DC90-25258A
...
3
Assy Panel Control Parts; Wv9600,wv55m960 SAM-DC90-00006J
...
4
Assy Tub Front Parts; Wv9600,wv55m9600av SAM-DC90-00006W
...
5
Assy Drum Parts; Wv9600,wv55m9600av SAM-DC90-24797A
...
6
Assy Tub Back Parts; Wv9600,wv55m9600av SAM-DC90-00006R
...
7
Assy Dual Module; Dual Washer,wv55m9600aw SAM-DC97-20148D
...
8
Assy Dual Parts; Dual Washer,wv55m9600aw SAM-DC90-24242A
...
9-1
Case Detergent; Wv7500m,si,t3.0,black Cav SAM-DC61-04468A
...
9-2
Leg Rubber-Low; Wv9500m,iir,black,cup Typ SAM-DC61-04469A
...
9-3
Hose Hanger SAM-dc62-10278a
...
9-4
Cap-Fixer SAM-dc67-00307a
...
9
Assy Accessory Parts; Dual Washer, Americ SAM-DC90-00015T

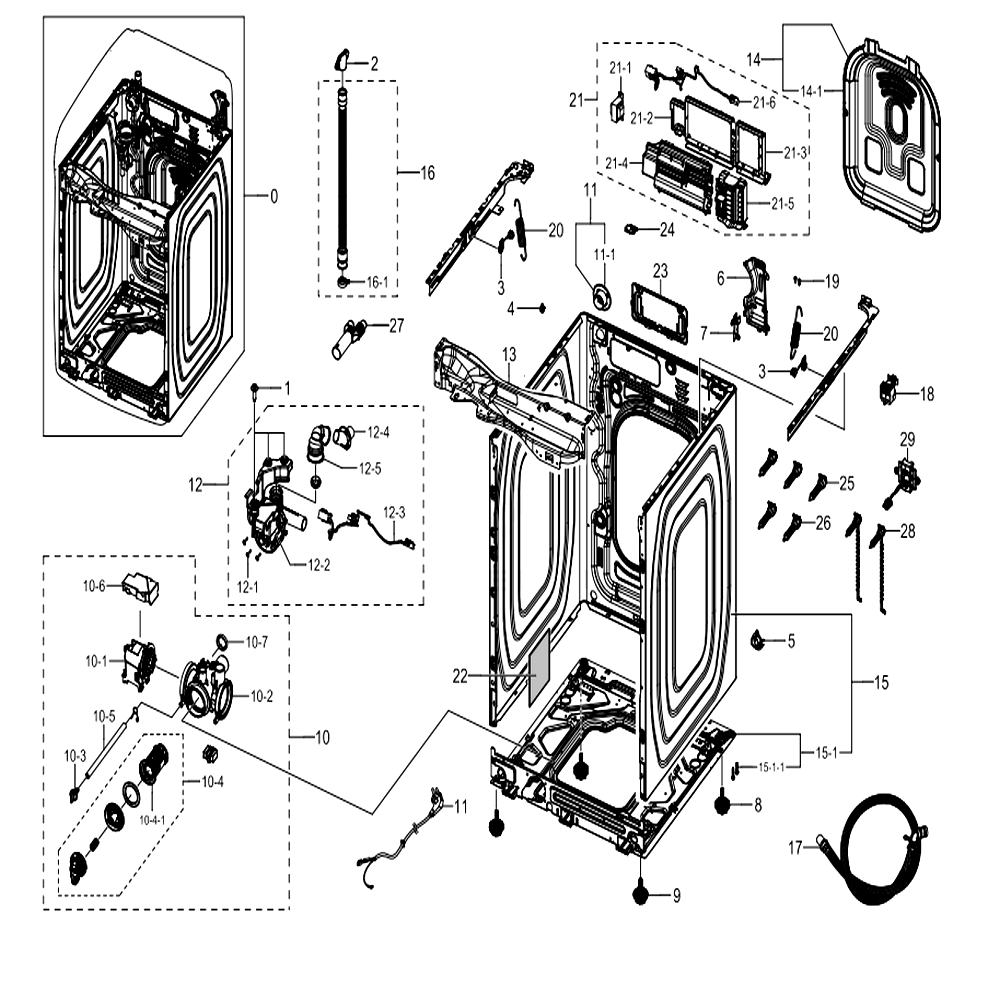

Assy Frame Parts

...
...
0
Assy Frame Parts; Dual Washer,4.5cuft,nea SAM-DC90-00015N
...
1
Bolt-Hex SAM-6011-001565
...
2
Guide Hose SAM-dc61-02084c
...
3
Guide Spring SAM-dc61-02432a
...
4
Guide Cover Top SAM-DC61-03400A
...
5
Guide Hose; Pp,t2.5,bj750,natural SAM-DC61-04462A
...
6
Guide Wire; Pp,t2.5,bj750,natural SAM-DC61-04463A
...
7
Cover Wire; Dual Washer,gi-Sgcc,t0.35 SAM-DC63-02004A
...
8
Assy Leg SAM-dc97-00920S
...
9
Assy Leg SAM-dc97-14293d
...
10-1
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
10-2
Case Pump; Wf220anw,pp,-,-,-,fh2200 SAM-DC61-02017H
...
10-3
Cap Drain SAM-dc61-10673a
...
10-4-1
Filter Pump SAM-dc63-00909a
...
10-4
Assy Filter SAM-dc97-16991B
...
10-5
Hose Drain SAM-dc67-00244K
...
10-6
Cover Pump; Dual Washer,pp,t2.5,v0,natura SAM-DC63-01375B
...
10-7
Valve Check SAM-dc62-00299a
...
10
Assy Pump Drain; Wv9600,wv55m9600av,no Bu SAM-DC97-17999Q
...
11-1
Cap O.f SAM-dc67-00316a
...
11
Assy Cap O.f; Wv9900m,wv60m9900av/a5 SAM-DC97-18301C
...
12-1
Screw-Tapping SAM-6002-000524
...
12-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
12-3
Assy Wire Harness-Pump; Twin,wv9900m,dual SAM-DC93-00688A
...
12-4
Hose Connector; Pp,natural SAM-DC67-00866A
...
12-5
Hose Drain; Dualwash,epdm,id6,t2.0,black, SAM-DC67-00244P
...
12
Assy Pump Drain; Wv9900m,wv60m9900av,120v SAM-DC97-20020A
...
13
Assy Frame Plate-Up; Wv9900m,wv60m9900av SAM-DC97-20021A
...
14-1
Cover Back; Wv7500m,gi-Sgcc,t0.35,dual Wa SAM-DC63-02026A
...
14
Assy Cover Back; Wv9900m,wv60m9900av/a5 SAM-DC97-20022A
...
15-1-1
Bolt-Hex SAM-6011-001565
...
15-1
Assy Plate Bottom; Wv9900m,wv60m9900av,2 SAM-DC97-20457A
...
15
Assy Frame; Dual Washer,4.5cu.ft,neat Whi SAM-DC97-20023D
...
16-1
Clamper Hose SAM-dc61-01679a
...
16
Assy Hose Drain(i) SAM-dc97-12534K
...
17
Assy Hose Drain(o); Wv9900m,wv60m9900av/a SAM-DC97-20151A
...
18
Sensor Pressure SAM-dc96-01703G
...
19
Screw-Tapping SAM-6002-001431
...
20
Spring Etc-Hanger SAM-dc61-01257n
...
21-1
Coil Harmonic SAM-dc26-00009T
...
21-2
Assy Pcb Main; Fwm,wv9600m,194*121,yes,11 SAM-DC92-01989B
...
21-3
Assy Wire Harness-Main; Twin,wv9900m,1pum SAM-DC93-00689B
...
21-4
Assy Cover Pcb; Wv9900m,wv60m9900av/a5,-, SAM-DC92-02007A
...
21-5
Cover Pba-Inverter SAM-dc63-01571a
...
21-6
Assy Kit SAM-dc92-01531c
...
21
Assy Cover Pcb W/harness; Wv9600m SAM-DC92-02076A
...
22
Absorber Sponge; Pu Foam,t10,blk SAM-DC63-10002D
...
23
Plate Back; Wv7500m,gi-Sgcc,t0.35,z12 SAM-DC61-04344A
...
24
Assy Sensor SAM-dc93-00278a
...
25
Assy Fixer Tub; Kenmore SAM-DC97-14489G
...
26
Assy Fixer Tub; Wv9600,wv55m9600av SAM-DC97-14489J
...
27
Pipe Connector; Flexwash,pp,dark Holder G SAM-DC62-00498A
...
28
Assy Fixer Tub; Wv9600,wv55m9600aw,fixer- SAM-DC97-14489K
...
29
Wire Harness-Leakage; 4,ul1569,22,wv9900m SAM-DC39-00057A

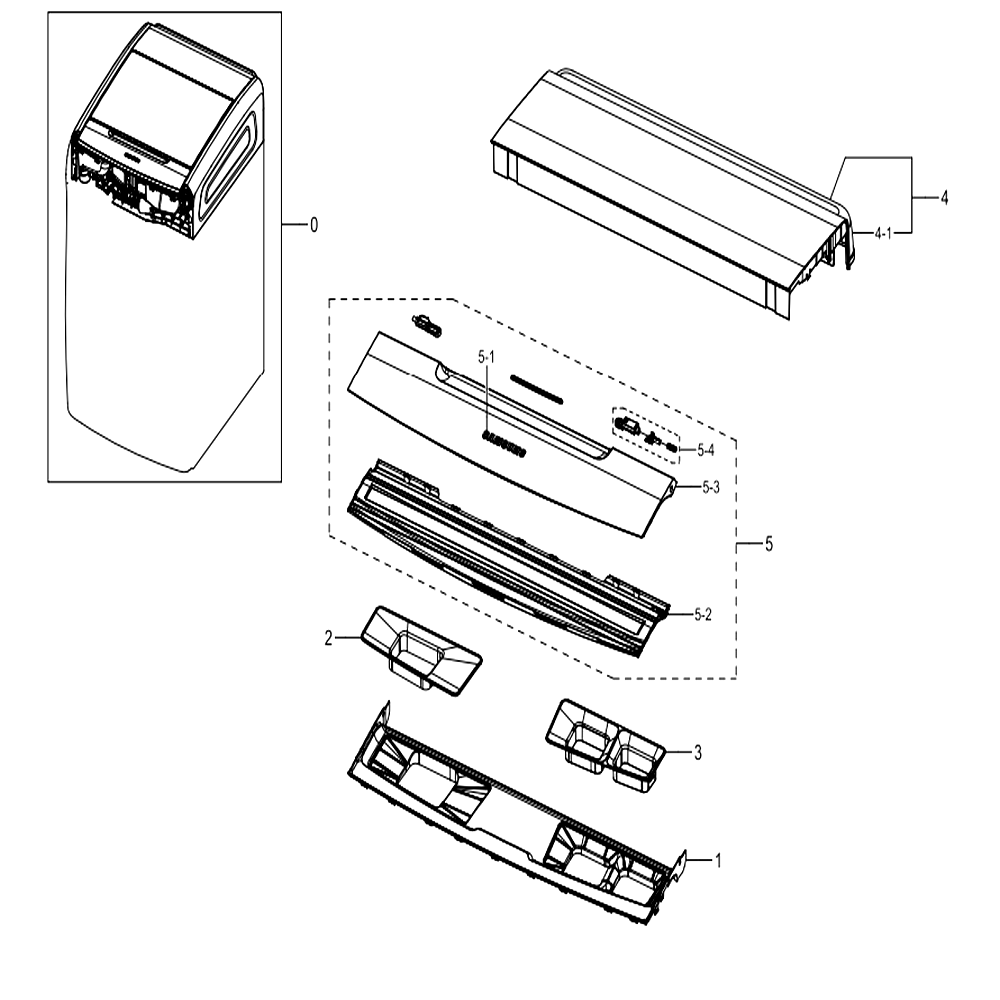

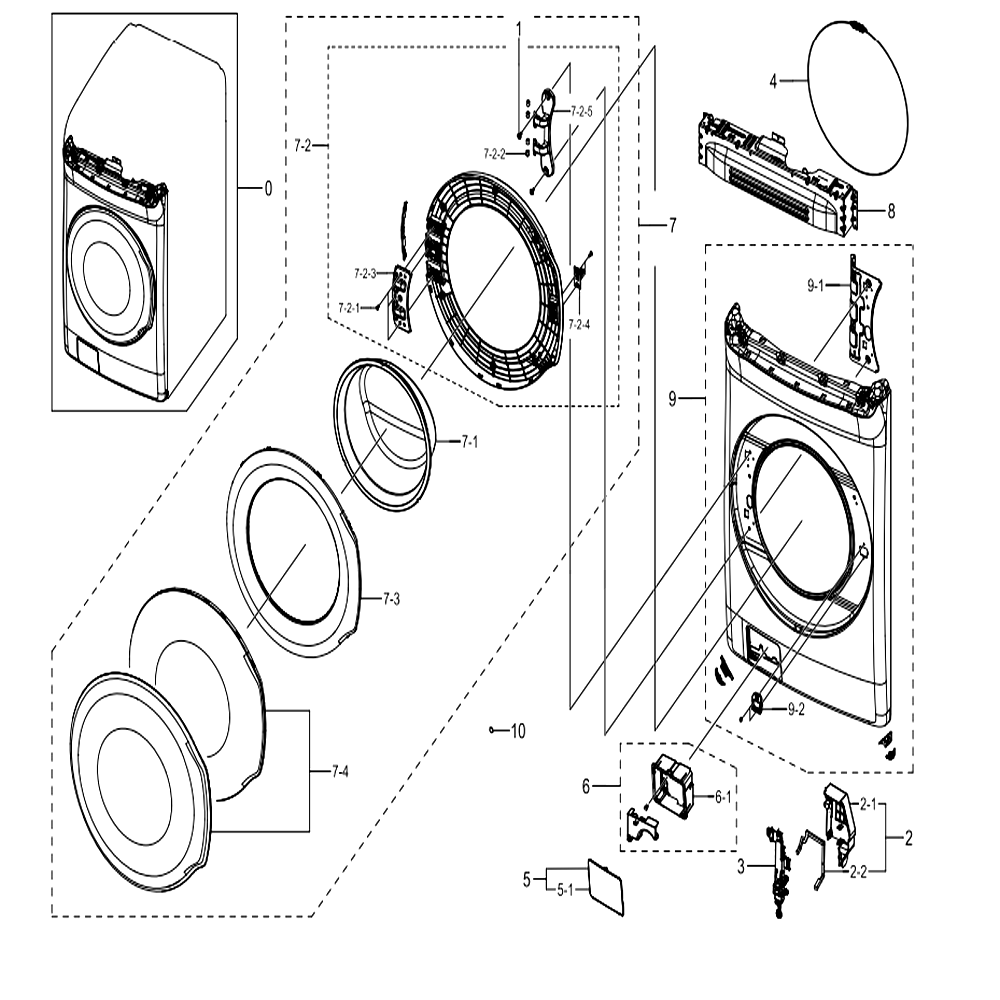

Assy Front Parts

...
...
0
Assy Front Parts; Wv9900m,wv55m9600aw/a5 SAM-DC90-25258A
...
1
Screw-Hex SAM-6009-001522
...
2-1
Cover Door Switch SAM-dc63-01156a
...
2-2
Seal Rubber; Wv9500m,nbr,black,cover Door SAM-DC62-00525A
...
2
Assy Cover Door Switch; Dual Wash,wv9500m SAM-DC97-20154A
...
3
Switch Door Lock SAM-dc64-00519d
...
4
Assy Wire Diaphragm SAM-dc97-04973B
...
5-1
Cover Filter; Wf42h5000aw/a2,abs,hb,neat SAM-DC63-01264F
...
5
Assy Cover Filter; Big Drum,wf42h5000aw/a SAM-DC97-16401G
...
6-1
Guide Cover Filter; Wf520anp,pp,t2.5,fc23 SAM-DC61-02621B
...
6
Assy Case Filter; Wf6000,latch Type SAM-DC97-19494A
...
7-1
Door Glass; All Model,glass,arc/sodalime SAM-DC64-00504C
...
7-2-1
Screw-Machine SAM-6001-001668
...
7-2-2
Guide-Hinge SAM-DC61-00891A
...
7-2-3
Support Hinge; Gi-Sgcc,t1.4,l175.0,sbhg1- SAM-DC61-02635A
...
7-2-4
Lever Door; 10kg Drum,zndc,t2.5,ni Coatin SAM-DC66-00375C
...
7-2-5
Hinge Door; Wv7500m,aldc,t2.5,aldc12,dual SAM-DC61-04342B
...
7-2
Assy Holder Glass; Wf5500m,wf45m5500ap SAM-DC97-19997A
...
7-3
Cover-Glass; Wv7500m,abs,t3.0,hb,black Ca SAM-DC63-02022A
...
7-4
Assy Cover Door; Wf5500m,wf45m5500ap SAM-DC97-19996A
...
7
Assy Door; Wf5500m SAM-DC97-19957A
...
8
Assy Frame Plate-Up; Dual Wash,wv9500m,gi SAM-DC97-19992A
...
9-1
Bracket Hinge SAM-dc61-02615a
...
9-2
Cover-Switch(o) SAM-dc63-00960a
...
9
Assy Frame Front; Wv9900,wv55m9600aw/a5,n SAM-DC97-20025S
...
10
Inlay-Door SAM-dc64-03303a

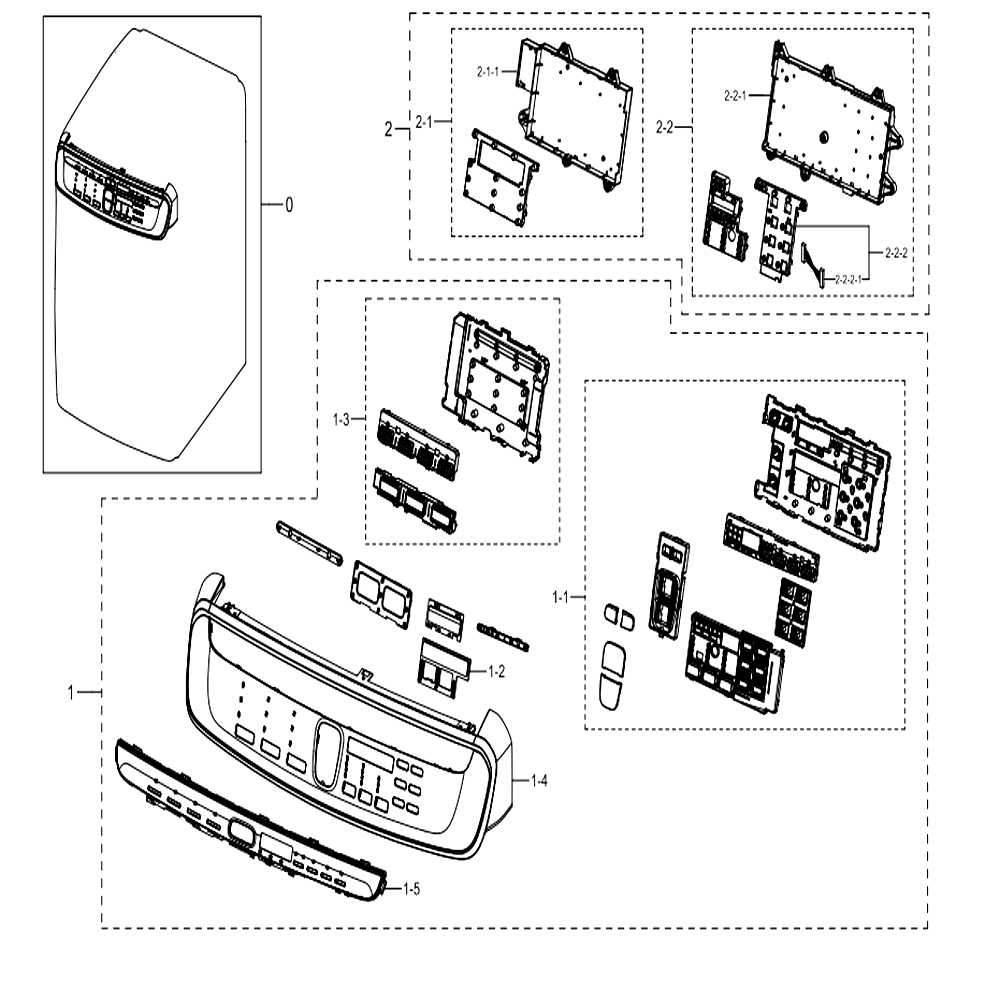

Assy Panel Control Parts

...
...
0
Assy Panel Control Parts; Wv9600,wv55m960 SAM-DC90-00006J
...
1-1
Assy Button; Wv9600m,wv55m9600aw/a5,white SAM-DC97-20177B
...
1-2
Assy Window Panel; Wv9900m,dark Glass SAM-DC97-20241A
...
1-3
Assy Button; Wv9600m,wv55m9600aw/a5,white SAM-DC97-20176B
...
1-4
Panel Control; Dual Washer(better),abs,hb SAM-DC64-03513B
...
1-5
Cover Panel; Wv55m9600aw,abs,t3.0,hb,neat SAM-DC63-02030B
...
1
Assy S.panel Control; Dual Washer,wv55m96 SAM-DC97-20095B
...
2-1-1
Assy Kit-Wifi; Flex_Assy Kit_Wifi,wv9600m SAM-DC92-02046B
...
2-1
Assy Pcb Display; Flex_Display,wv9600m,19 SAM-DC92-01992E
...
2-2-1
Cover Pcb-Sub; Wv7500m,abs,t2.5,i Black,d SAM-DC63-02029A
...
2-2-2-1
Assy Wire Harness SAM-DC93-00402B
...
2-2-2
Assy Pcb Manual; Dual Wash,dual Wash,242* SAM-DC94-07259A
...
2-2
Assy Pcb Display; Dual Wash,dual Wash,242 SAM-DC92-01993A
...
2
Assy Kit; Display,wv9600m,wv9600m Tact Di SAM-DC92-02104A

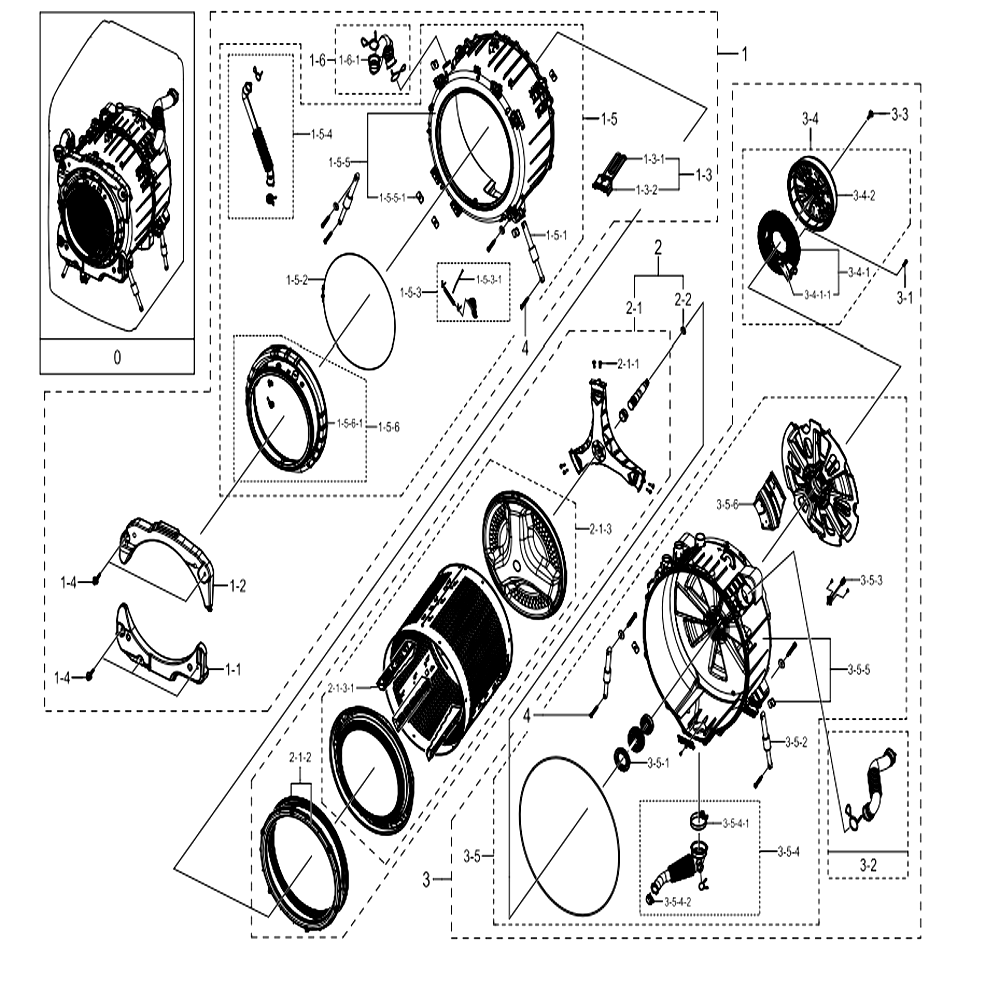

Assy Tub & Drum Parts

...
...
1-1
Weight Balancer SAM-dc67-00560a
...
1-2
Weight Balancer; Wv9600m,concrete,black SAM-DC67-00870B
...
1-3-1
Heater Wash; Ac120v,usa,900w,incoloy800,5 SAM-DC47-00006Z
...
1-3-2
Cover Heater SAM-dc63-00820a
...
1-3
Assy Heater; 125/250v SAM-DC96-01417K
...
1-4
Assy Bolt SAM-dc97-02412a
...
1-5-1
Damper Shock; Frontier Ii,steel+pp+rubber SAM-DC66-00470E
...
1-5-2
Assy Clamp Diaphragm SAM-dc97-04981F
...
1-5-3-1
Cable Tie Push Mount; L150,black,pa66 SAM-6051-000017
...
1-5-3
Assy Hose Pressure; 600mmh20,no Pba,no Ho SAM-DC97-14545S
...
1-5-4
Assy Hose Air; Wf6200k,wf45k6200az/a2 SAM-DC97-16106B
...
1-5-5-1
Bracket Nut SAM-dc61-00201a
...
1-5-5
Assy Semi Tub Front; Wv9600m,wv55m9600 SAM-DC97-19638C
...
1-5-6-1
Door Diaphragm; Wv55m9600av,tpe,t2.5,rh40 SAM-DC64-02792D
...
1-5-6
Assy Diaphragm; Wv9600m,wv55m9600av SAM-DC97-19755G
...
1-5
Assy Tub Front; Wv9600,wv55m9600 SAM-DC97-19642C
...
1-6-1
Hose Drawer-Detergent; Wv7500m,epdm,id11, SAM-DC67-00878A
...
1-6
Assy Hose Drawer; Wv9600,wv60m9900 SAM-DC97-20042A
...
1
Assy Tub Front Parts; Wv9600,wv55m9600av SAM-DC90-00006W
...
2-1-1
Bolt Hex SAM-dc60-40137a
...
2-1-2
Assy Balancer SAM-dc97-12135a
...
2-1-3-1
Drum Lifter SAM-dc66-00598a
...
2-1-3
Assy Drum Wrapper SAM-dc97-17018a
...
2-1
Assy Drum; Wf457argsgr SAM-DC97-16086G
...
2-2
Washer-Spring; Sts304,id35.2,od39.0,t0.3, SAM-6031-001640
...
2
Assy Drum Parts; Wv9600,wv55m9600av SAM-DC90-24797A
...
3-1
Bolt-Etc SAM-6011-004782
...
3-2
Assy Hose O.f; Wv9900m,wv60m9900av,blk SAM-DC97-16104B
...
3-3
Assy Bolt; Bolt+washer(od38),,,,,, SAM-DC97-06080F
...
3-4-1-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
3-4-1
Assy Stator; Cdd380 (udd3) SAM-DC97-19994C
...
3-4-2
Assy Rotor; Com1500pb,gi-Sgcd,remove Hole SAM-DC97-20192A
...
3-4
Assy Dd Bldc Motor; Big-Bang(u.s),com1500 SAM-DC93-00168F
...
3-5-1
Seal Oil SAM-dc62-00156a
...
3-5-2
Damper Shock; Ace,steel+pp+rubber,80n,-,- SAM-DC66-00470F
...
3-5-3
Assembly Thermistor SAM-DC90-10128N
...
3-5-4-1
Clamper Hose-Joint; Wf6000h,hswr SAM-DC65-00014E
...
3-5-4-2
Clamper Hose SAM-dc61-00219d
...
3-5-4
Assy Hose Drain; Wf6200,wf6500,wf7500 SAM-DC97-16105B
...
3-5-5
Assy Semi Tub Back; Wv9600,wv55m9600,sub SAM-DC97-16155P
...
3-5-6
Assy Bracket Tub SAM-dc97-16510a
...
3-5
Assy Tub Back; Wv9600,wv55m9600av SAM-DC97-19645C
...
3
Assy Tub Back Parts; Wv9600,wv55m9600av SAM-DC90-00006R
...
4
Bolt-Hex; M10,l35,zpc2,sm10c,damper SAM-6011-001644

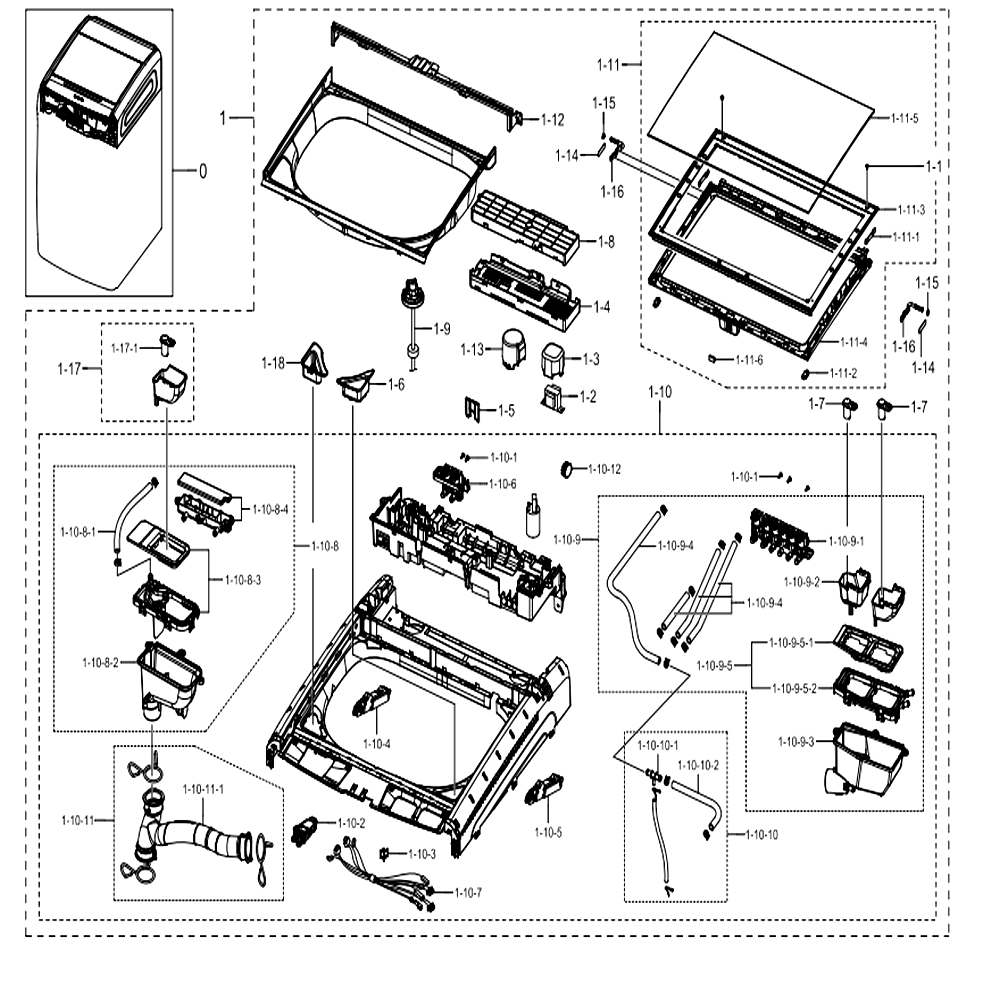

Assy Dual Module Assy Cover Top Parts

...
...
0
Assy Dual Module; Dual Washer,wv55m9600aw SAM-DC97-20148D
...
1-1
Screw-Machine; Fh,+,m4,l12,pass,sts304,ks SAM-6001-002750
...
1-2
Coil Harmonic SAM-dc26-00009T
...
1-3
Bracket Reactor; Wa456drhdwd,hips,t1.5,na SAM-DC61-03276A
...
1-4
Assy Pcb Main; Owm_Inv,flex Wash,328x80,y SAM-DC92-02004D
...
1-5
Cover Guide Wire; W3050,pp,t2.0,inner Gra SAM-DC63-01579A
...
1-6
Cover Rinse; Dual Washer,abs,t1.8,hb,neat SAM-DC63-02010C
...
1-7
Cap Liquid; Dual Wash,pp,t1.8,hb,fc2305,d SAM-DC67-00876A
...
1-8
Assy Cover Pcb; Dual Washer,wf9900m SAM-DC97-20001A
...
1-9
Sensor Pressure SAM-dc96-01703G
...
1-10-1
Screw-Tapping SAM-6002-000215
...
1-10-2
Switch Door Lock SAM-DC34-00025E
...
1-10-3
Holder Hose; Q1636,pa,t1.5,ntr,ts-2 Pjt SAM-DC61-01081A
...
1-10-4
Hinge Left SAM-DC61-04459A
...
1-10-5
Hinge Right SAM-DC61-04460A
...
1-10-6
Valve Water; Ac110-127v,terminal Angle : SAM-DC62-00311Q
...
1-10-7
Assy Wire Harness-Sub; Twin,wv9900m,dual- SAM-DC93-00687A
...
1-10-8-1
Hose Drawer SAM-dc67-00051F
...
1-10-8-2
Body Drawer; Wv7500m,pp,dark Holder Gray, SAM-DC61-04334A
...
1-10-8-3
Assy S.housing Drawer; Wv9900m,wv60m9900( SAM-DC97-20043A
...
1-10-8-4
Assy Hose Connector; Dual Washer,wv60m990 SAM-DC97-20108A
...
1-10-8
Assy Housing Drawer; Wv9900m,wv60m9900(de SAM-DC97-20040A
...
1-10-9-1
Valve Water; Ac110-127v,6way,inch,#250,1, SAM-DC33-01002A
...
1-10-9-2
Case Rinse; Dual Washer,pp,t1.8,dark Hold SAM-DC61-04322A
...
1-10-9-3
Housing Rinse-Low; Wv7500m,pp,t2.0,dark H SAM-DC61-04330A
...
1-10-9-4
Hose Drawer SAM-dc67-00051F
...
1-10-9-5-1
Housing Rinse-Up; Wv7500m,pp,t2.0,dark Ho SAM-DC61-04329A
...
1-10-9-5-2
Housing Rinse; Wv7500m,pp,t2.0,dark Holde SAM-DC61-04331A
...
1-10-9-5
Assy S.housing Drawer; Wv9900m,wv60m9900( SAM-DC97-20044A
...
1-10-9
Assy Housing Drawer; Wv9900,wv60m9900(rin SAM-DC97-20041A
...
1-10-10-1
Pipe Connector SAM-dc62-00176a
...
1-10-10-2
Hose Drawer SAM-dc67-00051F
...
1-10-10
Assy Hose Drawer; Wv9900m,wv60m9900 SAM-DC97-20045A
...
1-10-11-1
Hose Rinse; Wv7500m,epdm,id50,t2,black,du SAM-DC67-00880A
...
1-10-11
Assy Hose; Wv9900m,wv60m9900 SAM-DC97-20050A
...
1-10-12
Assy Cap V.w; Wv9900m,wv9900m,us,,black SAM-DC97-18313B
...
1-10
Assy Semi Cover Top; Wv9900m,wv60m9900av, SAM-DC97-20019A
...
1-11-1
Bracket Hinge; Wa400,gi-Sgcc,t2.0,w10,l58 SAM-DC61-03394A
...
1-11-2
Cushion Lid; Wr20m9970kw,si,neat White,du SAM-DC63-01554C
...
1-11-3
Door Lid T.c; Wv60m9900aw,abs,t3.0,hb,hg- SAM-DC64-03485B
...
1-11-4
Door Lid Cover; Wv60m9900aw,abs,t3.0,hb,h SAM-DC64-03486B
...
1-11-5
Door Glass; Wr9900aw,glass,t3.2,tempered, SAM-DC64-03488B
...
1-11-6
Magnet R.s SAM-DC61-03184A
...
1-11
Assy Lid T.c; Dual Washer-Pjt,wv55m9600aw SAM-DC97-20004D
...
1-12
Bracket Cover Top-Up; Dual Washer,gi-Sgcc SAM-DC61-04352A
...
1-13
Cover Filter; Dual Washer,abs,t2.5,natura SAM-DC63-01432B
...
1-14
Inlay-Door; F550,pet,-,da White,t0.188,w1 SAM-DC64-02822H
...
1-15
Cap Hinge; Pom,t3.0,hb,k300,dark Holder G SAM-DC67-00872A
...
1-16
Guide Pin SAM-DC61-04335A
...
1-17-1
Cap Liquid; Dual Wash,pp,t1.8,hb,fc2305,d SAM-DC67-00876A
...
1-17
Assy Detergent; Wv9900m,wv60m9900(america SAM-DC97-20054A
...
1-18
Assy Drawer Bleach; Dual Washer,wv60m9900 SAM-DC97-20143B
...
1
Assy Cover Top Parts; Wv9600,wv55m9600aw SAM-DC90-00004Z

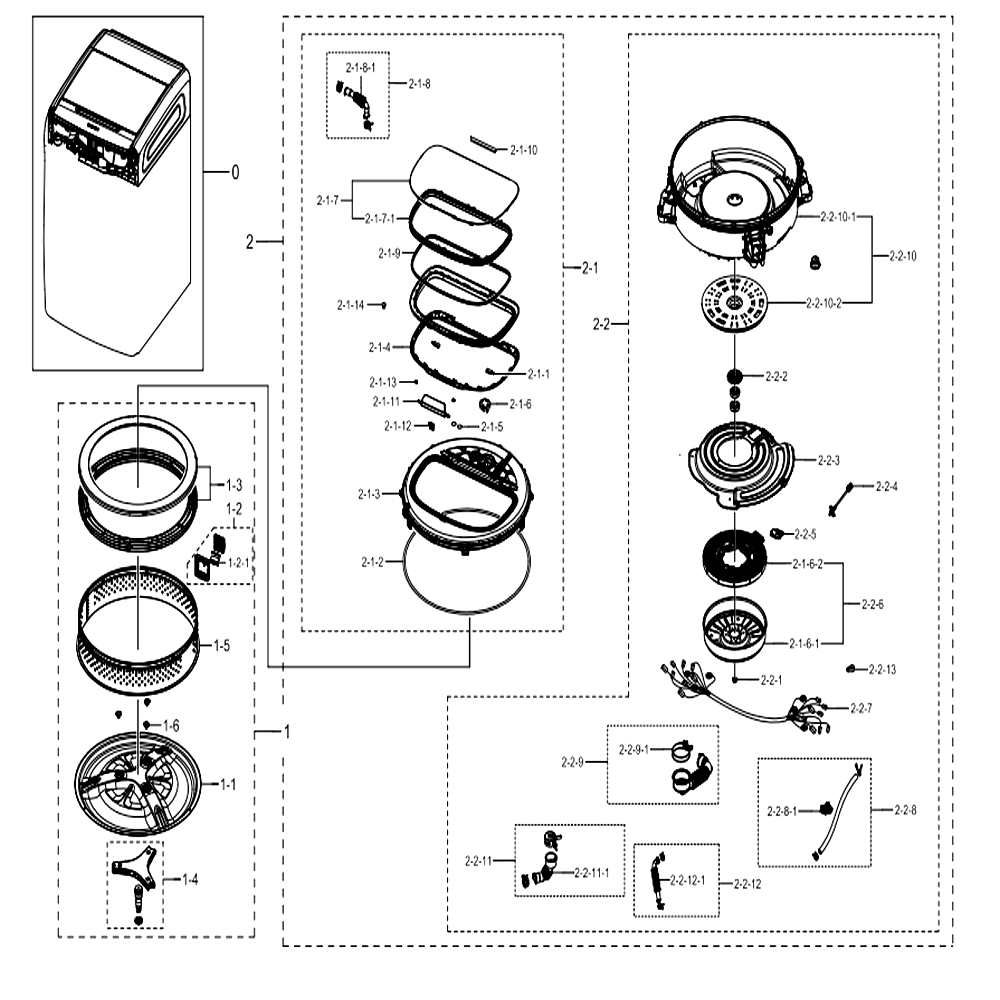

Assy Dual Module Assy Basket Spin & Tub Parts

...
...
0
Assy Dual Module; Dual Washer,wv55m9600aw SAM-DC97-20148D
...
1-1
Basket Bowl; Sts430j1l,t0.5 SAM-DC61-04288A
...
1-2-1
Valve Check; Wv7500m,epdm,white,dual Wase SAM-DC62-00500A
...
1-2
Assy Filter; Flex Wash,combo SAM-DC97-20255A
...
1-3
Assy Balancer; Wv9900m,wv60m9900 SAM-DC97-20049A
...
1-4
Assy Flange Shaft; Wv9900m,wv60m9900av SAM-DC97-20053B
...
1-5
Basket Wrapper; Sts430,t0.4 SAM-DC61-04287A
...
1-6
Bolt-Etc; M8,l11.5,mfzn,scm435,dual Washe SAM-6011-006813
...
1
Assy Basket Spin Parts; Wv9900m,wv55m9600 SAM-DC90-00041U
...
2-1-1
Holder Pin Door; Wa-F100k,pom,t6.0,natura SAM-DC61-03726A
...
2-1-2
Seal Tub; Wv7500m,epdm,natural,dual Waseh SAM-DC62-00471B
...
2-1-3
Cover Tub; Pp,t2.5,dark Holder Gray,gy016 SAM-DC63-01994A
...
2-1-4
Cover Holder; Wv7500m,pp,t2.0,hb,dark Hol SAM-DC63-02008A
...
2-1-5
Inlay-Door; Wv7500m,pet,t0.3,dark Holder SAM-DC64-03303D
...
2-1-6-1
Assy Rotor; Cdd380 (udd3),gi-Sgcd SAM-DC97-19993A
...
2-1-6-2
Assy Stator; Cdd380 (udd3) SAM-DC97-19994A
...
2-1-6
Cap Barrier; Wv9900m,pp,fc2305,dark Holde SAM-DC67-00909A
...
2-1-7-1
Seal Rubber; Wv60m9900,epdm,dark Holder G SAM-DC62-00520A
...
2-1-7
Assy Door Inner; Wv9900m,wv60m9900aw,wht SAM-DC97-20029B
...
2-1-8-1
Hose Water; Dual Washer,epdm,id8,1.6,hs50 SAM-DC67-00877A
...
2-1-8
Assy Hose; Wv9900m,water Supply SAM-DC97-20118A
...
2-1-9
Seal Door; Dual Washer,si,dark Holder Gra SAM-DC62-00496A
...
2-1-10
Cover Wire; Wv7500m,pp,t2.0,hb,dark Holde SAM-DC63-02092A
...
2-1-11
Handle Door; Wv55m9600aw,abs,t2.5,hg-0760 SAM-DC64-03483C
...
2-1-12
Lever-Tip; Wv7500m,pom,t2.5,k300,dark Hol SAM-DC66-00914A
...
2-1-13
Spring Etc Lever; Wv7500m,sts301,l2,dual SAM-DC61-04467A
...
2-1-14
Button Rubber; Wv7500m,si,hb,dark Holder SAM-DC64-03587A
...
2-1
Assy Cover Tub; Wv9600,wv55m9600aw SAM-DC97-20036D
...
2-2-1
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-2-2
Seal Oil; Nbr,black SAM-DC62-00494A
...
2-2-3
Cover Motor; Gi-Sgcc,t0.35 SAM-DC63-01995A
...
2-2-4
Assembly Thermistor SAM-DC90-10128N
...
2-2-5
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
2-2-6
Assy Dd Bldc Motor; Dual Wash,cdd380 (udd SAM-DC93-00663A
...
2-2-7
Assy Wire Harness-Main; Twin,wv9900m,1pum SAM-DC93-00690A
...
2-2-8-1
Cover Wire; Pp,t1.5,natural SAM-DC63-02083A
...
2-2-8
Assy Hose Pressure; 600mmh20,no Pba,no Ho SAM-DC97-14545Q
...
2-2-9-1
Clamper Hose-Joint; Dual Washer,hswr SAM-DC65-00014F
...
2-2-9
Assy Hose Drain; Dual Washer Pjt,wv60m990 SAM-DC97-20038A
...
2-2-10-1
Tub Outer; Wv7500m,frpp,t3.5,natural SAM-DC61-04276A
...
2-2-10-2
Housing Bearing; Wv60m9900av,aldc,t5.0,na SAM-DC61-04277B
...
2-2-10
Assy Semi Tub Outer; Wv9900m,wv60m9900av_ SAM-DC97-20060A
...
2-2-11-1
Hose Rinse; Wv7500m,epdm,id73,t1.5,hs50,b SAM-DC67-00874A
...
2-2-11
Assy Hose; Wv9900m,rinse SAM-DC97-20116A
...
2-2-12-1
Hose Rinse; Wv7500m,epdm,id9.0,t2.0,black SAM-DC67-00893A
...
2-2-12
Assy Hose; Wv9900m,bleach SAM-DC97-20117A
...
2-2-13
Holder-Wire SAM-DC61-40086A
...
2-2
Assy Tub Outer; Dual Washer Pjt,wv60m9900 SAM-DC97-20152A
...
2
Assy Tub Outer Parts; Wv9600,wv55m9600aw SAM-DC90-00007E

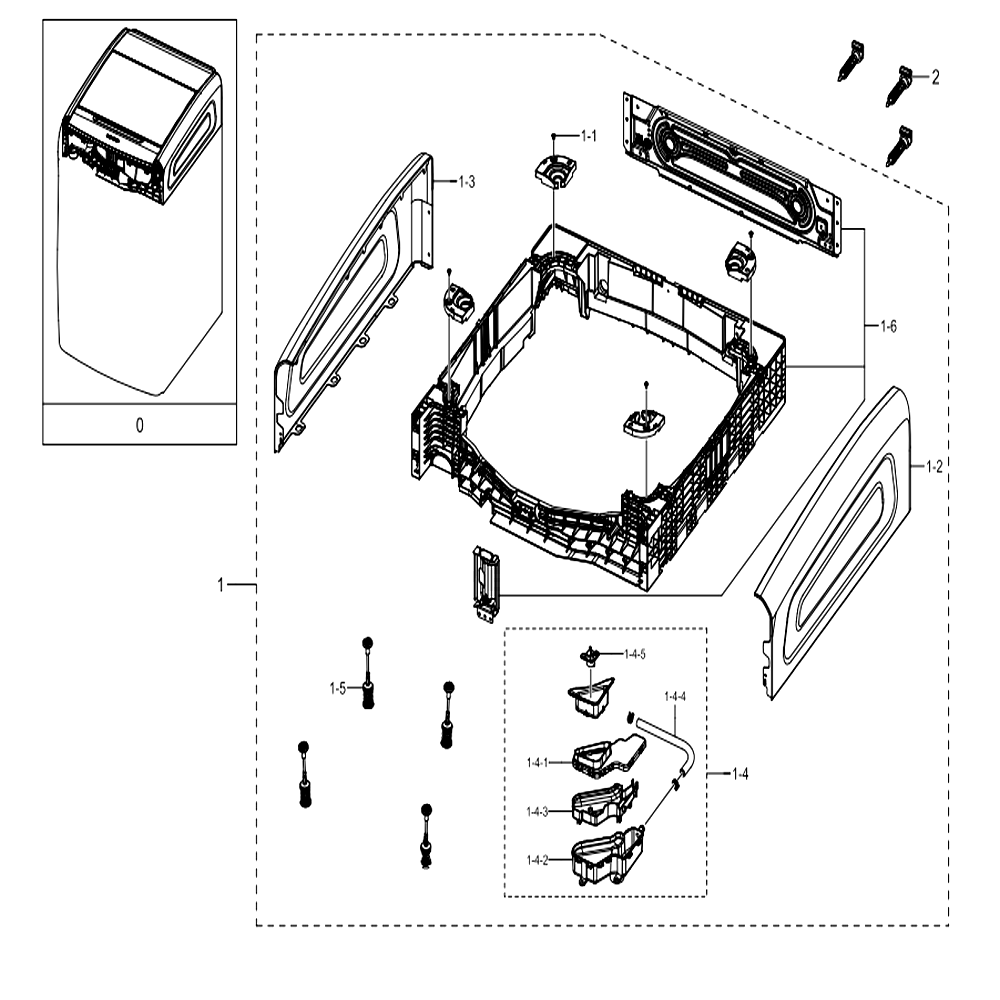

Assy Dual Module Assy Frame Parts

...
...
0
Assy Dual Module; Dual Washer,wv55m9600aw SAM-DC97-20148D
...
1-1
Screw-Tapping SAM-6002-000215
...
1-2
Frame-Right; Wf9900m,gi-Sgcd,neat White,t SAM-DC61-04308B
...
1-3
Frame-Left; Wf9900m,gi-Sgcd,neat White,t0 SAM-DC61-04309B
...
1-4-1
Case Rinse; Wv7500m,pp,t1.6,natural,dual SAM-DC61-04319A
...
1-4-2
Housing Rinse-Low; Wv7500m,pp,t1.6,natura SAM-DC61-04340A
...
1-4-3
Housing Rinse-Up; Wv7500m,pp,t1.6,dark Ho SAM-DC61-04341A
...
1-4-4
Hose Drawer SAM-dc67-00051F
...
1-4-5
Cap Liquid; Wv7500m,abs,t1.8,hb,sr-0300,c SAM-DC67-00875A
...
1-4
Assy Rinse; Dual Wasehr-Pjt,wv60m9900av SAM-DC97-20128A
...
1-5
Assy Damper; Dualwash,owm,0.9kgf,k4.42,l1 SAM-DC97-18610E
...
1-6
Assy Frame-Semi; Dual Washer-Pjt,wv7500m, SAM-DC97-20127A
...
1
Assy Frame Parts; Dual Washer,neat White SAM-DC90-00015W
...
2
Assy Fixer Tub; Kenmore SAM-DC97-14489G

Assy Dual Parts

...
...
0
Assy Dual Parts; Dual Washer,wv55m9600aw SAM-DC90-24242A
...
1
Cover Top; Wv60m9900aw,abs,t2.5,hb,neat W SAM-DC63-01997B
...
2
Cover Detergent; Wv7500m,abs,t1.8,hb,neat SAM-DC63-02006C
...
3
Cover Rinse; Wv7500m,abs,t1.8,hb,neat Whi SAM-DC63-02013B
...
4-1
Cover T.c; Wv60m9900aw,abs,t3.0,hb,neat W SAM-DC63-02005B
...
4
Assy Cover T.c; Wv9600,wv55m9600aw,neat W SAM-DC97-20002D
...
5-1
Mascot; Mascot,pet,80 SAM-DC64-03434A
...
5-2
Door Lid T.c-Low; Wv60m9900aw,abs,t2.5,hb SAM-DC64-03494B
...
5-3
Door Lid Cover-Low; Wv60m9900aw,abs,t2.5, SAM-DC64-03495B
...
5-4
Assy Hinge-Right; Dual Washer,pom,ntr SAM-DC97-20129A
...
5
Assy Lid T.c; Wv9900m,wv60m9900aw,neat Wh SAM-DC97-20047B

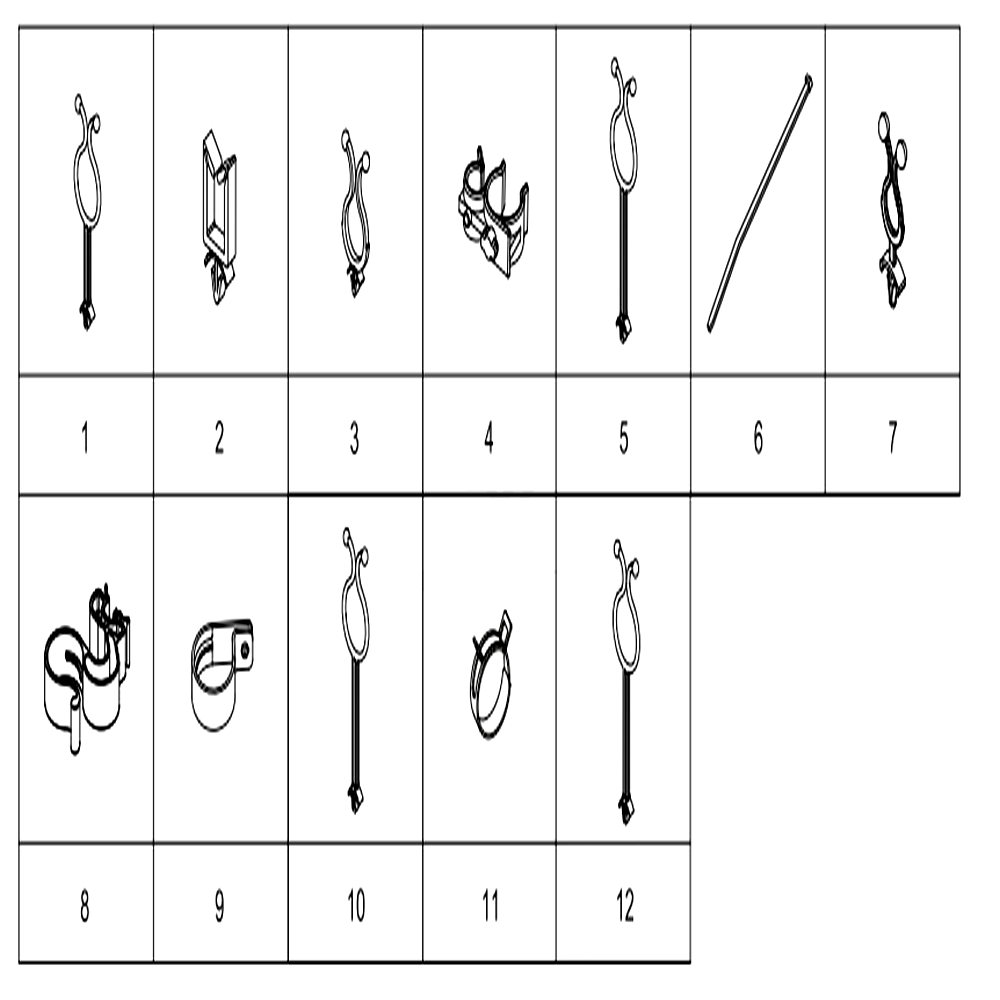

Small Parts

...
...
1
Holder Wire SAM-DC61-01736B
...
2
Cable Clamp SAM-DC61-00553B
...
3
Holder-Wire SAM-DC61-40081A
...
4
Clamper Hose-Fix SAM-DC61-00133A
...
5
Holder Wire SAM-DC61-00995A
...
6
Cable Tie Push Mount; L150,black,pa66 SAM-6051-000017
...
7
Holder-Wire SAM-DC61-40086A
...
8
Holder Hose SAM-dc61-02706a
...
9
Clamp-Cable SAM-dc61-00118a
...
10
Holder Wire SAM-DC61-00995A
...
11
Clamper Hose; Sew-Har149aua,sk5,aphrodite SAM-DC61-00219F
...
12
Holder Wire SAM-DC61-00995A
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
