Samsung WF50K7500AV/A2_0011

Model: WF50K7500AV/A2_0011

Save Part Not Listed?
product name

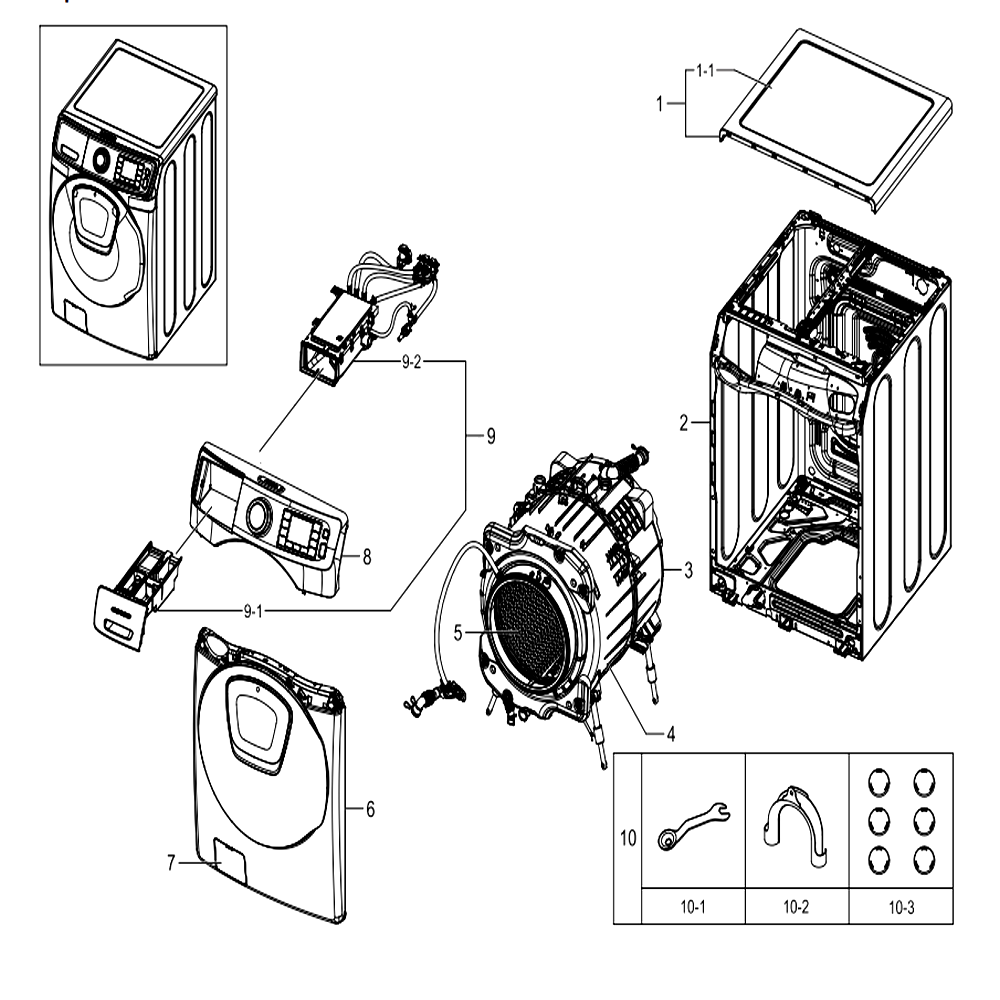

Main

...
...
1-1
Assy Cover Top SAM-dc97-19204a
...
1
Assy Cover Top; Wf7500k,wf50k7500av SAM-DC90-21727A
...
2
Assy Frame; Wf7500k,wf50k7500av SAM-DC90-21732A
...
3
Assy Tub Back Parts; Wf7500k SAM-DC90-23058A
...
4
Assy Tub Front Parts; Wf7500k SAM-DC90-23057A
...
5
Assy Drum SAM-dc90-21713a
...
6
Assy Front; Wf7500k,wf50k7500av SAM-DC90-21726A
...
7
Assy Cover Filter SAM-dc97-16018V
...
8
Assy Panel Control; Wf7500k,wf50k7500av/a SAM-DC90-22939A
...
9-1
Assy Drawer SAM-dc97-18089L
...
9-2
Assy Housing Drawer SAM-dc97-16142W
...
9
Assy Drawer; Wf7500k,wf50k7500av SAM-DC90-21696A
...
10-1
Bolt Spaner SAM-dc60-40146a
...
10-2
Hose Hanger SAM-dc62-10278a
...
10-3
Cap-Fixer SAM-dc67-00307a
...
10
Assy Accessory; Wf6200,wf45k6200az/a2 SAM-DC98-02917B

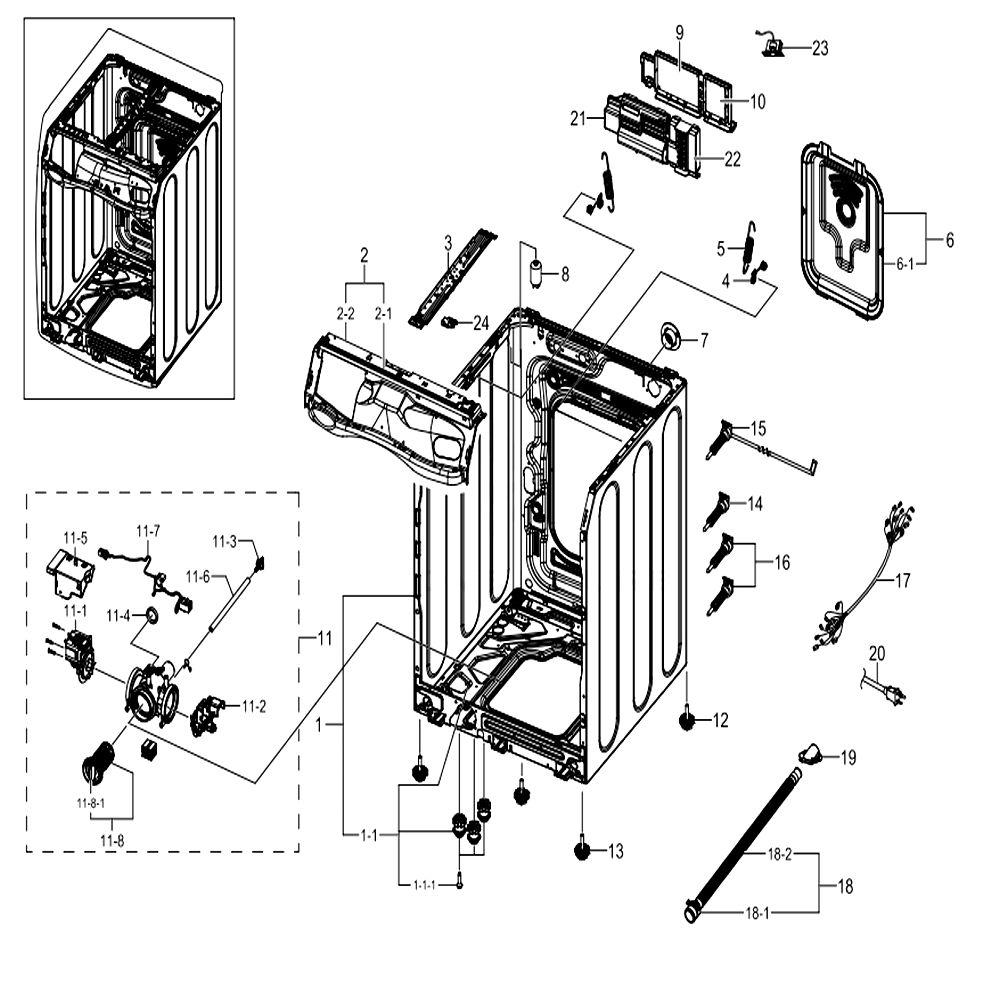

Assy Frame & Cover Parts

...
...
1-1-1
Bolt-Hex SAM-6011-001565
...
1-1
Assy Plate Bottom; Wf7500k,wf50k7500av SAM-DC97-19367A
...
1
Assy Frame SAM-dc97-19366a
...
2-1
Guide Panel SAM-DC61-02008B
...
2-2
Frame Plate Up SAM-DC61-02617A
...
2
Assy Frame Plate(u) SAM-dc97-16017B
...
3
Assy Guide Wire SAM-dc97-19363a
...
4
Guide Spring SAM-dc61-02432a
...
5
Spring Etc-Hanger SAM-dc61-01257n
...
6-1
Cover Back SAM-dc63-00522a
...
6
Assy Cover Back SAM-dc97-17246c
...
7
Cap O.f SAM-dc67-00316a
...
8
Filter Emi SAM-dc29-00015G
...
9
Assy Pcb Main SAM-dc92-01803L
...
10
Assy Kit SAM-dc92-01531c
...
11-1
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
11-2
Motor Ac Pump SAM-dc31-00181c
...
11-3
Cap Drain SAM-dc61-10673a
...
11-4
Valve Check SAM-dc62-00299a
...
11-5
Cover Pump SAM-dc63-01375a
...
11-6
Hose Drain SAM-dc67-00244K
...
11-7
Assy M. Wire Harness-Pump SAM-dc93-00150c
...
11-8-1
Filter Pump SAM-dc63-00909a
...
11-8
Assy Filter SAM-dc97-16991B
...
11
Assy Pump Drain SAM-dc97-17999L
...
12
Assy Leg SAM-dc97-00920S
...
13
Assy Leg SAM-dc97-14293d
...
14
Assy Fixer Tub SAM-dc97-14489a
...
15
Assy Fixer Tub SAM-dc97-14489F
...
16
Assy Fixer Tub SAM-dc97-14489E
...
17
Assy Wire Harness-Main SAM-dc93-00623a
...
18-1
Clamper Hose SAM-dc61-01679a
...
18-2
Hose Pump SAM-dc67-00330L
...
18
Assy Hose Drain(i) SAM-dc97-12534K
...
19
Guide Hose SAM-dc61-02084c
...
20
Cbf-Power Cord; At,u.s.a,us3s,gray,1500,s SAM-DC96-00757A
...
21
Assy Cover Pba-Main SAM-dc92-01385a
...
22
Cover Pba-Inverter SAM-dc63-01571a
...
23
Coil Harmonic SAM-dc26-00009T
...
24
Assy Sensor SAM-dc93-00278a

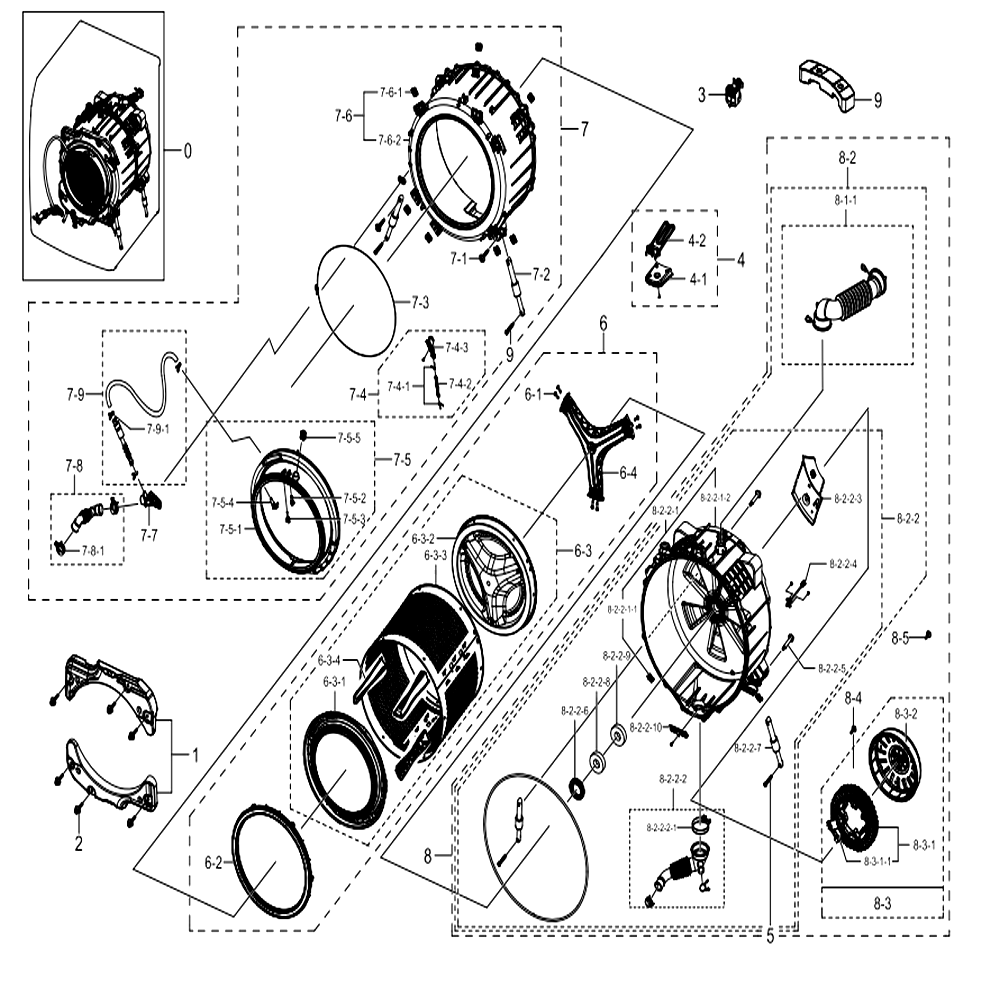

Assy Tub & Drum

...
...
0
Assy Drum SAM-dc90-21713a
...
1
Weight Balancer SAM-dc67-00839a
...
2
Assy Bolt SAM-dc97-02412a
...
3
Sensor Pressure SAM-dc96-01703G
...
4-1
Cover Heater SAM-dc63-00820a
...
4-2
Heater Wash SAM-dc47-00006Y
...
4
Assy Heater SAM-dc96-01417B
...
5
Bolt-Hex; M10,l35,zpc2,sm10c,damper SAM-6011-001644
...
6-1
Bolt Hex SAM-dc60-40137a
...
6-2
Assy Balancer SAM-dc97-19282a
...
6-3-1
Drum Front SAM-dc66-00886a
...
6-3-2
Drum Back SAM-dc66-00885a
...
6-3-3
Drum Wrapper SAM-dc66-00884a
...
6-3-4
Drum Lifter SAM-dc66-00888a
...
6-3
Assy Drum Wrapper SAM-dc97-19267a
...
6-4
Assy Flange Shaft SAM-dc97-19266a
...
6
Assy Drum SAM-dc97-19268a
...
7-1
Bolt Hex SAM-dc60-00113a
...
7-2
Damper Shock SAM-dc66-00470a
...
7-3
Assy Clamp Diaphragm SAM-dc97-04981F
...
7-4-1
Clip Ring SAM-dc61-70029c
...
7-4-2
Hose Water SAM-dc67-00230F
...
7-4-3
Hose Joint Air SAM-dc67-00492a
...
7-4
Assy Hose Pressure SAM-dc97-14545n
...
7-5-1
Door Diaphragm SAM-dc64-02174F
...
7-5-2
Nozzle Diaphragm SAM-dc62-00349a
...
7-5-3
Nozzle Diaphragm SAM-dc62-00333a
...
7-5-4
Nozzle Diaphragm SAM-dc62-00330a
...
7-5-5
Assy Lamp Led SAM-dc47-00027E
...
7-5
Assy Diaphragm; Wf6000ha-Ve SAM-DC97-19755C
...
7-6-1
Bracket Nut SAM-dc61-00201a
...
7-6-2
Tub Front SAM-dc61-04127a
...
7-6
Assy Semi Tub Front; Sehc,wf7500k SAM-DC97-19640A
...
7-7
Hose Connector SAM-dc67-00760a
...
7-8-1
Clamper Hose SAM-dc61-00219H
...
7-8
Assy Hose SAM-dc97-17389a
...
7-9-1
Spring Clip SAM-dc61-03693a
...
7-9
Assy Hose SAM-dc97-16810G
...
7
Assy Tub Front Parts; Wf7500k SAM-DC90-23057A
...
8-1-1
Assy Hose O.f SAM-dc97-16104a
...
8-2-2-1-1
Bracket Nut SAM-dc61-00201a
...
8-2-2-1-2
Tub Back SAM-dc61-04126a
...
8-2-2-1
Assy Semi Tub Back; Wf7500k,wf50k7500aw/a SAM-DC97-19682A
...
8-2-2-2-1
Clamper Hose-Joint SAM-dc65-00014a
...
8-2-2-2
Assy Hose Drain; Wf6200,wf6500,wf7500 SAM-DC97-16105B
...
8-2-2-3
Assy Bracket Tub SAM-dc97-19460a
...
8-2-2-4
Thermistor SAM-dc32-00010c
...
8-2-2-5
Bolt Hex SAM-dc60-00113a
...
8-2-2-6
Seal Oil SAM-dc62-00156a
...
8-2-2-7
Damper Shock SAM-dc66-00470B
...
8-2-2-8
Bearing Ball SAM-6601-003008
...
8-2-2-9
Bearing Ball SAM-6601-003009
...
8-2-2-10
Bracket Heater; Gw-Pjt,sts304,t0.5,w96,l2 SAM-DC61-01482A
...
8-2-2
Assy Semi Tub Back; Wf7500k,wf50k7500aw/a SAM-DC97-19681A
...
8-2
Assy Tub Front; Sehc,wf7500 SAM-DC97-19644A
...
8-3-1-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
8-3-1
Motor Bldc-Assy Stator SAM-dc31-00124a
...
8-3-2
Motor Bldc-Assy Rotor SAM-dc31-00125d
...
8-3
Assy Dd Bldc Motor SAM-dc93-00236d
...
8-4
Bolt-Etc SAM-6011-004782
...
8-5
Assy Bolt SAM-dc97-06080c
...
8
Assy Tub Back Parts; Wf7500k SAM-DC90-23058A
...
9
Weight Balancer-Right SAM-dc67-00649a

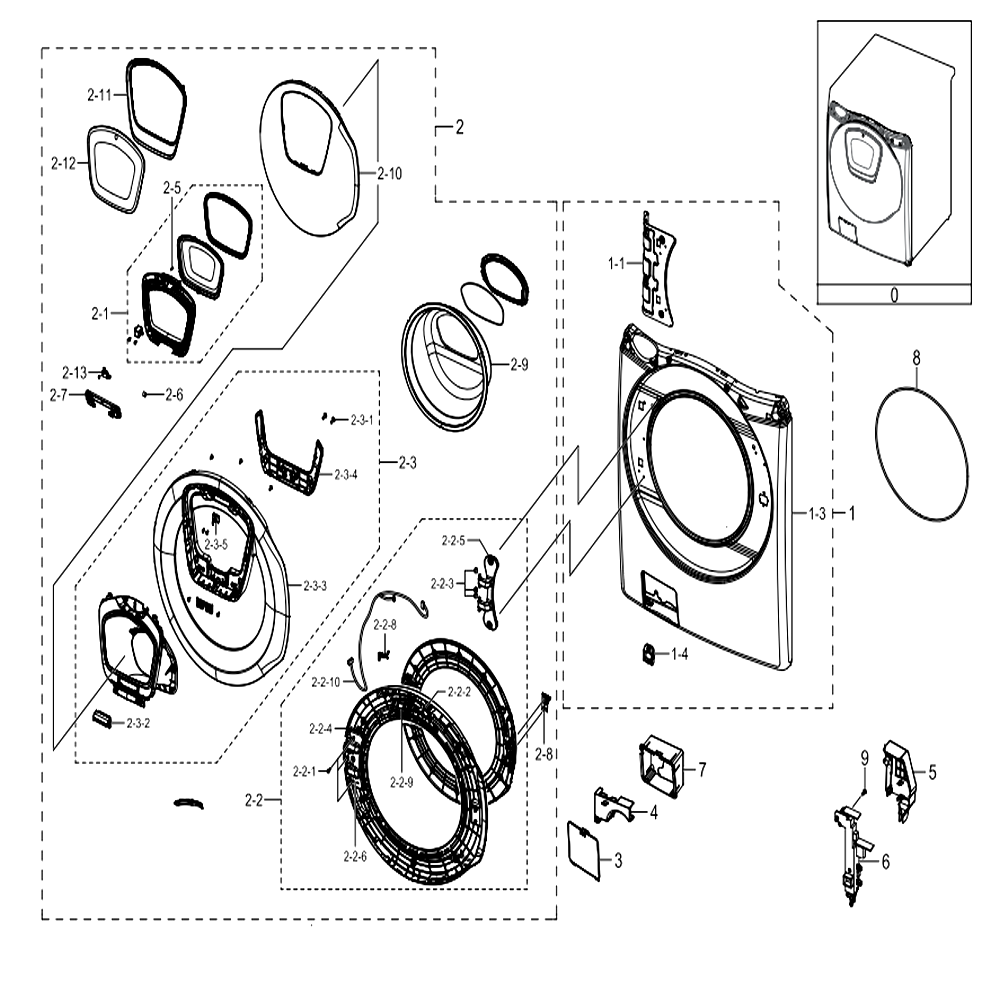

Assy Frame Front & Door

...
...
0
Assy Front; Wf7500k,wf50k7500av SAM-DC90-21726A
...
1-1
Bracket Hinge SAM-dc61-02615a
...
1-3
Frame Front SAM-dc61-02612n
...
1-4
Cover-Switch(o) SAM-dc63-00960a
...
1
Assy Frame Front SAM-dc97-18977E
...
2-1
Assy Holder Glass SAM-dc97-19057a
...
2-2-1
Screw-Machine SAM-6001-001668
...
2-2-2
Switch Door Lock SAM-dc34-00025d
...
2-2-3
Guide-Hinge SAM-DC61-00891A
...
2-2-4
Holder Glass SAM-dc61-04040a
...
2-2-5
Hinge Door SAM-dc61-04041a
...
2-2-6
Support Hinge SAM-dc61-04043a
...
2-2-8
Cover Hinge SAM-dc63-01885a
...
2-2-9
Switch Door SAM-dc64-00828G
...
2-2-10
Assy Wire Harness- Sub SAM-dc93-00598a
...
2-2
Assy Holder Glass SAM-dc97-19056a
...
2-3-1
Screw-Machine SAM-6001-001668
...
2-3-2
Hinge Door SAM-dc61-04042a
...
2-3-3
Cover Door SAM-dc63-01881a
...
2-3-4
Cover Holder SAM-dc63-01883a
...
2-3-5
Lever Tip SAM-dc66-30051a
...
2-3
Assy Cover Door SAM-dc97-19055c
...
2-5
Screw-Tapping; Fh,+,1,m4,l16,pass,sts304 SAM-6002-001615
...
2-6
Guide-Hinge SAM-DC61-00891A
...
2-7
Support Hinge SAM-dc61-04044a
...
2-8
Lever Door SAM-dc66-00375a
...
2-9
Door Glass SAM-dc64-02965a
...
2-10
Door Safety SAM-dc64-03300a
...
2-11
Decoration Cover Door SAM-dc64-03301a
...
2-12
Cover Door SAM-dc63-01882a
...
2-13
Damper Shock-Axis SAM-dc66-00878a
...
2
Assy Door SAM-dc97-19054c
...
3
Assy Cover Filter SAM-dc97-16018V
...
4
Cover Connector SAM-dc63-01884B
...
5
Cover Door Switch SAM-dc63-01156a
...
6
Switch Door Lock SAM-dc64-00519d
...
7
Assy Case Filter SAM-dc97-19493a
...
8
Assy Wire Diaphragm SAM-dc97-04973B
...
9
Screw-Hex SAM-6009-001522

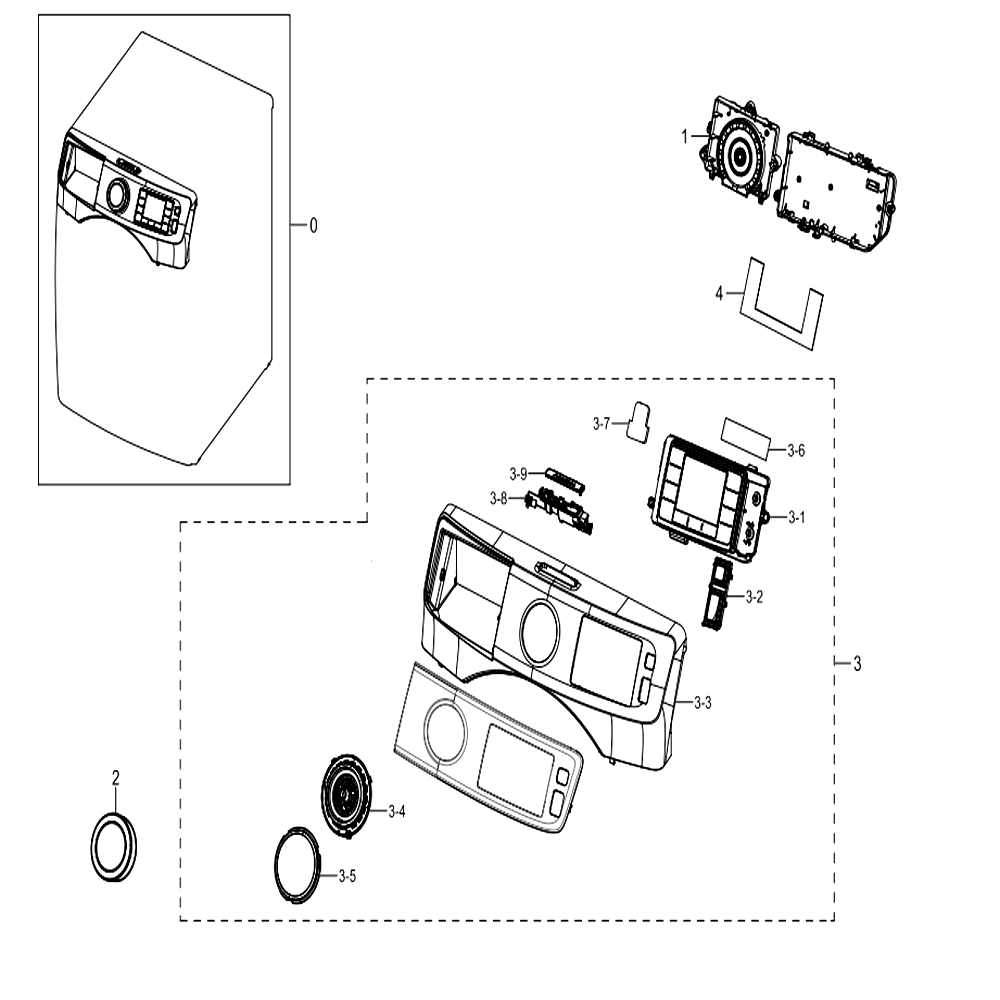

Assy Panel Control

...
...
0
Assy Panel Control; Wf7500k,wf50k7500av/a SAM-DC90-22939A
...
1
Assy Pcb Display SAM-dc92-01802K
...
2
Assembly Knob Encoder SAM-DC97-18058B
...
3-1
Window Panel SAM-dc64-03062T
...
3-2
Button Push SAM-dc64-03066V
...
3-3
Panel Control SAM-dc64-03423a
...
3-4
Inlay Encoder; Pet,t0.2,id83.8,od89.3 SAM-DC64-03112C
...
3-5
Window Encoder SAM-dc64-03069a
...
3-6
Inlay Panel SAM-dc64-03114a
...
3-7
Assy Module SAM-DB92-03769A
...
3-8
Panel Housing Dongle SAM-DC64-03427A
...
3-9
Panel-Cover Dongle; Wf45k6500av/a2,abs,hb SAM-DC64-03428A
...
3
Assy S.panel Control; Wf7500k,wf50k7500av SAM-DC97-19655A
...
4
Assy Sensor SAM-dc93-00376d

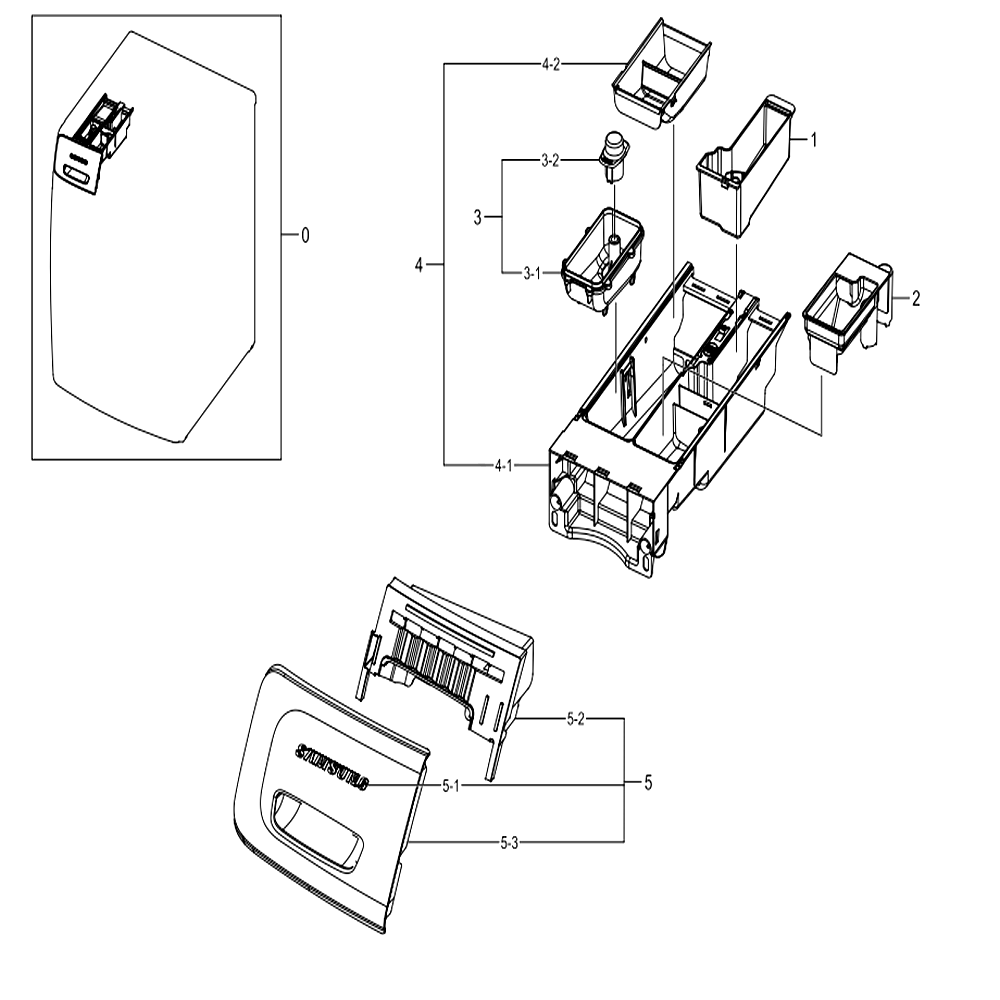

Assy Drawer

...
...
0
Assy Drawer SAM-dc97-18089L
...
1
Case Bleach SAM-dc61-01995a
...
2
Cap Rinse SAM-dc67-00793a
...
3-1
Guide Liquid-Middle SAM-dc61-02427d
...
3-2
Cap Drawer SAM-dc67-00444a
...
3
Assy Detergent SAM-dc97-17022B
...
4-1
Body Drawer SAM-dc61-03915a
...
4-2
Case Pre Wash SAM-dc61-02445a
...
4
Assy S.drawer SAM-dc97-18437a
...
5-1
Mascot; Mascot,pet,80 SAM-DC64-03434A
...
5-2
Handle Drawer SAM-dc64-03068c
...
5-3
Panel Drawer SAM-dc64-03059E
...
5
Assy Panel Drawer SAM-dc97-18090L

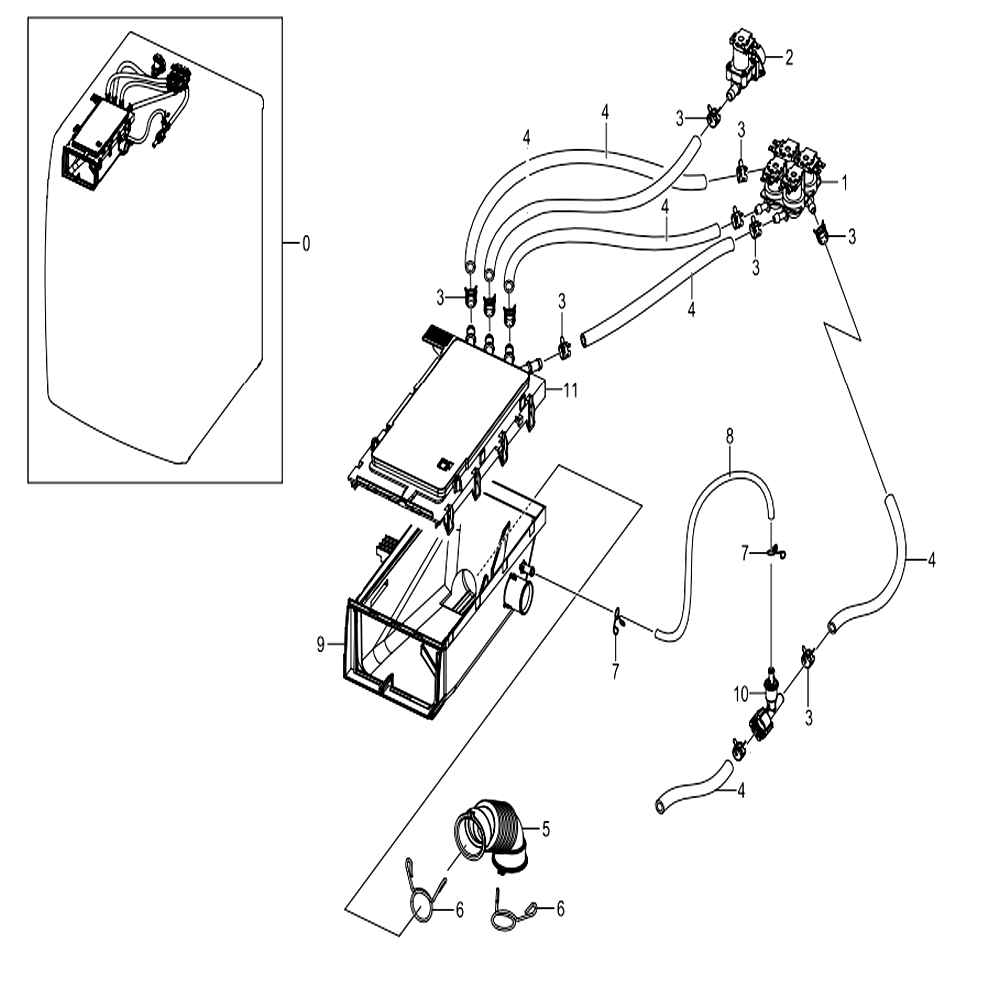

Assy Housing Drawer

...
...
0
Assy Housing Drawer SAM-dc97-16142W
...
1
Valve Water SAM-dc62-00214M
...
2
Valve Water SAM-dc62-30314K
...
3
Clamper Hose; Ssec-Ge,sk5,-,dacromet,t1.0 SAM-DC65-00008B
...
4
Hose Drawer SAM-dc67-00051F
...
5
Hose Drawer Tub SAM-dc67-00467a
...
6
Clip Ring SAM-dc72-00001F
...
7
Clip Ring SAM-dc61-70029c
...
8
Hose Water SAM-dc67-00089Q
...
9
Housing Drawer-Low SAM-dc61-02636B
...
10
Pipe Connector SAM-dc62-00176a
...
11
Assy S.housing Drawer SAM-dc97-16141a

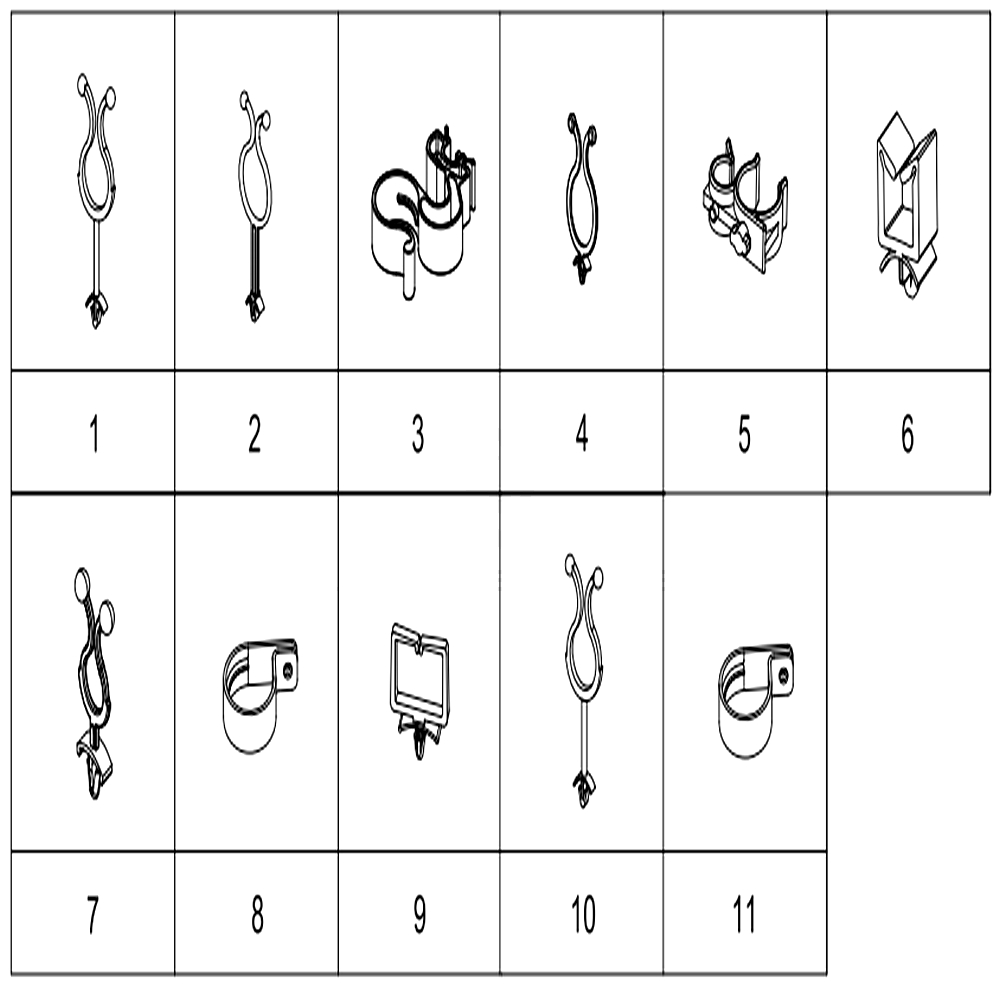

Small Parts

...
...
1
Holder Wire SAM-DC61-00995A
...
2
Holder Wire SAM-DC61-01736B
...
3
Holder Hose SAM-dc61-02706a
...
4
Holder Wire SAM-DC61-40083A
...
5
Clamper Hose-Fix SAM-DC61-00133A
...
6
Holder Hose SAM-dc61-04077a
...
7
Cable Clamp SAM-6502-000127
...
8
Clamp-Cable SAM-dc61-00118a
...
9
Holder-Wire SAM-DC61-60074A
...
10
Holder Wire SAM-DC61-00995A
...
11
Clamp-Cable SAM-dc61-00118a
