Samsung WF45N5300AV/US_0000

Model: WF45N5300AV/US_0000

Save Part Not Listed?
product name

Main

...
...

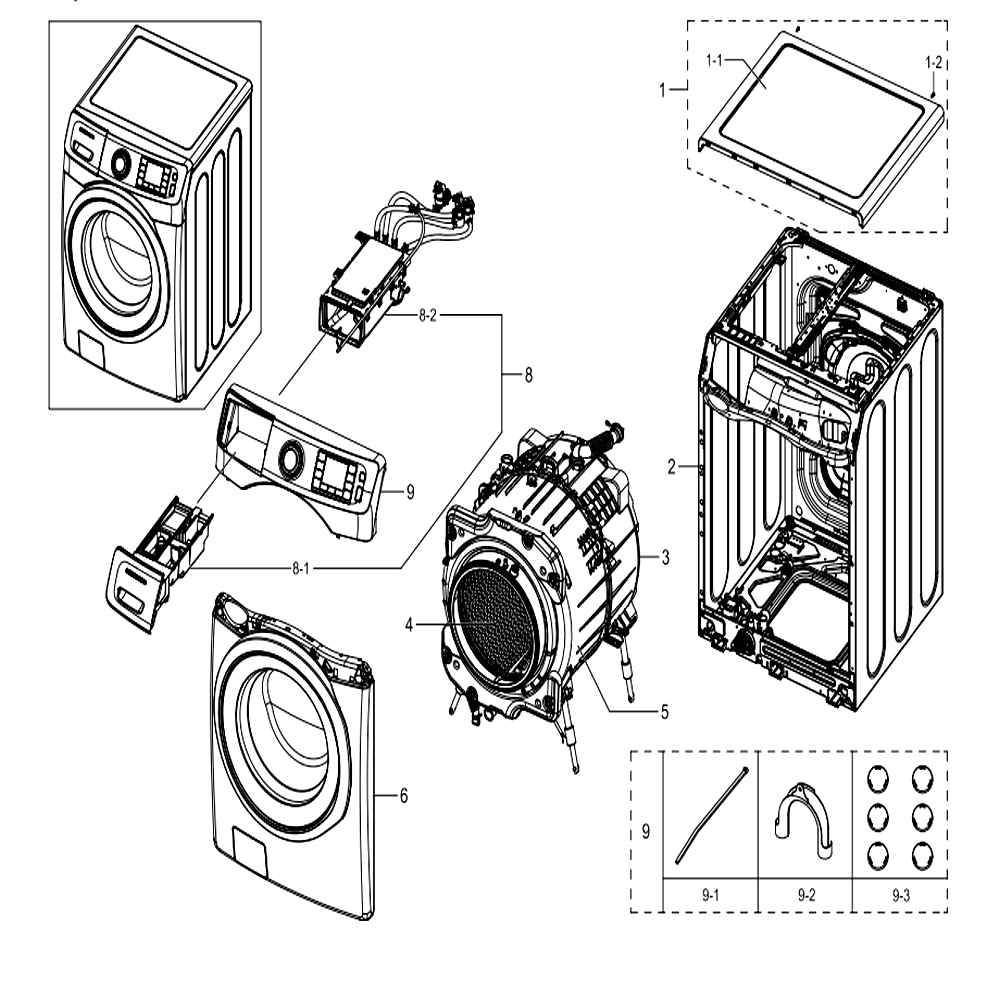

1-1
Assy Cover Top; Wf5000h,wf45n5300av/us,0. SAM-DC97-19464L
...
1-2
Screw-Tapping SAM-6002-001431
...
1
Assy Cover Top Parts; Wf45n5300av/us SAM-DC90-24117D
...
2
Assy Frame Parts; Wf45n5300av/us SAM-DC90-24112C
...
3
Assy Tub Back Parts; Wf45m5100aw/a5 SAM-DC90-24127A
...
4
Assy Drum Parts; Wf45m5500ap/a5 SAM-DC90-24123A
...
5
Assy Tub Front Parts; Wf45m5100aw/a5 SAM-DC90-24125A
...
6
Assy Front Parts; Wf45n5300av/us SAM-DC90-24120D
...
8-1
Assy Drawer; Wf5000h,wf45n5300av/us SAM-DC97-18142V
...
8-2
Assy Housing Drawer; Wf6200h,wf45k6200* SAM-DC97-19823B
...
8
Assy Drawer Parts; Wf45n5300av/us SAM-DC90-24191C
...
9-1
Cable Tie SAM-6501-000121
...
9-2
Hose Hanger SAM-dc62-10278a
...
9-3
Cap-Fixer SAM-dc67-00307a
...
9
Assy Panel Control Parts; Wf45n5300av/us SAM-DC90-24075E

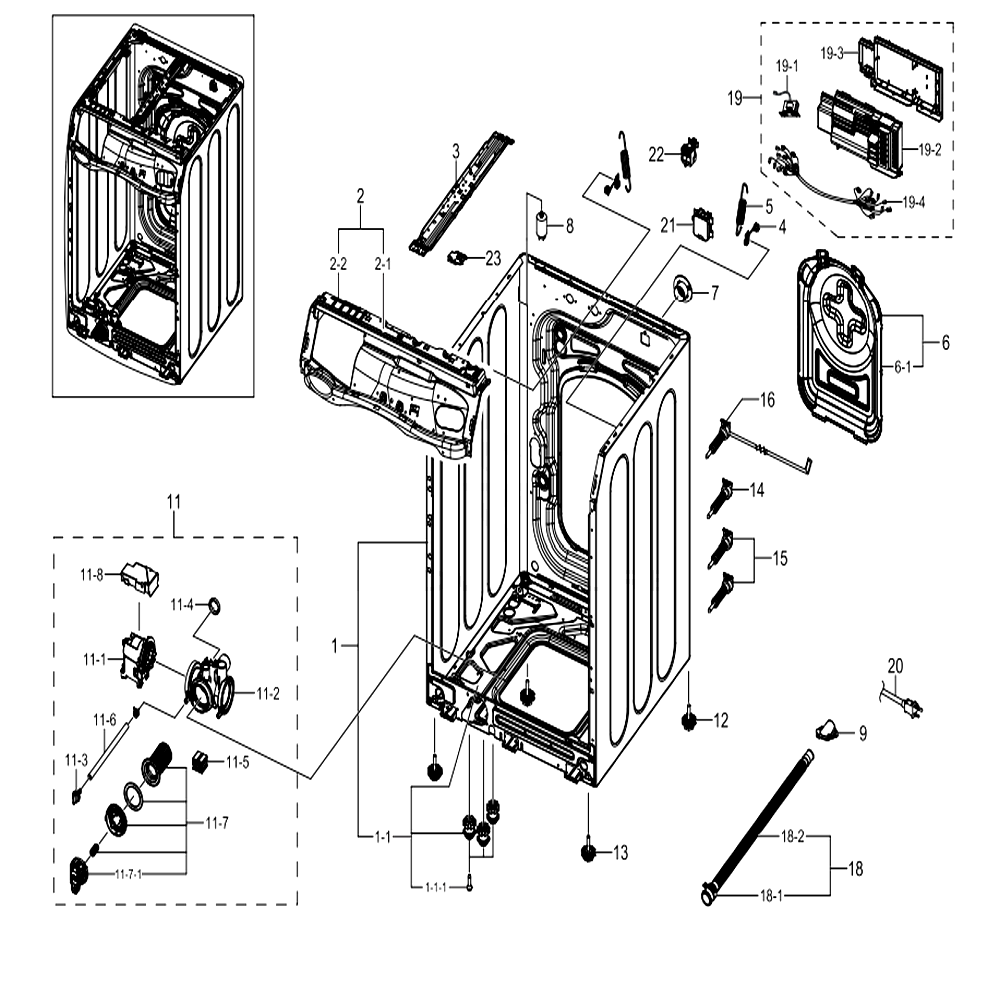

Assy Frame & Cover Parts

...
...
1-1-1
Bolt-Hex SAM-6011-001565
...
1-1
Assy Plate Bottom; Wf5000ha,wf42h5700ag/a SAM-DC97-18156A
...
1
Assy Frame Front; Wf45n5300av/us,t0.8,bla SAM-DC97-19515E
...
2-1
Guide Panel SAM-DC61-02008B
...
2-2
Frame Plate Up SAM-DC61-02617A
...
2
Assy Frame Plate-Up; Wf7500k SAM-DC97-16017J
...
3
Assy Guide Wire SAM-dc97-08632Y
...
4
Guide Spring SAM-dc61-02432a
...
5
Spring Etc-Hanger SAM-dc61-01257n
...
6-1
Cover Back SAM-dc63-01163a
...
6
Assy Cover Back SAM-dc97-16289B
...
7
Cap O.f SAM-dc67-00316a
...
8
Filter Emi SAM-dc29-00015G
...
9
Guide Hose SAM-dc61-02084c
...
11-1
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
11-2
Case Pump; Wf220anw,pp,-,-,-,fh2200 SAM-DC61-02017H
...
11-3
Cap Drain SAM-dc61-10673a
...
11-4
Valve Check SAM-dc62-00299a
...
11-5
Cushion Pump; Wf448aag,epdm,-,-,-,40,blk SAM-DC63-00888A
...
11-6
Hose Drain SAM-dc67-00244K
...
11-7-1
Filter Pump SAM-dc63-00909a
...
11-7
Assy Filter SAM-dc97-16991B
...
11-8
Cover Pump SAM-dc63-01375a
...
11
Assy Pump Drain; Wf5500m,wf45m5500ap,no B SAM-DC97-17999N
...
12
Assy Leg SAM-dc97-00920S
...
13
Assy Leg SAM-dc97-14293d
...
14
Assy Fixer Tub SAM-dc97-14489a
...
15
Assy Fixer Tub SAM-dc97-14489E
...
16
Assy Fixer Tub SAM-dc97-14489F
...
18-1
Clamper Hose SAM-dc61-01679a
...
18-2
Hose Pump SAM-dc67-00330L
...
18
Assy Hose Drain(i) SAM-dc97-12534K
...
19-1
Coil Harmonic SAM-dc26-00009T
...
19-2
Assy Cover Pba; Wf5500m,wf45m5500ap/a5 SAM-DC92-01977A
...
19-3
Assy Kit; Fwm_Inv,wf5100m,yes SAM-DC92-01982B
...
19-4
Assy Wire Harness-Main; Drum-L,y,1pump,n, SAM-DC93-00582D
...
19
Assy Cover Pcb W/harness; Wf5100m SAM-DC92-02082A
...
20
Cbf-Power Cord SAM-DC96-00757C
...
21
Cover Connector; Pp,t2.5,hb,natural,hass SAM-DC63-01964A
...
22
Sensor Pressure SAM-dc96-01703G
...
23
Assy Sensor SAM-dc93-00278a

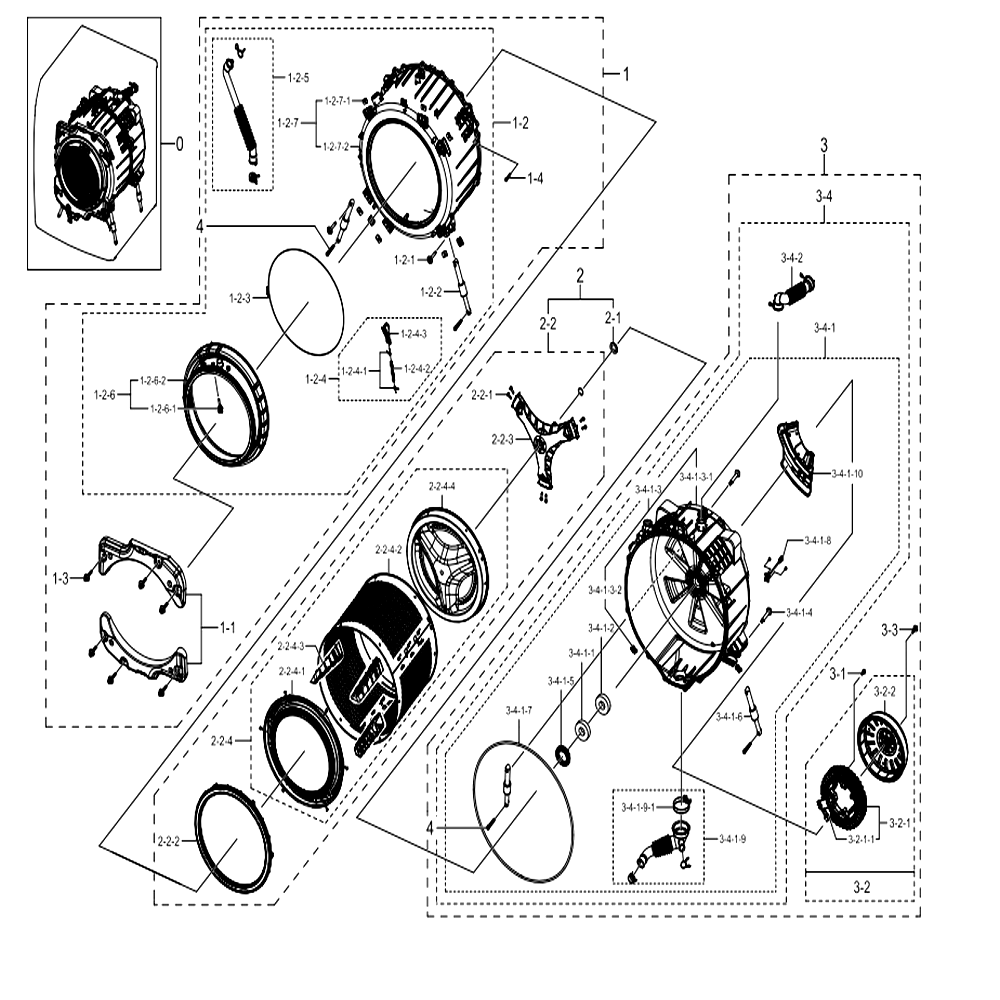

Assy Tub & Drum Parts

...
...
1-1
Weight Balancer SAM-dc67-00560a
...
1-2-1
Bolt Hex SAM-dc60-00113a
...
1-2-2
Damper Shock SAM-dc66-00470a
...
1-2-3
Assy Clamp Diaphragm SAM-dc97-04981F
...
1-2-4-1
Clip Ring SAM-dc61-70029c
...
1-2-4-2
Hose Water SAM-dc67-00230F
...
1-2-4-3
Hose Joint Air SAM-dc67-00492a
...
1-2-4
Assy Hose Pressure SAM-dc97-14545H
...
1-2-5
Assy Hose Air; Wf6200k,wf45k6200az/a2 SAM-DC97-16106B
...
1-2-6-1
Nozzle Diaphragm SAM-dc62-00333a
...
1-2-6-2
Door-Diaphragm; Grace,tpe,t2.5 / T1.5,gry SAM-DC64-02792A
...
1-2-6
Assy Diaphragm; Wf6200 SAM-DC97-19755A
...
1-2-7-1
Bracket Nut SAM-dc61-00201a
...
1-2-7-2
Tub Front; Wf45k6200aw/a2,frpp,natural SAM-DC61-02629R
...
1-2-7
Assy Semi Tub Front; Sehc,wf6200 SAM-DC97-19638B
...
1-2
Assy Tub Front; Wf6000h,wf45k6200aw, Wf45 SAM-DC97-19934A
...
1-3
Assy Bolt SAM-dc97-02412a
...
1-4
Bolt-Hex; M6.5,l32,zpc(wht),swrch18a,hwh SAM-6009-001367
...
1
Assy Tub Front Parts; Wf45m5100aw/a5 SAM-DC90-24125A
...
2-1
Washer-Spring; Sts304,id35.2,od39.0,t0.3, SAM-6031-001640
...
2-2-1
Bolt Hex SAM-dc60-40137a
...
2-2-2
Assy Balancer SAM-dc97-12135a
...
2-2-3
Assy Flange Shaft SAM-dc97-16509c
...
2-2-4-1
Drum Front SAM-dc66-00506a
...
2-2-4-2
Drum Wrapper SAM-dc66-00594c
...
2-2-4-3
Drum Lifter SAM-dc66-00598a
...
2-2-4-4
Drum Back SAM-dc66-00736a
...
2-2-4
Assy Drum Wrapper SAM-dc97-17018a
...
2-2
Assy Drum SAM-dc97-16086B
...
2
Assy Drum Parts; Wf45m5500ap/a5 SAM-DC90-24123A
...
3-1
Bolt-Etc SAM-6011-004782
...
3-2-1-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
3-2-1
Motor Bldc-Assy Stator SAM-dc31-00111a
...
3-2-2
Motor Bldc-Assy Rotor SAM-dc31-00112a
...
3-2
Assy Dd Bldc Motor SAM-dc93-00168a
...
3-3
Assy Bolt SAM-dc97-06080c
...
3-4-1-1
Bearing Ball SAM-6601-002516
...
3-4-1-2
Bearing Ball SAM-6601-002632
...
3-4-1-3-1
Tub Back SAM-dc61-02628a
...
3-4-1-3-2
Bracket Nut SAM-dc61-40348B
...
3-4-1-3
Assy Semi Tub Back; Wf5500m,wf45m5500ap SAM-DC97-16155N
...
3-4-1-4
Bolt Hex SAM-dc60-00113a
...
3-4-1-5
Seal Oil SAM-dc62-00156a
...
3-4-1-6
Damper Shock SAM-dc66-00470B
...
3-4-1-7
Seal Tub; Gw-Pjt,epdm,blk,-,614.34,-,614. SAM-DC69-00804A
...
3-4-1-8
Assembly Thermistor SAM-DC90-10128N
...
3-4-1-9-1
Clamper Hose-Joint; Wf6000h,hswr SAM-DC65-00014E
...
3-4-1-9
Assy Hose Drain; Wf6200,wf6500,wf7500 SAM-DC97-16105B
...
3-4-1-10
Assy Bracket Tub SAM-dc97-16510a
...
3-4-1
Assy Semi Tub Back; Wf5500m,wf45m5100aw SAM-DC97-19673D
...
3-4-2
Assy Hose O.f SAM-dc97-16104a
...
3-4
Assy Tub Back; Wf5500m,wf45m5100aw/a5 SAM-DC97-19990B
...
3
Assy Tub Back Parts; Wf45m5100aw/a5 SAM-DC90-24127A
...
4
Bolt-Hex; M10,l35,zpc2,sm10c,damper SAM-6011-001644

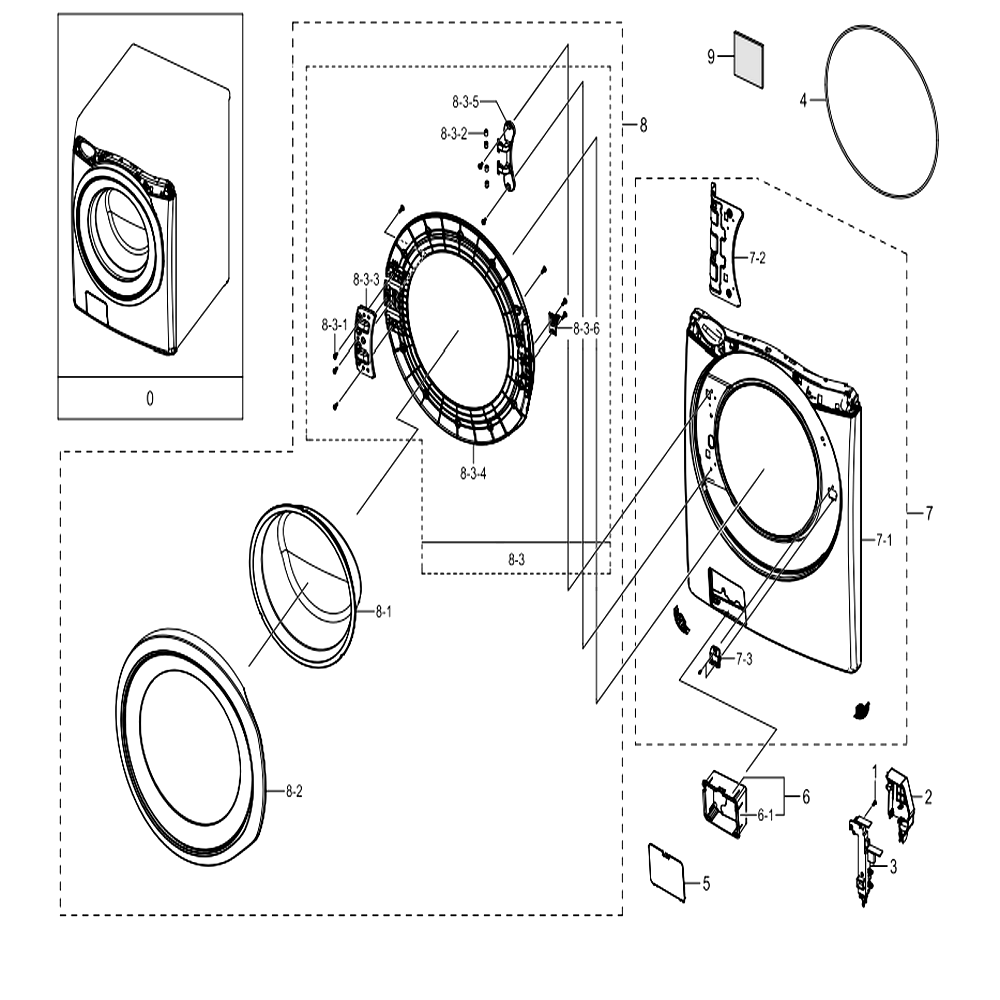

Assy Front Parts

...
...
1
Screw-Hex SAM-6009-001522
...
2
Cover Door Switch SAM-dc63-01156a
...
3
Switch Door Lock SAM-dc64-00519d
...
4
Assy Wire Diaphragm SAM-dc97-04973B
...
5
Assy Cover Filter SAM-dc97-16018V
...
6-1
Guide Cover Filter; Wf520anp,pp,t2.5,fc23 SAM-DC61-02621B
...
6
Assy Case Filter; Wf6000,latch Type SAM-DC97-19494A
...
7-1
Frame Front SAM-dc61-02612n
...
7-2
Bracket Hinge SAM-dc61-02615a
...
7-3
Cover-Switch(o) SAM-dc63-00960a
...
7
Assy Frame Front; Wf45n5300av/us,t0.8,bla SAM-DC97-19515E
...
8-1
Door Glass; All Model,glass,arc/sodalime SAM-DC64-00504C
...
8-2
Cover Door; Wf5000ha,abs,-,-,natural,mp-0 SAM-DC63-01697B
...
8-3-1
Screw-Machine SAM-6001-001668
...
8-3-2
Guide-Hinge SAM-DC61-00891A
...
8-3-3
Support Hinge; Gi-Sgcc,t1.4,l175.0,sbhg1- SAM-DC61-02635A
...
8-3-4
Holder Glass; Wf520,pp,-,dark Holder Gray SAM-DC61-02634A
...
8-3-5
Hinge Door; Wf5000ha,aldc,t3,baking Spray SAM-DC61-03949A
...
8-3-6
Lever Door SAM-dc66-00375a
...
8-3
Assy Holder Glass; Wf6000h,wf45h6300ag SAM-DC97-17358C
...
8
Assy Door; Wf5000ha,wf42h5200af/a2 SAM-DC97-18096A
...
9
Absorber Sponge SAM-dc72-00015L

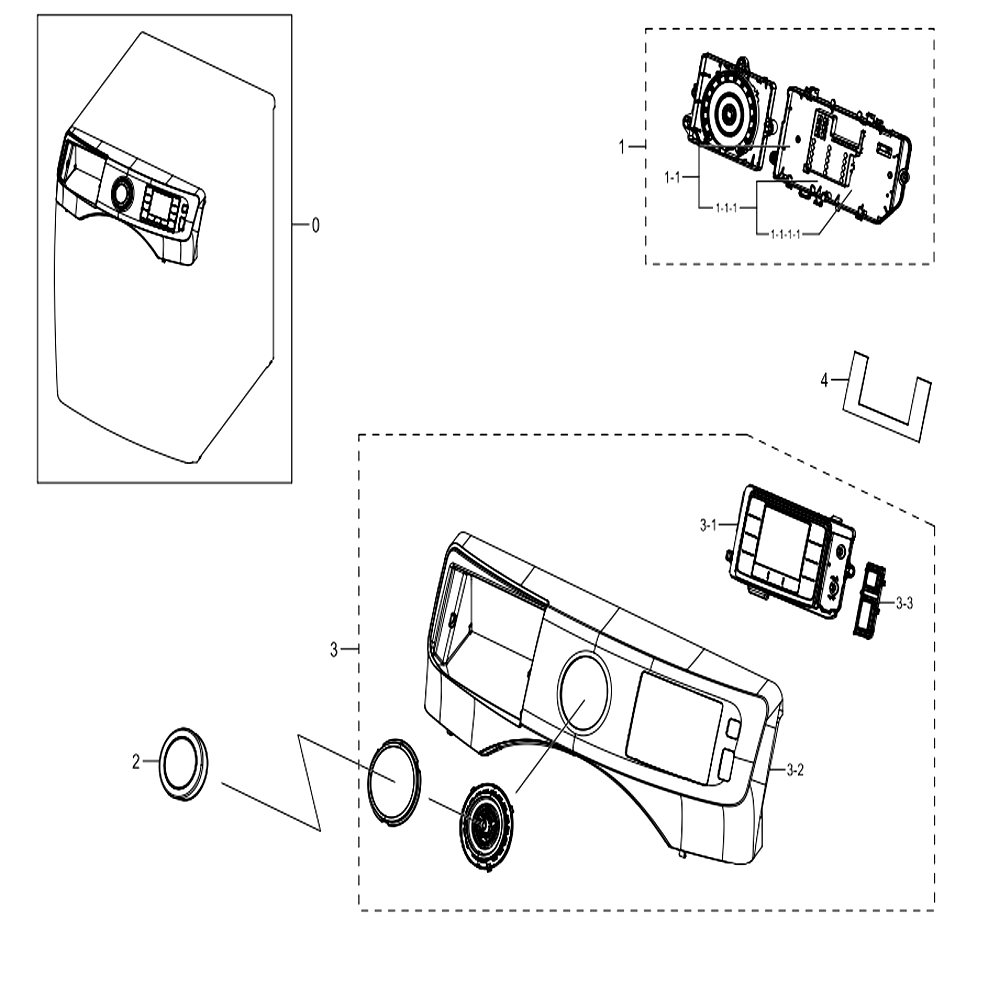

Assy Panel Control Parts

...
...
0
Assy Panel Control Parts; Wf45n5300av/us SAM-DC90-24075E
...
1-1-1-1
Assy Pcb Auto; Fwm_Inv,wf5100m,330*98.5,1 SAM-DC94-07243A
...
1-1-1
Assy Pcb Smd; Fwm_Inv,wf5100m,330*98.5,11 SAM-DC94-07245A
...
1-1
Assy Pcb Manual; Fwm_Inv,wf5100m,330*98.5 SAM-DC94-07244A
...
1
Assy Pcb Display; Fwm_Inv,wf5100m,330*98. SAM-DC92-01802Q
...
2
Assy Knob Encoder SAM-DC97-18058C
...
3-1
Window Panel; 5300af,abs,hb,tx-0510,natur SAM-DC64-03709A
...
3-2
Panel Control; Wf45n5300av/us,abs,hb,hg-0 SAM-DC64-03061F
...
3-3
Button Push SAM-dc64-03066V
...
3
Assy S.panel Control; Wf45n5300av/us SAM-DC97-19650K
...
4
Assy Sensor SAM-dc93-00376d

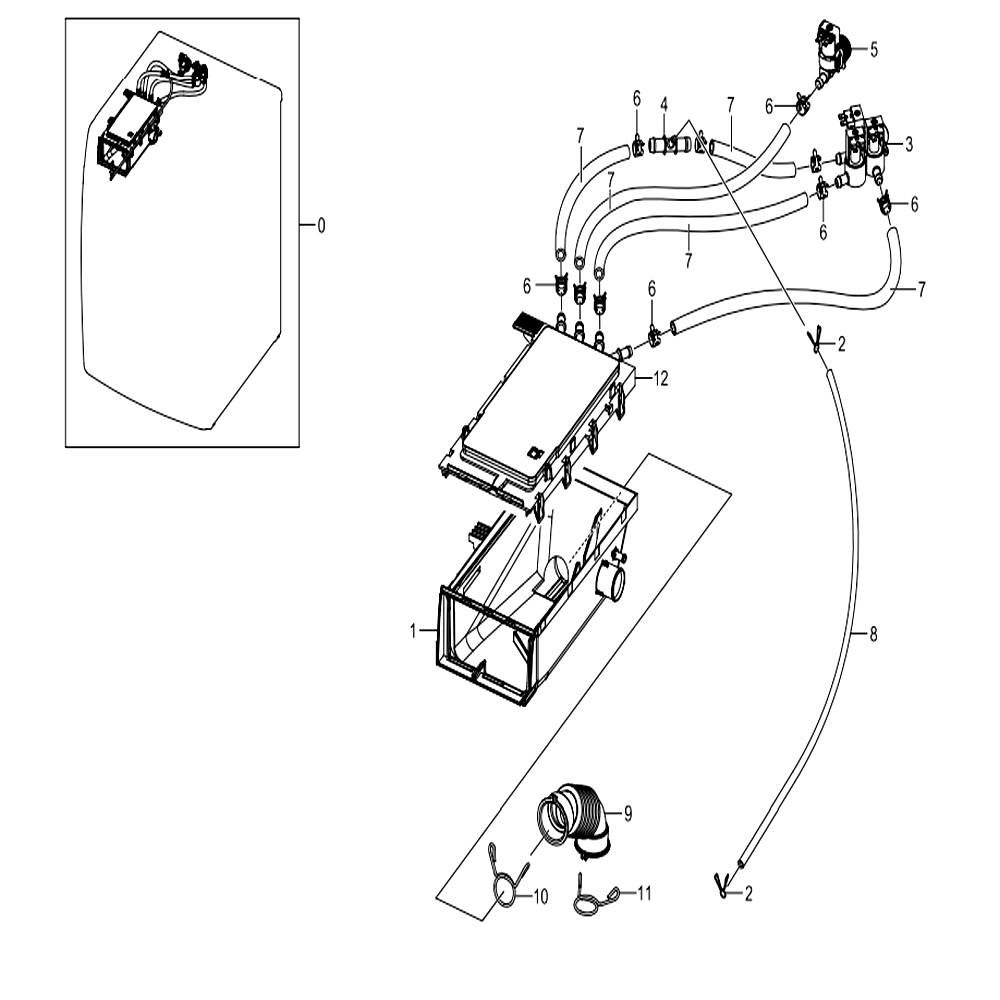

Assy Drawer Parts Assy Housing Drawer

...
...
0
Assy Housing Drawer; Wf6200h,wf45k6200* SAM-DC97-19823B
...
1
Housing Drawer-Low SAM-dc61-02636B
...
2
Clip Ring SAM-dc61-70029c
...
3
Valve Water; Ac110-127v,bracket,inch,ntr, SAM-DC62-00142G
...
4
Pipe Connector SAM-dc62-00176a
...
5
Valve Water SAM-dc62-30314K
...
6
Clamper Hose; Ssec-Ge,sk5,-,dacromet,t1.0 SAM-DC65-00008B
...
7
Hose Drawer SAM-dc67-00051F
...
8
Hose Water; Sew-Hmw125ath,tpe,id5,t2.0,bl SAM-DC67-00089L
...
9
Hose Drawer Tub SAM-dc67-00467a
...
10
Clip Ring SAM-dc72-00001a
...
11
Clip Ring SAM-dc72-00001F
...
12
Assy S.housing Drawer SAM-dc97-16141a

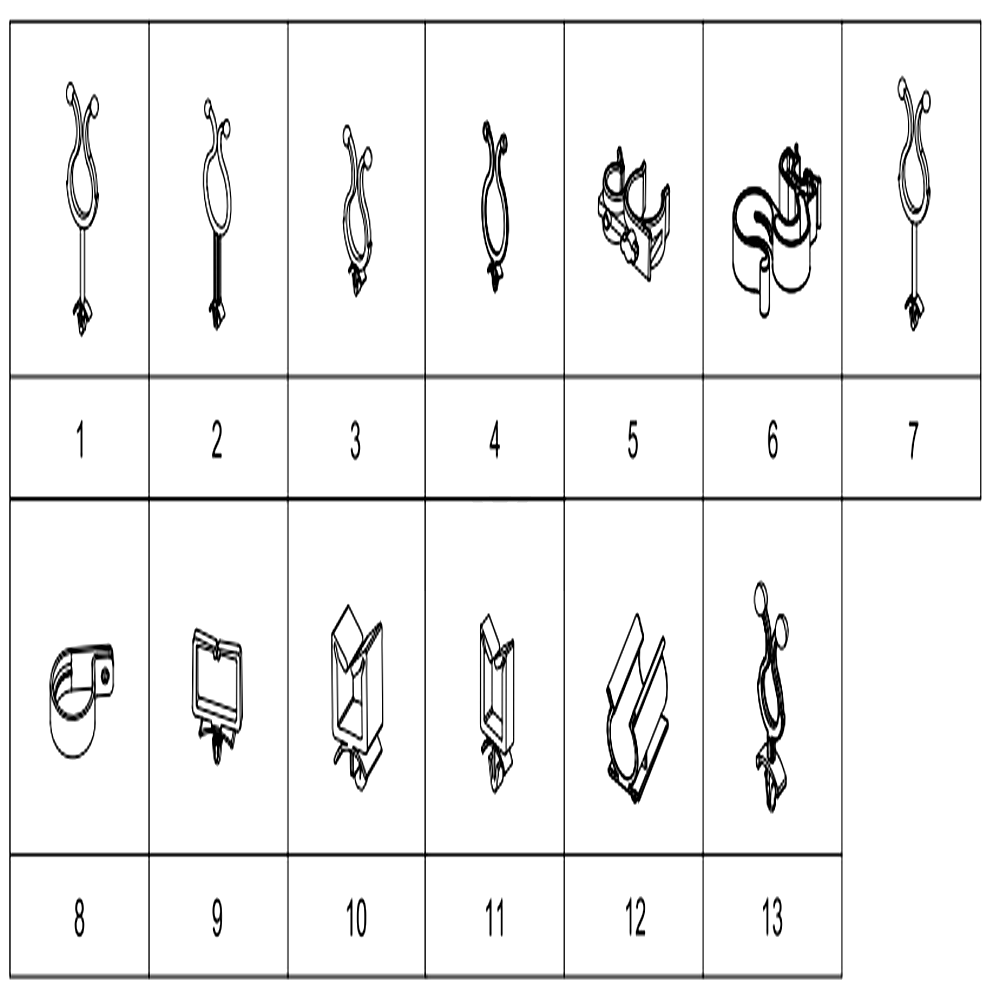

Small Parts

...
...
1
Holder Wire SAM-DC61-00995A
...
2
Holder Wire SAM-DC61-01736B
...
3
Holder-Wire SAM-DC61-40081A
...
4
Holder Wire SAM-DC61-40083A
...
5
Clamper Hose-Fix SAM-DC61-00133A
...
6
Holder Hose SAM-dc61-02706a
...
7
Holder Wire SAM-DC61-00995A
...
8
Clamp-Cable SAM-dc61-00118a
...
9
Holder-Wire SAM-DC61-60074A
...
10
Holder Wire SAM-DC61-02436A
...
11
Cable Clamp SAM-DC61-00553B
...
12
Holder Hose; Q1636,pa,t1.5,ntr,ts-2 Pjt SAM-DC61-01081A
...
13
Cable Clamp SAM-6502-000127

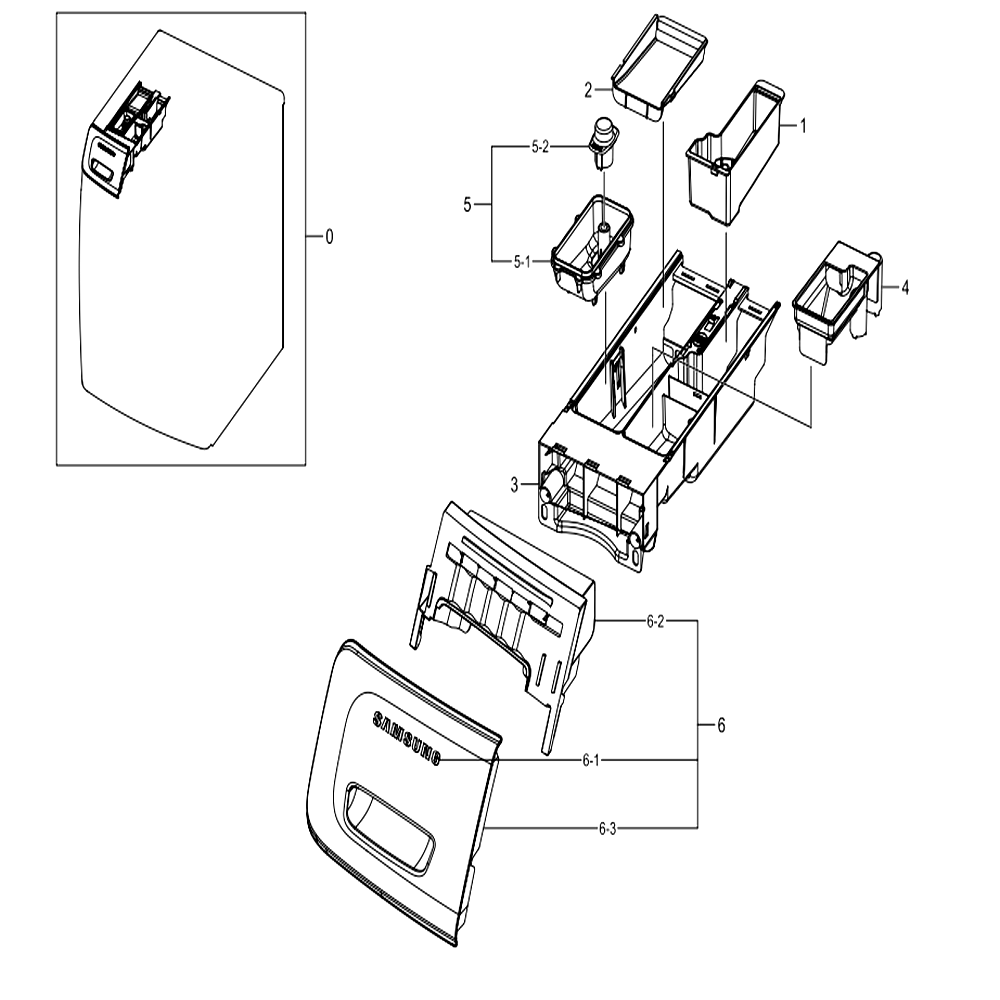

Assy Drawer Parts Assy Drawer

...
...
0
Assy Drawer; Wf5000h,wf45n5300av/us SAM-DC97-18142V
...
1
Case Bleach SAM-dc61-01995a
...
2
Case Pre Wash; Frontier-Pjt,pp,t1.8,wht,t SAM-DC61-02444A
...
3
Body Drawer SAM-dc61-03915a
...
4
Cap Rinse SAM-dc67-00793a
...
5-1
Guide Liquid-Middle SAM-dc61-02427d
...
5-2
Cap Drawer SAM-dc67-00444a
...
5
Assy Detergent SAM-dc97-17022B
...
6-1
Mascot; Mascot,pet,80 SAM-DC64-03434A
...
6-2
Handle Drawer; Wf45k6200az/a2,abs,hg 0760 SAM-DC64-03063E
...
6-3
Panel Drawer; Wf45n5300av/us,abs,hb,hg-07 SAM-DC64-03064G
...
6
Assy Panel Drawer; Wf45n5300av/us SAM-DC97-20701A
