Samsung WF45M5500AW/A5_0051

Model: WF45M5500AW/A5_0051

Save Part Not Listed?
product name

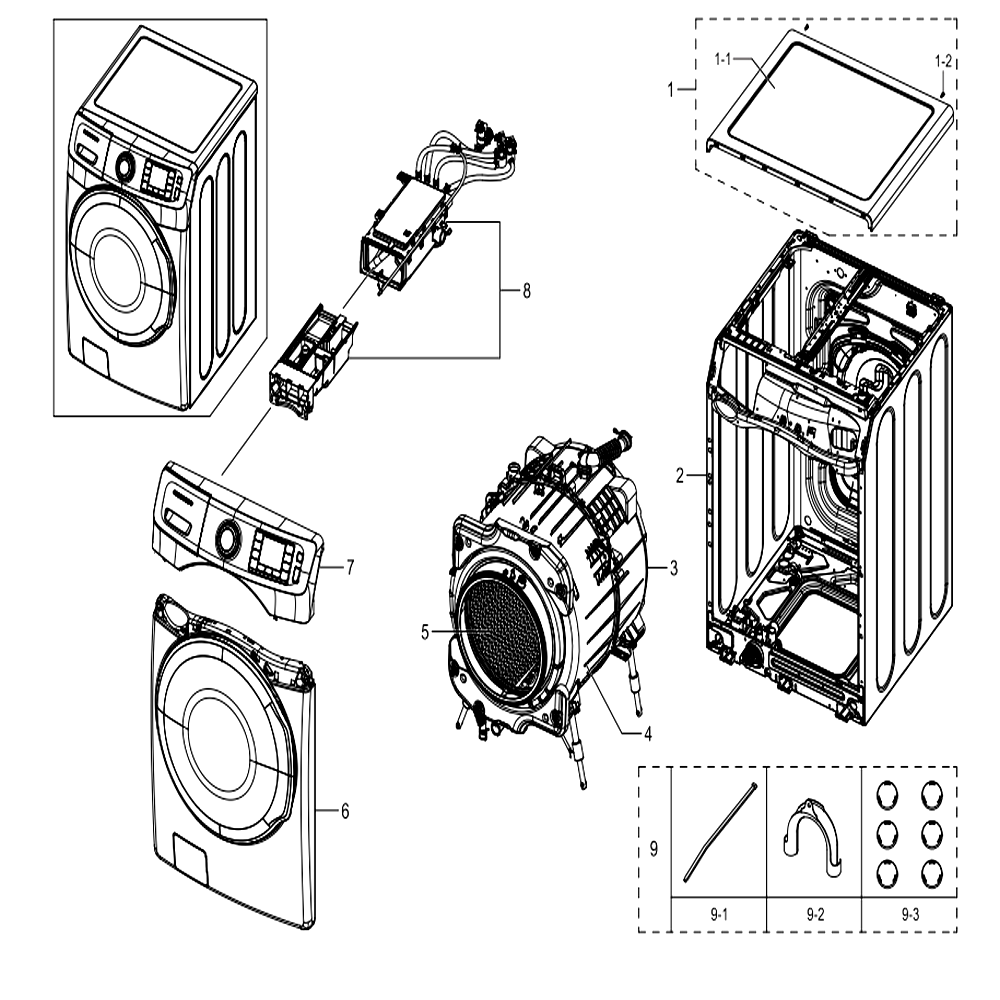

Main

...
...
1-1
Assy Cover Top; Wf5500m,wf45m5500aw,0.8,n SAM-DC97-19464D
...
1-2
Screw-Tapping SAM-6002-001431
...
1
Assy Cover Top Parts; Wf45m5500aw/a5 SAM-DC90-24116A
...
2
Assy Frame Parts; Wf5500m,wf45m5500aw/a5, SAM-DC90-00049V
...
3
Assy Tub Back Parts; Wf5500m,seha SAM-DC90-00090H
...
4
Assy Tub Front Parts; Wf5500m,seha SAM-DC90-00090E
...
5
Assy Drum Parts; Wf45m5500ap/a5 SAM-DC90-24123A
...
6
Assy Front Parts; Wf5500m,wf45m5500aw/a5, SAM-DC90-00049Y
...
7
Assy Panel Control Parts; Wf5500m,wf45m55 SAM-DC90-00049U
...
8
Assy Drawer Parts; Wf5500m,wf45m5500ap/a5 SAM-DC90-00051B
...
9-1
Cable Tie SAM-6501-000121
...
9-2
Hose Hanger SAM-dc62-10278a
...
9-3
Cap-Fixer SAM-dc67-00307a
...
9
Assy Accessory; Wf6200,wf45k6200az/a2 SAM-DC98-02917B

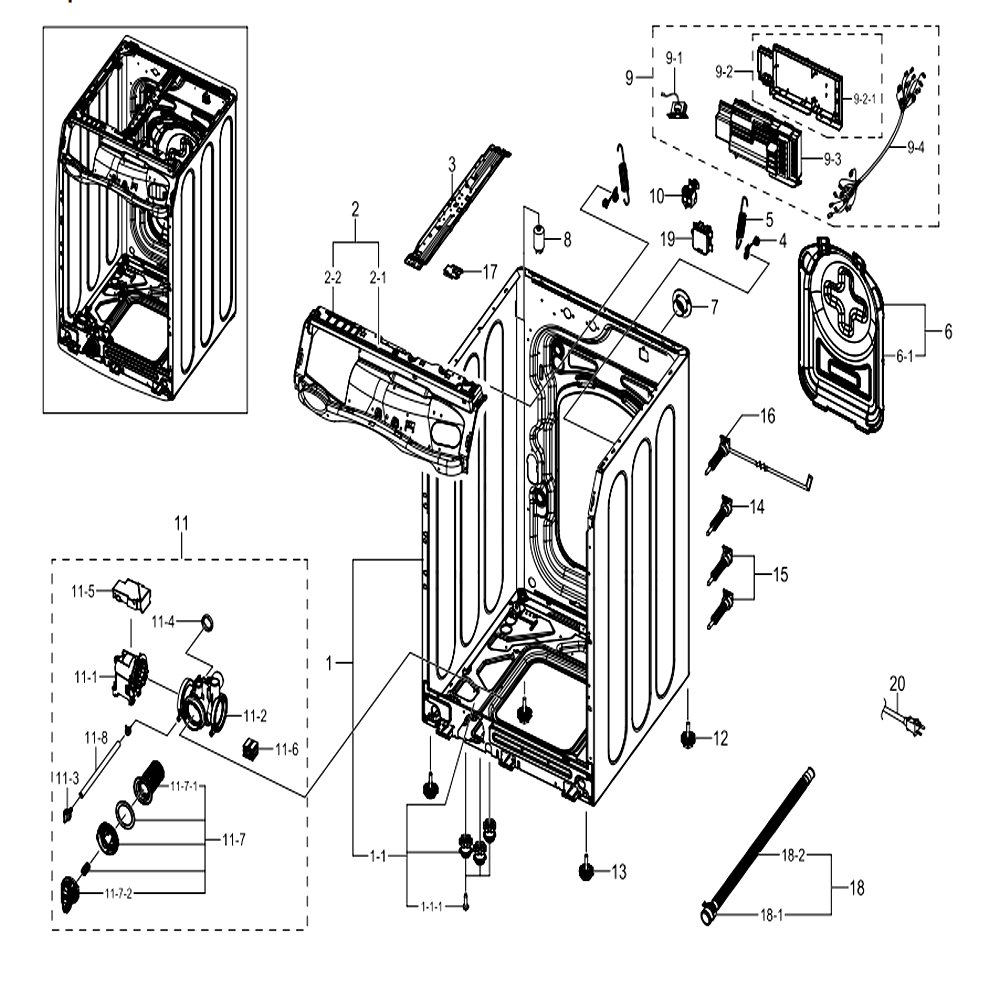

Assy Frame & Cover Parts

...
...
1-1-1
Bolt-Hex SAM-6011-001565
...
1-1
Assy Plate Bottom; Wf5500m,wf45m5500aw/a5 SAM-DC97-20616A
...
1
Assy Frame; Wf5500m,wf45m5500aw/a5,gi-Sgc SAM-DC97-20610A
...
2-1
Guide Panel SAM-DC61-02008B
...
2-2
Frame Plate Up SAM-DC61-02617A
...
2
Assy Frame Plate-Up; Wf5000ha,wf42h5200af SAM-DC97-16017E
...
3
Assy Guide Wire SAM-dc97-08632Y
...
4
Guide Spring SAM-dc61-02432a
...
5
Spring Etc-Hanger SAM-dc61-01257n
...
6-1
Cover Back SAM-dc63-01163a
...
6
Assy Cover Back SAM-dc97-16289B
...
7
Cap O.f SAM-dc67-00316a
...
8
Filter Emi SAM-dc29-00015G
...
9-1
Coil Harmonic SAM-dc26-00009T
...
9-2-1
Assy Kit; Fwm_Inv,wf5500m,yes SAM-DC92-01982A
...
9-2
Fwm,sea,us,4.5; Fwm,sea,us,4.5 SAM-WM01982APC
...
9-3
Assy Cover Pba; Wf5500m,wf45m5500ap/a5 SAM-DC92-01977A
...
9-4
Assy Wire Harness-Main; Drum-L,y,1pump,n, SAM-DC93-00582C
...
9
Assy Cover Pcb W/harness; Wf5500m SAM-DC92-02083A
...
10
Sensor Pressure SAM-dc96-01703G
...
11-1
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
11-2
Case Pump; Wf220anw,pp,-,-,-,fh2200 SAM-DC61-02017H
...
11-3
Cap Drain SAM-dc61-10673a
...
11-4
Valve Check SAM-dc62-00299a
...
11-5
Cover Pump SAM-dc63-01375a
...
11-6
Cushion Pump; Wf448aag,epdm,-,-,-,40,blk SAM-DC63-00888A
...
11-7-1
Filter Pump SAM-dc63-00909a
...
11-7-2
Handle-Filter Up; Yukon-2k,pom,t2,k300,na SAM-DC64-02914A
...
11-7
Assy Filter SAM-dc97-16991B
...
11-8
Hose Drain SAM-dc67-00244K
...
11
Assy Pump Drain; Wf5500m,wf45m5500ap,no B SAM-DC97-17999N
...
12
Assy Leg SAM-dc97-00920S
...
13
Assy Leg SAM-dc97-14293d
...
14
Assy Fixer Tub SAM-dc97-14489a
...
15
Assy Fixer Tub SAM-dc97-14489E
...
16
Assy Fixer Tub SAM-dc97-14489F
...
17
Assy Sensor SAM-dc93-00278a
...
18-1
Clamper Hose SAM-dc61-01679a
...
18-2
Hose Pump SAM-dc67-00330L
...
18
Assy Hose Drain(i) SAM-dc97-12534K
...
19
Cover Connector; Pp,t2.5,hb,natural,hass SAM-DC63-01964A
...
20
Cbf-Power Cord; At,u.s.a,us3s,gray,1500,s SAM-DC96-00757A

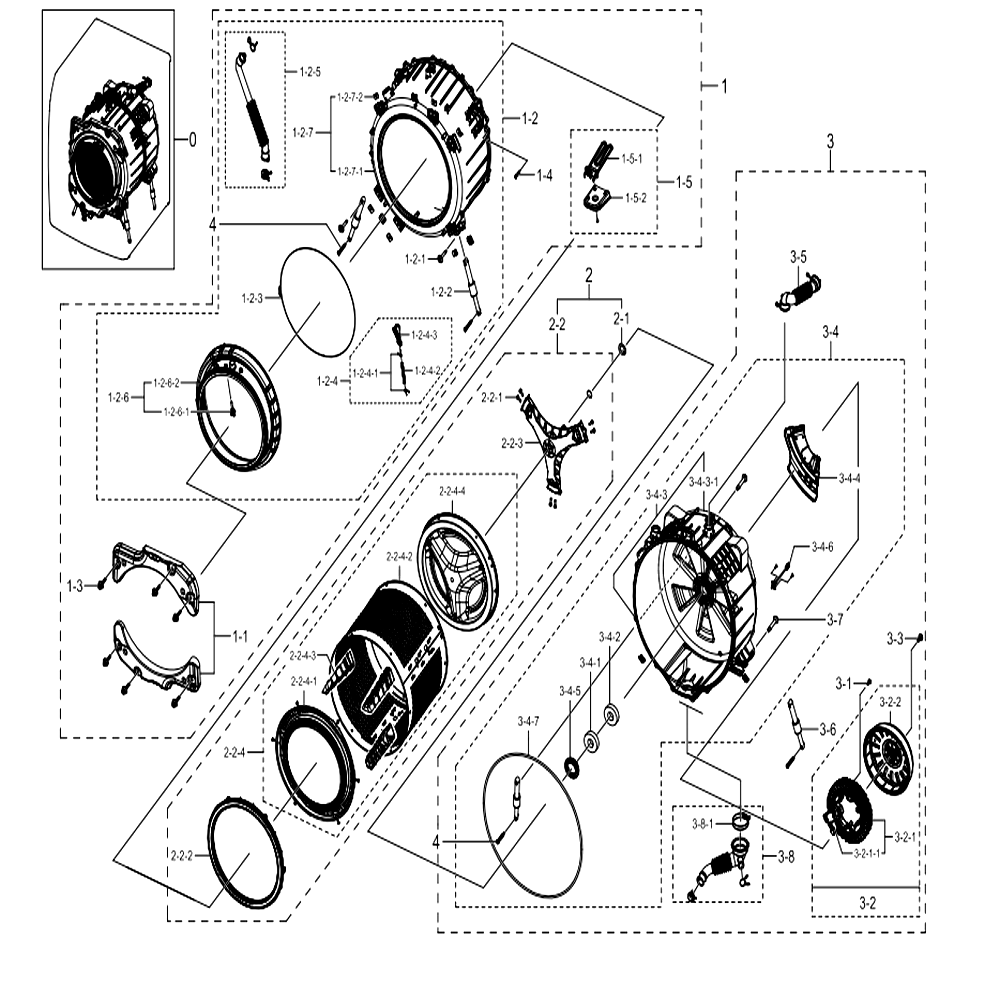

Assy Tub & Drum Parts

...
...
1-1
Weight Balancer SAM-dc67-00560a
...
1-2-1
Bolt Hex SAM-dc60-00113a
...
1-2-2
Damper Shock SAM-dc66-00470a
...
1-2-3
Assy Clamp Diaphragm SAM-dc97-04981F
...
1-2-4-1
Clip Ring SAM-dc61-70029c
...
1-2-4-2
Hose Water SAM-dc67-00230F
...
1-2-4-3
Hose Joint Air SAM-dc67-00492a
...
1-2-4
Assy Hose Pressure SAM-dc97-14545H
...
1-2-5
Assy Hose Air; Wf6200k,wf45k6200az/a2 SAM-DC97-16106B
...
1-2-6-1
Nozzle Diaphragm SAM-dc62-00333a
...
1-2-6-2
Door-Diaphragm; Grace,tpe,t2.5 / T1.5,gry SAM-DC64-02792A
...
1-2-6
Assy Diaphragm; Wf6200 SAM-DC97-19755A
...
1-2-7-1
Tub Front; Wf45m5500,frpp,natural,high-Cy SAM-DC61-04630A
...
1-2-7-2
Bracket Nut SAM-dc61-00201a
...
1-2-7
Assy Semi Tub Front; Wf5500m, Seha SAM-DC97-20908A
...
1-2
Assy Tub Front; Wf5500m, Seha SAM-DC97-20907A
...
1-3
Assy Bolt SAM-dc97-02412a
...
1-4
Bolt-Hex; M6.5,l32,zpc(wht),swrch18a,hwh SAM-6009-001367
...
1-5-1
Heater Wash SAM-dc47-00006Y
...
1-5-2
Cover Heater SAM-dc63-00820a
...
1-5
Assy Heater SAM-dc96-01417B
...
1
Assy Tub Front Parts; Wf5500m,seha SAM-DC90-00090E
...
2-1
Washer-Spring; Sts304,id35.2,od39.0,t0.3, SAM-6031-001640
...
2-2-1
Bolt Hex SAM-dc60-40137a
...
2-2-2
Assy Balancer SAM-dc97-12135a
...
2-2-3
Assy Flange Shaft SAM-dc97-16509c
...
2-2-4-1
Drum Front SAM-dc66-00506a
...
2-2-4-2
Drum Wrapper SAM-dc66-00594c
...
2-2-4-3
Drum Lifter SAM-dc66-00598a
...
2-2-4-4
Drum Back SAM-dc66-00736a
...
2-2-4
Assy Drum Wrapper SAM-dc97-17018a
...
2-2
Assy Drum SAM-dc97-16086B
...
2
Assy Drum Parts; Wf45m5500ap/a5 SAM-DC90-24123A
...
3-1
Bolt-Etc SAM-6011-004782
...
3-2-1-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
3-2-1
Motor Bldc-Assy Stator SAM-dc31-00111a
...
3-2-2
Motor Bldc-Assy Rotor SAM-dc31-00112a
...
3-2
Assy Dd Bldc Motor SAM-dc93-00168a
...
3-3
Assy Bolt SAM-dc97-06080c
...
3-4-1
Bearing Ball SAM-6601-002516
...
3-4-2
Bearing Ball SAM-6601-002632
...
3-4-3-1
Tub Back; Wf45m5500,frpp,natural,high-Cyc SAM-DC61-04631A
...
3-4-3
Assy Semi Tub Back; Wf5500m, Wf5300, Seha SAM-DC97-20910A
...
3-4-4
Assy Bracket Tub SAM-dc97-16510a
...
3-4-5
Seal Oil SAM-dc62-00156a
...
3-4-6
Assembly Thermistor SAM-DC90-10128N
...
3-4-7
Seal Tub; Gw-Pjt,epdm,blk,-,614.34,-,614. SAM-DC69-00804A
...
3-4
Assy Tub Back; Wf5500m, Seha SAM-DC97-20906A
...
3-5
Assy Hose O.f SAM-dc97-16104a
...
3-6
Damper Shock SAM-dc66-00470B
...
3-7
Bolt Hex SAM-dc60-00113a
...
3-8-1
Clamper Hose-Joint; Wf6000h,hswr SAM-DC65-00014E
...
3-8
Assy Hose Drain; Wf6200,wf6500,wf7500 SAM-DC97-16105B
...
3
Assy Tub Back Parts; Wf5500m,seha SAM-DC90-00090H
...
4
Bolt-Hex; M10,l35,zpc2,sm10c,damper SAM-6011-001644

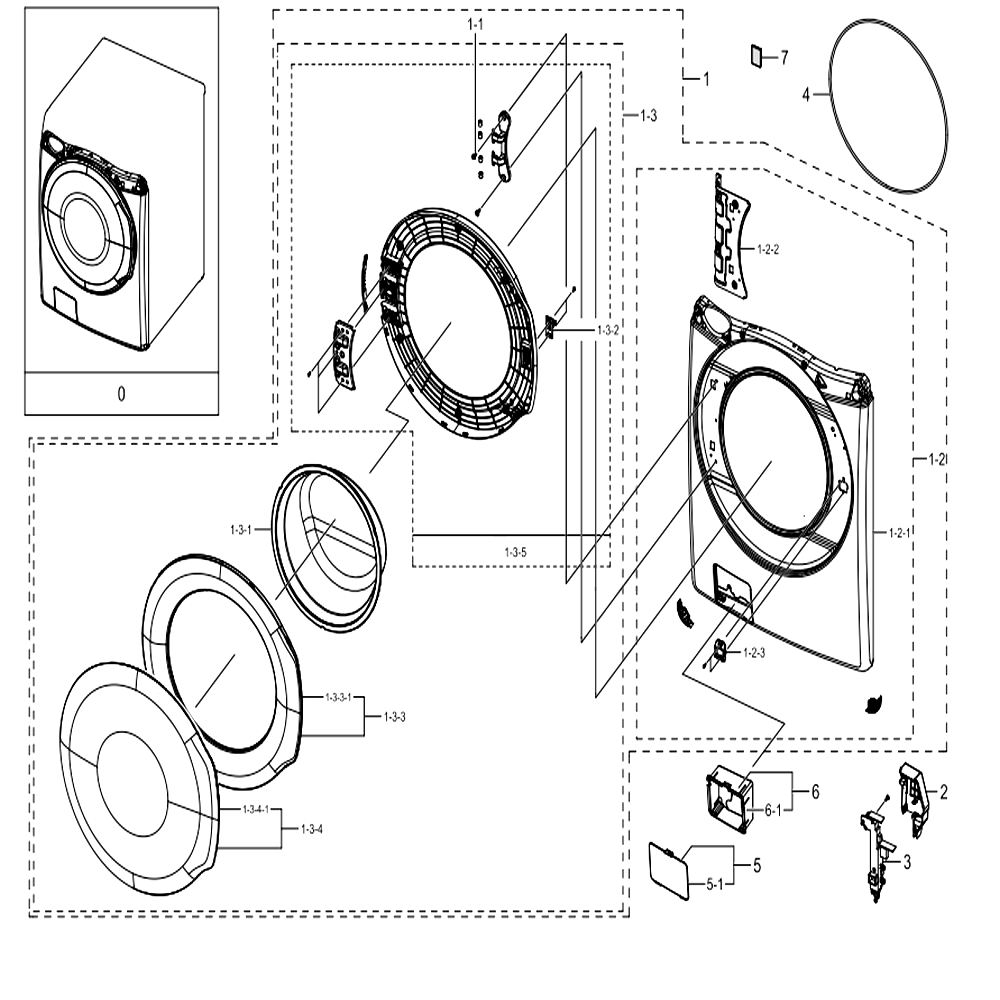

Assy Front Parts

...
...
0
Assy Front Parts; Wf5500m,wf45m5500aw/a5, SAM-DC90-00049Y
...
1-1
Screw-Hex SAM-6009-001522
...
1-2-1
Frame Front; Latch Type,gi-Sgcc,neat Whit SAM-DC61-02867G
...
1-2-2
Bracket Hinge SAM-dc61-02615a
...
1-2-3
Cover-Switch(o) SAM-dc63-00960a
...
1-2
Assy Frame Front; Wf5000h,wf42h5000aw/a2, SAM-DC97-19515A
...
1-3-1
Door Glass; All Model,glass,arc/sodalime SAM-DC64-00504C
...
1-3-2
Lever Door SAM-dc66-00375a
...
1-3-3-1
Cover-Glass; Wv7500m,abs,t3.0,hb,black Ca SAM-DC63-02022A
...
1-3-3
Fwm,sea,us,4.5; Fwm,sea,us,4.5 SAM-WM02022ADR
...
1-3-4-1
Assy Cover Door; Wf5500m,wf45m5500ap SAM-DC97-19996A
...
1-3-4
Fwm,sea,us,4.5; Fwm,sea,us,4.5 SAM-WM19996ACD
...
1-3-5
Assy Holder Glass; Wf5500m,wf45m5500ap/a5 SAM-DC97-20500A
...
1-3
Assy Door; Wf5500m SAM-DC97-20618A
...
1
Assy Frame Front; Wf5500m,wf45m5500aw/a5, SAM-DC97-20804A
...
2
Cover Door Switch SAM-dc63-01156a
...
3
Switch Door Lock SAM-dc64-00519d
...
4
Assy Wire Diaphragm SAM-dc97-04973B
...
5-1
Cover Filter; Wf42h5000aw/a2,abs,hb,neat SAM-DC63-01264F
...
5
Assy Cover Filter; Big Drum,wf42h5000aw/a SAM-DC97-16401G
...
6-1
Guide Cover Filter; Wf520anp,pp,t2.5,fc23 SAM-DC61-02621B
...
6
Assy Case Filter; Wf6000,latch Type SAM-DC97-19494A
...
7
Absorber Sponge SAM-dc72-00015L

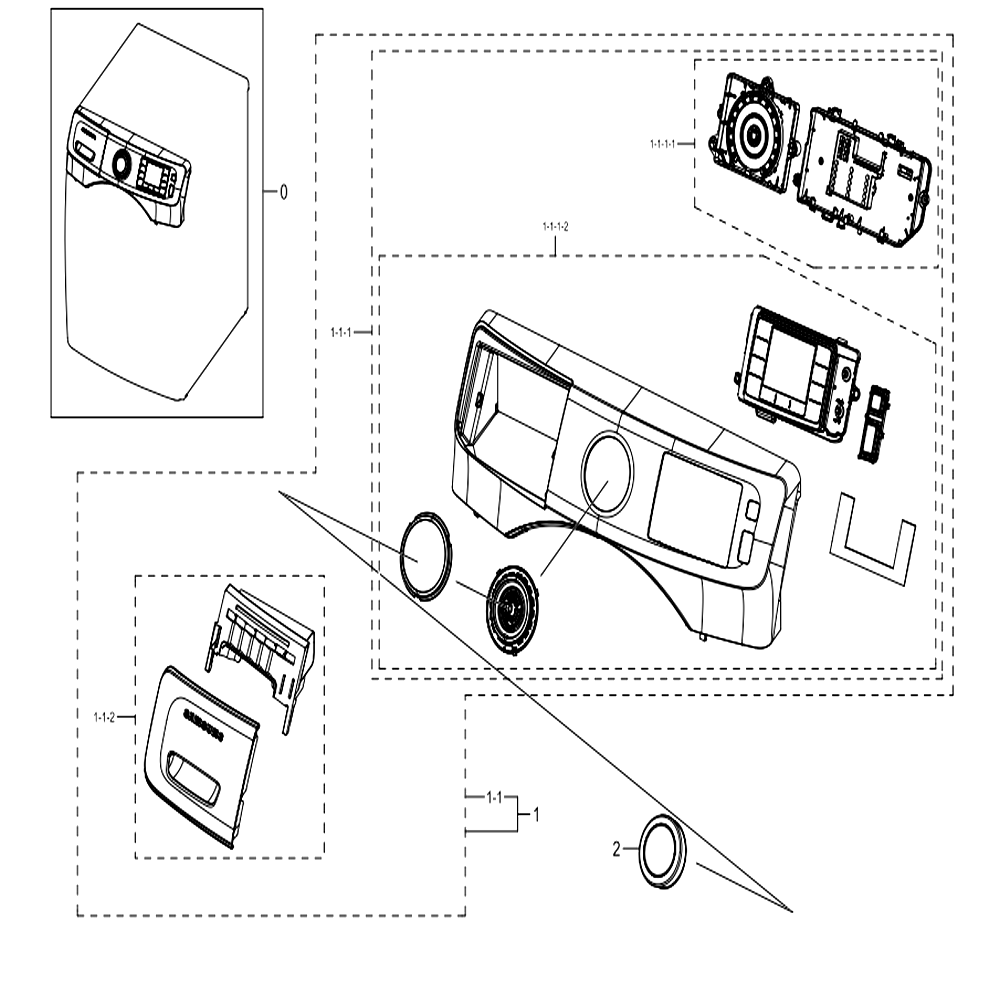

Assy Panel Control Parts

...
...
0
Assy Panel Control Parts; Wf5500m,wf45m55 SAM-DC90-00049U
...
1-1-1-1
Assy Pcb Display; Fwm_Inv,wf5500m,330*98. SAM-DC92-01802P
...
1-1-1-2
Assy S.panel Control; Wf5500m,wf45m5500aw SAM-DC97-19650F
...
1-1-1
Assy Panel Control; Wf5500m,wf45m5500aw/a SAM-DC97-20506A
...
1-1-2
Assy Panel Drawer; Wf5500m,wf45m5500aw/a5 SAM-DC97-18109V
...
1-1
Assy Packing-Panel Control+panel Drawer; SAM-DC90-00052Q
...
1
Fwm,sea,us,4.5; Fwm,sea,us,4.5 SAM-WM20506APN
...
2
Assy Knob Encoder SAM-DC97-18058C

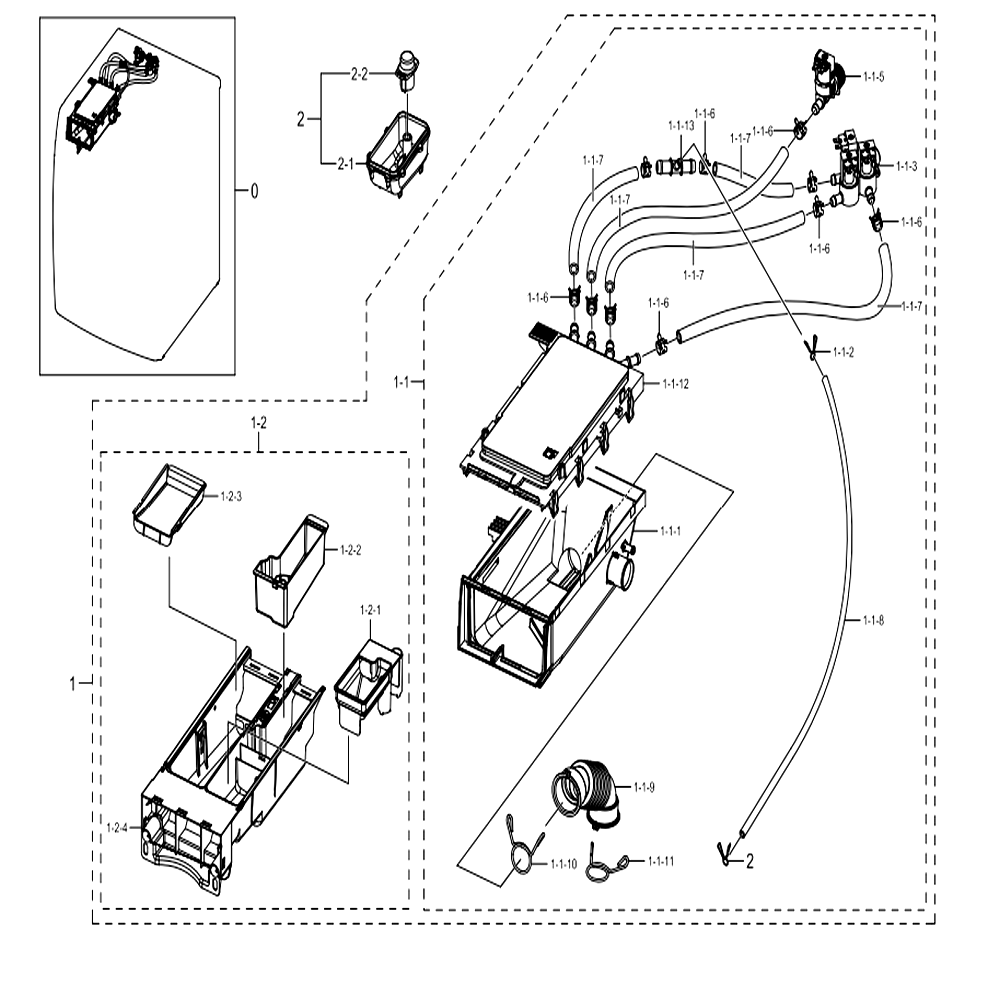

Assy Drawer Parts

...
...
0
Assy Drawer Parts; Wf5500m,wf45m5500ap/a5 SAM-DC90-00051B
...
1-1-1
Housing Drawer-Low SAM-dc61-02636B
...
1-1-2
Clip Ring SAM-dc61-70029c
...
1-1-3
Valve Water; Ac110-127v,bracket,inch,ntr, SAM-DC62-00142G
...
1-1-5
Valve Water SAM-dc62-30314K
...
1-1-6
Clamper Hose; Ssec-Ge,sk5,-,dacromet,t1.0 SAM-DC65-00008B
...
1-1-7
Hose Drawer SAM-dc67-00051F
...
1-1-8
Hose Water; Sew-Hmw125ath,tpe,id5,t2.0,bl SAM-DC67-00089L
...
1-1-9
Hose Drawer Tub SAM-dc67-00467a
...
1-1-10
Clip Ring SAM-dc72-00001a
...
1-1-11
Clip Ring SAM-dc72-00001F
...
1-1-12
Assy S.housing Drawer SAM-dc97-16141a
...
1-1-13
Pipe Connector SAM-dc62-00176a
...
1-1
Assy Housing Drawer; Wf6200h,wf45k6200* SAM-DC97-19823B
...
1-2-1
Cap Rinse SAM-dc67-00793a
...
1-2-2
Case Bleach SAM-dc61-01995a
...
1-2-3
Case Pre Wash; Frontier-Pjt,pp,t1.8,wht,t SAM-DC61-02444A
...
1-2-4
Body Drawer SAM-dc61-03915a
...
1-2
Assy S.drawer; Wf5500m,wf45m5500ap/a5,g/s SAM-DC97-20499A
...
1
Assy Housing Drawer; Wf5500m,wf45m5500ap/ SAM-DC97-20498A
...
2-1
Guide Liquid-Middle SAM-dc61-02427d
...
2-2
Cap Drawer SAM-dc67-00444a
...
2
Assy Detergent SAM-dc97-17022B

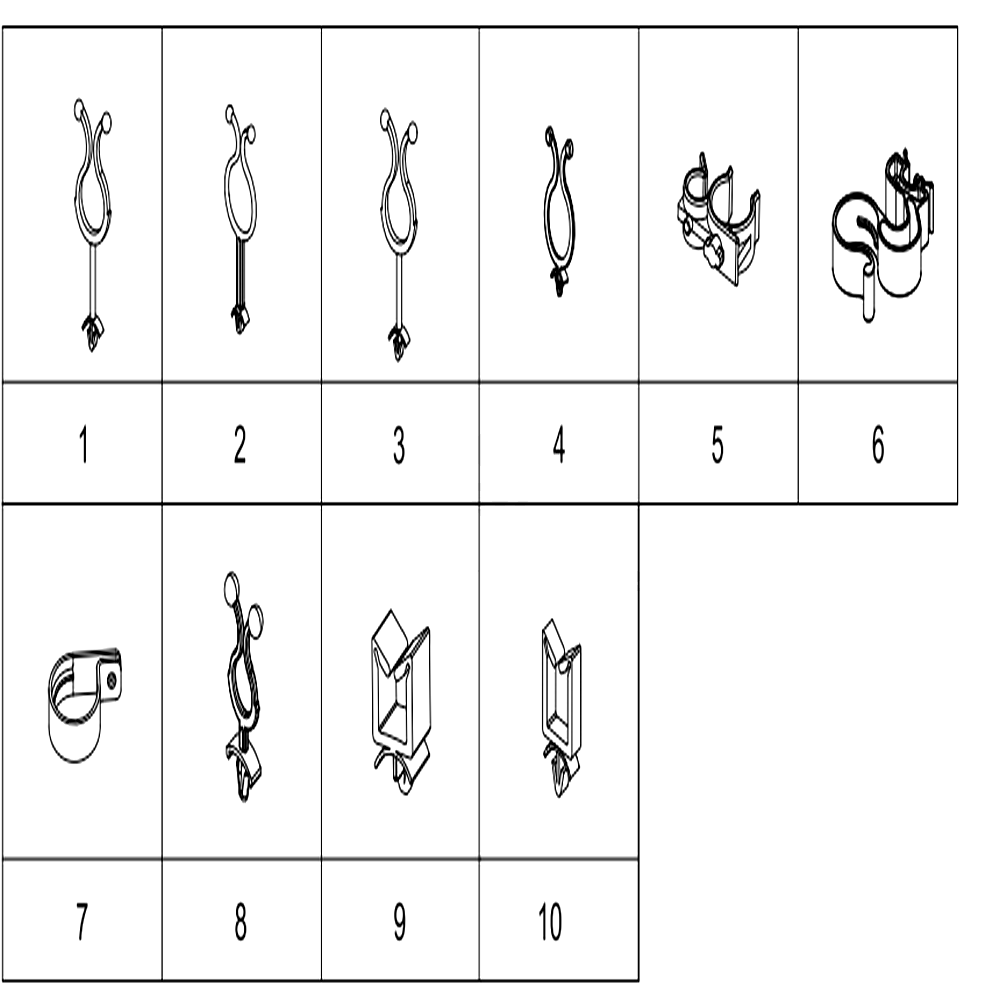

Small Parts

...
...
1
Holder Wire SAM-DC61-00995A
...
2
Holder Wire SAM-DC61-01736B
...
3
Holder Wire SAM-DC61-00995A
...
4
Holder Wire SAM-DC61-40083A
...
5
Clamper Hose-Fix SAM-DC61-00133A
...
6
Holder Hose SAM-dc61-02706a
...
7
Clamp-Cable SAM-dc61-00118a
...
8
Cable Clamp SAM-6502-000127
...
9
Holder Wire SAM-DC61-02436A
...
10
Cable Clamp SAM-DC61-00553B
