Samsung WF45K6500AV/A2_0000

Model: WF45K6500AV/A2_0000

Save Part Not Listed?
product name

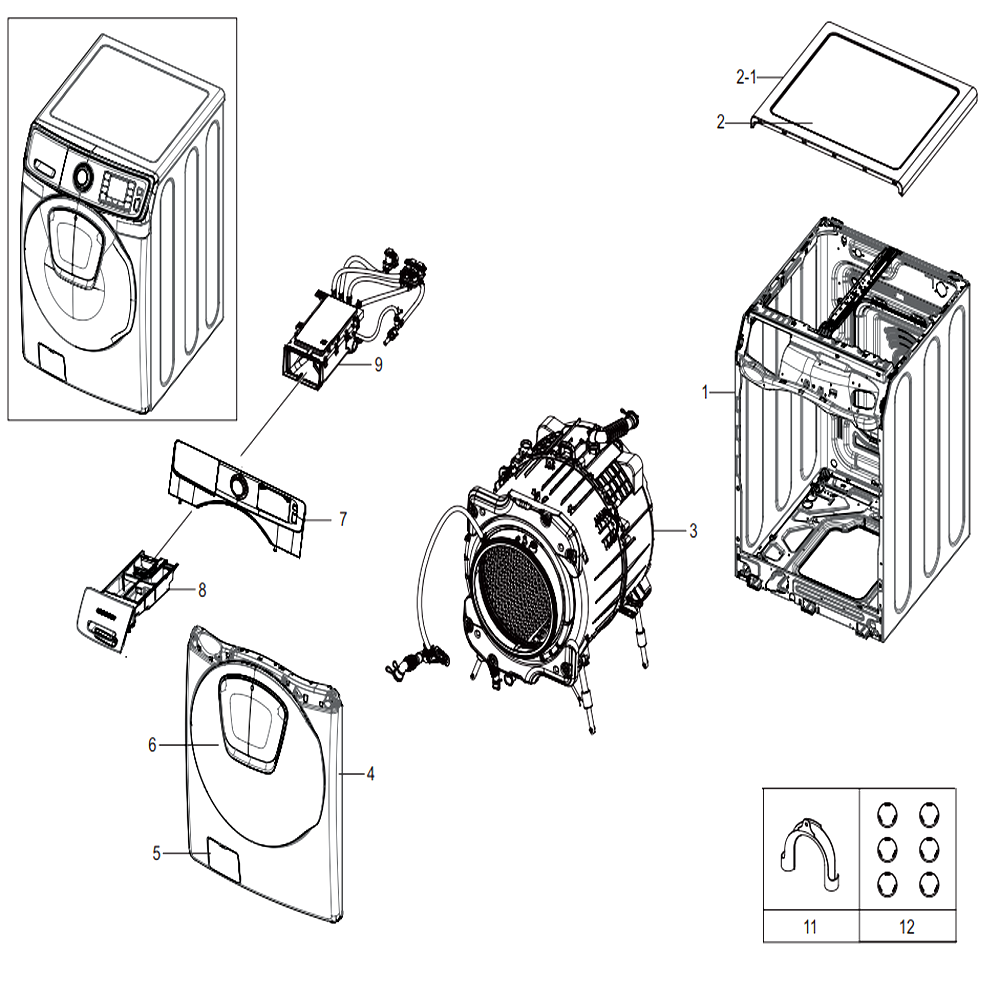

Main

...
...
1
Assy Frame SAM-dc97-18176L
...
2-1
Cover Top SAM-dc63-00926T
...
2
Assy Cover Top SAM-dc97-18174V
...
3
Assy Drum SAM-dc97-16086B
...
4
Assy Door SAM-dc97-19054c
...
5
Assy Cover Filter SAM-dc97-16018V
...
6
Assy Frame Front SAM-dc97-18977E
...
7
Assy Panel Control SAM-dc97-19459a
...
8
Assy Drawer SAM-dc97-18089M
...
9
Assy Housing Drawer SAM-dc97-16142Y
...
10
Hose Hanger SAM-dc62-10278a
...
11
Cap-Fixer SAM-dc67-00307a

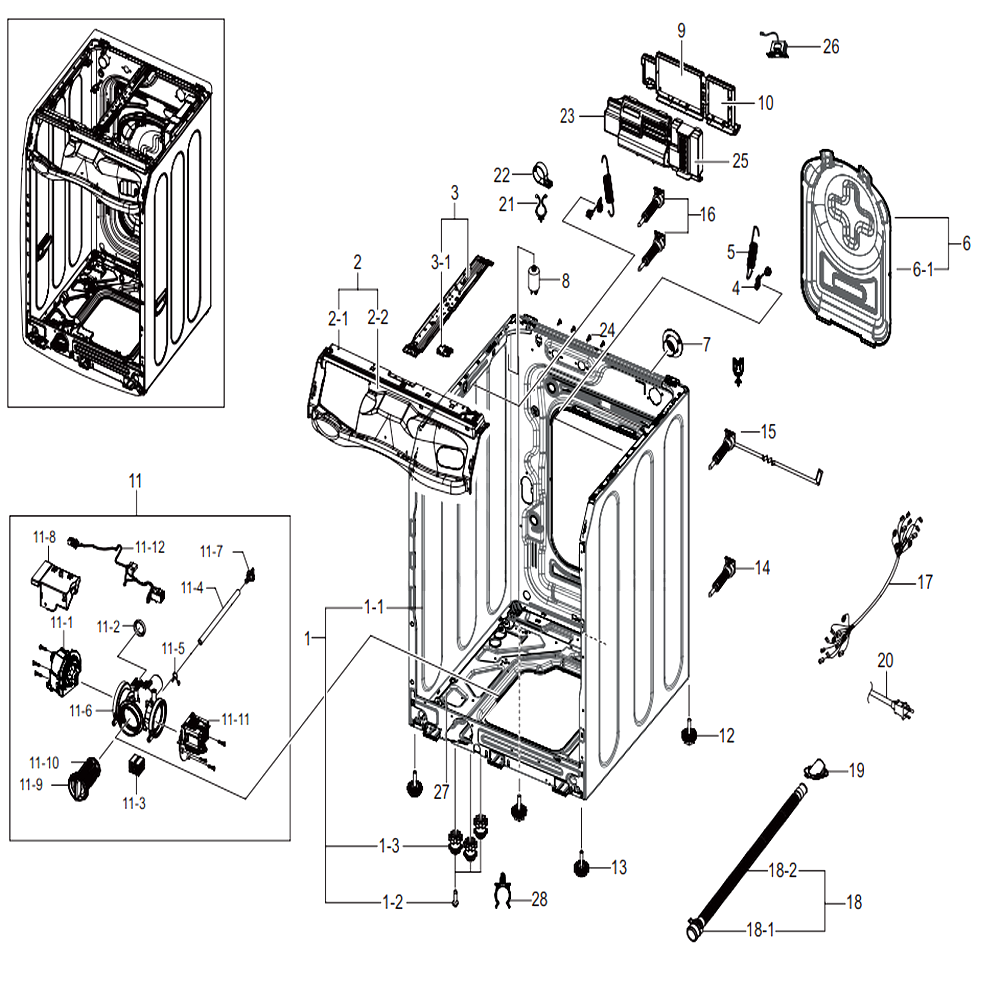

Assy Frame & Cover Parts

...
...
1-1
Frame SAM-dc61-04170B
...
1-2
Bolt-Hex SAM-6011-001565
...
1-3
Holder Hose SAM-dc61-02706a
...
1-4
Assy Cushion Pump SAM-dc99-00815a
...
1
Assy Frame SAM-dc97-18176L
...
2-1
Guide Panel SAM-DC61-02008B
...
2-2
Frame Plate Up SAM-DC61-02617A
...
2
Assy Frame Plate(u) SAM-dc97-16017B
...
3-1
Assy Sensor SAM-dc93-00278a
...
3
Assy Guide Wire SAM-dc97-08632Y
...
4
Guide Spring SAM-dc61-02432a
...
5
Spring Etc-Hanger SAM-dc61-01257n
...
6-1
Cover Back SAM-dc63-01163a
...
6
Assy Cover Back SAM-dc97-16289B
...
7
Cap O.f SAM-dc67-00316a
...
8
Filter Emi SAM-dc29-00015G
...
9
Assy Pcb Main SAM-dc92-01803J
...
10
Assy Kit SAM-dc92-01531c
...
11-1
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
11-2
Valve Check SAM-dc62-00299a
...
11-3
Cushion Pump SAM-dc63-01487a
...
11-4
Hose Drain SAM-dc67-00244K
...
11-5
Clamper Hose SAM-dd65-00001F
...
11-6
Case Pump SAM-dc61-02017K
...
11-7
Cap Drain SAM-dc61-10673a
...
11-8
Cover Pump SAM-dc63-01375a
...
11-9
Assy Filter SAM-dc97-16991B
...
11-10
Filter Pump SAM-dc63-00909a
...
11-11
Motor Ac Pump SAM-dc31-00181c
...
11-12
Assy M. Wire Harness-Pump SAM-dc93-00150c
...
11
Assy Pump Drain SAM-dc97-17999L
...
12
Assy Leg SAM-dc97-00920S
...
13
Assy Leg SAM-dc97-14293d
...
14
Assy Fixer Tub SAM-dc97-14489a
...
15
Assy Fixer Tub SAM-dc97-14489F
...
16
Assy Fixer Tub SAM-dc97-14489E
...
17
Assy Wire Harness-Main SAM-dc93-00580B
...
18-1
Clamper Hose SAM-dc61-01679a
...
18-2
Hose Pump SAM-dc67-00330L
...
18
Assy Hose Drain(i) SAM-dc97-12534K
...
19
Guide Hose SAM-dc61-02084c
...
20
Cbf-Power Cord; At,u.s.a,us3s,gray,1500,s SAM-DC96-00757A
...
21
Holder Wire SAM-DC61-40083A
...
22
Clamp-Cable SAM-dc61-00118a
...
23
Assy Cover Pba-Main SAM-dc92-01385a
...
24
Screw-Taptype SAM-6003-000226
...
25
Cover Pba-Inverter SAM-dc63-01571a
...
26
Coil Harmonic SAM-dc26-00009T
...
27
Assy Plate Bottom SAM-dc97-14603X
...
28
Holder-Wire SAM-DC61-40081A
...
29
Holder Wire SAM-DC61-02436A

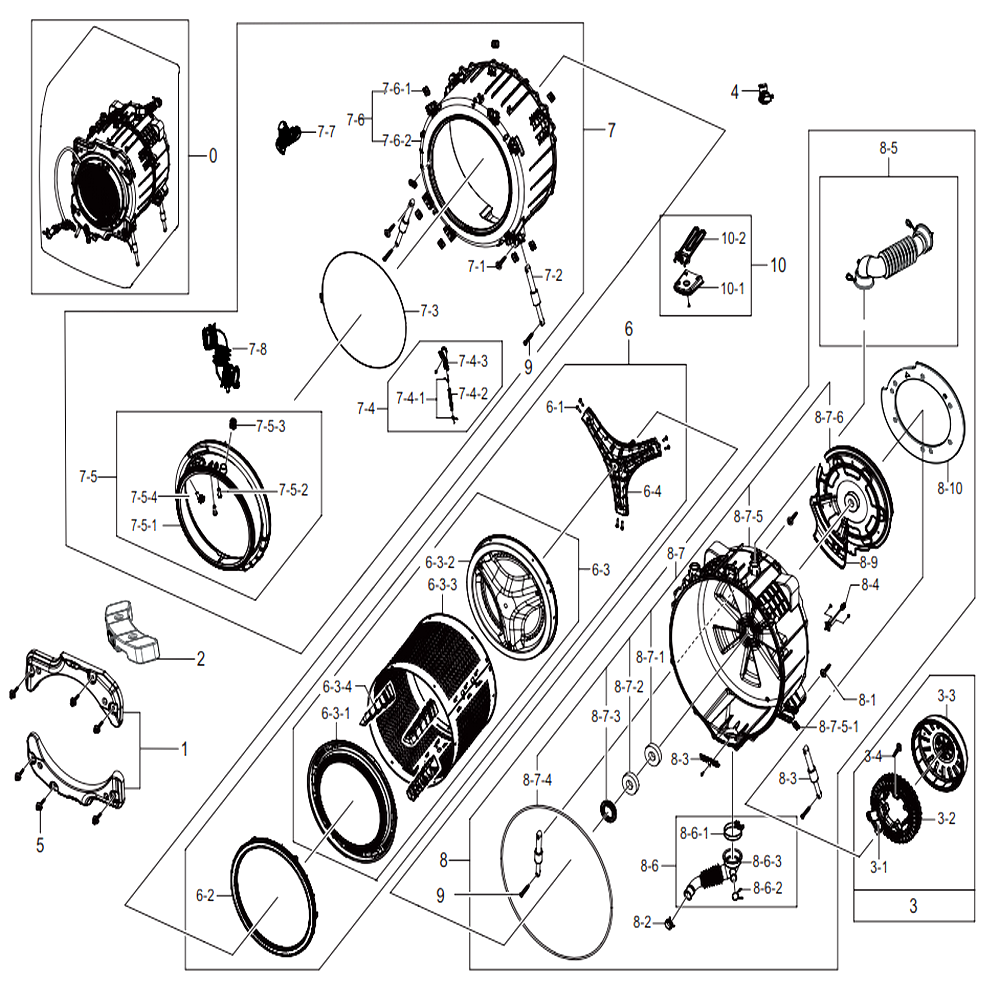

Assy Tub & Drum

...
...
0
Assy Drum SAM-dc97-16086B
...
1
Weight Balancer SAM-dc67-00560a
...
2
Weight Balancer-Right SAM-dc67-00649a
...
3-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
3-2
Motor Bldc-Assy Stator SAM-dc31-00111a
...
3-3
Motor Bldc-Assy Rotor SAM-dc31-00112a
...
3-4
Bolt-Etc SAM-6011-004782
...
3
Assy Dd Bldc Motor SAM-dc93-00168a
...
4
Sensor Pressure SAM-dc96-01703G
...
5
Assy Bolt SAM-dc97-02412a
...
6-1
Bolt Hex SAM-dc60-40137a
...
6-2
Assy Balancer SAM-dc97-12135a
...
6-3-1
Drum Front SAM-dc66-00506a
...
6-3-2
Drum Back SAM-dc66-00736a
...
6-3-3
Drum Wrapper SAM-dc66-00594c
...
6-3-4
Drum Lifter SAM-dc66-00598a
...
6-3
Assy Drum Wrapper SAM-dc97-17018a
...
6-4
Assy Flange Shaft SAM-dc97-16509c
...
6
Assy Drum SAM-dc97-16086B
...
7-1
Bolt Hex SAM-dc60-00113a
...
7-2
Damper Shock SAM-dc66-00470a
...
7-3
Assy Wire Diaphragm SAM-dc97-04973B
...
7-4-1
Clip Ring SAM-dc61-70029c
...
7-4-2
Hose Water SAM-dc67-00230F
...
7-4-3
Hose Joint Air SAM-dc67-00492a
...
7-4
Assy Hose Pressure SAM-dc97-14545H
...
7-5-1
Door Diaphragm SAM-dc64-02174H
...
7-5-2
Nozzle Diaphragm SAM-dc62-00333a
...
7-5-3
Nozzle Diaphragm SAM-dc62-00330a
...
7-5-4
Nozzle Diaphragm SAM-dc62-00349a
...
7-5
Assy Diaphragm SAM-dc97-16140n
...
7-6-1
Bracket Nut SAM-dc61-00201a
...
7-6-2
Tub Front SAM-dc61-02629L
...
7-6
Assy Semi Tub Front SAM-dc97-16156K
...
7-7
Hose Connector SAM-dc67-00760a
...
7-8
Assy Hose SAM-dc97-17389a
...
7
Assy Tub Front SAM-dc97-16149T
...
8-1
Bolt Hex SAM-dc60-00113a
...
8-2
Clamper Hose SAM-dc61-00219d
...
8-3
Damper Shock SAM-dc66-00470B
...
8-4
Assembly Thermistor SAM-DC90-10128N
...
8-5
Assy Hose O.f SAM-dc97-16104a
...
8-6-1
Clamper Hose-Joint SAM-dc65-00014a
...
8-6-2
Clip Ring; Hswr SAM-DC65-60125B
...
8-6-3
Hose Filter Tub SAM-dc67-00465a
...
8-6
Assy Hose Drain SAM-dc97-16105a
...
8-7-1
Bearing Ball SAM-6601-002516
...
8-7-2
Bearing Ball SAM-6601-002632
...
8-7-3
Seal Oil SAM-dc62-00156a
...
8-7-4
Assy Clamp Diaphragm SAM-dc97-04981F
...
8-7-5-1
Bracket Nut SAM-dc61-00201a
...
8-7-5
Tub Back SAM-dc61-02628a
...
8-7-6
Assy Bracket Tub SAM-dc97-16510a
...
8-7
Assy S.tub Back SAM-dc97-16151B
...
8
Assy Tub Back SAM-dc97-17011a
...
9
Assy Bolt SAM-dc97-06080c
...
10-1
Cover Heater SAM-dc63-00820a
...
10-2
Heater Wash SAM-dc47-00006Y
...
10
Assy Heater SAM-dc96-01417B

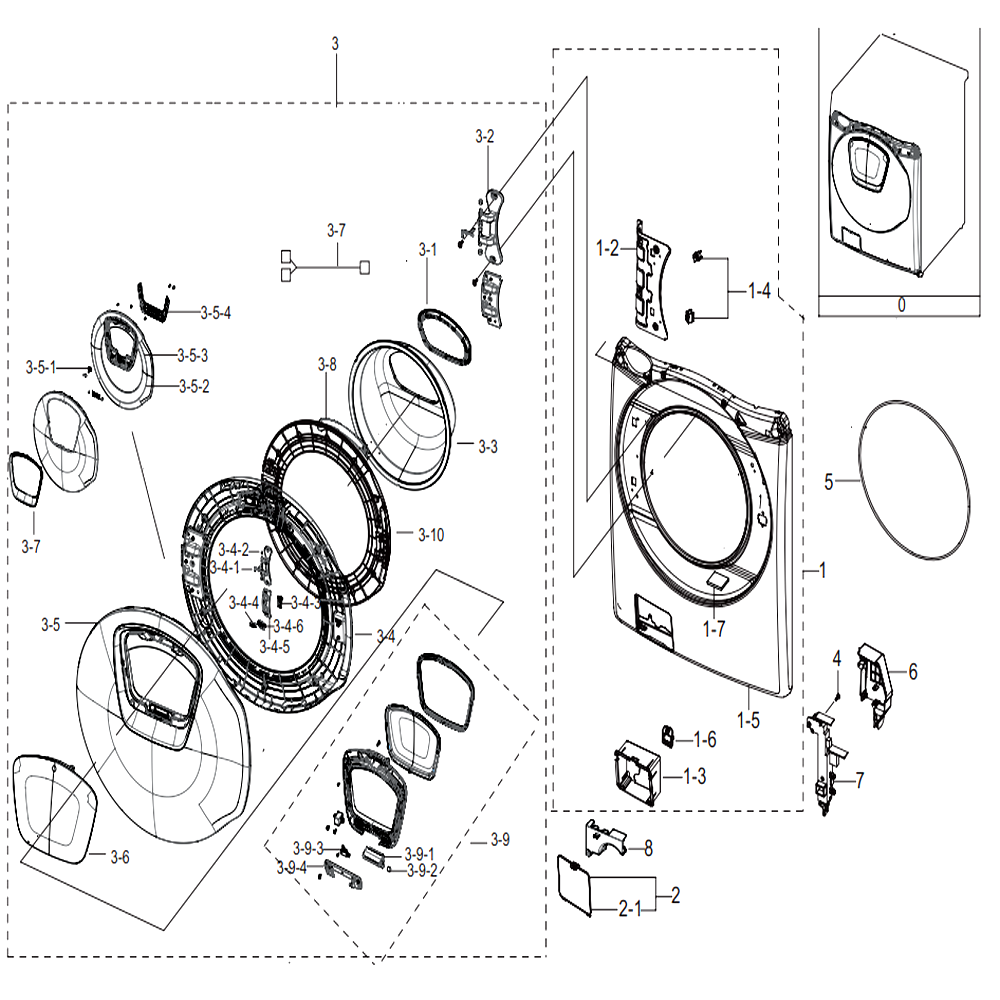

Assy Frame Front & Door

...
...
1-2
Bracket Hinge SAM-dc61-02615a
...
1-3
Assy Case Filter SAM-dc97-19493a
...
1-4
Holder Hose SAM-dc61-04077a
...
1-5
Frame Front SAM-dc61-02612n
...
1-6
Cover-Switch(o) SAM-dc63-00960a
...
1-7
Absorber Sponge SAM-dc72-00015L
...
1
Assy Frame Front SAM-dc97-18977E
...
2-1
Cover Filter-Up SAM-dc63-01157H
...
2
Assy Cover Filter SAM-dc97-16018V
...
3-1
Seal Cap Guide SAM-dc62-00480a
...
3-2
Hinge Door SAM-dc61-04041a
...
3-3
Door Glass SAM-dc64-02965a
...
3-4-1
Cover Hinge SAM-dc63-01885a
...
3-4-2
Guide-Hinge SAM-DC61-00891A
...
3-4-3
Lever Door SAM-dc66-00375a
...
3-4-4
Switch Door SAM-dc64-00828G
...
3-4-5
Support Hinge SAM-dc61-04043a
...
3-4-6
Switch Door Lock SAM-dc34-00025d
...
3-4
Assy Holder Glass SAM-dc97-19056a
...
3-5-1
Lever Tip SAM-dc66-30051a
...
3-5-2
Assy Cover Door SAM-dc97-19055c
...
3-5-3
Cover Door SAM-dc63-01881a
...
3-5-4
Cover Holder SAM-dc63-01883a
...
3-5-5
Decoration Cover Door SAM-dc64-03301a
...
3-5
Door Safety SAM-dc64-03300a
...
3-6
Cover Door SAM-dc63-01882a
...
3-7
Assy Wire Harness- Sub SAM-dc93-00598a
...
3-8
Seal Washer SAM-dc62-00481a
...
3-9-1
Hinge Door SAM-dc61-04042a
...
3-9-2
Guide-Hinge SAM-DC61-00891A
...
3-9-3
Damper Shock-Axis SAM-dc66-00878a
...
3-9-4
Support Hinge SAM-dc61-04044a
...
3-9
Assy Holder Glass SAM-dc97-19057a
...
3-10
Holder Glass SAM-dc61-04040a
...
3
Assy Door SAM-dc97-19054c
...
4
Screw-Tapping SAM-6002-000444
...
5
Screw-Hex SAM-6009-001522
...
6
Cover Door Switch SAM-dc63-01156a
...
7
Switch Door Lock SAM-dc64-00519d
...
8
Cover Connector SAM-dc63-01884B

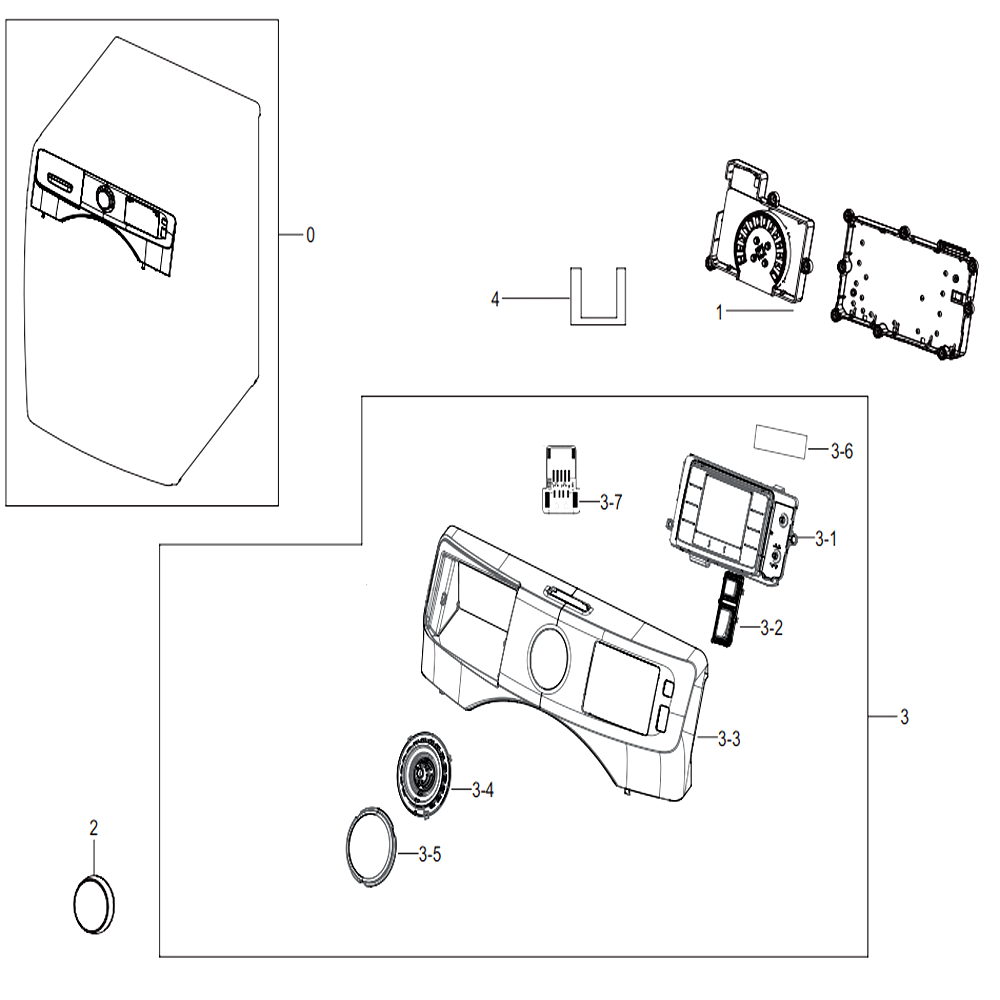

Assy Panel Control

...
...
0
Assy Panel Control SAM-dc97-19459a
...
1
Assy Pcb Display SAM-dc92-01802L
...
2
Assembly Knob Encoder SAM-DC97-18058B
...
3-1
Window Panel SAM-dc64-03062R
...
3-2
Button Push SAM-dc64-03066V
...
3-3
Panel Control SAM-dc64-03423a
...
3-4
Inlay Encoder SAM-dc64-03112B
...
3-5
Window Encoder SAM-dc64-03069a
...
3-6
Inlay Panel SAM-dc64-03114a
...
3-7
Assy Module SAM-DB92-03769A
...
3
Assy S.panel Control SAM-dc97-18088T
...
4
Assy Sensor SAM-dc93-00376d

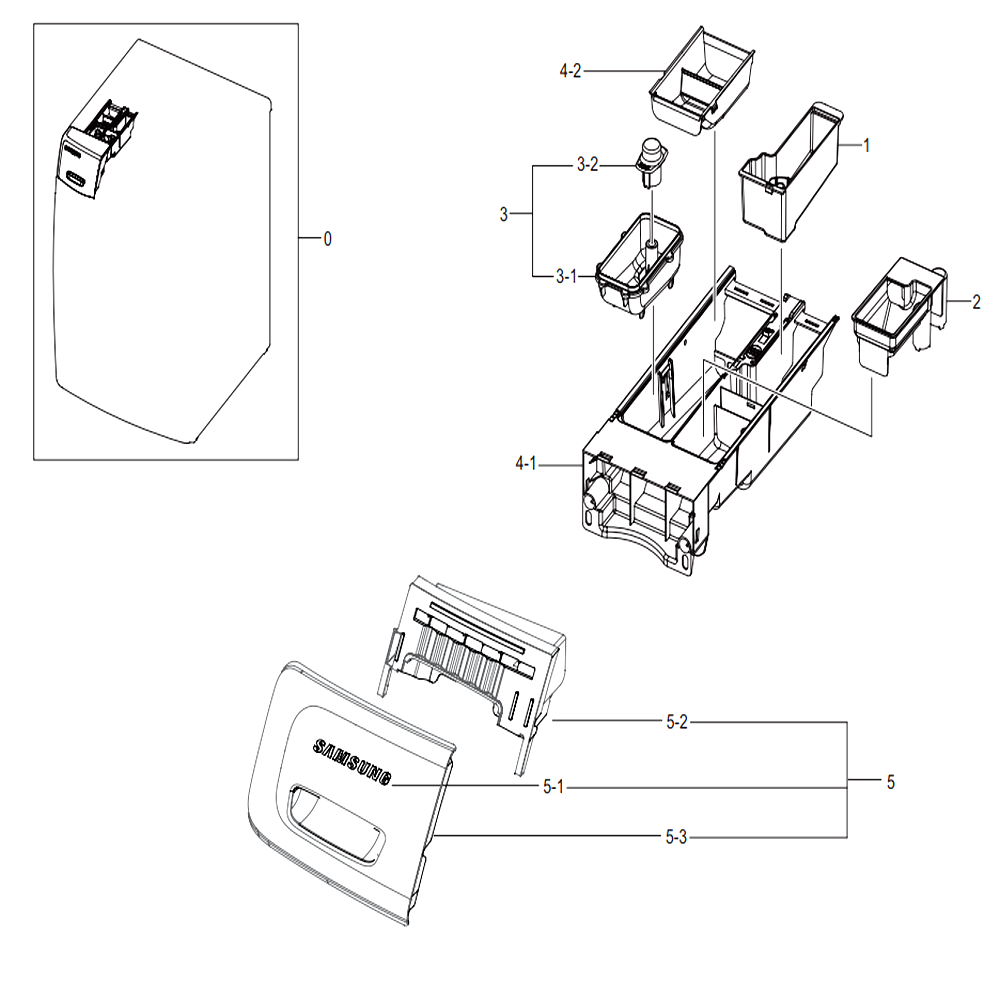

Assy Drawer

...
...
0
Assy Drawer SAM-dc97-18089M
...
1
Case Bleach SAM-dc61-01995a
...
2
Cap Rinse SAM-dc67-00793a
...
3-1
Guide Liquid-Middle SAM-dc61-02427d
...
3-2
Cap Drawer SAM-dc67-00444a
...
3
Assy Detergent SAM-dc97-17022B
...
4-1
Body Drawer SAM-dc61-03915a
...
4-2
Case Pre Wash SAM-dc61-02445a
...
4
Assy S.drawer SAM-dc97-18437a
...
5-1
Mascot SAM-DA64-04020A
...
5-2
Handle Drawer SAM-dc64-03068c
...
5-3
Panel Drawer SAM-dc64-03059E
...
5
Assy Panel Drawer SAM-dc97-18090M

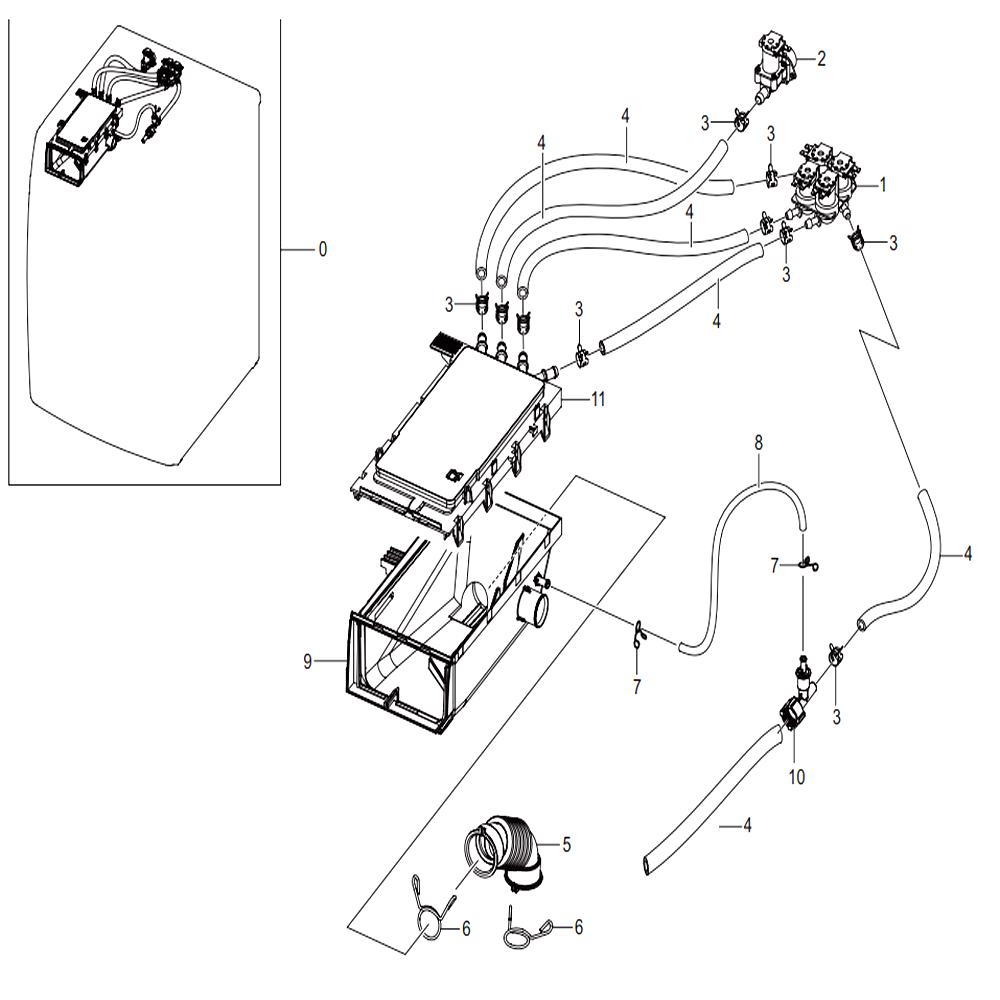

Assy Housing Drawer

...
...
0
Assy Housing Drawer SAM-dc97-16142Y
...
1
Valve Water SAM-dc62-00214M
...
2
Valve Water SAM-dc62-30314K
...
3
Clamper Hose; Ssec-Ge,sk5,-,dacromet,t1.0 SAM-DC65-00008B
...
4
Hose Drawer SAM-dc67-00051F
...
5
Hose Drawer Tub SAM-dc67-00467a
...
6
Clip Ring SAM-dc72-00001F
...
7
Clip Ring SAM-dc61-70029c
...
8
Hose Water SAM-dc67-00089S
...
9
Housing Drawer-Low SAM-dc61-02636B
...
10
Pipe Connector SAM-dc62-00176a
...
11
Assy S.housing Drawer SAM-dc97-16141a
