Samsung WA54M8750AW/A4_0051

Model: WA54M8750AW/A4_0051

Save Part Not Listed?
product name

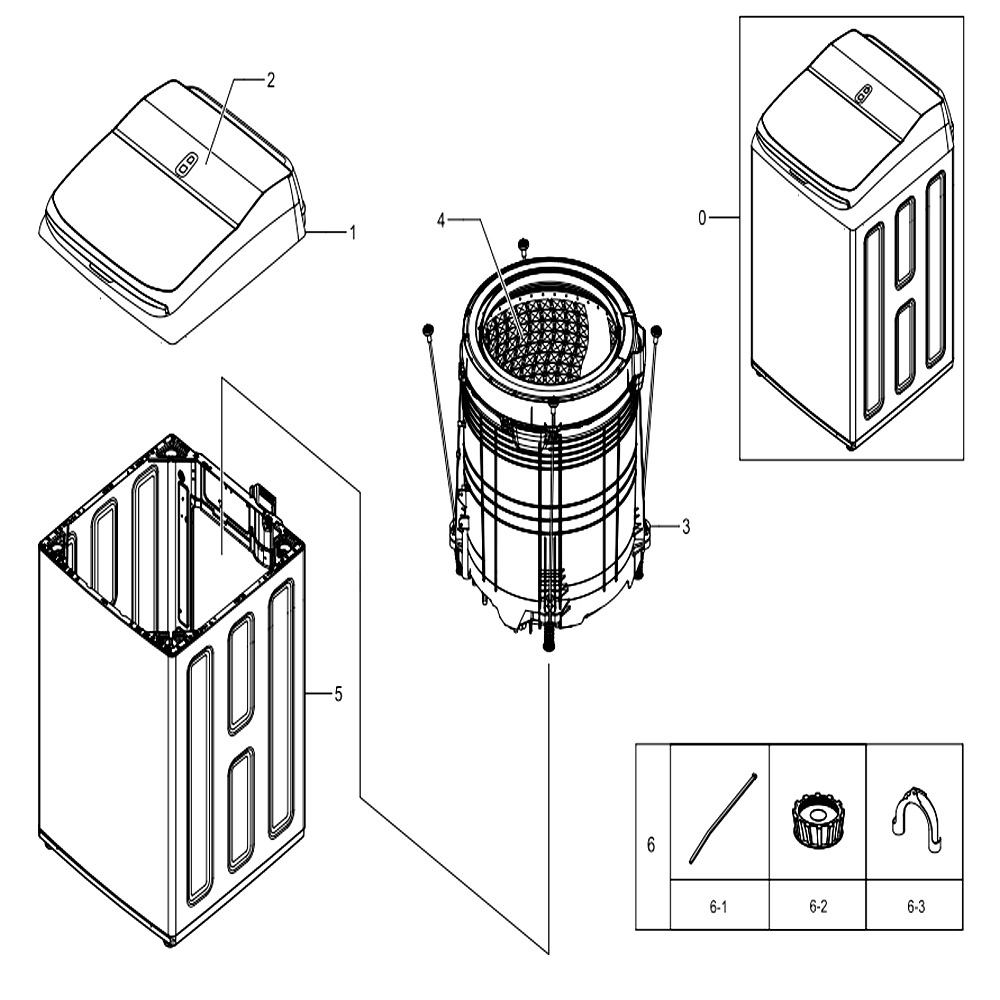

Main

...
...
1
Assy Cover Top Parts; Wa8700m,wa54m8750aw SAM-DC90-00063M
...
2
Assy Panel Control Parts; Wa8700m,wa54m87 SAM-DC90-00064F
...
3
Assy Tub Parts; Wa8700m,wa54m8750aw/a4,se SAM-DC90-00063R
...
4
Assy Basket Spin; Wa8700m,wa54m8750a*,5.2 SAM-DC97-20633A
...
5
Assy Frame Case Parts; Wa8700m,neat White SAM-DC90-00063T
...
6-1
Assembly Cap V.w SAM-DC97-18313A
...
6-2
Cable Clamp SAM-DC61-00553B
...
6-3
Hanger Clamper; Pp,t1.5,black,rm60c SAM-DC61-00224B
...
6
Assy Accessory; Atv-Pjt,all Model SAM-DC98-02985A

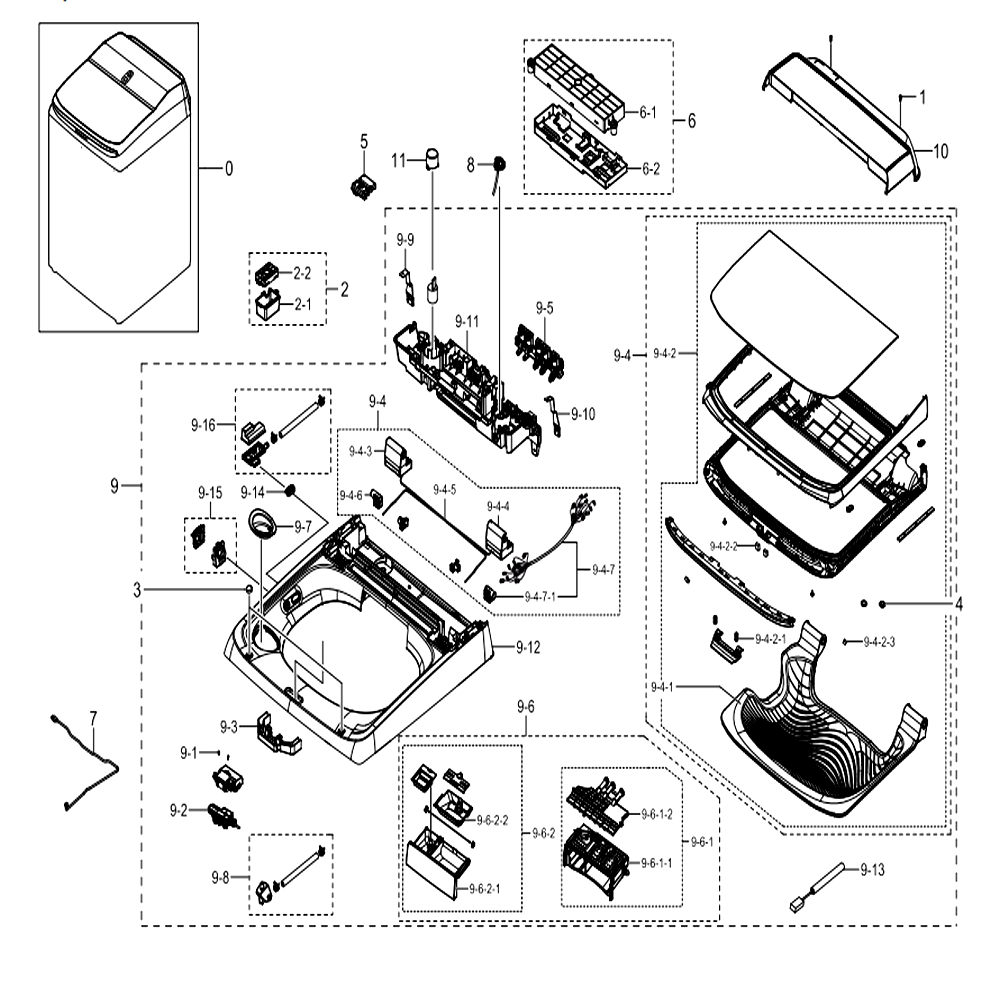

Assy Cover Top Parts

...
...
0
Assy Cover Top Parts; Wa8700m,wa54m8750aw SAM-DC90-00063M
...
1
Screw-Tapping SAM-6002-000524
...
2-1
Cover-Pcb(h); F900a,abs,t2.0,natural,ve-0 SAM-DC63-01558A
...
2-2
Assy Kit; Owm_Inv,wa8700m,heater SAM-DC92-01855C
...
2
Assy Packing-Heater Pcb+cover Pcb; Wa8700 SAM-DC90-00064D
...
3
Cap Screw; Poseion-Rear,si,white,wt0001 SAM-DC67-00453A
...
4
Cap Screw SAM-DC67-00657C
...
5
Cover Connector; Wa3250m,pp,t3,natural,mu SAM-DC63-02117A
...
6-1
Assy Pcb Main; Owm_Inv,wa8700m,328x80,y,1 SAM-DC92-01998A
...
6-2
Assy Cover Pcb; Wa8700m,wa54m8750av(w)/a4 SAM-DC97-20065A
...
6
Assy Packing-Main Pcb+cover Pcb; Wa8700m, SAM-DC90-00064E
...
7
Cbf-Power Cord; At,u.s.a,us3s,gray,1500,s SAM-DC96-00757A
...
8
Sensor Pressure; Air,5v,82020mm SAM-DC96-01703H
...
9-1
Screw-Tapping SAM-6002-000445
...
9-2
Switch Door Lock SAM-DC34-00025E
...
9-3
Case Switch Door; Wa87(6)00m,pp,t2,dark H SAM-DC61-04089B
...
9-4-1
Assy Lid Washing; Wa8700m,wa8600m,pp,silk SAM-DC97-20069A
...
9-4-2-1
Spring Etc Lever; Sew-H350,sts304,od9.4 SAM-DC61-00769A
...
9-4-2-2
Magnet R.s SAM-DC61-03184A
...
9-4-2-3
Cushion Lid; Wa8700k,si,dark Holder Gray, SAM-DC63-01577D
...
9-4-2
Assy Lid T.c; Wa8700m,wa54m8750aw/a4,wi-F SAM-DC97-19284N
...
9-4-3
Hinge-Left; Wa8700k,pom,t2.5,k300,dark Ho SAM-DC61-04092B
...
9-4-4
Hinge-Right; Wa8700k,pom,t2.5,k300,dark H SAM-DC61-04093B
...
9-4-5
Spring Hinge; Wa8700k,swpb,3.1,425.3,zn+3 SAM-DC61-04129A
...
9-4-6
Hinge Door; Wa7700k,pom,t2.0,k300,bk0001( SAM-DC61-04091A
...
9-4-7-1
Hinge Door; Wa7700k,pom,t2.0,k300,bk0001( SAM-DC61-04091A
...
9-4-7
Assy Wire Harness-Sub; Auto,mid,y,sub SAM-DC93-00669A
...
9-4
Assy Door; Wa8700m,wa54m8650aw,neat White SAM-DC97-20597D
...
9-5
Valve Water; Ac110-127v,rubber Sealing, 5 SAM-DC97-15459G
...
9-6-1-1
Body Detergent; Wa8700j / Wa7700j,pp,natu SAM-DC61-04066A
...
9-6-1-2
Guide Water; Wa7700k,pp,t1.6,hb,tb53/fc23 SAM-DC61-04099A
...
9-6-1
Assy Body Detergent; Wa8700k SAM-DC97-19312A
...
9-6-2-1
Panel Drawer; Wa8700k,abs,hb,sr-0300,neat SAM-DC64-03376B
...
9-6-2-2
Guide Detergent; Wa9000ha,abs,sr0300,hone SAM-DC61-03267C
...
9-6-2
Assy Case Detergent; Wa8700,eng,neat Whit SAM-DC97-19313R
...
9-6
Assy Detergent; Wa87(6)00m,wa54(2)m87(6)5 SAM-DC97-20589B
...
9-7
Case Bleach; Wa7700k,abs,t2.0,honesty Blu SAM-DC61-04108A
...
9-8
Assy Nozzle; Wa8700k,wa7700k SAM-DC97-19310C
...
9-9
Bracket Frame; Wa8700k,gi-Sgcc,t1.0,left SAM-DC61-04444A
...
9-10
Bracket Frame; Wa8700k,gi-Sgcc,t1.0,right SAM-DC61-04445A
...
9-11
Cover Plate; Wa87(6)00m,pp,hb,dark Holder SAM-DC63-01919C
...
9-12
Cover Top; Wa54(2)m87(6)50aw,abs,hb,neat SAM-DC63-02173B
...
9-13
Assy Hinge; Wa7700k SAM-DC97-19221B
...
9-14
Cover Nozzle; Wa7700k,abs,t2.0,hb,honesty SAM-DC63-01925A
...
9-15
Assy Button Tact; Wa8700m,wa54(2)m87(6)50 SAM-DC97-20596B
...
9-16
Assy Nozzle; Wa8700k,nozzle Pm Gray SAM-DC97-19311B
...
9
Assy Semi Cover Top; Wa8700m,wa54m8750aw, SAM-DC97-20634B
...
10
Assy Cover T.c; Wa54m8750aw/a4,neat White SAM-DC97-19285H
...
11
Cover Filter; Dual Washer,abs,t2.5,natura SAM-DC63-01432B

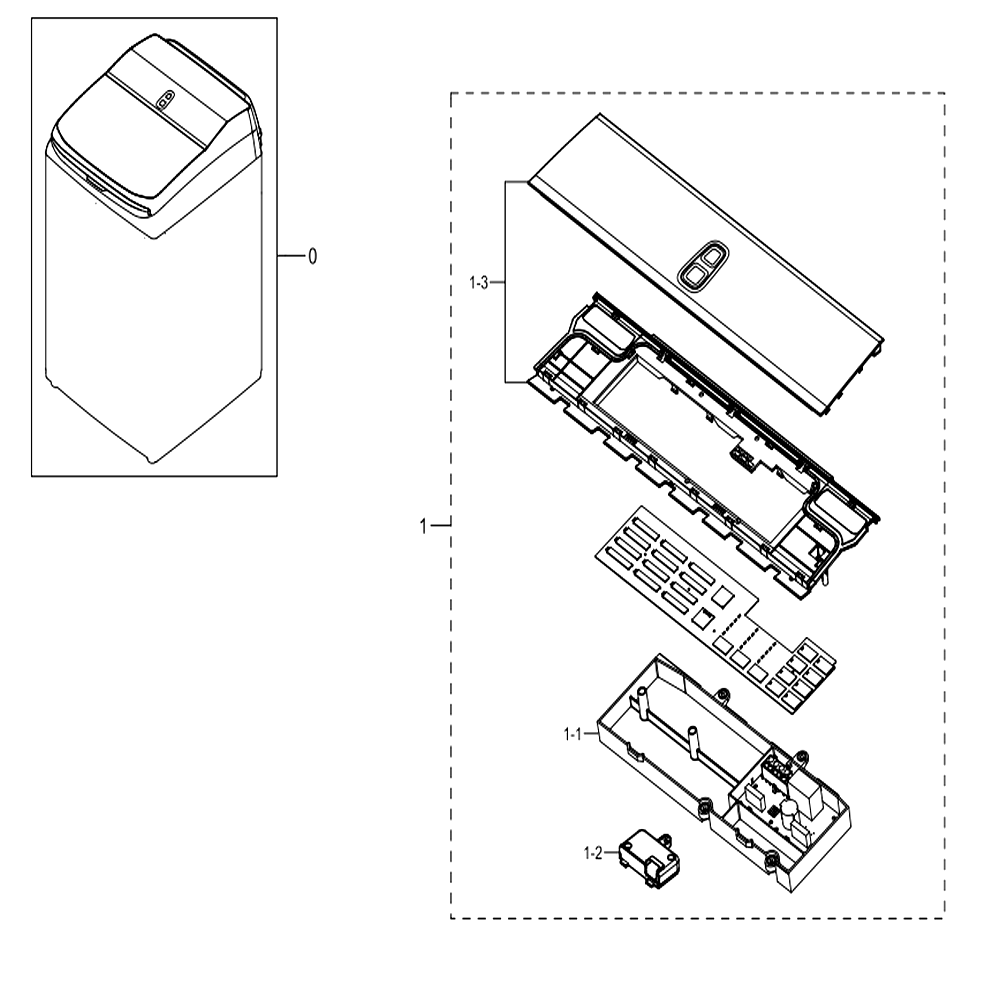

Assy Panel Control Parts

...
...
0
Assy Panel Control Parts; Wa8700m,wa54m87 SAM-DC90-00064F
...
1-1
Assy Pcb Display; Owm_Inv,wa8700k,121*64. SAM-DC92-01864A
...
1-2
Assy Kit; Owm_Inv,wa8700m,assy Wifi Modul SAM-DC92-01888B
...
1-3
Assy S.panel Control; Wa8700m,wa54m8750aw SAM-DC97-19576P
...
1
Assy Panel Control; Wa8700m,wa54m8750aw,t SAM-DC97-20650B

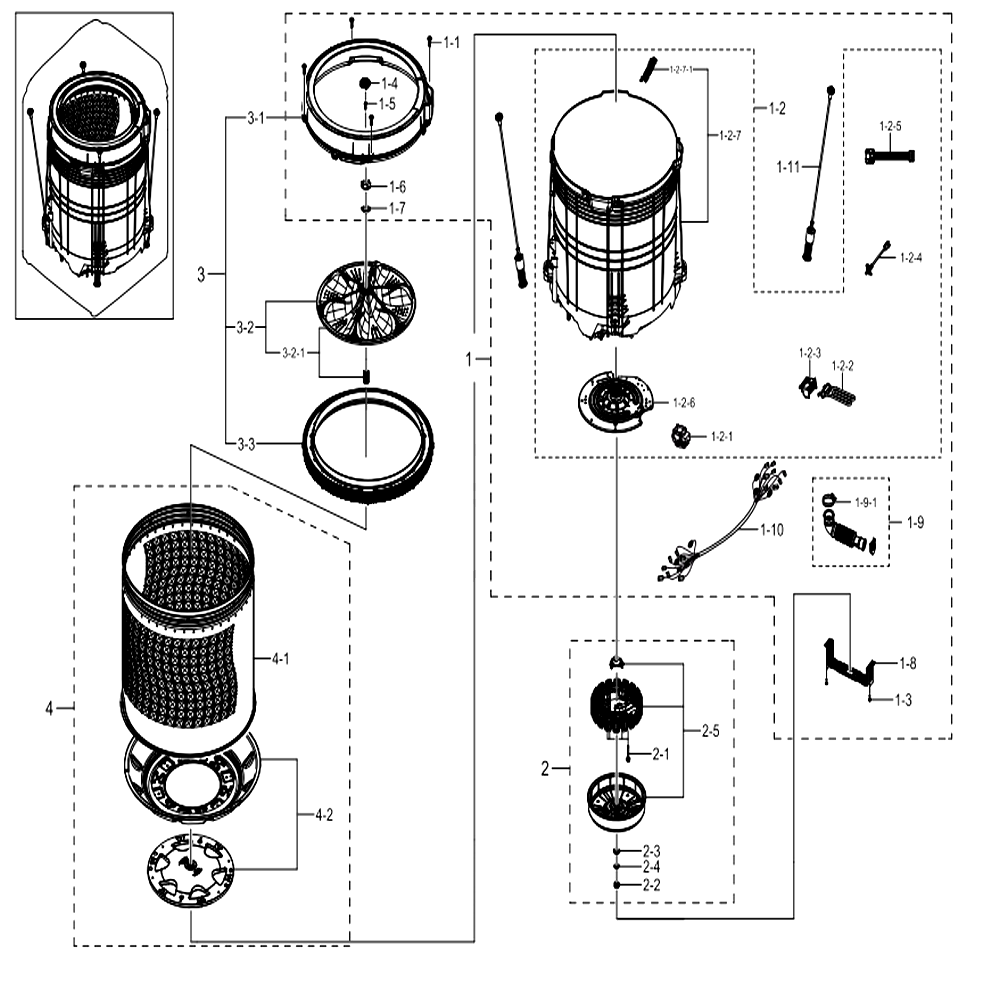

Assy Tub Parts

...
...
1-1
Screw-Tapping; Th,+,no,2,m5,l16,pass,sts4 SAM-6002-001160
...
1-2-1
Motor Drain-Clutch; Td-Sscl-12a,120v,50hz SAM-DC31-00090B
...
1-2-2
Heater Wash; Ac120v,1200w,incoloy800,569m SAM-DC47-00036A
...
1-2-3
Cover Heater; Wa5471abp/xaa,abs+pc,t3.1,v SAM-DC63-01351A
...
1-2-4
Assembly Thermistor SAM-DC90-10128N
...
1-2-5
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
1-2-6
Assy Clutch; F900a,wa50f9a7dsp/a2 SAM-DC97-18439A
...
1-2-7-1
Bracket Heater; Wa5471abp,sts430,t0.6,orc SAM-DC61-01447B
...
1-2-7
Assy Tub Sub; Wa8700m, Wa7700m,wa54m8750a SAM-DC97-20703A
...
1-2
Assy Semi Tub Outer; Wa8700m, Wa7700m,wa5 SAM-DC97-20704A
...
1-3
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-4
Pulsator Cap; All Usa Model(except 3000j) SAM-DC66-00887B
...
1-5
Bolt Pulsator SAM-DC60-40133A
...
1-6
Nut-Hexagon SAM-6021-001573
...
1-7
Washer-Wave SAM-6031-002240
...
1-8
Support Saddle; Wa-Ra169n,gi-Sgcc,t1.2,sb SAM-DC61-02329A
...
1-9-1
Clamper Hose-Joint; F900a,hswr,white SAM-DC65-00014C
...
1-9
Assy Hose Drain(i); Wa7000h SAM-DC97-17345B
...
1-10
Assy Wire Harness-Main; Auto,mid,y,y,y,n, SAM-DC93-00664A
...
1-11
Assy Damper; Owm,df10.5 SAM-0D.4C1,9L77-1158610F
...
1
Assy Tub Parts; Wa8700m,wa54m8750aw/a4,se SAM-DC90-00063R
...
2-1
Bolt-Etc; M6,l56,mfzn,scm435,p1.0/hex/wsp SAM-6011-001627
...
2-2
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-3
Washer-Plain; Sts304,id12.5,od30.0,t3.0 SAM-6031-002269
...
2-4
Fastener-Spring; Hudson,mswr-Swrh,ssec;id SAM-DC60-60046A
...
2-5
Assy Dd Bldc Motor; F900a,com600,3p 220v SAM-DC93-00236C
...
2
Assy Driving Module; Atv-Pjt,dd SAM-DC90-22716A
...
3-1
Cover Tub; Wa54m8700aw/a2,pp,t2,ktl Gray, SAM-DC63-01982A
...
3-2-1
Assy Pulsator-Lower; Wa8700k SAM-DC97-19288A
...
3-2
Assy Pulsator; Wa8700k SAM-DC97-19291B
...
3-3
Assy Balancer; Wa8700m(weight Ball),ktl G SAM-DC97-20067A
...
3
Assy Packing-3parts; S1-Pjt,wa8700m SAM-DC90-26357A
...
4-1
Basket Wrapper; Wa54m8750a*,sts430j1l,t0. SAM-DC61-04581C
...
4-2
Assy Bowl; Wa8700j SAM-DC97-18983B
...
4
Assy Basket Spin; Wa8700m,wa54m8750a*,5.2 SAM-DC97-20633A

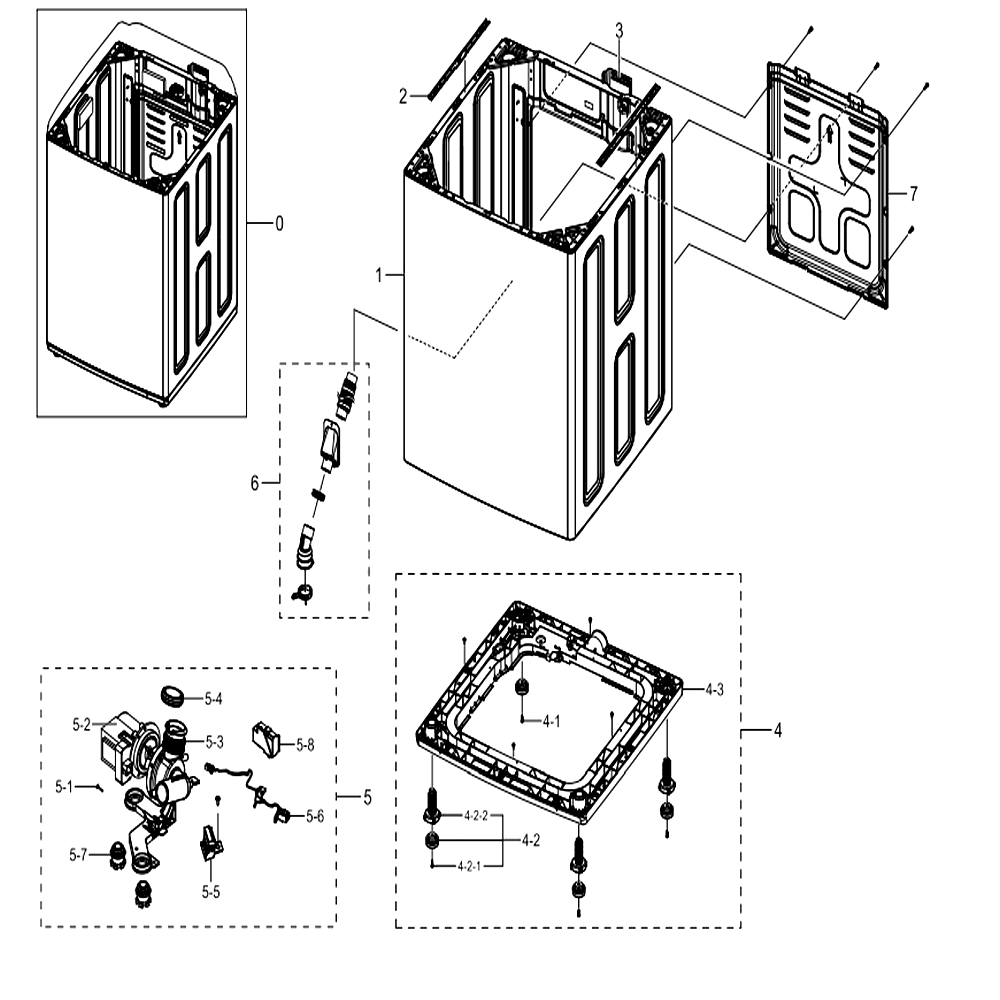

Assy Frame Case Parts

...
...
0
Assy Frame Case Parts; Wa8700m,neat White SAM-DC90-00063T
...
1
Frame; 27inch Usa,gi-Sgcc,neat White,t0.7 SAM-DC61-03263P
...
2
Bracket Frame; Wa7700k,gi-Sgcc,t1,z14,nc SAM-DC61-04106A
...
3
Assembly Cover Wire SAM-DC97-17422A
...
4-1
Screw-Tapping SAM-6002-000524
...
4-2-1
Screw-Tapping SAM-6002-000524
...
4-2-2
Leg Adjust SAM-DC61-01722B
...
4-2
Assy Leg; Wa87(6)00m,wa77(4)00m,all Usa M SAM-DC97-20629A
...
4-3
Base; Wa8700k,wa8700j,pp,black,hb,tpc-Ppc SAM-DC61-03956D
...
4
Assy Base; All Usa Model,pp,black,pump Ty SAM-DC97-20103F
...
5-1
Screw-Tapping SAM-6002-000524
...
5-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
5-3
Case Pump; Hudson Washer,pp,white,fh44n SAM-DC61-03385A
...
5-4
Valve Check; Hudson,nbr,-,black SAM-DC62-00328A
...
5-5
Cushion Pump-Left; F900a,epdm,-,-,- SAM-DC63-01394A
...
5-6
Assy Wire Harness-Pump; Auto,wa50k8600ap/ SAM-DC93-00616A
...
5-7
Assy Cushion Pump; F900a,f900a,od27.0 SAM-DC98-01438A
...
5-8
Cover Pump; F900a,pp,-,-,white,fh44n SAM-DC63-01586A
...
5
Assy Pump Drain; Wa8(7)700k,al Coil,120v, SAM-DC97-19289B
...
6
Assembly Hose Drain SAM-DC97-18682C
...
7
Assembly Cover Back SAM-DC97-16982A

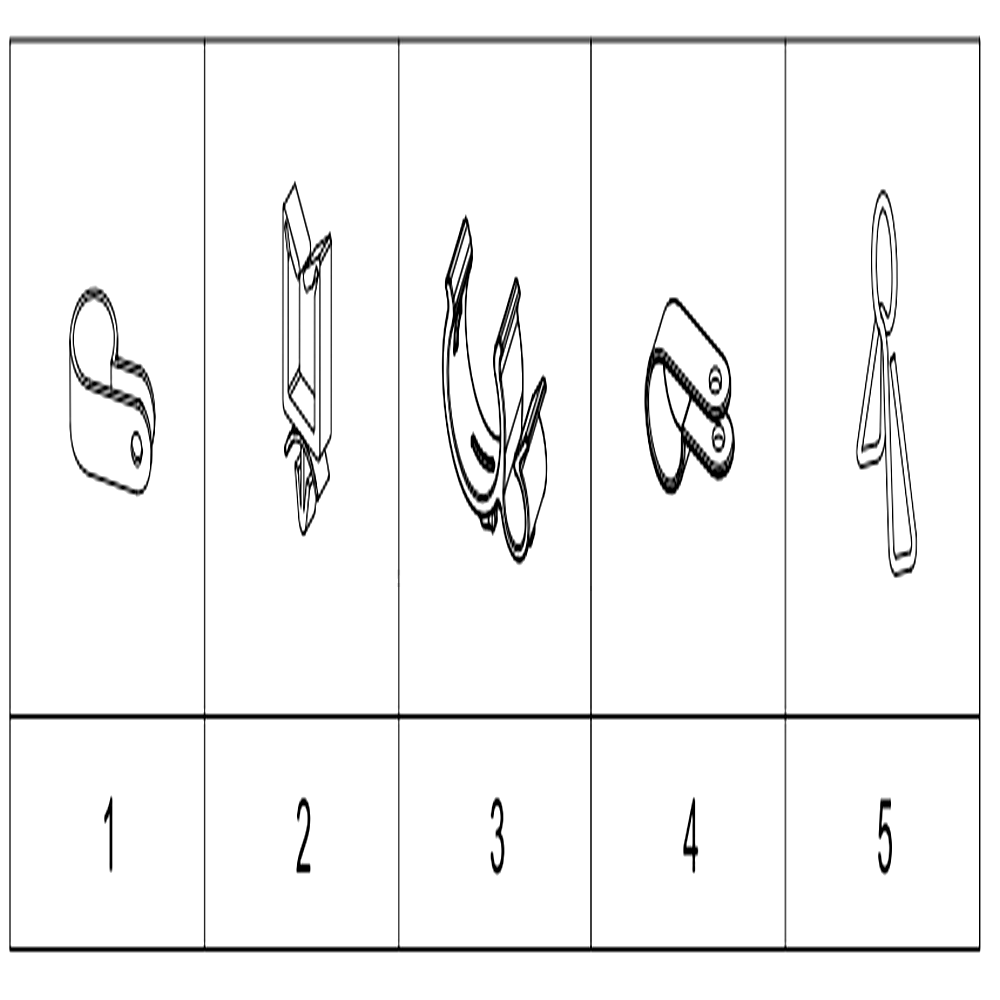

Small Parts

...
...
1
Cable Clamp SAM-DC65-20008C
...
2
Cable Clamp SAM-DC61-00553B
...
3
Clamper Hose-Fix SAM-DC65-00038A
...
4
Cable Clamp; Da-13n,id21.6,t1.5,nylon66,n SAM-6502-000155
...
5
Spring Clip SAM-DC61-70184A
