Samsung WA52M8650AW/A4_0001

Model: WA52M8650AW/A4_0001

Save Part Not Listed?
product name

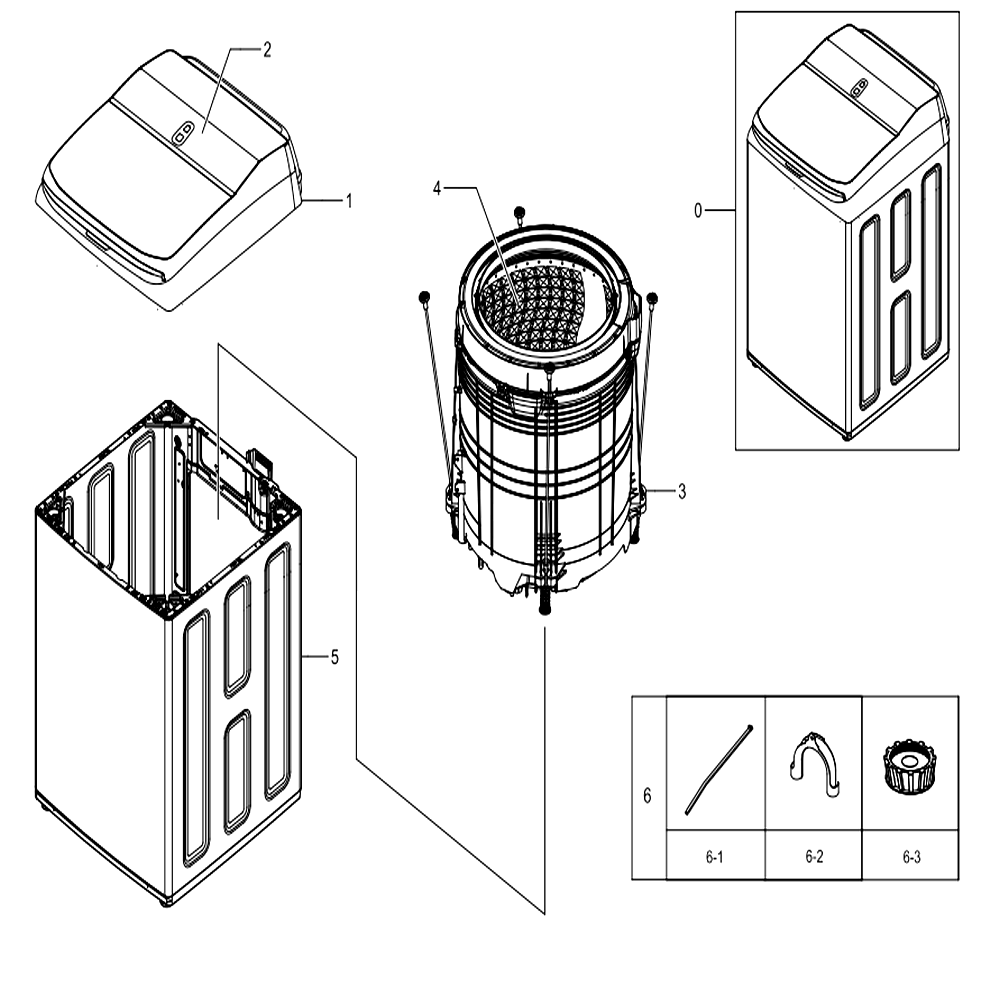

Main

...
...
1
Assy Cover Top Parts; Wa8600m,wa52m8650aw SAM-DC90-24097D
...
2
Assy Control; Wa8600m,wa52m8650aw/a4 SAM-DC90-22554E
...
3
Assy Tub Parts; Wa8600m,wa52m8650a*/a4 SAM-DC90-24098B
...
4
Assy Basket Spin; Wa8700j,t0.5 SAM-DC97-18601C
...
5
Assy Frame Case Parts; Wa8700m,neat White SAM-DC90-24108G
...
6-1
Cable Tie SAM-6501-000121
...
6-2
Hanger Clamper; Pp,t1.5,black,rm60c SAM-DC61-00224B
...
6-3
Assembly Cap V.w SAM-DC97-18313A
...
6
Assy Accessory; Atv-Pjt,all Model SAM-DC98-02985A

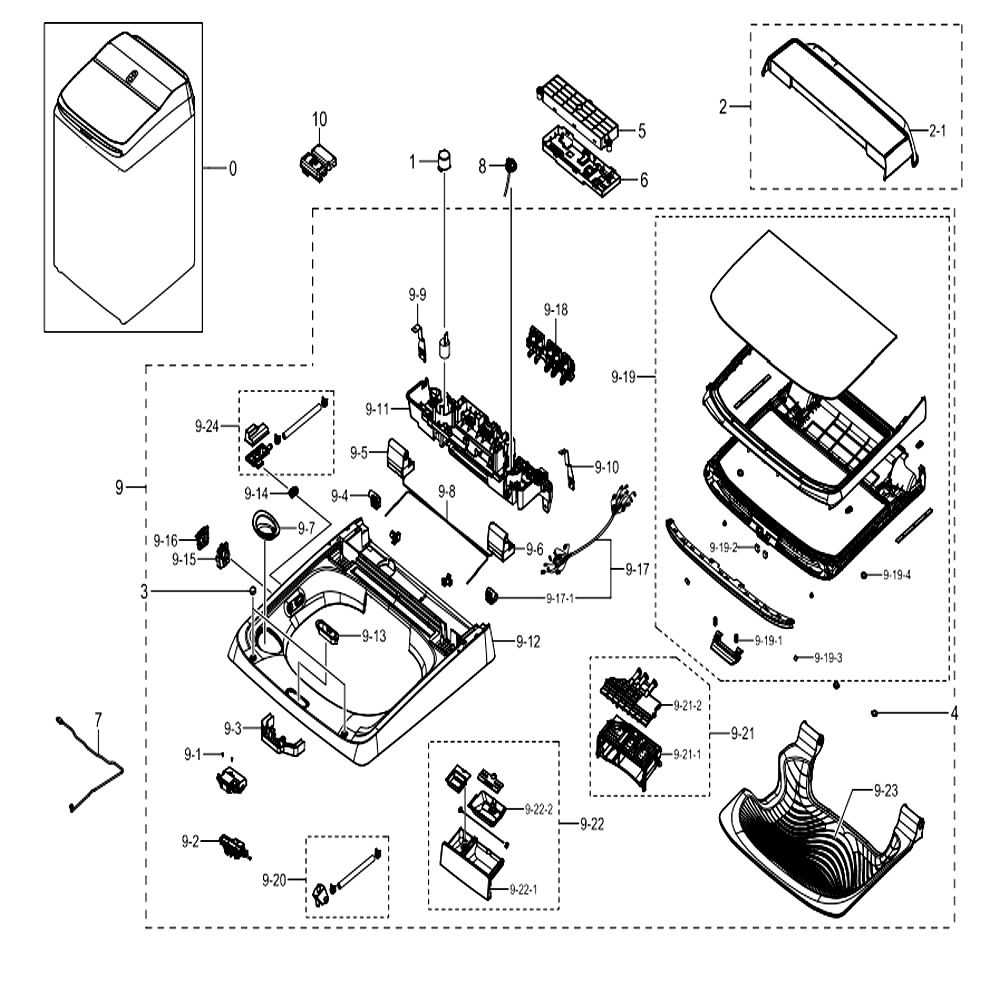

Assy Cover Top Parts

...
...
0
Assy Cover Top Parts; Wa8600m,wa52m8650aw SAM-DC90-24097D
...
1
Cover Filter; Wa456drhdwd,hips,t2.5,natur SAM-DC63-01432C
...
2-1
Cover T.c; Wa8700k,abs,t3.0,hb,neat White SAM-DC63-01917B
...
2
Assy Cover T.c; Wa52m8650aw/a4,neat White SAM-DC97-19285K
...
3
Cap Screw; Poseion-Rear,si,white,wt0001 SAM-DC67-00453A
...
4
Cap Screw SAM-DC67-00657C
...
5
Assy Cover Pcb; Wa8700m,wa54m8750av(w)/a4 SAM-DC97-20065A
...
6
Assy Pcb Main; Owm_Inv,wa8600m,328x80,y,1 SAM-DC92-01998C
...
7
Cbf-Power Cord SAM-DC96-00757C
...
8
Sensor Pressure; Air,5v,82020mm SAM-DC96-01703H
...
9-1
Screw-Tapping SAM-6002-000445
...
9-2
Switch Door Lock SAM-DC34-00025E
...
9-3
Case Switch Door; Wa8(7)700k,pp,t2.0,dark SAM-DC61-04089A
...
9-4
Hinge Door; Wa7700k,pom,t2.0,k300,bk0001( SAM-DC61-04091A
...
9-5
Hinge-Left; Wa8700k,pom,t2.5,k300,dark Ho SAM-DC61-04092B
...
9-6
Hinge-Right; Wa8700k,pom,t2.5,k300,dark H SAM-DC61-04093B
...
9-7
Case Bleach; Wa7700k,abs,t2.0,honesty Blu SAM-DC61-04108A
...
9-8
Spring Hinge; Wa8700k,swpb,3.1,425.3,zn+3 SAM-DC61-04129A
...
9-9
Bracket Frame; Wa8700k,gi-Sgcc,t1.0,left SAM-DC61-04444A
...
9-10
Bracket Frame; Wa8700k,gi-Sgcc,t1.0,right SAM-DC61-04445A
...
9-11
Cover Plate; Wa87(6)00m,pp,hb,dark Holder SAM-DC63-01919C
...
9-12
Cover Top; Wa8700k,abs,t3.5,hb,neat White SAM-DC63-01920B
...
9-13
Cover Door Switch; Wa8700,abs,t2.0,hb,nea SAM-DC63-01918B
...
9-14
Cover Nozzle; Wa7700k,abs,t2.0,hb,honesty SAM-DC63-01925A
...
9-15
Button Push; Wa7700k,abs,hb,neat White,wt SAM-DC64-03375A
...
9-16
Assy Switch-Tact; Wa8700k,dc 12v,tact SAM-DC92-01417C
...
9-17-1
Hinge Door; Wa7700k,pom,t2.0,k300,bk0001( SAM-DC61-04091A
...
9-17
Assy Wire Harness-Sub; Auto,mid,y,tactile SAM-DC93-00669B
...
9-18
Valve Water; Ac110-127v,rubber Sealing, 5 SAM-DC97-15459G
...
9-19-1
Spring Etc Lever; Sew-H350,sts304,od9.4 SAM-DC61-00769A
...
9-19-2
Magnet R.s SAM-DC61-03184A
...
9-19-3
Cushion Lid; Wa8700k,si,dark Holder Gray, SAM-DC63-01577D
...
9-19-4
Cap Screw SAM-DC67-00657C
...
9-19
Assy Lid T.c; Wa8700m,wa52m8650aw/a4,neat SAM-DC97-19284P
...
9-20
Assy Nozzle; Wa8700k,wa7700k SAM-DC97-19310C
...
9-21-1
Body Detergent; Wa8700j / Wa7700j,pp,natu SAM-DC61-04066A
...
9-21-2
Guide Water; Wa7700k,pp,t1.6,hb,tb53/fc23 SAM-DC61-04099A
...
9-21
Assy Body Detergent; Wa8700k SAM-DC97-19312A
...
9-22-1
Panel Drawer; Wa8700k,abs,hb,sr-0300,neat SAM-DC64-03376B
...
9-22-2
Guide Detergent; Wa9000ha,abs,sr0300,hone SAM-DC61-03267C
...
9-22
Assy Case Detergent; Wa8700,eng,neat Whit SAM-DC97-19313R
...
9-23
Assy Lid Washing; Wa8700m,wa8600m,pp,silk SAM-DC97-20069A
...
9-24
Assy Nozzle; Wa8700k,nozzle Pm Gray SAM-DC97-19311B
...
9
Assy Semi Cover Top; Wa8600m,wa52m8650aw/ SAM-DC97-19574G
...
10
Cover Connector; Wa3250m,pp,t3,natural,mu SAM-DC63-02117A

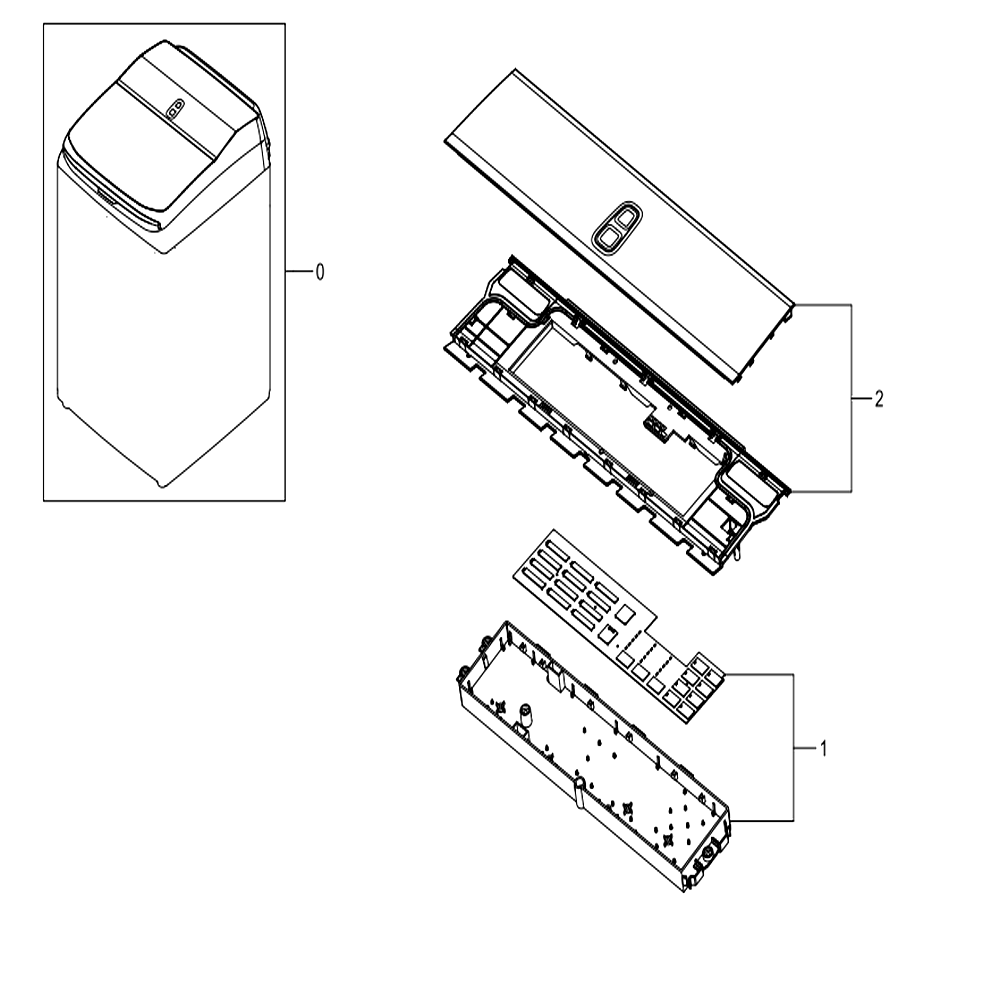

Assy Control Parts

...
...
0
Assy Control; Wa8600m,wa52m8650aw/a4 SAM-DC90-22554E
...
1
Assy Pcb Display; Owm_Inv,wa8600m,328x80, SAM-DC92-01999A
...
2
Assy S.panel Control; Wa8600m,wa52m8650aw SAM-DC97-19576R

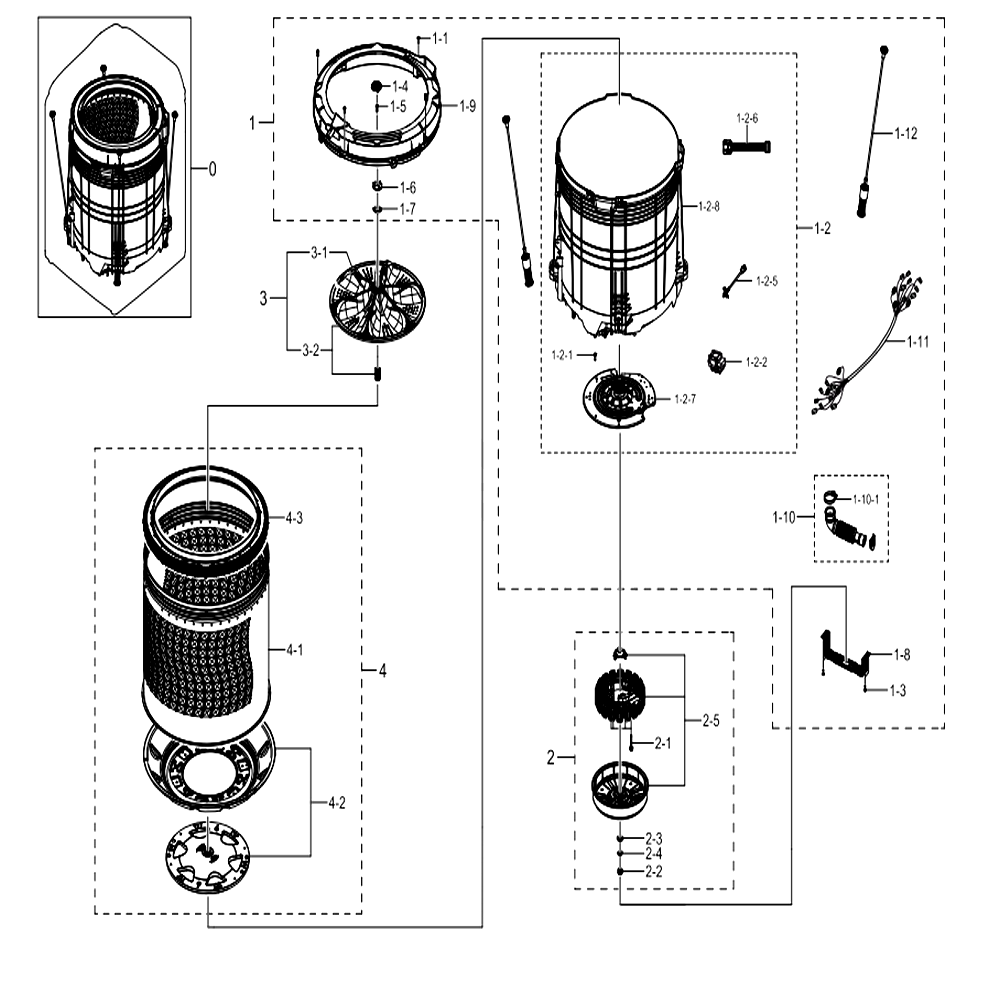

Assy Tub Parts

...
...
1-1
Screw-Tapping; Th,+,no,2,m5,l16,pass,sts4 SAM-6002-001160
...
1-2-1
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-2-2
Motor Drain-Clutch; Td-Sscl-12a,120v,50hz SAM-DC31-00090B
...
1-2-5
Assembly Thermistor SAM-DC90-10128N
...
1-2-6
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
1-2-7
Assy Clutch; F900a,wa50f9a7dsp/a2 SAM-DC97-18439A
...
1-2-8
Assy Tub Sub; Wa7400m,wa8600m,frpp,no Pum SAM-DC97-19562J
...
1-2
Assy Semi Tub Outer; Wa7400m,wa8600m,dd,n SAM-DC97-19565H
...
1-3
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-4
Pulsator Cap; All Usa Model(except 3000j) SAM-DC66-00887B
...
1-5
Bolt Pulsator SAM-DC60-40133A
...
1-6
Nut-Hexagon SAM-6021-001573
...
1-7
Washer-Wave SAM-6031-002240
...
1-8
Support Saddle; Wa-Ra169n,gi-Sgcc,t1.2,sb SAM-DC61-02329A
...
1-9
Cover Tub; Wa7700m,pp,t2.0,hb,ktl Gray,no SAM-DC63-01840D
...
1-10-1
Clamper Hose-Joint; F900a,hswr,white SAM-DC65-00014C
...
1-10
Assy Hose Drain(i); Wa7000h SAM-DC97-17345B
...
1-11
Assy Wire Harness-Main; Auto,mid,y,y,y,n, SAM-DC93-00664B
...
1-12
Assy Damper; Owm,df0.9,k0.41,l715 SAM-DC97-18610F
...
1
Assy Tub Parts; Wa8600m,wa52m8650a*/a4 SAM-DC90-24098B
...
2-1
Bolt-Etc; M6,l56,mfzn,scm435,p1.0/hex/wsp SAM-6011-001627
...
2-2
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-3
Washer-Plain; Sts304,id12.5,od30.0,t3.0 SAM-6031-002269
...
2-4
Fastener-Spring; Hudson,mswr-Swrh,ssec;id SAM-DC60-60046A
...
2-5
Assy Dd Bldc Motor; F900a,com600,3p 220v SAM-DC93-00236C
...
2
Assy Driving Module; Atv-Pjt,dd SAM-DC90-22716A
...
3-1
Pulsator-Up; Wa50m7450aw/a4,sts304,ba SAM-DC66-00883B
...
3-2
Assy Pulsator-Lower; Wa8700k SAM-DC97-19288A
...
3
Assy Pulsator; Wa8700k SAM-DC97-19291B
...
4-1
Basket Wrapper; Wa52j8080ap/a2,sts430j1l, SAM-DC61-03959B
...
4-2
Assy Bowl; Wa8700j SAM-DC97-18983B
...
4-3
Assy Balancer; Wa8000j,wa8000j SAM-DC97-18658A
...
4
Assy Basket Spin; Wa8700j,t0.5 SAM-DC97-18601C

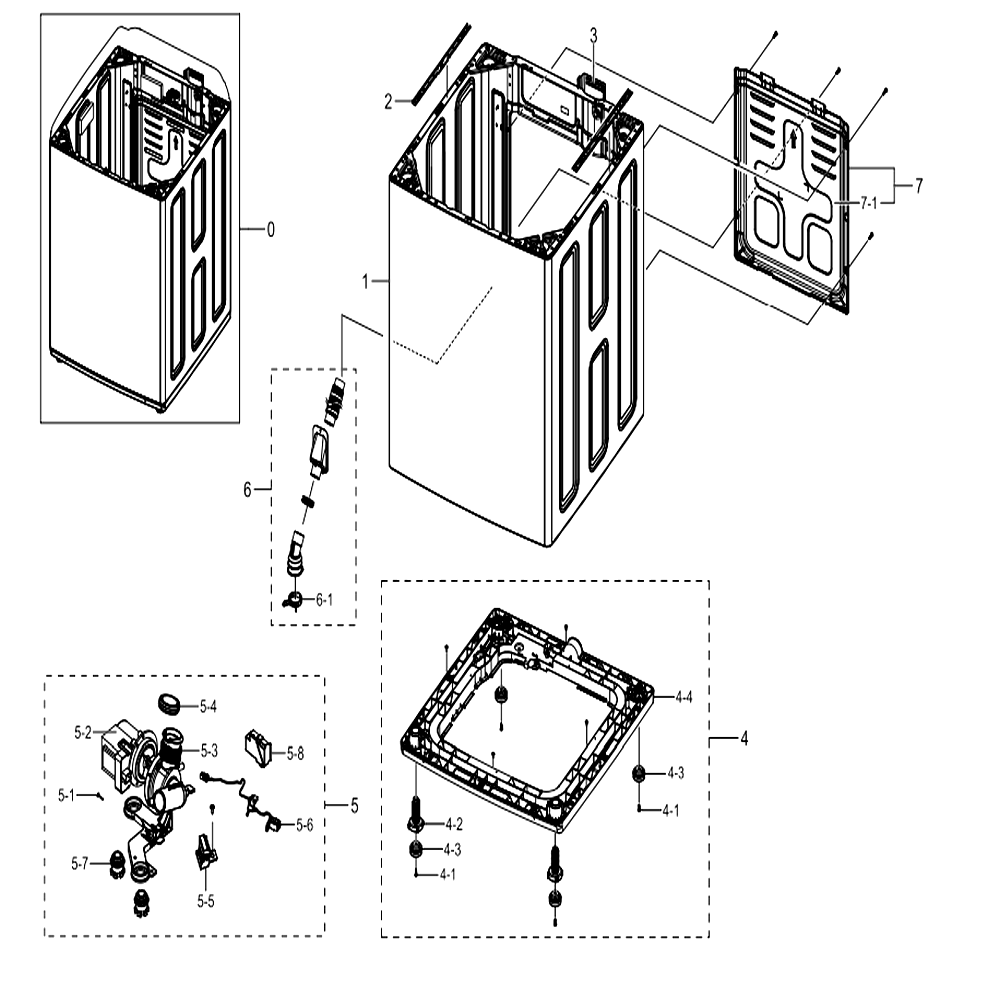

Assy Frame Case Parts

...
...
0
Assy Frame Case Parts; Wa8700m,neat White SAM-DC90-24108G
...
1
Frame SAM-DC61-03263A
...
2
Bracket Frame; Wa7700k,gi-Sgcc,t1,z14,nc SAM-DC61-04106A
...
3
Assembly Cover Wire SAM-DC97-17422A
...
4-1
Screw-Tapping SAM-6002-000524
...
4-2
Leg Adjust SAM-DC61-01722B
...
4-3
Leg Rubber SAM-DC61-03191B
...
4-4
Base; Wa8700k,wa8700j,pp,black,hb,tpc-Ppc SAM-DC61-03956D
...
4
Assy Base; Wa8700k,sponge SAM-DC97-20103D
...
5-1
Screw-Tapping SAM-6002-000524
...
5-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
5-3
Case Pump; Hudson Washer,pp,white,fh44n SAM-DC61-03385A
...
5-4
Valve Check; Hudson,nbr,-,black SAM-DC62-00328A
...
5-5
Cushion Pump-Left; F900a,epdm,-,-,- SAM-DC63-01394A
...
5-6
Assy Wire Harness-Pump; Auto,wa50k8600ap/ SAM-DC93-00616A
...
5-7
Assy Cushion Pump; F900a,f900a,od27.0 SAM-DC98-01438A
...
5-8
Cover Pump; F900a,pp,-,-,white,fh44n SAM-DC63-01586A
...
5
Assy Pump Drain; Wa8(7)700k,al Coil,120v, SAM-DC97-19289B
...
6-1
Clamper Hose; Atv,sk5,natural,zpc2 SAM-DC65-00027D
...
6
Assembly Hose Drain SAM-DC97-18682C
...
7-1
Cover Back SAM-DC63-01447A
...
7
Assembly Cover Back SAM-DC97-16982A

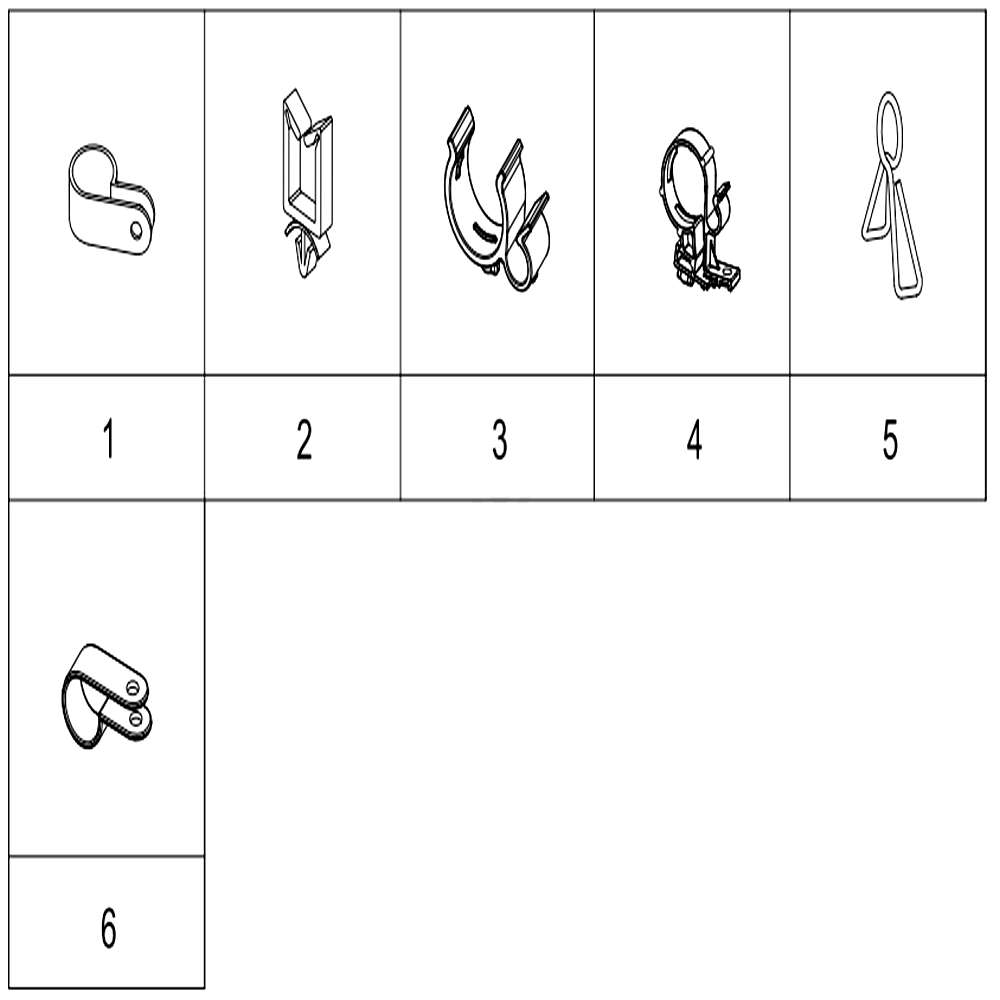

Small Parts

...
...
1
Cable Clamp SAM-DC65-20008C
...
2
Cable Clamp SAM-DC61-00553B
...
3
Clamper Hose-Fix SAM-DC65-00038A
...
4
Clamper Hose; Hudson Washer,pp,ntr SAM-DC65-00047A
...
5
Spring Clip SAM-DC61-70184A
...
6
Cable Clamp; Da-13n,id21.6,t1.5,nylon66,n SAM-6502-000155
