Samsung WA52M7750AW/A4_0051

Model: WA52M7750AW/A4_0051

Save Part Not Listed?
product name

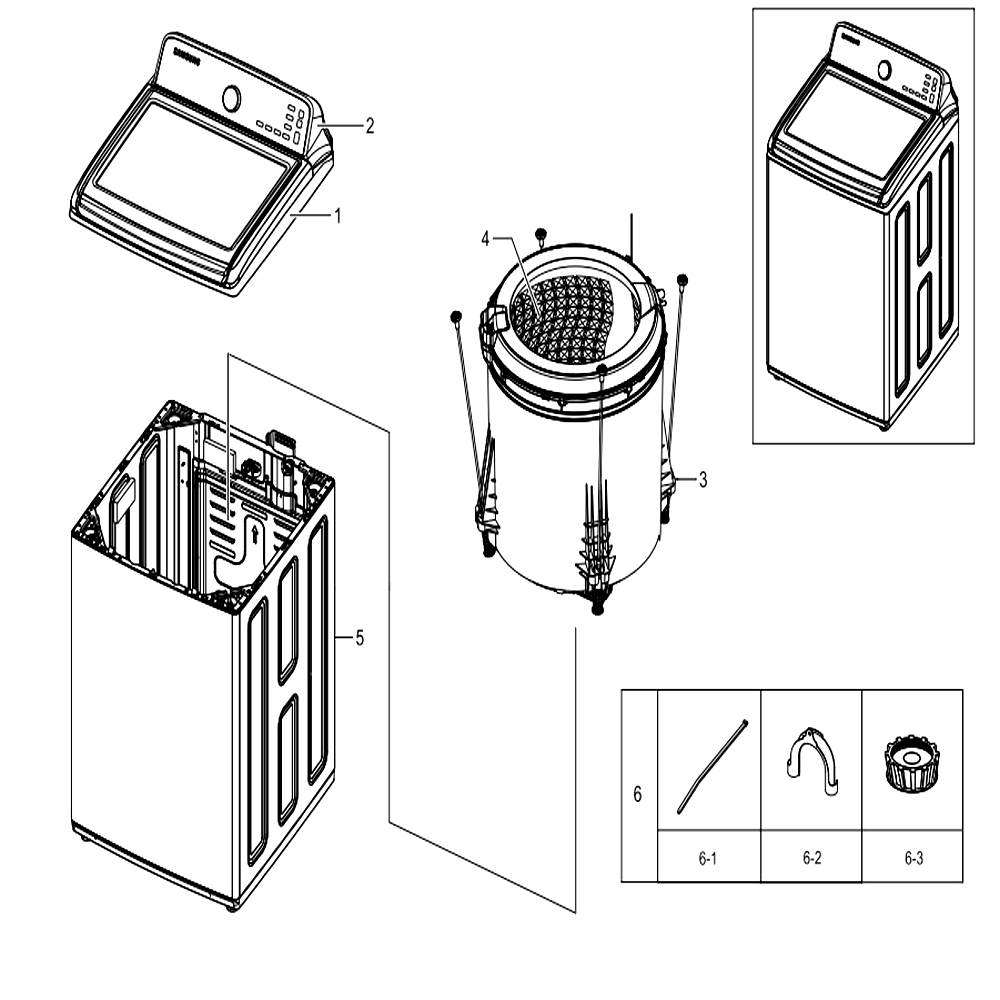

Main

...
...
1
Assy Cover Top Parts; Wa7750m,wa52m7750aw SAM-DC90-00070N
...
2
Assy Panel Control Parts; Wa7750m,wa52m77 SAM-DC90-00068J
...
3
Assy Tub Parts; Wa7750m,wa52m7750aw/a4,se SAM-DC90-00068U
...
4
Assy Basket Spin Parts; Wa7750m,wa52m7750 SAM-DC90-00068S
...
5
Assy Frame Case Parts; Wa7750m,wa52m7750a SAM-DC90-00070K
...
6-1
Cable Tie SAM-6501-000121
...
6-2
Hanger Clamper; Pp,t1.5,black,rm60c SAM-DC61-00224B
...
6-3
Assembly Cap V.w SAM-DC97-18313A
...
6
Assy Accessory; Atv-Pjt,all Model SAM-DC98-02985A

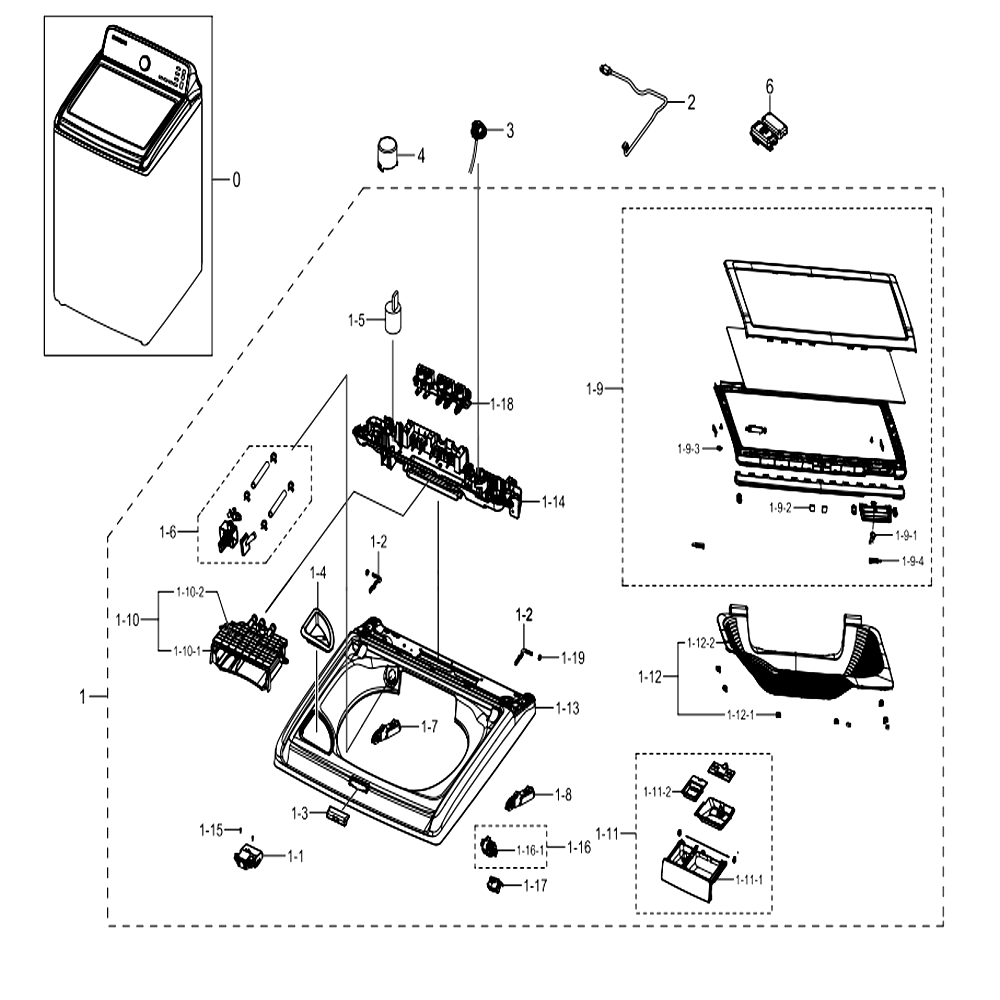

Assy Cover Top Parts

...
...
0
Assy Cover Top Parts; Wa7750m,wa52m7750aw SAM-DC90-00070N
...
1-1
Switch Door Lock SAM-DC34-00025E
...
1-2
Guide-Pin(a); Wa 4000hh,scm,l67.7 SAM-DC61-03426A
...
1-3
Cover Switch SAM-DC63-01430B
...
1-4
Decoration Bleach; Wa52m7750av/a4,abs,t2, SAM-DC64-03634A
...
1-5
Filter Line; -,-,-,15mh/22.5mh,15mh,53*82 SAM-DC29-00024A
...
1-6
Assy Nozzle; Wa7700m,wa52m7750a*,pm Gray SAM-DC97-18820C
...
1-7
Assy Hinge; F900a,wa50f SAM-DC97-16923C
...
1-8
Assy Hinge; Wa8700j,wa52j8700 SAM-DC97-16923L
...
1-9-1
Spring Etc Lever; Sew-H350,sts304,od9.4 SAM-DC61-00769A
...
1-9-2
Magnet R.s SAM-DC61-03184A
...
1-9-3
Cap Screw; Wa75h4000hp,silicon,-,-,inox G SAM-DC67-00657B
...
1-9-4
Assy Hinge; Wa8000 / 8700 SAM-DC97-18004B
...
1-9
Assy Lid T.c; Wa7700m,wa52m7750aw,neat Wh SAM-DC97-20579B
...
1-10-1
Body Detergent; Wa8700j / Wa7700j,pp,natu SAM-DC61-04066A
...
1-10-2
Guide Water; Wa8700j / Wa7700j,pp,t1.6,fc SAM-DC61-04065A
...
1-10
Assy Body Detergent; Ww7700j,wa8700j SAM-DC97-19312B
...
1-11-1
Panel Drawer; Wa7700m,abs,hb,sr-0300,neat SAM-DC64-03545B
...
1-11-2
Cap Rinse SAM-DC67-00635B
...
1-11
Assy Case Detergent; Wa7700m(top-Egi),wa5 SAM-DC97-19313G
...
1-12-1
Cap Screw; W3050-F700,silicon,-,-,-,dark SAM-DC67-00700B
...
1-12-2
Door Lid Washing; Wa7700j,abs,t2.0,tx-051 SAM-DC64-03241A
...
1-12
Assy Lid Washing; Wa7700m,wa52m775*a* SAM-DC97-20598A
...
1-13
Cover Top; Wa52m7750aw,abs,hb,neat White, SAM-DC63-02174B
...
1-14
Cover Plate; Wa52(0)m77(4)50a*,pp,hb,dark SAM-DC63-02184A
...
1-15
Screw-Tapping SAM-6002-000445
...
1-16-1
Assy Switch-Tact; Wa6700j,dc 12v,tact SAM-DC92-01417B
...
1-16
Assy Button Tact; Wa7700m,wa52m7750av(p)( SAM-DC97-20583A
...
1-17
Cover Pcb; Wa52m7750av,abs,t2,hb,inox Gra SAM-DC63-02176A
...
1-18
Valve Water; Ac110-127v,rubber Sealing, 5 SAM-DC97-15459G
...
1-19
Cap Hinge; Wa456drhdwd,pom,t3.1,w11.0,bs0 SAM-DC67-00637A
...
1
Assy Semi Cover Top; Wa7700m,wa52m7750aw, SAM-DC97-20670A
...
2
Cbf-Power Cord; At,u.s.a,us3s,gray,1500,s SAM-DC96-00757A
...
3
Sensor Pressure; Air,5v,82020mm SAM-DC96-01703H
...
4
Cover Filter; Dual Washer,abs,t2.5,natura SAM-DC63-01432B
...
6
Cover Connector; Wa3250m,pp,t3,natural,mu SAM-DC63-02117A

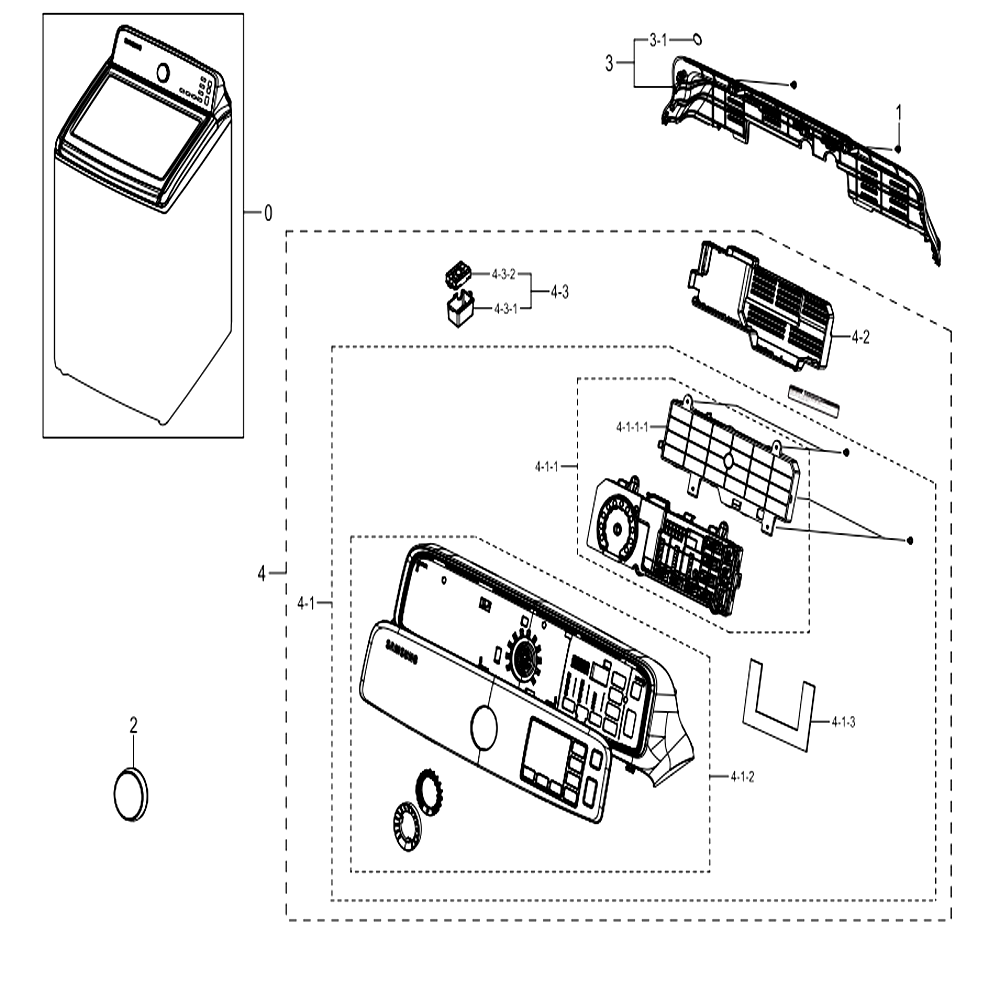

Assy Control Parts

...
...
0
Assy Panel Control Parts; Wa7750m,wa52m77 SAM-DC90-00068J
...
1
Screw-Tapping SAM-6002-000213
...
2
Assy Knob Encoder SAM-DC97-16931B
...
3-1
Inlay SAM-DC64-02822V
...
3
Assy Cover Panel; Wa8700j,neat White,h+c SAM-DC97-19783A
...
4-1-1-1
Assy Pcb Main; Owm_Inv,wa7700m,328x80,y,1 SAM-DC92-01998B
...
4-1-1
Assy Kit; Owm_Inv,wa7700m,dd,heater SAM-DC92-02005A
...
4-1-2
Assy S.panel Control; Wa7700m,wa52m7750aw SAM-DC97-19576W
...
4-1-3
Assy Sensor SAM-DC93-00376A
...
4-1
Assy Panel Control; Wa7700m,wa52m7750aw,t SAM-DC97-20651B
...
4-2
Cover Pcb-Main; Wa7700m,abs/mabs,5va,natu SAM-DC63-02043A
...
4-3-1
Cover-Pcb(h); F900a,abs,t2.0,natural,ve-0 SAM-DC63-01558A
...
4-3-2
Assy Kit; Owm_Inv,wa8700m,heater SAM-DC92-01855C
...
4-3
Assy Packing-Heater Pcb+cover Pcb; Wa8700 SAM-DC90-00064D
...
4
Assy Cover Pcb; Wa7700m,wa52m7750ap(w) SAM-DC97-20064A

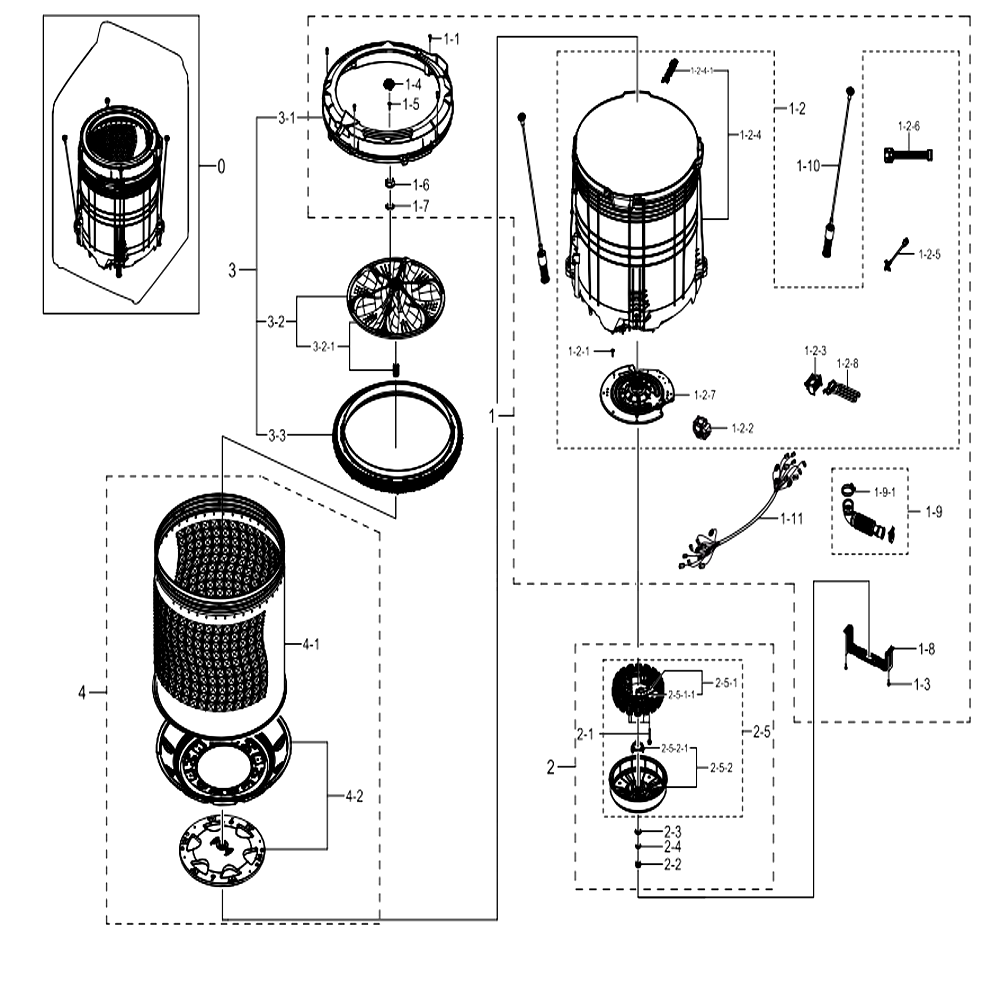

Assy Tub Parts

...
...
1-1
Screw-Tapping; Th,+,no,2,m5,l16,pass,sts4 SAM-6002-001160
...
1-2-1
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-2-2
Motor Drain-Clutch; Td-Sscl-12a,120v,50hz SAM-DC31-00090B
...
1-2-3
Cover Heater; Wa5471abp/xaa,abs+pc,t3.1,v SAM-DC63-01351A
...
1-2-4-1
Bracket Heater; Wa5471abp,sts430,t0.6,orc SAM-DC61-01447B
...
1-2-4
Assy Tub Sub; Wa8700m, Wa7700m,wa54m8750a SAM-DC97-20703A
...
1-2-5
Assembly Thermistor SAM-DC90-10128N
...
1-2-6
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
1-2-7
Assy Clutch; F900a,wa50f9a7dsp/a2 SAM-DC97-18439A
...
1-2-8
Heater Wash; Ac120v,1200w,incoloy800,569m SAM-DC47-00036A
...
1-2
Assy Semi Tub Outer; Wa8700m, Wa7700m,wa5 SAM-DC97-20704A
...
1-3
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-4
Pulsator Cap; All Usa Model(except 3000j) SAM-DC66-00887B
...
1-5
Bolt Pulsator SAM-DC60-40133A
...
1-6
Nut-Hexagon SAM-6021-001573
...
1-7
Washer-Wave SAM-6031-002240
...
1-8
Support Saddle; Wa-Ra169n,gi-Sgcc,t1.2,sb SAM-DC61-02329A
...
1-9-1
Clamper Hose-Joint; F900a,hswr,white SAM-DC65-00014C
...
1-9
Assy Hose Drain(i); Wa7000h SAM-DC97-17345B
...
1-10
Assy Damper; Owm,df0.9,k0.41,l715 SAM-DC97-18610F
...
1-11
Assy Wire Harness-Main; Auto,wa52m7750av, SAM-DC93-00665C
...
1
Assy Tub Parts; Wa7750m,wa52m7750aw/a4,se SAM-DC90-00068U
...
2-1
Bolt-Etc; M6,l56,mfzn,scm435,p1.0/hex/wsp SAM-6011-001627
...
2-2
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-3
Washer-Plain; Sts304,id12.5,od30.0,t3.0 SAM-6031-002269
...
2-4
Fastener-Spring; Hudson,mswr-Swrh,ssec;id SAM-DC60-60046A
...
2-5-1-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
2-5-1
Motor Bldc-Assy Stator; Com1500,1200,220- SAM-DC31-00097B
...
2-5-2-1
Cushion-Clutch; Wa-Ra169n,nbr,t2.6,w47.7, SAM-DC63-01069A
...
2-5-2
Motor Bldc-Assy Rotor; Com600,1000,25nm/1 SAM-DC31-00125C
...
2-5
Assy Dd Bldc Motor; F900a,com600,3p 220v SAM-DC93-00236C
...
2
Assy Driving Module; Atv-Pjt,dd SAM-DC90-22716A
...
3-1
Cover Tub; Wa54m8700aw/a2,pp,t2,ktl Gray, SAM-DC63-01982A
...
3-2-1
Assy Pulsator-Lower; Wa8700k SAM-DC97-19288A
...
3-2
Assy Pulsator; Wa8700k SAM-DC97-19291B
...
3-3
Assy Balancer; Wa8000j,wa8000j SAM-DC97-18658A
...
3
Assy Packing-3parts; S1-Pjt,wa7750m SAM-DC90-26358A
...
4-1
Basket Wrapper; Wa52m8650a*,wa52m7750a*,s SAM-DC61-04581B
...
4-2
Assy Bowl; Wa8700j SAM-DC97-18983B
...
4
Assy Basket Spin Parts; Wa7750m,wa52m7750 SAM-DC90-00068S

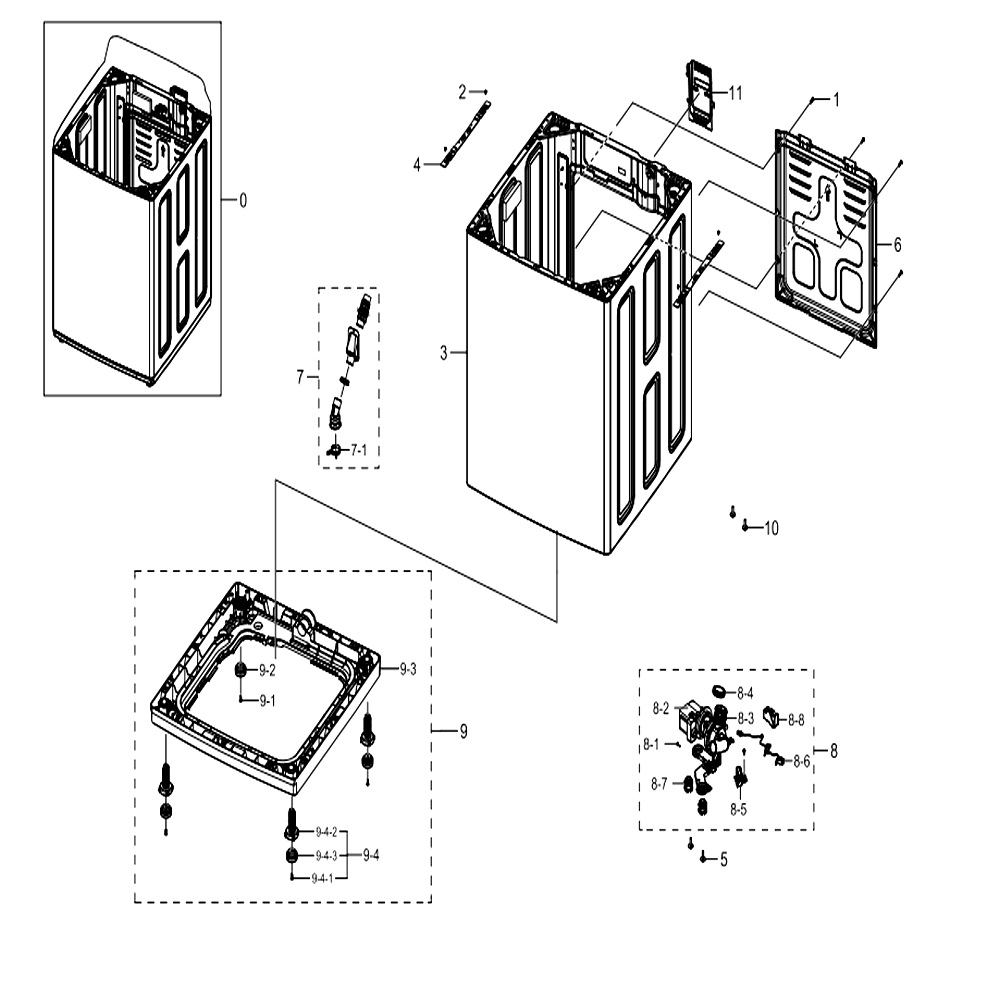

Assy Frame Case Parts

...
...
0
Assy Frame Case Parts; Wa7750m,wa52m7750a SAM-DC90-00070K
...
1
Screw-Tapping SAM-6002-000213
...
2
Screw-Tapping SAM-6006-001174
...
3
Frame; 27inch Usa,gi-Sgcc,neat White,t0.7 SAM-DC61-03263P
...
4
Bracket Frame; Wa7700k,gi-Sgcc,t1,z14,nc SAM-DC61-04106A
...
5
Assy Screw; Wf203,m4/l16 SAM-DC97-14006A
...
6
Assembly Cover Back SAM-DC97-16982A
...
7-1
Clamper Hose; Atv,sk5,natural,zpc2 SAM-DC65-00027D
...
7
Assembly Hose Drain SAM-DC97-18682C
...
8-1
Screw-Tapping SAM-6002-000524
...
8-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
8-3
Case Pump; Hudson Washer,pp,white,fh44n SAM-DC61-03385A
...
8-4
Valve Check; Hudson,nbr,-,black SAM-DC62-00328A
...
8-5
Cushion Pump-Left; F900a,epdm,-,-,- SAM-DC63-01394A
...
8-6
Assy Wire Harness-Pump; Auto,wa50k8600ap/ SAM-DC93-00616A
...
8-7
Assy Cushion Pump; F900a,f900a,od27.0 SAM-DC98-01438A
...
8-8
Cover Pump; F900a,pp,-,-,white,fh44n SAM-DC63-01586A
...
8
Assy Pump Drain; Wa8(7)700k,al Coil,120v, SAM-DC97-19289B
...
9-1
Screw-Tapping SAM-6002-000524
...
9-2
Leg Rubber SAM-DC61-03191B
...
9-3
Base; Wa8700k,wa8700j,pp,black,hb,tpc-Ppc SAM-DC61-03956D
...
9-4-1
Screw-Tapping SAM-6002-000524
...
9-4-2
Leg Adjust SAM-DC61-01722B
...
9-4-3
Leg Rubber SAM-DC61-03191B
...
9-4
Assy Leg; Wa87(6)00m,wa77(4)00m,all Usa M SAM-DC97-20629A
...
9
Assy Base; All Usa Model,pp,black,pump Ty SAM-DC97-20103F
...
10
Screw-Tapping; Pwh,+,-,2s,m5,l9,-,swrch18 SAM-DE60-10080A
...
11
Assembly Cover Wire SAM-DC97-17422A

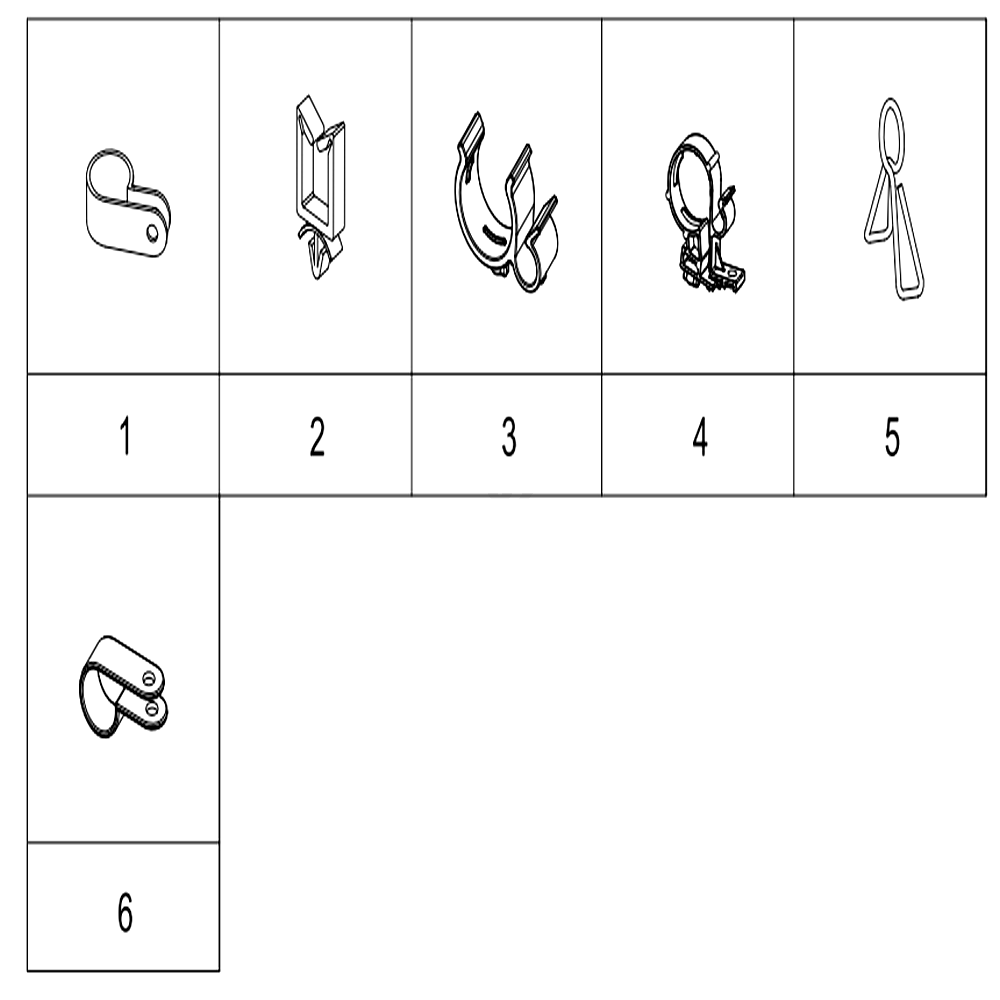

Small Parts

...
...
1
Cable Clamp SAM-DC65-20008C
...
2
Cable Clamp SAM-DC61-00553B
...
3
Clamper Hose-Fix SAM-DC65-00038A
...
4
Clamper Hose; Hudson Washer,pp,ntr SAM-DC65-00047A
...
5
Spring Clip SAM-DC61-70184A
...
6
Cable Clamp; Da-13n,id21.6,t1.5,nylon66,n SAM-6502-000155
