product name

Samsung WA52M7750AW/A4_0000

Model: WA52M7750AW/A4_0000

Save Part Not Listed?
product name

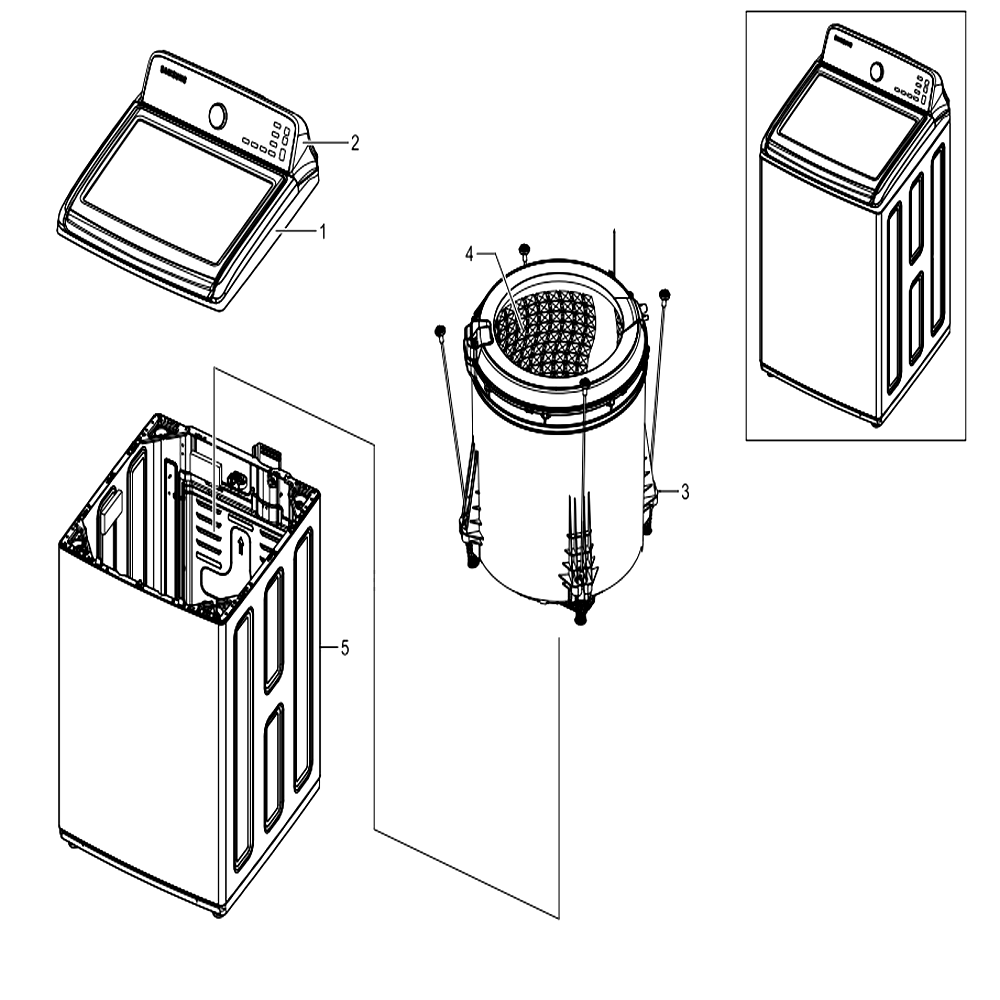

Main

...
...
1
Assy Cover Top Parts; Wa7700m,wa52m7750aw SAM-DC90-24097J
...
2
Assy Control; Wa7700m,wa52m7750aw/a4 SAM-DC90-22554K
...
3
Assy Tub Parts; Wa7700m,wa52m7750a*/a4 SAM-DC90-24098E
...
4
Assy Basket Spin; Wa8700j,t0.5 SAM-DC97-18601C
...
5
Assy Frame Case Parts; Wa7700m,neat White SAM-DC90-24108E

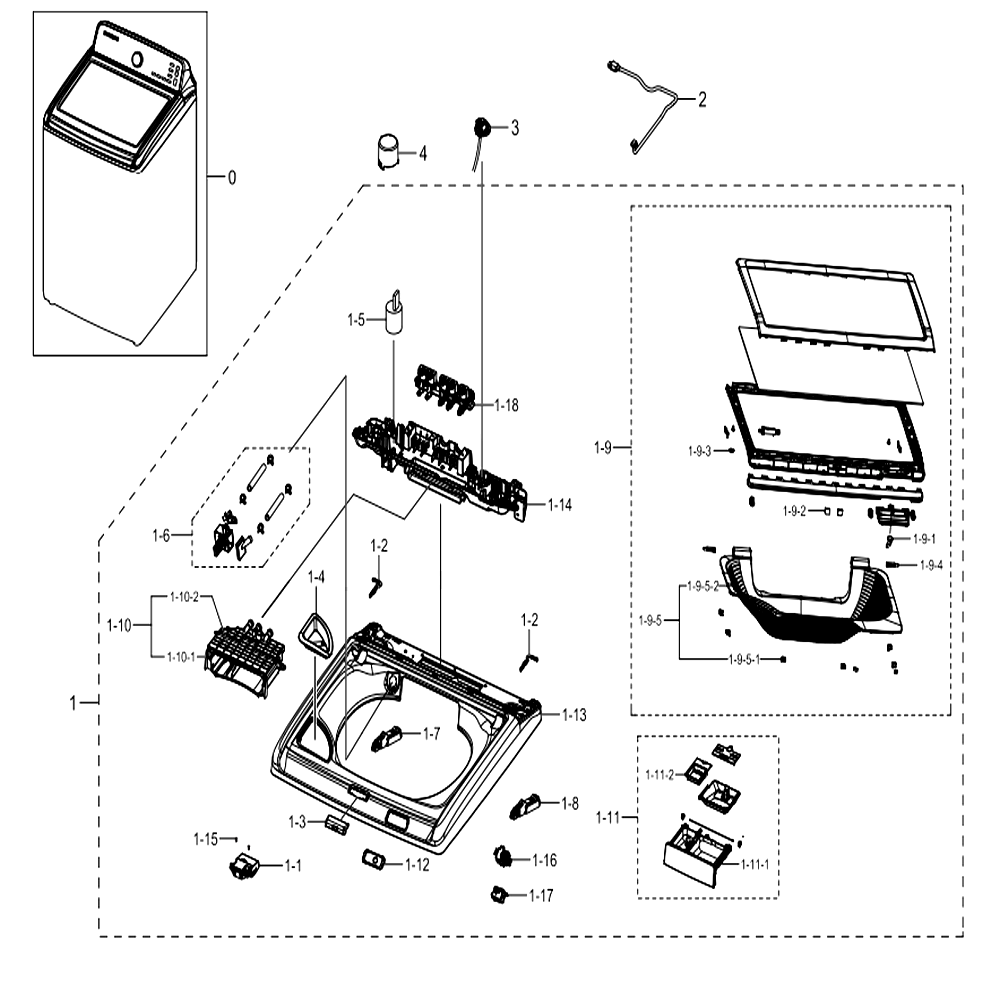

Assy Cover Top Parts

...
...
0
Assy Cover Top Parts; Wa7700m,wa52m7750aw SAM-DC90-24097J
...
1-1
Switch Door Lock SAM-DC34-00025E
...
1-2
Assy-Guide Pin SAM-DC90-12530A
...
1-3
Cover Switch SAM-DC63-01430B
...
1-4
Decoration Bleach SAM-DC64-02762A
...
1-5
Filter Emi; Rdfc 2921 4701000,vde,15mh +5 SAM-DC29-00021A
...
1-6
Assy Nozzle; Wa8700j,nozzle Pm Gray SAM-DC97-18820B
...
1-7
Assy Hinge; F900a,wa50f SAM-DC97-16923C
...
1-8
Assy Hinge; Wa8700j,wa52j8700 SAM-DC97-16923L
...
1-9-1
Spring Etc Lever; Sew-H350,sts304,od9.4 SAM-DC61-00769A
...
1-9-2
Magnet R.s SAM-DC61-03184A
...
1-9-3
Cap Screw; Wa75h4000hp,silicon,-,-,inox G SAM-DC67-00657B
...
1-9-4
Assy Hinge; Wa8000 / 8700 SAM-DC97-18004B
...
1-9-5-1
Cap Screw; W3050-F700,silicon,-,-,-,dark SAM-DC67-00700B
...
1-9-5-2
Door Lid Washing; Wa7700j,abs,t2.0,tx-051 SAM-DC64-03241A
...
1-9-5
Assy Lid Washing; Wa7700j,top-Egi,abs,sil SAM-DC97-19564A
...
1-9
Assy Lid T.c; Wa8(7)700j,neat White+dark SAM-DC97-18845Q
...
1-10-1
Body Detergent; Wa8700j / Wa7700j,pp,natu SAM-DC61-04066A
...
1-10-2
Guide Water; Wa8700j / Wa7700j,pp,t1.6,fc SAM-DC61-04065A
...
1-10
Assy Body Detergent; Ww7700j,wa8700j SAM-DC97-19312B
...
1-11-1
Panel Drawer; Wa7700m,abs,hb,sr-0300,neat SAM-DC64-03545B
...
1-11-2
Cap Rinse SAM-DC67-00635B
...
1-11
Assy Case Detergent; Wa7700m(top-Egi),wa5 SAM-DC97-19313G
...
1-12
Cover Button; Wa52j8700aw/a2,abs,t2.0,hb, SAM-DC63-01863A
...
1-13
Cover Top; Wa52j8700aw/a2,egi-Secc,t0.7,n SAM-DC63-01418G
...
1-14
Cover Plate SAM-DC63-01431A
...
1-15
Screw-Tapping SAM-6002-000445
...
1-16
Assy Switch-Tact; Wa6700j,dc 12v,tact SAM-DC92-01417B
...
1-17
Cover Pcb; Wa8700j,abs,t2.0,hb,inox Gray, SAM-DC63-01862A
...
1-18
Valve Water; Ac110-127v,rubber Sealing, 5 SAM-DC97-15459G
...
1
Assy Semi Cover Top; Wa7700m,wa52m7750aw/ SAM-DC97-19575N
...
2
Cbf-Power Cord; At,u.s.a,us3s,gray,1500,s SAM-DC96-00757A
...
3
Sensor Pressure; Air,5v,82020mm SAM-DC96-01703H
...
4
Cover-Filter; Wa456drhdwd,hips,t1.5,natur SAM-DC63-01432A

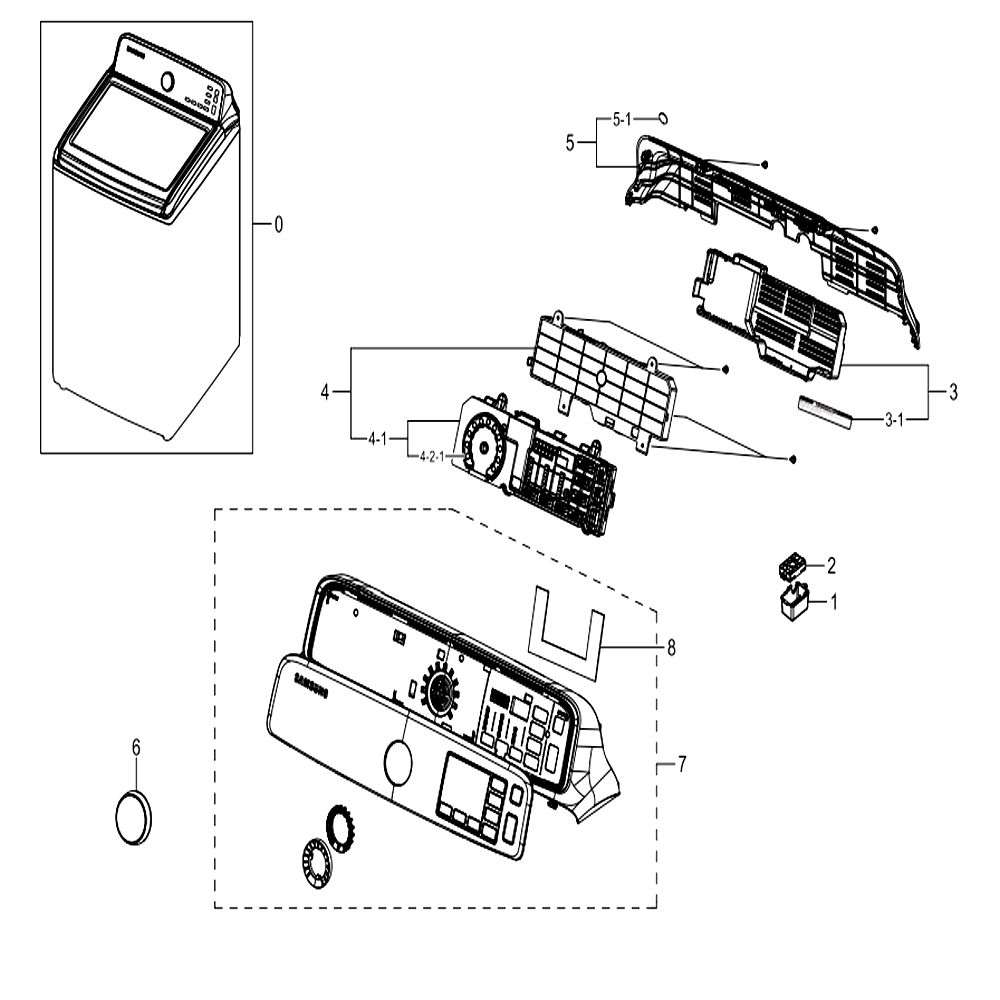

Assy Control Parts

...
...
0
Assy Control; Wa7700m,wa52m7750aw/a4 SAM-DC90-22554K
...
1
Cover-Pcb(h); F900a,abs,t2.0,natural,ve-0 SAM-DC63-01558A
...
2
Assy Kit; Owm_Inv,wa8700m,heater SAM-DC92-01855C
...
3-1
Label Caution; Wa456drhdwr,art,w15,l90,co SAM-DC68-02722A
...
3
Assy Cover Pcb; Wa7700m,wa52m7750ap(w) SAM-DC97-20064A
...
4-1
Assy Pcb Display; Owm_Inv,wa7700m,328x90, SAM-DC92-02001A
...
4-2-1
Inlay Encoder; F900a,pet,t0.188,black SAM-DC64-02917C
...
4
Assy Kit; Owm_Inv,wa7700m,dd,heater SAM-DC92-02005A
...
5-1
Inlay SAM-DC64-02822V
...
5
Assy Cover Panel; Wa8700j,neat White,h+c SAM-DC97-19783A
...
6
Assy Knob Encoder SAM-DC97-16931B
...
7
Assy S.panel Control; Wa7700m,wa52m7750aw SAM-DC97-19576W
...
8
Assy Sensor SAM-DC93-00376A

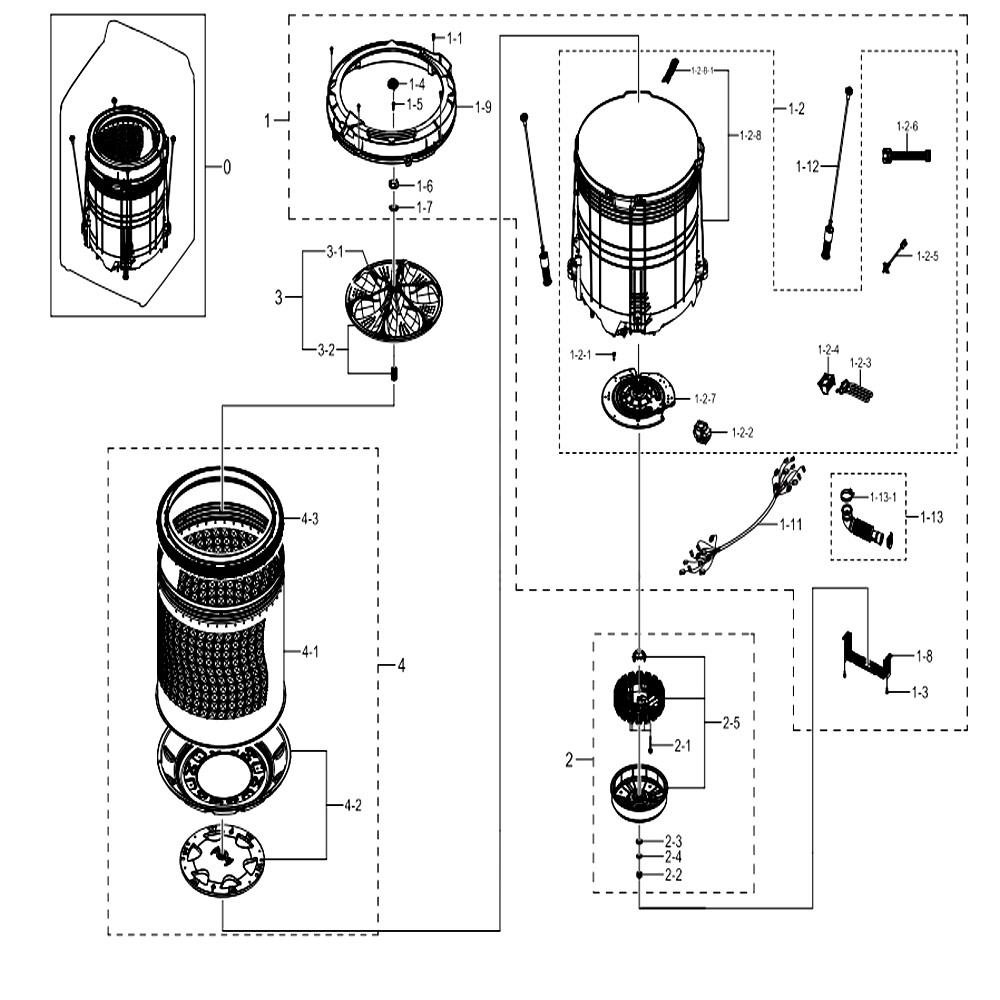

Assy Tub Parts

...
...
1-1
Screw-Tapping; Th,+,no,2,m5,l16,pass,sts4 SAM-6002-001160
...
1-2-1
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-2-2
Motor Drain-Clutch; Td-Sscl-12a,120v,50hz SAM-DC31-00090B
...
1-2-3
Heater Wash; Ac120v,1200w,incoloy800,569m SAM-DC47-00036A
...
1-2-4
Cover Heater; Wa5471abp/xaa,abs+pc,t3.1,v SAM-DC63-01351A
...
1-2-5
Assembly Thermistor SAM-DC90-10128N
...
1-2-6
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
1-2-7
Assy Clutch; F900a,wa50f9a7dsp/a2 SAM-DC97-18439A
...
1-2-8-1
Bracket Heater; Wa5471abp,sts430,t0.6,orc SAM-DC61-01447B
...
1-2-8
Assy Tub Sub; Wa8700m,frpp,no Pump(cir),h SAM-DC97-19562F
...
1-2
Assy Semi Tub Outer; Wa8700m,dd,heater,no SAM-DC97-19565F
...
1-3
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-4
Pulsator Cap; All Usa Model(except 3000j) SAM-DC66-00887B
...
1-5
Bolt Pulsator SAM-DC60-40133A
...
1-6
Nut-Hexagon SAM-6021-001573
...
1-7
Washer-Wave SAM-6031-002240
...
1-8
Support Saddle; Wa-Ra169n,gi-Sgcc,t1.2,sb SAM-DC61-02329A
...
1-9
Cover Tub; Wa7700m,pp,t2.0,hb,ktl Gray,no SAM-DC63-01840D
...
1-11
Assy Wire Harness-Main; Auto,rear,y,y,y,y SAM-DC93-00665A
...
1-12
Assy Damper; Owm,df0.9,k0.41,l715 SAM-DC97-18610F
...
1-13-1
Clamper Hose-Joint; F900a,hswr,white SAM-DC65-00014C
...
1-13
Assy Hose Drain(i); Wa7000h SAM-DC97-17345B
...
1
Assy Tub Parts; Wa7700m,wa52m7750a*/a4 SAM-DC90-24098E
...
2-1
Bolt-Etc; M6,l56,mfzn,scm435,p1.0/hex/wsp SAM-6011-001627
...
2-2
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-3
Washer-Plain; Sts304,id12.5,od30.0,t3.0 SAM-6031-002269
...
2-4
Fastener-Spring; Hudson,mswr-Swrh,ssec;id SAM-DC60-60046A
...
2-5
Assy Dd Bldc Motor; F900a,com600,3p 220v SAM-DC93-00236C
...
2
Assy Driving Module; Atv-Pjt,dd SAM-DC90-22716A
...
3-1
Pulsator-Up; Wa7700k,sts304,stainless,no. SAM-DC66-00883A
...
3-2
Assy Pulsator-Lower; Wa8700k SAM-DC97-19288A
...
3
Assy Pulsator; Wa8700k SAM-DC97-19291B
...
4-1
Basket Wrapper; Wa52j8080ap/a2,sts430j1l, SAM-DC61-03959B
...
4-2
Assy Bowl; Wa8700j SAM-DC97-18983B
...
4-3
Assy Balancer; Wa8000j,wa8000j SAM-DC97-18658A
...
4
Assy Basket Spin; Wa8700j,t0.5 SAM-DC97-18601C

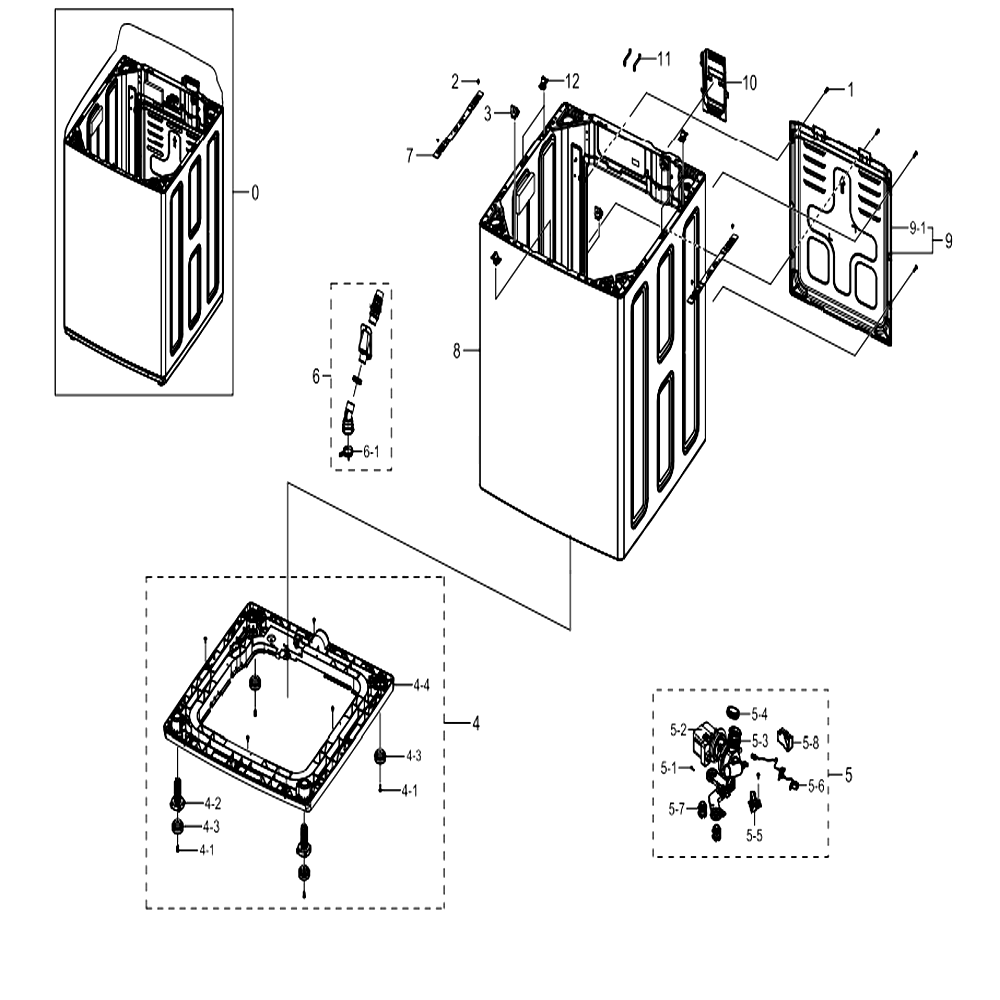

Assy Frame Case Parts

...
...
0
Assy Frame Case Parts; Wa7700m,neat White SAM-DC90-24108E
...
1
Screw-Tapping SAM-6002-000213
...
2
Screw-Tapping SAM-6006-001174
...
3
Fixer-Cover Top SAM-DC61-03174A
...
4-1
Screw-Tapping SAM-6002-000524
...
4-2
Leg Adjust SAM-DC61-01722B
...
4-3
Leg Rubber SAM-DC61-03191B
...
4-4
Base; Wa8700k,wa8700j,pp,black,hb,tpc-Ppc SAM-DC61-03956D
...
4
Assy Base; Wa8700k,sponge SAM-DC97-20103D
...
5-1
Screw-Tapping SAM-6002-000524
...
5-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
5-3
Case Pump; Hudson Washer,pp,white,fh44n SAM-DC61-03385A
...
5-4
Valve Check; Hudson,nbr,-,black SAM-DC62-00328A
...
5-5
Cushion Pump-Left; F900a,epdm,-,-,- SAM-DC63-01394A
...
5-6
Assy Wire Harness-Pump; Auto,wa50k8600ap/ SAM-DC93-00616A
...
5-7
Assy Cushion Pump; F900a,f900a,od27.0 SAM-DC98-01438A
...
5-8
Cover Pump; F900a,pp,-,-,white,fh44n SAM-DC63-01586A
...
5
Assy Pump Drain; Wa8(7)700k,al Coil,120v, SAM-DC97-19289B
...
6-1
Clamper Hose; Atv,sk5,natural,zpc2 SAM-DC65-00027D
...
6
Assembly Hose Drain SAM-DC97-18682C
...
7
Bracket Frame; Wa8700j,gi-Sgcc,t3.0 SAM-DC61-04203A
...
8
Frame SAM-DC61-03263A
...
9-1
Cover Back SAM-DC63-01447A
...
9
Assembly Cover Back SAM-DC97-16982A
...
10
Assembly Cover Wire SAM-DC97-17422A
...
11
Bush Pin; Wa8700,swrch10a SAM-DC61-04207A
...
12
Guide Cover Top SAM-DC61-03400A

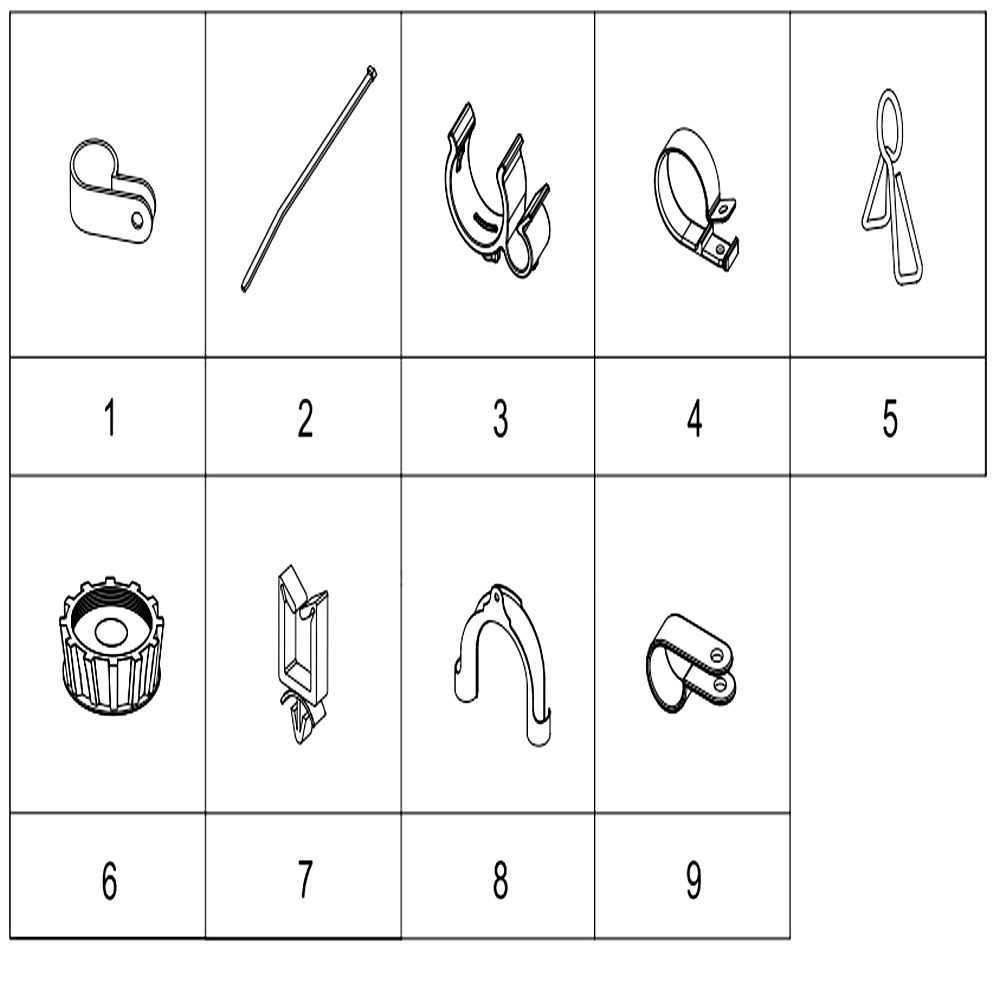

Small Parts

...
...
1
Cable Clamp SAM-DC65-20008C
...
2
Cable Tie SAM-6501-000121
...
3
Clamper Hose-Fix SAM-DC65-00038A
...
4
Clamper Hose; Hudson Washer,pp,ntr SAM-DC65-00047A
...
5
Spring Clip SAM-DC61-70184A
...
6
Assembly Cap V.w SAM-DC97-18313A
...
7
Cable Clamp SAM-DC61-00553B
...
8
Hanger Clamper; Pp,t1.5,black,rm60c SAM-DC61-00224B
...
9
Cable Clamp; Da-13n,id21.6,t1.5,nylon66,n SAM-6502-000155
