product name

Samsung WA50M7450AW/A4_0051

Model: WA50M7450AW/A4_0051

Save Part Not Listed?

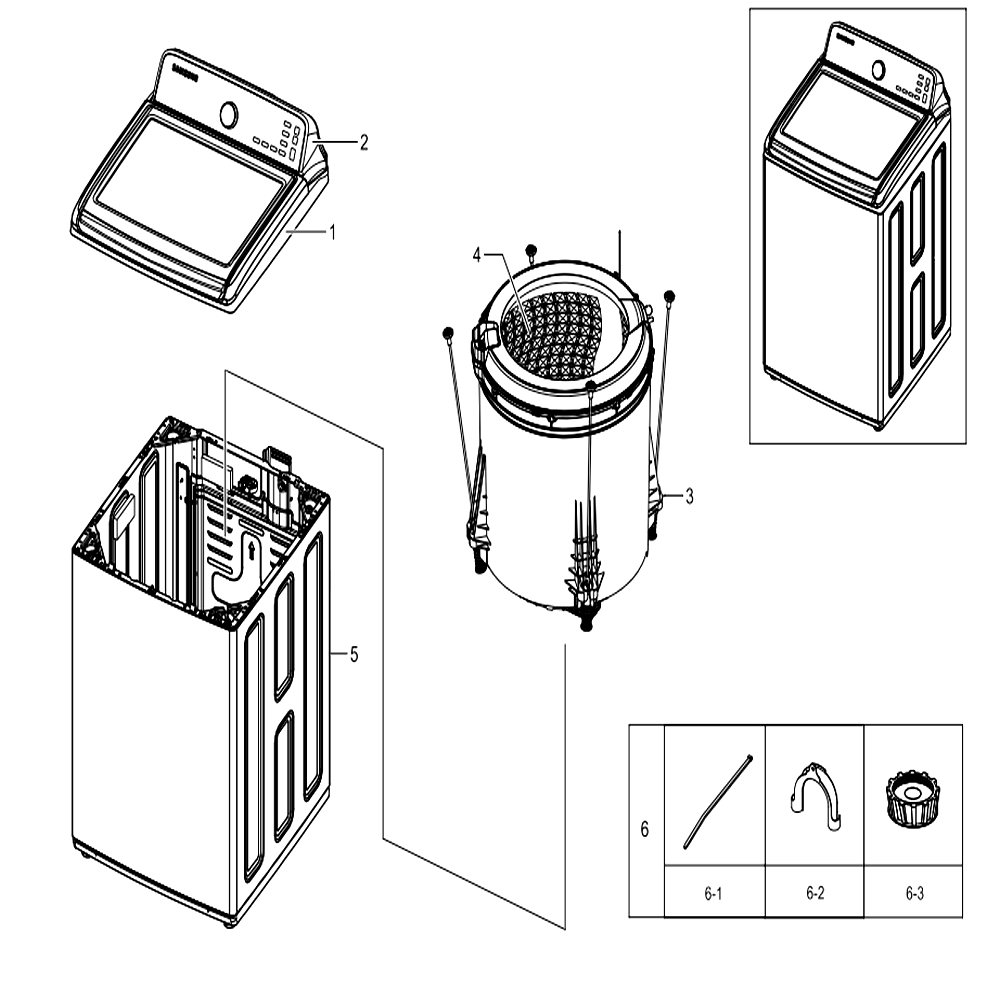

product name

Main

...
...
1
Assy Cover Top Parts; Wa7450m,wa50m7450aw SAM-DC90-00070Q
...
2
Assy Panel Control Parts; Wa7450m,wa50m74 SAM-DC90-00068L
...
3
Assy Tub Parts; Wa7450m,wa50m7450aw/a4,se SAM-DC90-00068V
...
4
Assy Basket Spin Parts; Wa7450m,wa50m7450 SAM-DC90-00068T
...
5
Assy Frame Case Parts; Wa7450m,wa50m7450a SAM-DC90-00070L
...
6-1
Cable Tie SAM-6501-000121
...
6-2
Hanger Clamper; Pp,t1.5,black,rm60c SAM-DC61-00224B
...
6-3
Assembly Cap V.w SAM-DC97-18313A
...
6
Assy Accessory; Atv-Pjt,all Model SAM-DC98-02985A

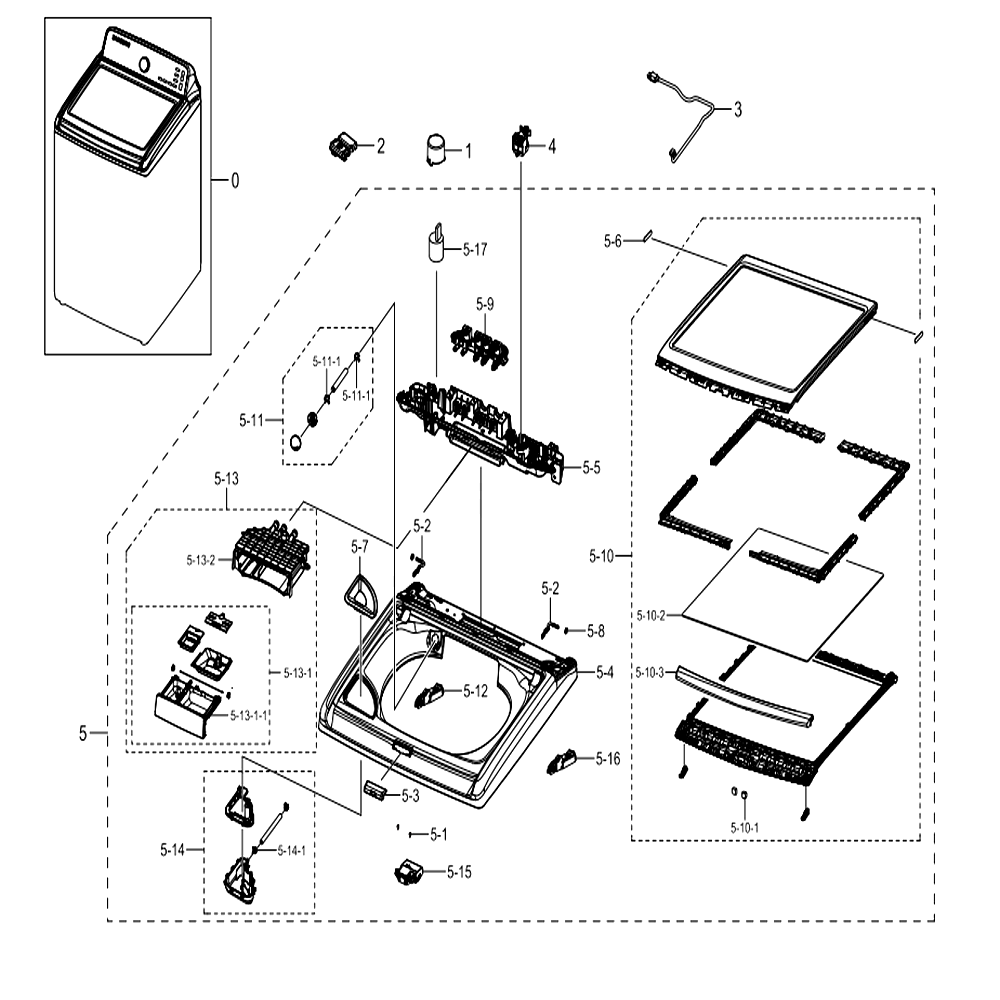

Assy Cover Top Parts

...
...
0
Assy Cover Top Parts; Wa7450m,wa50m7450aw SAM-DC90-00070Q
...
1
Cover Filter; Dual Washer,abs,t2.5,natura SAM-DC63-01432B
...
2
Cover Connector; Wa3250m,pp,t3,natural,mu SAM-DC63-02117A
...
3
Cbf-Power Cord SAM-DC96-00757C
...
4
Sensor Pressure; Air,5v,82020mm SAM-DC96-01703H
...
5-1
Screw-Tapping SAM-6002-000445
...
5-2
Guide-Pin(a); Wa 4000hh,scm,l67.7 SAM-DC61-03426A
...
5-3
Cover Switch SAM-DC63-01430B
...
5-4
Cover Top; Wa50m7450aw,abs,hb,neat White, SAM-DC63-02175B
...
5-5
Cover Plate; Wa52(0)m77(4)50a*,pp,hb,dark SAM-DC63-02184A
...
5-6
Inlay-Door Side; Wa456dr,pet,t0.188,w9.9, SAM-DC64-02822A
...
5-7
Decoration Bleach; Wa50m7450ap/a4,abs,t2, SAM-DC64-03633A
...
5-8
Cap Hinge; Wa456drhdwd,pom,t3.1,w11.0,bs0 SAM-DC67-00637A
...
5-9
Valve Water; Ac110-127v,rubber Sealing, 5 SAM-DC97-15459G
...
5-10-1
Magnet R.s SAM-DC61-03184A
...
5-10-2
Door Glass; Hudson,glass,t3.2,-,dark Gray SAM-DC64-02770A
...
5-10-3
Decoration Handle; Hudson,abs,t2.5,natura SAM-DC64-02771D
...
5-10
Assy Lid T.c; Wa7000h,wa48h7400aw,neat Wh SAM-DC97-16959Y
...
5-11-1
Clamper Hose; F1235j,sk5,t1.0/id14.8,wht SAM-DC61-01136A
...
5-11
Assy Nozzle; Wa7400m,wa50m7450a*,honesty SAM-DC97-16971D
...
5-12
Assy Hinge; Wa7000h,wa45h7000 SAM-DC97-19700A
...
5-13-1-1
Case Detergent; Wa56h9000aw,abs,t2,neat W SAM-DC61-03850A
...
5-13-1
Assy Case Detergent; Wa50m7450aw/a4 SAM-DC97-18119G
...
5-13-2
Assy Body Detergent; Ww7700j,wa8700j SAM-DC97-19312B
...
5-13
Assy Detergent; Wa7450m,wa50m7450aw SAM-DC97-20591B
...
5-14-1
Clamper Hose; Ssec-Ge,sk5,-,dacromet,t1.0 SAM-DC65-00008B
...
5-14
Assy Drawer Bleach; Wa7400m,wa50m7450a* SAM-DC97-20693A
...
5-15
Switch Door Lock SAM-DC34-00025E
...
5-16
Assy Hinge; Wa7000h,wa45h7000 SAM-DC97-16923M
...
5-17
Filter Line; -,-,-,15mh/22.5mh,15mh,53*82 SAM-DC29-00024A
...
5
Assy Semi Cover Top; Wa7400m,wa50m7450aw, SAM-DC97-20671A

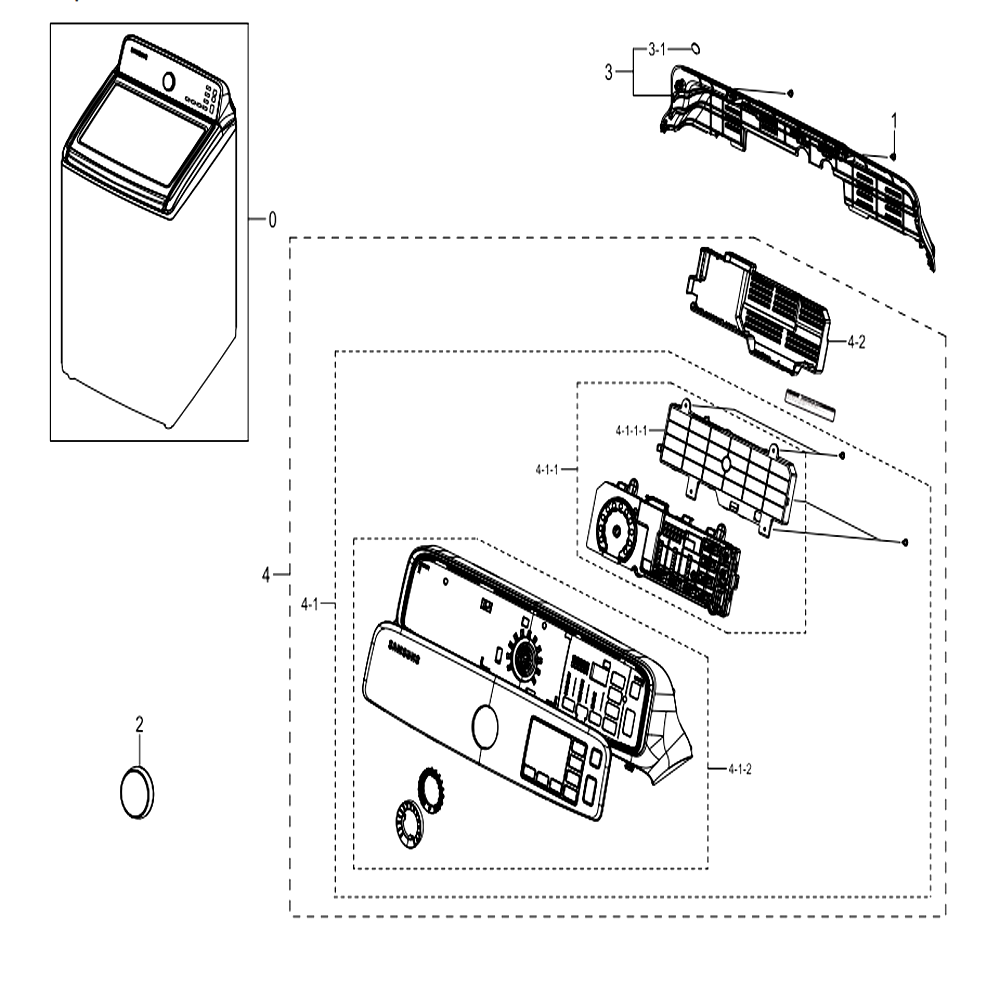

Assy Control Parts

...
...
0
Assy Panel Control Parts; Wa7450m,wa50m74 SAM-DC90-00068L
...
1
Screw-Tapping SAM-6002-000213
...
2
Assy Knob Encoder SAM-DC97-16931B
...
3-1
Inlay SAM-DC64-02822V
...
3
Assy Cover Panel; Wa77(5)50,korea,neat Wh SAM-DC97-19690D
...
4-1-1-1
Assy Pcb Main; Owm_Inv,wa7400m,328x80,y,1 SAM-DC92-01998D
...
4-1-1
Assy Kit; Owm_Inv,wa7400m,dd SAM-DC92-02003A
...
4-1-2
Assy S.panel Control; Wa7400m,wa50m7450aw SAM-DC97-19576T
...
4-1
Assy Panel Control; Wa7400m,wa50m7450aw,t SAM-DC97-20653B
...
4-2
Cover Pcb-Main; Wa7700m,abs/mabs,5va,natu SAM-DC63-02043A
...
4
Assy Cover Pcb; Wa7700m,wa52m7750ap(w) SAM-DC97-20064A

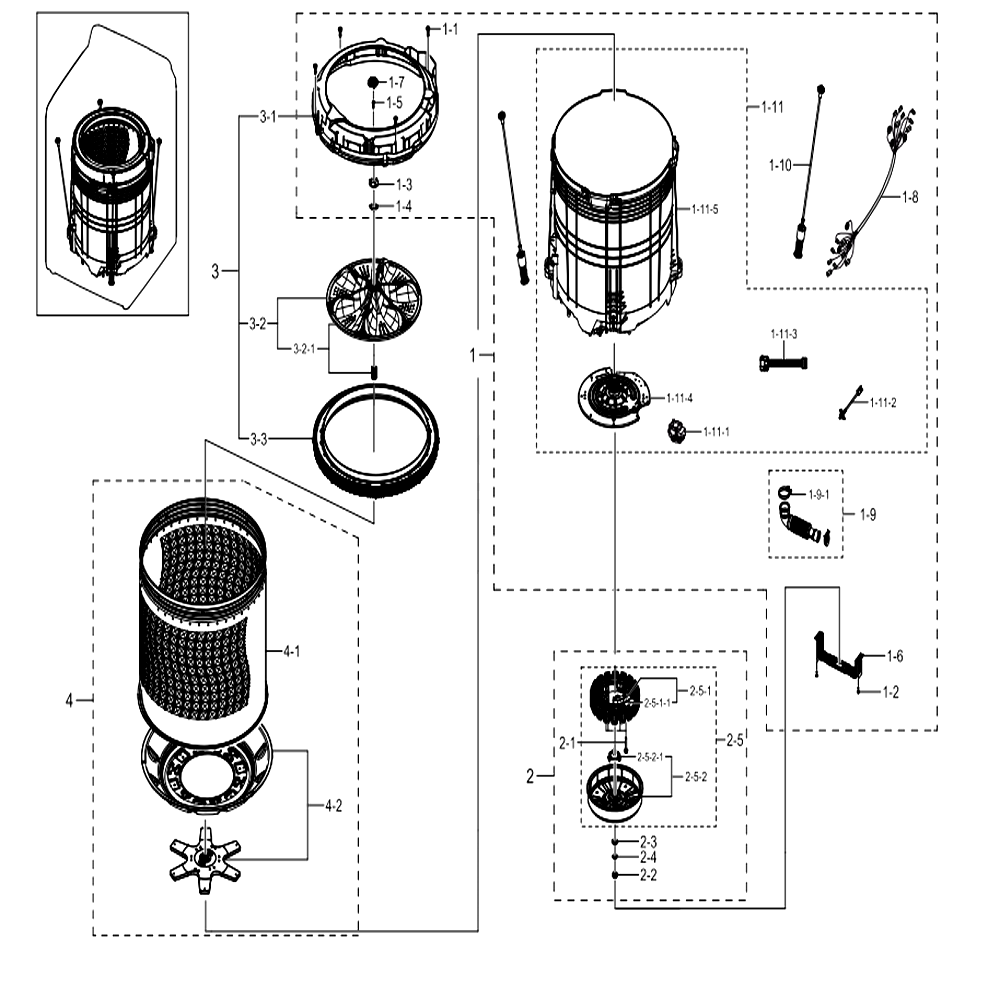

Assy Tub Parts

...
...
1-1
Screw-Tapping; Th,+,no,2,m5,l16,pass,sts4 SAM-6002-001160
...
1-2
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-3
Nut-Hexagon SAM-6021-001573
...
1-4
Washer-Wave SAM-6031-002240
...
1-5
Bolt Pulsator SAM-DC60-40133A
...
1-6
Support Saddle; Wa-Ra169n,gi-Sgcc,t1.2,sb SAM-DC61-02329A
...
1-7
Pulsator Cap; All Usa Model(except 3000j) SAM-DC66-00887B
...
1-8
Assy Wire Harness-Main; Auto,wa50m7450ap, SAM-DC93-00665D
...
1-9-1
Clamper Hose-Joint; F900a,hswr,white SAM-DC65-00014C
...
1-9
Assy Hose Drain(i); Wa7000h SAM-DC97-17345B
...
1-10
Assy Damper; Owm,df10.5 SAM-0D.4C1,9L77-1158610F
...
1-11-1
Motor Drain-Clutch; Td-Sscl-12a,120v,50hz SAM-DC31-00090B
...
1-11-2
Assembly Thermistor SAM-DC90-10128N
...
1-11-3
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
1-11-4
Assy Clutch; F900a,wa50f9a7dsp/a2 SAM-DC97-18439A
...
1-11-5
Assy Tub Sub; Wa8600m, Wa7400m (non Heate SAM-DC97-20703B
...
1-11
Assy Semi Tub Outer; Wa8600m, Wa7400m,wa5 SAM-DC97-20704B
...
1
Assy Tub Parts; Wa7450m,wa50m7450aw/a4,se SAM-DC90-00068V
...
2-1
Bolt-Etc; M6,l56,mfzn,scm435,p1.0/hex/wsp SAM-6011-001627
...
2-2
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-3
Washer-Plain; Sts304,id12.5,od30.0,t3.0 SAM-6031-002269
...
2-4
Fastener-Spring; Hudson,mswr-Swrh,ssec;id SAM-DC60-60046A
...
2-5-1-1
Motor Bldc-Assy Hall Sensor; Com1300,1200 SAM-DC31-00098A
...
2-5-1
Motor Bldc-Assy Stator; Com1500,1200,220- SAM-DC31-00097B
...
2-5-2-1
Cushion-Clutch; Wa-Ra169n,nbr,t2.6,w47.7, SAM-DC63-01069A
...
2-5-2
Motor Bldc-Assy Rotor; Com600,1000,25nm/1 SAM-DC31-00125C
...
2-5
Assy Dd Bldc Motor; F900a,com600,3p 220v SAM-DC93-00236C
...
2
Assy Driving Module; Atv-Pjt,dd SAM-DC90-22716A
...
3-1
Cover Tub; Wa8700k,pp,t2.0,hb,ktl Gray,bj SAM-DC63-01923B
...
3-2-1
Assy Pulsator-Lower; Wa8700k SAM-DC97-19288A
...
3-2
Assy Pulsator; Wa8700k SAM-DC97-19291B
...
3-3
Assy Balancer; Wa8700k SAM-DC97-19309A
...
3
Assy Packing-3parts; S1-Pjt,wa7450m SAM-DC90-26359A
...
4-1
Basket Wrapper; Wa50m7450a*,sts430j1l,t0. SAM-DC61-04581A
...
4-2
Assy Bowl; F900a,wa22f9a8dsp/pe SAM-DC97-18983A
...
4
Assy Basket Spin Parts; Wa7450m,wa50m7450 SAM-DC90-00068T

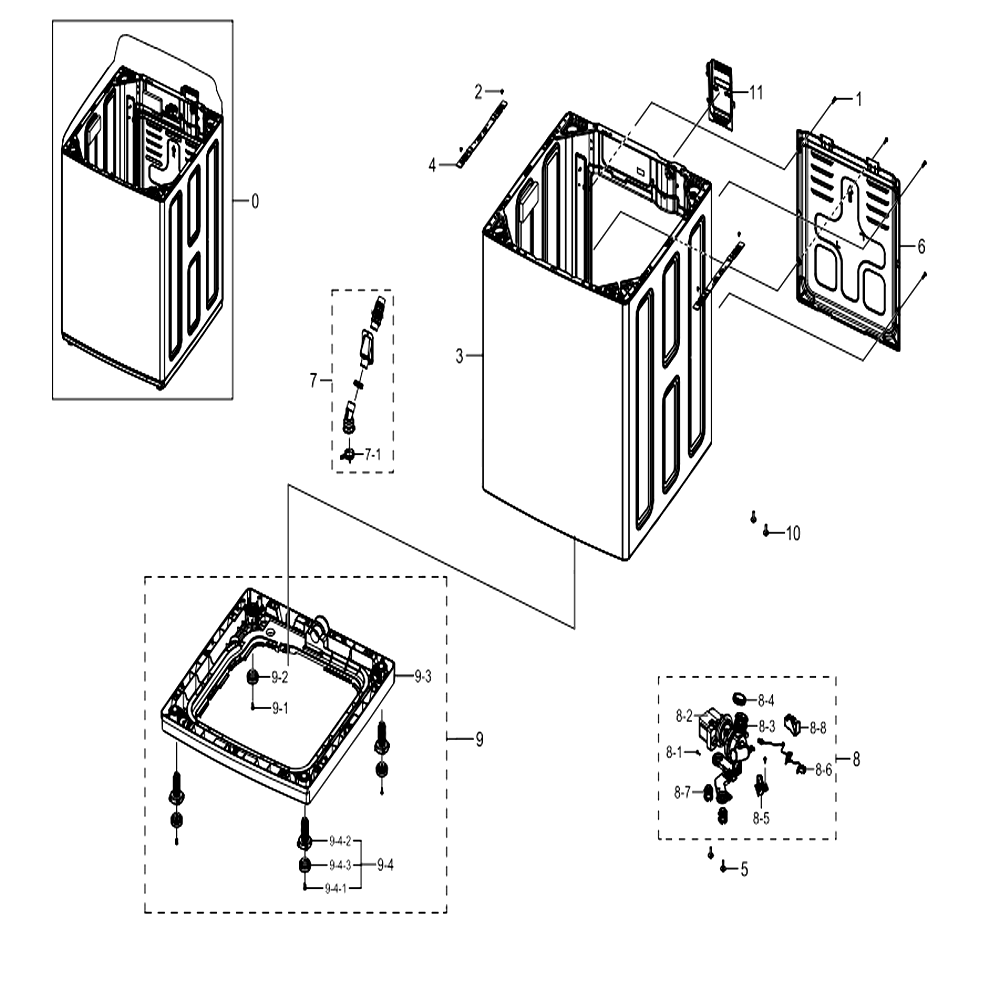

Assy Frame Case Parts

...
...
0
Assy Frame Case Parts; Wa7450m,wa50m7450a SAM-DC90-00070L
...
1
Screw-Tapping SAM-6002-000213
...
2
Screw-Tapping SAM-6006-001174
...
3
Frame; 27inch Usa,gi-Sgcc,neat White,t0.7 SAM-DC61-03263P
...
4
Bracket Frame; Wa7700k,gi-Sgcc,t1,z14,nc SAM-DC61-04106A
...
5
Assy Screw; Wf203,m4/l16 SAM-DC97-14006A
...
6
Assembly Cover Back SAM-DC97-16982A
...
7-1
Clamper Hose; Atv,sk5,natural,zpc2 SAM-DC65-00027D
...
7
Assembly Hose Drain SAM-DC97-18682C
...
8-1
Screw-Tapping SAM-6002-000524
...
8-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
8-3
Case Pump; Hudson Washer,pp,white,fh44n SAM-DC61-03385A
...
8-4
Valve Check; Hudson,nbr,-,black SAM-DC62-00328A
...
8-5
Cushion Pump-Left; F900a,epdm,-,-,- SAM-DC63-01394A
...
8-6
Assy Wire Harness-Pump; Auto,wa50k8600ap/ SAM-DC93-00616A
...
8-7
Assy Cushion Pump; F900a,f900a,od27.0 SAM-DC98-01438A
...
8-8
Cover Pump; F900a,pp,-,-,white,fh44n SAM-DC63-01586A
...
8
Assy Pump Drain; Wa8(7)700k,al Coil,120v, SAM-DC97-19289B
...
9-1
Screw-Tapping SAM-6002-000524
...
9-2
Leg Rubber SAM-DC61-03191B
...
9-3
Base; Wa8700k,wa8700j,pp,black,hb,tpc-Ppc SAM-DC61-03956D
...
9-4-1
Screw-Tapping SAM-6002-000524
...
9-4-2
Leg Adjust SAM-DC61-01722B
...
9-4-3
Leg Rubber SAM-DC61-03191B
...
9-4
Assy Leg; Wa87(6)00m,wa77(4)00m,all Usa M SAM-DC97-20629A
...
9
Assy Base; All Usa Model,pp,black,pump Ty SAM-DC97-20103F
...
10
Screw-Tapping; Pwh,+,-,2s,m5,l9,-,swrch18 SAM-DE60-10080A
...
11
Assembly Cover Wire SAM-DC97-17422A

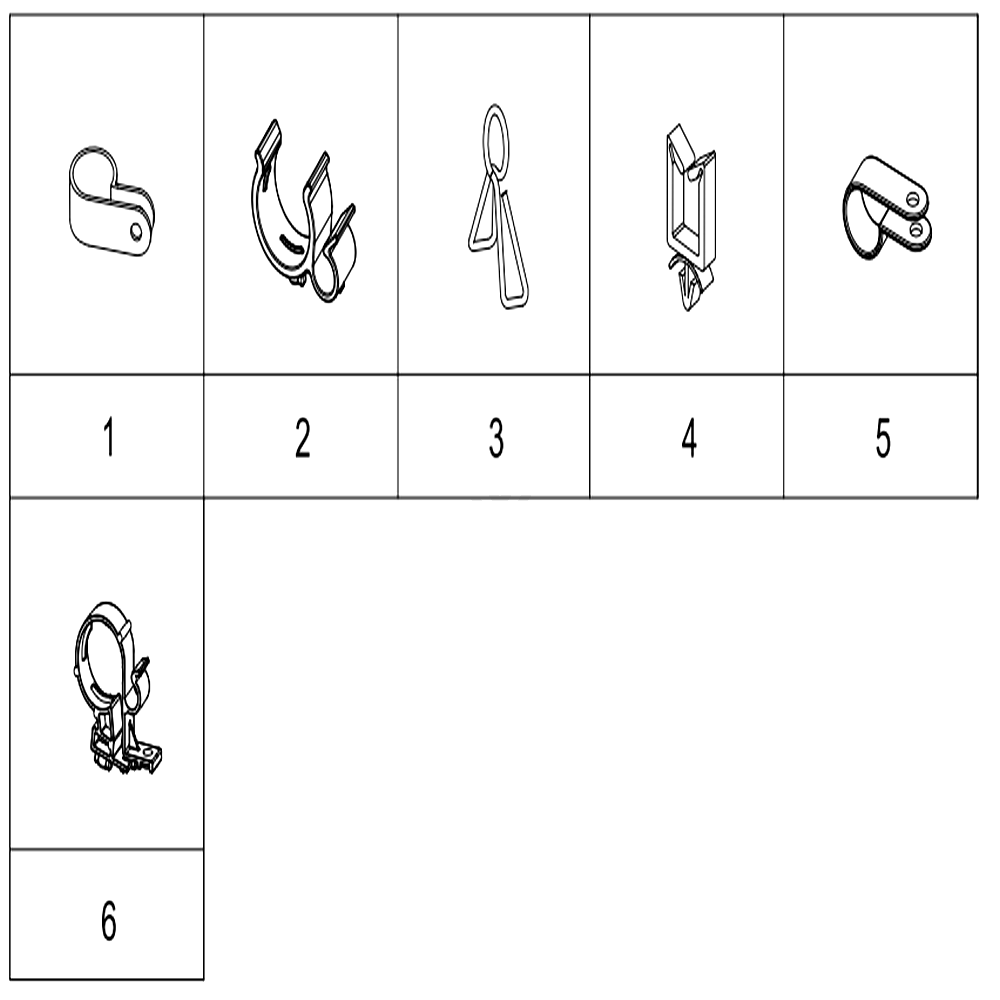

Small Parts

...
...
1
Cable Clamp SAM-DC65-20008C
...
2
Clamper Hose-Fix SAM-DC65-00038A
...
3
Spring Clip SAM-DC61-70184A
...
4
Cable Clamp SAM-DC61-00553B
...
5
Cable Clamp; Da-13n,id21.6,t1.5,nylon66,n SAM-6502-000155
...
6
Clamper Hose; Hudson Washer,pp,ntr SAM-DC65-00047A
