product name

Samsung WA50M7450AW/A4_0001

Model: WA50M7450AW/A4_0001

Save Part Not Listed?
product name

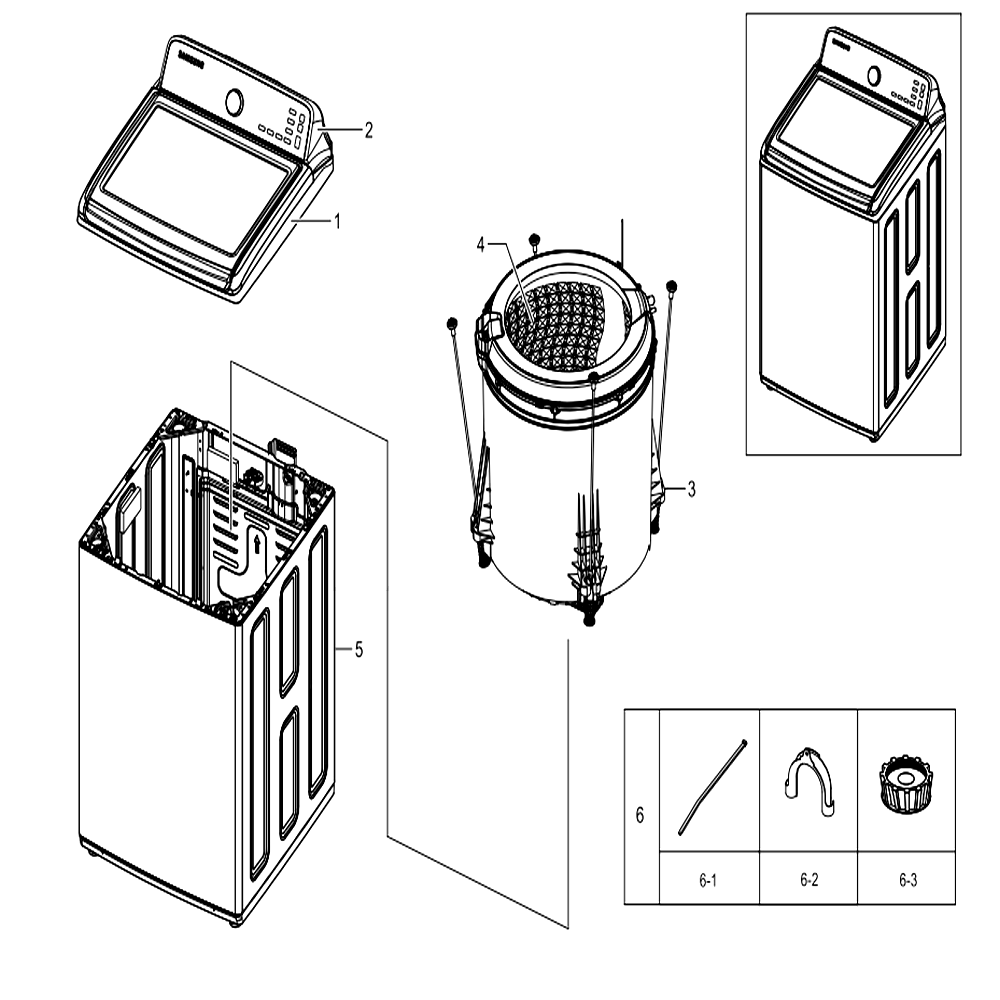

Main

...
...
1
Assy Cover Top Parts; Wa7400m,wa50m7450aw SAM-DC90-24097G
...
2
Assy Control; Wa7400m,wa50m7450aw/a4 SAM-DC90-22554H
...
3
Assy Tub Parts; Wa7400m,wa50m7450a*/a4 SAM-DC90-24098D
...
4
Assy Basket Spin; Wa8700k,wa50k8600ap/a2, SAM-DC97-17360C
...
5
Assy Frame Case Parts; Wa7400m,neat White SAM-DC90-24108C
...
6-1
Cable Tie SAM-6501-000121
...
6-2
Hanger Clamper; Pp,t1.5,black,rm60c SAM-DC61-00224B
...
6-3
Assembly Cap V.w SAM-DC97-18313A
...
6
Assy Accessory; Atv-Pjt,all Model SAM-DC98-02985A

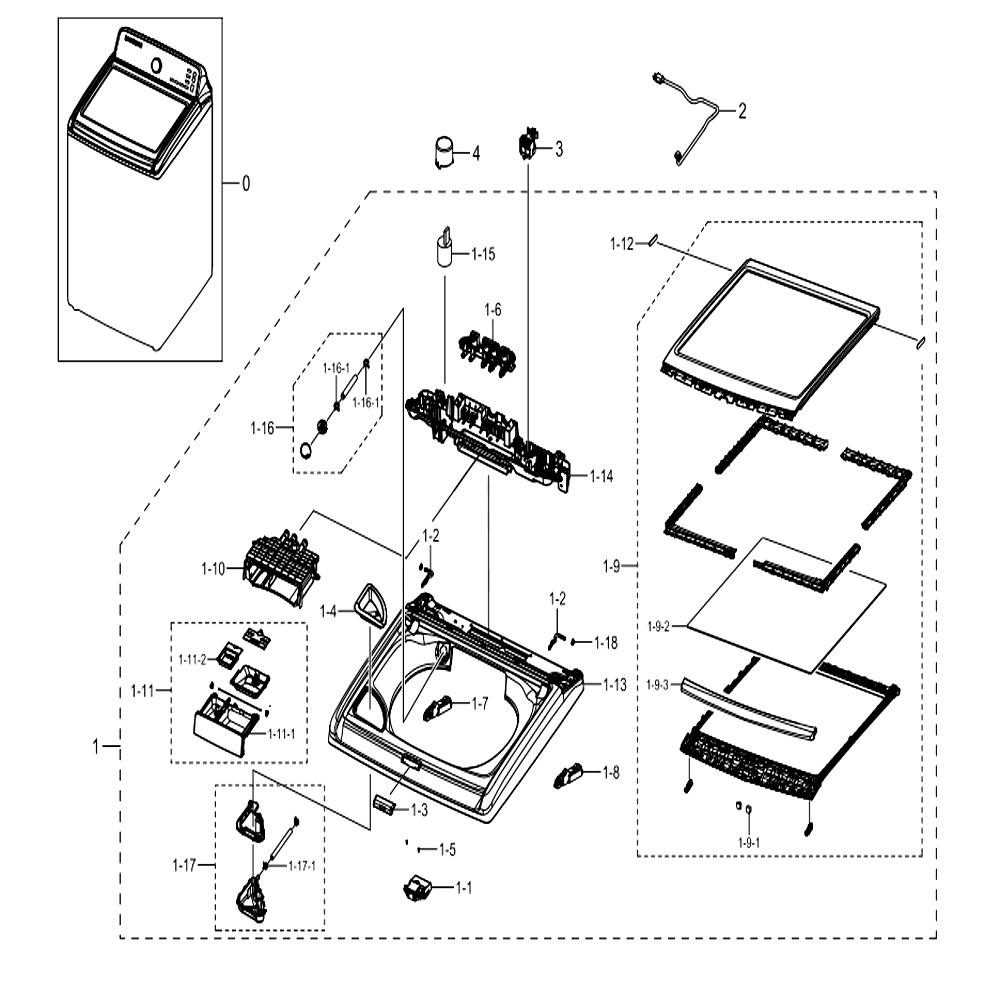

Assy Cover Top Parts

...
...
0
Assy Cover Top Parts; Wa7400m,wa50m7450aw SAM-DC90-24097G
...
1-1
Switch Door Lock SAM-DC34-00025E
...
1-2
Guide-Pin(a); Wa 4000hh,scm,l67.7 SAM-DC61-03426A
...
1-3
Cover Switch SAM-DC63-01430B
...
1-4
Decoration Bleach; Wa8000j,abs,t2.0,hones SAM-DC64-03205A
...
1-5
Screw-Tapping SAM-6002-000445
...
1-6
Valve Water; Ac110-127v,rubber Sealing, 5 SAM-DC97-15459G
...
1-7
Assy Hinge; Wa7000h,wa45h7000 SAM-DC97-19700A
...
1-8
Assy Hinge; Wa7000h,wa45h7000 SAM-DC97-16923M
...
1-9-1
Magnet R.s SAM-DC61-03184A
...
1-9-2
Door Glass; Hudson,glass,t3.2,-,dark Gray SAM-DC64-02770A
...
1-9-3
Decoration Handle; Hudson,abs,t2.5,natura SAM-DC64-02771D
...
1-9
Assy Lid T.c; Wa7000h,wa48h7400aw,neat Wh SAM-DC97-16959Y
...
1-10
Assy Body Detergent; Ww7700j,wa8700j SAM-DC97-19312B
...
1-11-1
Case Detergent; Wa56h9000aw,abs,t2,neat W SAM-DC61-03850A
...
1-11-2
Cap Rinse SAM-DC67-00635B
...
1-11
Assy Case Detergent; Wa50m7450aw/a4 SAM-DC97-18119G
...
1-12
Inlay-Door Side; Wa456dr,pet,t0.188,w9.9, SAM-DC64-02822A
...
1-13
Cover Top; Wa456drhdwd,egi-Secc,t0.7,neat SAM-DC63-01418A
...
1-14
Cover Plate SAM-DC63-01431A
...
1-15
Filter Emi; Rdfc 2921 4701000,vde,15mh +5 SAM-DC29-00021A
...
1-16-1
Clamper Hose; F1235j,sk5,t1.0/id14.8,wht SAM-DC61-01136A
...
1-16
Assy Nozzle; Wa7000hg,wa10h7200gp/sa SAM-DC97-16971C
...
1-17-1
Clamper Hose; Ssec-Ge,sk5,-,dacromet,t1.0 SAM-DC65-00008B
...
1-17
Assy Drawer-Bleach; Wa8000j,wa52j8080ap/a SAM-DC97-18578A
...
1-18
Cap Hinge; Wa456drhdwd,pom,t3.1,w11.0,bs0 SAM-DC67-00637A
...
1
Assy Semi Cover Top; Wa7450m,wa50m7450aw/ SAM-DC97-19575P
...
2
Cbf-Power Cord SAM-DC96-00757C
...
3
Sensor Pressure; Air,5v,82020mm SAM-DC96-01703H
...
4
Cover Filter; Wa456drhdwd,hips,t2.5,natur SAM-DC63-01432C

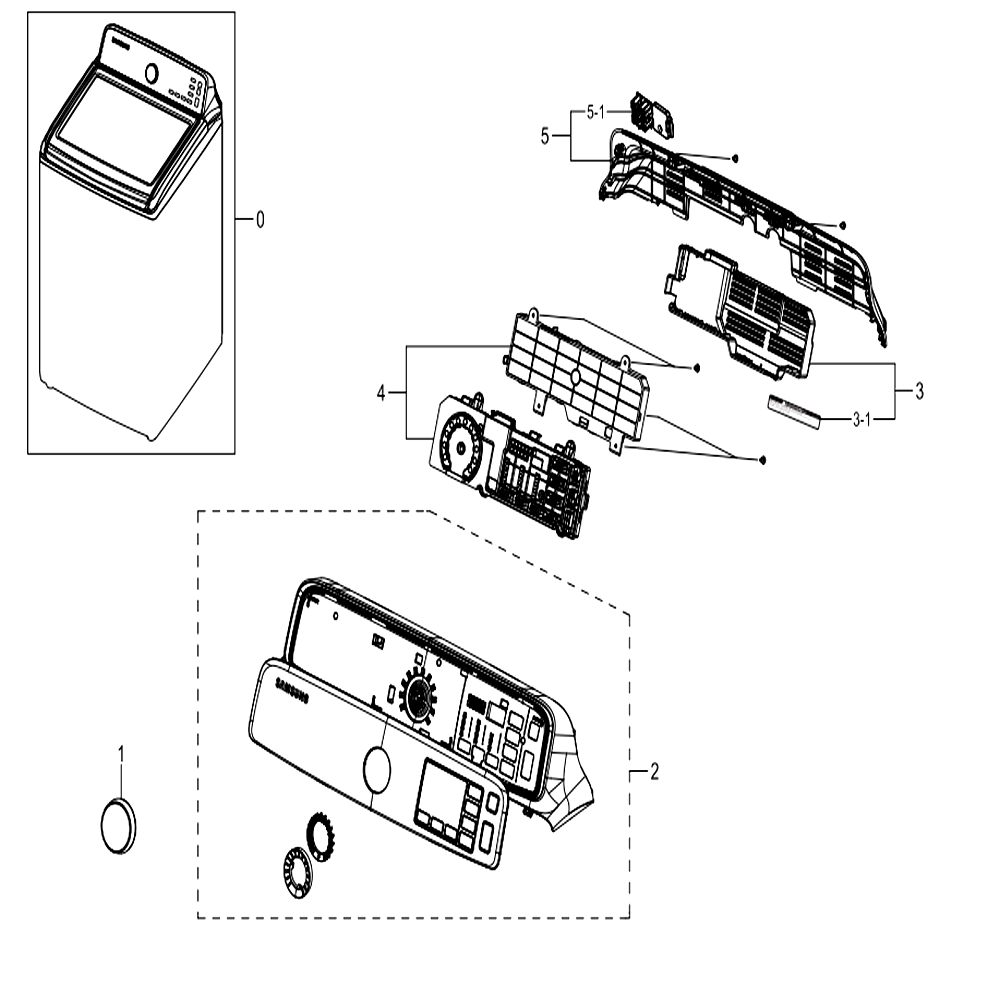

Assy Control Parts

...
...
0
Assy Control; Wa7400m,wa50m7450aw/a4 SAM-DC90-22554H
...
1
Assy Knob Encoder SAM-DC97-16931B
...
2
Assy S.panel Control; Wa7400m,wa50m7450aw SAM-DC97-19576T
...
3-1
Label Caution; Wa456drhdwr,art,w15,l90,co SAM-DC68-02722A
...
3
Assy Cover Pcb; Wa7700m,wa52m7750ap(w) SAM-DC97-20064A
...
4
Assy Kit; Owm_Inv,wa7400m,dd SAM-DC92-02003A
...
5-1
Cover Connector; Wa54m8750ap,pp,t0.2,hb,d SAM-DC63-02093A
...
5
Assy Cover Panel; Wa77(5)50,korea,neat Wh SAM-DC97-19690G

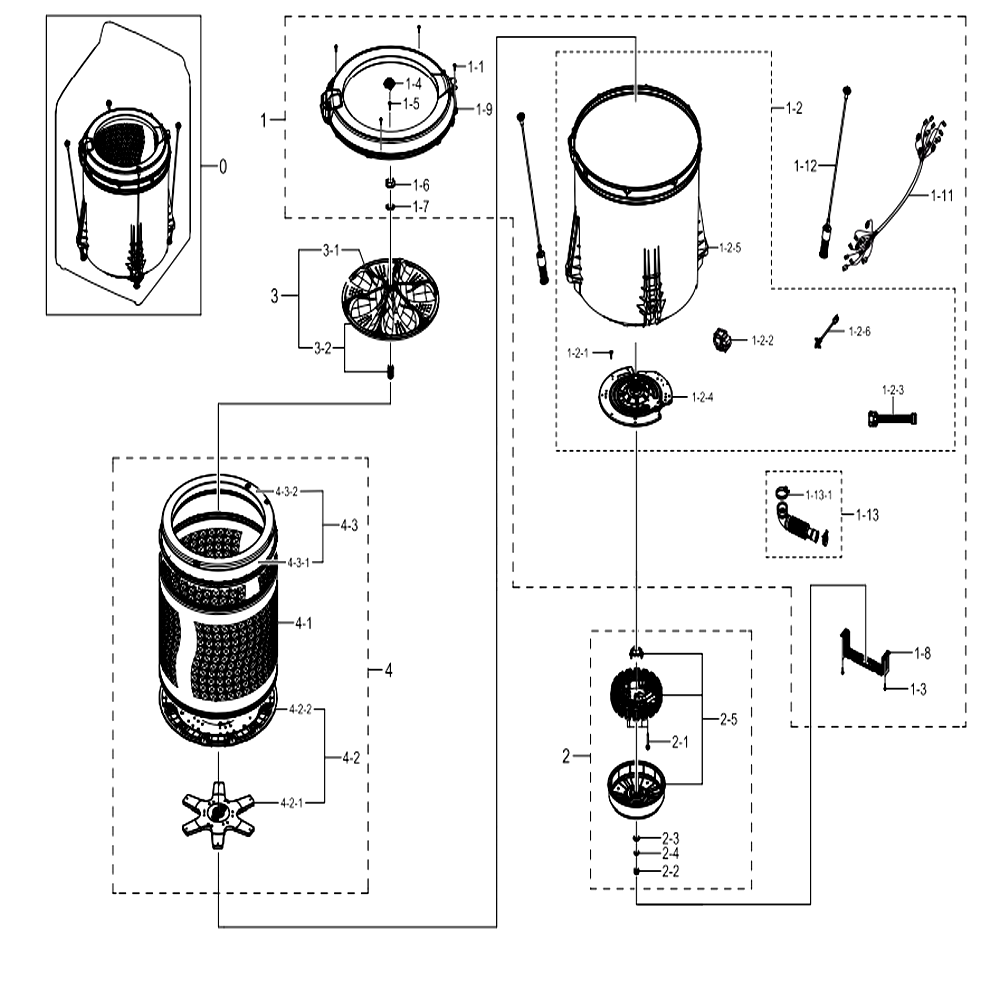

Assy Tub Parts

...
...
1-1
Screw-Tapping; Th,+,no,2,m5,l16,pass,sts4 SAM-6002-001160
...
1-2-1
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-2-2
Motor Drain-Clutch; Td-Sscl-12a,120v,50hz SAM-DC31-00090B
...
1-2-3
Assy Sensor; Mems Sensor,80mm,3.3v SAM-DC93-00278B
...
1-2-4
Assy Clutch; F900a,wa50f9a7dsp/a2 SAM-DC97-18439A
...
1-2-5
Assy Tub Sub; Wa7400m,wa8600m,frpp,no Pum SAM-DC97-19562J
...
1-2-6
Assembly Thermistor SAM-DC90-10128N
...
1-2
Assy Semi Tub Outer; Wa7400m,wa8600m,dd,n SAM-DC97-19565H
...
1-3
Bolt-Hex; M6.5,l25,zpc(wht),swrch18a,sera SAM-6002-001313
...
1-4
Pulsator Cap; All Usa Model(except 3000j) SAM-DC66-00887B
...
1-5
Bolt Pulsator SAM-DC60-40133A
...
1-6
Nut-Hexagon SAM-6021-001573
...
1-7
Washer-Wave SAM-6031-002240
...
1-8
Support Saddle; Wa-Ra169n,gi-Sgcc,t1.2,sb SAM-DC61-02329A
...
1-9
Cover Tub; Wa8700k,pp,t2.0,hb,ktl Gray,bj SAM-DC63-01923B
...
1-11
Assy Wire Harness-Main; Auto,rear,y,y,y,n SAM-DC93-00665B
...
1-12
Assy Damper; Owm,df0.9,k0.41,l715 SAM-DC97-18610F
...
1-13-1
Clamper Hose-Joint; F900a,hswr,white SAM-DC65-00014C
...
1-13
Assy Hose Drain(i); Wa7000h SAM-DC97-17345B
...
1
Assy Tub Parts; Wa7400m,wa50m7450a*/a4 SAM-DC90-24098D
...
2-1
Bolt-Etc; M6,l56,mfzn,scm435,p1.0/hex/wsp SAM-6011-001627
...
2-2
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-3
Washer-Plain; Sts304,id12.5,od30.0,t3.0 SAM-6031-002269
...
2-4
Fastener-Spring; Hudson,mswr-Swrh,ssec;id SAM-DC60-60046A
...
2-5
Assy Dd Bldc Motor; F900a,com600,3p 220v SAM-DC93-00236C
...
2
Assy Driving Module; Atv-Pjt,dd SAM-DC90-22716A
...
3-1
Pulsator-Up; Wa50m7450aw/a4,sts304,ba SAM-DC66-00883B
...
3-2
Assy Pulsator-Lower; Wa8700k SAM-DC97-19288A
...
3
Assy Pulsator; Wa8700k SAM-DC97-19291B
...
4-1
Basket Wrapper; Wa50f9a8dsw/aa,sts430j1l, SAM-DC61-03551B
...
4-2-1
Flange Shaft; F900a,aldc12,od381.0 SAM-DC60-00067D
...
4-2-2
Basket Bowl; Wa8700k,ba,sts430,t1.2,od 60 SAM-DC61-03178B
...
4-2
Assy Bowl; F900a,wa22f9a8dsp/pe SAM-DC97-18983A
...
4-3-1
Balancer-Low; Wa50k8600av/a2,pp,ktl Gray, SAM-DC63-01014A
...
4-3-2
Balancer-Up; Wa50k8700,pp,t4.0,ktl Gray,g SAM-DC61-04111A
...
4-3
Assy Balancer; Wa8700k SAM-DC97-19309A
...
4
Assy Basket Spin; Wa8700k,wa50k8600ap/a2, SAM-DC97-17360C

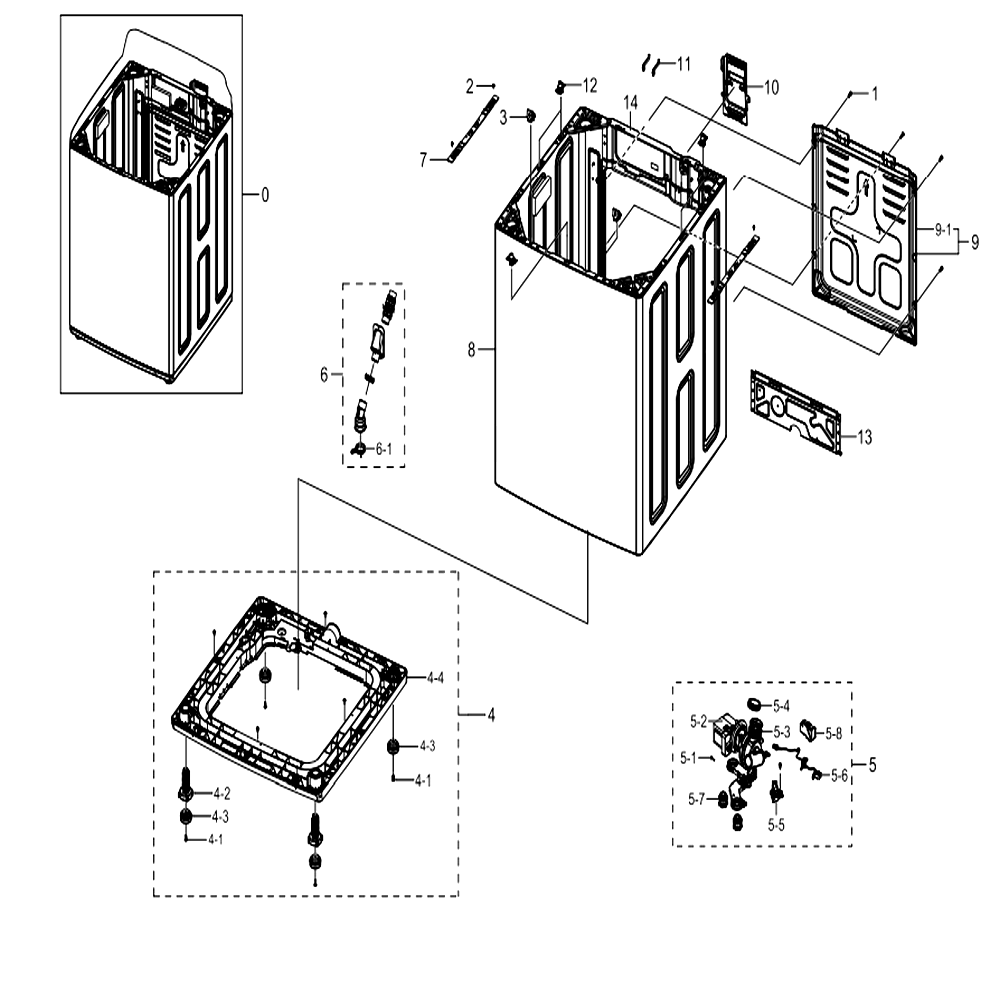

Assy Frame Parts

...
...
0
Assy Frame Case Parts; Wa7400m,neat White SAM-DC90-24108C
...
1
Screw-Tapping SAM-6002-000213
...
2
Screw-Tapping SAM-6006-001174
...
3
Fixer-Cover Top SAM-DC61-03174A
...
4-1
Screw-Tapping SAM-6002-000524
...
4-2
Leg Adjust SAM-DC61-01722B
...
4-3
Leg Rubber SAM-DC61-03191B
...
4-4
Base; Wa8700k,wa8700j,pp,black,hb,tpc-Ppc SAM-DC61-03956D
...
4
Assy Base; Wa8700k,sponge SAM-DC90-21571B
...
5-1
Screw-Tapping SAM-6002-000524
...
5-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
5-3
Case Pump; Hudson Washer,pp,white,fh44n SAM-DC61-03385A
...
5-4
Valve Check; Hudson,nbr,-,black SAM-DC62-00328A
...
5-5
Cushion Pump-Left; F900a,epdm,-,-,- SAM-DC63-01394A
...
5-6
Assy Wire Harness-Pump; Auto,wa50k8600ap/ SAM-DC93-00616A
...
5-7
Assy Cushion Pump; F900a,f900a,od27.0 SAM-DC98-01438A
...
5-8
Cover Pump; F900a,pp,-,-,white,fh44n SAM-DC63-01586A
...
5
Assy Pump Drain; Wa8(7)700k,al Coil,120v, SAM-DC97-19289B
...
6-1
Clamper Hose; Atv,sk5,natural,zpc2 SAM-DC65-00027D
...
6
Assembly Hose Drain SAM-DC97-18682C
...
7
Bracket Frame; Wa8700j,gi-Sgcc,t3.0 SAM-DC61-04203A
...
8
Frame SAM-DC61-03263A
...
9-1
Cover Back SAM-DC63-01447A
...
9
Assembly Cover Back SAM-DC97-16982A
...
10
Assembly Cover Wire SAM-DC97-17422A
...
11
Bush Pin; Wa8700,swrch10a SAM-DC61-04207A
...
12
Guide Cover Top SAM-DC61-03400A
...
13
Assy Frame Plate-Low; Auto 27inch,gi-Sgcc SAM-DC97-20563A
...
14
Assy Frame Plate-Up; Auto 27inch,gi-Sgcc+ SAM-DC97-20562A

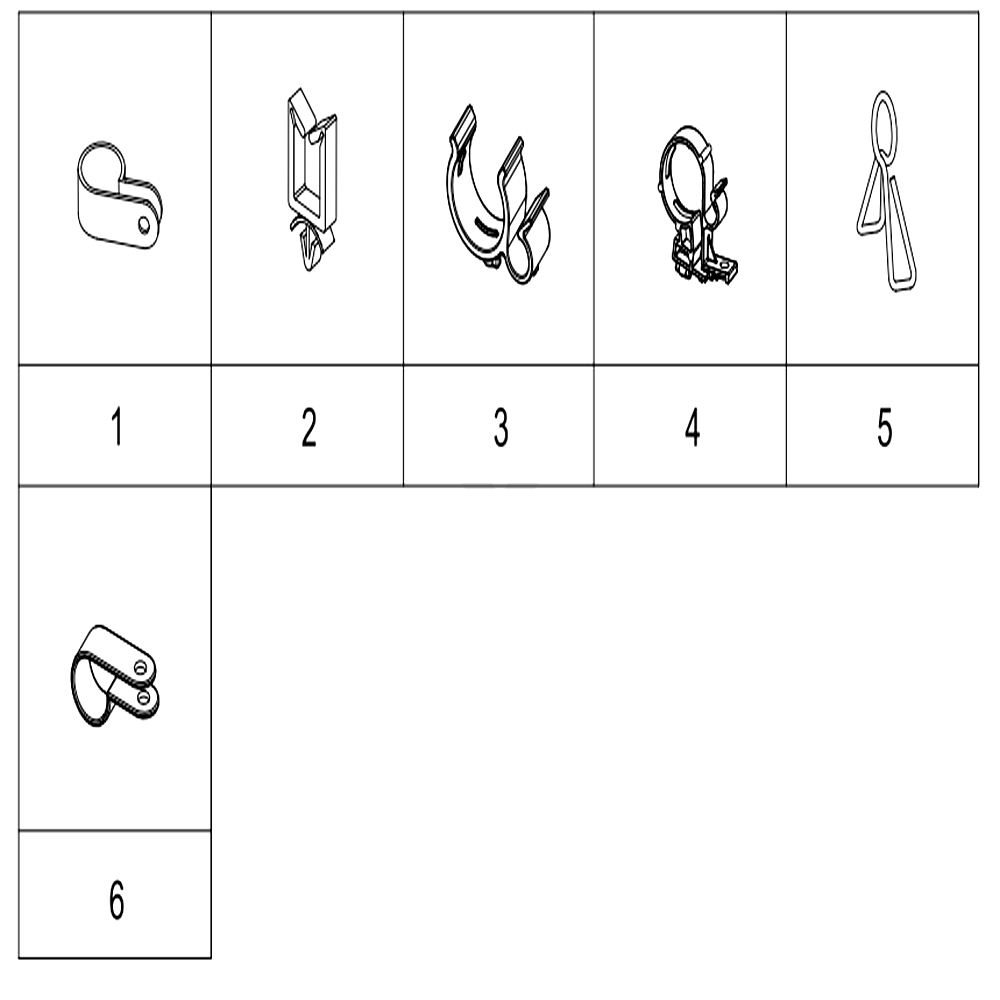

Small Parts

...
...
1
Cable Clamp SAM-DC65-20008C
...
2
Cable Clamp SAM-DC61-00553B
...
3
Clamper Hose-Fix SAM-DC65-00038A
...
4
Clamper Hose; Hudson Washer,pp,ntr SAM-DC65-00047A
...
5
Spring Clip SAM-DC61-70184A
...
6
Cable Clamp; Da-13n,id21.6,t1.5,nylon66,n SAM-6502-000155
