Samsung WA45M7050AW/A4_0002

Model: WA45M7050AW/A4_0002

Save Part Not Listed?
product name

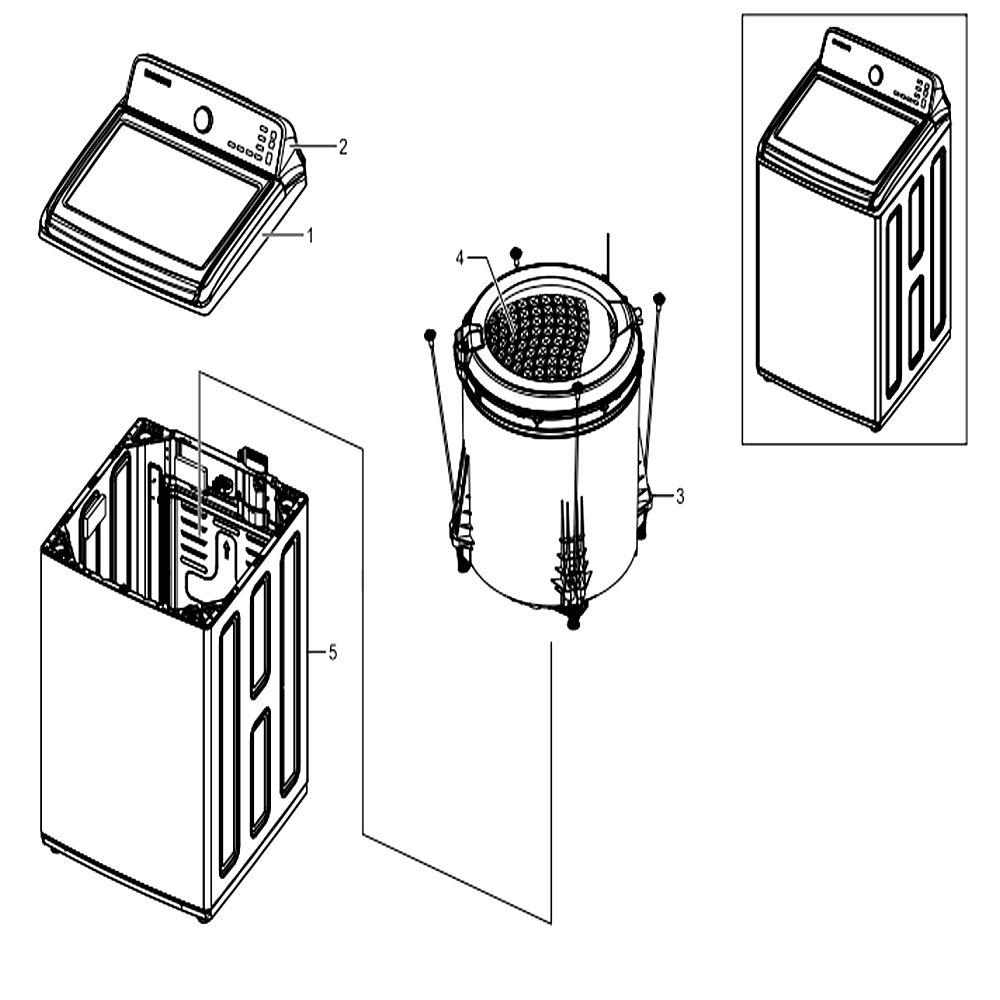

Main

...
...
1
Assy Cover Top Parts; Wa7000m,wa45m7050aw SAM-DC90-24097E
...
2
Assy Control; Wa7000m,wa45m7050aw/a4 SAM-DC90-22554F
...
3
Assy Tub Parts; Wa7000m,wa45m7050a*/a4 SAM-DC90-24098C
...
4
Assy Basket Spin; J2-7000,wa45h7000a*/a2 SAM-DC97-16990H
...
5
Assy Frame Case Parts; Wa7000m,wa3000j,ne SAM-DC90-24108A

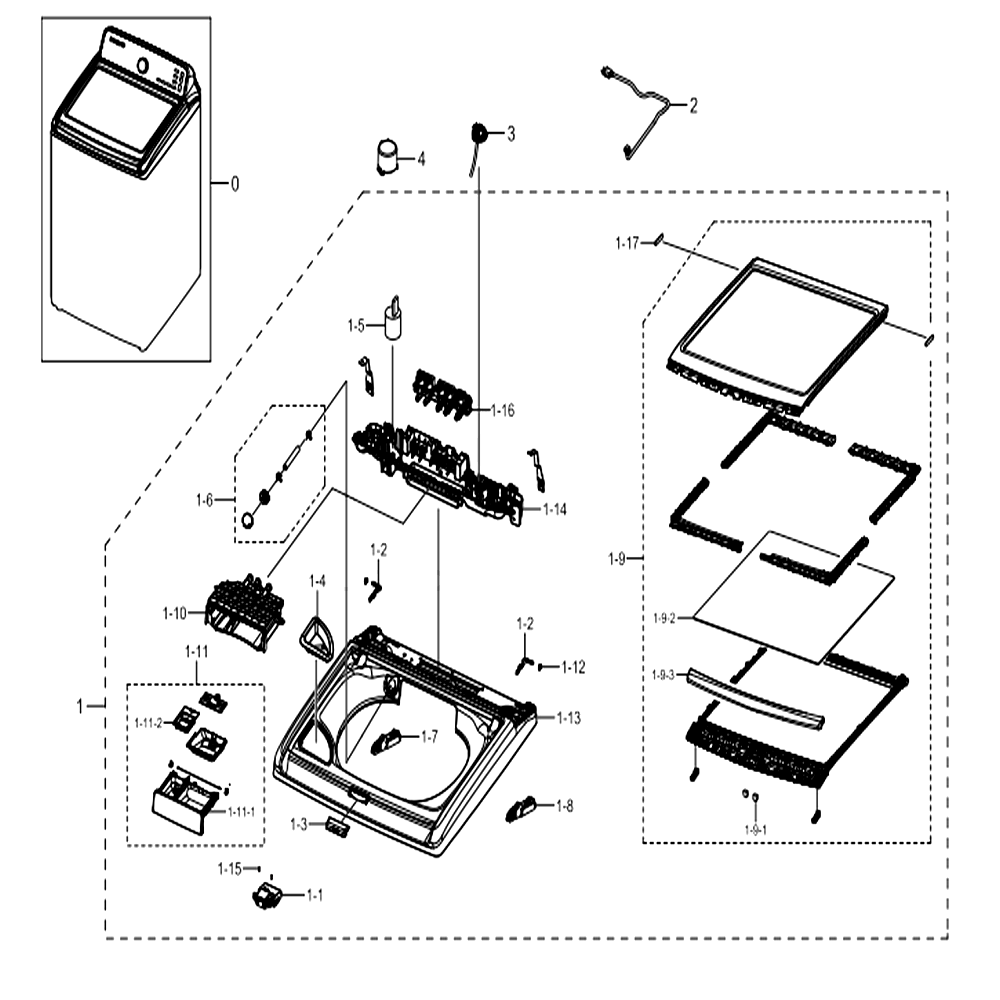

Assy Cover Top Parts

...
...
0
Assy Cover Top Parts; Wa7000m,wa45m7050aw SAM-DC90-24097E
...
1-1
Switch Door Lock SAM-DC34-00025E
...
1-2
Guide-Pin(a); Wa 4000hh,scm,l67.7 SAM-DC61-03426A
...
1-3
Cover Switch SAM-DC63-01430B
...
1-4
Decoration Bleach SAM-DC64-02762A
...
1-5
Filter Emi; Rdfc 2921 4701000,vde,15mh +5 SAM-DC29-00021A
...
1-6
Assy Nozzle; Wa7000hg,wa10h7200gp/sa SAM-DC97-16971C
...
1-7
Assy Hinge; Wa7000h,wa45h7000 SAM-DC97-19700A
...
1-8
Assy Hinge; Wa7000h,wa45h7000 SAM-DC97-16923M
...
1-9-1
Magnet R.s SAM-DC61-03184A
...
1-9-2
Door Glass; Hudson,glass,t3.2,-,dark Gray SAM-DC64-02770A
...
1-9-3
Decoration Handle; Hudson,abs,t2.5,natura SAM-DC64-02771D
...
1-9
Assy Lid T.c; Wa7000h,wa48h7400aw,neat Wh SAM-DC97-16959Y
...
1-10
Assembly Body Detergent SAM-DC97-16962A
...
1-11-1
Case Detergent SAM-DC61-03281A
...
1-11-2
Cap Rinse SAM-DC67-00635B
...
1-11
Assembly Case Detergent SAM-DC97-16963G
...
1-12
Cap Hinge; Wa456drhdwd,pom,t3.1,w11.0,bs0 SAM-DC67-00637A
...
1-13
Cover Top; Wa456drhdwd,egi-Secc,t0.7,neat SAM-DC63-01418A
...
1-14
Cover Plate SAM-DC63-01431A
...
1-15
Screw-Tapping SAM-6002-000445
...
1-16
Valve Water; Ac110-127v,rubber Sealing, 4 SAM-DC97-15459H
...
1-17
Inlay-Door Side; Wa456dr,pet,t0.188,w9.9, SAM-DC64-02822A
...
1
Assy Semi Cover Top; Wa7000m,wa45m7050aw/ SAM-DC97-19575J
...
2
Cbf-Power Cord SAM-DC96-00757C
...
3
Sensor Pressure SAM-DC96-01703C
...
4
Cover-Filter; Wa456drhdwd,hips,t1.5,natur SAM-DC63-01432A

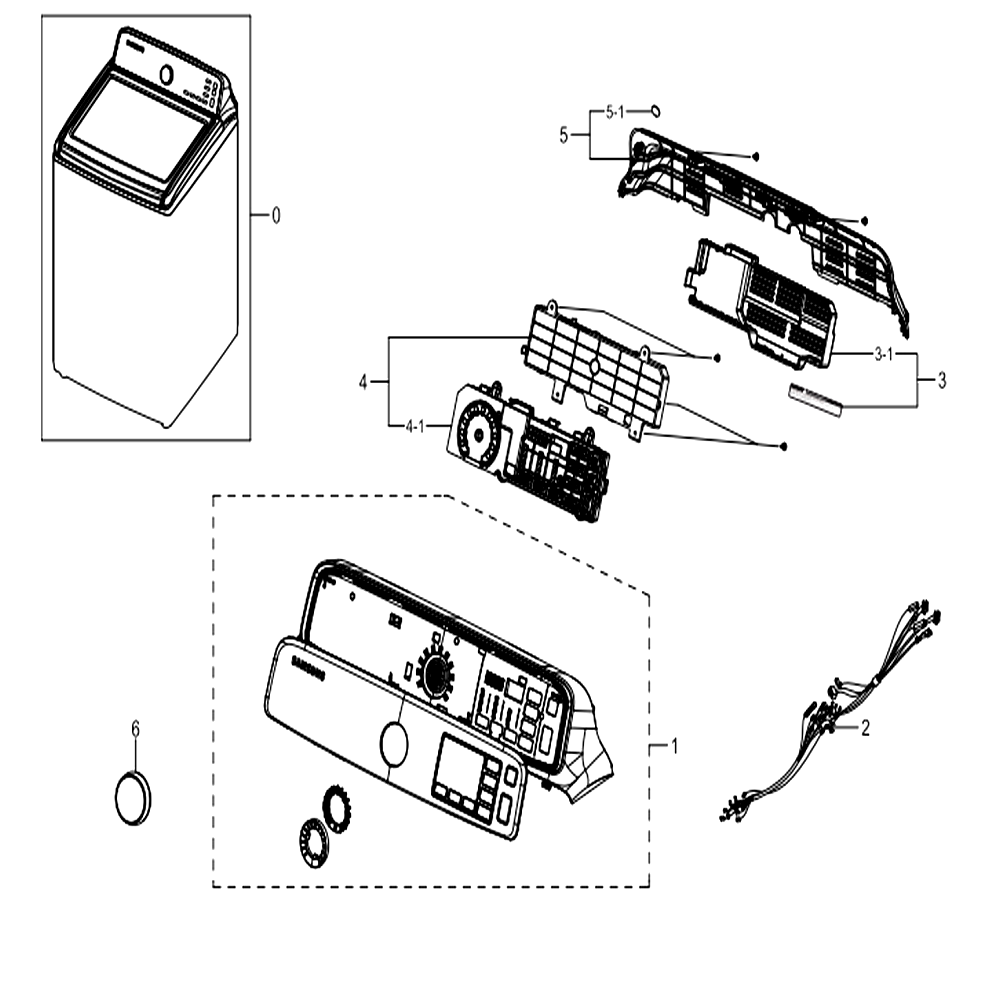

Assy Control Parts

...
...
0
Assy Control; Wa7000m,wa45m7050aw/a4 SAM-DC90-22554F
...
1
Assy S.panel Control; Wa7000m,wa45m7050aw SAM-DC97-19576U
...
2
Assy Wire Harness-Main; Auto,wa45m7050aw/ SAM-DC93-00715A
...
3-1
Cover-Pcb(m); Wa456drhdwd,abs,t2.5,natura SAM-DC63-01425A
...
3
Assy Cover Pcb(m); Hudson-Washer,wa456drh SAM-DC92-01089A
...
4-1
Assy Pcb Sub; Sub Pba,wa7000ha,330*90 SAM-DC92-01624B
...
4
Assy Kit; Owm_Inv,wa7000m,ddm,pba Mems SAM-DC92-01623G
...
5-1
Inlay SAM-DC64-02822V
...
5
Assy Cover Panel; Wa77(5)50,korea,neat Wh SAM-DC97-19690G
...
6
Assy Knob Encoder SAM-DC97-16931B

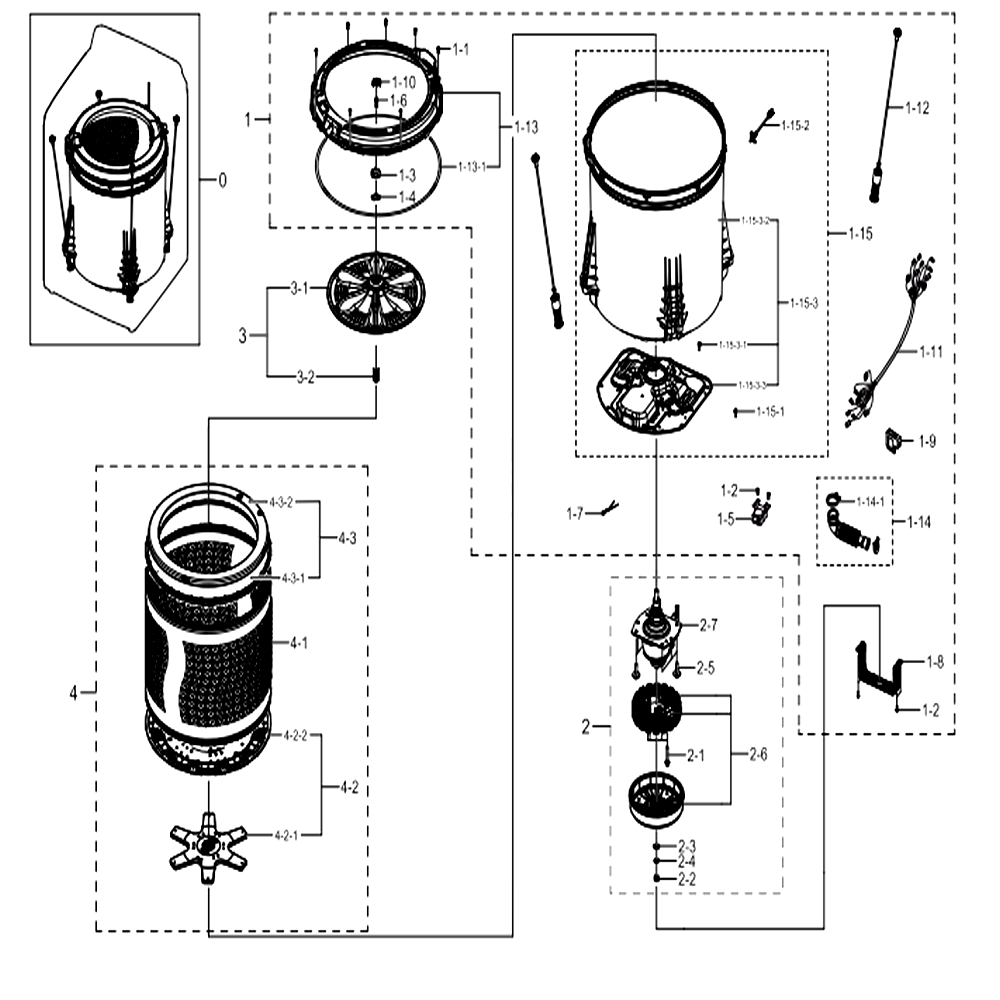

Assy Tub Parts

...
...
1-1
Screw-Tapping; Th,+,no,2,m5,l16,pass,sts4 SAM-6002-001160
...
1-2
Bolt-Hex SAM-6009-001780
...
1-3
Nut-Hexagon SAM-6021-001573
...
1-4
Washer-Wave SAM-6031-002240
...
1-5
Motor Drain SAM-DC31-20014C
...
1-6
Bolt Pulsator SAM-DC60-40133A
...
1-7
Pin Link SAM-DC60-80169A
...
1-8
Support Saddle SAM-DC61-03280A
...
1-9
Link Drain SAM-DC66-00731A
...
1-10
Pulsator Cap SAM-DC66-00032G
...
1-11
Assy Wire Harness-Main; Auto,wa45m7050aw/ SAM-DC93-00715A
...
1-12
Assembly Damper SAM-DC97-05280W
...
1-13-1
Packing-Tub; Wa7000h,rubber,epdm,t3.8,w5. SAM-DC69-01916A
...
1-13
Assy Cover Tub; Wa7700k,wa45h7000aw(p) SAM-DC97-16968E
...
1-14-1
Clamper Hose-Joint; F900a,hswr,white SAM-DC65-00014C
...
1-14
Assy Hose Drain(i); Wa7000h SAM-DC97-17345B
...
1-15-1
Bolt-Hex SAM-6009-001780
...
1-15-2
Assembly Thermistor SAM-DC90-10128N
...
1-15-3-1
Bolt-Hex SAM-6009-001780
...
1-15-3-2
Tub Outer; Wa7000m,pp,natural,nc0001 SAM-DC61-03278C
...
1-15-3-3
Die-Motor SAM-DC61-03307A
...
1-15-3
Assy Tub Sub; Wa8700,global,pp,pump Drain SAM-DC97-19562N
...
1-15
Assy Semi Tub Outer; Wa7000m,ddm,no Heate SAM-DC97-19565G
...
1
Assy Tub Parts; Wa7000m,wa45m7050a*/a4 SAM-DC90-24098C
...
2-1
Bolt-Etc; M6,l45,mfzn,scm435,p1.0/hex/wsp SAM-6011-004528
...
2-2
Nut-Hexagon; 1c,m10x1.5,zpc(wht),sm20c,ny SAM-6021-001253
...
2-3
Washer-Plain; Sts304,id12.5,od30.0,t3.0 SAM-6031-002269
...
2-4
Fastener-Spring; Hudson,mswr-Swrh,ssec;id SAM-DC60-60046A
...
2-5
Assembly Screw SAM-DC91-11258E
...
2-6
Assy Dd Bldc Motor; Hudson,sdm700,f,3p 22 SAM-DC93-00309B
...
2-7
Assy Clutch; Hudson-Pjt,ddm-30a SAM-DC97-16984A
...
2
Cushion Balancer; J2-7000,eps,50x SAM-DC69-02262B
...
3-1
Pulsator SAM-DC66-00717A
...
3-2
Bush Pulsator SAM-DC66-20042A
...
3
Assembly Pulsator SAM-DC97-16977A
...
4-1
Basket Wrapper; Wa456drhdwr,sts430j1l,t0. SAM-DC61-03272G
...
4-2-1
Flange Shaft SAM-DC60-00101A
...
4-2-2
Basket Bowl; Wa7000ha,pp,t3.0,clear Gray( SAM-DC61-03649B
...
4-2
Assy Bowl; Wa7000ha,wa45h7200sw SAM-DC97-18187A
...
4-3-1
Balancer-Low SAM-DC63-01490A
...
4-3-2
Balancer-Up; Wa7000h,wa7700k,pp,-,-,-,-,- SAM-DC63-01871A
...
4-3
Assy Balancer; Wa7000,wa7000-J2 SAM-DC97-18933A
...
4
Assy Basket Spin; J2-7000,wa45h7000a*/a2 SAM-DC97-16990H

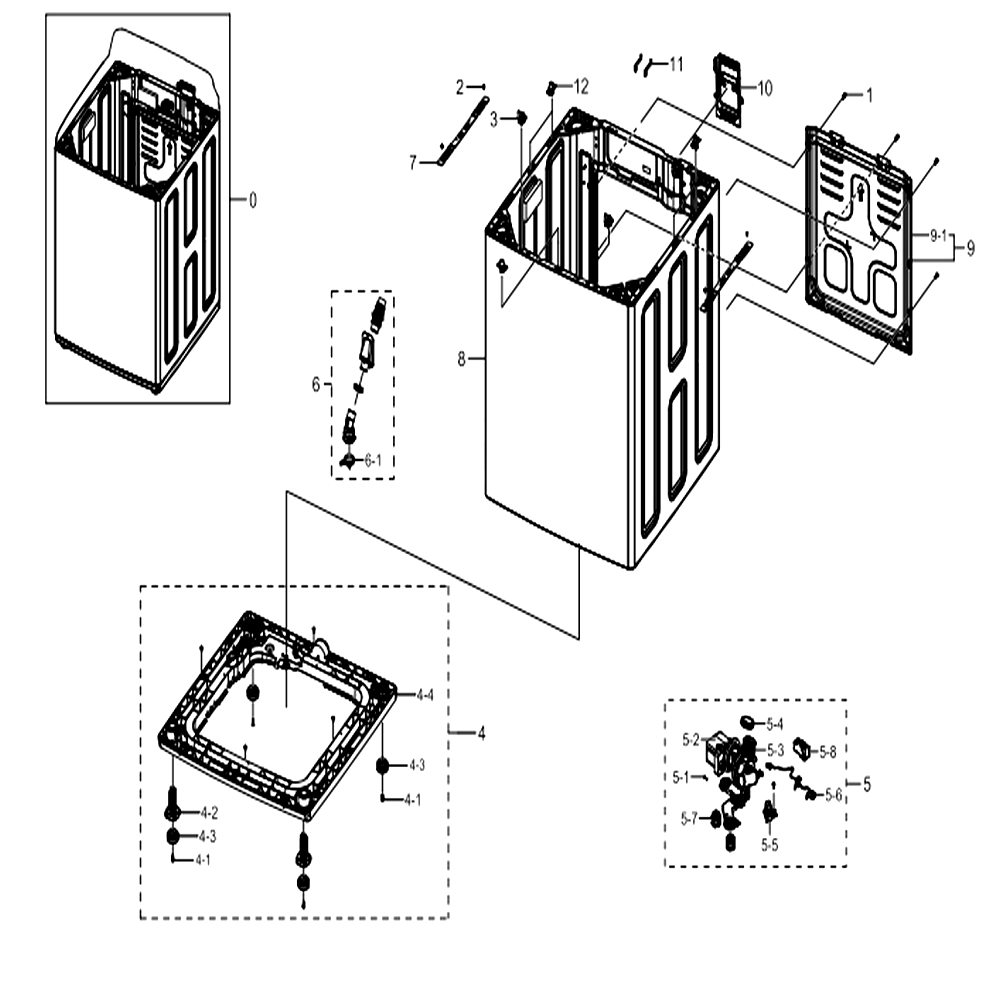

Assy Frame Parts

...
...
0
Assy Frame Case Parts; Wa7000m,wa3000j,ne SAM-DC90-24108A
...
1
Screw-Tapping SAM-6002-000213
...
2
Screw-Tapping SAM-6006-001174
...
3
Fixer-Cover Top SAM-DC61-03174A
...
4-1
Screw-Tapping SAM-6002-000524
...
4-2
Leg Adjust SAM-DC61-01722B
...
4-3
Leg Rubber SAM-DC61-03191B
...
4-4
Base SAM-DC61-03297A
...
4
Assembly Base SAM-DC90-17907C
...
5-1
Screw-Tapping SAM-6002-000524
...
5-2
Motor Ac Pump; Px3516-01/b35-3a,2,120v,60 SAM-DC31-00178D
...
5-3
Case Pump; Hudson Washer,pp,white,fh44n SAM-DC61-03385A
...
5-4
Valve Check; Hudson,nbr,-,black SAM-DC62-00328A
...
5-5
Cushion Pump-Left; F900a,epdm,-,-,- SAM-DC63-01394A
...
5-6
Assy Wire Harness-Pump; Auto,wa50k8600ap/ SAM-DC93-00616A
...
5-7
Assy Cushion Pump; F900a,f900a,od27.0 SAM-DC98-01438A
...
5-8
Cover Pump; F900a,pp,-,-,white,fh44n SAM-DC63-01586A
...
5
Assy Pump Drain; Wa8(7)700k,al Coil,120v, SAM-DC97-19289B
...
6-1
Clamper Hose; Atv,sk5,natural,zpc2 SAM-DC65-00027D
...
6
Assembly Hose Drain SAM-DC97-18682C
...
7
Bracket Frame; Wa8700j,gi-Sgcc,t3.0 SAM-DC61-04203A
...
8
Frame SAM-DC61-03263A
...
9-1
Cover Back SAM-DC63-01447A
...
9
Assembly Cover Back SAM-DC97-16982A
...
10
Assembly Cover Wire SAM-DC97-17422A
...
11
Bush Pin; Wa8700,swrch10a SAM-DC61-04207A
...
12
Guide Cover Top SAM-DC61-03400A

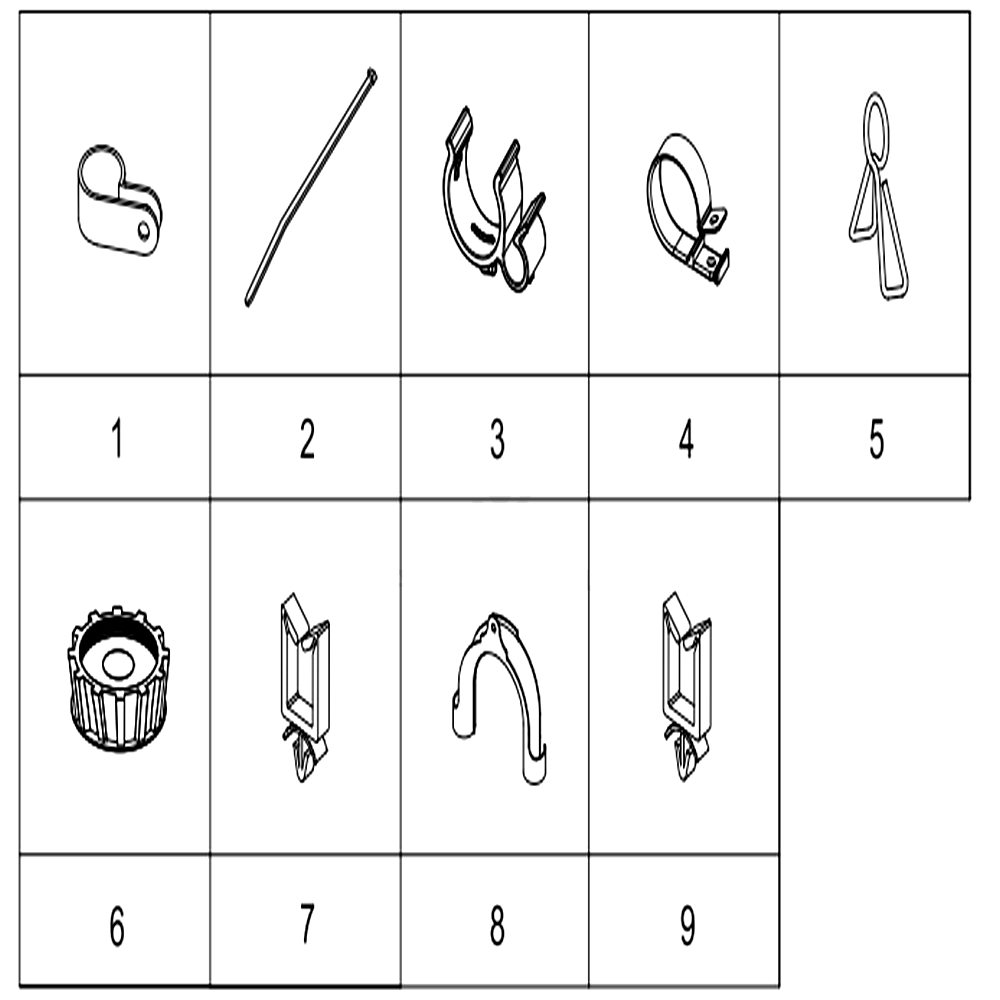

Small Parts

...
...
1
Cable Clamp SAM-DC65-20008C
...
2
Cable Tie SAM-6501-000121
...
3
Clamper Hose-Fix SAM-DC65-00038A
...
4
Clamper Hose; Hudson Washer,pp,ntr SAM-DC65-00047A
...
5
Spring Clip SAM-DC61-70184A
...
6
Assembly Cap V.w SAM-DC97-18313A
...
7
Cable Clamp SAM-DC61-00553B
...
8
Hanger Clamper; Pp,t1.5,black,rm60c SAM-DC61-00224B
...
9
Cable Clamp SAM-DC61-00553B
