Samsung UN82NU800DFXZA_FA01

Model: UN82NU800DFXZA_FA01

Save Part Not Listed?

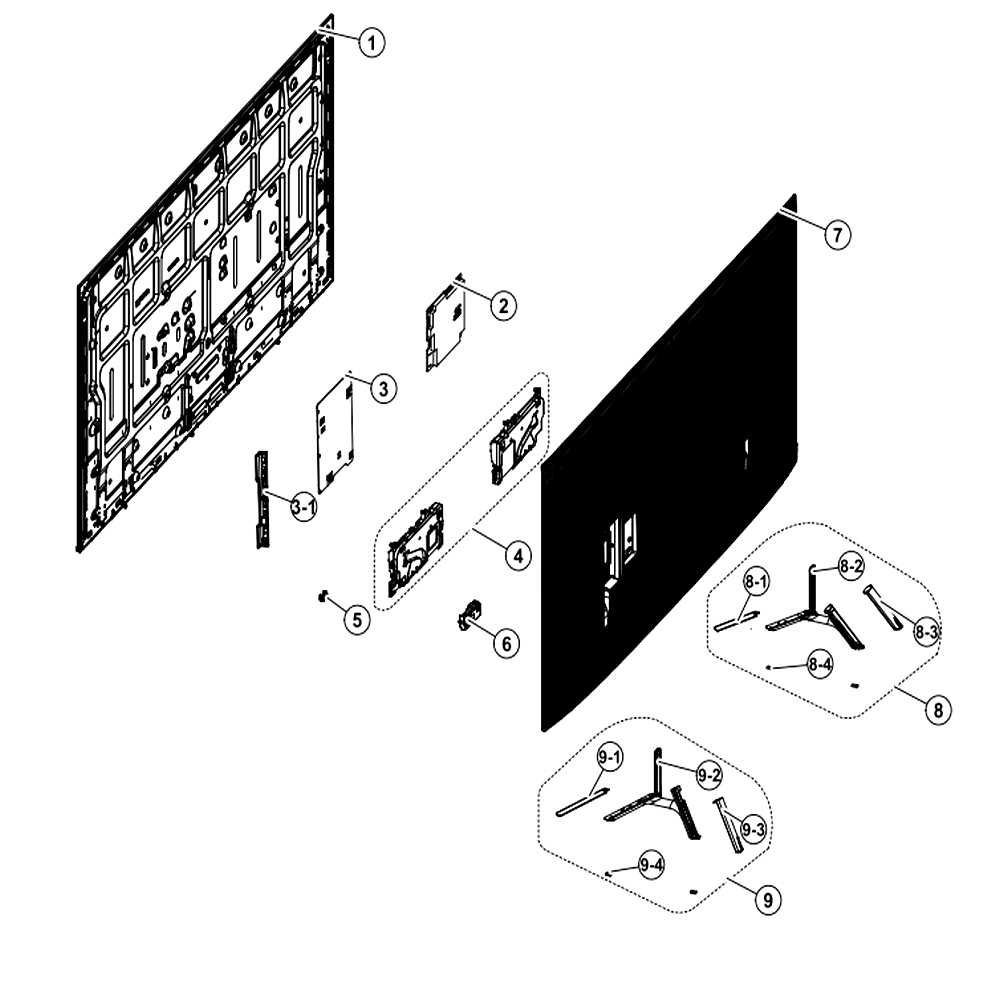

Main

Product Lcd-Sdc; Cy-Sn082fllv2v/h,nu8000, SAM-BN95-04727B

Dc Vss-Pd Board; L82e7nr_Ndy,ac/dc,270w,a SAM-BN44-00881B

3-1

Cover-Terminal Side; 65unu8000f,hips,hb,b SAM-BN63-17513A

Assy Pcb Main; 82unu8000f SAM-BN94-12929A

Assy Speaker P-Front; Tv-Spk,mu7000,6ohm, SAM-BN96-42489B

Assembly Board P-Function Tact SAM-BN96-39802C

Network-Wlan Client; Wcm730q,78.3x29.3x7. SAM-BN59-01264B

Assy Cover P-Rear; 82unu8000f,pc+abs+ed20 SAM-BN96-45829A

8-1

Cover-Stand Top Front Right; 82qnq6fs,abs SAM-BN63-17476B

Assy Stand P-Bracket Bottom Right; 82qnq6 SAM-BN96-45991B

8-4

Foot-Rubber; Led_J4000,si,gray,w8,l15.5,t SAM-BN67-00538A

8-3

Cover-Stand Top Rear Right; 82qnq6fs,abs, SAM-BN63-17484B

8-2

Bracket-Stand Bottom Right; 82qnq6fs,aldc SAM-BN61-14841D

9-1

Cover-Stand Top Front Left; 82qnq6fs,abs, SAM-BN63-17486B

9-2

Bracket-Stand Bottom Left; 82qnq6fs,aldc, SAM-BN61-15506B

9-3

Cover-Stand Top Rear Left; 82qnq6fs,abs,h SAM-BN63-17481B

9-4

Foot-Rubber; Led_J4000,si,gray,w8,l15.5,t SAM-BN67-00538A

Assy Stand P-Bracket Bottom Left; 82qnq6f SAM-BN96-45993B
