product name

Samsung UN78KU750DFXZA_YA01

Model: UN78KU750DFXZA_YA01

Save Part Not Listed?

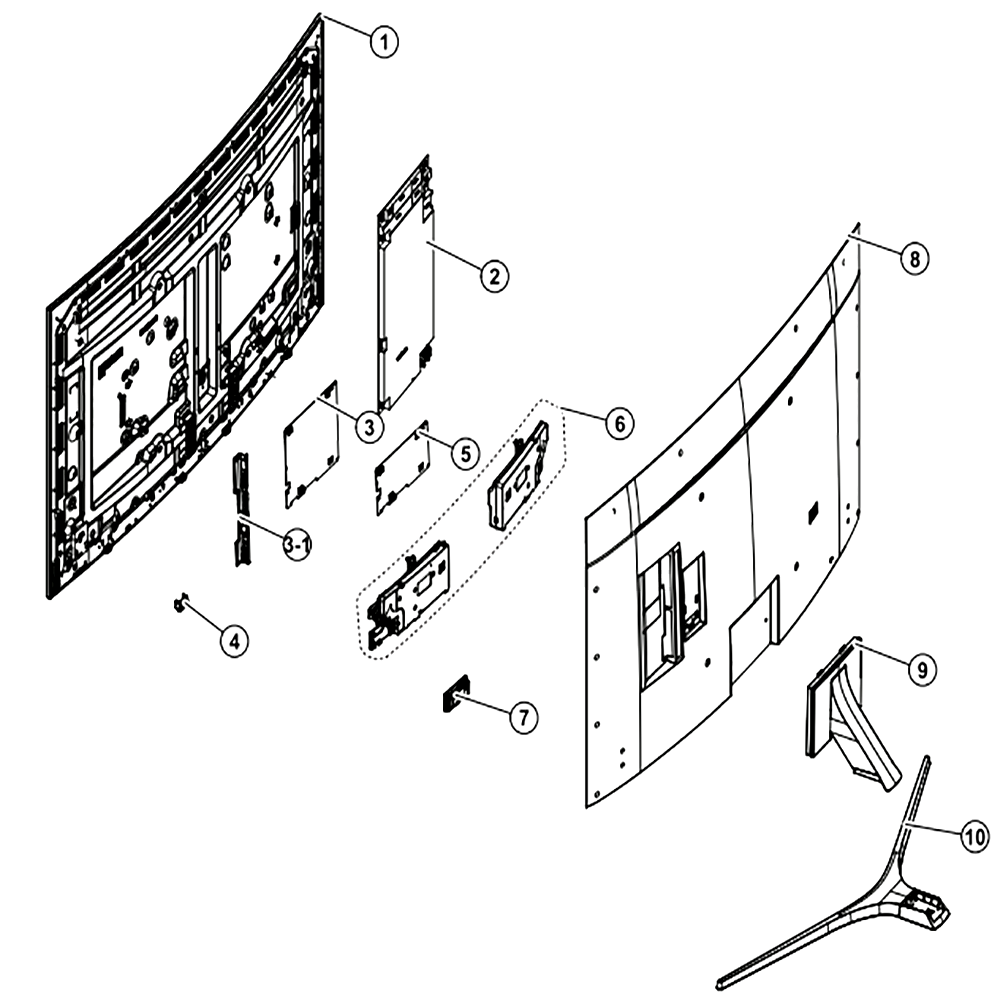

product name

Main

...
...
1
Product Lcd-Sdc; Cy-Wk078fglv1v/h,ku6500, SAM-BN95-02732A
...
2
Dc Vss-Pd Board; L78s6n_Khs,ac/dc,299w,ac SAM-BN44-00874B
...
3-1
Cover-Terminal Side SAM-BN63-15236A
...
3
Assy Pcb Main; Led 6k Tv SAM-BN94-10787M
...
4
Assembly Board P-Function Tact SAM-BN96-39802C
...
5
Assy T Con; Ku6500 78inch,jazz-Ft SAM-BN95-02749A
...
6
Assy Speaker P-Front; Tv-Spk,ku6500,6ohm, SAM-BN96-39968C
...
7
Network-Wlan Client SAM-BN59-01239A
...
8
Assy Cover P-Rear; 78ku6500,pc+abs+ed20%, SAM-BN96-41004L
...
9
Assy Guide P-Stand; 78ku6400,pc+gf20%,bla SAM-BN96-40159A
...
10
Assy Stand P-Bottom; 78ku6500,pc+abs,moon SAM-BN96-40200B
