Samsung UN78KS9500FXZA-FA01

Model: UN78KS9500FXZA-FA01

Save Part Not Listed?
product name

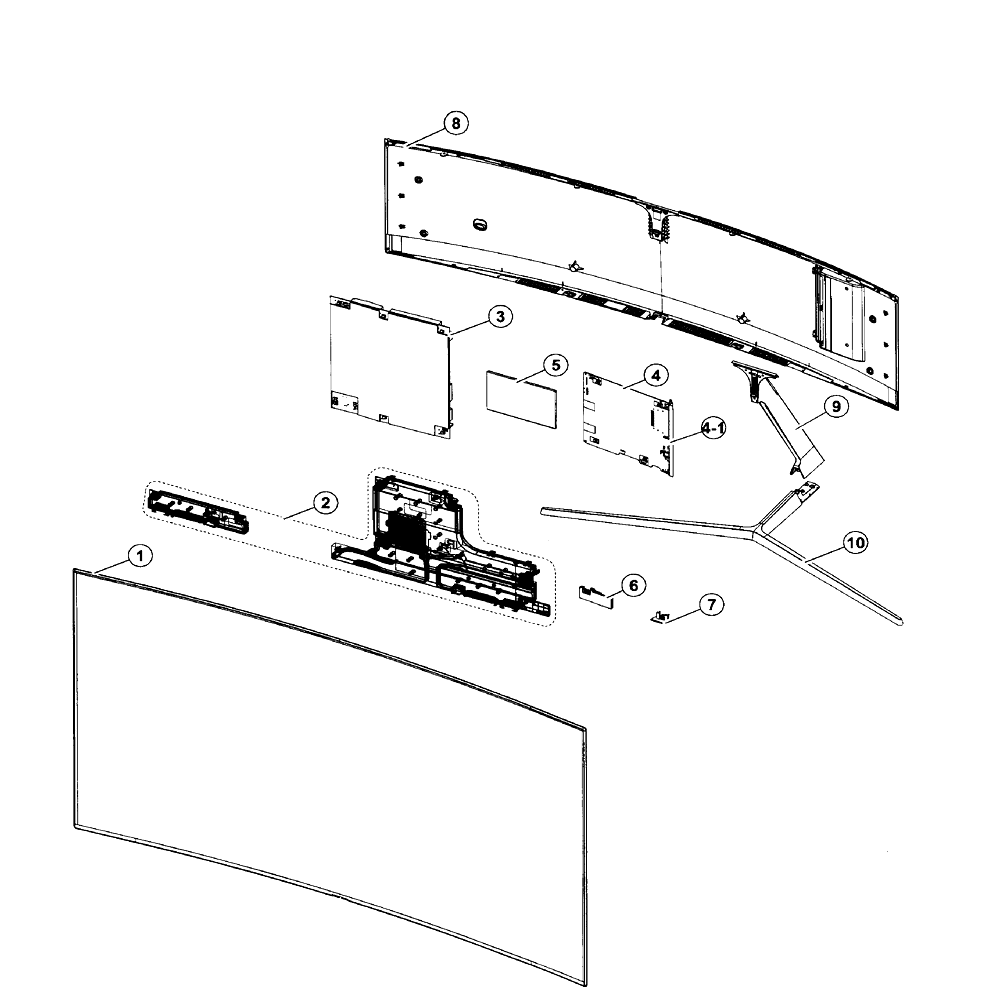

Main Assy

...
...
1
Lcd Panel Sdc SAM-BN95-02596B
...
2
Assembly Speaker P-Front SAM-BN96-39963A
...
3
Dc Vss-Pd Board; L78e8n_Kdy,ac/dc,371w,10 SAM-BN44-00881A
...
4-1
Cover-Terminal Side; 55ks9000,hips,mold,h SAM-BN63-15050C
...
4
Main Pcb Assembly SAM-BN94-10956Z
...
5
Assembly T Con SAM-BN95-02748A
...
6
Network-Wlan Client SAM-BN59-01239A
...
7
Assy Board P-Function Tact; Ks9000,sj16-0 SAM-BN96-39802A
...
8
Cover Assembly P-Rear Bottom SAM-BN96-39797A
...
9
Assembly Stand P-Cover Neck SAM-BN96-39931D
...
10
Assy Stand P-Bottom; 75ks8000,aldc,natura SAM-BN96-39934A

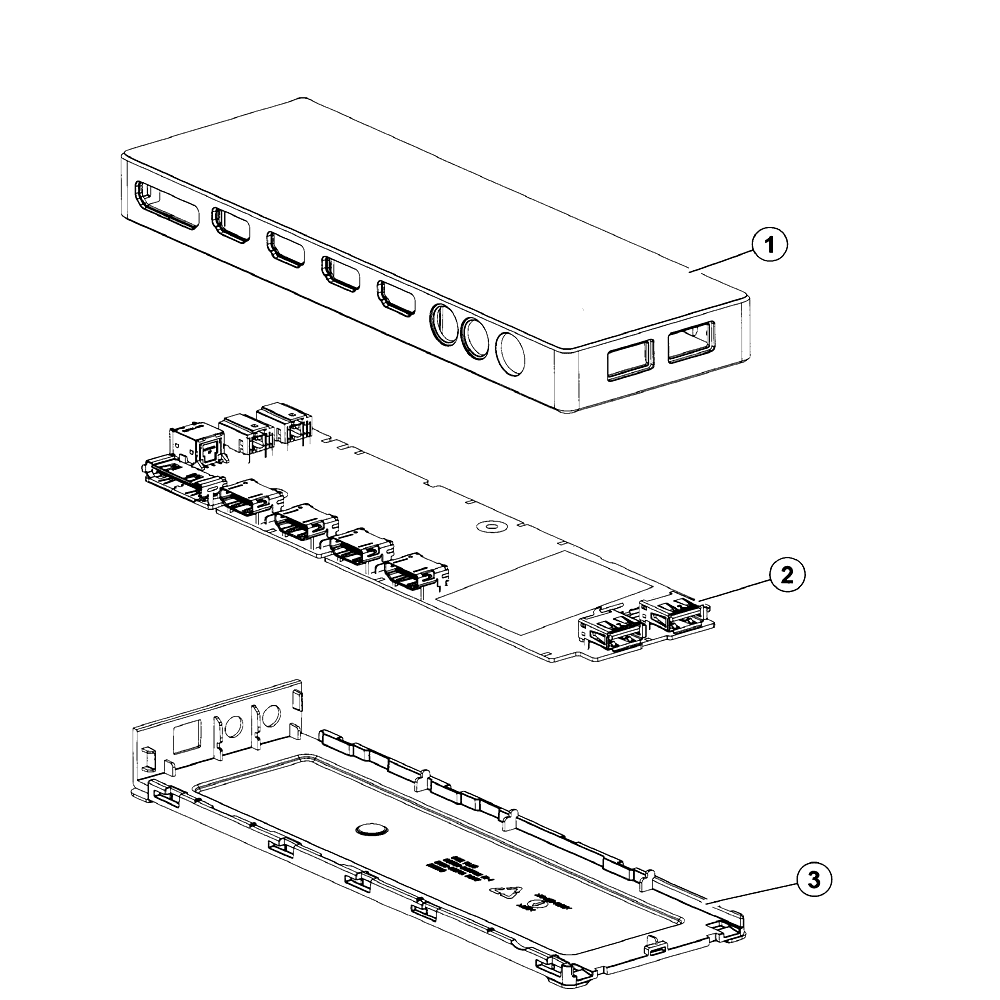

One Connect

...
...
1
Assembly Cover P-Top SAM-BN96-40188B
...
2
Assembly Pcb Misc-One Connect Mini SAM-BN94-10924A
...
3
Cover-Bottom SAM-BN63-15074B
