Samsung UN75MU630DFXZA_DA02

Model: UN75MU630DFXZA_DA02

Save Part Not Listed?
product name

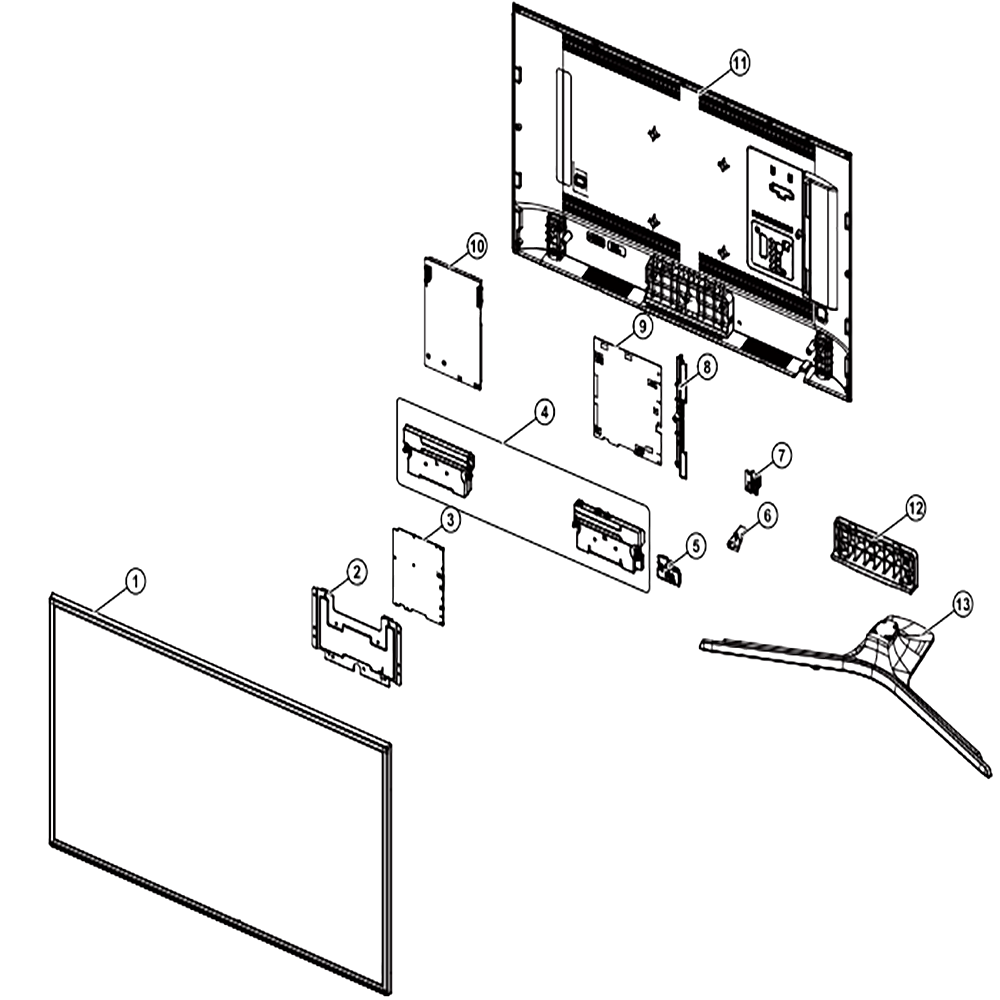

Main

...
...
1
Product Lcd-Inx; Cy-Gm075fgnv1v/h,mu6100, SAM-BN95-04117A
...
2
Bracket-Stand Link; Hgi-Sghc,t2,natural SAM-BN61-11518B
...
3
Assy Pcb P-Tcon; Inx16y75"120hz10bitmu7/8 SAM-BN96-45108A
...
4
Assy Speaker P; 6ohm,4pin,10w,ju6400 65" SAM-BN96-35006D
...
5
Network-Wlan Client SAM-BN59-01264A
...
6
Assembly Board P-Ir Function SAM-BN96-39955A
...
7
Assembly Board P-Function Jog SAM-BN96-35345B
...
8
Cover-Terminal Side SAM-BN63-16652A
...
9
Assy Pcb Main; Ledtv 6k SAM-BN94-12442E
...
10
Dc Vss-Led Tv Pd Bd; L75s6tn_Fdy,l75s6tn_ SAM-BN44-00809A
...
11
Assy Cover P-Rear; 75mu6100,pc+abs+gf15%, SAM-BN96-43329A
...
12
Assy Guide P-Stand; 75mu6100,pc+gf20%,bla SAM-BN96-43506A
...
13
Assy Stand P-Bottom; 78ku6500,pc+abs,moon SAM-BN96-40200B
