Samsung UN75JU7100FXZA_TS01

Model: UN75JU7100FXZA_TS01

Save Part Not Listed?
product name

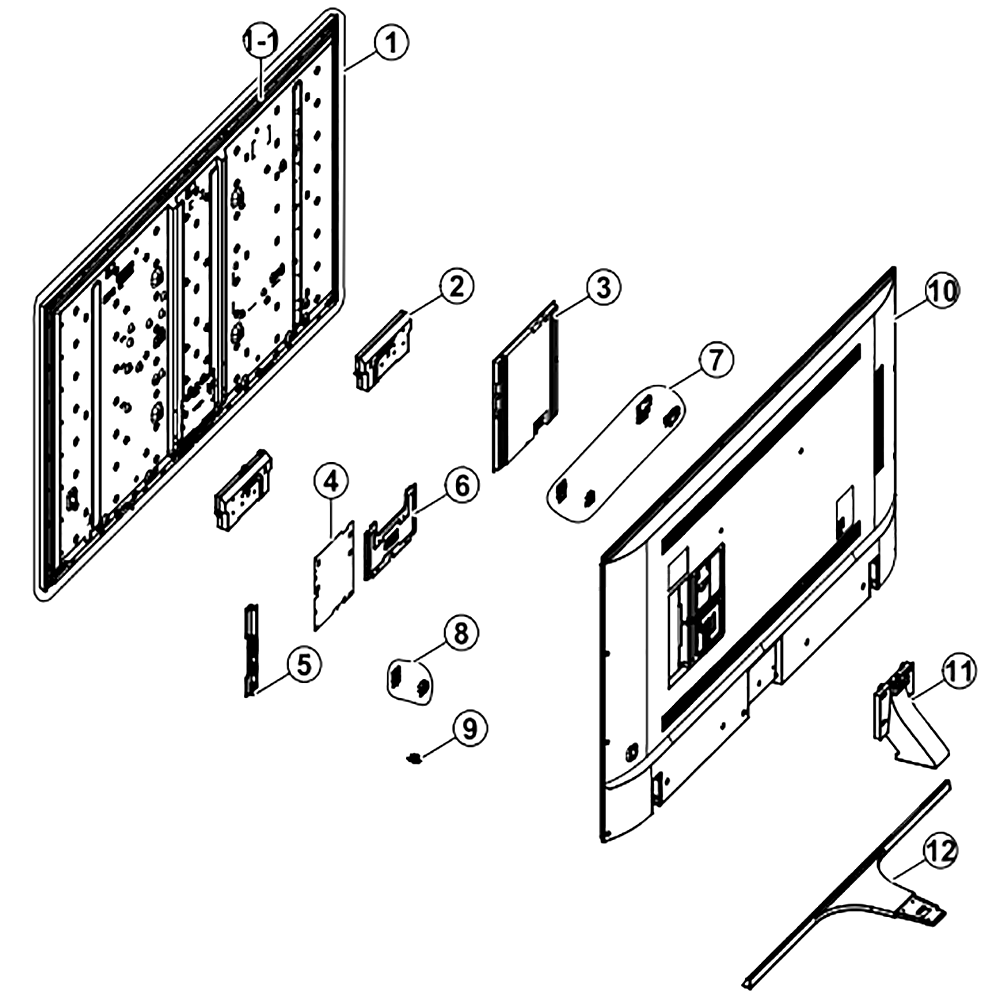

Main

...
...
1-1
Assy Chassis Top P; Y15 Flat Ju7000,75,bn SAM-BN96-35028A
...
1
Product Lcd-Amlcd; Cy-Gj075fllv1v,ju7000, SAM-BN95-01977A
...
2
Assy Speaker P; 6ohm,4pin,10w,ju6400 65" SAM-BN96-35006D
...
3
Dc Vss-Led Tv Pd Bd; L78s7n_Fsm,l78s7n_Fs SAM-BN44-00813A
...
4
Assy Pcb Main; Ju7000 SAM-BN94-08410J
...
5
Holder-Side Av SAM-BN61-11927A
...
6
Bracket-Stand Link; Hgi-Sghc,t2,natural SAM-BN61-11518B
...
7
Network SAM-BN59-01194F
...
8
Assembly Board P-Function Jog SAM-BN96-35345B
...
9
Assembly Board P-Function Assy SAM-BN96-35346B
...
10
Assy Cover P-Rear; Ju7000,75",pc+abs Gf15 SAM-BN96-35661A
...
11
Assy Guide P-Stand Neck; Ju7000 75",abs B SAM-BN96-35527B
...
12
Assy Stand P-Base; J7000,dia15.9 Hgi,75 SAM-BN96-35545A
