Samsung UN75JU6500FXZA_UD02

Model: UN75JU6500FXZA_UD02

Save Part Not Listed?
product name

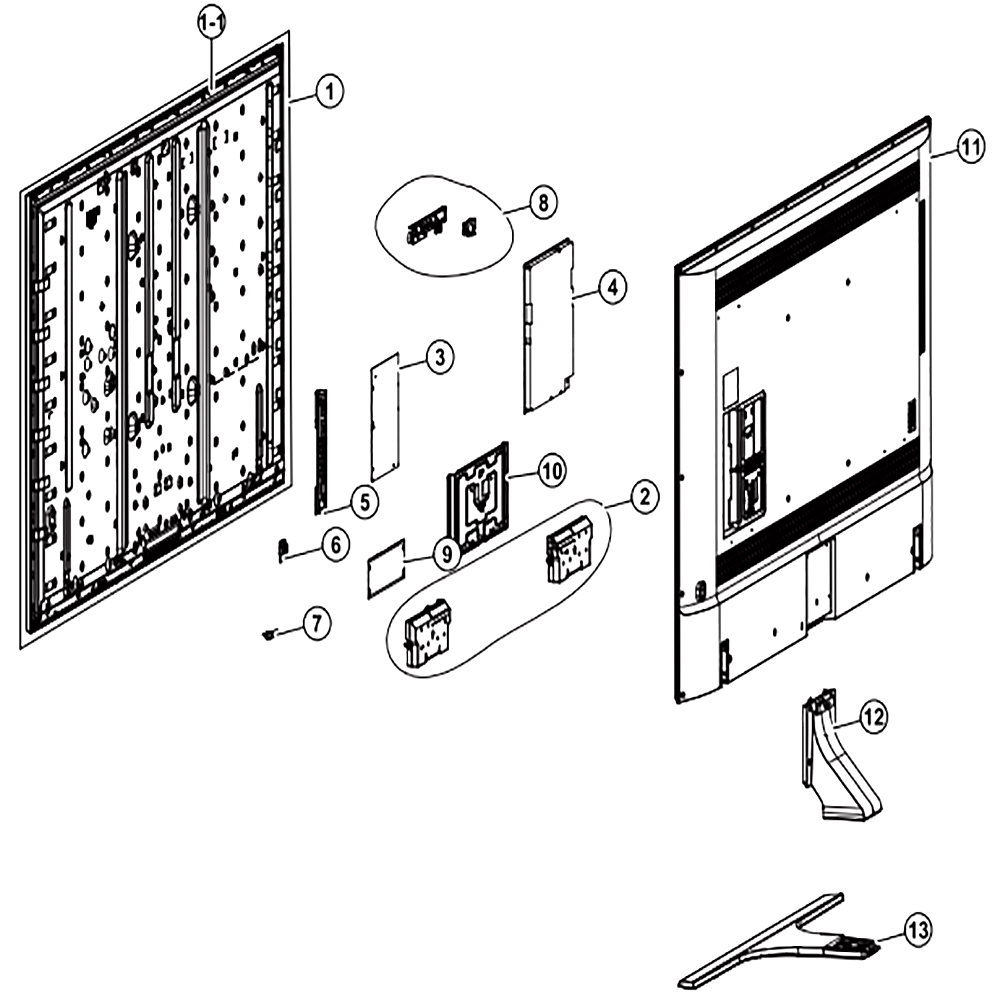

Main

...
...
1-1
Assy Chassis Top P; Y15_Ju6.4k_75,pc+abs SAM-BN96-35599A
...
1
Product Lcd-Amlcd; Cy-Gj075hglv5v,ju6400, SAM-BN95-02001G
...
2
Assy Speaker P; 6ohm,4pin,10w,ju6400 65" SAM-BN96-35006D
...
3
Assy Pcb Main; Uhd 6k SAM-BN94-10057Y
...
4
Dc Vss-Led Tv Pd Bd; L75s6tn_Fdy,l75s6tn_ SAM-BN44-00809A
...
5
Holder-Side Av SAM-BN61-11587A
...
6
Assembly Board P-Function Jog SAM-BN96-35345B
...
7
Assembly Board P-Function Assy SAM-BN96-35346D
...
8
Network-Wlan Client SAM-BN59-01194A
...
9
Assy T Con P; Lmf750fj02-K,lmf750fj02-K,8 SAM-BN96-35079B
...
10
Assy Bracket P-Stand Link; Ju7k 75",hgi-S SAM-BN96-37262B
...
11
Assy Cover P-Rear; 75ju6400,usa,pc+abs Gf SAM-BN96-35661H
...
12
Assy Guide P-Stand; Ju6400,75" SAM-BN96-35976A
...
13
Assy Stand P-Base; Ju6400,75" SAM-BN96-35981A
